MasterCraft 060-0590-0 User manual

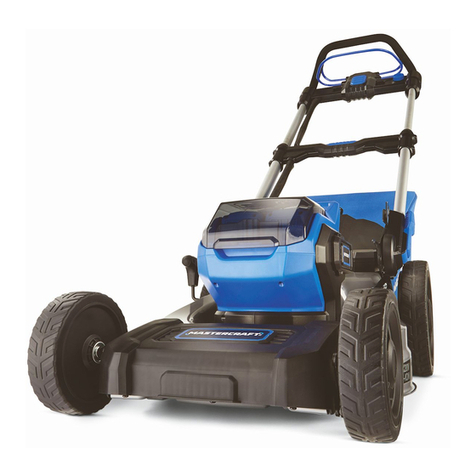

2-IN-1 SELF-PROPELLED
BRUSHLESS LAWN MOWER
060-0590-0
IMPORTANT:
Read and understand this instruction manual thoroughly
before using the product.
INSTRUCTION
MANUAL

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
3
TABLE OF CONTENTS
Technical Specifications 4
Safety Guidelines 5
Key Parts Diagram 10
Operating Instructions 11
Maintenance 15
Troubleshooting 17
Parts List 18
Warranty 22
TABLE OF CONTENTS
NOTE:
If any parts are missing or damaged, or if you have any questions,
please call our toll-free helpline at 1-800-689-9928.
SAVE THESE INSTRUCTIONS
• This manual contains important safety and operating instructions. Read all
instructions and follow them with use of this product.

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 060-0590-0 | contact us 1-800-689-9928
4
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Rated Voltage 40 V d.c. max.*
Deck Size 19” (48 cm)
Cutting Height 1 1/2 to 3” (3.8 to 7.6 cm)
*Maximum battery voltage without workload; with workload nominal voltage is 18 V.
NOTICE: The mower needs two 20 V max* batteries to work.

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
5
SAFETY GUIDELINES:
WARNING!
Safety symbols in this Instruction Manual are used to flag possible dangers. The safety
symbols and their explanations require your full understanding. The safety warnings do not,
by themselves, eliminate any danger, nor are they substitutes for proper accident prevention
measures.
IMPORTANT
This tool should only be serviced by a qualified service technician. For more information, call the
toll-free helpline at 1-800-689-9928. This machine is capable of amputating hands and feet and
throwing objects. Failure to observe the following safety instructions could result in serious injury or
death.
WARNING!
When using electric lawn mowers, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and personal injury.
WARNING!
Read all safety warnings and instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
READ ALL INSTRUCTIONS
GENERAL INFORMATION
• Read, understand, and follow instructions and warnings in this manual and on the machine and
attachments.
• Only allow operators who are responsible, trained, familiar with the instructions, and physically
capable to operate the machine.
• Do not operate the machine while under the influence of alcohol or drugs.
PREPARATION BFEORE OPERATING
• Clear the operation area of any objects which could be thrown by or interfere with operation of
the machine.
• Keep the area of operation clear of all bystanders, particularly small children. Stop the machine
and attachment(s) if anyone enters the area.
• Do not operate the machine without the entire grass catcher, discharge chute, or other safety
devices in place and functioning properly. Check frequently for signs of wear or deterioration and
replace as needed.
• Wear appropriate personal protective equipment such as safety glasses, hearing protection, and
footwear.
SAFETY GUIDELINES

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
6
model no. 060-0590-0 | contact us 1-800-689-9928
CHILDREN SPECIFIC
• Tragic accidents can occur if the operator is not alert to the presence of children. Children are
often attracted to the machine and mowing activity. Never assume that children will remain
where you last saw them.
• Keep children out of the operating area and under the watchful care of a responsible adult other
than the operator.
OPERATING
• Only operate the machine in daylight or good artificial light.
• Avoid holes, nuts, bumps, rocks, or other hidden hazards. Uneven terrain could overturn
the machine, or cause operator to lose the balance or footing.
• Do not put hands or feet near rotating parts of under the machine. Keep clear of the
discharge opening at all times.
• Do not direct discharge material toward anyone. Avoid discharging material against a wall
or obstruction. Material may ricochet back toward the operator. Stop the blade(s) when crossing
gravel surface.
• Do not mow in reverse unless absolutely necessary. Always look down and behind before
and when backing up.
• Avoid dangerous environment. Don’t use lawn mowers in damp or wet locations.
• Keep children away. All visitors should be kept a safe distance from work area.
• Dress properly. Do not wear loose clothing or jewellery. They can be caught in moving parts.
Use of rubber gloves and footwear is recommended when working outdoors.
• Use safety glasses. Always use face or dust mask if operation is dusty.
• Use right appliance. Do not use lawn mower for any job except that for which it is intended.
• Don’t force lawn mower. It will do the job better and safer at the rate for which it was
designed.
• Don’t overreach. Keep proper footing and balance at all times.
• Stay alert. Watch what you are doing. Use common sense. Do not operate lawn mower when
you are tired.
• Store idle lawn mower indoors. When not in use, lawn mower should be stored in an indoor,
dry and locked-up place out of reach of children.
• Maintain lawn mower with care. Keep cutting edges sharp and clean for best and safest
performance. Follow instructions for lubricating and changing accessories. Inspect lawn mower
cord periodically and if damaged, have it repaired by an authorized service facility. Keep handles
dry, clean, and free from oil and grease.
• Keep guards in place and in working order.
• Keep blades sharp.
• Keep hands and feet away from cutting area.
SAFETY GUIDELINES

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
7
• Objects struck by the lawn mower blade can cause severe injuries to persons. The lawn
should always be carefully examined and cleared of all objects prior to each mowing.
• If lawn mower strikes a foreign object, follow these steps: 1) Stop lawn mower; release the
switch. 2) Detach the battery pack. 3) Inspect for damage. 4) Repair any damage before restarting
and operating the lawn mower.
• Use identical replacement blades only.
• Use extra care while operating machine with grass catcher or other attachment(s).
They can affect the stability of the machine.
SAFETY GUIDELINES FOR BATTERY-OPERATED TOOLS
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the
switch or energizing an appliance that has the switch on invites accidents.
• Disconnect the battery pack from the appliance before making any adjustments,
changing accessories, or storing appliance. Such preventive safety measures reduce the
risk of starting the appliance accidentally.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable
for one type of battery pack may create a risk of fire when used with another battery pack.
• Use appliances only with specifically designated battery packs. Use of any other battery
packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the battery terminals together may cause
burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact.
If contact accidentally occurs, flush with water. If liquid contacts eyes, seek additional
medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or appliance that is damaged or modified. Damaged or
modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to
fire or temperature above 130°C (265°F) may cause an explosion.
• Follow all charging instructions and do not charge the battery pack or appliance
outside of the temperature range specified in the instructions. Charging improperly or at
temperatures outside of the specified range may damage the battery and increase the risk of fire.
• Have servicing performed by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack (as applicable)
except as indicated in the instructions for use and care.
SAFETY GUIDELINES

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
8
model no. 060-0590-0 | contact us 1-800-689-9928
OPERATION ON A SLOPE
Slopes are a major factor related to slip-and-fall accidents, which can result in severe injury. Operation
on slopes requires extra caution. If you feel uneasy on a slope, do not mow it.
Mow across the face of slopes; never mow up and down. Exercise extreme caution when changing
direction on slopes.
• Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall
grass can hide obstacles.
• Do not mow near drop-offs, ditches or embankments; you could lose your footing or balance.
• Do not mow slopes greater than 15 degrees. Do not mow on wet grass. Unstable footing could
cause slipping.
• Do not operate machine under any condition where traction, steering, or stability is in question.
Tires could slide even if the wheels are stopped.
• Always keep the machine in gear when going down slopes. Do not coast downhill.
• Avoid starting and stopping on slopes. Avoid making sudden changes in speed or direction. Make
turns slowly and gradually.
ADDITIONAL SAFETY GUIDELINES FOR LAWN MOWER
• The label on your tool may include the following symbols. The symbols and their
definitions are as follows:
V ...................... Volts
A ...................... Amperes
W ..................... Watts
min .................. Minutes
or d.c. .... Direct current
n0 ..................... No-load speed
................. Class II construction
RPM ................. Revolutions per minute
................. WARNING–To reduce the risk of injury, user must read instruction manual.
................. WARNING–To reduce the risk of injury, always wear eye protection.
................. WARNING–To reduce the risk of injury, always wear ear protection.
... Maintain safety devices: Do not open or remove safety shields while the tool is
running.
........... Look behind when backing up. Look down and behind first to avoid tripping
when pulling back.
SAFETY GUIDELINES

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
9
SAFETY GUIDELINES
KEEP HANDS and FEET AWAY
...... DANGER–Keep hands and feet away. To reduce the risk of injury, keep hands
and feet away from rotating parts. Do not operate unless discharge cover or
grass bag is in its proper place. If damaged, replace immediately.
................ DANGER–Keep bystanders away. Do not mow when children or others are
around.
................... DANGER–Thrown debris. Remove objects that can be thrown by the blade in
any direction. Wear safety glasses.
................... DANGER–Steep slope hazard. Use extra caution on slopes.
Do not mow slopes greater than 15 degrees.
WARNING!
To reduce the risk of electric shock or damage to the charger and battery, use only the
Mastercraft®battery and chargers listed.
BATTERY PACK CHARGERS
054-7557-6, 054-7553-4,
054-3124-0, 054-2434-8 054-3126-6, 054-7559-2
• Use only those accessories and attachments (blade, grass collection bag, etc.) that
have been found to be acceptable for the lawn mower. Use of any other accessory or
attachment might increase the risk of injury.
• For best results, your battery and tool should be stored, charged and used in a location
where the temperature is more than 5°C (41°F) but less than 40°C (104°F). Do not store
outside or in vehicles.
• Do not wash the mower with a hose. Avoid getting water in the motor and electrical
connections.
• To reduce a fire hazard, keep the motor cover free of grass, leaves and debris build-up.
SAVE THESE INSTRUCTIONS!

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 060-0590-0 | contact us 1-800-689-9928
10
KEY PARTS DIAGRAM
WARNING!
• Remove the lawn mower from the package and examine it carefully. Do not discard the carton or any
packaging material until all parts have been examined.
• If any part of the lawn mower is missing or damaged, do not attach the battery pack to the tool or use the tool
until the part has been repaired or replaced. Failure to heed this warning could result in serious injury.
• Do not allow familiarity with the lawn mower to cause a lack of alertness. A fraction of a second of
carelessness is enough to cause severe injury.
FPO
PACKAGE CONTENTS:
Cordless lawn mower, grass collection bag, mulching insert (inside of the mower).
KEY PARTS DIAGRAM
3
1
4
9
8
52
10
7
No. Description No. Description
1 Self-propelling lever 8 Lower handle bar
2 Grip handle 9 Rear-discharge door
3 Speed dial 10 Cutting-height-adjustment lever
4 Start lever 11 Battery compartment
5 Safety lock-off switch 12 Clamp lever
6 Upper handle bar 13 Grass collection bag
7 Unlock button
Before attempting to use this tool, become familiar with all of its operating features and safety requirements.
For optimum performance and safety, read the following operating instructions carefully before using.
6
11 12
13

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
11
OPERATING INSTRUCTIONS
WARNING!
• In order to avoid pinching your hands or fingers, do not hold the handle bar at the joints.
FPO
OPERATING INSTRUCTIONS
UNFOLD THE HANDLE BAR (fig. 1)
1. Put the product on the ground. Note that it is
delivered with the handle bar in its storage position.
2. Pull the clamp lever outwards, hold it in position,
and then rotate the lower handle bar clockwise to
put the product from storage to working position.
3. Release the clamp lever and keep rotating the
handle bar until the lock pin of clamping lever
engaged in the upper hole or lower hole on the
supporting plate, depending on the required handle
height.
4. Press the unlock button, hold it in position, and
then gradually pull out upper handle bar until the
bar reaches STOP position.
5. Release the unlock button and ensure the upper
handle bar is secured.
fig. 1a
Clamping lever
Upper hole
Lower
hole
Supporting
plate
fig. 1c
Unlock button
Upper
handle
bar
NOTICE:
• Pull or push the upper handle bar gently. Do not use sudden force.
• The upper handle bar can only be secured in its lower or upper position.
• The power can only be activated once the upper handle bar is secured at the STOP position.
fig. 1b
Lower hole
Lock pin

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
12
model no. 060-0590-0 | contact us 1-800-689-9928

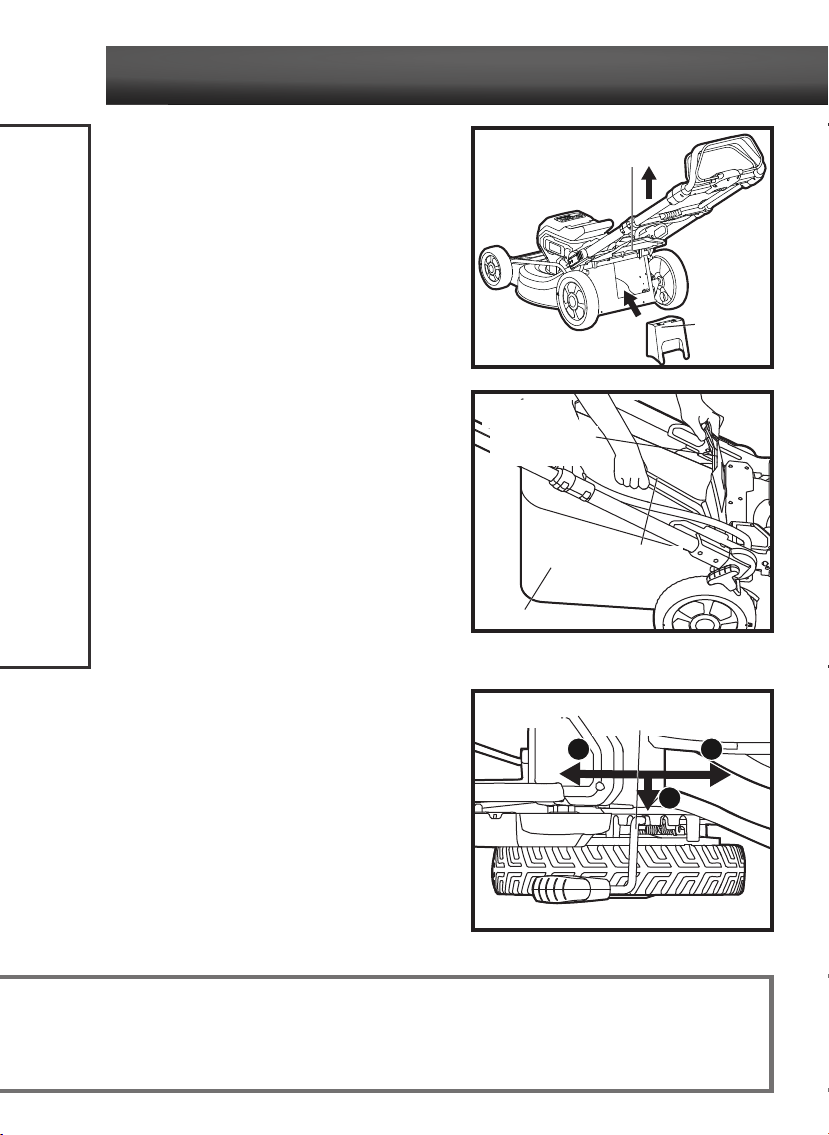

ATTACH/REMOVE THE MULCHING INSERT
(fig. 2)
1. Lift the rear-discharge door and insert the mulching
insert into the grass outlet of the mower, then
release the rear-discharge door.
2. To remove, lift the rear-discharge door and just
pull the mulching insert out, then release the rear-
discharge door.
ATTACH/REMOVE THE GRASS
COLLECTION BAG (fig. 3)
1. Remove the pre-installed mulching insert before
attaching the grass collection bag to the mower.
2. Use one hand to lift the rear-discharge door; use
your other hand to hold the handle bar of the grass
collection bag. To assemble, align the rods on the
grass collection bag with the slots on the mower.
3. To remove the grass collection bag, just lift
the rear-discharge door and remove the grass
collection bag rods from the mower.
ADJUST THE CUTTING HEIGHT (fig. 4)
Pull out the cutting-height-adjustment lever from the
slot and move forward or backward to adjust the cutting
height. The mower has five slots which can adjust the
cutting height from about 1 1/2 to 3” (3.8 to 7.6 cm). Do
not place the lever out of the five slots.
OPERATING INSTRUCTIONS
NOTICE:
• The mulching insert must be removed in order to install and use the grass collection bag.
• Use the mulching insert without the grass collection bag to get more finely cut grass clippings on your lawn.
• Empty the grass collection bag frequently during use. Do not wait until it is completely full. We recommend emptying
it when it is half full.
fig. 3
Rear-discharge
door
Grass collection bag
Handle bar
fig. 2 Rear-discharge
door
Mulching
insert
1
2 2
fig. 4 Cutting-height-
adjustment lever

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
13

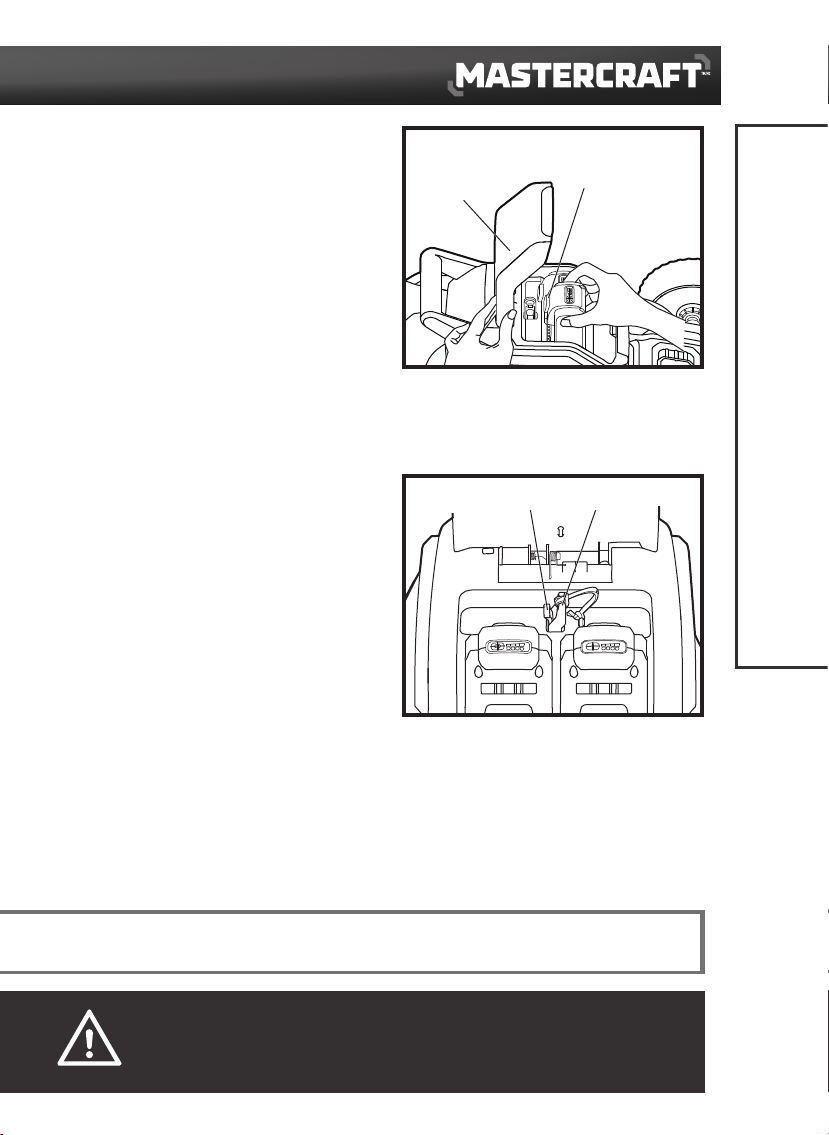

TO ATTACH THE BATTERY (fig. 5)
1. Open the protective cap of the battery
compartment.
2. Align the raised portion on the battery pack with
the grooves inside of the battery compartment, and
then slide the battery pack onto the mower.
3. Ensure that the battery-release button on the
battery pack snaps into place and the battery pack
is secured to the tool before beginning operation.
TO DETACH THE BATTERY (fig. 5)
1. Open the protective cap of the battery compartment.
2. Depress the battery-release button located on the front of the battery pack to release the battery.
3. Pull rearward on the battery pack to remove it from the tool.
SAFETY KEY (fig. 6)
In order to prevent accidental start-up or
unauthorized use of your cordless mower, a
removable safety key has been incorporated into the
design of your mower.
The mower will be completely disabled when the
safety key has been removed from the mower. Press
the lever, insert the safety key into the assembly slot,
and then the mower may be operated.
OPERATING INSTRUCTIONS
WARNING!
• Keep your feet away from the deck when adjusting its height.
• To avoid the possibility of accidental starting, always take care not to activate the start lever when you are
attaching the battery pack or performing other adjustments to the tool.
FPO
NOTICE: Two batteries should be used together to start the mower. The mower cannot be used with only one battery.
fig. 5 Battery-release
button
Protective
cap
fig. 6 Lever Safety key

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
14
model no. 060-0590-0 | contact us 1-800-689-9928

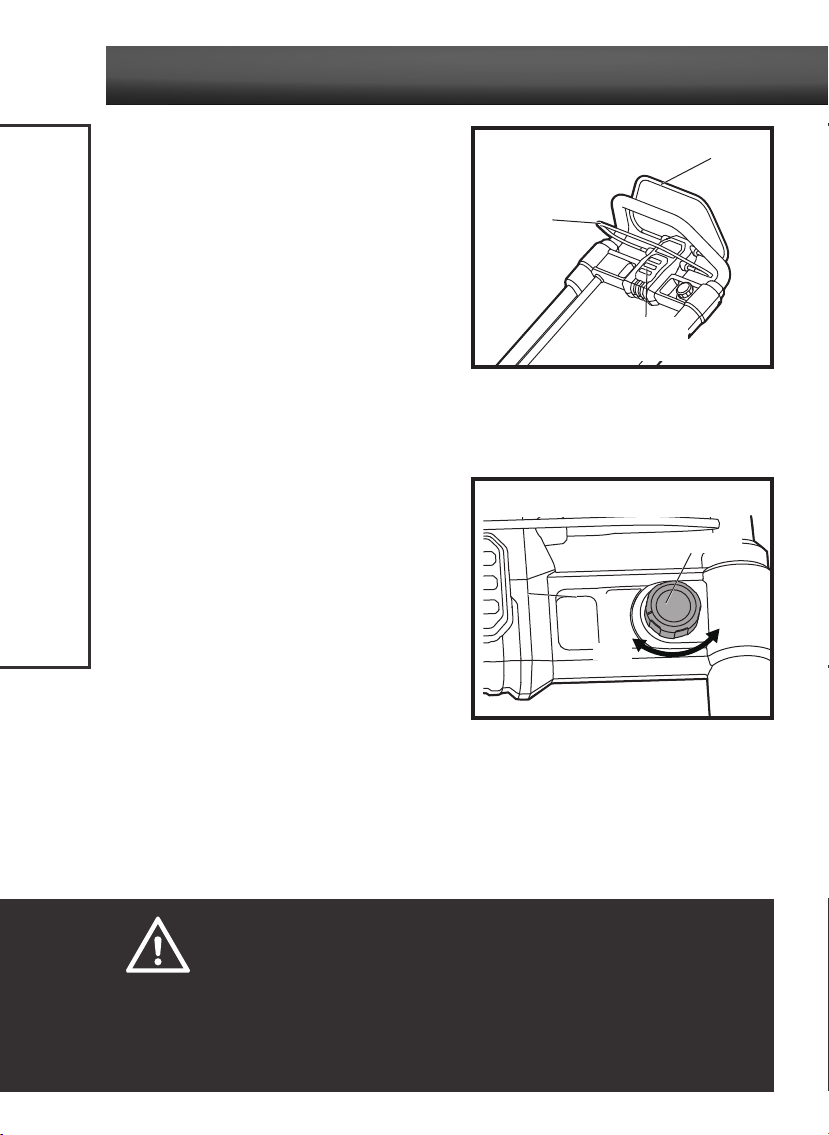

START/STOP THE MOWER (fig. 7)
1. Install the battery packs into the mower, insert
the safety key into the key slot and then close the
battery compartment.
2. Depress the safety lock-off switch first, pull back
the start lever to meet the handle and then release
the safety lock-off switch to start the machine.
3. To stop, fully release the start lever. The electric
brake will stop the blade rotation within several
seconds after releasing the start lever.
START/STOP THE WHEEL DRIVING (fig. 7)
1. Push the self-propelling lever forward and hold it against the grip handle to start the wheel driving.
2. Release the self-propelling lever to stop the mower’s forward motion.
SPEED DIAL FOR THE WHEEL DRIVING
(fig. 8)
The wheel driving speed can be adjusted by turning
the speed dial.
OPERATING INSTRUCTIONS
WARNING!
• The operation of any lawn mower can result in foreign objects being thrown into your or others’ eyes, which
can damage eyes severely. Always wear safety glasses while operating the mower or while performing any
adjustments or repairs on the mower.
• Ensure that other people and pets remain at least 100’ (30 m) away from the mower when it is in use.
• The blade will continue to rotate for a few seconds after the mower is turned off. Allow the motor/blade to stop
rotating before starting it again. Do not rapidly turn the mower off and on.
• Operate the self-propelling lever with a quick and complete motion, so the clutch is either fully engaged or
fully released.
• Never set the speed of wheel driving beyond your control.
FPO
fig. 7
Start lever
Start-propelling lever
fig. 8
Speed dial
MAX
Safety lock-off
switch
MIN

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
15
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
MAINTENANCE
REMOVE/INSTALL THE BLADE (fig. 9)
After prolonged use, especially in sandy soil
conditions, the blade will become worn and lose
some of the original shape, which will reduce the
cutting efficiency. Therefore, the blade should be
replaced to ensure a good cutting performance.
1. Remove the safety key and battery pack.
2. Turn the mower upside down. Keep the underbody
and blade clean and free of debris.
3. Use a piece of wood to keep the blade from
turning, loosen the hex bolt counter-clockwise
using a suitable wrench and remove it together
with the blade.
4. Attach a new blade of the same type
(MASTERCRAFT
®
060-1542-0 replacement
mower blade) onto the spindle while maintaining
the correct alignment. Insert the hex bolt on
the spindle. Use a piece of wood to keep the
blade from turning, and then tighten the hex bolt
clockwise to ensure safe operation of your product.
CLEAN THE MOWER
The underside of mower deck should be cleaned after each use as grass clippings, leaves, dirt and
other debris will accumulate. This accumulation is undesirable, and it will promote rust and corrosion
on metal parts and reduce the cutting efficiency of the mower. Wipe the mower clean with a damp
cloth.
MAINTENANCE
fig. 9b
fig. 9a Bolt
Blade
Fan

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
16
model no. 060-0590-0 | contact us 1-800-689-9928
STORAGE
1. Switch the product off, disconnect the safety key and remove the battery packs.
2. Clean the product as described above.
3. Follow the reverse order of “UNFOLD THE HANDLE BAR” to fold the lawn mower for storage.
4. Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
5. Always store the product in a place that is inaccessible to children. The ideal storage temperature is
between 10 and 30
o
C (50 to 86
o
F).
6. We recommend using the original package for storage or covering the product with a suitable cloth or
enclosure to protect it against dust.
TRANSPORTATION
1. Switch the product off, disconnect the safety key and remove the battery packs.
2. Fold the lawn mower handle if necessary. Always transport the product by its handle.
3. Protect the product from any heavy impact or strong vibrations which may occur during transportation
in vehicles.
4. Secure the product to prevent it from slipping or falling over, which may cause damage and injury.
MAINTENANCE
WARNING!
• Wear safety gloves when working on the blade and close to it. Use proper tools to remove debris, i.e., a
wooden stick. Never use your bare hands.
• Do not let brake fluids, gasoline, petroleum-based products, penetrating oil, etc., come into contact with
plastic parts. These substances contain chemicals that can damage, weaken, or destroy plastic.
• When servicing, use only identical replacement parts. The use of any other parts may create a hazard or
cause damage to the product.
• Always remove the safety key and battery pack when servicing or transporting the mower.
• To ensure safety and reliability, all repairs should be performed by a qualified service technician.
FPO

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
17
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
TROUBLESHOOTING
TROUBLESHOOTING
Problem Possible causes Solutions
The mower doesn’t
work.
The battery is depleted. Charge the battery pack.
The motor or the battery is
overloaded.
Raise the cutting height, and restart
the tool again.
The battery or the tool is too hot. Wait for the battery or tool to cool
down, and then start the tool again.
The safety key is not inserted into the
slot of the battery compartment. Insert the safety key into the slot.
Upper handle bar is not correctly
assembled.
Pull upper handle bar to the STOP
position.
Mower runs but cutting
performance is
unsatisfactory.
Blade is dull. Keep the blade sharp.
Deck or discharge chute is clogging. Clean the deck or discharge chute.
Mower is abnormally
noisy and vibrates. The blade is bent or damaged. Replace with a new blade.
Grass collection bag
doesn’t pick up grass
clippings.
Discharge chute is clogged. Clear the grass clippings in the
discharge chute.
Bag is full. Empty the bag more often.
If the problem remains unsolved after performing the checks described above, call the toll-free helpline
at 1-800-689-9928.

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 060-0590-0 | contact us 1-800-689-9928
18

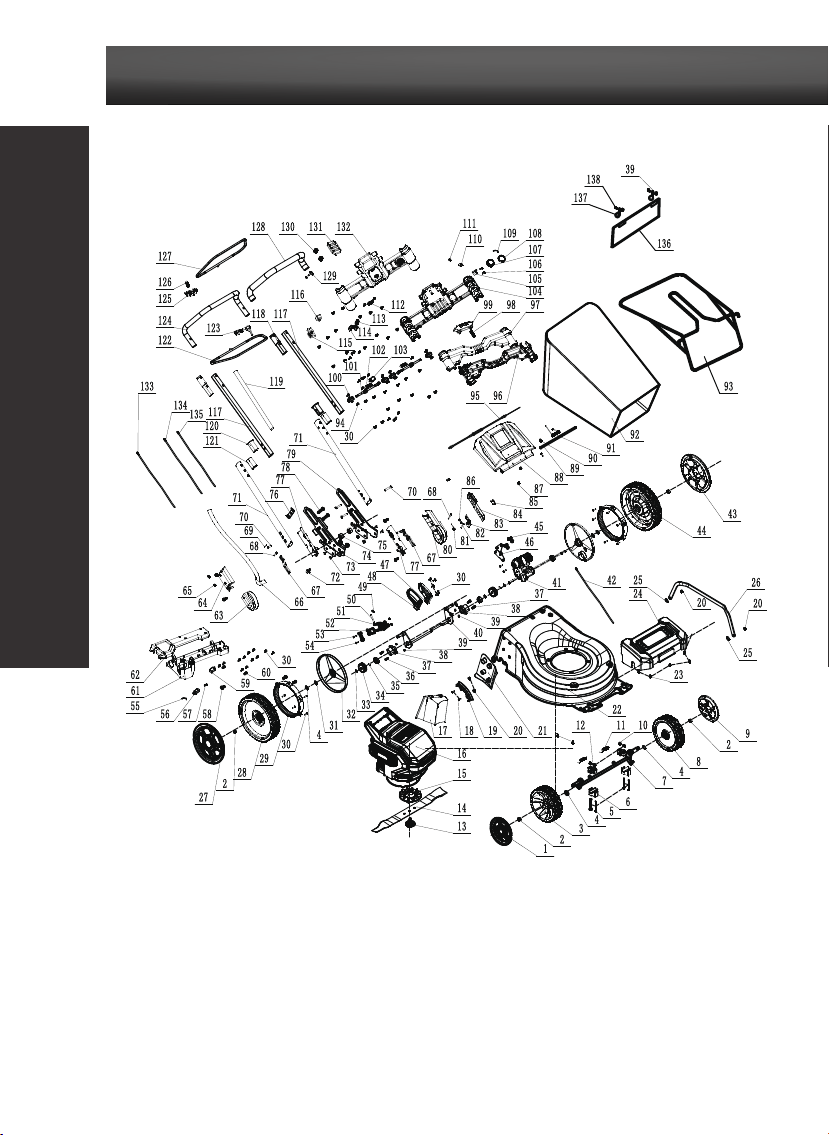

EXPLODED VIEW
PARTS LIST

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
19
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
No. Part no. Description No. Part no. Description
1 0600590001 Right Front Wheel Cover 33 0600590033 External Circlips
2 0600590002 Hexagonal Nut 34 0600590034 R Gear
3 0600590003 Right Front Wheel 35 0600590035 Pin
4 0600590004 Wave Washer 36 0600590036 Ball Bearing
5 0600590005 Square Head Bolt 37 0600590037 Screw
6 0600590006 Front Wheel Bracket 38 0600590038 Bearing Housing
7 0600590007 Front Wheel Axle 39 0600590039 Nut
8 0600590008 Left Front Wheel 40 0600590040 Rear Axle
9 0600590009 Left Front Wheel Cover 41 0600590041 Self-propelled
Assembly
10 0600590010 Nut 42 0600590042 Power Cord
11 0600590011 Tension Spring 43 0600590043 Rear Left Wheel Cover
12 0600590012 Front Wheel Bracket 44 0600590044 Rear Left Wheel
13 0600590013 Blade Bolt 45 0600590045 Screw
14 0600590014 Blade 46 0600590046 Press Plate
15 0600590015 Fan 47 0600590047 Left Height Handle
16 0600590016 Power Head 48 0600590048 Right Height Handle
17 0600590017 Mulching Insert 49 0600590049 E-Ring Circlip
18 0600590018 Screw 50 0600590050 Shaft
19 0600590019 Plate 51 0600590051 Assembly
20 0600590020 Hexagonal Nut 52 0600590052 Torsion Spring
21 0600590021 Grass Guide Plate 53 0600590053 Torsion Spring Seat
22 0600590022 Base 54 0600590054 Screw
23 0600590023 Screw 55 0600590055 Switch Box Shrapnel
24 0600590024 Front Face 56 0600590056 Telescopic Spring Button
25 0600590025 Flat Washer 57 0600590057 Spring
26 0600590026 Connecting Rod 58 0600590058 Screw
27 0600590027 Right Rear Wheel Cover 59 0600590059 Micro Switch
28 0600590028 Right Wheel 60 0600590060 Cable Press Plate
29 0600590029 Self-propelled Rack 61 0600590061 Lower Cover
30 0600590030 Screw 62 0600590062 Upper Cover
31 0600590031 Flat Washer 63 0600590063 Right Lower Cover
32 0600590032 Rear Wheel Cover 64 0600590064 Right Upper Cover
PARTS LIST

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
20
model no. 060-0590-0 | contact us 1-800-689-9928
65 0600590065 Cap Nut 98 0600590098 Return Spring
66 0600590066 Corrugated Pipe 99 0600590099 Push Button
67 0600590067 Folding Plate 100 0600590100 Sliding Sleeve
68 0600590068 Rotating Shaft 101 0600590101 Limit lock Shaft
69 0600590069 Elastic Pin 102 0600590102 Trigger Slider
70 0600590070 Right Pop-up Pin 103 0600590103 Micro Switch
71 0600590071 Pushing Down Tube 104 0600590104 Lower Operation Panel
72 0600590072 Bushing 105 0600590105 Speed Control Board
73 0600590073 Bolt 106 0600590106 Screw
74 0600590074 Bracket 107 0600590107 Soft Skin
75 0600590075 Hexagonal Nut 108 0600590108 Speed Control Knob
76 0600590076 Trigger Washer 109 0600590109 Knob Shrapnel
77 0600590077 Connecting Plate 110 0600590110 Flat Washer
78 0600590078 Screw 111 0600590111 Thin Hexagon Nut
79 0600590079 Bracket 112 0600590112 Spring Pressure Plate
80 0600590080 Left Cover 113 0600590113 Spring Pressing Plate
81 0600590081 Torsion Spring 114 0600590114 Trigger Block
82 0600590082 Elastic Pin 115 0600590115 Trigger Switch
83 0600590083 Pressing Plate 116 0600590116 Rocker Switch
84 0600590084 Handrail Rod 117 0600590117 Upper Pushing Tube
85 0600590085 Screw 118 0600590118 Connecting Sleeve
86 0600590086 Hexagonal Nut 119 0600590119 Corrugated Pipe
87 0600590087 Bolt 120 0600590120 Limiting Sleeve
88 0600590088 Back Cover 121 0600590121 Bushing
89 0600590089 Pin 122 0600590122 Wire Trigger
90 0600590090 E-Ring Circlip 123 0600590123 Switch Trigger Bracket
91 0600590091 Torsion Spring 124 0600590124 Upper Rail
92 0600590092 Grass Bag 125 0600590125 Trigger Bracket
93 0600590093 Grass Bag Bracket 126 0600590126 Spring
94 0600590094 Screw 127 0600590127 Steel Wire Trigger
95 0600590095 Folding Latch 128 0600590128 Rubber Hose
96 0600590096 Lower Bracket 129 0600590129 Flat Washer
97 0600590097 Upper Bracket 130 0600590130 Spring
PARTS LIST
