Mattel Vidster User manual

Keep these instructions for future reference as they contain important information.
• For use with the Vidster™
• Requires 4 AA Alkaline batteries (not included).
Age: 8+
FCC STATEMENT:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Mattel Inc.
333 Continental Blvd.
El Segundo, CA
[phone]
NOTE: Changes or modifi cations not expressively approved by the manufacturer responsible for compliance could void the user’s authority to
operate the equipment.

TABLE OF CONTENTS
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Battery Installation
Installing the Hand grip or (optional) Tripod
Installing SD Memory Card (Optional)
Installing Microphone (Optional)
Using the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Camera Controls
Taking a Picture
Video Recording
Zoom In/Zoom Out
Adjust Volume
Playback Mode
Connecting to your TV
Downloading From Your Vidster™
Features & Specifications . . . . . . . . . . . . . . . . . . . . 14
Tips & Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 15
PACKAGE CONTENTS
The following is included with every Mattel Vidster™:
1 Handheld Vidster™
unit with Hand Strap
1 A/V cable
1 Hand Grip
1 Instructions
QUICK START
Ready to start taking pictures
or making videos? In just a few steps,
you’ll be ready to go.
1. Install 4 AA Alkaline
batteries & remove
the clear protective
film from the viewing screen.
2. Switch the camera to “On”.
1

3. Set the Mode switch to “Picture” to take a digital photo, or
“Video” to record a video.
4. Press the Center button to take a picture in Picture Mode or
start recording in Video Mode.
5. Press the Center button a second time to stop recording in
Video Mode.

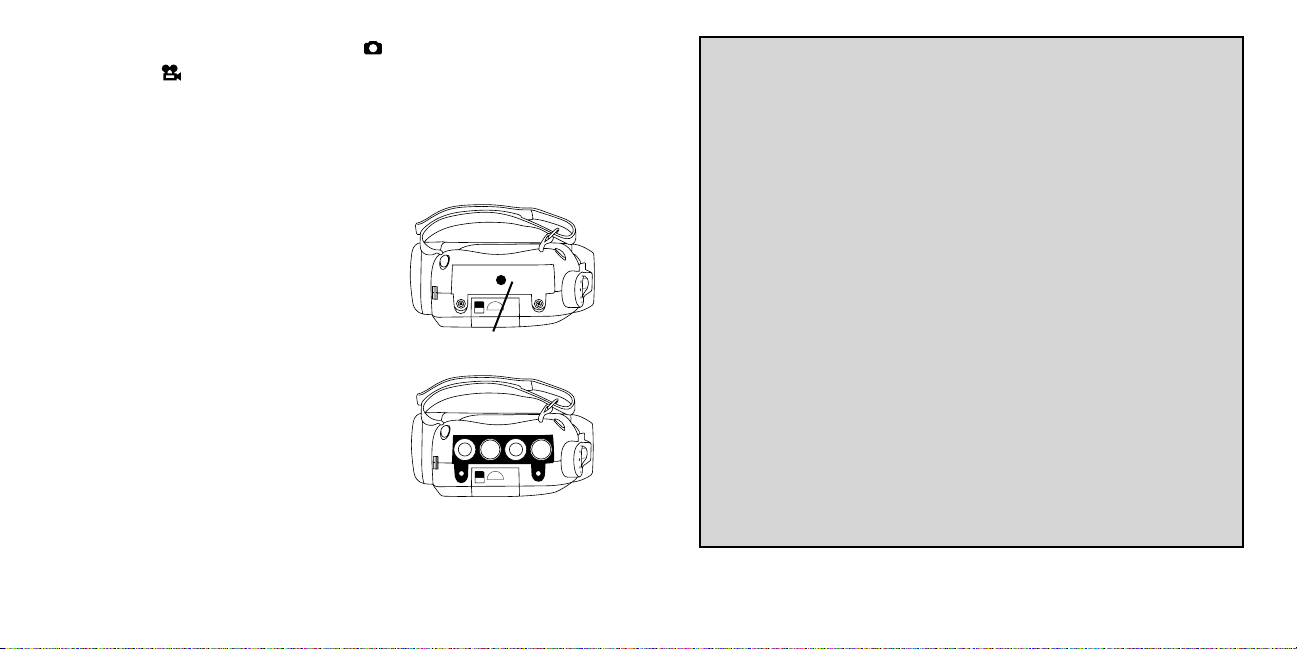

Battery Installation/Replacement
The Vidster™ uses 4 AA Alkaline batteries to
power it. Make sure the unit is off. Locate the
battery cover on the underside of the device.
(1)Use a Phillips screwdriver (not included) to
loosen both screws. (2)Remove battery
cover. (3)Insert four fresh “AA” alkaline
batteries in the orientation shown. (4)Replace
the cover and tighten both screws.
For longer life, use only alkaline batteries.
Battery Safety Information
In exceptional circumstances batteries may leak fluids that can
cause a chemical burn injury or ruin your product. To avoid
battery leakage:
• Do not recharge non-rechargeable batteries.
• Remove rechargeable batteries from the product before
being charged (if designed to be rechargable).
• Charge rechargeable batteries only under adult supervision
(if designed to be rechargable).
• Do not mix alkaline, standard (carbon-zinc) or rechargeable
(nickel-cadmium) batteries.
• Do not mix old and new batteries.
• Use only batteries of the same or equivalent type
as recommended.
• Insert batteries with the correct polarity.
• Remove exhausted batteries from the product.
• Do not short-circuit the supply terminals.
• Dispose of batteries safely.
• Do not dispose of this product in a fire. The batteries inside
may explode or leak.
2 3
Battery Cover

Using the camera

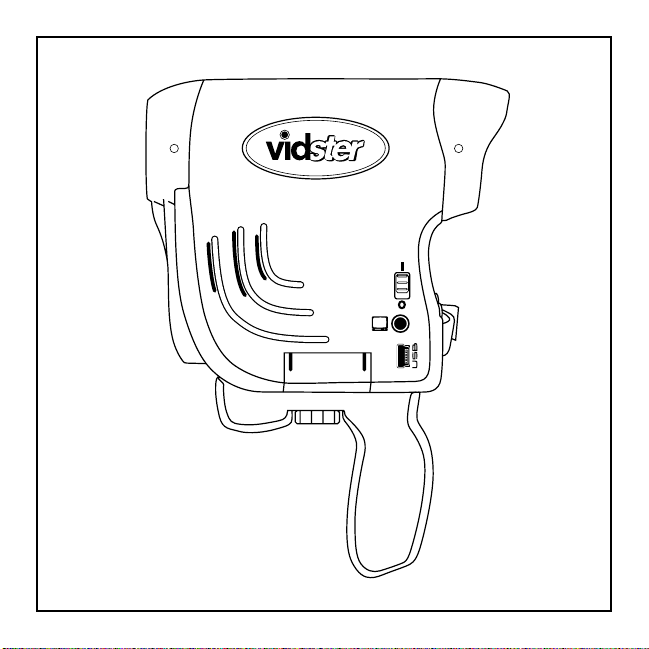

Use the handgrip or the hand strap to
keep a proper hold on your camera.
A tripod (optional) can also be purchased so that your camera can be
set in one position for longer shoots or self-portraits.

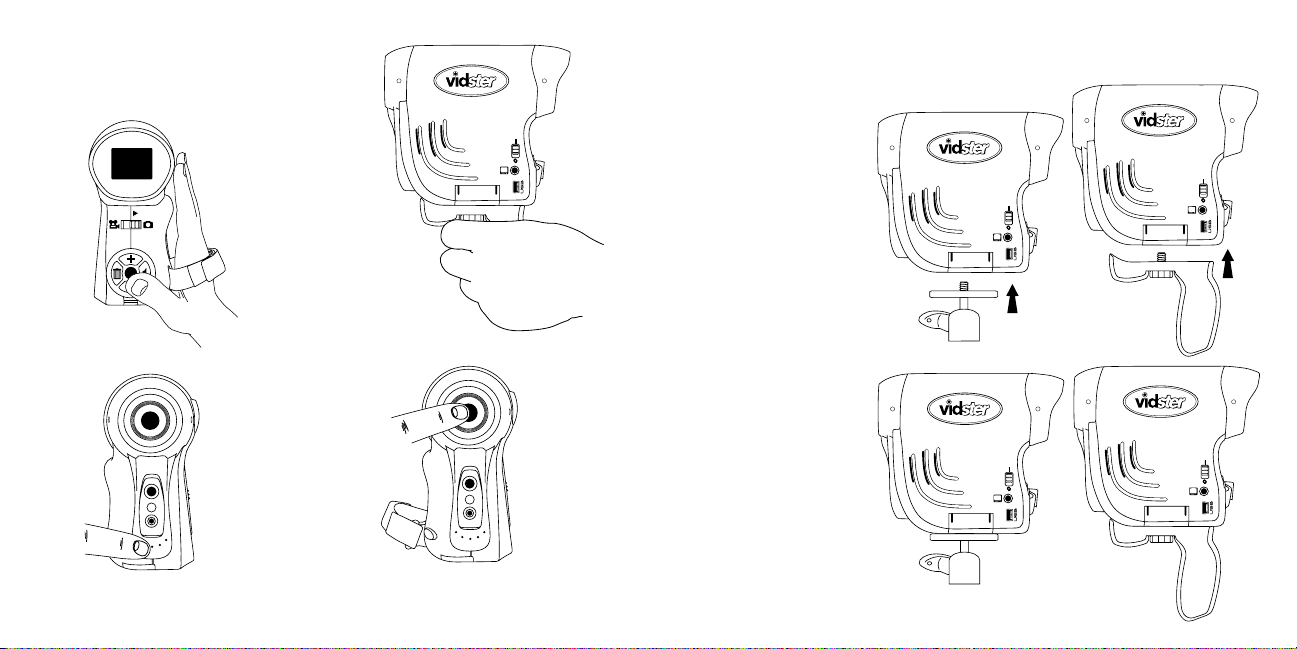

To install your Grip
or Tripod:
(1) Locate the threaded
insert on the bottom
of the Vidster™.
(2) Align and insert the
threads on the grip
(included) or a Tri-pod
(optional) with the
camera insert.
(3) Tighten the thumb-
screw finger tight
(do not use any tools
to tighten this screw,
as it may cause
damage to your camera
or accessory).
4 5
Right.
Right.
Wrong.
Wrong.

Installing SD Memory Card (Optional)
Your Vidster™ comes complete with 32MB of memory for saving
pictures or video. If you want more memory, you’ll need to add an SD or
MMC Memory Card (sold separately) with a memory size greater than
32MB. This external memory takes priority over any internal memory.
Turn –off your Vidster before installing a memory card.
To insert an SD Memory Card, (1) locate and
open the memory door marked with the icon
on the bottom of the Vidster™.
(2) Make sure the SD Memory Card is
properly oriented. (3) Then push the card
into the slot until it fits snugly inside.
(4) The memory door may then be closed.
The Vidster™ will automatically recognize
when the SD Memory Card has been
properly installed.
Note: You should never remove the Memory Card while the camera is in
operation.
Installing Microphone (Optional)
The Vidster™ system has its own
internal microphone but it can
also be used with an external
microphone (not included). To use
an external mic, simply insert the
microphone’s connector into the
Microphone Input Jack found in the
front of the Vidster™. The Vidster™
will automatically start using the
external microphone.
USING YOUR VIDSTER
Camera Controls
To turn the camera on, find the
Power ON/OFF switch on the
side of the Vidster™. Push the
switch to the ON position.
There may be a slight delay before
the screen comes to life.
6 7

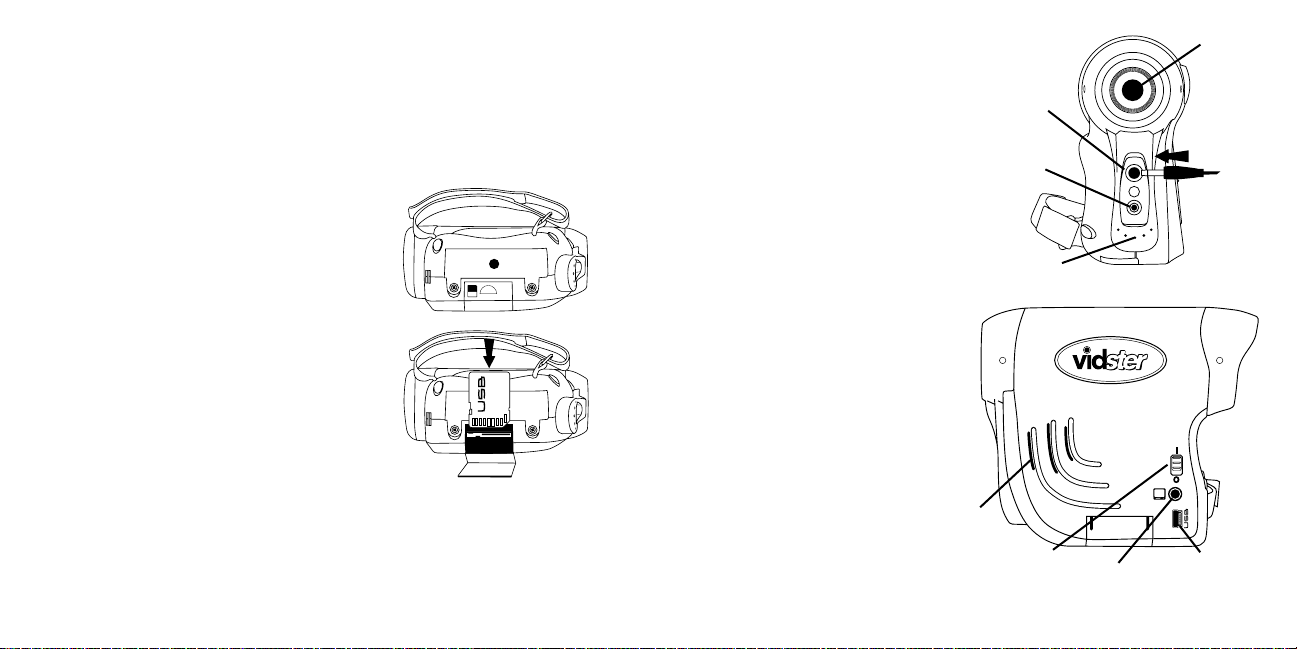

Speaker
Power
On/Off A/V Out Mini-USB
Port
Imager
Microphone
Jack
Video
LED
Internal
Microphone

Here’s a list of what the buttons on the Control Pad do:
Direction Pad (D-Pad) Function
Up Zoom In; Scroll Up, Volume Up
Down Zoom Out; Scroll Down, Volume Down
Left Delete (playback only)
Right Volume Control (playback only)
Center Start / Stop Recording; Select Option
Taking a Picture
To take a picture using the Vidster™:
1. Switch the camera ON.
2. Set the Mode switch to PICTURE.
A camera icon will appear on the screen.
3. Set the Zoom (see Zoom In / Zoom Out
section for details).
4. Press the Center button to take the picture
Your picture is then displayed for you to
review. If you want to delete the current
picture, press the Delete (left) button on the
D-Pad. This brings up the Delete menu. Select YES or NO and press the
Center button to confirm your choice. Otherwise, in just a few seconds,
the photo will be saved to the archive.
Video Recording
To record a video using the Vidster™:
1. Switch the camera ON.
2. Set the Mode switch to VIDEO. A video camera icon will
appear on the screen.
3. If the memory is full you will get an on-screen message saying
“Memory Full,” you need to delete video or add an empty SD Card.
4. Set the Zoom (see Zoom In / Zoom Out section for details).
8 9
Right
Up
Down
Center
Left
Mode
switch

5. Press the Center button to start recording. A video time counter will
appear on the screen showing the length of time of this recording.
6. Press the Center button to stop recording when you’re done.
When you are recording a video the red LED light on the front of Vidster‘
will come on.

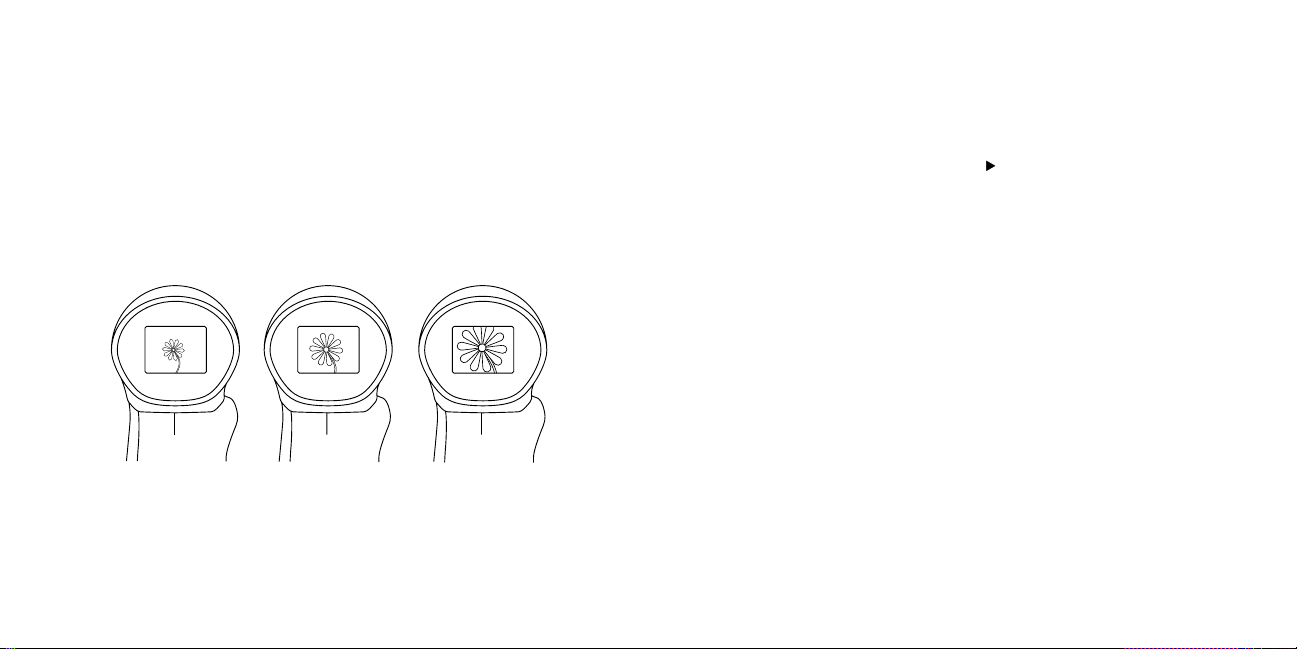

Zoom In / Zoom Out
If you want your view to move in closer or out farther, press the Up
button or Down button to zoom. The zoom has three settings 1x, 1.5x
and 2x.
* The Zoom level cannot be changed while video is being recorded.
Adjust Volume
During playback mode, you can set the speaker volume in order to
listen to recorded videos. To do so, press the Right button on the D-Pad
to get to the volume control. Press the Up button (Volume Up) on your
D-Pad or the Down button (Volume Down). The volume level will be
immediately displayed on your LCD. You may increase or decrease the
volume in increments of 1; there are 7 volume levels total.
Camera Playback
Switch the Mode button to playback. It will default to the last
mode- video if you just shot a video, photo if you just shot a photo- and
press the Down button if you want to view a Photo. Press the Center
button to confirm your choice. Scroll forward using the Top button or
backwards by using the Bottom button. At any time you may choose to
delete a photo by pressing the Delete (left) button on the D-Pad. This
brings up the Delete menu. Select YES or NO and press the Center
button to confirm your choice.
At either end of your archived photos, you will return to the playback
mode menu. In this menu, you can use the Up button to navigate to the
Video mode or it will default to the Photo playback. Pressing the Center
button will confirm your selection. While viewing your photos you may
press the Center button to see a full screen image of the picture.
Camera Slideshow Playback
To start the slideshow, select any photo by pressing the Center button
(photo enlarge to fill the full screen). Then select it a second time. Each
photo will be shown for about three seconds until moving to the next
10 11

picture on the list. At the completion, it will return to the archived
photos. At anytime you may press the Center button to exit the
slideshow and return to the Camera Playback menu.
Video Camera Playback
Scroll forward (top button) or backwards (bottom button) to see the
opening scene of all the videos archived. At any time you may choose
to delete a video by pressing the Delete (left) button on the D-Pad. This
brings up the Delete menu. Select YES or NO and press the Center but-
ton to confirm your choice.
At either end of your archived videos, you will return to the playback
mode menu. In this menu, you can use the down buttons to navigate to
the photo playback or default to the video playback. Pressing the Center
button will confirm your selection.
Navigate to any opening video scene and press the Center button to
view the video. At its completion, you will be returned to the video ar-
chives or you may stop a video at any time and be returned to the video
archives.
Note: If there are no pictures or scenes in the archive, use the up button to return to the
main menu.

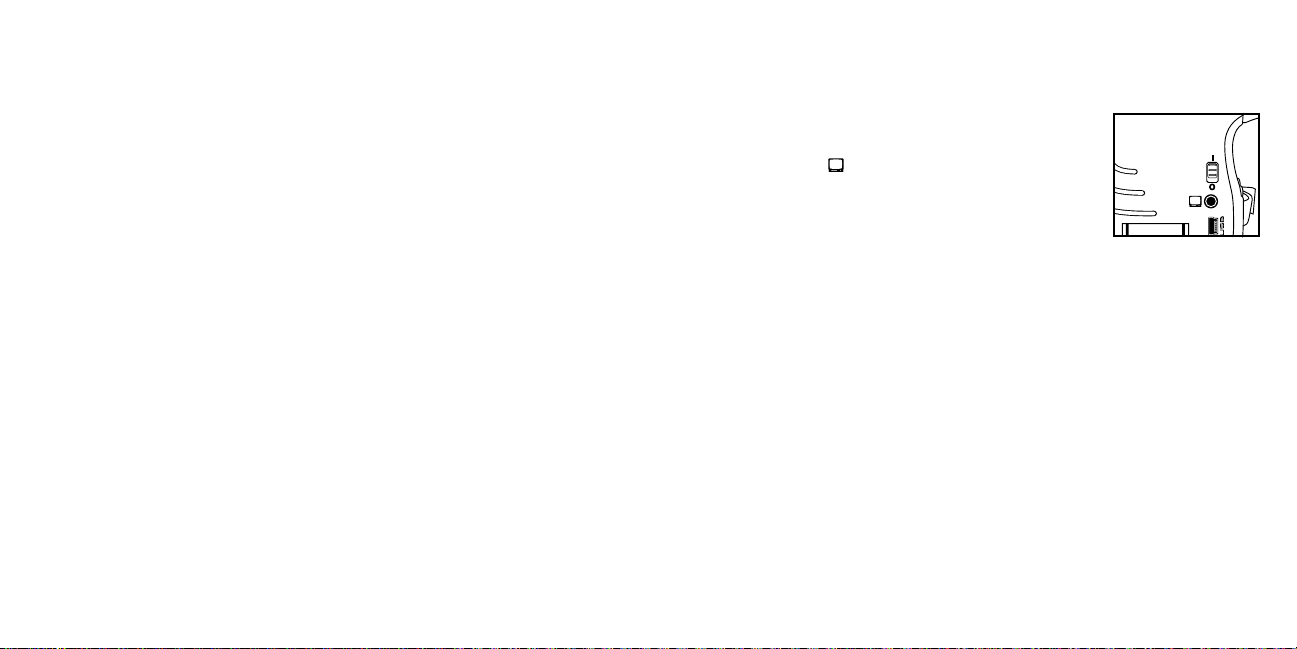

Connecting to your TV
Whether playing a scene back from the archive or showing your friends
what you’re doing in real time, you can hook your Vidster™ to most TV.
1. With both your Vidster™ and your TV in
the off position. Locate the A/V out plug on
your Vidster™.
2. Attach your A/V cable (included) from the
Vidster™ to your television video in. Plug the
single plug into the side of your Vidster™ and
connect the other end containing two plugs into your TV video in,
matching the red plug to the TV’s audio input and the
yellow plug to the video input.
3. Turn on the Television and select the appropriate input (you may need
to consult your Television’s manual). Turn on your Vidster™.
4. Your Vidster™ screen will be blank, as the TV now becomes your
viewing screen. Operate your Vidster™ normally. Any image on your
Vidster™ will now be seen on your TV.
Downloading From Your Vidster™
If you want to download any of your images from your Vidster™;
1. Turn off your Vidster™ attaching a mini-USB cable (sold separately)
to a compatible computer and your Vidster™.
12 13

2. Set the slide switch to Playback mode and turn on your Vidster™.
Your Vidster™ cannot be used as a camera or a video camera while
it’s attached to your computer. The Vidster™ will show up as a
‘removable drive’ on your computer once it’s plugged in. You can then
move the images off and/or delete them, just as you would from any
other storage drive.
3. Before removing or turning off your Vidster‘ camera, follow your
computer’s standard procedure for stopping & removing USB mass
storage device. Then turn–off your Vidster and disconnect it from
your computer.
Recommended minimum system configuration
• 550 MHZ Pentium III, AMD K-6, or equivalent processor with
MMX support
• 128MB RAM or more
• 16MB video RAM or more
• Microsoft DirectX 9.0 installed
• 7200 RPM or faster hard disk
• Operating System: Windows ME, Windows 2000, Windows XP
VIDSTER‘ FEATURES & SPECIFICATIONS
Features
• 2x Digital Zoom Vidster™
• 32MB Memory
• Expandable memory via SD/MMC card
• Composite Video Out
• MJPEG video format
• QVGA Video resolution
Specifications
• SD/MMC card support up to 512MB
• DCIM nomenclature for picture directory
• Automatically detects video cables
• Quality: For Scene mode QVGA (320x240) video at 15 FPS
• MJPEG format
• 1.3 Megapixel photo resolution
• Screen: Internal LCD or TV selected via hardware. If nothing is
plugged into the A/V out connection, all screen data is channeled to
the LCD. If something is plugged into the A/V out connection, all data is
sent in NTSC format.
TIPS & TROUBLESHOOTING
Tips for the New User
Try and keep whatever
you’re shooting well lit
from the front. And always
have adequate light!
14 15

Keep the camera level and steady; even when you’re shooting a video,
move slowly and steadily.
Keep your subject in the ‘X’, to get the best shot.
Try and tell a story with your pictures! For example, if you’re at a
birthday party, get a picture of the cake.
Always turn off your Vidster™ after each use. Remove batteries for
extended storage. Your Vidster™ screen will say “Goodbye” when
powering down. Your Vidster™ will go to sleep automatically after
approximately 2 minutes of no operation. It maybe restarted by
pressing the Center button.
TROUBLESHOOTING
Problem Resolution
“Batteries Low” Batteries low: If you see this, it will soon be
Appears on screen time to replace the batteries.
“Memory Full” When you see this, the Vidster™ memory
Appears on screen is full. Please delete or download any
images or scenes you no longer wish
to keep.
Unit won’t turn on If the Record (center) button hasn’t been
pressed for a while, the LCD will turn off.
Pressing the record button will turn it back
on. If that doesn’t work, try turning the
power switch off and then on again. If the
problem persists, change the batteries.
16 17
Right Wrong
