Maxcom FW15 SQUARE User manual

Entry level Heart Rate Watch
FW15 SQUARE

Please read the manual before use.
◆The information in this document won't be modified or extended in
accordance with any notice.
◆The watch should be charged 1.5 hours at least before use.

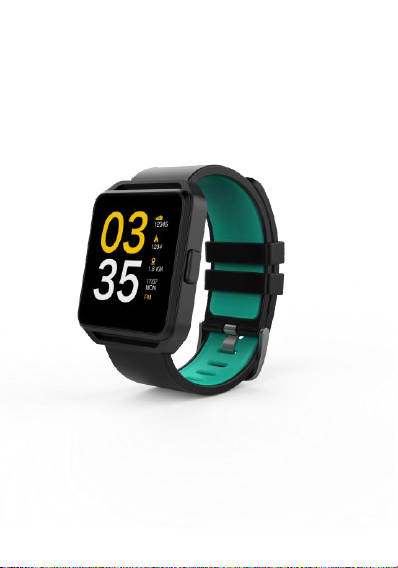

FW15 is an entry level smart watch with heart rate detection, it comes with 1.54" Full
IPS touch screen and dual colors strap for your option to be more fashionable, it gets
notifications of SMS, Facebook, Twitter, WhatsApp and Skype making calls and
receiving calls. It helps monitoring your sleep quality, counting steps, calories and
distance.
1. Product specification
◆Model: FW15 SQUARE
◆CPU: MTK2502D ARM7 260MHz
◆Memory: RAM 4MB+ ROM 4MB
◆Capacitive touch screen 1.54’’ 240*240 pixel
◆Bluetooth version 4.0
◆Function: Heart Rate, BT Call, Anti-lost, Alarm clock, Pedometer, Sleep
monitor, Sedentary reminder, Notification (G-mail, Facebook, Skype, WhatsApp
and so on)
◆Battery Lithium-ion 3.7V 230mAh
Compatibility
◆Android 4.4 and above
◆Iphone 5 above and IOS 8.0 and above

2.Product details:
2.1 Product details
Power Key:Long press to power on/off; short press to awake/turn off screen; Back to
main menu
Micro USB:Open the plug gently and connect with USB cable to charge.
Touch screen: Each function (main menu) will be shown and displayed on capacitive
touch screen.
2.2 Products quick into
You can enter into next page by sliding screen up, and return to last page by sliding
screen down;enter into the sub-menu after clicking selected function, and return to
upper menu after sliding from left to right.
2.3 Clock Display
Setting method：
Method 1: Power on,when the watch in clock mode,please long press middle
screen and slide to left/right to set different clock face as you like.
Power key
Micro USB

Method 2:Power on,Main menu: settings--clock—clock type,choose the clock
mode as you like.
3. Product quick use
3.1 Download and install
You have to download and install the " HitFit " App from APP Store or Google Play
Store;
3.2 Connection and Synchronize data
3.2.1 Bluetooth connection
3.2.1.1 For Android:
Open HitFit -- Click “Me”in bottom -- “Add device”--Searching Device.
Click OK and Click Pair to bind watch as below.

3.2.1.2 For IOS:
Connect step 1: Open HitFit app, “Add device ”on “Me”screen to search
Bluetooth devices nearby,find watch name SC-165SW and pair it in app as below show.
Connect step 2: Go Iphone Setting--Bluetooth, find watch name SC-165SW and
pair it, now the Bluetooth menu interface displays two SC-165SW are connected as
below pictures show:

After connected successfully, the blue green double colors icon will show
on smart watch.

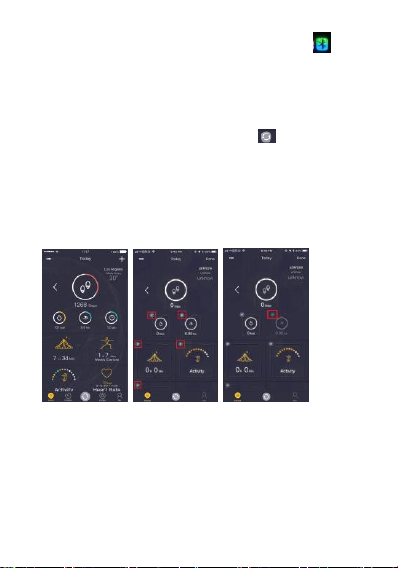

3.2.2 Synchronizing data
Go your smart phone and open the " HitFit " App. Press " " to sync data, your data
will be shown on App.
By click the icon “＋”in top right corner, you can delete the item by click icon“×”, after
delete, it won’t show on app, you can click “＋”to add back.
Notice：
Please don’t shut off the Bluetooth notify service when you are clearing software by
background or close background application software. It will affect the sync function
between watch and phone if shut it.

Remark: The Personalize dial function on “Me”Page- “Device”not work on this model.
3.3 Base function
3.3.1 Message
Sync phone message(Please noted that it only support Android phones)
3.3.2 Call logs
You can check your phone call records after you connect with the Bluetooth.
Shown all records including missed call, dialed calls and received call; You can
check the date, time and phone number of the missed call after you choose it, but only
can call this number.
3.3.3 Heart rate
Wear the watch on, click the heart rate testing interface, during the test the heart
rate light on back casing will flash, the data will show after 15-60 seconds.
3.3.4 BT
Pair devices from smart watch
3.3.5 Remote notifier
When there is SMS, incoming messages from Skype and other applications on the
connected phone, the watch will alert you to read them.
3.3.6 Remote camera
Use phone camera take photos, but remote by watch, it need switch on the camera

of phone in advance.
3.3.7 Anti-lost
Watch seek phone .
3.3.8 Pedometer
It can be adopted as a tool to avoid insufficient or excessive exercise by measuring
calories or calories consumption based on collected data, such as number of steps,
distance, time, etc. to control exercise.
3.3.9 Sleep monitor
Show your sleep quality base on your sleep times.
3.3.10 Sedentary remind
You can set a time to remind you up to do exercise, we suggest the time could be
one hours.
3.3.11 Music
After connected with the Bluetooth, You can control mobile phone to play music
and adjust the volume, voice will come out from mobile phone.
4. Notice
4.1 Full charge before use, the charge time need 1.5 hours.
4.2 Use the accessory USB cable, or your android phone accessories.
4.3 Bluetooth will disconnect when exceed the distance, after switch on the Find
my device, the smart search function can’t be use before reconnect with Bluetooth.

4.4 Please reconnect with BT if it’s disconnected occasionally（Please connect by
manually if the Bluetooth disconnect over 5 minutes）.Please agree the phone book
Sync otherwise there is no phone book.
4.5 When playing the music, some of music’s name can shown and some can’t, it
is normal, because android phone are different.
5. Common trouble shooting
Please refer below key function for any problems with the watch,if the problem is
still unsolved,please contact with our dealer or serviceman appointed.
5.1 Unable to switch on
The time of press the power button too short, please keep it more than 3 seconds.
Low power, please charge it.
5.2 Shut down automatically
Low power, please charge the watch
5.3 Using time too short.
Battery is not full,please make sure it is full power(full charge need 1.5 hours at
least).
During Heart-rate monitor,the power will go off soon if test a lot.
5.4 Unable to charge.
The battery’s life will be reduce after few years,please check if the battery are
workable.
Change a new charger if it is unworkable.

Please check if the USB slot connecting well,if not,please try again.
5.5 No caller’s name when incoming call
Forgot to choose upload the phone book when connected with BT,or unselected
keep upload the phone book.
Forgot to sync the phone book when reconnected,please pair the device and
connect BT again.
5.6 Bad phone call voice.
Watch and phone are separated too far,please be more close ;Bad signal of BT.
Packagecontains: 1 Smart Watch, 1 User manual, 1 USB charging cable
