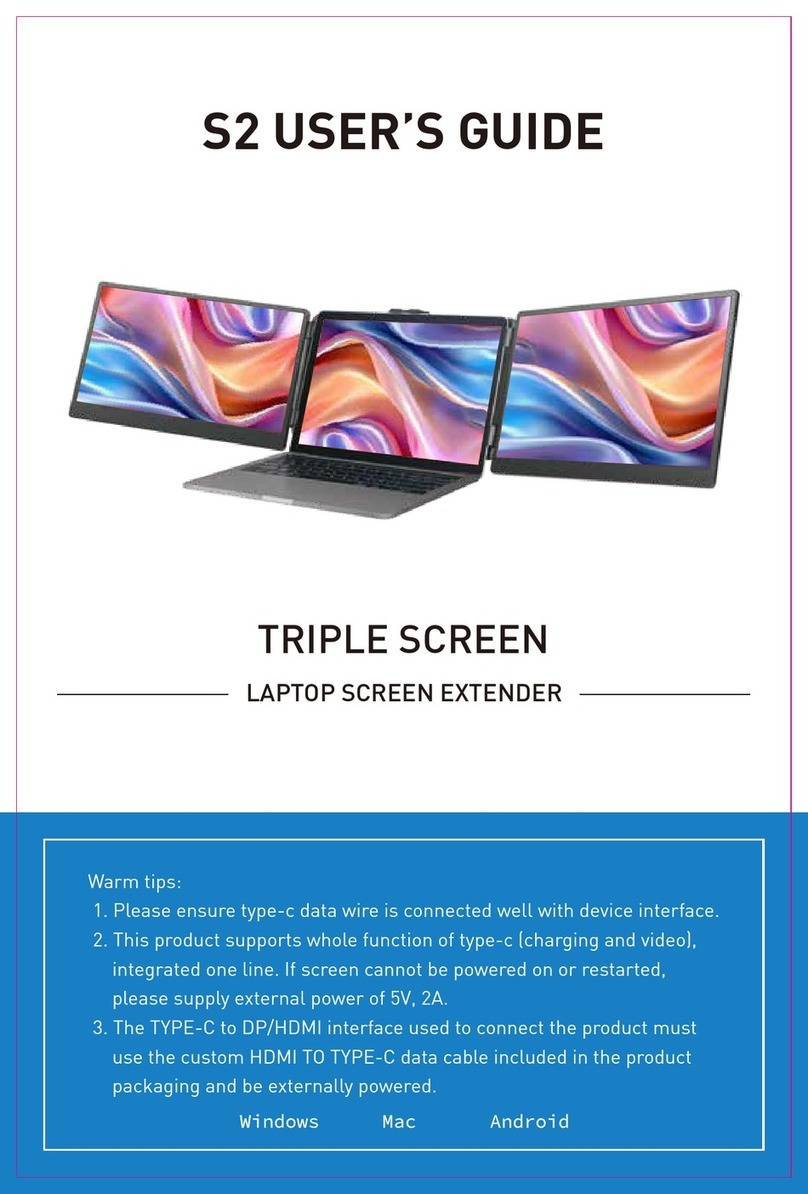

MAXFREE S2 User manual

1. Please ensure type-c data wire is connected well with device interface.
2. This product supports whole function of type-c (charging and video),
integrated one line. If screen cannot be powered on or restarted,
please supply external power of 5V, 2A.
3. The HDMI interface used to connect the product must use the custom
HDMI TO TYPE-C data cable included in the product packaging and be
externally powered.
S2 USER'S GUIDE
Pay attention to the switching sequence of the screen

Contents Of Instruction
Product Attributes
Installation and Storage
1. Opening Mode
2. Outrigger Stretch
3. Using the Kickstand
4. Connect S2 with Laptop
5. Connect S2 with Mobile Phone and Other Devices
Audio Settings
1. Change Sound Settings of Windows 10 / Windows 11
2. Change Sound Settings of MAC OS PC
Display Mode
1. Windows 10 / Windows 11 Display Settings and Configuration
2. MacOS 13 Ventura Display Settings and Configuration
OSD Settings
2
2
2
3
4
6
7
8
9
6. Disassemble the S2 5
1. Button Operation Guide
2. Transportation, Storage and Use Requirements
10
11
1
Question & Answer 11

Product Attributes
S2 TYPE-A to TYPE-C *2 HDMI to TYPE-C
353x207x38.7mm
Weight: Contrast:
Screen Size:
Panel Type:
Average Brightness:
Type-c Input:
Type-c Output:
Port:
1.62 Kg
16:9
72%
60hz
1920x1080 P
Screen Scale:
Color Fields:
Size:
Refresh Rate:
Resolution:
Speaker:
14 Inches
IPS Wide Viewing Angle
5V-20V / 5A Max
5V-20V / 4.25A Max
Type-cx4 HDMIx22
1
1000:1
300CD/M2
POWER POWER
Speaker
TYPE-C
TYPE-C
HDMI
Kickstand
Speaker
TYPE-C
TYPE-C
HDMI
BAG
TYPE-C to TYPE-C *2
Carefully check package contents, if anything is missing or damaged, please contact
Maxfree customer service for support: [e-mail]

Installation and Storage
1. Opening Mode
2. Outrigger Stretch Crack open
3. Using the Kickstand
*Note: sequence of open and close must be performed to avoid damage of device
2
Support bracket
TIGHT
TIGHT
LOOSE
Find the MAXFREE logo with the screen facing up
Step 1: Slowly open the right screen
Step 2: Slowly open the left screen
Step 1: Loosen the Top Stop Buckle
Step 2: Pull out the stand to a suitable size and adjust the S2 to a suitable size
Adjust the support bracket on the back of the product to the desired length

4. Connect S2 with Laptop
3
Connect S2 to your laptop and check that your laptop has a Type-C, Type-A or HDMI port that can
provide 5V/2A power.
Connect S2 to your laptop through S2's Type-C and HDMI port, following the options below:
Option 2: If your laptop has 2 Type-C ports (full function ports), and your laptop Type-C outlet cannot
provide more than 5V/2A power supply or the display has no signal/the signal is unstable after
connection, then you need to connect an external 5V/2A adapter to power S2. Then connect the S2
to the laptop with two Type-C cables.
Connect to S2 through the Type-C interface of the notebook
Option 1: If your laptop has two Type-C ports (full function ports), and the Type-C output port of the
laptop can provide more than 5V/2A power supply, directly connect the S2 and the laptop with two
Type-C cables.

5. Connect S2 with Mobile Phone and Other Devices
4
Switch connection mode
(External Type-c power)
Mobile phone connection mode
(External power needed)
To connect the S2 screen to your laptop via the HDMI interface, follow these steps:
Option 3: If your laptop has both a Type-C and an HDMI port, you can use a Type-C cable to connect
the S2 screen to the Type-C port of your laptop, and then use an HDMI TO TYPE-C cable to connect
the S2 screen to the HDMI port of your laptop. After that, you can connect a 5V/2A adapter to power
the S2 screen.

6. Disassemble the S2
Note: sequence of open and close must be performed to avoid damage of device.
When folding the screen, the bracket must be pulled out to an appropriate size as shown in the
picture, and the screen must be fixed in the silicone of the bracket, otherwise forcibly closing it
will damage the screen!
5
Fold the top stop buckle
Find the MAXFREE logo with the screen facing up
Step 1: Slowly turn off the right screen
Step 2: Slowly turn off the left screen

Audio Settings
6
S2
1. Change Sound Settings of Windows 10 / Windows 11
1.1 Right click the loudspeaker icon down-right
1.2 Select "switch on sound " in pop-up dialog box
1.3 Left click "turn on sound settings" and pop-up the box as provided,Here users can set about sound;
Here users can set about sound
1. Master volume;
2. Select output device: ( S2-R / Speaker );
3. Device attributes.
Sound
Sound
output
System
Some apps can be set to use a different sound device than the one selected here.
Please customize the app volume and device in advanced sound selection.
Select output device
Device attribues
master volume

Audio Settings
7
2. Change Sound Settings of MAC OS PC
2.1. Choose Apple menu > System Settings
2.2. Click "Output", then select the device you wantto use in the list of sound
output devices：( S2 / Speaker )

8
Display Mode
1.2 Under the "Rearrange displays" section, drag and drop each display to rearrange them according to their
physical layout on your desktop. Scroll down to the bottom of the page to further configure the display for
extended or mirrored mode.
1.1 Right-click a blank area of the desktop. Select 'Display Settings' from the pop-up dialogue box.
Left-click "Display Settings" to open the settings dialogue box, as shown.
Sleep better
Night light can help you get to sleep
by displaying warmer colors at night.
Select Night light settings to set things
up.
Help fromthe web
Setting up multiplemonitors
Changing screen brightness
Fixing screen flickering
Adjusting font size
Select a display below tochange thesettings for it. Press and hold (or select) a display,
then drag torearrange it.
1. Windows 10 / Windows 11 Display Settings

Display Mode
9
2.1 Enter the “System Preferences” menu
2.2 Configure your monitor
2.3 Arrange Displays
To rearrange displays, drag them to the desired position.
To mirror displays, hold Option key while dragging them on top of each other.
To relocate the menu bar, drag it to a different display.
In this menu, you can set the resolution and mirror/expand the display you want.
2. MacOS 13 Ventura Display Settings

10
OSD Settings
1. Button Operation Guide
/
Before entering the menu
Click to enter the menu interface
Classification Key Function Remark
Press and hold for 3 seconds to
turn on / turn off the screen /
Toggle up to increase volume “+”
Scroll down to decrease the volume “-”
Click to enter the corresponding
column Confirm
Long press for 2 seconds to exit
the selected screen Return
Scroll up/down to select the
corresponding column Choose
After entering the menu
Key Definition
Toggle down "Minus”
Backlight Adjustment Button
Toggle up "Plus”
Volume Adjustment Button

In order to ensure the normal use of this product and prevent accidents such as electric shock or fire,
please read and understand all use requirements and operation procedures before using.
Please strictly abide by the following requirements.
1. Please tear off the protective film on the screen surface before use.
2. The DC power supply required by this product is AC/DC power adapter, which should be far away
from heat source and placed in a well ventilated place. The AC power socket and AC power line
should be well grounded and can withstand enough current demand.
3. The DC power input required by this product is 5V-20V ± 2V.
4. Attention should be paid to avoid excessive humidity and dust, so as to avoid circuit corrosion
and failure.
5. Screen surface should not be challenged by external force.
6. Do not use sharp tools to touch the screen surface.
7. This product fits general business and domestic use, and ambient temperature ranging from
-20~60°C is recommended.
8. Please power off power source when stop using device.
2. Transportation,Storage and Use Requirements
11
Question & Answer
1. Is this product plug and play?
A: Yes.
2. When connecting, it shows "no signal" or "signal flashing", and the computer cannot recognize it.
What can I do?
A: Please connect an external power supply with a rating of 5V/2A for enough power delivery.
3. Is the screen brightness sufficient? Can it be adjusted according to my needs?
A: The screen has a maximum brightness of 220cd/m2. When the product is not connected to an
external adapter, the brightness can be adjusted to 30%. When connected to an external adapter,
the brightness can be adjusted to 100%.
4. Is the monitor powered by USB or an external power source?
A: The display can be powered either by the laptop (requires a power supply of more than 5V/2A) or
directly by an external power source.
