Maxum Vantage User manual

Instruction Manual /
Vantage
RICHIE VAS / Maxum Team
MMA Bantamweight Champion
& Big Wave Surfer

2
MAXUM VANTAGE
MAXUM
Maxum watches are 100 - 200 metres water resistant, and
feature stainless steel construction with a 5 year limited
warranty on stainless steel watches & 3 year warranty
on digital.
Designed and developed in Australia for Australian surf
conditions, Maxum combines function, form and style to
create durable, contemporary products that are designed
to embrace the Australian surf lifestyle.
Note: Please refer to the ‘WATER RESISTANCE GUIDE’
and the ‘WATCH CARE AND PRECAUTIONS’ for more
information.

3
MAXUM VANTAGE
MINUTE HAND
CROWN
SECOND HAND
HOUR HAND
MAXUM
Maxum watches are 100 - 200 metres water resistant, and
feature stainless steel construction with a 5 year limited
warranty on stainless steel watches & 3 year warranty
on digital.
Designed and developed in Australia for Australian surf
conditions, Maxum combines function, form and style to
create durable, contemporary products that are designed
to embrace the Australian surf lifestyle.
Note: Please refer to the ‘WATER RESISTANCE GUIDE’
and the ‘WATCH CARE AND PRECAUTIONS’ for more
information.

4
(EL)(M)
(S/S)(SEL)
MODE button (M)
- To select the display among Local Time, Calendar,
Chronograph, Timer Modes and Alarm Mode.
- In setting display: To exit the setting mode.
How to set the Analogue (M)
- To set time, gently pull out the crown to the
‘click’ position.
- Then turn the crown either clockwise or counter
clockwise until the time is set correctly.
- When the time is set, gently push the crown back
to its original position to resume normal operation.
START/STOP button (S/S)
- To start or stop Chronograph / Timer running.
- In setting Display: To increase the setting value.
SELECT button (SEL)
- To take a Split time when the Chronograph running.
- In Local Time/ Alarm/ Calandar Mode: Hold down the button to enter the setting display.
- In setting display: To select among dierent settings.
- In Timer Mode: To preset countdown time when the timer stopped.
LIGHT Button (EL)
- To turn on the EL backlight for 3 seconds.
NOTE: Check the coming chapters for the detailed operations.
BUTTON OVERVIEW

5
(S/S)
How to set the Analogue (M)
- To set time, gently pull out the crown to the
‘click’ position.
- Then turn the crown either clockwise or counter
clockwise until the time is set correctly.
- When the time is set, gently push the crown back
to its original position to resume normal operation.
CLICK
SELECT button (SEL)
- To take a Split time when the Chronograph running.
- In Local Time/ Alarm/ Calandar Mode: Hold down the button to enter the setting display.
- In setting display: To select among dierent settings.
- In Timer Mode: To preset countdown time when the timer stopped.
LIGHT Button (EL)
- To turn on the EL backlight for 3 seconds.
NOTE: Check the coming chapters for the detailed operations.
SETTING ANALOGUE WATCH

6
MAJOR FUNCTION DISPLAY
Current
Time Mode (M)
(M)
(M)
(M)
(M)
Calendar Mode
Chronograph Mode
Alarm Mode
Timer Mode
2 Secs

7
Current
Time Mode
CURRENT TIME MODE - BASIC FUNCTIONS
Local Time Mode
- This mode will display the current time.
- To set the time, hold down the (SEL) button to go to the setting display.

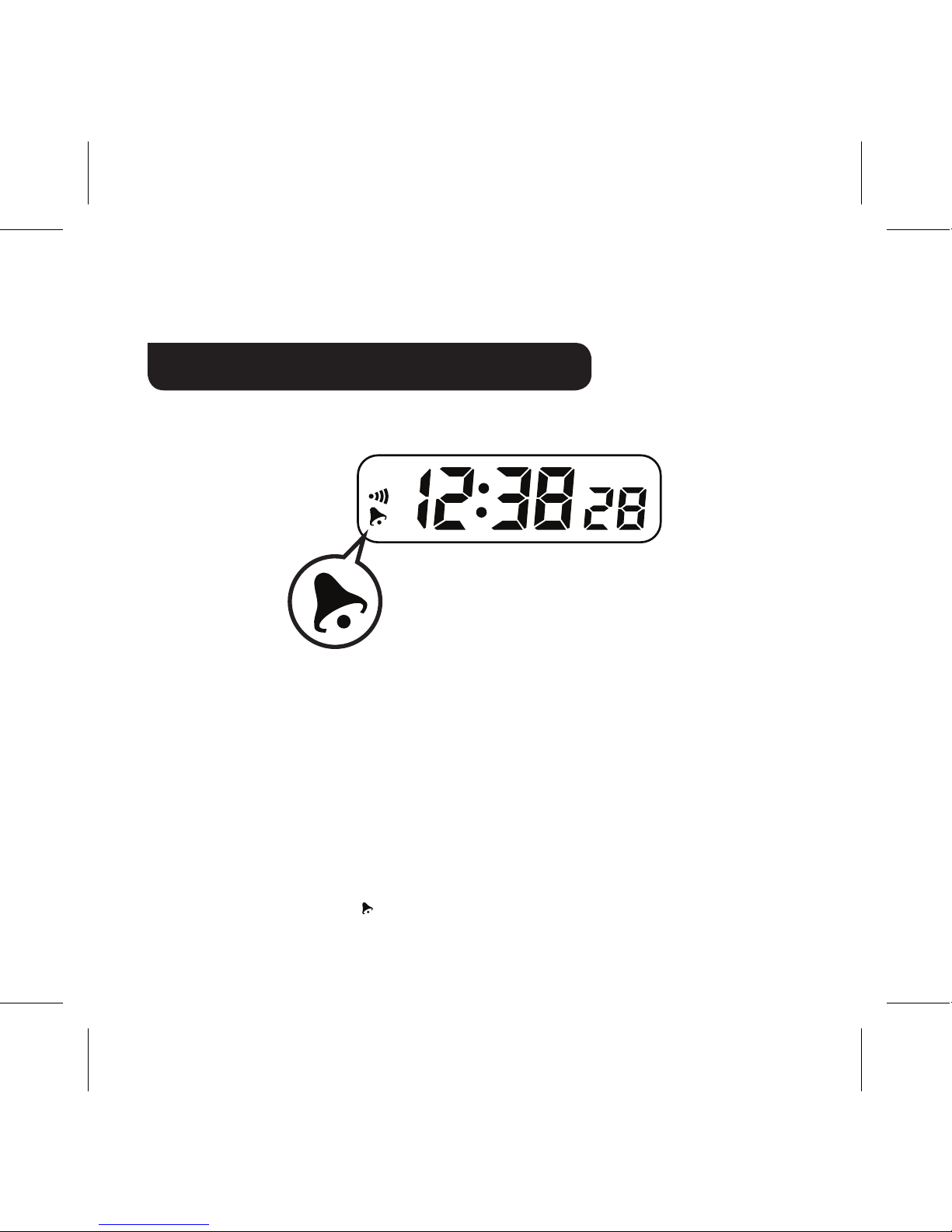

What is Chime function?
- User will hear a ‘BEEP, BEEP’sound in each hour when chime function is ON.
Setting of Chime function
- Under Current Time Mode, Press (SEL) and (S/S) together to turn it ON or OFF.
- When chime function in ON, “ “ will be shown in the display and will hear 2 beeps sound.

8
CURRENT TIME MODE - SETTING
How to do the settings
- Hold down the (SEL) button in
the Local Time Mode to select the
setting display:
- In the setting display, press the
(SEL) button to move ashing
following the right diagram.
- When the setting is selected, press
(S/S) to change the setting value
(hold down the button to change
the setting faster).
NOTE:
- When the setting is completed,
press the (M) button to exit the
setting display.
- If there is no key stroke for 1
minute, it will exit the setting
mode automatically.
Current Time Mode
(M)
(M)
(M)
(M) or
(SEL)
(SEL)
(SEL)
(SEL)
Hold (SEL)
Second
Minute
Hour
12 / 24

9
ALARM MODE AND SETTING
How to do the settings
- Hold down the (SEL) button in
the Local Time Mode to select the
setting display:
- In the setting display, press the
(SEL) button to move ashing
following the right diagram.
- When the setting is selected, press
(S/S) to change the setting value
(hold down the button to change
the setting faster).
NOTE:
- When the setting is completed,
press the (M) button to exit the
setting display.
- If there is no key stroke for 1
minute, it will exit the setting
mode automatically.
Preset
(SEL)
Minute Second
Timer Mode
Countdown Timer
- The watch includes a countdown timer:
Timer Mode.
- The Timer starts counting from a preset
value to zero and stops at zero.

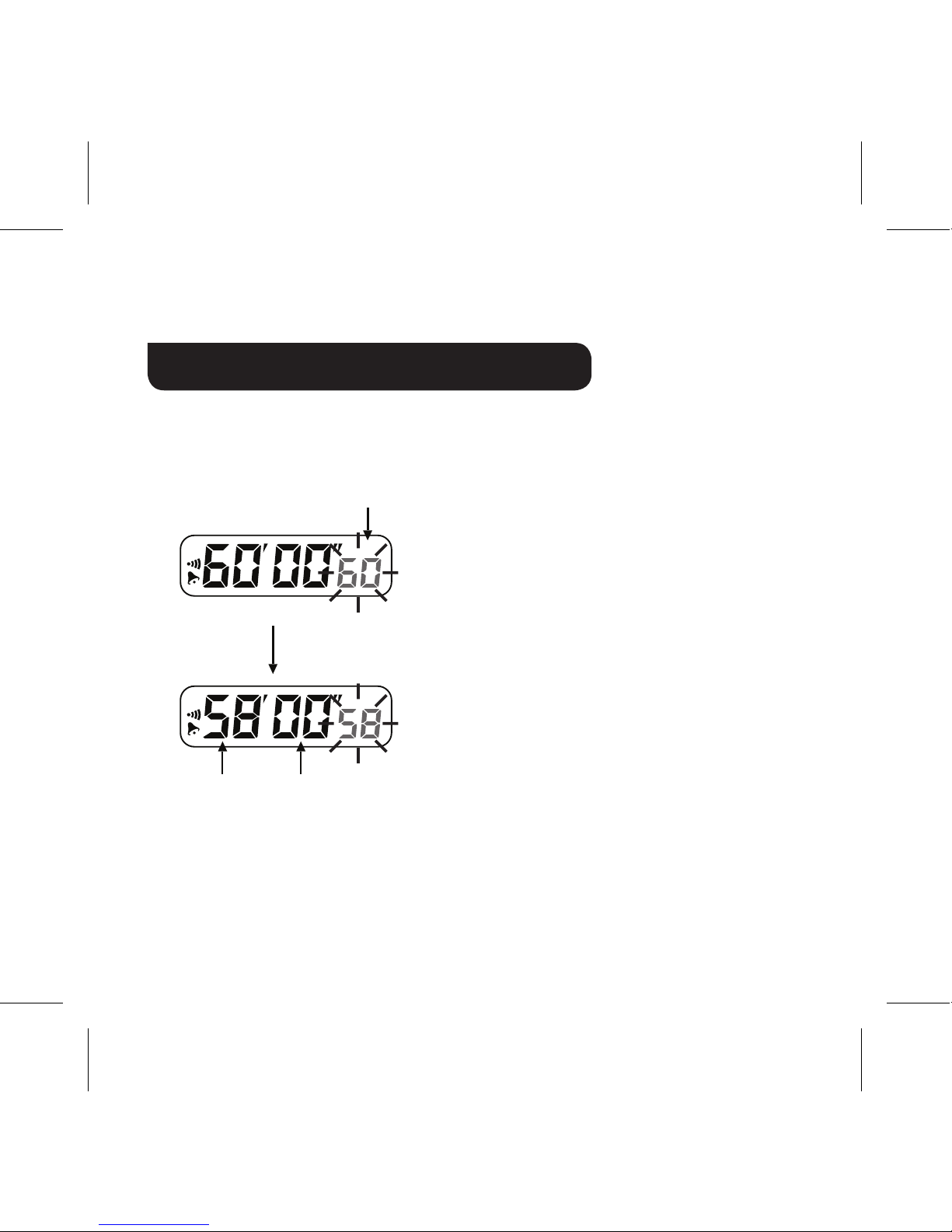

Setting of Timer function
- Enter Timer mode
- When minute is ashing, press the
(SEL) button to decrease the setting
value (hold down the button to
decrease the setting value faster).

10

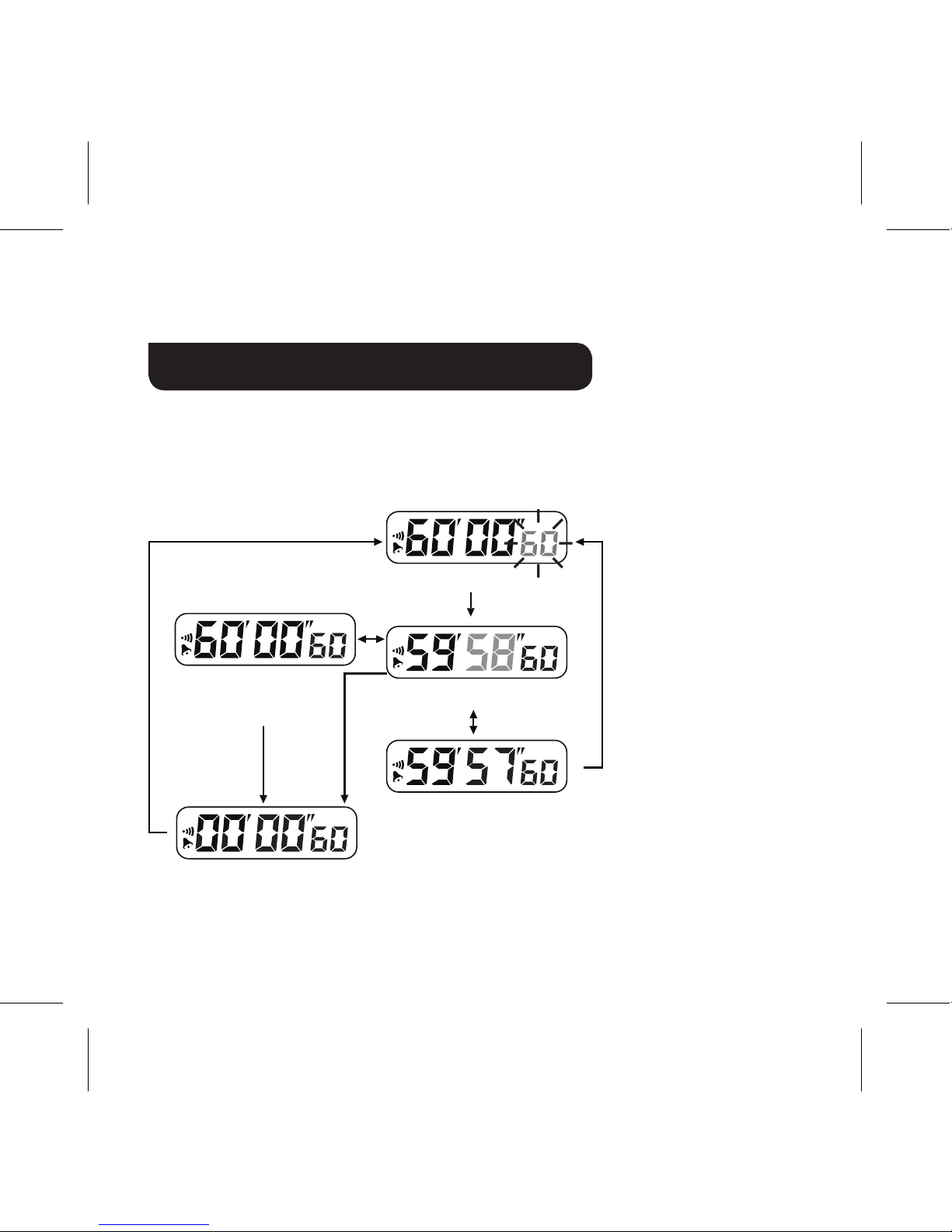

TIMER MODE - START / STOP THE TIMER
Alert:
- It will beep for 10 seconds
when zero is reached
(SEL)
(S/S)
(S/S)
(SEL)
Any key to stop beeping
and reload
Timer Mode
Timer Mode
Timer Start
Timer Stop
Countdown
to zero
Reset the timer during
the timer is running

11
CHRONOGRAPH MODE
Chronograph Mode
- This watch includes a stopwatch function which
measures elapsed time and current split time.
- The measuring capacity of the chronograph:
- Measuring unit: 1/100 second,
- Measuring range: 59 minutes and 59.99 seconds
Chronograph Display
When the Chronograph Display is selected, the
Watch will show the following items on the display:
- Min
- Sec
- 1/100 Sec
Min
Chronograph Mode
Sec 1/100 Sec

12
How to Measure Elapsed Time
- During the ‘All Zero’Display, press
the (S/S) button once will start the
counting, and press the (S/S) button
again will stop the counting.
How to get a Split Time
When the chronograph is counting,
press the (SEL) button to record
Split Time.
How to reset the Chronograph
Press (SEL) button to reset the
display to‘All Zero’ Display when the
chronograph is stopped counting.
CHRONOGRAPH MODE - USING THE CHRONOGRAPH
Chronograph Mode
(SEL)
(SEL)
(SEL)(SEL)
(S/S)
(S/S) (S/S)
Stopped
(Elapsed Time)
Stopped
(Split Time)
Split Time Display
Counting Display
(M) or
(SEL)

13
Calendar Mode
- This mode will display the month,
date and day of week.
- To set the calendar, hold down
the (SEL) button to go to the
setting display.
How to do the setting
- In the setting display, press the
(SEL) button to move ashing
following the right diagram.
- When the setting is selected, press
(S/S) to change the setting (hold
down the button to change the
setting faster).
CALENDAR MODE
Month Date Day of week
Calendar Mode
Hold (SEL)
Date
Month
Day of Week
(SEL)
(SEL)
(M)
(M)
(M) or
(SEL)

14
POWER SAVING MODE
Power Saving Mode
- Manual Power Saving Function - you
can turn ON/OFF the LCD display
manually.
- In Current time mode, hold (M) and
(S/S) button and the release.
- LCD will turn OFF immediately.
- To exit the Power Saving Mode, just
press any key and the LCD display will
be resumed.
NOTE: Even the LCD display os OFF, the
timekeeping function is still running
normally in Power Saving Mode.

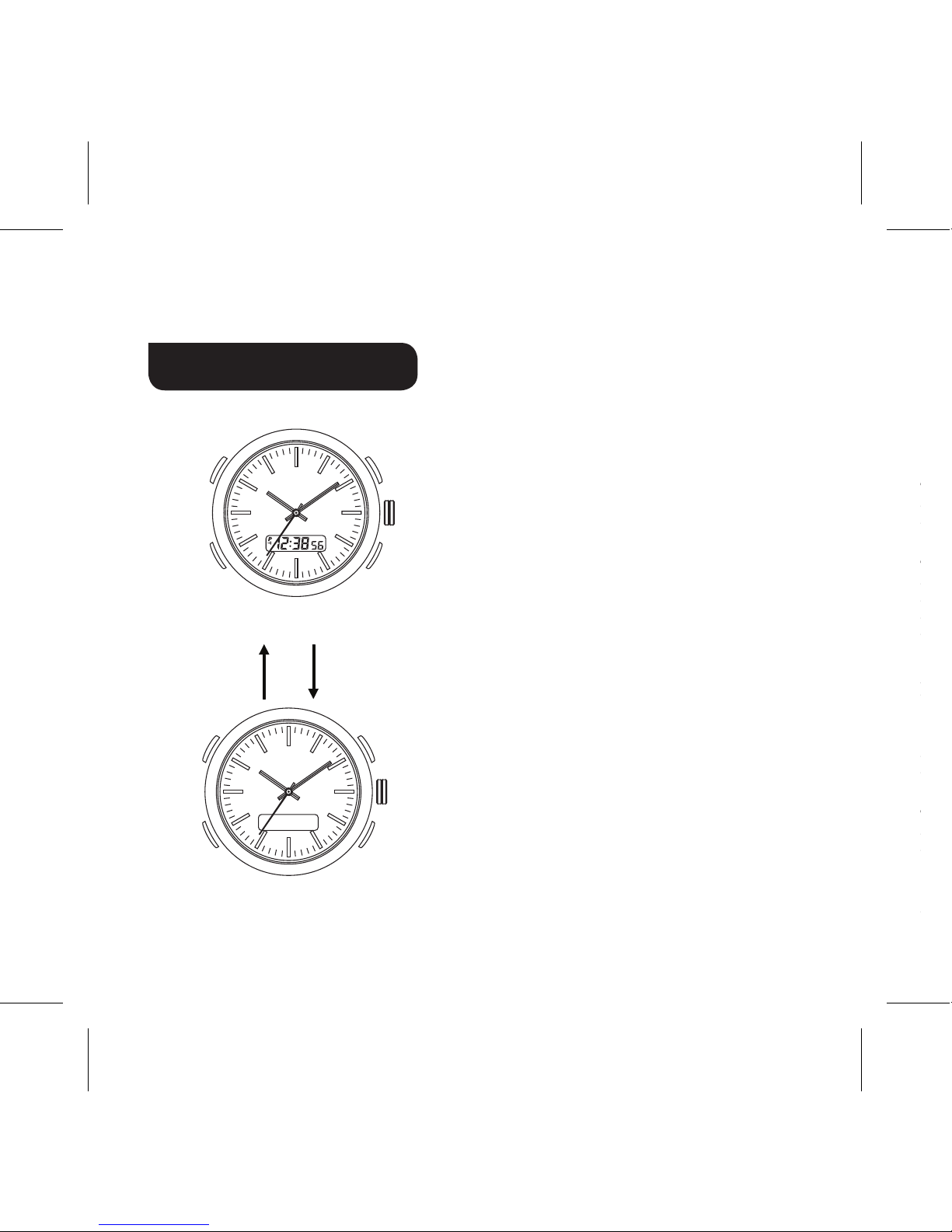

Timekeeping (Analogue)
- Time System: Quartz movement.
- Hands: 3 hands (Hour, Minute and Second)
Timekeeping (Digital)
- Time Display: AM/PM, Hour, Minute, Second.
- Date Display: Month, Day and Day of the week display
- Time Format: 12-hour or 24-hour format selectable.
- Hourly Chime
Alarm Mode
- 1 daily alarm
Chronograph Mode
- Resolution: 1/100
- Measuring Range: 59 minutes 59.99 seconds
Timer Mode
- Resolution: 1 second
- Range: 60 mins - 1 min
Back Light
- Electro - Luminescent
CURRENT TIME MODE
POWER SAVING MODE
HOLD
M + S/S
PRESS ANY
BUTTON

15
SPECIFICATIONS
Timekeeping (Analogue)
- Time System: Quartz movement.
- Hands: 3 hands (Hour, Minute and Second)
Timekeeping (Digital)
- Time Display: AM/PM, Hour, Minute, Second.
- Date Display: Month, Day and Day of the week display
- Time Format: 12-hour or 24-hour format selectable.
- Hourly Chime
Alarm Mode
- 1 daily alarm
Chronograph Mode
- Resolution: 1/100
- Measuring Range: 59 minutes 59.99 seconds
Timer Mode
- Resolution: 1 second
- Range: 60 mins - 1 min
Back Light
- Electro - Luminescent

16
1. This watch contains precise electronic components.
2. Never to open the case or remove the back cover.
3. Do not operate buttons while underwater, or while swimming
or diving.
4. Should water or condensation appear in the watch, immediately have
the watch checked by Designa Accessories. Water can corrode
electronic parts inside the case.
5. Avoid severe impact: The watch is designed to with stand impact
under normal use. Do not subject it to severe impact or rough usage,
and do not drop it onto hard surfaces.
6. Avoid exposing the watch to extreme temperatures.
7. Clean the watch with a soft cloth and clean water only. Avoid using
chemicals, especially soap.
8. Keep your watch away from strong electric eld and static electricity.

17
1. This watch contains precise electronic components.
2. Never to open the case or remove the back cover.
3. Do not operate buttons while underwater, or while swimming
or diving.
4. Should water or condensation appear in the watch, immediately have
the watch checked by Designa Accessories. Water can corrode
electronic parts inside the case.
5. Avoid severe impact: The watch is designed to with stand impact
under normal use. Do not subject it to severe impact or rough usage,
and do not drop it onto hard surfaces.
6. Avoid exposing the watch to extreme temperatures.
7. Clean the watch with a soft cloth and clean water only. Avoid using
chemicals, especially soap.
8. Keep your watch away from strong electric eld and static electricity.
1. Standard display mode:
- Hours, Minutes, Seconds, Day of the Week, Date, Month, Year.
2. Function:
- Month, Date AM/PM and Electro-Luminescent light.
- Alarm OFF/ON
- World Time.
- Text Display
- 12/24 hour format switch option.

18

19
HANDLING OF WATER RESISTANT WATCHES
Water resistancy of your watch is greatly aected by
the way the watch is treated – misuse will diminish water
resistancy by aecting the case and lens seals.
- Although the watch is warranted to the specications
marked, all care should be taken to avoid damage that
results from mishandling.
- Should your watch have a screw down crown, you must
ensure that the screw lock crown is completely tightened
at all times.
- If the watch comes into contact with salt or chlorinated
water, be sure to rinse it thoroughly in fresh water.
- If a watch is wet, do not store it in a closed container.
It should be dried out immediately to avoid damage to
internal components.
- Should water or condensation appear in the watch,
immediately have it serviced by those listed on your
warranty as water can corrode components.

20
- Pressure in bar (ATM) is a test pressure. This
measurement should not be considered as actual
immersion depth, as various conditions in beach surf may
cause false pressure conditions.
- The dial marking indicated (ATM, M or BAR) represents
the tested pressure.
