maxwatt MXWP20 User manual

TABLE OF CONTENTS
CHAPTER PAGE
PORTIM ANT...................................................................................................1
CHAPTER 1 – INSTRUCTIONS TO OPEN PACKAGE..........................................3
CHAPTER 2 – SAFETY RULES...........................................................................4-5

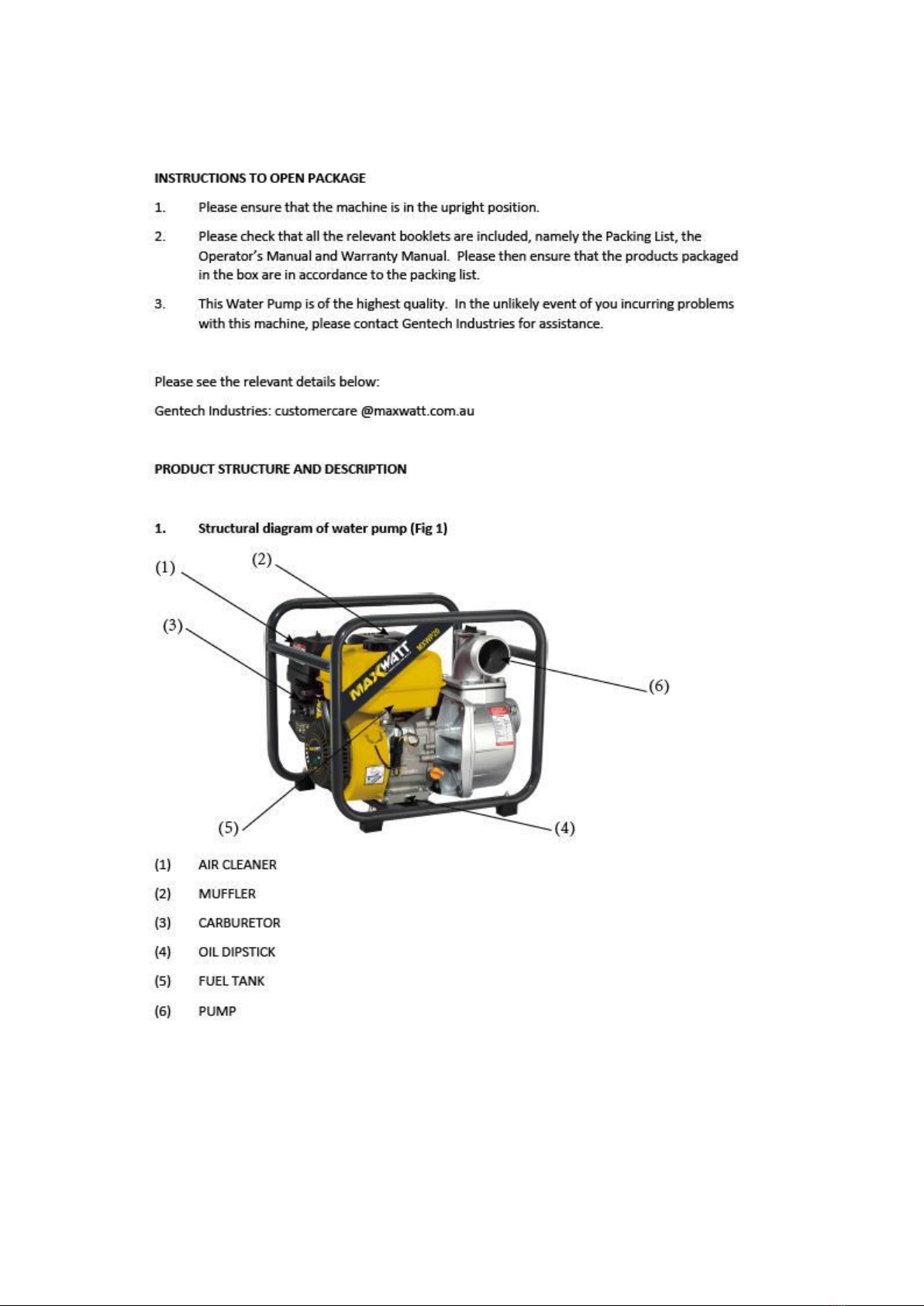

CHAPTER 3 – PRODUCT STRUCTURE AND DESCRIPTION...............................6-7
CHAPTER 4 – MAIN PARAMETERS.................................................................8
CHAPTER 5 – USE AND OPERATION.............................................................. 9-12

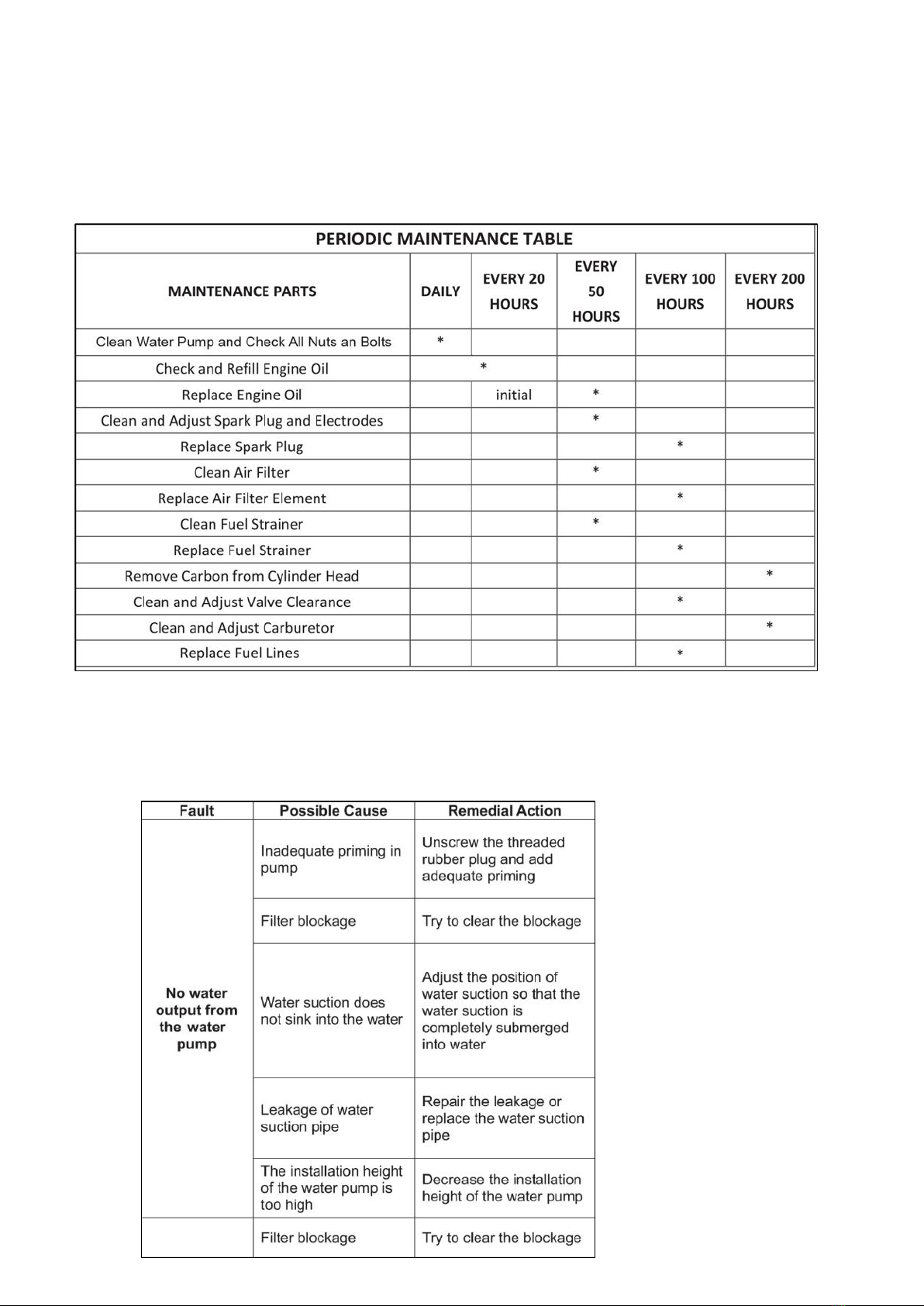

CHAPTER 6 – REPAIR AND MAINTENANCE 13
....................................................

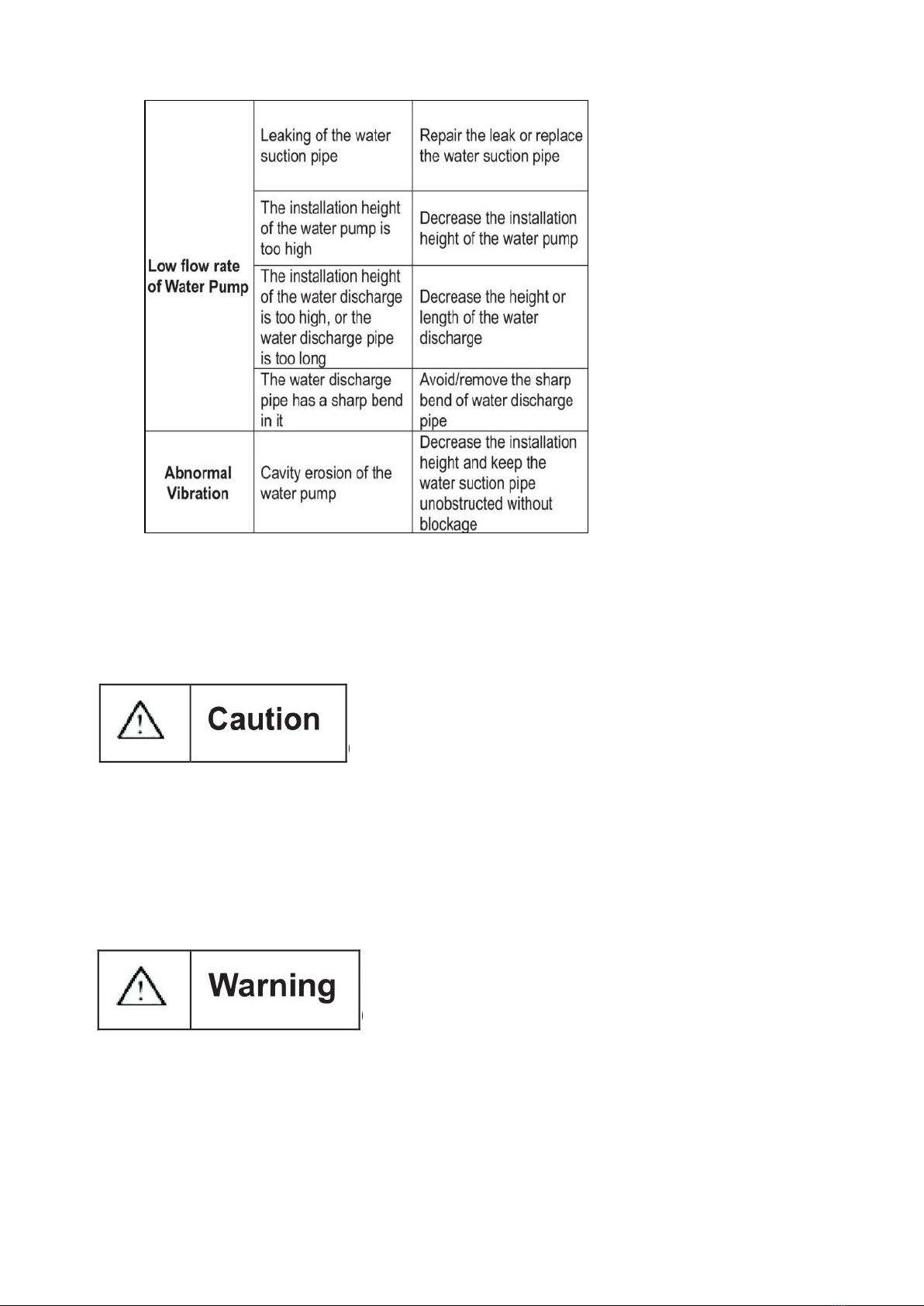

CHAPTER 7 – TROUBLE SHOOTING ...........14-15
....................................................
CHAPTER 8 – TRANSPORTATION AND STORAGE 16
............................................
CHAPTER 9 – WARRANTY DESCRIPTIONS 17
.......................................................

ABOUT YOUR WATER PUMP
Thank you for purchasing a MAXWATT Water Pump, (hereinafter referred to as “the water
pump”).
This water pump is suitable for use on various trade worksites, whether residential or
commercial.
Please read and understand this manual for instructions on start-up, shut down, operations,
adjustments, maintenance as well as safety guidelines before using this product. Please take all
possible precautions to protect your own safety and that of the people in the immediate vicinity.
This manual is the latest version. Save this manual for future reference.
The manufacturer shall not assume any liability for incorrect information contained in this
manual.
This manual is an essential and important tool for the use of the water pump. When the water
pump is transferred to new owners, the manual must be given to the new owners as well.
Some important information in this manual will be indicated in the following way. The owner/
user must pay special attention to these instructions.
MAXWATT is constantly improving its products. All information supplied in this manual is based
on the latest product information available at the time of printing. The specifications outlined
herein are subject to change without notice or obligation. The purchaser and/or user shall assume
liability for any modification and/or alterations of this equipment from original design or
manufacture.

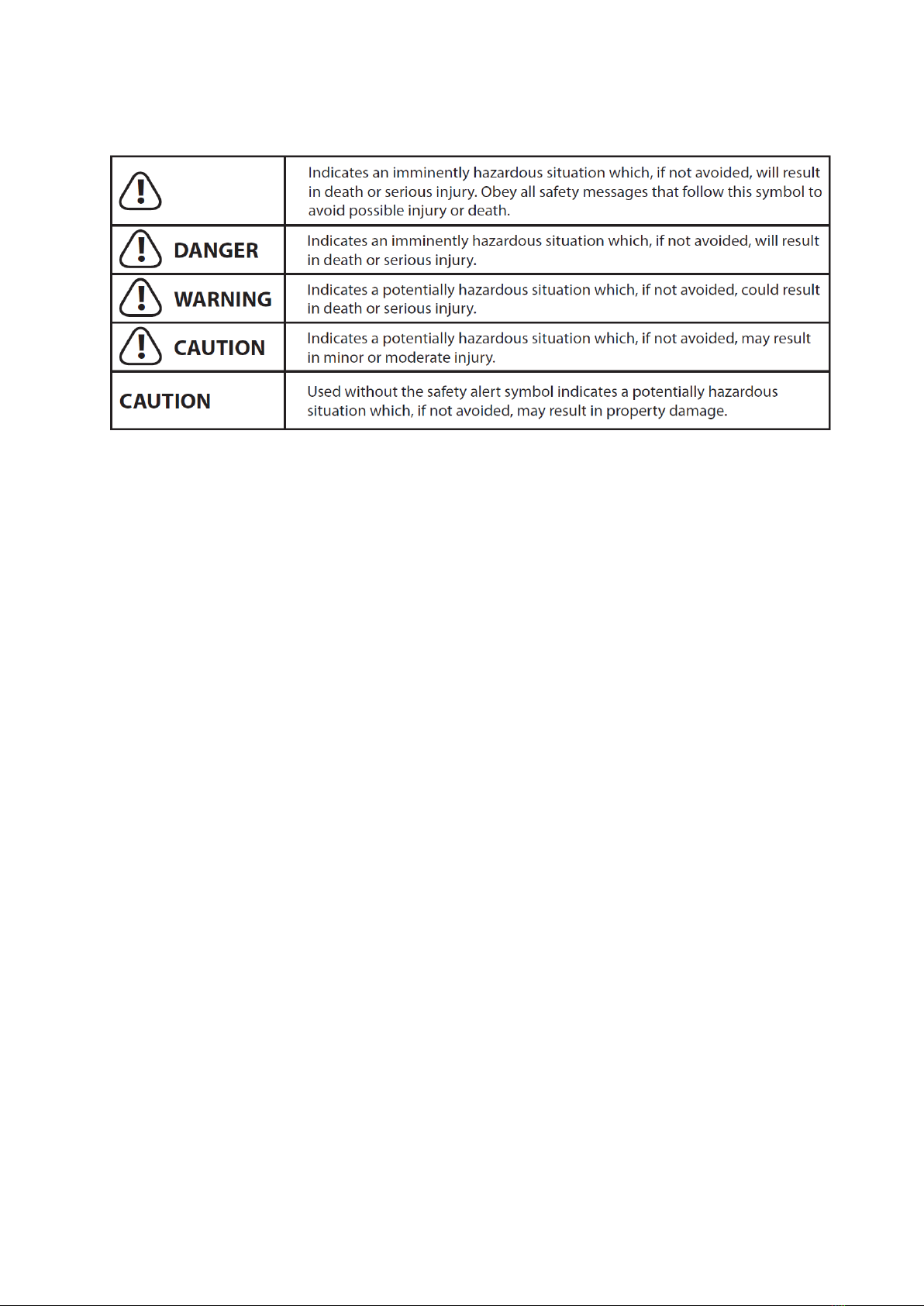

HAZARD SIGNAL WORD DEFINITIONS
For any queries on the above, please contact Gentech Industries, the official service agent for all
MAXWATT water pumps and water pumps.
The range of MAXWATT water pumps is safe and reliable, but incorrect usage of these products
may cause personal injury and damage to the machine.
As this product is continuously improved and upgraded, the manufacturer reserves the right to
modify this manual without notice.
In order to operate the water pump safely, strictly adhere to the operator’s manual and please
read it through carefully and thoroughly before using the water pump.
BEFORE STARTING
UNPACKING AND DELIVERY INSPECTION
You should inspect the water pump immediately after you receive delivery thereof. If you have
any missing parts, please contact your place of purchase. DO NOT attempt to operate the water
pump if there are any missing parts.
The water pump is shipped without oil. You must add an adequate amount of engine oil before
using it for the first time. The engine will be damaged beyond repair if it is started without oil. For
oil type, please see “Recommended Oil Type” section of this manual on page 9. Fresh regular RON
91 fuel must be used in this unit. DO NOT use Premium or Ethanol based fuels.

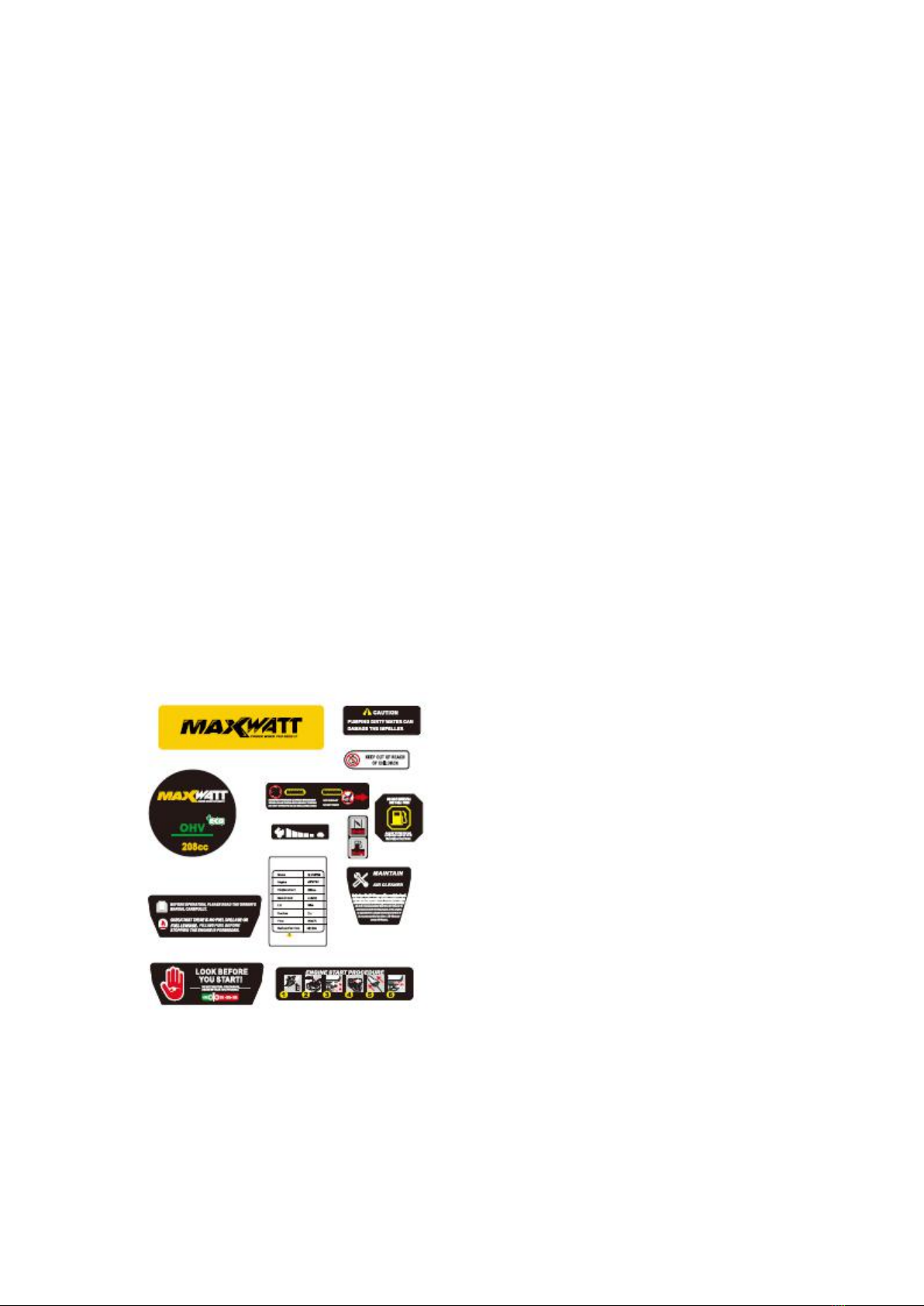

SAFETY SIGNS
Comply with the instructions provided by the safety signs and symbols fitted to the water pump
and in this manual. The water pump and manual only feature the symbols relevant to the model
purchased. Check that the symbols and signs affixed to the unit are always present and legible,
otherwise fit replacements in the original positions.
GENERAL WARNINGS & DISCLAIMER

READ and UNDERSTAND this manual completely before using the engine. Failure to properly set
up, operate and maintain this engine could result in serious injury or death from carbon monoxide
poisoning, electric shock, fire/explosions and/or burns.
In particular be aware of the following hazards:
CD POISONING
Engines give off carbon monoxide, an odourless, colourless poisonous gas that can kill you. You
CANNOT smell it, see it or taste it. ONLY run an engine OUTDOORS and AWAY from building air
intakes. NEVER run an engine inside any enclosed or semi-enclosed spaces, including homes,
basements, garages, sheds, boxes, RV’s, boats or pick-up truck beds. These spaces can trap
poisonous gases, EVEN if you run a fan or open windows.
HEAT
Unintentional sparks can cause/result in fire or electric shock.
FIRE/ EXPLOSION
OPERATE ONLY in an area with adequate cooling ventilation so the engine does not overheat. The
exhaust can be extremely hot. Keep the muffler at least 3 metres from all combustible objects.
All fuels are flammable. Never fuel a running or hot engine. Never pump fuel directly into the
engine at a petrol station –use an approved container to transfer the fuel. Ensure that there are
no fuel leaks and keep sources of sparks and flames away. Wait for the engine to be cool before
fuelling. ALWAYS keep a fire extinguisher rated “ABC” nearby.
INSPECT COMPONENTS
Closely inspect to make sure that there are not any components missing or damaged.
GENERAL SAFETY RULES FOR OPERATION
Save all warnings and instructions for future reference.
This equipment is to be used for the purpose for which it is designed and intended.
Seek assistance if required when moving or lifting the water pump.
WORK AREA SAFETY
Intended for outdoor use only. DO NOT operate in confined spaces or indoors as carbon
monoxide released from the exhaust can kill.
DO NOT operate in explosive atmospheres such as in the presence of flammable liquids,
gases or dust.
Keep children and bystanders away while operating a water pump.
Distractions can cause you to lose control.
Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
Read all safety warnings, instructions, illustrations and specifications
WARNING provided with this water pump. Failure to follow all instructions listed
below may result in electric shock, fire and/or injury.

Exposure to rain, damp conditions or extreme temperatures can cause damage or serious
injury.
PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense when operating a water
pump.
DO NOT use a water pump while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention may result in serious personal injury.
Use personal protection equipment. Always wear eye protection. Wear approved safety
impact eye goggles, dust mask, non-skid safety shoes, hard hat and hearing protection for
appropriate conditions.
DO NOT overreach. Keep proper footing and balance at all times. This enables better
control of the water pump in unexpected situations.
Dress properly. DO NOT wear loose clothing, gloves, neckties or jewellery. Keep your hair
and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught
in moving parts.
DO NOT let familiarity gained from frequent use of the water pump allow you to become
complacent and ignore safety principles and rules. A careless action can cause severe
injury within a fraction of a second.
For your own safety, do not operate your water pump until it is completely assembled and
installed according to the instructions and until you have read and understood all of the
instructions.
WATER PUMP SAFETY RULES
DO NOT use the water pump if the engine switch does not turn it on and off. Any warer
pumps that cannot be controlled with the switch is dangerous and must be repaired.
Know how to stop the water pump without hesitation. Be thoroughly familiar with proper
use of the equipment and all engine controls, output receptables and connections. Know
how to stop the engine quickly (see “Stopping the Water Pump”).
The engine owner must instruct all operators in safe engine set-up and operation. Only
trained adults should set up and operate the engine. DO NOT let children operate it.
Carefully read about and understand the intended use of this engine. DO NOT use for
other purposes as unforeseen hazards or equipment damage may result.
NEVER operate or let anyone else operate the engine while under the influence of alcohol,
drugs or medication.
DO NOT operate the engine unless all safety overs, guards and barriers are in place and in
good working order –and that all controls are properly adjusted for safe operation.
DO NOT operate the water pump with damaged, missing or broken parts.

DO NOT modify the water pump in any way. Modifications can create hazards and will
also void the warranty.
NEVER attempt to modify the water pump speed setting. The water pump speed is
present for safe and optimal performance of the water pump. If speed needs adjusting, it
must be done by factory personnel.
NEVER attempt to connect external fuel sources in order to increase the water pump run
time. A larger tank at pressure or higher elevation will cause a leak from the carburettor
during operation. A fire and/or an explosion could result.
Always turn off the water pump and remove the spark plug(s) or spark plug wire(s) before
working on the water pump to prevent accidental starting. Always discharge the capacitor
before working on the water pump head to prevent electrical shock. (See Maintenance &
Repair section of this manual for instructions on how to do this.)
The running water pump gives off carbon monoxide, a poisonous gas that can kill you. You
CANNOT smell it, see it, or taste it. Follow all instructions for site selection and positioning
of the water pump and avoid inhaling fumes from the exhaust. If you start to feel sick,
dizzy or weak while using the water pump, shut off the water pump and get to fresh air
RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
Immediately turn off the water pump if any of the following conditions arise during
operation:
1. Excessive change in enginespeed, slow or fast;
2. Sparking or arcs;
3. Engine misfire;
4. Excessive vibration;
5. Flame or smoke or
6. Abnormal noise
This product contains or emits chemical known to the Commonwealth of Australia to
cause cancer, birth defects or other reproductive harm. Avoid inhalation of exhaust.
DO NOT operate the engine or handle any electrical equipment while standing in water,
while barefoot, while hands are wet or while in the rain or snow. An electric shock may
result.
Avoid contact with bare wires, terminals, connections, etc. while the water pump is
running.
If an electric shock accident occurs, immediately shut down the source of electrical power.
If this is not possible, attempt to free the victim from the live conductor. Avoid direct
contact with the victim. Use a non- conducting implement, such as a dry rope or board, to
free the victim from the live conductor. Administer/apply applicable first aid and get
immediate medical help.
Never smoke near the running engine and never operate near sources of sparks or flames.

SERVICE
Have your water pump serviced by a qualified repair person using only factory approved
replacement parts. This will ensure that the safety of the water pump is maintained.
Incorrectly fitted parts will void your warranty.
The equipment may only be used, maintained or repaired by those persons who
understand and have been instructed about the potential dangers. Independent changes
in the equipment cancel any manufacturer’s liability for any damages that result from
these changes.
APPROPRIATE USE
Use the equipment only when it is in technically perfect condition and only for appropriate
jobs, with an awareness of safety and possible dangers, based on observation of the
operating instructions. In particular, problems which could influence the operational
safety must be dealt with immediately.
All of the manufacture’s safety, work and maintenance regulations as well as the given
norms in the Technical Data must be observed.
STATIC ELECTRICITY AND FILLING THE PETROL TANK
Static electricity can initiate from un-grounded petrol tanks or containers from flowing petrol and
persons carrying a static electric charge. Static electricity can explosively ignite petrol vapours that
are present during the fuelling process, resulting in serious burns to nearby persons.
Many objects can accumulate and retain a static electric charge. Objects made of non-conductive
materials (eg. plastics) easily accumulate and retain static electrical charge, as can objects made
of conductive material (eg. metal, water) if they are not electrically grounded.
To avoid static electricity while fuelling, certain steps must be followed before and during the
fuelling process in order to minimise and safely dissipate static charge build-up:
Touch a grounded metal object before starting. Always dissipate static charge from your
body before beginning the fuelling process by touching a grounded metal object at a safe
distance away from the fuel source.
Use a portable container to fill the tank. NEVER fill the engine’s petrol tank directly from
the fuel pump –the engine’s tank is not grounded and the high velocity flow of petrol
from a fuel pump can cause static electric build-up. Use an approved portable container to
transfer to the engine’s tank.
TYPICAL SOURCES OF STATIC ELECTRIC HAZARDS DURING FUELLING
The following objects can accumulate a static electric charge and cause an ignition spark in typical
fuelling situations:
Ungrounded tanks/containers.

Any ungrounded fuel tank or container can accumulate a static electric charge as a result of
contact with other objects or friction during transportation. This static electricity can discharge as
a spark to the grounded petrol dispenser nozzle as the nozzle is first brought close to the
tank/container at the beginning of the fuelling process.
Flowing petrol. Most people are not aware that petrol accumulates static electric charge
while flowing through a hose or pipe. This charge then transfers to and accumulates in the
gas tank or container that is being filled. The total amount of charge accumulation
depends on the amount of gas pumped into the container, the speed with which it is
pumped, and whether or not the tank/ container is grounded. If sufficient static electric
charge accumulates in the fuel tank or container during the fuelling process, the
tank/container may discharge a spark to the grounded petrol dispenser nozzle.
A person dispensing the petrol can carry a static electric charge on their body, typically
resulting from contact with their car seat or electronics. The static electricity can discharge
a spark between that person’s hand and either the grounded dispenser nozzle or the fuel
tank opening.
Before using the water pump, you must select a suitable OUTDOOR location for
installation and operation that meets the following criteria:
DRY, LEVEL SURFACE
The water pump should be positioned on a dry, firm and level surface. Ensure that the water
pump sits level and will not slide or shift during operation.
OUTDOORS ONLY
Follow the directions below for choosing a location to operate your water pump in order to avoid
carbon monoxide poisoning:
The location you choose to operate the water pump must be OUTDOORS and away from
all building air intakes.
Never run the water pump inside any closed or semi-enclosed spaces (even if outdoors),
including homes, garages, basements, sheds or boxes. These spaces can trap poisonous
gases, even if you run a fan or open windows.
Ensure that working, battery-operated or battery back-up carbon monoxide alarms are
used in any dwelling/structure that is in close proximity to the running operator.
ADEQUATE COOLING VENTILATION
The exhaust from your water pump contains carbon monoxide (CO), a poisonous gas that
can kill. You cannot smell it, see it or taste it. Breathing carbon monoxide can cause loss of
consciousness and may lead to death. Never run your water pump in a closed or even
partially enclosed areas or near open windows or doors. Never attempt to attach ductwork
to the muffler system to allow for installation inside an enclosre. This could cause hot air,
WARNING heat build up and increased exhaust back pressure, resulting in possible exhaust leackage
or damage to the water pump.

The water pump needs adequate, unobstructed flow of air to allow for proper cooling of the
engine and water pump head.
Never place the water pump immediately adjacent to a building or other structure –allow at least
2 metres clearance.
Do not run the water pump in close proximity to other heat-generating equipment, such as a
water pump. The combined heat that is generated may raise air temperature in the immediate
area and there will not be adequate cooling ventilation.
Do not allow debris to accumulate and block airflow.
Do not operate with a tarp, blanket, or cover surrounding the water pump.
HOT EXHAUST CLEARANCE
Make sure your water pumps exhaust system is at least 2 meters from all combustible materials
and buildings/structures.
Equip the engine with a spark arrestor if the water pump will be used near any ignitable forestry,
brush, bush or grassy land. (see the “Specifications” section of this manual to determine if your
water pump is already equipped). Make sure you comply with applicable local, state and federal
codes. Keep a fire extinguisher rated “ABC” nearby. Keep it properly charged and be familiar with
its use.
OPERATE AWAY FROM DUST/DIRT
Do not use the water pump in extremely dusty or dirty conditions. Excessive dust and dirt can
cause premature failure of the machine.
HEARING PROTECTION
Water Pumps can product noise levels >70dB in close proximity, which can be dangerous to
human hearing with prolonged exposure to the running water pump for an extended period of
time.
An Important Message about Temperatures
Your water pump is designed and rated for continuous operation at ambient temperatures up to
40 degrees Celsius. When your water pump is needed, it may be operated at temperatures
ranging from -15 degrees Celsius to 50 degrees Celsius for short periods. If the water pump is
exposed to temperatures outside this range during storage, it should be brought back within this
Heat build up from inadequate ventilation can result in fire, posting
a serious risk to nearby persons and structures. Situate so there is
adequate clearance around the water pump to allow for cooling
WARNING airflow so that heat does not build up.
Never attempt to attach ductwork to the muffler system to lower
noise levels. This could cause hot air deflection, heat build up and
increased exhaust back pressure, resulting in possible exhaust leakage
WARNING to damage to the water pump.

range before operation. In any event, the water pump must always be operated outdoors, in a
well-ventilated area and away from doors, windows and other vents.

2. Operating environment and structure description
The water pump is designed to convey/pump fresh water of normal temperature, OR water of
which the quality conforms to GB5084 with a temperature of less than 40 degrees Celsius.
This is an axial suction, horizontal, coaxial direct type centrifugal water pump. The impeller is
semi-open or closed. The pump is single stage or multistage and single suction.
The pump body is volute type and the discharge is placed upwards. The pump suction and
discharge is a threaded or rapid joint connection.
The mechanical seal is applied to the pump shaft seal. The rotary direction of the water pump is
anti-clockwise if viewed from the direction of the pump suction.
MAIN PARAMETERS

USE AND OPERATION
1. Prepara on and inspec on before use
To ensure your safety as well as the maximum lifespan of your water pump, please read
below.
A Please check that each bolt is ht before opera ng your water pump as some of them
may become loose due to the vibra on of the water pump whilst in use. Replace any
missing bolts immediately.
B Check your oil level and re-fill if necessary, prior to star ng your water pump.
C Check the water pump for any possible oil leaks. Do not operate the water pump should a
leak be no ced.
D Check that your water pump has sufficient fuel. If necessary, refill before using your water
pump.
PLEASE NOTE THAT YOUR WATER PUMP DOES NOT COME WITH SUFFICIENT OIL FROM THE
MANUFACTURER. PLEASE DO ENSURE THAT THE WATER PUMP HAS SUFFICIENT OIL BEFORE
STARTING AND USING THE MACHINE.

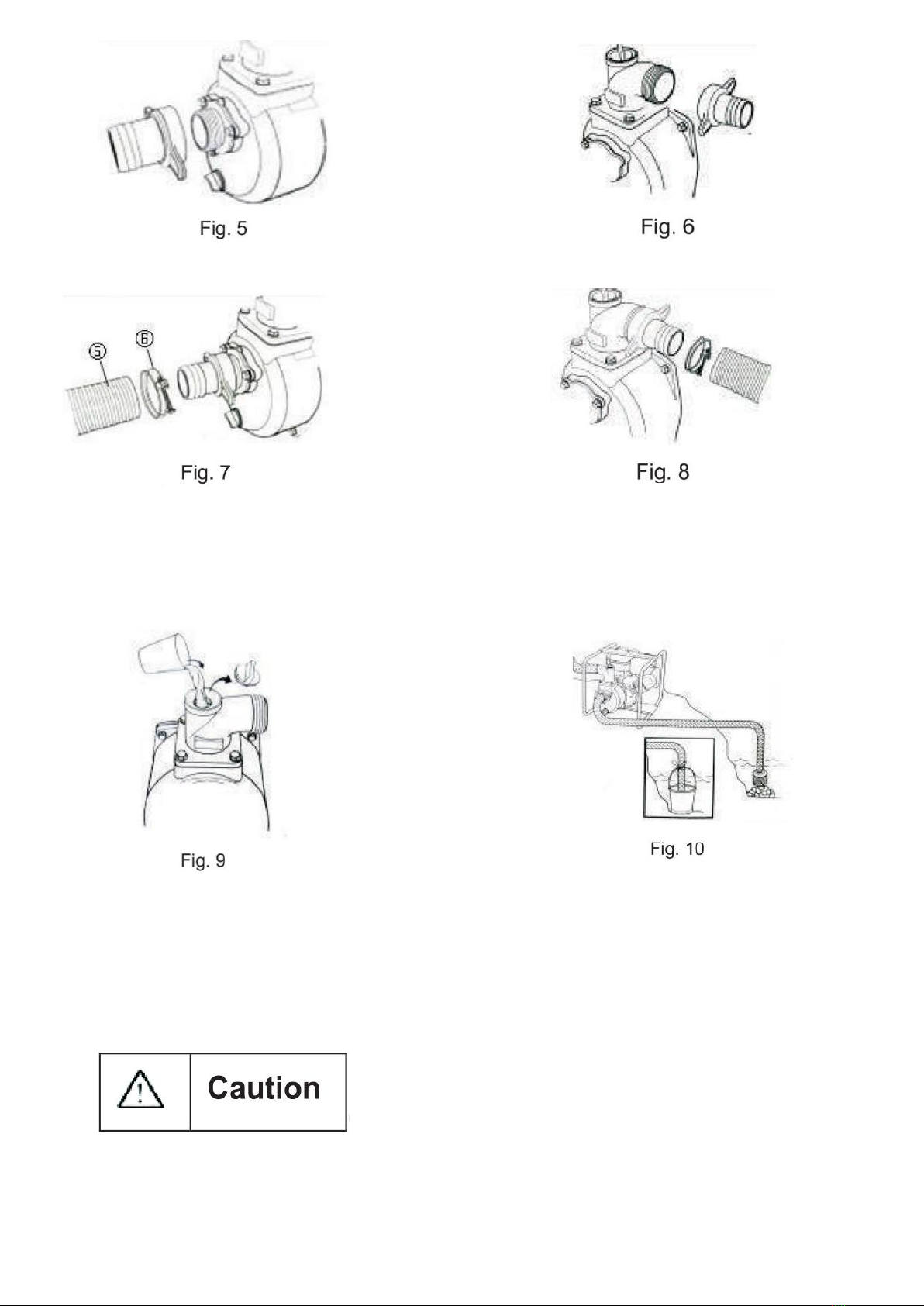

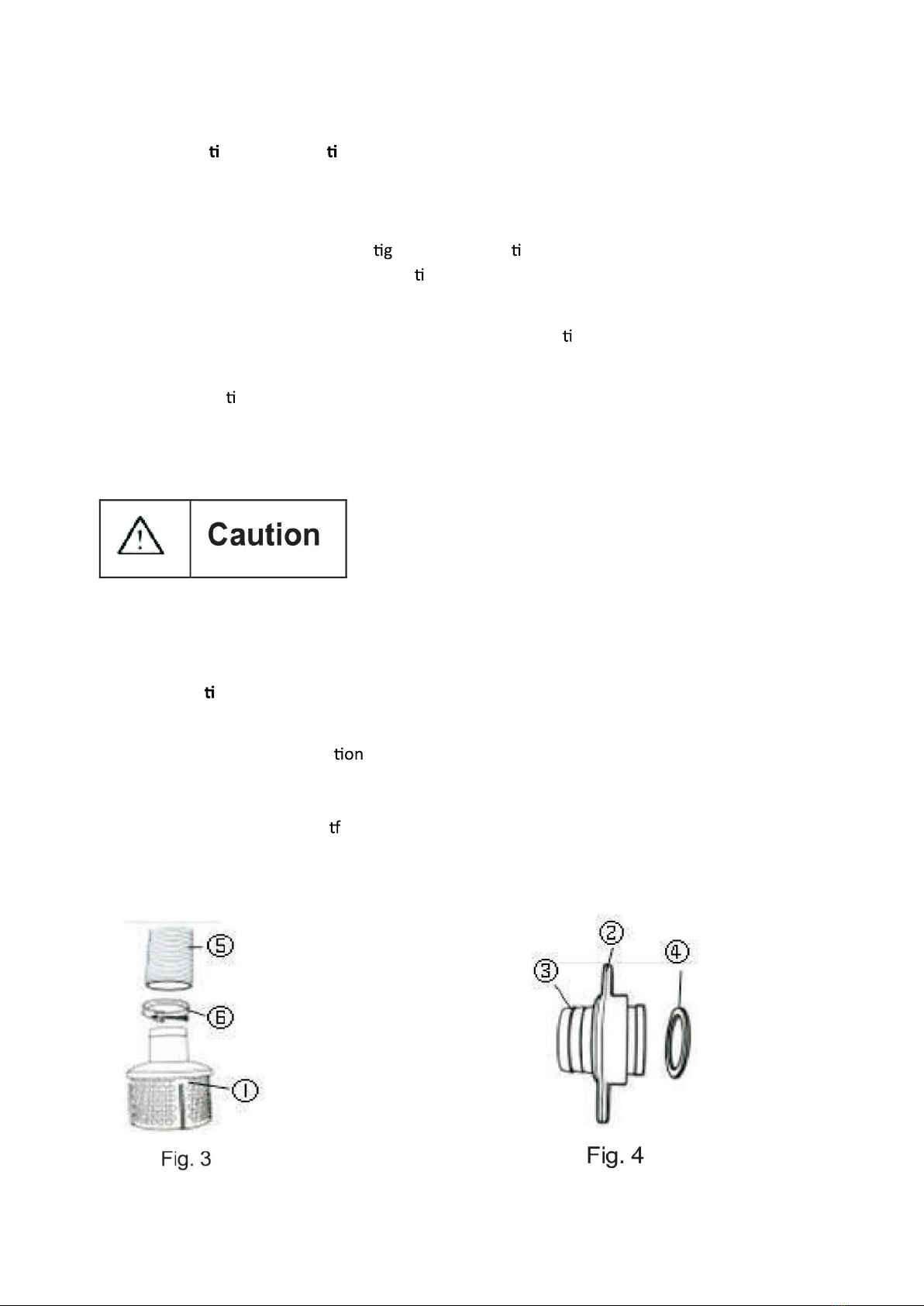

2. Installa on of water pump (See Fig 3 – Fig 10)
(1) Filter
(2) Pipe joint connec
(3) Pipe joint
(4) Pipe joint gasket
(5) Water inflow/ou low rubber hose
(6) Clamp
(1) Connect the filer (2) Assemble the pipe joint

(3) Install the water sucon (4) Connect the water discharge
(5) Connect the water sucon pipe (6) Connect the water discharge pipe
(7) Prior to each use, please fill with water. (8) Place the filter into water and ensure that
Unscrew the rubber plug and fill the the water level exceeds 20cm above the
pump body with clean water. the filter. We recommend that you place
the filter screen in a bucket or on a rock
to avoid mud causing blockages.
The water sucon pipe must be a connuous and unfolding structure. Its length should not
exceed the required length. To ensure maximum performance from your water pump, we
recommend that your water pump is located as close to the point of sucon as possible.

Select your water pipe in accordance to your conditions and model. To ensure your safety, the
pressure bearing capacity of the water pipe should not lower than the requirements listed in
Chapter 4.
Do not operate beyond the lift of your water pump. If there is a decrease of water discharge flow
cause by excessive lift, the liquid in the water pump may overheat and cause damage to the seals.
To prevent any air leakage and/or water discharge, ensure that you fasten the pipe joint and pipe
coupling clamp sufficiently. Any leakage will reduce the performance and self-priming capacity of
your water pump.
To not attempt to operate your water pump without water. This will cause the water pump to
overheat and damage the seals.
3. Start up and shutdown of the water pump
Please refer to the engine specifications of your water pump when you switch on or off.
4. Maintenance after shutdown
When turning your water pump off, remove the water suction and discharge pipes, and
then unscrew the rubber plug of the discharge outlet (see Fig 1).
Drain away the residual water in your water pump. Wait for your water pump to cool
down completely before trying to move it.
REPAIRS AND MAINTENANCE
Periodic inspection and services to your water pump is imperative to maximise its longevity and
performance.
A We recommend that you contact Gentech Industries to facilitate any services or
warranty requirements that you may have.
B Do not attempt to carry out any maintenance on your water pump whilst it is still
in use. Always ensure that your water pump has cooled down sufficiently prior to
touching it.
C Smoking or any fire is extremely dangerous when using or repairing your water
pump. Do not be negligent.
D Do not attempt to pump salt/sea water or any water with high acidity through your
water pump as this will cause extensive damage and will not be covered by your
limited warranty policy.
Refer to the engine section in this manual for any further assistance regarding repairs and
maintenance to your water pump.

TROUBLE SHOOTING
1. Common water pump faults and trouble shooting

If the aforementioned advice does not resolve your problem, or if what you are faced with
is not mentioned in the aforementioned table, please contact Gentech Industries for
assistance.
The limited warranty terms and conditions does not cover your water pump if it is
disassembled and/or assembled by a non-approved service agent.
For more information, please consult your warranty policy or contact Gentech Industries.
TRANSPORTATION AND STORAGE
A To avoid the possibility of a fire, please wait until your water pump has cooled
down completely prior to storing it in a confined place.
B Always ensure that your water pump is transported in the upright position.

TIPS TO FOLLOW WHEN STORING YOUR WATER PUMP FOR LONG PERIODS OF TIME:
A Clean your water pump thoroughly and properly.
B To avoid dampening the impeller of your water pump, flush the unit properly with
clean water to remove any mud and other sediments. Before doing this, ensure
that the drain plug has been removed.
C Empty the fuel tank.
D Replace with clean engine oil.
E Slowly pull the starter handle until you feel pressure.
F Clean the water pump surface and store in a dry place.
G` Cover the water pump for dust protection.

WARRANTY INFORMATION
2 YEAR TRADE WARRANTY
This warranty is provided by Gentech Industries PTY LTD.
Express Warranty
Subject to the exclusions set out below, we warrant that this product will be free from defects in
materials or workmanship for 24 months from the date of purchase.
The benefits conferred by this warranty are in addition to all rights and remedies which you may
be entitled to under the Australian Consumer Law and any other statutory rights you may have
under other applicable laws. This warranty does not exclude, restrict, or modify any such rights or
remedies.
Warranty Exclusions
This express warranty does not apply where a defect or other issue with the product is caused by
normal wear and tear, misuse or abuse of this product.
Consumer Guarantees
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
LIMITED WARRANTY POLICY:
“This is a “walk in” warranty policy and is limited to the range of water pumps specified herein”.
We recommend that you take the water pump to the nearest service agent for assistance. Please
visit www.maxwatt.com.au for more information.
To qualify for this warranty:
“The warranty applies to the first purchaser and each subsequent owner during the applicable
warranty time period”.
What the appointed Service Agent will repair or replace under warranty:
“The appointed Service Agent will repair or replace, at its sole discretion, any part that is proven
to be defective in material or workmanship under normal use during the applicable warranty time
period. Warranty repairs will be made without any charge for parts and labour. All parts replaced
will be considered as part of the original product and the warranty on such parts will expire
coincident with the original product warranty”.

WARRANTY PROCEDURES:
BELOW IS A LIST OF WATERPUMPS THAT ARE COVERED UNDER THIS WARRANTY:
MODELS
WARRANTY PERIOD
PRIVATE/RESIDENTIAL
WARRANTY PERIOD
COMMERCIAL/RENTAL
MAXWATT
ALL
MODELS
24 months
24 months
STEP 1
•You must register your purchase/warranty online (visit
www.maxwa .com.au).
STEP 2
•Consult the "trouble shoo ng" guide supplied and follow
ALL check points.
STEP 3
•Contact GENTECH INDUSTRIES for techincal assistance prior
to booking your generator in for repairs.
STEP 4
•Take the generator and your "proof of purchase" either to the store
you purchased the generator from or to the nearest accredited
service agent (visit www.genetechindustries.co.za to obtain the nearest
service agent to you).
STEP 5
•Do not a mpt to deal directly with a "non accredited"
service agent as this will nullify your warranty.
STEP 6
•You will be required to provide proof of services as set out in
the operators manual unless the generator has run for <20
hours
STEP 7
•The repair will take approximately 14 working days from the
date that the generator is recieved by the service agent.
STEP 8
•You may contact GENTECH INDUSTRIES for a progress
update on the repairs of the generator.
STEP 9
•All warranty repairs are at the sole discre on of GENTECH
INDUSTRIES.
Take the water pump and your proof of purchase
either to the store where purchased, or to the nearest
of accredited service agents.
