Maxx Cold MXSF29U W/1 DOOR Owner's manual

SERVICE, INSTALLATION AND OPERATION MANUAL
For AUTHORIZED PARTS or TECHNICAL SERVICE, please contact:
1-877-368-2797 [email protected]
3355 Enterprise Avenue, Suite 160, Fort Lauderdale, FL 33331 USA
Phone: [phone]
Website: MaxximumFoodService.com
MXSF29U W/1 DOOR
MXSF48U W/2 DOOR
MXSF60U W/2 DOOR
UNDERCOUNTER FREEZERS
PLEASE READ CAREFULLY
MCMNSS05
100317

Page 2of 18
Table of Contents
SERIAL NUMBER INFORMATION .............................................................................................................................................3!
APPLIANCE SAFETY ....................................................................................................................................................................4!
IMPORTANT SAFEGUARDS........................................................................................................................................................5!
DIMENSIONS..................................................................................................................................................................................7!
TECHNICAL INFORMATION.......................................................................................................................................................7!
RECEIVING AND INSPECTING THE EQUIPMENT..................................................................................................................8!
INTRODUCTION ...........................................................................................................................................................................8!
COMPONENT INFORMATION ..................................................................................................................................................9!
APPLIANCE INSTALLATION ....................................................................................................................................................10!
Remove Packaging Materials .....................................................................................................................................................10!
Location Requirements...............................................................................................................................................................10!
Inside cabinet: .............................................................................................................................................................................10!
Outside cabinet: ..........................................................................................................................................................................10!
Installation Clearance .................................................................................................................................................................11!
Leveling ......................................................................................................................................................................................11!
Stabilizing ...................................................................................................................................................................................11!
Electrical Connection..................................................................................................................................................................11!
OPERATION..................................................................................................................................................................................12!
Refrigerated cycle.......................................................................................................................................................................12!
Power Switch:.............................................................................................................................................................................12!
SOLID-STATE THERMOSTAT DESCRIPTIONS......................................................................................................................12!

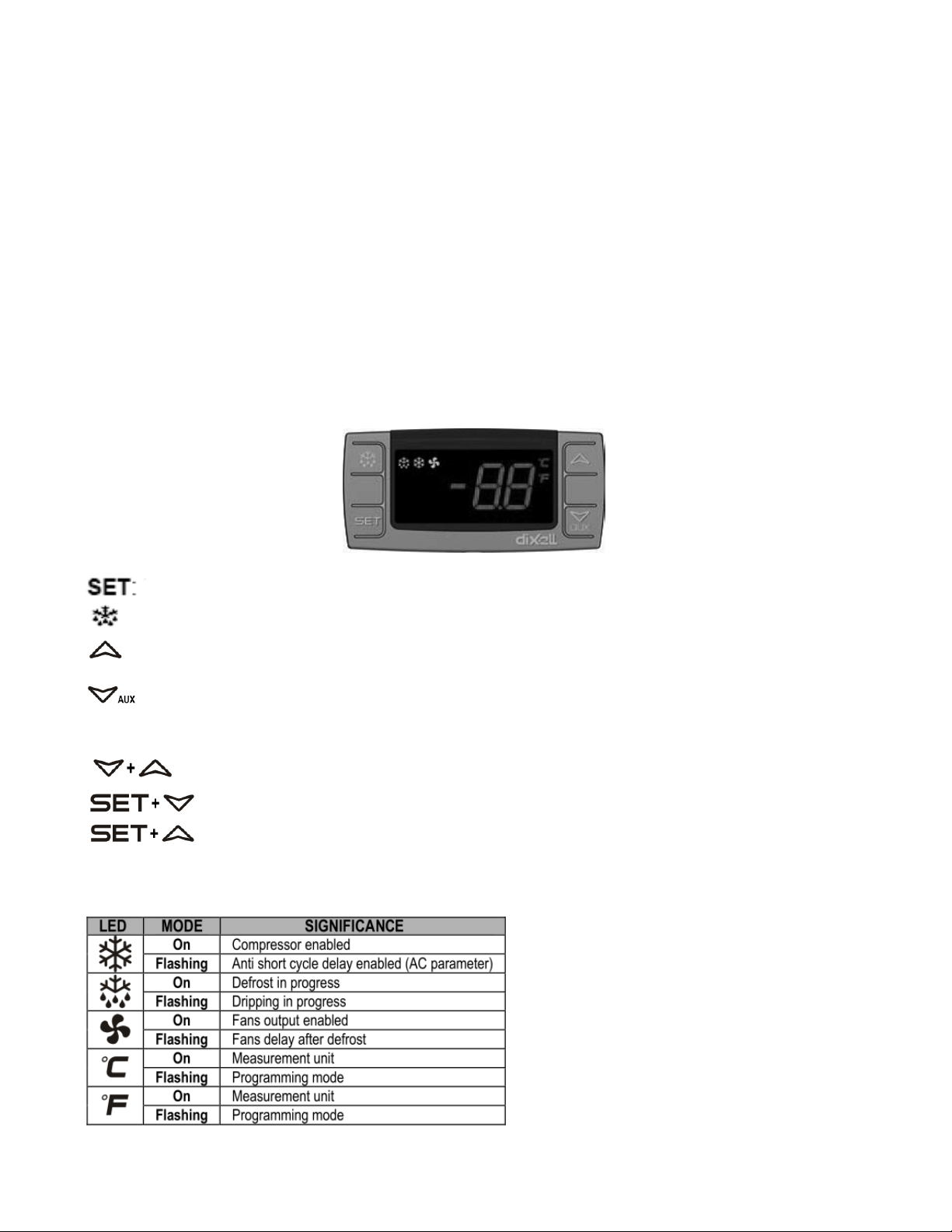

1.!FRONT PANEL COMMANDS. ........................................................................................................................................12!
2. MAIN FUNCTIONS ..............................................................................................................................................................13!

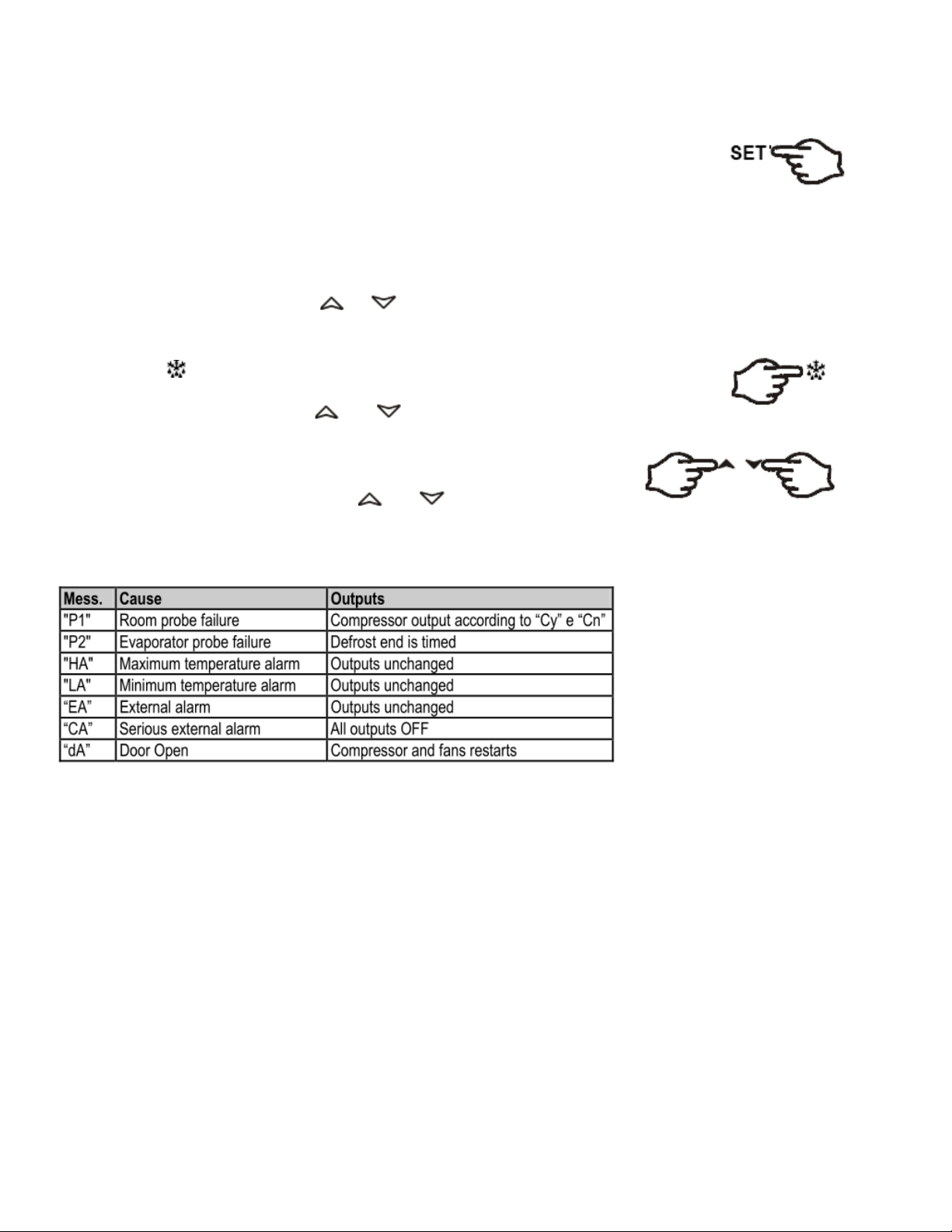

3. ALARM SIGNALLING.........................................................................................................................................................13!
CLEANING AND MAINTENANCE............................................................................................................................................14!
Exterior and Interior Cleaning of Appliances .............................................................................................................................14!
Cleaning the Condenser Coil ......................................................................................................................................................14!
Stainless Steel Care and Cleaning ..............................................................................................................................................15!
Gasket Maintenance....................................................................................................................................................................15!
Doors/Hinges ..............................................................................................................................................................................15!
Drain Maintenance......................................................................................................................................................................15!
TROUBLESHOOTING GUIDE .................................................................................................................................................16!
TROUBLESHOOTING .................................................................................................................................................................16!

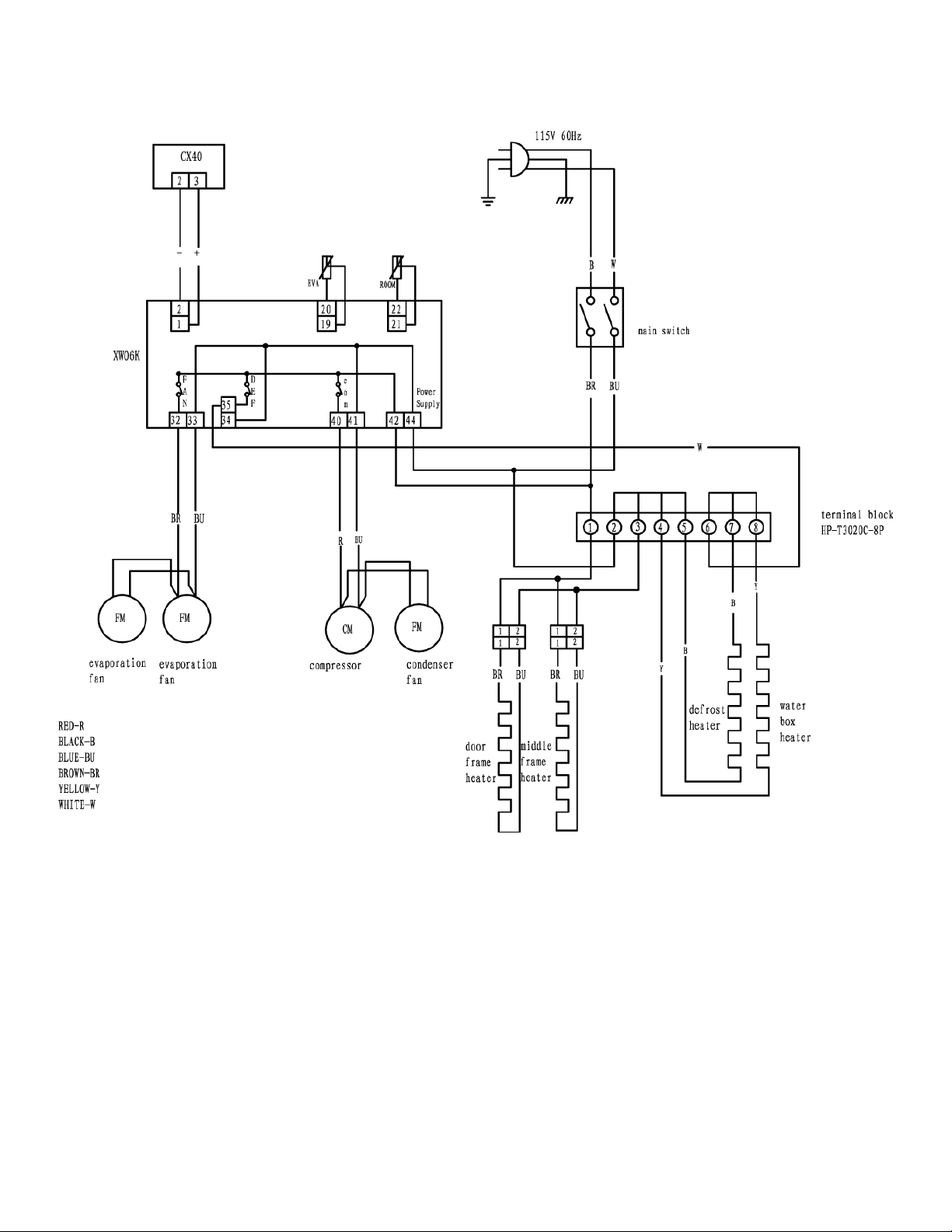

WIRING DIAGRAMS ...................................................................................................................................................................17!

Page 3of 18
READ THIS MANUAL IN ITS ENTIRETY
TO HELP FAMILIARIZE YOURSELF WITH YOUR NEW EQUIPMENT BEFORE PROCEEDING.
We have provided many important safety messages in this manual.
Always read and obey all safety messages.
Understanding of safety messages will assist in alerting you to potential hazards, as well as tell you
how to reduce the chance of injury. Follow the instructions as outlined in this manual.
VISIT OUR WEBSITE for the MOST UP-TO-DATE VERSION of this MANUAL.
http://www.maxximumfoodservice.com/
Fill out and return the enclosed warranty postcard or visit our website/warranty registration.
Keep the dated proof of purchase invoice which establishes the appliance's warranty period.
SERIAL #:______________________________________________________________________________________________
MODEL #:________________________________________ DATE OF PURCHASE:_______________________________
SERIAL NUMBER INFORMATION
lThe serial number of all self-contained appliances is located inside the unit on the left hand side near the top on the wall.
lAlways have the serial number of your unit available when calling for parts or service.
lThis manual covers standard units only. If you have a custom unit, consult customer service department at the number listed on
cover page.
Due to periodic changes in designs, methods, procedures, policies and regulations, the contents of this manual are subject to change
without notice. While we exercise good faith efforts to provide information that is accurate, we are not responsible for errors or
omissions in information provided or conclusions reached as a result of using this reference manual. By using the information
provided, the user assumes all risks in connection with such use.

Page 4of 18
APPLIANCE SAFETY
Your safety and the safety of others are very important.
Always read and obey all safety messages in this manual.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and
others. All safety messages will follow the Safety Alert Symbol and either the words
”DANGER”, “WARNING” or “CAUTION”.
DANGER DANGER means that failure to heed this safety statement may result in Death or Severe
Personnel Injury .
WARNING WARNING means that failure to heed this safety statement may result in extensive product
damage, serious personal injury, or death.
CAUTION CAUTION means that failure to heed this safety statement may result in minor or moderate
personal injury, or property or equipment damage.
All safety messages will alert you to what the potential hazard is, tell you how to reduce the chance of injury, and let you know what
can happen if the instructions are not followed.
NOTE: IMPORTANT SAFETY INSTRUCTIONS
WARNING To reduce the risk of fire, electric shock or injury, when using your appliance, follow these basic
precautions:
l Plug into a tested, grounded 3-prong outlet
l Do not remove grounding prong
l Do not use an adapter
l Do not use an extension cord
l Disconnectpowerbeforecleaning
l Disconnectpowerbeforeservicing
l Use 2 or more people to safely move and install appliance
SAVE THESE INSTRUCTIONS

Page 5of 18
IMPORTANT SAFEGUARDS
Before the appliance is used, it must be properly positioned and installed as described in this
manual, so read the manual carefully. We strongly recommend that you have a professional
install your new machine. The warranty may be affected or voided by an incorrect installation.
To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic
precautions, including the following:
DANGER
l It is recommended that a separate circuit, serving only your appliance, be provided. Use receptacles that cannot be turned
off by a switch or pull chain.
lPlease ensure that the required voltage is being supplied at all times.
lThe unit should be plugged into a grounded and properly-sized electrical outlet with appropriate over-current protection.
lEnsure unit is not resting on, pinching or against the electrical cord.
l Do not connect or disconnect the electric plug when your hands are wet.
l Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the
outlet.
l Never clean appliance parts with flammable fluids. Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
l Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
l Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or
death.
lIf the unit is not in use for a long period of time, best to unplug the unit from the outlet.
lAfter unplugging the unit, wait at least 8 minutes before plugging it back in. Failure to do so could cause damage to the
compressor.
lIf the power cuts off, wait at least 8 minutes before turning the unit on to avoid damage to the compressor.
l Donotattempttorepairorreplaceanypartofyourapplianceunlessitisspecificallyrecommended in this manual. A qualified
technician should do all other servicing or repairs.
WARNING
•Use two or more people to move and install appliance. Failure to do so can result in back or other injury.
l This appliance must be properly installed and located in accordance with the Installation Instructions before it is used.
l Do not touch the cold surfaces in the cold compartment when hands are damp or wet. Skin may stick to these extremely cold
surfaces.
l Setting temperature controls to the ZERO (0) position does not remove power to the light circuit, perimeter heaters, or
evaporator fans.
l To ensure proper ventilation for your appliance, choose a well-ventilated area with temperatures above 50ºF (10ºC) and
below 100ºF (38ºC). This unit MUST be installed in an area protected from the elements, such as wind, rain, water spray
or drips.
l The appliance should not be located next to ovens, grills or other sources of high heat.
l It is important for the appliance to be level for proper operation. You may need to make adjustments to level it.
l Remove the packing materials and clean the appliance before using.
l Do not use this apparatus for other than its intended purpose.
