Maytag LAT2300 User manual

16010373
(16001145)
Issued5/94
Revised8/98
Maytag
Washer
ServiceManual
(Covering1994-1997Models)

SAFETY PRECAUTIONS
THIS MANUAL, AS WELL AS THE INFORMATION CONTAINED IN IT; IS TO BE
USED
ONLY BY A MA YTAG AUTHORIZED SERVICE TECHNICIAN FAMILIAR WITH
AND KNOWLEDGEABLE OF PROPER SAFETY AND SERVICING PROCEDURES
AND POSSESSING HIGH QUALITYTESTING EQUIPMENTASSOCIATED WITH
MICROWAVE, GAS, AND ELECTRICAL APPLIANCE REPAIR.
ALL INDIVIDUALS WHO ATTEMPT REPAIRS BY IMPROPER MEANS OR ADJUST-
MENTS, SUBJECTTHEMSELVES
AND OTHERS TO THE RISK OF SERIOUS OR
FATAL INJURY.
USE ONLYGENUINEMAYTAG APPROVED FACTORYREPLACEMENTCOMPO-
NENTS.
\
"'
,\

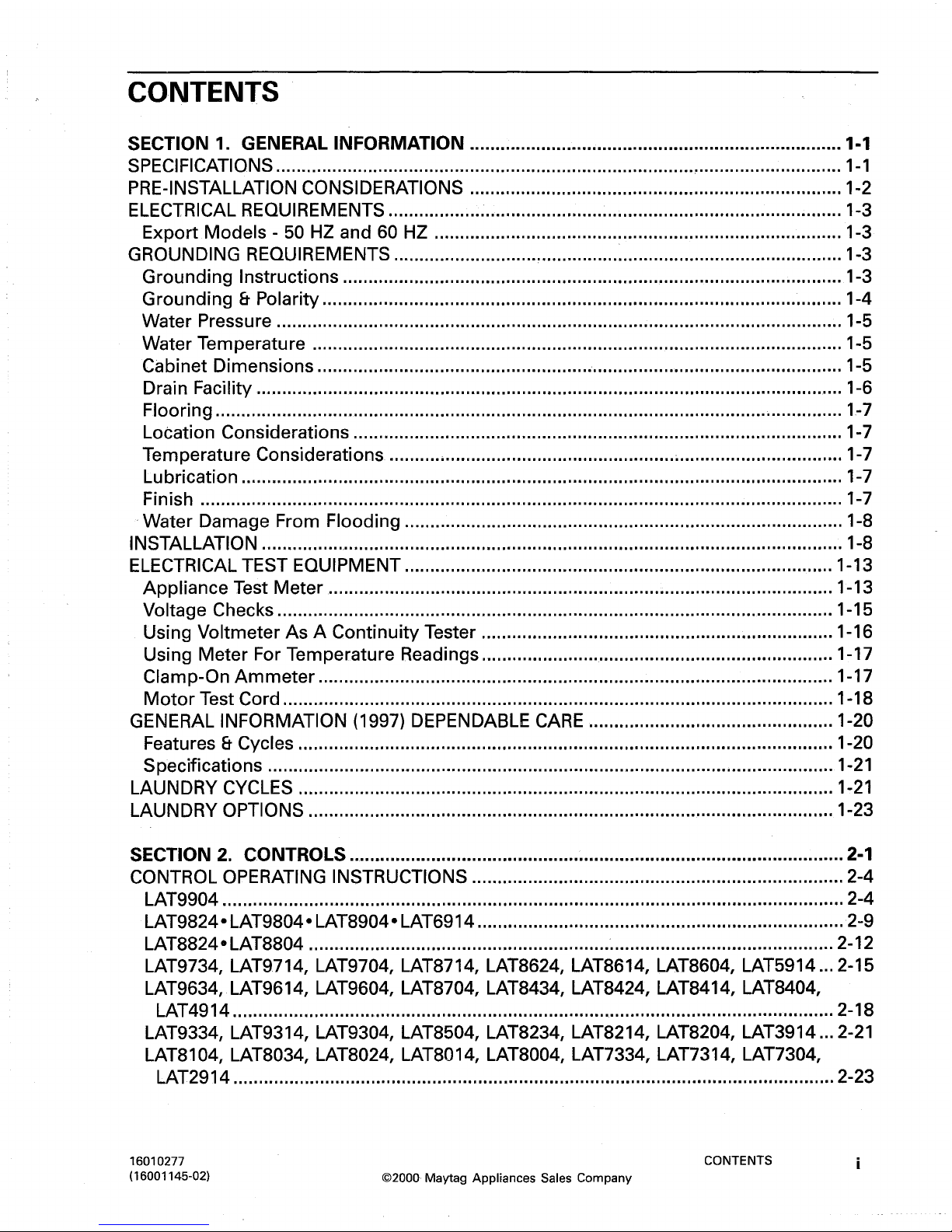

CONTENTS
SECTION 1. GENERAL INFORMATION 1-1
SPECiFiCATIONS , 1-1
PRE-INSTALLATION CONSIDERATIONS 1-2
ELECTRICAL REQUIREMENTS 1-3
Export Models -50
HZ and 60 HZ 1-3
GROUNDING REQUIREMENTS 1-3
Grounding Instructions 1-3
Grounding &Polarity 1-4
Water Pressure 1-5
Water Temperature 1-5
Cabinet Dimensions 1-5
Drain Facility 1-6
Flooring............................................................................................................•..............
l-7
Location Considerations 1-7
Temperature Considerations ........................................................•................................1-7
Lubrication 1-7
Finish 1-7
Water Damage From Flooding 1-8
INSTALLATION 1-8
ELECTRICAL TEST EQUIPMENT 1-13
Appliance Test
Meter 1-13
Voltage Checks 1-15
Using Voltmeter As AContinuity Tester 1-16
Using Meter For Temperature Readings 1-17
Clamp-On
Ammeter 1-17
Motor Test Cord 1-18
GENERAL INFORMATION (1997) DEPENDABLE
CARE 1-20
Features &Cycles 1-20
Specifications
1-21
LAUNDRY CYCLES 1-21
LAUNDRY OPTIONS 1-23
SECTION 2. CONTROLS 2-1
CONTROL OPERATING INSTRUCTIONS 2-4
LAT9904 2-4
LAT9824-LAT9804-LAT8904-LAT6914
2-9
LAT8824-LAT8804 '2-12
LAT9734, LAT9714, LAT9704, LAT8714, LAT8624, LAT8614, LAT8604, LAT5914 2-15
LAT9634, LAT9614, LAT9604, LAT8704, LAT8434, LAT8424, LAT8414, LAT8404,
LAT4914 2-18
LAT9334, LAT9314, LAT9304, LAT8504, LAT8234, LAT8214, LAT8204, LAT3914
.,. 2-21
LAT8104, LAT8034, LAT8024, LAT8014, LAT8004, LAT7334, LAT7314, LAT7304,
LAT2914 2-23
16010277
(16001145-02) ©2000 Maytag Appliances Sales Company CONTENTS

LAT5005·LAT5004 2-25
LAW9704 2-27
LAW9304 2-30
CYCLE FUNCTIONS -TIMER OPERATED MODELS 2-33
CONTROL FACIAS 2-35
SECTION
3. WASHER -SERVICE PROCEDURES 3-1
CONTROLS
3-1
Timer 3-1
Microprocessor Board 3-2
COMPONENTS 3-4
Water Level Control -
Timer Controlled 3-4
Water Level Switch 3-6
Water Level Switch -Microprocessor Models 3-7
Air Tube and Dome 3-9
Motor Control 3-9
Transformer 3-13
LID SWITCH ASSEMBLY 3-14
Timer Models 3-14
Microprocessor Models 3-17
LID 3-18
FRONT PANEL 3-19
AGITATOR 3-20
FABRIC SOFTENER DISPENSER 3-21
LINT FILTER 3-22
Self Cleaning Filters 3-22
Manual Clean Lint Filter 3-22
WATER INJECTOR ASSEMBLY 3-23
WATER VALVE 3-23
Thermistor Controlled Water Valve 3-25
Water Valve Removal 3-25
Water Valve Installation 3-26
Inlet Hose Screens 3-26
Water Flow 3-27
START CAPACITOR 3-29
CAPACITOR KIT (EXPORT MODELS) 3-29
POLY PUMP 3-29
BELTS 3-30
Replacing Belts 3-30
Belt Guard 3-30
Pump Belt
3-31
BLEACH INJECTOR SYSTEM 3-31
TUB COVER 3-32
BALANCE
RING 3-32
CENTER SHAFT SEAL 3-33
SeaI
Lea ks 3-34
INNER TUB 3-34
16010277
(16001145-02) ©2000 Maytag Appliances Sales Company CONTENTS
ii

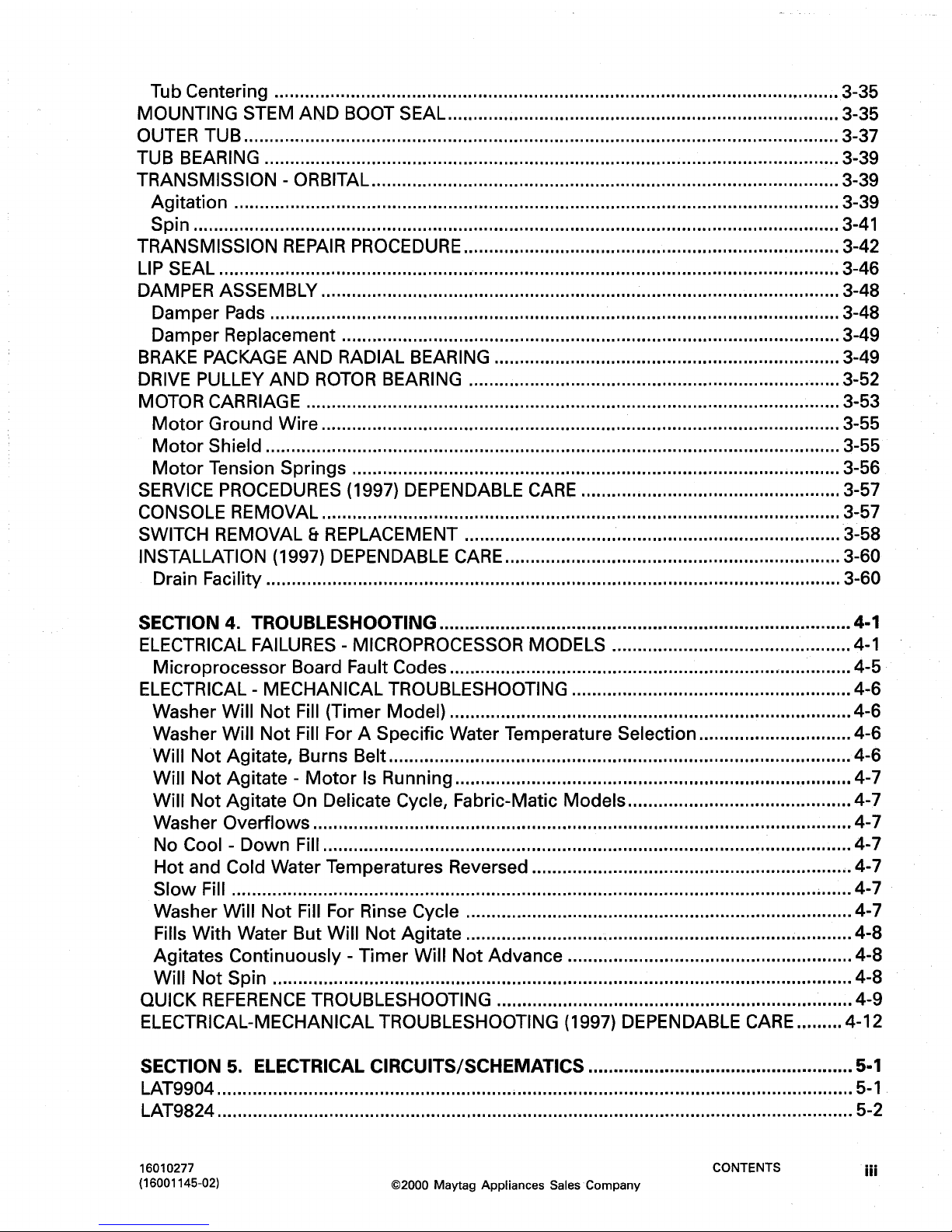

Tub Centering 3-35
MOUNTING STEM AND BOOT SEAL 3-35
OUTER TUB 3-37
TUB BEARING 3-39
TRANSMISSION -ORBITAL 3-39
Agitation 3-39
Spin
3-41
TRANSMISSION REPAIR PROCEDURE 3-42
LIP SEAL 3-46
DAMPER ASSEMBLY 3-48
Damper Pads 3-48
Damper Replacement 3-49
BRAKE PACKAGE AND RADIAL BEARING 3-49
DRIVE PULLEY AND ROTOR BEARING 3-52
MOTOR CARRIAGE 3-53
Motor Ground Wire 3-55
Motor Shield 3-55
Motor Tension Springs 3-56
SERVICE PROCEDURES (1997) DEPENDABLE CARE 3-57
CONSOLE REMOVAL 3-57
SWITCH REMOVAL &REPLACEMENT 3-58
INSTALLATION (1997) DEPENDABLE
CARE 3-60
Drain Facility 3-60
SECTION 4. TROUBLESHOOTING 4-'
ELECTRICAL FAILURES -MICROPROCESSOR MODELS 4-1
Microprocessor Board Fault Codes 4-5
ELECTRICAL -MECHANICAL TROUBLESHOOTING 4-6
Washer Will
Not Fill (Timer Model) 4-6
Washer Will
Not Fill For ASpecific Water Temperature Selection 4-6
Will
Not Agitate, Burns Belt 4-6
Will
Not Agitate - Motor Is Running ,4-7
Will
Not Agitate On Delicate Cycle, Fabric-Matic Models 4-7
Washer Overflows 4-7
No Cool -Down Fill 4-7
Hot and Cold Water Temperatures Reversed 4-7
Slow Fill 4-7
Washer Will
Not Fill For Rinse Cycle 4-7
Fills With Water But Will
Not Agitate 4-8
Agitates Continuously -
Timer Will Not Advance 4-8
Will
Not Spin 4-8
QUICK
REFERENCE TROUBLESHOOTING 4-9
ELECTRICAL-MECHANICAL TROUBLESHOOTING (1997) DEPENDABLE
CARE 4-12
SECTION 5. ELECTRICAL CIRCUITS/SCHEMATICS 5-'
LAT9904..........................................................•.................................................................. 5-1
LAT9824 5-2
16010277
(16001145-02) ©2000 Maytag Appliances Sales Company CONTENTS
iii

LAT9804 5-3
LAT9734 5-4
LAT9714, LAT9704 5-5
LAT9704AG* (EXPORT) ;5-6
LAW9704 5-7
LAT9634 5-8
LAT9614 5-9
LAT9604, LAT8434, LAT8404 5-10
LAT9334, LAT8214, LAT8104, LAT8014, LAT7334, LAT2914
5-11
LAT9314, LAT9304, LAT7314, LAT7304 5-12
LAT9304AG*, LAT7304AG* (EXPORT) 5-13
LAW9304 5-14
LAT8904 5-15
LAT9804 5-16
LAT8244 5-17
LAT8804 5-18
LAT8714 5-19
LAT8704, LAT4914 5-20
LAT8614
5-21
LAT8604 5-22
LAT8624, LAT5914 5-23
LAT8504, LAT3914 5-24
LAT8424, LAT8414 5-25
LAT8234, LAT8204, LAT8034, LAT8024, LAT8004 5-26
LAT6914 5-27
LAT5005, LAT5004 5-28
LAT5004AG* (EXPORT) 5-29
LAT5006·LAT9206 5-30
LAT9306
5-31
LAT9406 5-32
LAT9606 5-33
LAT9706 5-34
LAT9806 5-35
LAT2300 5-36
LAT2500 5-37
LAT3500 5-38
LAW2400 5-39
16010277
(16001145-02) ©2000 Maytag Appliances Sales Company CONTENTS iv

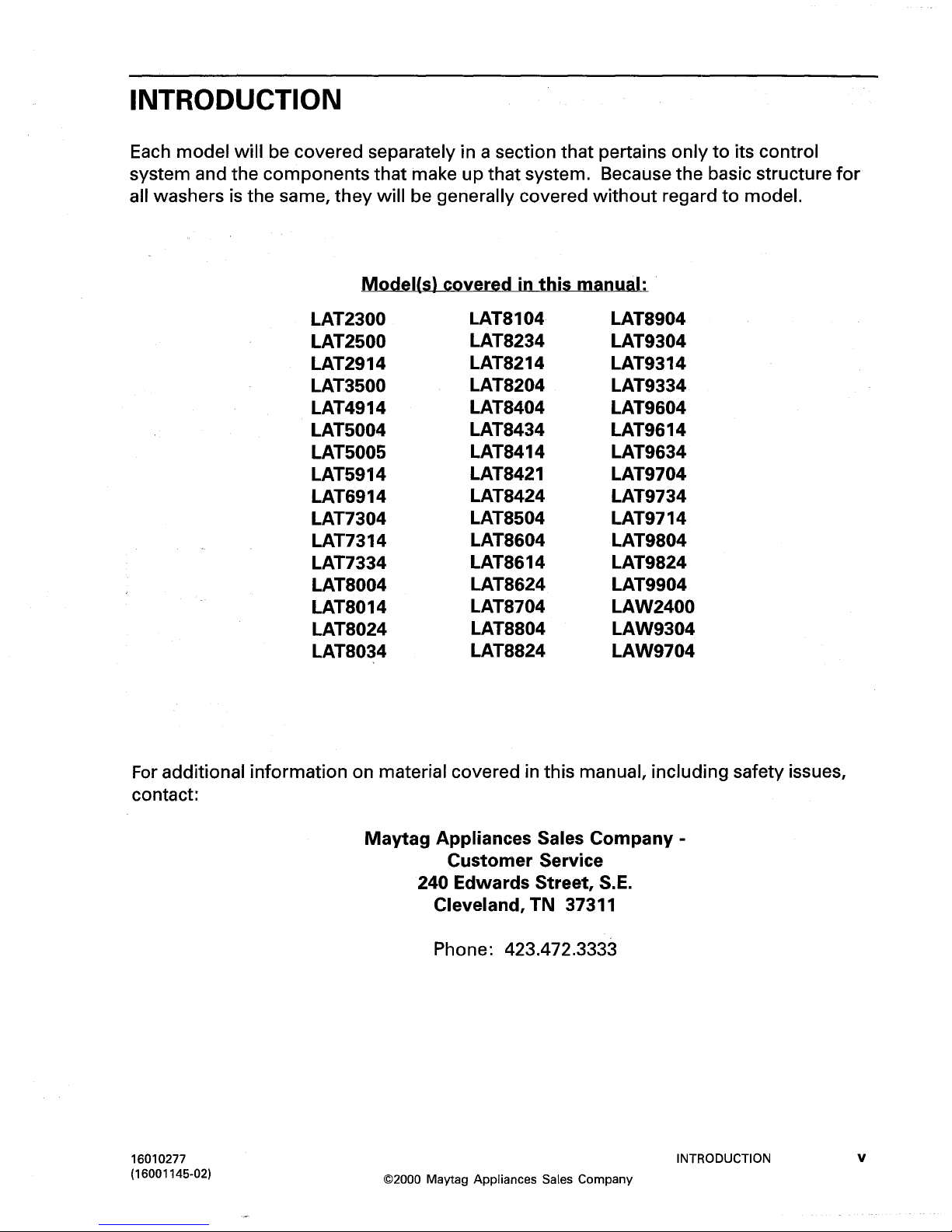

INTRODUCTION
Each model will be covered separately in asection that pertains only to its control
system and the
components that make up that system. Because the basic structure for
all washers is the same, they will be generally covered without regard to model.
Model's) covered in this manual: .
LAT2300
LAT2500
LAT2914
LAT3500
LAT4914
LAT5004
LAT5005
LAT5914
LAT6914
LAT7304
LAT7314
LAT7334
LAT8004
LAT8014
LAT8024
LAT8034
LAT8104
LAT8234
LAT8214
LAT8204
LAT8404
LAT8434
LAT8414
LAT8421
LAT8424
LAT8504
LAT8604
LAT8614
LAT8624
LAT8704
LAT8804
LAT8824
LAT8904
LAT9304
LAT9314
LAT9334
LAT9604
LAT9614
LAT9634
LAT9704
LAT9734
LAT9714
LAT9804
LAT9824
LAT9904
LAW2400
LAW9304
LAW9704
For additional information on material covered in this manual, including safety issues,
contact:
Maytag Appliances Sales Company -
Customer Service
240 Edwards Street,
S.E.
Cleveland, TN 37311
Phone: [phone]
16010277
(16001145-02) ©2000 Maytag Appliances Sales Company
INTRODUCTION v

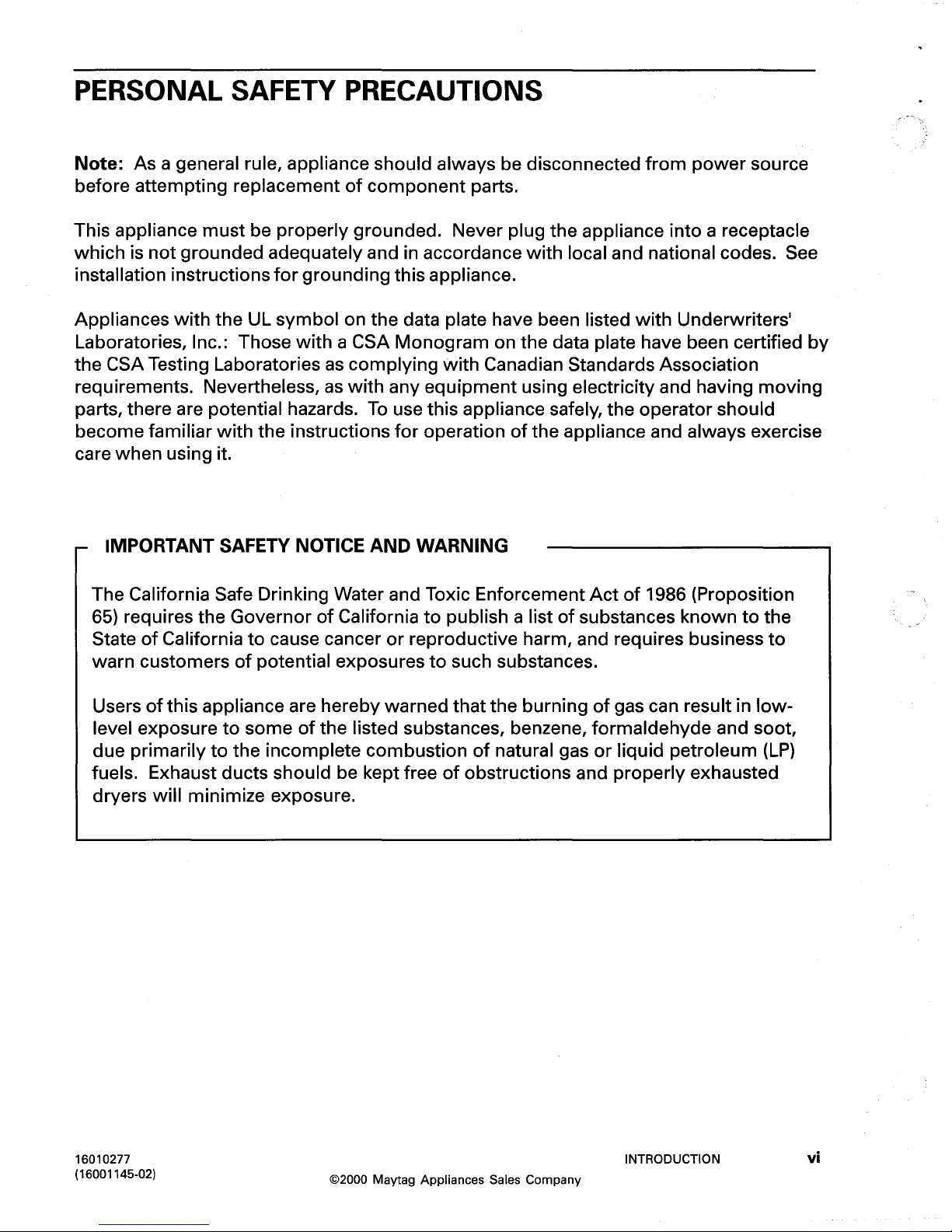

PERSONAL SAFETY PRECAUTIONS
Note: As ageneral rule, appliance should always be disconnected from power source
before attempting replacement
of component parts.
This appliance
must be properly grounded. Never plug the appliance into areceptacle
which is not grounded adequately and in accordance with local and national codes. See
installation instructions
for grounding this appliance.
Appliances
with the UL symbol on the data plate have been listed with Underwriters·
Laboratories, Inc.: Those
with aCSA Monogram on the data plate have been certified by
the CSA Testing Laboratories as complying with Canadian Standards Association
requirements. Nevertheless,
as with any equipment using electricity and having moving
parts, there are potential hazards. To use this appliance safely, the operator should
become familiar
with the instructions for operation of the appliance and always exercise
care
when using it.
IMPORTANT SAFETY NOTICE AND WARNING
The California Safe Drinking Water and Toxic Enforcement Act of 1986 (Proposition
65) requires the Governor
of California to publish alist of substances known to the
State
of California to cause cancer or reproductive harm, and requires business to
warn customers of potential exposures to such substances.
Users
of this appliance are herebywarned that the burning of gas can result in low-
level exposure to some of the listed substances, benzene, formaldehyde and soot,
due primarily
to the incomplete combustion of natural gas or liquid petroleum (LP)
fuels. Exhaust ducts should be kept free of obstructions and properly exhausted
dryers
will minimize exposure.
16010277
(16001145-02) ©2000 Maytag Appliances Sales Company INTRODUCTION vi

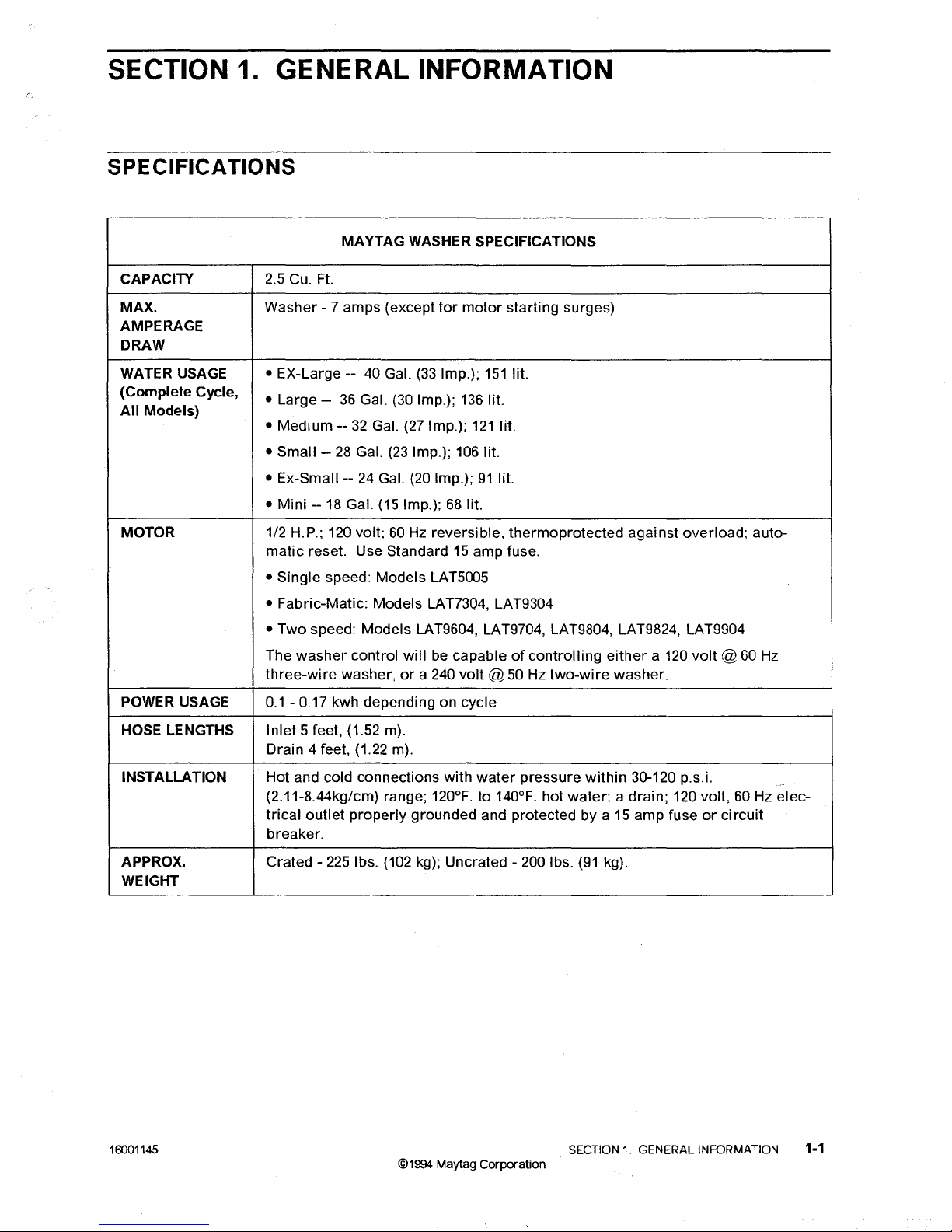

SECTION 1. GENERAL INFORMATION
SPECIFICATIONS
MAYTAG WASHER SPECIFICATIONS
CAPACITY
2.5 Cu. Ft.
MAX. Washer - 7 amps (except for motor starting surges)
AMPERAGE
DRAW
WATER USAGE •EX-Large -- 40 Gal.
(33 Imp.); 151 lit.
(Complete Cycle, •Large --
36 Gal. (30 Imp.); 136 lit.
All Models) •Medium --
32 Gal. (27 Imp.); 121 lit.
•Small
-- 28 Gal. (23 Imp.); 106 lit.
•
Ex-Small-- 24 Gal. (20 Imp.); 91 lit.
•Mini - 18 Gal. (15 Imp.); 68 lit.
MOTOR 1/2 H.P.; 120 volt;
60 Hz reversible, thermoprotected against overload; auto-
matic reset. Use Standard 15 amp fuse.
•Single speed: Models LAT5005
•Fabric-Matic: Models LAT7304, LAT9304
•Two speed: Models LAT9604, LAT9704, LAT9804, LAT9824, LAT9904
The
washer control will be capable of controlling either a 120 volt @ 60 Hz
three-wire washer, or a240 volt @ 50 Hz two-wire washer.
POWER USAGE
0.1 -0.17 kwh depending on cycle
HOSE LE NGTHS Inlet 5feet, (1.52 m).
Drain 4feet, (1.22 m).
INSTALLATION Hot and cold connections with water pressure within 30-120 p.s.i.
(2.11-8.44kg/cm) range; 120°F.
to 140°F. hot water; adrain; 120 volt, 60 Hz elec-
trical outlet properly grounded and protected by a 15 amp fuse or ci rcuit
breaker.
APPROX. Crated -
225 Ibs. (102 kg); Uncrated -200 Ibs. (91 kg).
WEIGHT
16001145 ©1994 Maytag Corporation SECTION 1. GENERAL INFORMATION
1-1

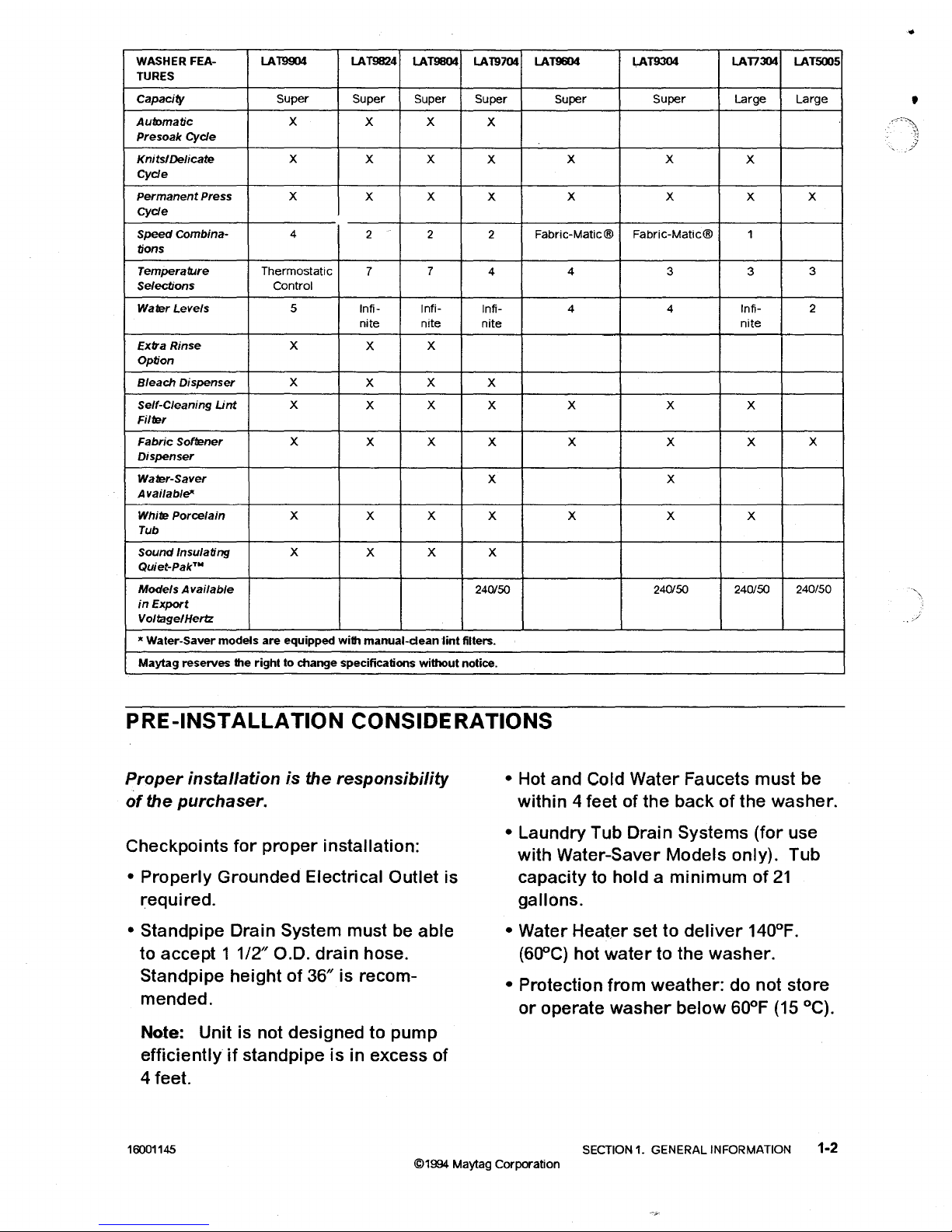

WASHER FEA- LAT9904 LAT9824 LAT9l104 LA19704 LAT9604 LAT9304 LAT7304 LAT5005
TURES
Capacity Super Super Super Super Super Super Large
Large
Automatic XX X X
Presoak
Cyde
Knits/Delicate
XX X XX X X
Cyde
Permanent Press XX X XX X XX
Cyde
Speed Combina- 42 2 2Fabric-Matic® Fabric-Matic®
1
tions
Temperature Thermostatic 774 4 3 3 3
Selections Control
Water Levels 5Infi- Infi- Infi- 4 4 Infi- 2
nite nite
nite
nile
Extra Rinse XXX
Option
Bleach Dispenser XXXX
Self-Cleaning
Lint XX X X X X X
Filter
Fabric Softener XXXX X X X X
Dispenser
Water-Saver X X
Available"
White Porcelain XX X X X X X
Tub
Sound Insulating XX X X
Quiet-Pak™
Models Available
240150 240/50 240/50 240/50
in Export
Voltage/Hertz
'" Water-Saver models are equipped wilh manual-dean lint filters.
Maytag reserves lhe right to change specifications without notice.
PRE-INSTALLATION CONSIDERATIONS
..
,
Proper installation is the responsibility
of the purchaser.
Checkpoints for proper installation:
•
Properly Grounded Electrical Outlet is
required.
•Standpipe Drain System must be
able
to accept 1 1/2" 0.0. drain hose.
Standpipe
height of 36" is recom-
mended.
Note: Unit is not designed to pump
efficiently if standpipe is in excess of
4feet.
16001145
•Hot and Cold Water Faucets must be
within 4feet of the back of the washer.
•Laundry Tub Drain Systems
(for use
with Water-Saver
Models only). Tub
capacity to hold a
minimum of 21
gallons.
•Water
Heater set to deliver 140°F.
(600C) hot water to the washer.
•Protection from weather: do not store
or operate washer below 60°F (15 QC).
SECTION 1. GENERAL INFORMATION 1-2
©1994 Maytag Corporation

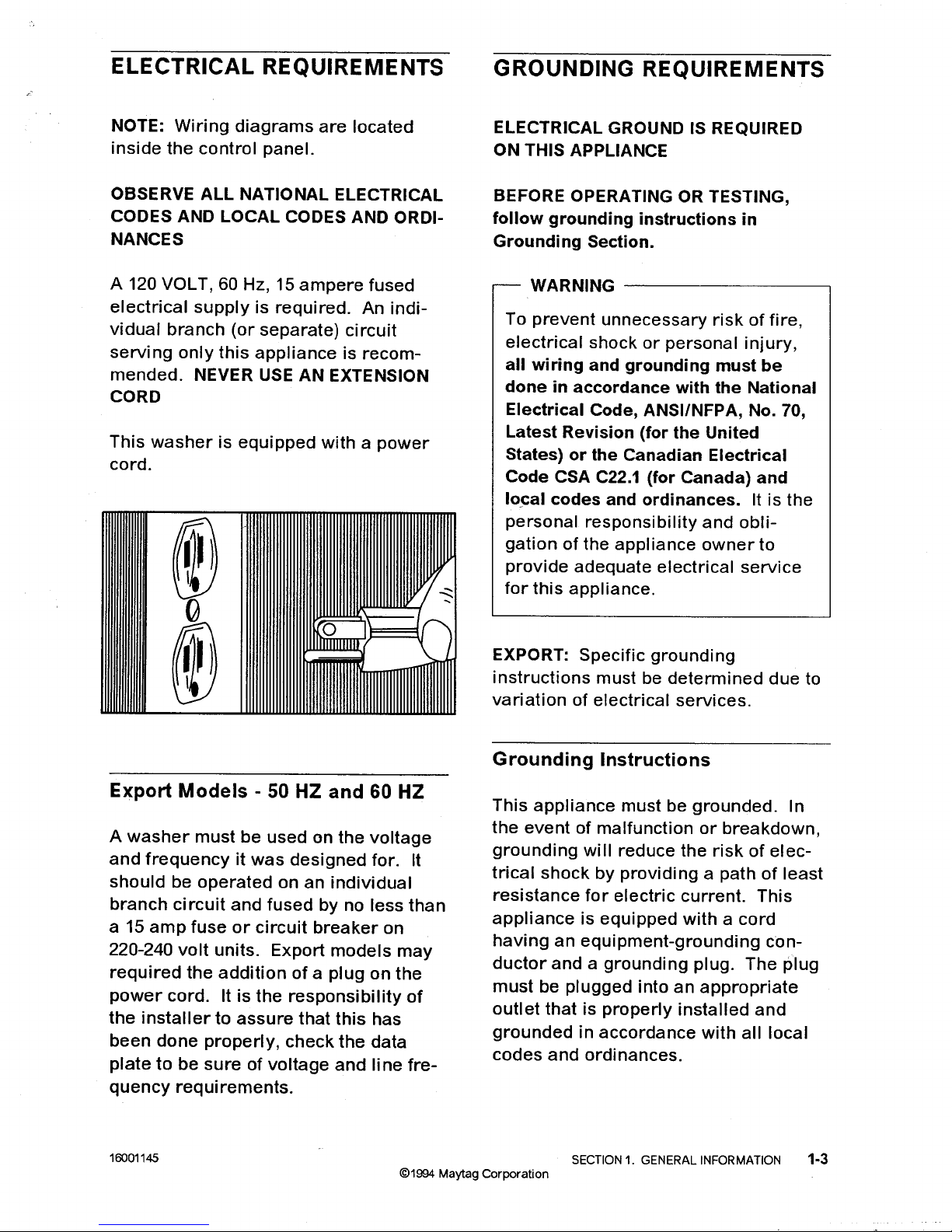

ELECTRICAL REQUIREMENTS
NOTE: Wiring diagrams are located
inside the control panel.
OBSERVE
ALL NATIONAL ELECTRICAL
CODES AND LOCAL CODES AND ORDI-
NANCES
A120 VOLT,
60 Hz, 15 ampere fused
electrical supply is required. An indi-
vidual branch (or separate) circuit
servi ng only this appliance is recom-
mended. NEVER USE AN EXTENSION
CORD
This
washer is equipped with a power
cord.
Export Models - 50 HZ and 60 HZ
A washer must be used on the voltage
and frequency it was designed for. It
should be operated on an individual
branch circuit and fused by no less than
a 15 amp fuse or circuit breaker on
220-240
volt units. Export models may
required the addition of a plug on the
power cord. It is the responsibility of
the installer to assure that this has
been done properly, check the data
plate to be sure of voltage and line fre-
quency reqUirements.
16001145
GROUNDING REQUIREMENTS
ELECTRICAL GROUND IS REQUIRED
ON THIS APPLIANCE
BEFORE OPERATING OR TESTING,
follow grounding instructions in
Grounding Section.
WARNING
------------,
To prevent unnecessary risk of fire,
electrical shock or personal injury,
all wiring and grounding must be
done in accordance with the National
Electrical Code, ANSI/NFPA, No. 70,
Latest Revision
(for the United
States)
or the Canadian Electrical
Code CSA C22.1 (for Canada) and
IO,cal codes and ordinances. It is the
personal
responsibility and obli-
gation of the appliance owner to
provide adequate electrical service
for this appliance.
EXPORT: Specific
grounding
instructions must be determined due to
variation of electrical services.
Grounding Instructions
This appliance must be grounded. In
the event of malfunction or breakdown,
grounding will reduce the risk of elec-
trical shock by providing apath of least
resistance for electric current. This
appliance is equipped with a cord
having an equipment-grounding con-
ductor and a grounding plug. The plug
must be plugged into an appropriate
outlet that is properly installed and
grounded in accordance with all local
codes
and ordinances.
SECTION 1. GENERAL INFORMATION 1-3
©1994 Maytag Corporation

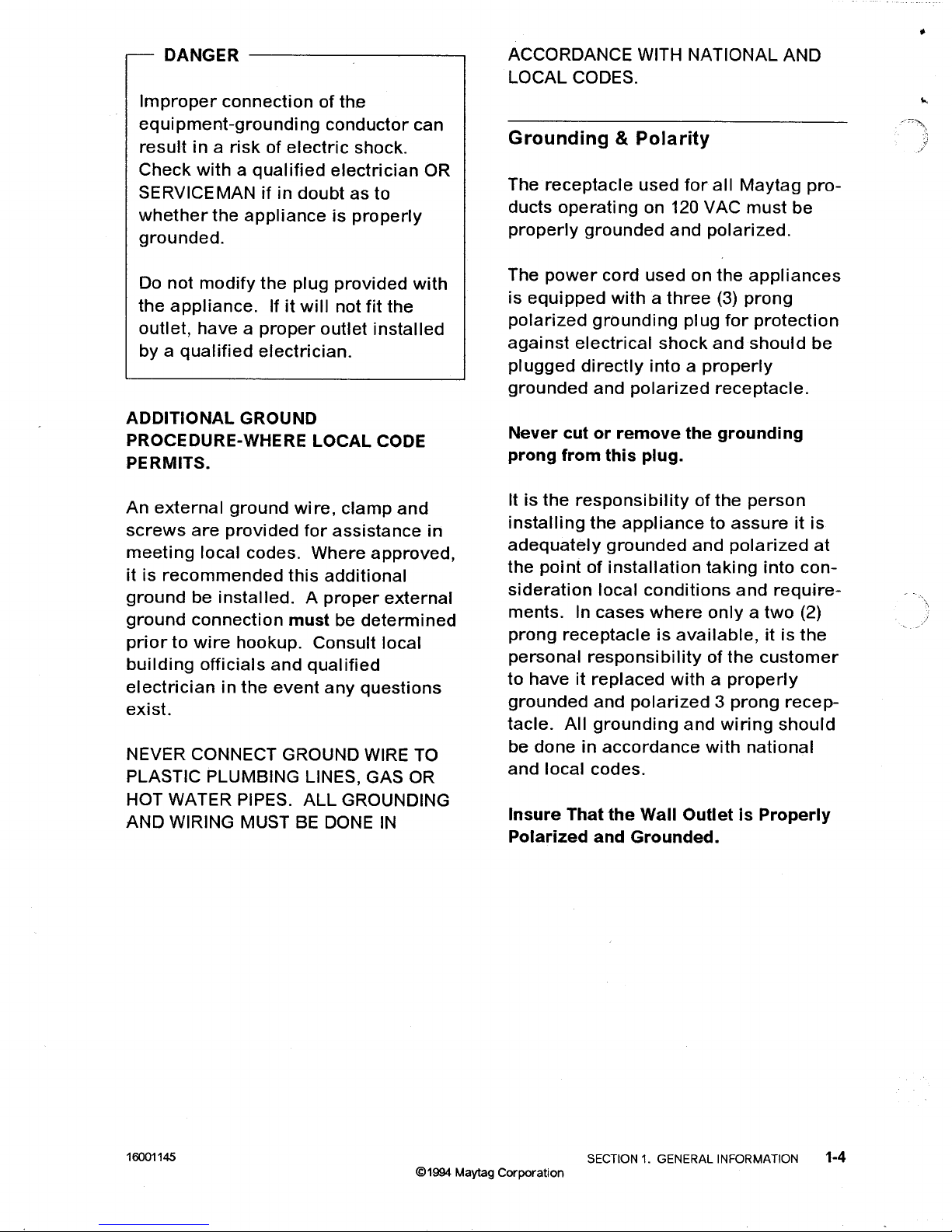

DANGER -----------,
Improper connection of th.e
equipment-grounding conductor can
result in a risk of electric shock.
Check with a qualified electrician OR
SERVICEMAN
if in doubt as to
whether the appliance is properly
grounded.
Do not modify the plug provided with
the appliance. If it will not fit the
outlet,
have a proper outlet installed
by a qualified electrician.
ADDITIONAL GROUND
PROCEDURE-WHERE LOCAL CODE
PERMITS.
An external ground wire, clamp and
screws are provided for assistance in
meeting local codes. Where approved,
it is recommended this additional
ground be installed. A proper external
ground connection must be determined
prior to wire hookup. Consult local
building officials and qualified
electrician in the event any questions
exist.
NEVER CONNECT GROUND WIRE TO
PLASTIC PLUMBING LINES, GAS OR
HOT WATER PIPES.
ALL GROUNDING
AND WIRING MUST BE DONE
IN
ACCORDANCE WITH NATIONAL AND
LOCAL CODES.
Grounding & Polarity
The receptacle used for all May tag pro-
ducts operating on 120 VAC must be
properly grounded and polarized.
The power cord used on the appliances
is equipped with a three (3) prong
polarized grounding plug for protection
against electrical shock and should be
plugged directly into a properly
grounded and polarized receptacle.
Never cut or remove the grounding
prong from this plug.
It is the responsibility of the person
installing the appliance to assure it is
adequately grounded and polarized at
the point of installation taking into con-
sideration local conditions and require-
ments. In cases where only a two (2)
prong receptacle is available, it is the
personal responsibility of the customer
to have it replaced with a properly
grounded and polarized 3 prong recep-
tacle. All grounding and wiring should
be done in accordance with national
and local codes.
Insure That the Wall Outlet is Properly
Polarized and Grounded.
16001145 SECTION 1. GENERAL INFORMATION 1-4
©1994 Maytag Corporation

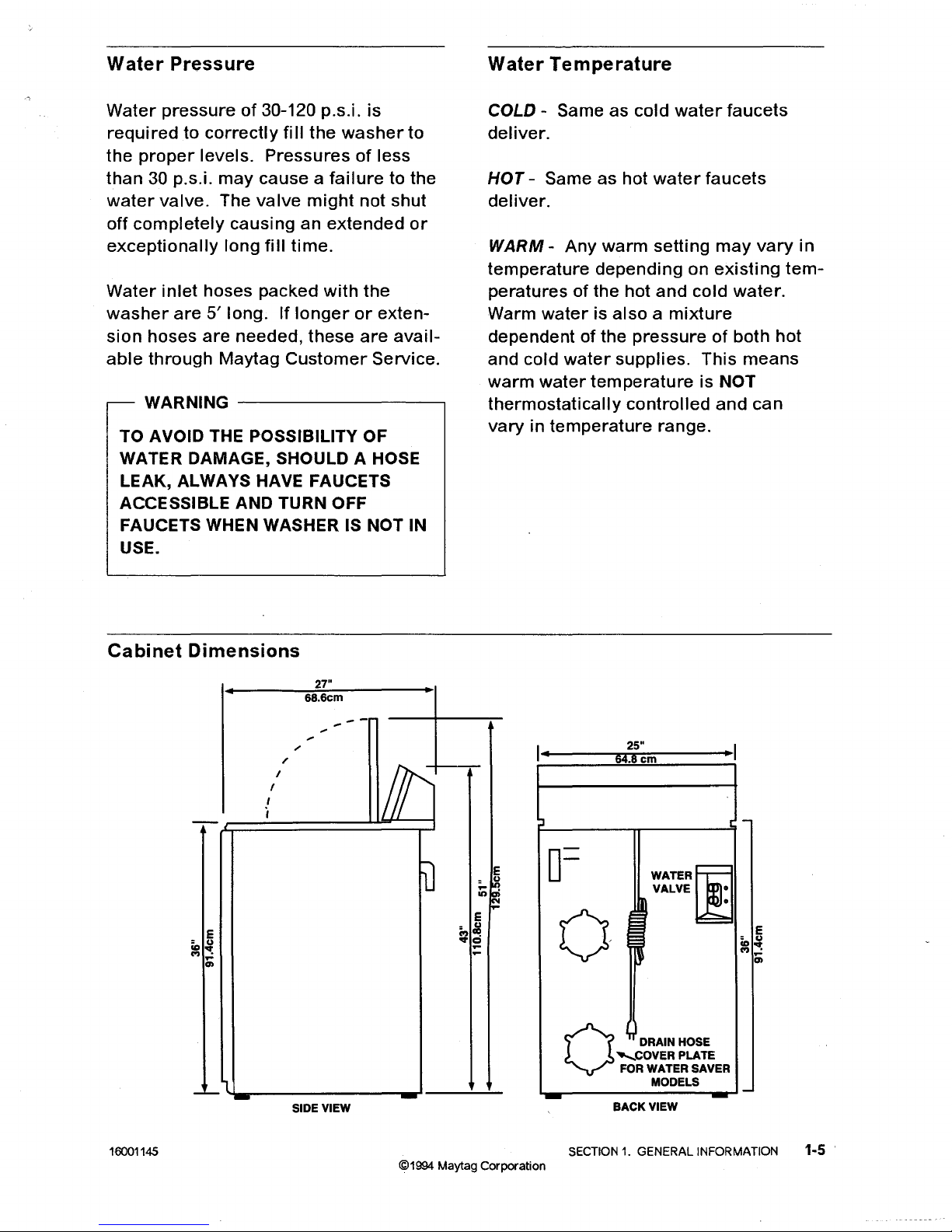

Water Pressure
Water Temperature
Water pressure of 30-120 p.s.i. is
required to correctly fill the washer to
the proper levels. Pressures of less
than 30 p.s.i. may cause a failure to the
water valve. The valve might not shut
off completely causing an extended or
exceptionally long fill time.
Water inlet hoses packed with the
washer are 5' long. If longer or exten-
sion hoses are needed, these are avail-
able through Maytag Customer Service.
WARNING
------------,
TO AVOID THE POSSIBILITY OF
WATER DAMAGE, SHOULD AHOSE
LEAK, ALWAYS HAVE FAUCETS
ACCESSIBLE AND TURN OFF
FAUCETS WHEN WASHER IS NOT IN
USE.
COLD -Same as cold water faucets
deliver.
HOT -Same as hot water faucets
deliver.
WARM - Any warm setting may vary in
temperature depending on existing tem-
peratures of the hot and cold water.
Warm water is also a mixture
dependent of the pressure of both hot
and cold
water supplies. This means
warm water temperature is NOT
thermostatically controlled and can
vary in temperature range.
Cabinet Dimensions
SIDE VIEW
E
= Col
CD ..
.., .
..
'"
WATER~
VALVE~
25"
54.Bcm
BACK VIEW
ODRAIN HOSE
.......... COVER PLATE
FOR WATER SAVER
MODELS
0=
o
27"
..
•
68.6cm --
~
-
~
/
/
Iff!'
I
I
I
i
~
E
- ~
:iifJ
""' E
Col
~Cll!
"0
..
..
1--
E
= Col
co ..
.., .
..
'"
16001145 SECTION 1. GENERAL INFORMATION
1-5·
©1994 Maytag Corporation

Drain Facility
Recommended height of standpipe is
36". Standpipe must be large enough to
accept a 1 1/2" outside
diameter drain
hose.
Note: Unit is not
designed to pump effi-
ciently if standpipe is in excess of 4
feet.
Standard automatic
washers are
equipped with abuilt-in siphon break.
Water
Saver models are not equipped
with asiphon break so the drain hose
must be elevated to height of 36". Pref-
erably a36" high standpipe is recom-
mended. On installations where the
drain hose cannot be conveniently ele-
vated to 36" an accessory Siphon Break
is available.
WITHOUT THE 36" HIGH ELEVATION OR
ASIPHON BREAK, WATER
MAY RUN
OUT OF THE WASHER PREMATURELY.
Should the washer fill and drain at the
same time, this would indicate that the
drain hose has not been elevated to the
proper height. Drain facilities must be
capable
of handling a 1 1/2" outside
diameter drain hose.
WATER-SAVER MODELS
The diverter valve is located in the
lower left-hand corner on the backside
of the washer.
The suds hose (hose
with long
gooseneck) connects to the
top diverter
valve outlet. The other end of the hose
is cut at an
angle to prevent sediment
from returning to the washer. Place
suds hose
into a 21 gallon minimum
capacity storage tank. This hose must
be in a straight line to the storage tank
and be able to reach the bottom of the
16001145
tank. Secure the hose to the tank to
prevent the hose from coming out.
The
drain hose is connected to the
bottom
diverter valve outlet. The other
end goes into the standpipe. If a36"
standpipe
is not available, a siphon
break must be installed to elevate the
drain hose. Hold the siphon break in
place (where
it will be secured to back
of washer) and cut the drain hose.
Assemble the drain hose to the siphon
break open end with clamp. The closed
end
of the siphon break points up.
Mount the
siphon break and drain hose
going to drain facility with clamp and
screw through hole provided at upper
left side on back of washer.
If the
drain hose needs to be extended
to
reach the drain facility, attach the
extension hose section to the siphon
break using a coupler.
CD-OJ
Do not extend gooseneck end or cut
gooseneck end off. Be sure each
section
of hose is securely pushed over
the ends of the coupler and should join
at approximately the middle of the
coupler.
Now
that the drain hose is elevated 36"
with the siphon break, it can go into a
floor drain or low standpipe.
ALL MODELS
Note: CAUTION MUST ALWAYS BE
EXERCISED TO AVOID "KINKING" THE
DRAIN HOSE. For best performance the
SECTION 1. GENERAL INFORMATION 1-6
©1994 Maytag Corporation

drain hose should not be restricted in
any way, through elbows, coupling or
excessive lengths. All unnecessary
drain hose should be cut off to avoid
restrictions.
Flooring
For best performance the washer must
be
installed on a solid floor. Wood floor
constructions may sometimes need to
be
reinforced to minimize vibration
from unbalanced load situations.
Carpets and soft tile surfaces are also
contributing factors in vibration and/or
tendency for a washer to move slightly
during spin cycle. A special carpet
installation kit is available as an acces-
sory to provide a solid base for each
leveling leg. It is composed of four
small steel plates which can be
"nailed" to a wooden, carpeted floor.
These
plates will reduce vibration
between leveling leg of washer and
floor surface.
NEVER
install washer on a platform or
weak support structure.
Location Considerations
It is recommended the,washer never be
installed in areas where water may
freeze since the washer will always
maintain some water in the water valve,
pump and hose areas. This can cause
damage to belts, pump, hoses and other
components. Operating temperature
should be above 60°F.
16001145
Temperature Considerations
Since the washer always maintains
some water in the water valve, pump
and hose areas, it is recommended the
washer never be installed in areas
where water may freeze. This can
cause
damage to belts pump, hoses
and other components.
COLD WEATHER STORAGE
If a washer is to be stored where it
would be subject to freezing conditions,
the following precautions should be
taken:
1. Turn off water supply, remove and
drain inlet hoses.
2. Set timer to a fill cycle and energize
water valve by depressing a warm
water setting. A few seconds is suf-
ficient.
3. Disconnect from electrical supply.
4. Remove two front panel screws and
remove front panel.
5. Remove the hose clamps and drain
the water from the drain hose and
pump by lowering the drain hose to
floor level.
Lubrication
No routine lubrication or adjustments
are required to maintain this product.
This does not
mean the product will
never need attention.
Finish
The cabinet and external finishes are
protected against rust to keep the
product looking well for many years.
As with any other piece of equipment,
SECTION 1. GENERAL INFORMATION 1·7
©1994 Maytag Corporation

cleaning and waxing maintains the
beauty of these finishes.
CAUTION ----------,
If "spilled" or used improperly,
bleaches and other strong
laundering chemicals can perma-
nently spot or stain finishes unless
wiped off immediately.

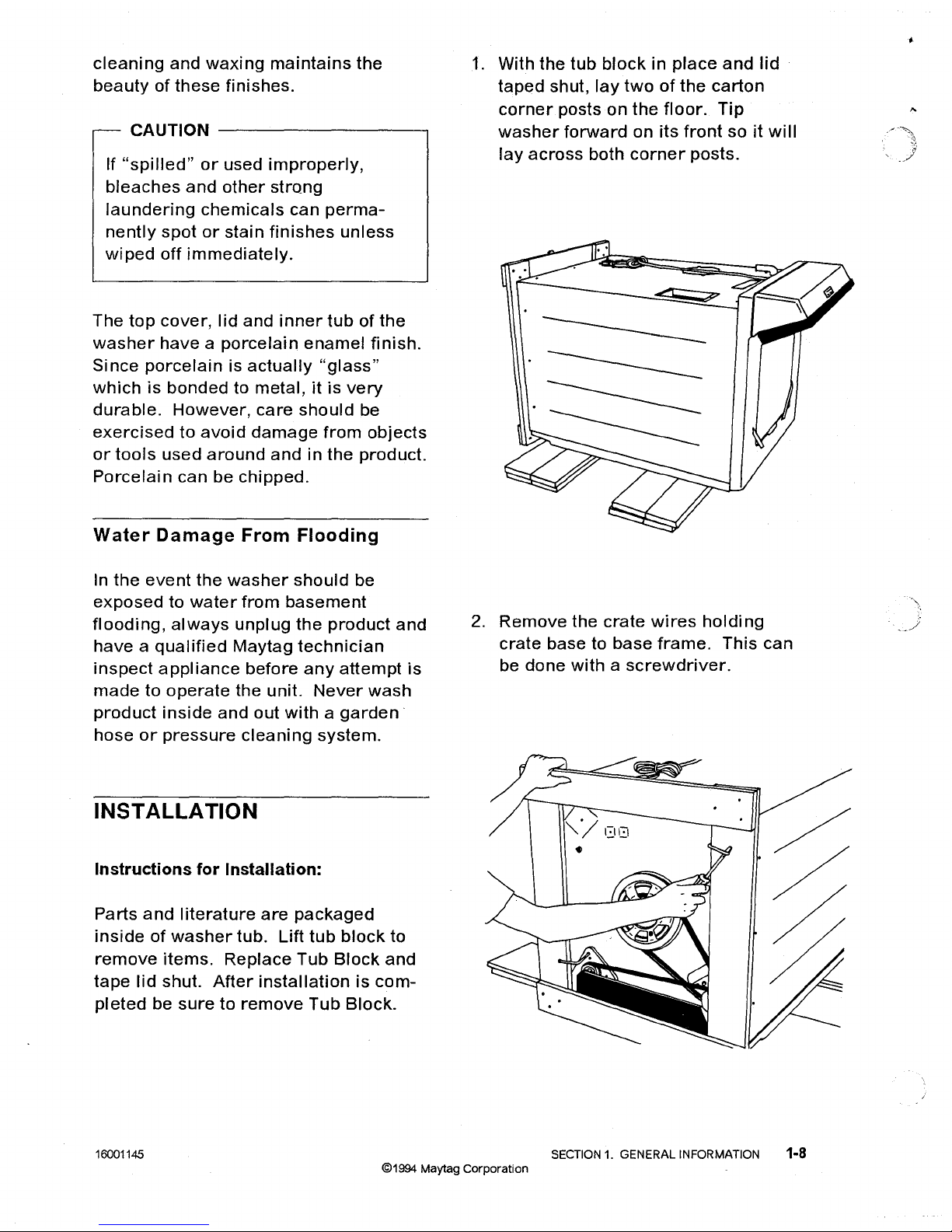

The top cover, lid and inner tub of the
washer have a porcelain enamel finish.
Since porcelain is actually "glass"
which is bonded to metal, it is very
durable. However, care should be
exercised to avoid damage from objects
or tools used around and in the product.
Porcelain can be chipped.
Water Damage From Flooding
In the event the washer should be
exposed to water from basement
flooding, always unplug the product and
have a qualified May tag technician
inspect appliance before any attempt is
made to operate the unit. Never wash
product inside and out with a garden·
hose or pressure cleaning system.
INSTALLATION
Instructions for Installation:
Parts and literature are packaged
inside of washer tub. Lift tub block to
remove items. Replace Tub Block and
tape lid shut. After installation is com-
pleted be sure to remove Tub Block.
16001145
1. With the tub block in place and lid
taped shut, lay two of the carton
corner posts on the floor. Tip
washer forward on its front so it will
lay across both corner posts.
2.
Remove the crate wires holding
crate base to base frame. This can
be
done with a screwdriver.
SECTION 1. GENERAL INFORMATION 1-8
©1994 Maytag Corporation

3. You now have access to all 4
leveling legs.
4. Loosen leveling leg locking nuts.
Set
washer in upright position.
\
16001145
5. Place hose screen on each washer
inlet hose. Screen should be
pointing out to fit into faucet outlet.
6. Connect hoses to the faucets, bleed
the water lines.
SECTION 1. GENERAL INFORMATION 1-9
©1994 Maytag Corporation

•
o
Water Saver Models
The sudshose (A) connects to the
top diverter valve outlet. The other
end of the hose to the storage tank.
The
drainhose (8) is connected to
the bottom diverter valve outlet. The
other end goes into the standpipe. If
a
36/1 standpipe is not available, a
siphon break (C) must be installed to
elevate the drain hose. (See Drain
Facility, Water Saver Models.)
9. Standard Models
Install drain hose and clamp over
siphon break tube on the back of the
washer. Tighten clamp securely.
}
7. Insert hose washer to end of each
water inlet hose.
H
8. Connect hoses to the washer, HOT
on
top and COLD on bottom. Turn
on water supply and check for leaks.
16001145 SECTION
1. GENERAL INFORMATION 1·10
©1994 Maytag Corporation

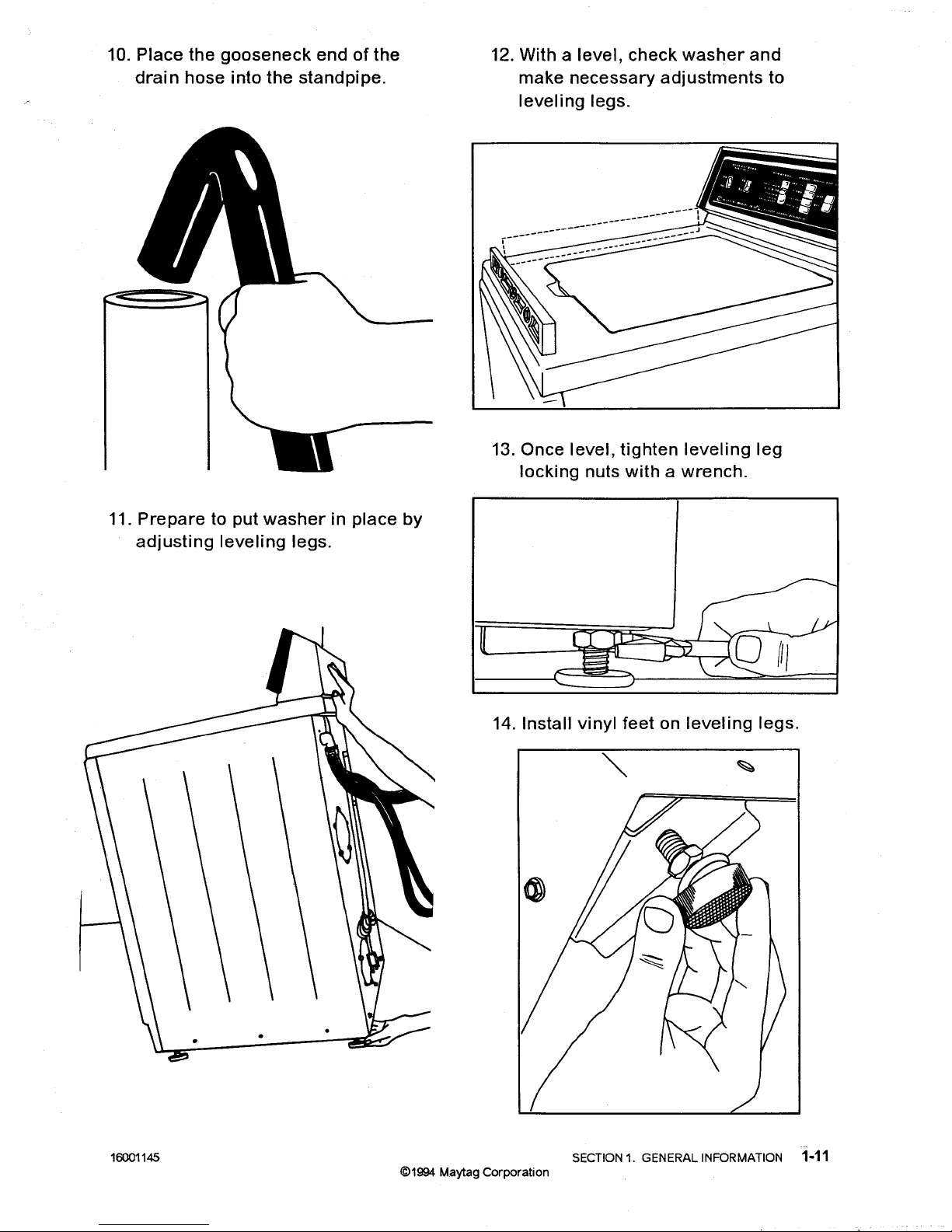

10. Place the gooseneck end of the
drain hose into the standpipe.
11.
Prepare to put washer in place by
adjusting leveling legs.
16001145
12. With alevel, check washer and
make necessary adjustments to
leveling legs.
13. Once level,
tighten leveling leg
locking nuts with a wrench.
14. Install vinyl feet on leveling legs.
SECTION 1. GENERAL INFORMATION 1·11
©1994 Maytag Corporation

15. Check unit again with a level. Be
sure that machine does not rock.
16.
Connect groundwire to back of unit
by using wire supplied (found in the
accessory package in washer tub).
Secure other end of ground wire
with clamp (also in accessory
package) to COLD water pipe.
16001145
17. Plug power cord into properly
grounded electrical outlet.
18.
Move washer into position. Remove
tape from lid. Open lid to remove
tub block.
19.
Check operation using check list:
Check List:
• Tub Block, accessory package and
instructions have been removed from
tub.
SECTION 1. GENERAL INFORMATION 1-12
©1994 Maytag Corporation
