Robotic Pool Cleaner Mass 13 |User Instructions
Robotic Pool Cleaner Mass 13
User Instructions
EN
Contents
1. INTRODUCTION ...................................................................... 2
2. SPECIFICATIONS ..................................................................... 2
3. WARNINGS AND CAUTIONS .................................................. 2
3.1 Warnings ............................................................................ 2
3.2 Cautions............................................................................. 2
4. POOL CLEANER PARTS ........................................................... 3
5. USING THE POOL CLEANER ................................................... 4
5.1 Setup ................................................................................. 4
5.2 Putting the Pool Cleaner into the pool ............................. 5
5.3 Removing the Pool Cleaner from the pool ........................ 5
6. CLEANING THE FILTER BASKET.............................................. 7
6.1 Cleaning after use ............................................................. 7
6.2 Periodic cleaning ............................................................... 8
7. CLEANING THE NET CANISTER ............................................. 9
8. CLEANING THE IMPELLER ...................................................... 10
9. OFF-SEASON STORAGE ......................................................... 11
10. TROUBLESHOOTING .............................................................. 11

2Robotic Pool Cleaner Mass 13 |User Instructions
Robotic Pool Cleaner Mass 13
User Instructions
1. INTRODUCTION
Thank you for purchasing a Maytronics Robotic Pool Cleaner.
We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient
and cost-effective pool cleaning. Its reliable filtration in all pool conditions and active brushing,
enhance pool hygiene.
Robotic Pool Cleaners by Maytronics deliver advanced cleaning technologys, long-lasting
performance and easy maintenance. You and your family will be free to enjoy your swim with full
confidence that your pool is completely clean.
2. SPECIFICATIONS
Motor protection: IP 68
Minimum depth: 0.80m/2.6ft
Maximum depth: 5m/16.4ft
3. WARNINGS AND CAUTIONS
3.1 Warnings
• Use the originally supplied power supply only
• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an
earth leakage interrupter (ELI)
• Keep the power supply out of standing water
• Position the power supply at least 3m/10ft away from the edge of the pool
• Do not enter the pool while the Pool Cleaner is working
• Unplug the power supply before servicing
3.2 Cautions
Use the Pool Cleaner in the following water conditions only:
Chlorine Maximum 4 ppm
pH 7.0-7.8
Temperature 6-34°C/43-93°F
NaCl Maximum 5000 ppm
CAUTION
Digital Power supply
Input: 100-130 AC Volts / 200-230 AC Volts
50-60 Hertz
Output: <30 VDC
IP 54

3
Robotic Pool Cleaner Mass 13 |User Instructions

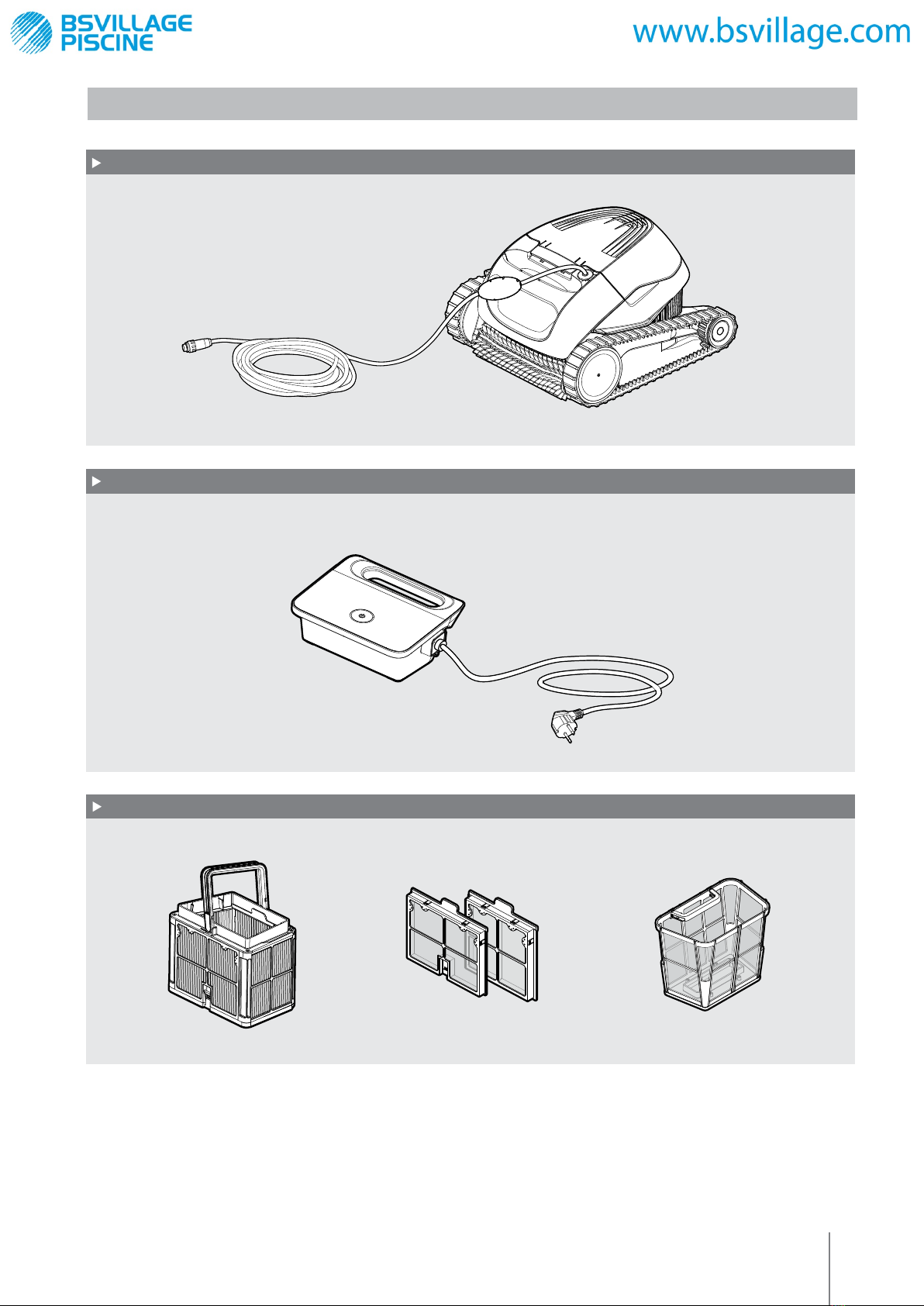

4. POOL CLEANER PARTS
Robotic Pool Cleaner Model Mass 13
Power supply unit
Filtration - options

4Robotic Pool Cleaner Mass 13 |User Instructions
5. USING THE POOL CLEANER

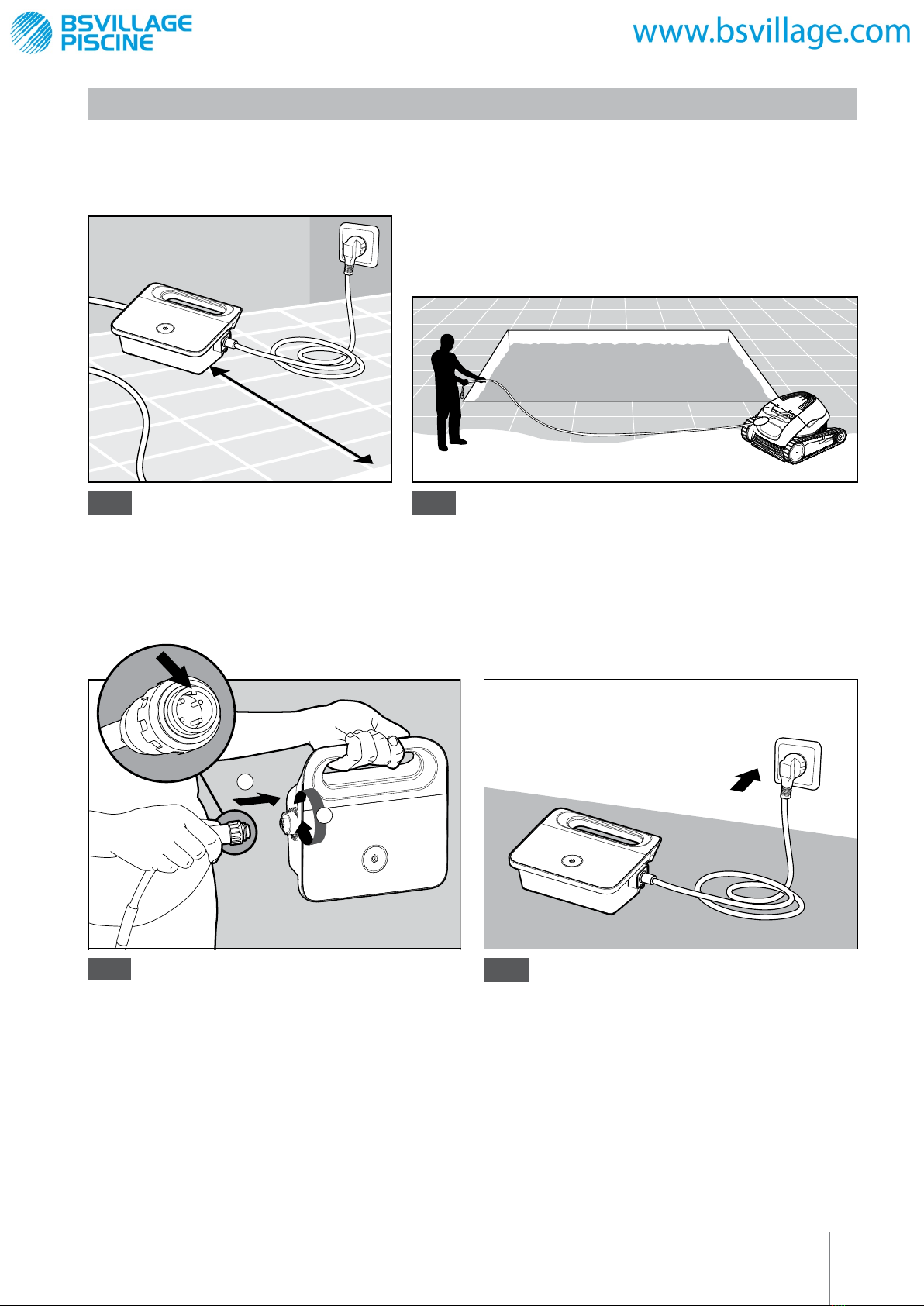

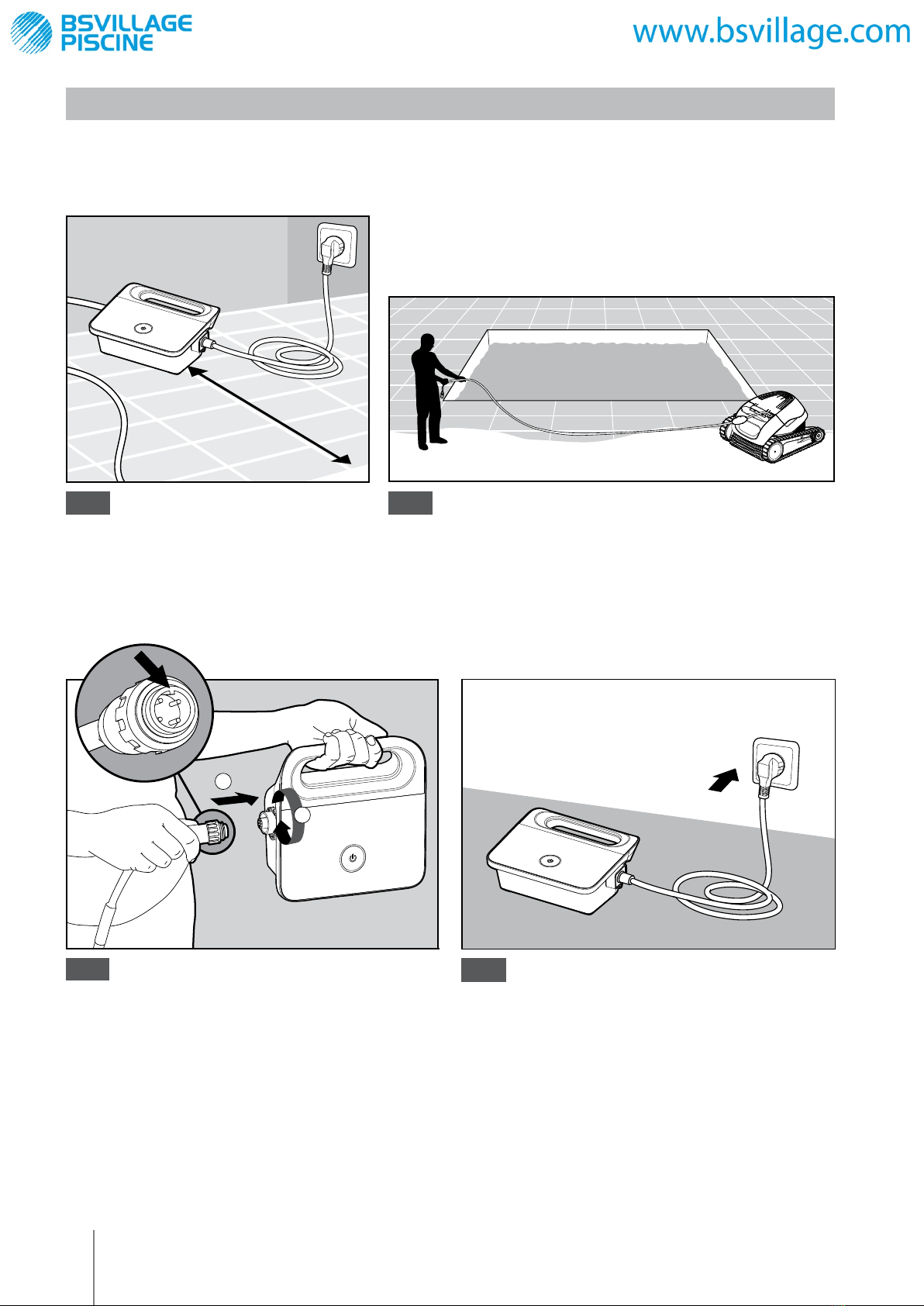

5.1 Setup
Before using the Pool Cleaner for the first time, perform the following steps:
Position the power supply so
that it is approximately in the middle
of the long side of the pool at
a distance of 3m/10ft.
Unwind the cable and stretch it out completely so that
it has no kinks.
Attach the floating cable to the power
supply by inserting it with the notch on the
connector (1), lined up with the groove in
the socket on the power supply, and turning
clockwise (2).
Plug in the power supply and leave it in the
OFF position.
5.1.1
5.1.4
5.1.2
5.1.3
1
2
3m/10ft

5
Robotic Pool Cleaner Mass 13 |User Instructions

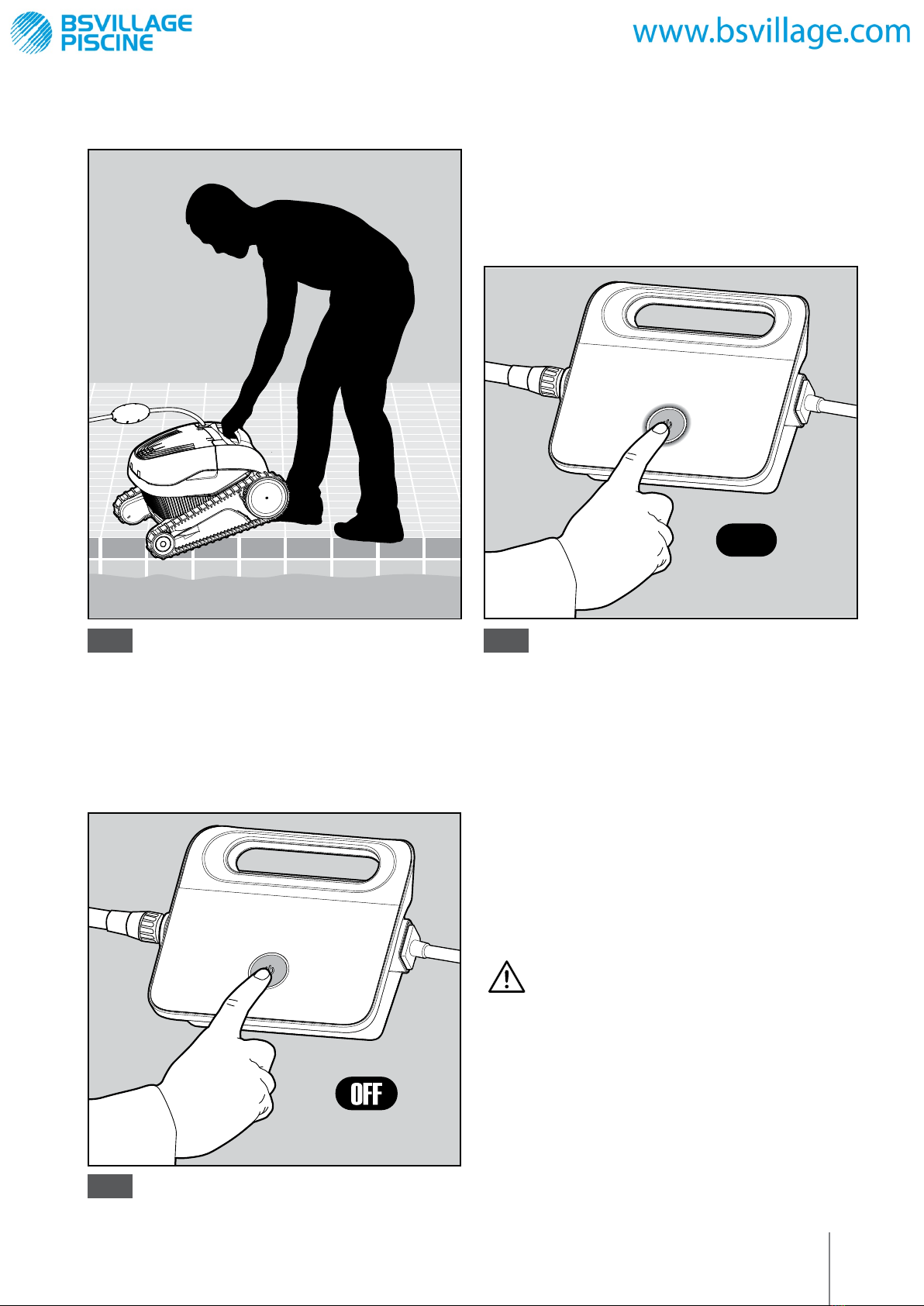

5.2 Putting the Pool Cleaner into the pool
5.3 Removing the Pool Cleaner from the pool
CAUTION
Turn OFF and unplug the power supply.
Put the Pool Cleaner into the pool.
Release the Pool Cleaner and let it sink to the floor
of the pool.
Make sure that the floating cable is free of any
obstructions.
5.2.1
Turn the power supply ON.
The Pool Cleaner will now operate until it has
reached the end of the cleaning cycle.
5.2.2
5.3.1
ON

6Robotic Pool Cleaner Mass 13 |User Instructions
CAUTION
DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.
Using the floating cable, bring the Pool Cleaner to the pool’s edge.
Using the handle, remove the Pool Cleaner from the pool.
Place the Pool Cleaner on the edge of the
pool and let the water drain out.
5.3.3
5.3.2

7
Robotic Pool Cleaner Mass 13 |User Instructions
6. CLEANING THE FILTER BASKET
CAUTION
Make sure the power supply is switched off and unplugged.
It is highly recommended to clean the filter basket after each cleaning cycle.
Note: Do not let the filter basket dry out before cleaning.
Open the filter cover. Upon opening the filter cover,
the handle will lift independently.
6.1.1 6.1.2
Lift up the basket. Open the latch
to release the bottom
lid in order to remove
the debris.
6.1.3 6.1.4 Clean the filter basket with a hose. 6.1.5
1
2
6.1 Cleaning after use - removing and cleaning the filter basket

8Robotic Pool Cleaner Mass 13 |User Instructions
Dismantle the 2 ultra-fine filter panels of the basket, according to the following steps:
Insert the clean filter basket and
close the filter cover.
6.2.4
6.2 Periodic cleaning – recommended at least once a month
Clean the filter panels with a hose.
Assemble the filter panels .
Dismantle the 2 panels using your thumbs.
6.2.2 6.2.3
6.2.1

9
Robotic Pool Cleaner Mass 13 |User Instructions
7. CLEANING THE NET CANISTER
CAUTION
Make sure the power supply is switched off and unplugged.
It is highly recommended to clean the net canister after each cleaning cycle.
Note: Do not let the net canister dry out before cleaning.
7.1 Cleaning after use - removing and cleaning the net canister
Open the filter cover. Lift up the net canister.
7.1.1 7.1.2
Clean the net canister with a hose.
7.1.3

10 Robotic Pool Cleaner Mass 13 |User Instructions

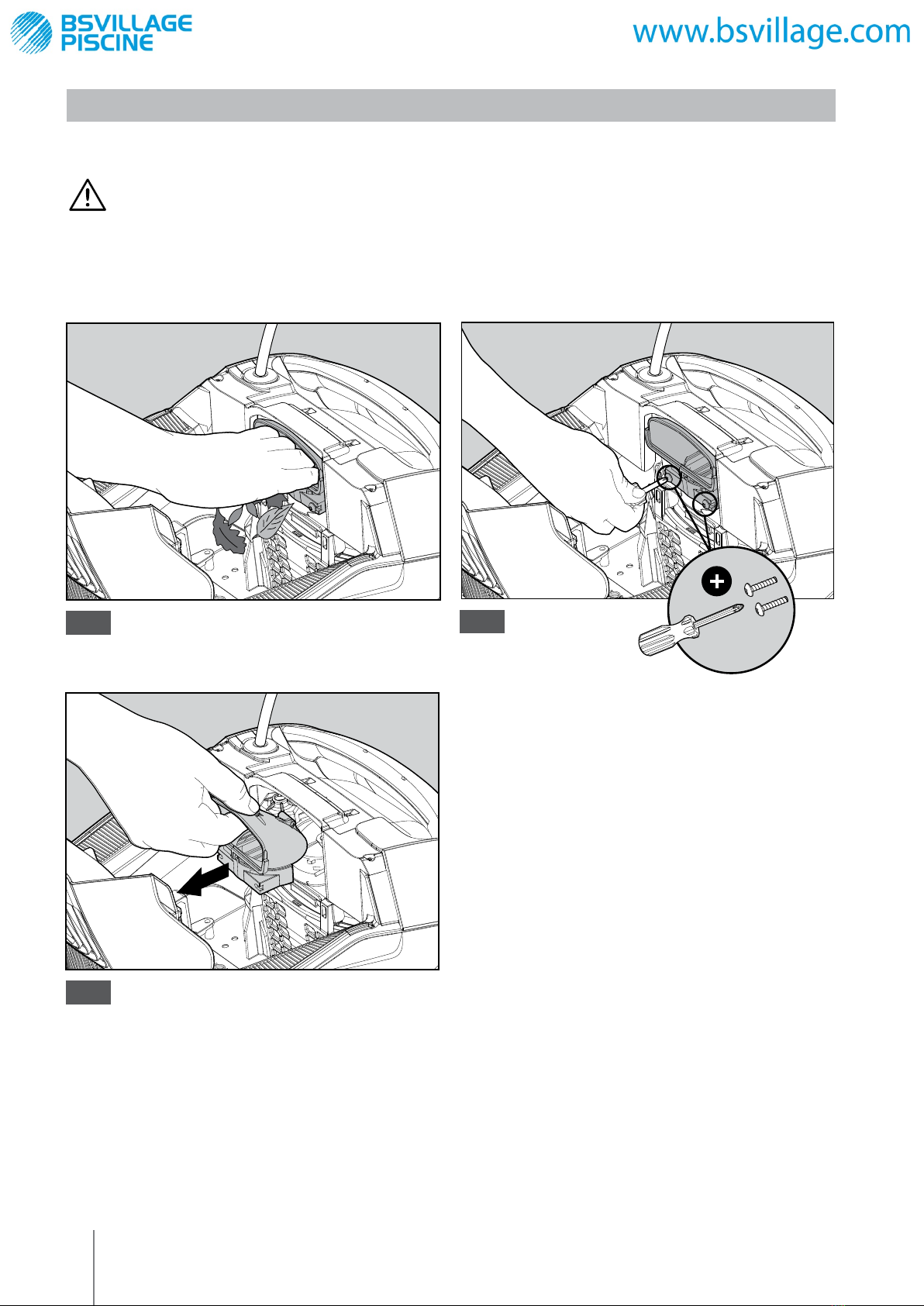

CAUTION
Make sure the power supply is switched off and unplugged.
8.1 Clean the debris trapped in the impeller opening, according to the
following steps:
8. CLEANING THE IMPELLER
If you notice debris trapped in the impeller:
Pull the impeller cover backwards to release it.
Clean the debris trapped around the impeller.
Assemble the impeller cover.
8.1.3
If the debris is not reachable follow the next
steps.
8.1.1 Using a short
screwdriver open the 2
screws.
8.1.2

11
Robotic Pool Cleaner Mass 13 |User Instructions
If the Pool Cleaner will not be in use for an extended period of time, perform the following storage steps:
If the suggested solutions do not solve the problem, please contact your dealer or Service Center.
• Make sure that no water is left in the Pool Cleaner
• Thoroughly clean the filter basket and panels / canister and insert in place
• Roll up the cable so that it has no kinks
• Store the Pool Cleaner in a protected area out of direct sun/rain /frost, at a temperature of between
5°-45°C /41°-113°F
9. OFF-SEASON STORAGE
10. TROUBLESHOOTING
Symptom Possible reason Corrective action
The power-supply
or its switch led
are not working.
• No voltage in the power socket in the wall.
• The power supply is not switched ON.
• The power cable is not well connected
into the power supply inlet.
• Check that there is voltage in the power socket in the wall.
• Check that the power supply is plugged in and turned ON.
• Check that the power cable is securely connected all the way
into the power supply.
• Turn the power supply off. Wait 30 seconds then turn it back on.
The Pool Cleaner
does not move. • The floating cable is not well connected into the power supply outlet.
• An obstacle blocks the impeller,
tracks or wheels.
•Check that the floating cable is securely connected all the way
into the power supply.
• Unplug the power supply. Open the impeller cover
and check that nothing is trapped in the impeller.
Verify that nothing blocks the tracks or wheels.
The Pool Cleaner
is moving in
circles.
•Clogged filter basket/canister.
• Debris stuck in the impeller-house or
impeller-cover.
• Power supply incorrectly positioned.
•Algae or pool water is out of Spec.
• Clean the filter basket/canister.
• Remove debris stuck in the impeller-house or impeller-cover
(according to the drawings).
• Place power supply in a position so that the Pool Cleaner
can freely reach all the pool area.
• Correct pool and water conditions.
The Pool Cleaner
does not turn
or moves in one
direction only.
• Debris stuck in the impeller-house
or impeller-cover. •Remove debris stuck in the impeller-house or impeller-cover
(according to the drawings).
The Pool Cleaner
moves but does
not clean the
pool.
• Clogged filter basket/canister.
• Debris stuck in the impeller-house or
impeller-cover.
• Clean the filter basket/canister.
• Remove debris stuck in the impeller-house or impeller-cover
(according to the drawings).
The Pool Cleaner
cleans only part
of the pool.
•Power supply incorrectly positioned.
•Not enough floating is released for the
correct operation of the Pool Cleaner.
• Place the power supply in a position so that the Pool Cleaner
can freely reach all the pool area.
• Check that there is enough slack in the floating cable
for the Pool Cleaner to reach all of the pool.
•Clean the filter basket/canister.
The floating cable
has kinks. • Clogged filter basket/canister.
• Debris stuck in the impeller-house or
impeller-cover.
• Clean the filter basket/canister.
• Remove debris stuck in the impeller-house or impeller-cover
(according to the drawings).
• To remove the kinks, stretch the floating cable out completely
and let it sit for at least a day in the sun.
The Pool Cleaner
doesn’t climb
the walls.
•Clogged filter basket/canister.
• Algae on walls.
• Unsuitable pH level.
•Debris stuck in the impeller-house or
impeller-cover.
• Clean the filter basket/canister.
• Check the level of the chemicals of the water. Improper levels
may allow the growth of algae making the walls slippery.
If so, adjust the levels and scrub the walls.
•Remove debris stuck in the impeller-house or impeller-cover
(according to the drawings).

12 Nettoyeur de piscine robotique Mass 13 |Mode d'emploi
Nettoyeur de piscine robotique Mass 13
Mode d'emploi
FR
Table des matières
1. INTRODUCTION ................................................................................13
2. SPECIFICATIONS................................................................................13
3. AVERTISSEMENTS ET MESURES DE PRECAUTION..........................13
3.1 Avertissements.............................................................................13
3.2 Mesures de précaution ................................................................13
4. PIECES DU NETTOYEUR DE PISCINE................................................14
5. UTILISATION DU NETTOYEUR DE PISCINE ......................................15
5.1 Préparation ..................................................................................15
5.2 Introduction du nettoyeur dans la piscine ...................................16
5.3 Sortie du nettoyeur hors de la piscine.........................................16
6. NETTOYAGE DU PANIER DE FILTRAGE ............................................18
6.1 Nettoyage après usage................................................................18
6.2 Nettoyage périodique .................................................................19
7. NETTOYAGE DU BOITE A FILET........................................................20
8. NETTOYAGE DE L'HELICE.................................................................21
9. RANGEMENT HORS SAISON ............................................................22
10. DEPANNAGE......................................................................................22

13
Nettoyeur de piscine robotique Mass 13 |Mode d'emploi
Nettoyeur de piscine robotique Mass 13
Mode d'emploi
1. INTRODUCTION
Nous vous remercions d'avoir choisi le nettoyeur de piscine robotique Maytronics.
Nous sommes certains que votre nettoyeur de piscine robotique Maytronics vous servira à garder votre
piscine propre de manière fiable, commode et économique. Son système de filtration fiable pour toutes
les piscines et son brossage actif améliorent l’hygiène de la piscine.
Les nettoyeurs de piscine robotiques Maytronics possèdent des technologies de nettoyage élaborées,
fournissent des performances durables et ils sont d'un entretien facile. Ainsi vous et votre famille aurez le
loisir d'apprécier votre bain en toute confiance de nager dans une piscine tout à fait propre.
2. SPECIFICATIONS
Protection du moteur: IP 68
Profondeur minimale: 0,80m / 2.6'
Profondeur maximale: 5m / 16.4'
3. AVERTISSEMENTS ET MESURES DE PRECAUTION
3.1 Avertissements
• Utilisez exclusivement l'alimentation d'origine qui vous a été fournie
• Assurez-vous que la prise électrique est protégée par un disjoncteur différentiel ou un
interrupteur différentiel
• Gardez l'alimentation à distance de toute eau stagnante
• Placez l'alimentation à une distance de 3m/10' au moins du bord de la piscine
• Ne pas entrer dans la piscine lorsque le nettoyeur de piscine est en fonctionnement
• Débranchez l'alimentation avant toute opération d'entretien
3.2 Mesures de précaution
Utilisez le nettoyeur de piscine seulement lorsque l'état de l'eau remplit les conditions suivantes :
Chlore 4 ppm maximum
pH 7.0-7.8
Température 6-34°C/43-93°F
NaCl 5000 ppm maximum
CAUTION
Alimentation numérique
Entrée : 100-130 AC Volts / 220-230 AC Volts
50-60 Hertz
Sortie : <30 VDC
IP 54

14 Nettoyeur de piscine robotique Mass 13 |Mode d'emploi
4. PIECES DU NETTOYEUR DE PISCINE
Nettoyeur de piscine du modèle Mass 13
Alimentation
Filtrage - options

15
Nettoyeur de piscine robotique Mass 13 |Mode d'emploi
5. UTILISATION DU NETTOYEUR DE PISCINE
5.1 Préparation
Avant d'utiliser votre nettoyeur de piscine pour la première fois, effectuez les opérations suivantes :
Placez l'alimentation à peu près
au milieu de la longueur de la piscine,
à une distance de 3m/10' du bord de
celle-ci.
Déroulez complètement le câble et déployez-le de
façon à ce qu'il ne comporte pas de replis.
Connectez le câble flottant à l'alimentation,
alignez l'ergot du connecteur avec l'encoche de
la prise sur l'alimentation (1), puis tournez dans le
sens des aiguilles d'une montre (2).
Branchez l'alimentation sur une prise de
courant, en la laissant sur la position éteinte.
5.1.1
5.1.4
5.1.2
5.1.3
1
2
3m/10ft

16 Nettoyeur de piscine robotique Mass 13 |Mode d'emploi
5.2 Introduction du nettoyeur dans la piscine
5.3 Sortie du nettoyeur hors de la piscine
CAUTION
Eteignez l'alimentation et débranchez
le câble de la prise de courant.
Introduisez le nettoyeur dans la piscine.
Lâchez-le et laissez-le descendre jusqu'au fond.
Assurez-vous que le câble flottant ne rencontre pas
d'obstruction.
5.2.1
Allumez l'alimentation.
Le nettoyeur se met à fonctionner jusqu'à ce qu'il
complète le cycle de nettoyage.
5.2.2
5.3.1
ON

17
Nettoyeur de piscine robotique Mass 13 |Mode d'emploi
CAUTION
NE JAMAIS SORTIR LE NETTOYEUR DE LA PISCINE EN TIRANT SUR LE CABLE FLOTTANT.
Au moyen du câble flottant, rapprochez le nettoyeur du bord de la piscine.
Saisissez la poignée du nettoyeur et sortez celui-ci de la piscine.
Posez le nettoyeur au bord de la piscine et
laissez l'eau se vider.
5.3.3
5.3.2
