Robotic Pool Cleaner MCC6/MTC6
MCC6
MTC6
-Book_8151255_MCC6-MTC6.indb 1 15/2/2012 10:47 AM

-Book_8151255_MCC6-MTC6.indb 2 15/2/2012 10:47 AM

1
Contents
1. INTRODUCTION ....................................................................... 2
2. SPECIFICATIONS ...................................................................... 2
3. WARNINGS AND CAUTIONS ................................................... 2
3.1. Warnings............................................................................ 2
3.2. Cautions............................................................................. 2
4. POOL CLEANER PARTS ............................................................ 3
5. USING THE POOL CLEANER.................................................... 4
5.1. Setup.................................................................................. 4
5.2. Putting the Pool Cleaner into the pool.............................. 6
5.3. Removing the Pool Cleaner from the pool........................ 7
6. CLEANING THE FILTER BAG OR CARTRIDGES ....................... 8
6.1. Removing and cleaning the filter bag ................................ 8
6.2. Replacing the filter bag ..................................................... 9
6.3. Cleaning the filter cartridges ............................................. 9
6.4. Cleaning the impeller ........................................................ 10
7. OFFSEASON STORAGE............................................................ 11
8. TROUBLESHOOTING................................................................ 12
Robotic Pool Cleaner MCC6/MTC6
User Instructions
EN
-Book_8151255_MCC6-MTC6.indb 1 15/2/2012 10:47 AM

2Robotic Pool Cleaner MCC6/MTC6 |User Instructions
Robotic Pool Cleaner MCC6/MTC6
User Instructions
1. INTRODUCTION
Thank you for purchasing a Maytronics Robotic Pool Cleaner.
We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and
cost effective pool cleaning. Its reliable filtration in all pool conditions, active brushing, and all-surface
climbing brush enhance maximum pool hygiene.
The Robotic Pool Cleaners by Maytronics deliver advanced cleaning technologys, long lasting
performance and easy maintenance. You and your family will be free to enjoy your swim with full
confidence that your pool is completely clean.
2. SPECIFICATIONS
Motor protection: IP 68
Minimum depth: 0.80m/2.6ft
Maximum depth: 5m/16.4ft
3. WARNINGS AND CAUTIONS
3.1. Warnings
• Use the originally supplied power supply only
• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth
leakage interrupter (ELI)
• Keep the power supply out of standing water
• Position the power supply at least 3m/10ft away from the edge of the pool
• Do not enter the pool while the Pool Cleaner is working
• Unplug the power supply before servicing
3.2. Cautions
When not in use store the Pool Cleaner on the Caddy in a shaded area.
Use the Pool Cleaner in the following water conditions only:
Chlorine Max 4 ppm
pH 7.0 - 7.8
Temperature 6 – 34°C (43-93°F)
NaCl Maximum = 5000 ppm
CAUTION
-Book_8151255_MCC6-MTC6.indb 2 15/2/2012 10:47 AM

Robotic Pool Cleaner MCC6/MTC6 |User Instructions 3
4. POOL CLEANER PARTS
Robotic Pool Cleaner Model MCC6
Frame Cartridges and 4 ultra-fine filters Spring clean-up filters Bottom lid and filter Bag
optional
Combined Brush
For rough ceramic
surface and mosiac tiles.
PVC Brush
For concrete, PVC,
fiberglass and liner.
Wonder Brush
For smooth ceramics.
Optional Brushes
Wonder Brush
For smooth ceramics.
Combined Brush
For rough ceramic
surface and mosiac tiles.
PVC Brush
For concrete, PVC,
fiberglass and liner.
Optional Brushes
Brushes
Filtration
Power supply unit
Robotic Pool Cleaner Model MTC6
01_8151255_General_English.indd 3 15/2/2012 3:35 PM

4Robotic Pool Cleaner MCC6/MTC6 |User Instructions
5. USING THE POOL CLEANER
The Pool Cleaner is very simple to use. Simply put it into the pool and make sure that it is properly
sitting on the floor of the pool. Turn it ON and let it get the job done.

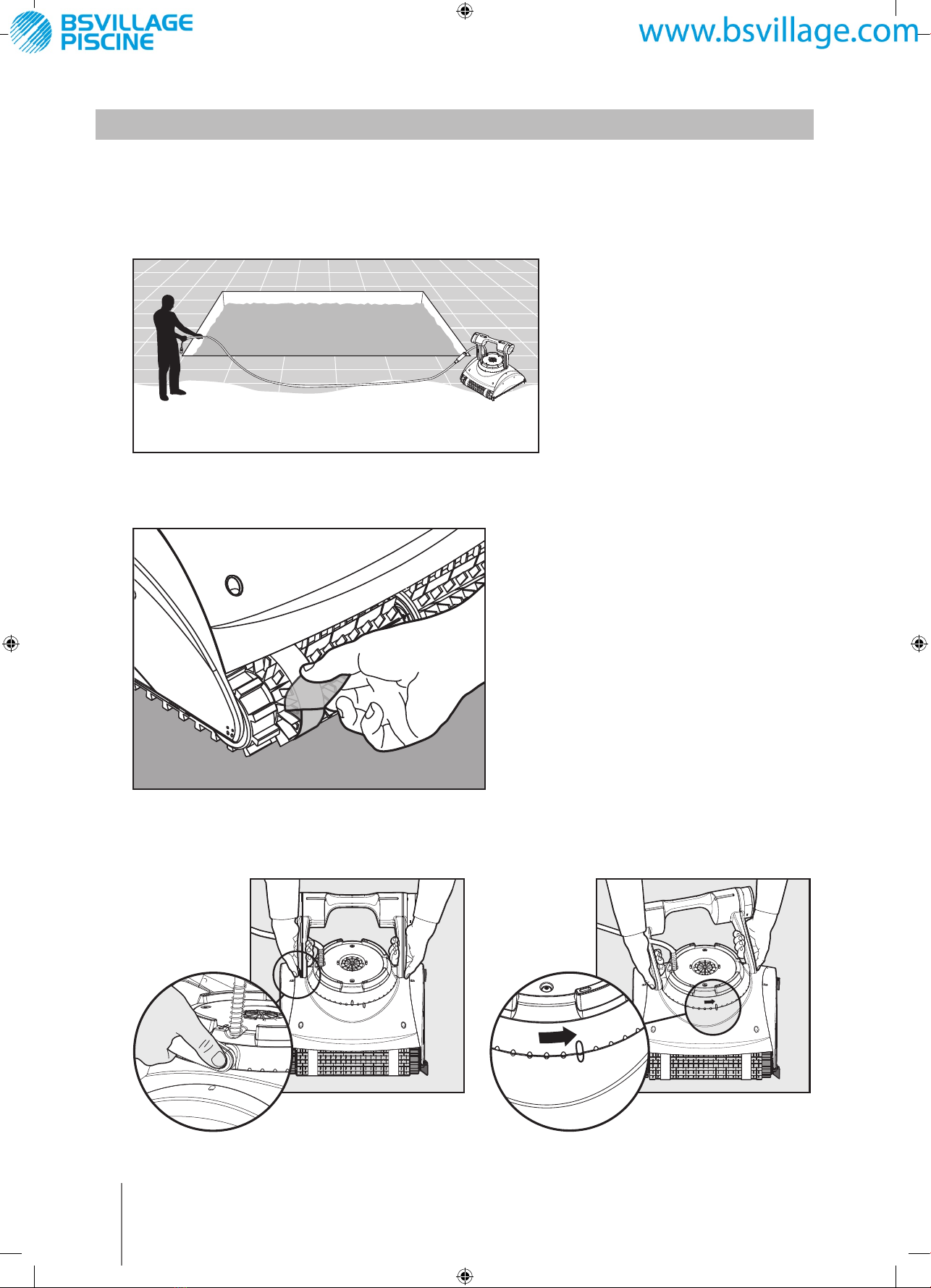

5.1. Setup
Before using the Pool Cleaner for the first time perform the following steps:
Unwind the cable and stretch it out
completely so that it has no kinks.
Some models arrive with plastic coverings on the brushes.
Remove them before use.
While pushing in the handle buttons turn the ring so that the large projection on the ring lines up with
the projection on the Pool Cleaner body.
-Book_8151255_MCC6-MTC6.indb 4 15/2/2012 10:48 AM

Robotic Pool Cleaner MCC6/MTC6 |User Instructions 5

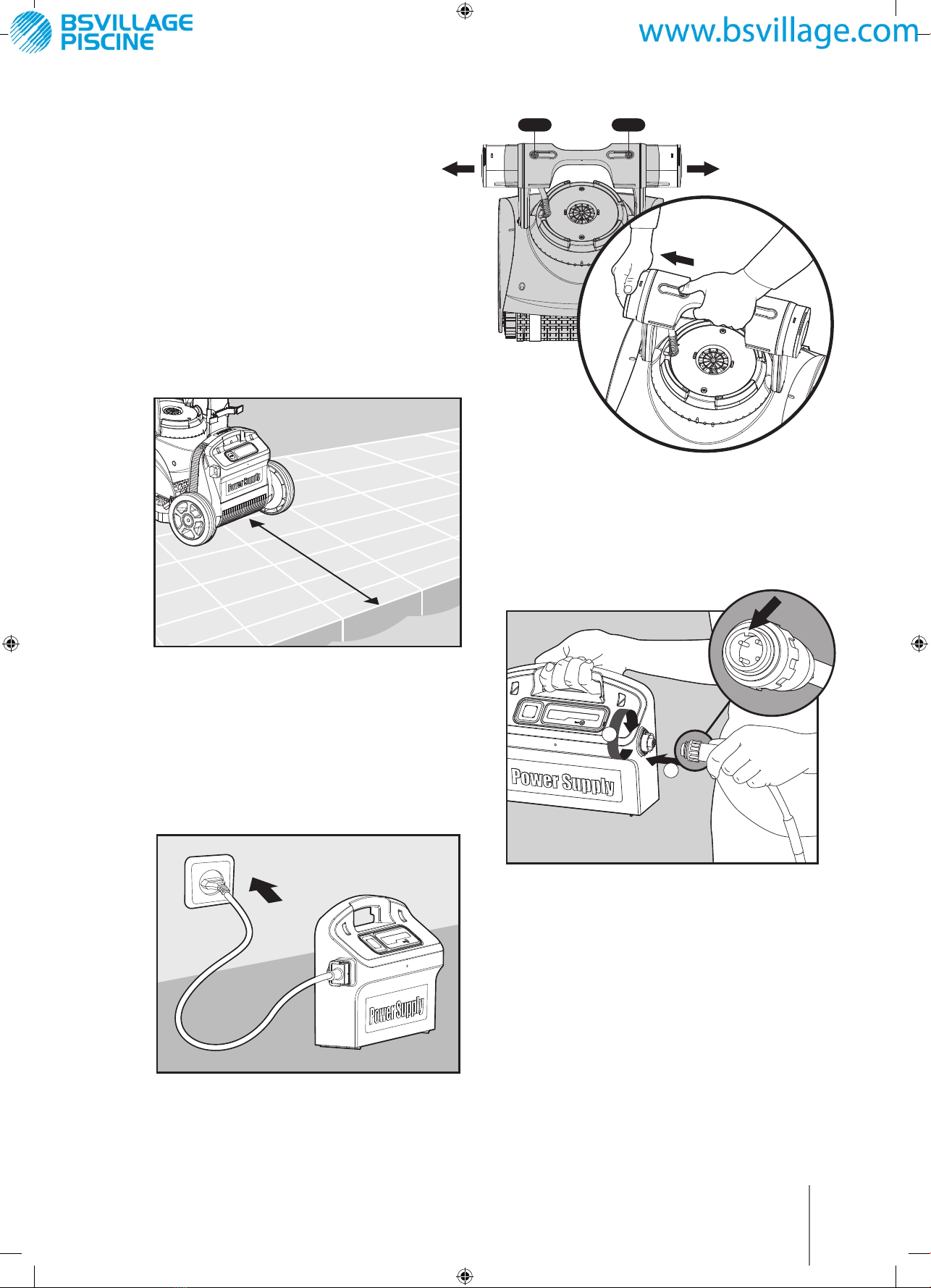

While pushing the button on each
float, pull it all the way out.
Position the power supply so that it is
approximately in the middle of the long side
of the pool at a distance of 3m/10ft.
Attach the floating cable to the power supply
by inserting it with the notch on the connector (1)
lined up with the groove in the socket on the
power supply and turning clockwise (2).
Plug in the power supply and leave it in the OFF position.
Click Click
10ft/3m
1
2
-Book_8151255_MCC6-MTC6.indb 5 15/2/2012 10:48 AM

6Robotic Pool Cleaner MCC6/MTC6 |User Instructions

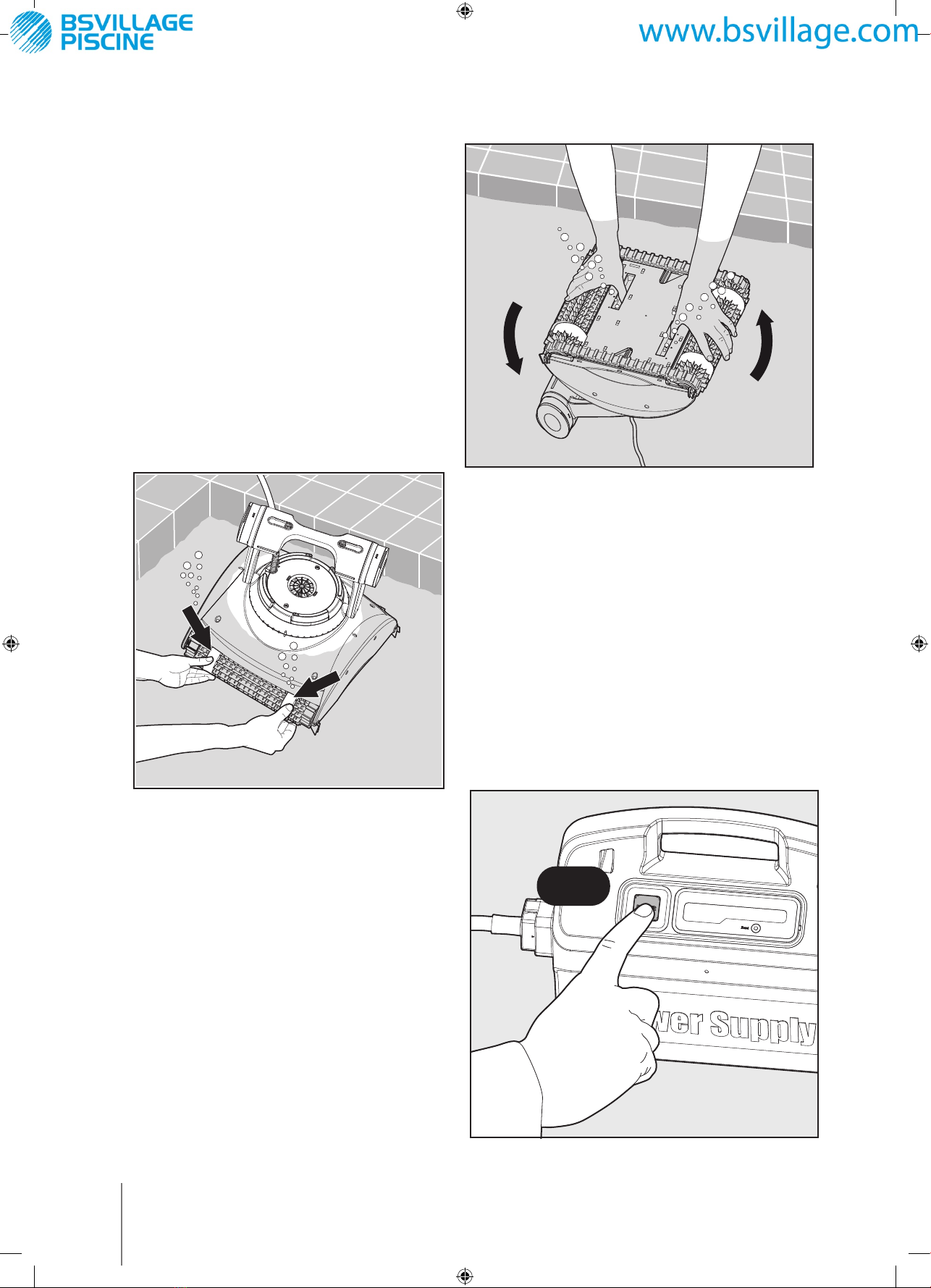

5.2. Putting the Pool Cleaner into the pool
Holding the Pool Cleaner upside down in
the water gently rock it back and forth with
your fingers holding the plastic doors on
the bottom lid open to release trapped air.
Continue until no more bubbles are released.
If your Pool Cleaner is equipped with brushes that
contain sponges, dip the brushes in the water and
squeeze them so that they will absorb water the
first time you use the Pool Cleaner, or if the brushes
have dried out between uses.
Release the Pool Cleaner and let it sink to the floor
of the pool.
Make sure that the floating cable is free of any
obstructions.
To avoid kinks in the floating cable, place
approximately enough cable in the water for the
Pool Cleaner to reach the farthest corner of the
pool.
Turn the power supply ON.
The Pool Cleaner will now operate until it has
reached the end of the cleaning cycle.
ON
-Book_8151255_MCC6-MTC6.indb 6 15/2/2012 10:48 AM

Robotic Pool Cleaner MCC6/MTC6 |User Instructions 7

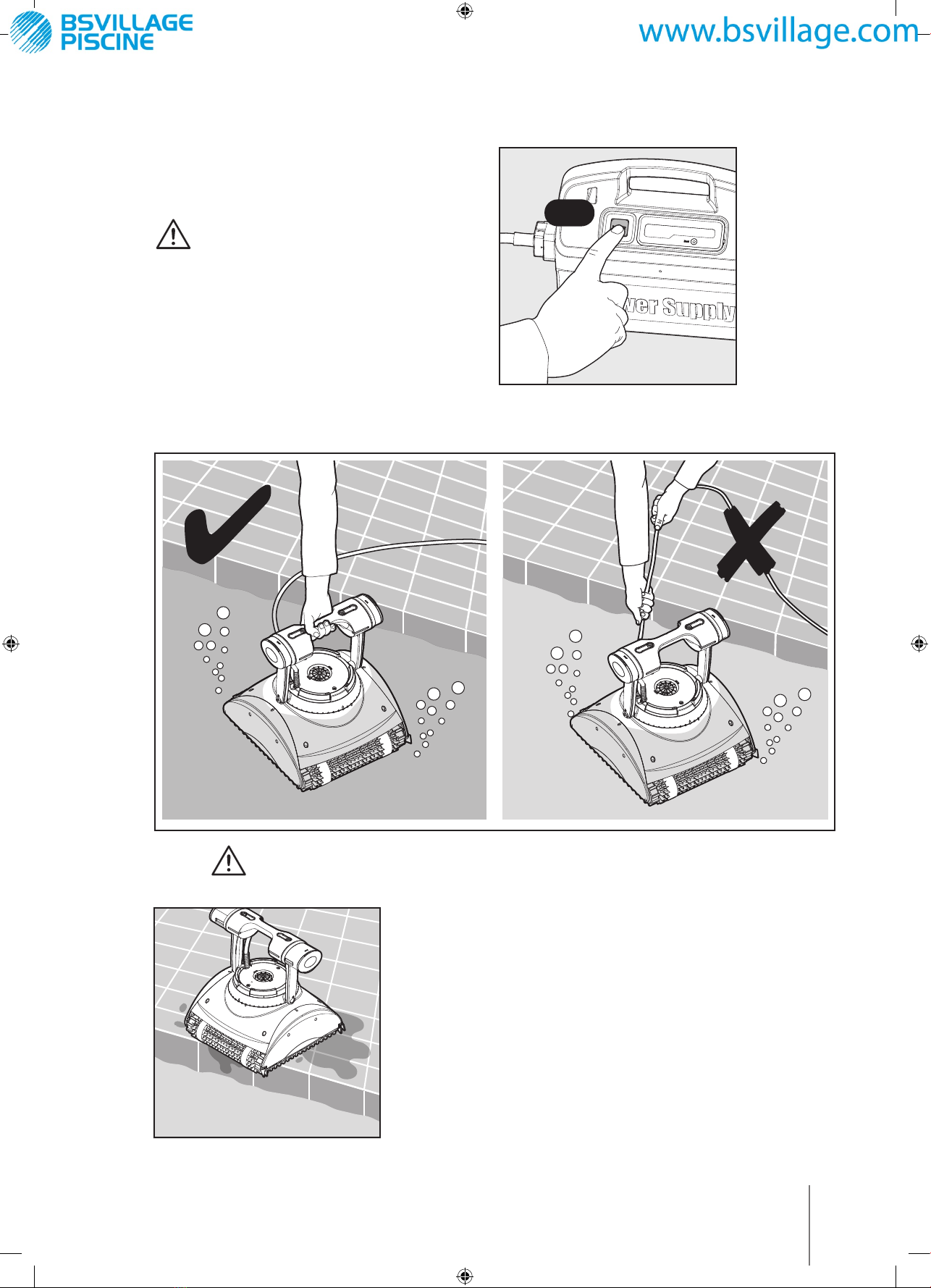

5.3. Removing the Pool Cleaner from the pool
CAUTION
Turn OFF and unplug the power supply.
Using the floating cable, bring the Pool Cleaner to the pool’s edge.
Using the handle remove the Pool Cleaner from the pool.
CAUTION
DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.
Place the Pool Cleaner on the edge of the pool and let the
water drain out.
OFF
-Book_8151255_MCC6-MTC6.indb 7 15/2/2012 10:48 AM

8Robotic Pool Cleaner MCC6/MTC6 |User Instructions
6. CLEANING THE FILTER BAG OR CARTRIDGES
Depending on the model, your Pool Cleaner may be equipped with a filter bag or cartridges.
It is recommended to clean the filter bag or cartridges after each cleaning cycle.
6.1. Removing and cleaning the filter bag
CAUTION
Unplug the power supply.
Turn the Pool Cleaner upside-down.
Open the bottom lid.
Remove the filter bag.
Clean the filter bag with a hose.
We recommend that you periodically wash the filter bag in
a washing machine using the gentle cycle program.
Periodically clean the brushes with a hose.
Click
-Book_8151255_MCC6-MTC6.indb 8 15/2/2012 10:48 AM

Robotic Pool Cleaner MCC6/MTC6 |User Instructions 9
6.2. Replacing the filter bag
Put the filter bag over the frame so that the
strap is in the middle of the shortest side.
Make sure that filter bag is positioned
properly on the frame.
6.3. Cleaning the filter cartridges
Note: Don’t let the filter cartridges dry out before cleaning.
CAUTION
Unplug the power supply.
With the pool cleaner upside down
open the bottom lid and pull it out.
Open the clips and remove the filters.
Click
-Book_8151255_MCC6-MTC6.indb 9 15/2/2012 10:48 AM

10 Robotic Pool Cleaner MCC6/MTC6 |User Instructions
Clean the filters with a hose.
Insert the filters with the
plastic backing facing out.
Insert the cartridge unit.
CAUTION
In addition to the standard cartridge filters the Pool Cleaner is also supplied with Spring
clean-up filters which can be used for the first cleaning of the season or when the pool is
unusually dirty.
6.4. Cleaning the impeller
If you notice debris trapped in the impeller,
open the impeller and remove the debris.
CAUTION
Unplug the power supply.
Using a screwdriver remove the two screws on
the impeller cover and remove it.
Clean any debris that may be in the impeller.
-Book_8151255_MCC6-MTC6.indb 10 15/2/2012 10:48 AM

Robotic Pool Cleaner MCC6/MTC6 |User Instructions 11

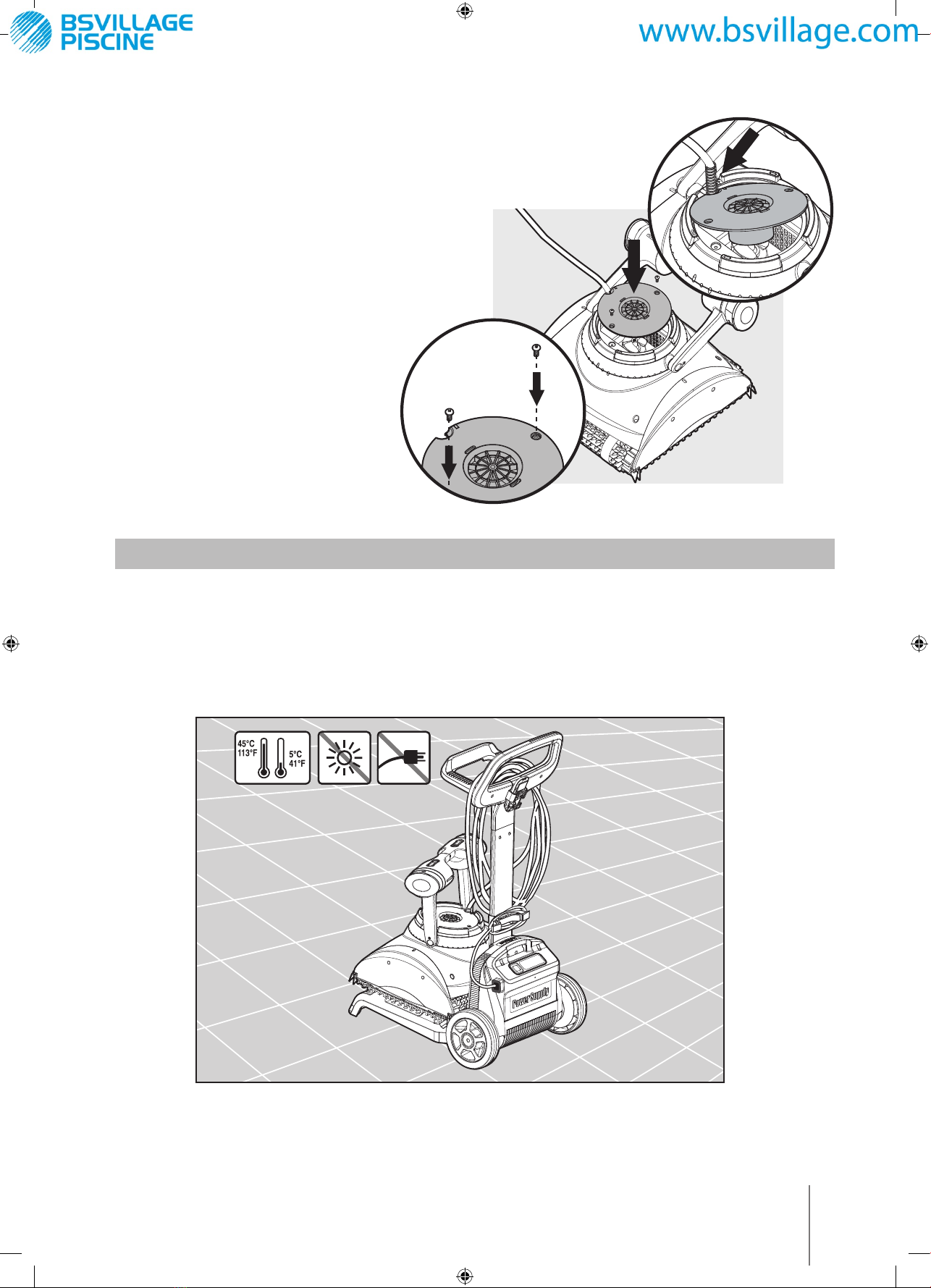

Place the impeller cover at an angle
so that the notch is on the second
ring of the spring.
Press down on the impeller cover in
the direction of the spring, pushing
it into place.
Replace the screws.
7. OFFSEASON STORAGE
If the Pool Cleaner will not be in use for an extended period, perform the following storage steps:
•Make sure that no water is left in the Pool Cleaner
•Thoroughly clean the filter bag or cartridges and insert in place
•Roll up the cable so that it has no kinks and place on the Caddy
•Store the Pool Cleaner in a protected area either on its Caddy or simply upsidedown
-Book_8151255_MCC6-MTC6.indb 11 15/2/2012 10:48 AM

12 Robotic Pool Cleaner MCC6/MTC6 |User Instructions

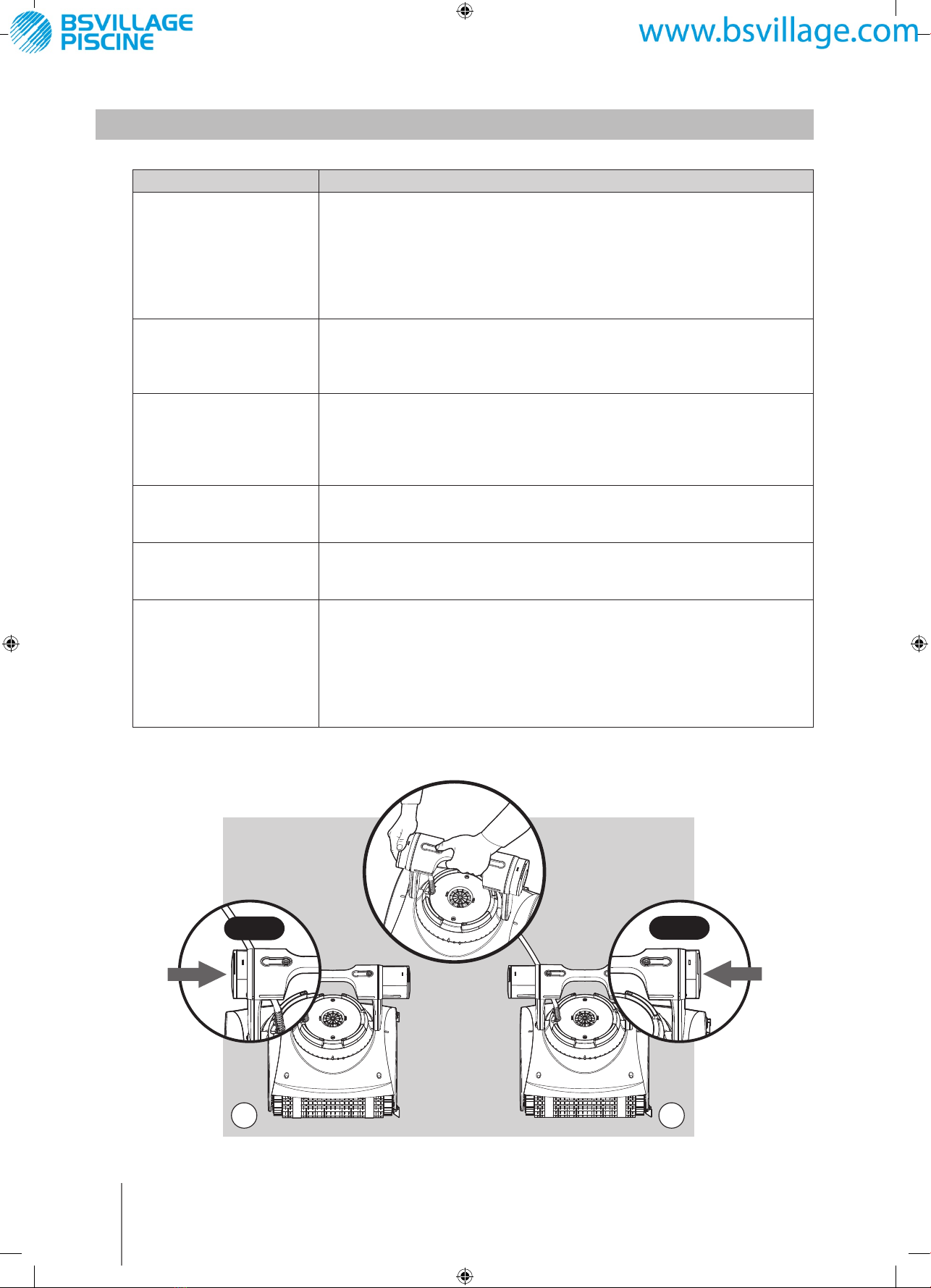

8. TROUBLESHOOTING
If the suggest solutions do not solve the problem contact your dealer
Problem Solution
Pool Cleaner does not move 1. Check that the power supply is plugged in and turned ON and that the
cable is securely connected all the way into the side of the power supply
2. Ensure the power outlet is functioning properly and that it has not tripped
the breaker in the fuse box
3. Turn the power supply off. Wait 30 seconds then turn it back on
4. Unplug the power supply. Open the impeller cover and check that nothing
is trapped in the impeller
The Pool Cleaner moves but
does not clean the pool
1. Clean the filter bag/cartridge
2. After the Pool Cleaner starts moving observe it for several minutes and
make sure that it keeps moving. If it stops moving check the impeller and
the drive system to see if any debris is stuck there
The Pool Cleaner cleans
only part of the pool
1. Check that there is enough slack in the cable for the Pool Cleaner to reach
all of the pool
2. Clean the filter bag/cartridge
3. For MCC6 only: push in the float on the cable side (see figure A)
4. Check the brushes to see if they are obstructed or worn out
The Pool Cleaner floats
instead of sitting on the
floor of the pool
1. Try removing the air again
2. With the Pool Cleaner in the water squeeze the combined brush/Wonder
brush to make sure that they are completely water absorbent
Cable has kinks 1. For MCC6 only: push in the float on the non-cable side (see figure B)
2. To remove the kinks stretch the cable out completely and let it sit for at
least a day in the sun
The Pool Cleaner doesn’t
climb the walls
1. Clean the filter bag/cartridge
2. Check the level of the chemicals of the water. Improper levels may allow the
growth of algae making the walls slippery. If so, adjust the levels and scrub
the walls
3. Check that the brushes aren’t worn out
4. Check that the wall climbing mode hasn’t been cancelled via the remote
control unit (MTC6 only)
Click
Click
A B
-Book_8151255_MCC6-MTC6.indb 12 15/2/2012 10:48 AM

13
Robot Nettoyeur de Piscine MCC6/MTC6
Mode d’emploi
Contenu
1. INTRODUCTION ......................................................................... 14
2. SPECIFICATIONS ........................................................................ 14
3. AVERTISSEMENTS ET PRECAUTIONS........................................ 14
3.1. Avertissements..................................................................... 14
3.2. Précautions .......................................................................... 14
4. ELEMENTS DU NETTOYEUR DE PISCINE .................................. 15
5. UTILISATION DU NETTOYEUR DE PISCINE ............................... 16
5.1. Préparation .......................................................................... 16
5.2. Introduction du Nettoyeur dans la piscine .......................... 18
5.3. Retrait du Nettoyeur de la piscine....................................... 19
6. NETTOYAGE DU SAC OU DES CARTOUCHES DE FILTRAGE ... 20
6.1. Retrait et nettoyage du sac de filtrage ............................... 20
6.2. Remplacement du sac de filtrage........................................ 21
6.3. Nettoyage des cartouches de filtrage ................................. 21
6.4. Nettoyage de l’impulseur.................................................... 22
7. STOCKAGE HORS SAISON ........................................................ 23
8. DEPANNAGE............................................................................... 24
FR
-Book_8151255_MCC6-MTC6.indb 13 15/2/2012 10:48 AM

14 Robot Nettoyeur de Piscine MCC6/MTC6 |Mode d'emploi
Robot Nettoyeur de Piscine MCC6/MTC6
Mode d'emploi
1. INTRODUCTION
Merci d'avoir acheté ce Robot Nettoyeur de Piscine de chez Maytronics.
Nous sommes convaincus que votre Robot Nettoyeur de Piscine vous assurera un nettoyage crédible,
convenable et rentable de votre piscine. Son filtrage fiable de toutes les piscines, son brossage
actif et sa brosse grimpant sur toutes les surfaces permettent d'assurer l'hygiène maximale de votre
piscine.
Les Robots Nettoyeurs de Piscine de Maytronics fournissent une technologie de nettoyage avancée,
une performance de longue durée et une maintenance en toute simplicité. Vous et votre famille
pourrez profiter en toute confiance d'une piscine entièrement propre.
2. SPECIFICATIONS
Protection du moteur:IP 68
Profondeur minimale:0,80m/2,6 pieds
Profondeur maximale:5m/16,4 pieds
3. AVERTISSEMENTS ET PRECAUTIONS
3.1. Avertissements
• Utilisez uniquement le bloc d'alimentation électrique qui vous a été fourni à l'origine
• Assurez-vous que la prise électrique est protégée par un disjoncteur de fuite à la terre
• Eloignez le bloc d'alimentation des flaques d'eau
• Positionnez le bloc d'alimentation à au moins 3m du bord de la piscine
• N'entrez pas dans la piscine lorsque le Nettoyeur est en marche
• Débranchez l'alimentation électrique avant tout entretien du robot
3.2. Précautions
Lorsqu'il n'est pas utilisé, entreposez le Nettoyeur de Piscine sur son Caddy dans un lieu ombragé.
N'utilisez le Nettoyeur de Piscine que lorsque les conditions de l'eau sont les suivantes:
Chlore Max 4 ppm
pH 7,0 - 7,8
Température 6 – 34°C (43-93°F)
NaCl Maximum = 5000 ppm
CAUTION
-Book_8151255_MCC6-MTC6.indb 14 15/2/2012 10:48 AM

Robot Nettoyeur de Piscine MCC6/MTC6 |Mode d'emploi 15
4. ELEMENTS DU NETTOYEUR DE PISCINE
Robot nettoyeur de piscine modèle MCC6
Cartouches de filtrage et 4 filtres ultra
fins
Filtres pour nettoyage
de printemps
Couvercle inférieur et sac de filtrage
en option
Brosse combinée
pour surface de céramique
rugueuse et pour carrelage
en mosaïque.
Brosse PVC
pour béton, PVC, fibre
de verre et revêtement.
Wonder brosse
pour céramiques lisses.
Brosses en option
Wonder brosse
pour céramiques lisses.
Brosse combinée
pour surface de céramique
rugueuse et pour carrelage
en mosaïque.
Brosse PVC
pour béton, PVC, fibre
de verre et revêtement.
Brosses en option
Brosses
Filtrage
Unité d’alimentation électrique
Robot nettoyeur de piscine modèle MTC6
-Book_8151255_MCC6-MTC6.indb 15 15/2/2012 10:48 AM

16 Robot Nettoyeur de Piscine MCC6/MTC6 |Mode d'emploi
5. UTILISATION DU NETTOYEUR DE PISCINE
Le Nettoyeur de Piscine est très simple à utiliser. Il suffit de le mettre dans la piscine et de s'assurer
qu'il soit bien posé au fond de la piscine. Allumez-le (ON) et laissez-le faire son travail.
5.1. Préparation
Avant d'utiliser pour le première fois le Nettoyeur de Piscine, effectuez les étapes suivantes:
Déroulez le câble et étirez-le
entièrement pour qu'il n'ait pas
de plis.
Les petits modèles sont fournis avec un couvercle en plastique sur les brosses.
Tout en enfonçant les boutons de la poignée, faites tourner l'anneau de manière à ce que la grande
projection de l'anneau s'aligne avec la projection du corps du Nettoyeur de Piscine.
-Book_8151255_MCC6-MTC6.indb 16 15/2/2012 10:49 AM

Robot Nettoyeur de Piscine MCC6/MTC6 |Mode d'emploi 17
Tout en enfonçant le bouton sur chaque
flotteur, tirez-le complètement vers le haut.
Positionnez le bloc d'alimentation de manière
à ce qu'il soit à peu près au milieu de la
longueur de la piscine à une distance de 3m/10 pieds.
Branchez le câble flottant à l’alimentation en
introduisez-le à l’aide de l’encoche dans le
connecteur (1) et alignez-le avec la rainure de la
prise du bloc d’alimentation; ensuite, tournez
dans le sens des aiguilles d’une montre (2).
Branchez le bloc d'alimentation et laissez-le en position OFF.
Click Click
10ft/3m
1
2
-Book_8151255_MCC6-MTC6.indb 17 15/2/2012 10:49 AM
