MB QUART MBQX-POD-1 User manual

CAN-AM MAVERICK X3
400 WATT / TWO SPEAKER
UTV-TUNED AUDIO PACKAGE
Installation Manual
MBQX-POD-1

2
Thanks for choosing MB QUART! The UTV-Tuned 2-speaker, 400 watt system for applicable Can-Am
Maverick X3 vehicles (2017 and up) is engineered for your vehicle. The installation process is simple and
straightforward. Installation following these detailed instructions can be completed in about 2 hours.
INSTALLATION OVERVIEW VIDEO
Many of our vehicle-specic products feature
a “how to” install video with additional details
on making your installation successful.
Where available, locate your specic video
on the website. Type your model number
(MBQX-POD-1) into the search box, then
click on the INSTALL & SUPPORT tab.
WHAT’S INCLUDED
As you unpackage the MBQX-POD-1 system, account for all components before attempting installation.
Please note some components required to complete an audio system in your Can-Am X3 (such as a
source unit, amplier power/ground wiring, fuse/fuse holder, speaker wiring, RCA audio cable, etc.)
are not included. See page 6 for details of what else you’ll need.
What’s In The Box?
● Compact 2 channel, Class D 400 Watt Amplier*
● Two Dash Panel-Mounted 6.5 inch Coaxial Speakers in Vehicle-Specic Replacement Panels
*Optional Amplier Mounting Plate (MBQX-SUB-ACC-1) is found at MBQuart.com
*AMPLIFIER MOUNTING – An amplier mounting plate (MBQX-SUB-ACC-1) to safely
mount the NA2-400.2 amplier to the Can-Am front cage behind the driver side dash is
available at MBQuart.com. If not using this amplier mounting plate, you need to determine
and accomplish your own amplier mounting strategy. Instructions on this accessory
mounting plate and how to install this kit are included in this manual.
NOTE – Do not dispose of any packaging until you have completely installed your system and are certain
you have accounted for every piece. If you feel something is missing, please contact Maxxsonics directly
via email – [email protected].
OTHER CAN-AM X3 SPECIFIC PRODUCTS – MB Quart has thoughtfully created a range of vehicle-
specic audio system products for your Can-Am X3. Everything from source units to subwoofers is available
at www.MBQuart.com. See page 16 for details.
WARRANTY
Your audio system is covered by a 1 year warranty from the date of invoice. It is important to retain your
sales receipt. Furthermore, it is crucial that you record and store a record of the serial numbers for each of
the components that are included in your system. In the rare instance that a warranty claim is needed both
proof of purchase and serial numbers are required. Additional information on the back page.
TECHNICAL SUPPORT
For additional technical information, go to the “SUPPORT” tab at MBQuart.com. There you will nd helpful,
FAQ, TEQ Tips and you can contact Technical Support via email.
INTRODUCTION
MBQX-SUB-
ACC-1

3
PRE-INSTALLATION
INSTALLATION TIME
About 2 hours are required to complete this installation (assuming unmodied vehicle). Add installation time
for your own source unit, choice in power wiring and any additional speakers, subwoofer(s) and ampliers.
TOOLS AND SUPPLIES NEEDED
● Wire Strippers and Crimpers ● Phillips Screwdriver
● Flush Cut Wire Cutters (for trimming zip ties) ● Small, Straight (Jeweler’s) Screwdriver
● High-Quality Electrical Tape ● Heat Gun or Lighter
● Hand-Held Battery-Powered Drill, 9/64” & 1/8” Drill Bits ● Bojo Tools (Non-Marring Pry Tools)
● Ratchet, 8mm Socket ● 10mm Socket (Gauge Cluster/Battery)
● 13mm Socket and 13mm Box Wrench (Seat Removal) ● 18mm Socket (Seat Removal)
● 1/2” Socket (Subwoofer Enclosure Front Brackets) ● 7/16” Socket (Optional 3rd Amp Plate)
● T-25 and T-27 Torx Drivers (Dash & Housing Hardware) ● T-30 Torx Driver (Dash/Console)
You may or may not need all of the tools listed above. You may also own more specialized tools to complete
the installation. Share the pics of your installation on our social media channels to help others.
In addition to the tools listed, have music ready for INITIAL TESTING and FINE TUNING steps. The format
of music will depend on your choice of source unit (USB stick, Bluetooth, AM/FM, etc.).
SAFETY PRECAUTIONS
Safely prepare your vehicle for the installation before proceeding.
● Turn the ignition off and remove the key
● Use a packing blanket other soft material to protect your machine
● Safety Glasses - always wear eye protection
● Once all of the seats are removed, disconnect the negative battery cable before proceeding
PREPARATION FOR INSTALLATION & DISASSEMBLY
Before fully dismantling your vehicle, we suggest you prepare all components, speaker panels and wiring.
It increases efciency to have everything ready when each component is installed. Seat removal is
recommended as bus bar access in the center console for amplier power & ground is important. Please
note some models with seat belts will require seat belt attachment point removal to remove the whole seat.
REMOVE SEATS - DISCONNECT BATTERY
1 2 3
Slide driver’s seat forward
and remove two 18mm bolts
securing the rear of the seat
frame. If the vehicle has
factory-installed seats, you
can also access these bolts by
ipping up the seat cushion (a
socket extension is required).
Slide driver’s seat back to
access front 13mm through-
bolts and nuts. Using a socket
and box wrench, remove inner
and outer front seat hardware.
Unplug seat belt sensor.
Remove front driver’s seat and
set aside with all hardware.
Repeat seat removal on
front passenger’s side (and
rear seats - if present). Once
passenger seat near battery is
removed, disconnect (black)
negative battery cable by
removing a 10mm bolt and set
the negative cable aside.

4
VEHICLE DISASSEMBLY
This section covers console and dash component removal.
REMOVE CONSOLE SIDES
DISASSEMBLY
1 2 3
Remove driver’s side console
side panel using a pry tool from
the top to gently release the
pressure-t clips.
Remove passenger’s side
console side panel using a
pry tool from the top to gently
release the pressure-t clips.
Remove front of center console
side panel on passenger’s side
(footwell area) using a pry tool
to gently release the pressure-
t clips.
45 6
Move gear selector all the way
back (away from the dash).
Remove two T-30 screws from
the area just forward of the
gear selector when in park.
Remove top center plastic
cover above dash pocket by
pushing up on the front pocket
edge above the lighter socket,
then pulling toward you.
Next, remove two additional
T-30 screws located beneath
the forward edge of the top
center plastic cover location,
just forward of fuse box.
7 8 9
Identify four visible push pin
clips on the outer edges of the
center pocket. These secure
the anges of the left and right
side dash speaker panels.
Gently remove the four visible
push pin clips with a panel
removal tool or special panel
clip pliers (not needle nose) as
shown.
Remove one additional hidden
push pin under the driver’s side
dash, between the steering
wheel and console, just forward
of the tubular chassis support.
REMOVE CENTER DASH HARDWARE & CLIPS

5
VEHICLE DISASSEMBLY
This section covers left and right side top dash speaker panels and gauge cluster removal.
REMOVE PASSENGER & DRIVER TOP DASH PANELS
2 3
Remove gas ller access door
on passenger side. Note above
the grommet for the retainer
clip, there is a 10mm nut
attaching a mounting screw.
Remove three T-30 screws
from the top edge of the
passenger’s side dash where
the hood line meets the dash
as indicated.
Remove the remaining two
T-30 screws on the side
edge of the panel. The top
screw requires the 10mm nut
loosened with a 10mm socket.
5 6
Gently remove passenger side
speaker panel and set aside.
The center push pin retainer
clips will eventually need to be
transfered to the new panel.
Drop steering wheel position
to access two T-30 gauge
cluster screws. Cluster removal
helps removal of the panel and
access for amplier installation.
Remove two T-30 screws
holding the gauge cluster with
a 10mm socket (below) and
T-30 driver (above). Set gauge
cluster aside when done.
7 8 9
Remove three T-30 screws
from the top edge of the
driver’s side dash where the
hood line meets the dash as
indicated.
Remove two T-30 screws on
the side edge of the panel.
Next, remove two remaining
T-30 screws behind gauge
cluster area as indicated.
Pull panel* carefully to access
switches and unplug them to
fully remove driver’s side panel.
Set aside as with passenger
dash panel for later reuse.
DISASSEMBLY
1
4
10mm nut
on back
side
These retainers
will be reused
*Note: If equipped with Smart-Lok differential feature, remove the module with four 8mm screws from underside of driver’s dash panel.

6
VEHICLE DISASSEMBLY
Removal of the center console inner cover facilitates routing wiring from the recommended bus bar location
into the dash area where the amplier and source unit are likely to be installed
INNER COVER OF CENTER CONSOLE
2 3
Prepare to remove forward
inner cover of the center
console. Note - some modied
vehicles may have aftermarket
console electronics present.
Remove two T-30 screws
on the lower front of center
console.
Finally, remove two push pins
on passenger’s side of cover
panel.
DISASSEMBLY & PREP
1Driver’s Side View
DISASSEMBLY IS COMPLETE!
BEFORE PROCEEDING - ITEMS YOU NEED:
To install a complete audio system, you need to have the following items not included in this kit. If you
already have an audio system installed and are simply adding the MBQX-POD-1 kit, you may only need
some of the items depending on whether or not you have existing amplier(s) and other components.
SOURCE UNIT - MB Quart recommends using a source unit that is “mechless” with no moving
internal parts like traditional CD/DVD players commonly have. In addition since this will be used in an
off-road and outdoor environment, a source unit with IPX (water and dust intrusion) rating is highly
recommended. Finally, the source unit should have a remote turn-on output to activate the amplier
when the source unit is on. Check out the MBQX-RAD-1 specically for Can-Am X3 vehicles.
1
AMPLIFIER POWER & GROUND WIRING - The MB Quart NA2-400.2 amplier included in this kit
requires a minimum of #10 AWG copper wiring (#8 AWG copper wire is recommended) and a 30
ampere fuse at the point of connection for power. MB Quart recommends connecting this power wiring
at the Can-Am X3’s accessory bus bar located in the center console on the passenger side. This
manual shows that connection point and recommended wire routing paths. Use of “CCA” (Copper-Clad
Aluminum) power and ground wiring is strongly discouraged.
2
ZIP TIES - The use of zip ties to safely and securely tie down wires routed throughout the vehicle is
strongly encouraged. Zip tie your audio system wiring to existing vehicle wiring to help keep wiring
from wire movement and wear during the life of the audio system. Avoid wiring paths near sources of
heat or moving parts.
4SPEAKER WIRING - Each speaker panel will require wiring long enough to reach the amplier’s
location. MB Quart recommends a minimum of #16 AWG copper speaker wiring in this application.
You’ll also need crimp terminals to connect the wiring to the speakers.
3
5
SOURCE UNIT POWER & GROUND WIRING - Whichever source unit is chosen, it will require +12
volt power, chassis ground and likely +12 volt accessory connections. You’ll also need a remote
turn-on wire and RCA audio cable to connect to the amplier. The recommended power wiring
size depends on the source unit, but #16 AWG copper wiring is common. MB Quart recommends
connecting this power/ground/accessory wiring at the Can-Am X3’s accessory bus bar located in the
center console on the passenger side. This manual shows that connection point. Crimp or solder/tape
connections at the source unit.

7
CONNECT AND ROUTE WIRING
This section covers the recommendation of connecting your power, ground and ignition/accessory wiring to
the bus bar in the passenger side center console and routing that wiring to the dash area.
4
Next, begin to zip tie the wiring
you’ve connected to existing
factory wiring and begin routing
everything forward. Stop every
8-10” to add another zip tie.
Zip Tie
CONNECT & ROUTE WIRING
2
Identify bus bar in passenger
side center console. Top is
chassis ground, middle is
constant +12v power (battery)
and bottom is +12v ignition.
Connect your Ground, Battery
and Ignition wires to the bus
bar locations. Ensure there is
a fuse holder on the main +12
volt battery connection.
5 6
7
Continue routing your wiring
forward along the passenger
side console as indicated by
the arrow and zip tie to factory
wiring.
Route your wiring upward
behind the center dash as
indicated where the panel was
removed. Secure with zip ties
to factory wiring.
Route your wiring up to
steering column support bar
area. This allows space to work
for likely amplier and source
unit locations.
1
Ground
Battery +12V
Ignition +12V
3
Remove the fuse from the main
fuse holder you’ve installed
so the power wiring is not
live while routing through the
vehicle.
8
Use high quality electrical
tape or a lighter/heat gun to
heat shrink any connections.
This ensures no moisture will
penetrate the wiring
9
Crimp or solder connections to
the source unit’s power wiring
connector. Extend the source
unit’s remote turn-on wire to
the amplier mounting area.

8
AMPLIFIER INSTALLATION
This section covers general wiring and the installation the NA2-400.2 amplier using the optional MBQX-
SUB-ACC-1 mounting plate. If not using this mounting plate, you’ll need to determine your own mounting
location.
AMPLIFIER INSTALLATION
4
Attach the 400.2 amplier to
mounting plate with included
hardware as indicated. Use
only three nuts/bolts due to
chassis tube frame clearance.
7
Place amplier & plate into its
location. Attach the supplied
Phillips screws and 7/16” nuts
through the clamp holes and
tighten until amplier is secure.
8 9
Connect the RCA audio cable
fron source unit to left and right
channel amplier inputs. Be
sure to double check left is left
and right is right (channel).
Connect the 4-pin speaker
and 3-pin power wire harness
connectors as shown. Zip tie
wiring to void any moving parts,
moisture or heat sources.
No
Nut/
Bolt
Here
5
Make (or verify) recommended
amplier LEVEL and HP
crossover settings as indicated.
See page 11 for setting details.
400.2
● XOVER SWITCH - High Pass (HP)
● LEVEL DIAL - Depends on source unit used
● HP DIAL - Approximately 80Hz (Safe Setting)
● LP DIAL - Unused in this application
2 3
Route speaker wiring from
each front speaker location
to the amplier’s installation
location. Connect wires to 4-pin
speaker plug as shown.
Route left/right preamp-level
RCA audio cables and remote
turn-on wire from source
unit preamp outputs to the
amplier’s installation location.
Route power+ground amplier
wiring to the amplier’s
installation location. Including
remote turn-on, connect wires
to 3-pin power plug as shown.
1
Source Unit
“FRONT OUTPUTS”
To Amplier
Location
6
Route power, speaker wiring
and RCA audio cables to amp
mounting location (near frame
tubes). Place mounting clamps
in initial locations as shown.
Frame
Tube
Mounting
Clamps
4-Pin Speaker Plug 3-Pin Power Plug
Audio input signal voltage from
source unit must not exceed 9VAC

9
FRONT SPEAKER INSTALLATION
This section covers nal installation of the passenger’s side front speaker panel and temporary installation of
the driver’s side speaker panel. Final installation of the driver’s side speaker panel occurs after the system is
tested and gone through a thorough inspection prior to reassembly.
FRONT SPEAKERS
2 3
Locate the factory front left
and right speaker panels and
identify two mounting clip
retainers and washers that
need to be removed on each.
From bottom side, gently
remove mounting clip retainers
as indicated. This can be done
with your ngers. Do this for
both passenger and driver side.
Replace these mounting clip
retainers and washers in the
same locations of both MB
Quart speaker panels in your
Can-Am X3 kit. It’s a direct t.
5 6
Connect passenger side
speaker to your installed
speaker wire. Crimp
connectors are needed to mate
with speaker terminals.
Begin to set passenger side
speaker panel in place by
loading the edge nearest the
center with the clip retainers
into position as shown.
Pull center edge of panel up to
align clips with the respective
dash receiver holes. This is
a crucial step to facilitate the
correct overall panel t.
7 8
Next, drop the speaker edge of
panel into place*. Attach lowest
T-30 screw into place to allow
check of nal panel t and to
ensure all clip holes align.
Secure the front speaker panel
by reinstalling all the remaining
clips and hardware in the same
locations removed during the
disassembly process.
*AFTERMARKET ROLL CAGES
Although MB Quart front speakers
come pre-installed in the Can-Am
replacement panels, they may
require removal from the panel to
t low-slung aftermarket roll cages
that t close to the hood area.
In these cases where t is tight or
would damage the speaker due to
the roll cage position, remove the
speaker from the panel rst, install
the panel in the vehicle, then
connect and install the speaker
into the panel.
1
4
Identify
Two Clip
Retainers
Gently
Compress to
Remove
Clip Retainers
Installed in Panel
Drop Panel into Place &
Attach Lower T-30 to Secure
& Adjust Panel Fit
T-30 + 10mm
Clips
Clips

10
FRONT SPEAKERS
FRONT SPEAKER INSTALLATION (Continued)
This section continues front speaker installation focusing on the driver’s side. Final driver’s side panel
installation will occur AFTER the audio system initial testing is validated and complete.
2 3
Remove switches on lower left
of original driver’s side dash
panel by depressing the tabs
on the top and bottom of the
back of switch.
Replace switches in the same
locations within the new MB
Quart driver’s side dash panel
by simply pushing each into its
mounting opening.
If the vehicle has the Smart-
Lok differential control module,
attach to the underside of
the new dash panel with the
original four 8mm screws.
5 6
Ensure the clip retainers and
washers from the original dash
panel have been reinstalled
correctly before proceeding.
Connect driver side speaker
to your installed speaker wire.
Crimp connectors are needed
to mate with speaker terminals.
Set panel temporarily in place
without attaching any hardware
or clips. Do not yet plug in
switches in case amplier
adjustments are needed.
Depress
Tabs
8mm
Screws
Replace
Switches
4
1
DOUBLE CHECK INSTALLATION STEPS TO THIS POINT
Take a few minutes to double check all of the installation steps to this point ensuring the ampliers,
speakers and wiring has all been connected as shown in these instructions.
PROCEED TO THE NEXT PAGES TO CONFIRM SETTINGS AND BEGIN TESTING THE SYSTEM.

11
AMPLIFIER SETTINGS
AMPLIFIER SETTINGS
Before dash reassembly, make (or verify) the following settings of the amplier. See the INITIAL TESTING
and FINE TUNING sections for additional information on nal system adjustments and personalized
settings.
The chart below provides general crossover lter and bass boost switch settings depending on the Can-Am
X3 UTV-Tuned Audio package you have.
TUNED PACKAGE TWO-CHANNEL AMPLIFIER MONO AMPLIFIER
MBQX-POD-1 HP-OFF-LP/BP
Switch to – High Pass (80Hz)
N/A
ADJUST NA2-400.2 TWO-CHANNEL AMPLIFIER
Make the following initial adjustments to the NA2-400.2 shown at right:
● X-OVER - Switch to “HP” position. This designates the amplier’s crossover lter for “high pass”
functionality. That helps protect the speakers!
● LEVEL - Rotate control to halfway starting at
9V (dial pointing up). This represents a starting
point to evaluate if the amplier’s input level
setting will closely match the source unit’s
output at full volume. The ideal setting allows
the amplier to achieve full power without
notable distortion.
The setting recommended here was
determined by using the Can-Am vehicle-
specic MBQX-RAD-1 source unit available
with other UTV-Tuned Can-Am “Stage” kits.
The ideal setting may be different depending
upon the source unit you’ve selected.
● HP - Rotate control to halfway from 15 Hz (pointing up). This is approximately 80Hz*.
*Note: You can set this high pass crossover to a lower frequency to get slightly lower notes out of the
speakers at lower volume levels, but doing so also creates a risk of damaging the speakers at higher
volume levels due to over excursion. Instead, MB Quart system design experts recommend maintaining
the 80Hz HP crossover point and adding a subwoofer such as the MBQX-SUB-2 engineered specically
for Can-Am X3 UTVs.
● LP - The low pass (LP) crossover lter is not used in this application (position of dial does not matter).
HP NOT
USED
NA-2-400.2

12
INITIAL TESTING
Conrm that everything is working as intended before nal tuning, tting and reassembly.
STEP 1 – RECONNECT THE BATTERY
First, ensure the battery is fully charged. Using a 10mm socket, then
reconnect the negative terminal of the negative battery cable as indicated.
STEP 2 – CONNECT SOURCE UNIT
Make any nal connections to your chosen source unit so that it can power
up and output a music source for testing. MBQX-RAD-1 is specically
designed for Can-Am X3 vehicles and is shown, but not included.
STEP 3 – INSERT MAIN FUSE AT BUS BAR
With the source unit connected, place the fuse in the fuse holder near the
bus bar main harness connection for the amplier (recommended 30a).
STEP 4 – TURN ON IGNITION
Turn the ignition key to the ACC position.
STEP 5 – INITIAL CHECKS
Push the PWR button on the source unit and check the system for all of the
following:
● POWER ON - Source unit lights up and responds to button presses.
● USB INPUT (if available) responds when selected.
● AUX 3.5mm INPUT (if available) responds when selected.
● BT MUSIC - (if available) Follow the pairing instructions for source unit
and test a Bluetooth®source.
● AM/FM RADIO - (if available) responds when selected. Unless you have
installed an AM/FM antenna, you will only hear static.
● SATELLITE RADIO - (if available) responds when selected. Unless you have installed a satellite radio
antenna, you will only hear static.
● SPEAKERS - Conrm left and right channel speakers are playing the correct range of frequencies.
● CORRECT LEFT/RIGHT BALANCE - Make sure you are using the controls on the source unit to conrm
“LEFT” is the left-side channel and “RIGHT” is the right-side channel.
● AMPLIFIER - If the speakers are playing, the amplier is on. Conrm settings are correct if something
doesn’t sound exactly right. CONFIRM ALL SPEAKERS ARE CONNECTED CORRECTLY TO THE
AMPLIFIER before making any further adjustments. Refer to page 8 and 11 for initial amplier settings
during the amplier installation.
If everything is working and producing sound, proceed to the next section - Fine Tuning.
INITIAL TESTING
2
1
3
MBQX-RAD-1
shown as example

13
The illustrations below describe the various controls. Refer to
The gain control purpose is to match
the output of your source signal to the
detailed instructions.
or low frequencies. The NA2-400.2 offers
The Boost Switch will increase the signal
12dB at 45Hz. Be aware this setting can
cause distortion if the gain is not set
properly.
1.
turned down (counter clockwise).
2.
turned down. Make sure the source unit controls; balance, fader, bass and
treble are all set to center or “0” adjustment. Make sure that the green LED on
3. Play a clean musical selection of which you are very familiar. CD is preferred.
Do not use radio signals for level setting. Hit play and start turning the volume
of the source unit up.
4. Stop increasing the source unit volume when you reach 3/4 (about 75%) or until
you hear speakers begin to slightly start producing distortion.
5.
the level down (counter clockwise) until the distortion is eliminated. Small
Settings
A
is properly adjusted to match the signal
output level of your source unit.
THIS IS NOT A VOLUME CONTROL!
Level Setting
B
FRONT
L
R
REAR
L
R
INPUT
L
R
GAIN
MIN MAX
X-OVER
LPF FULL
133
2
NA2-400.2
X-OVER
HP OFF LP
INPUT
L
R
LEVEL HP LP
9V 0.2V 15Hz 300Hz 50Hz 300Hz
1
2
5
GAIN Adjustment
X-OVER Switch
BOOST Switch
The Low Pass Filter will cut off the
frequencies above the setting. The High
Pass Filter will cut off the frequencies
below the setting.
The Subsonic Filter will cut off the
frequencies below the setting. If using
with a subwoofer, the setting should be
set between 15-25Hz.
3
4
Frequencies Adjustment
SUBSONIC Adjustment
134
5
NA2-400.1
BOOST
0dB 12dB
INPUT
L
R
LEVEL
9V 0.2V
LPF
50Hz 150Hz
SUBSONIC
15Hz 50Hz
Two Channel Amplifier
Mono (Subwoofer) Amplifier
either a low pass (LP) or high pass (HP) filter.
FINE TUNING
After you’ve conrmed and tested all components are working, you can ne tune the amplier settings.
Through hundreds of installations we have determined the following settings are ideal for the Can-Am X3
UTV-Tuned Audio Packages. Only “A” settings 1, 2 and 3 apply to the NA2-400.2 amplier in this kit.
NOTE – Gain control, it is important to adjust each amplier gain as described in the manual. Remember,
these settings are NOT volume controls. Gain controls, properly adjusted help properly balance the system
sound between lows, highs and minimize distortion that comes from the source unit. Listen for a clear, crisp
audio sound. The ideal gain setting should allow full volume from the source unit without audible distortion.
FINE TUNING
Not used in this application.
Not available in this application. Optional Amplier for
Subwoofer Applications

14
REASSEMBLY
VEHICLE REASSEMBLY
As you begin reassembly, take the time to ensure no fastener, screw or clip is excluded. Review any prior
disassembly steps to ensure you don’t miss any hardware during reassembly.
2
Plug in all switch wiring on
back of the driver side front
speaker panel. Test switch
functions to ensure they are
correctly connected.
Place driver side speaker panel
into its nal position*. Check t
so that all open hardware and
clip holes are aligned properly.
1
*AFTERMARKET ROLL CAGES
Although MB Quart front speakers
come pre-installed in the Can-Am
replacement panels, they may
require removal from the panel to
t low-slung aftermarket roll cages
that t close to the hood area.
In these cases where t is tight or
would damage the speaker due to
the roll cage position, remove the
speaker from the panel rst, install
the panel in the vehicle, then
connect and install the speaker
into the panel.
Secure the front speaker panel by reinstalling all the remaining clips and T-30 hardware in the same
locations removed during the disassembly process. Do not forget about reinstalling the additional
hidden push pin under the driver’s side dash, between the steering wheel and console, just forward of
the tubular chassis support.
3
Reinstall the gauge panel with the two T-30 screws and two 10mm nuts. With this step completed, the
driver side front speaker panel installation should be complete.
4
7Reinstall four T-30 screws in the center dash. Two forward of the gear selector and two additional
in the upper center dash forward of the fuse panel. Once complete, reinstall the upper center dash
access cover behind the upper dash pocket area housing. Refer to page 4 for disassembly steps and
simply do these in reverse.
8
Reinstall lower center console cover with two T-30 screws and two push pins. Refer to the top of page
6 for disassembly steps and simply do these in reverse.
6
Reinstall driver and passenger center console side panels by gently snapping back into place. Ensure
no wiring is exposed or pinched. Refer to page 4 for disassembly steps and simply do these in reverse.
9Reinstall driver and passenger seats with the original 18mm bolts in the rear and 13mm bolts/nuts in
the front. Refer to page 3 for disassembly steps and simply do these in reverse.
Double-check the wiring from the bus bar and ensure the nuts on the connections are tight. Ensure
all of your wiring is secured to factory wiring with zip ties. Do not zip tie any part of the power/speaker
wiring or the RCA audio cable to any heat or moisture sources, or to any moving parts.
5

15
FINAL INSPECTION
FINAL INSPECTION
Here is a check list to make sure your vehicle is ready to hit the trails. You should pull & tighten everything
so that you know your Can-Am X3 and your audio equipment are secure.
● BATTERY IS FULLY CHARGED, ESPECIALLY AFTER TESTING AND FINE TUNING
● NEGATIVE BATTERY TERMINAL IS TIGHT AND SECURE
● NUTS WERE TIGHT ON WIRING CONNECTIONS AT THE BUS BAR IN CENTER CONSOLE
● ALL POWER WIRING RUN IN CENTER CONSOLE ARE SECURED SO NOTHING IS LOOSE
● AMPLIFIER MOUNTED AND SECURED TO AMPLIFIER PLATE (ONLY 3 NUTS USED AS SHOWN)
● RIGHT FRONT SPEAKER PANEL FINAL MOUNTING FITS PROPERLY
● LEFT FRONT SPEAKER PANEL FINAL MOUNTING FITS PROPERLY
● SOURCE UNIT OF YOUR CHOICE IS SECURELY INSTALLED AND FUNCTIONING
● ALL CENTER DASH AND CENTER CONSOLE PANELS ARE SECURED AND FITTED PROPERLY
● ALL SEATS MOVE PROPERLY FORWARD AND BACKWARD
● ENSURE NO LEFTOVER ORIGINAL HARDWARE - EVERY CLIP, SCREW & FASTENER IS IN PLACE
● ACCOUNT FOR ALL YOUR TOOLS SO NOTHING IS MISSING

16
WIRING LAYOUT

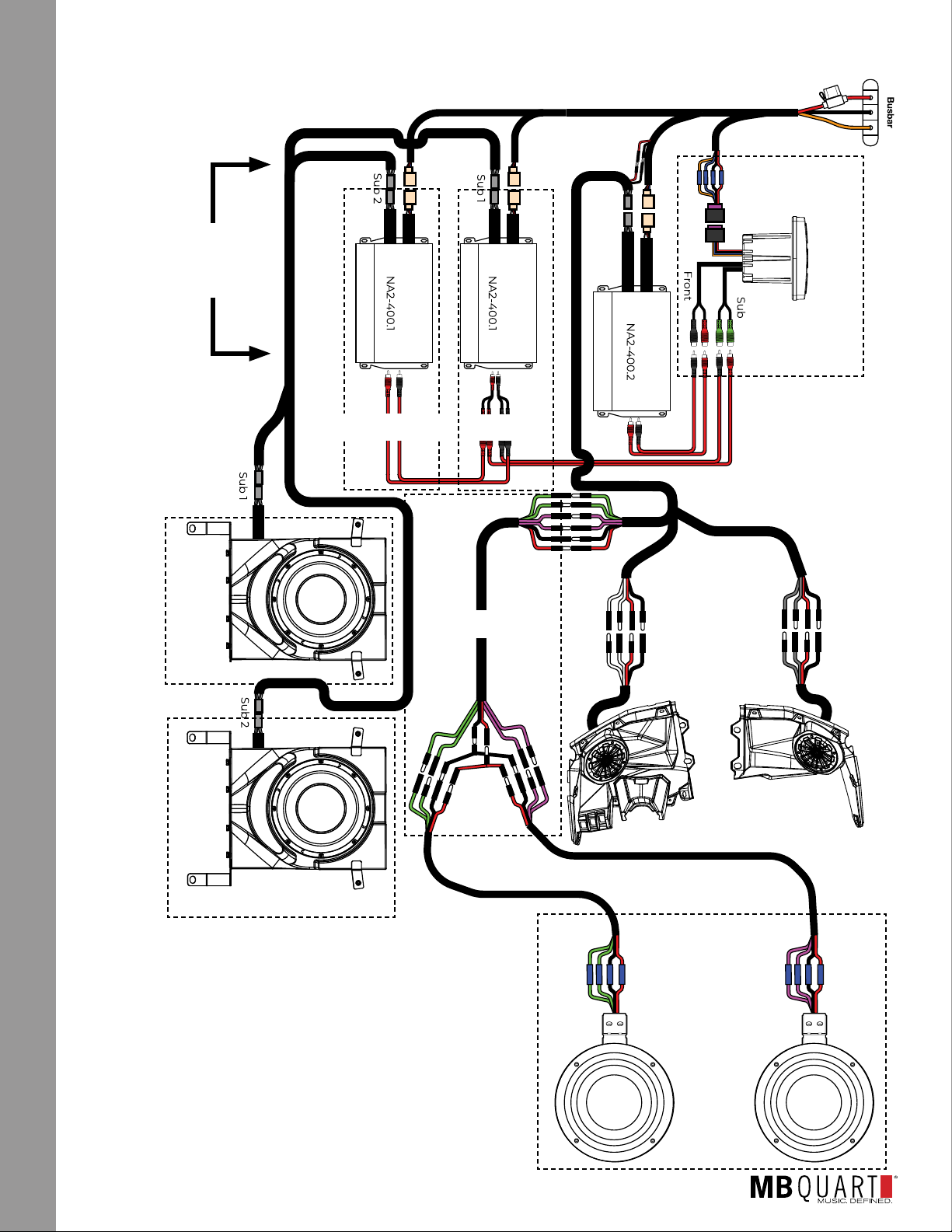

COMPLETE CAN-AM X3 SYSTEM LAYOUT
This diagram shows all optional MB Quart equipment available for the Can-Am X3.
OPTIONAL SUB 2 SHOWN
EXTENSION HARNESS
FOR 4-DOOR MODELS
OPTIONAL 2nd
SUB AMP SHOWN
FRONT SPEAKER
PANELS
OPTIONAL
REAR SPEAKER
PODS SHOWN
OPTIONAL
MULTIMEDIA
SOURCE UNIT
BUS BAR
(CENTER CONSOLE)
OPTIONAL SUB 1 SHOWN
OPTIONAL SUB
AMP SHOWN
MBQX-RAD-1
STAGE 2, 3 and 5
UTV-Tuned SYSTEMS
INCLUDE INTEGRATED
PREF-TERMINATED
WIRE HARNESS
View and order any of these
optional Can-Am X3 audio
solutions at www.MBQuart.com

17
NOTES
NOTES
Use this section to record serial numbers of each product, nal gain and crossover settings of ampliers
or any other wiring or installation-related details that will be helpful if you need to add on to the system or
troubleshoot any unforeseen issues.

FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a mobile installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation.
WARNING: Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment complied with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
MBQuart products are designed and engineered in the USA by
www.maxxsonics.com
WARRANTY
Maxxsonics USA Inc. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from
the date of purchase. Maxxsonics USA Inc. will, at it’s discretion, repair or replace defective products during the warranty period. Components that prove to be defective
in materials and workmanship under proper installation and use must be returned to the original authorized Maxxsonics USA Inc. retailer from where it was purchased.
A photocopy of the original receipt must accompany the product being returned. The costs associated with removal, re-installation and freight are not the responsibility
of Maxxsonics USA Inc. This warranty is limited to defective parts and specically excludes any incidental or consequential damages connected therewith. To view the
full warranty, please visit the website.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use such marks by MB Quart is under license.
All product names, logos, and brands are property of their respective owners. All company, product and service names used in this literature are for identication purposes
only. Use of these names, logos, and brands does not imply endorsement.
©2020 Maxxsonics USA, Inc.
REV 1.0_2-21-2020
