mca MCA-DVBT-TV-01 User manual

In-Car TV Tuner
Digital (DVB-T) TV Tuner for BMW IBUS
MCA-DVBT-TV-01 User Manual

Contents
Contents............................................................................................................................................ 1
Overview ......................................................................................................................................... 2
Features..............................................................................................2
Requirements......................................................................................2
Package Contents................................................................................3
Hardware.......................................................................................................................................... 4
Rear Panel View...................................................................................4
Using IR Remote Control......................................................................5
Using Board onitor Display to Control TV functions...........................7
Installation........................................................................................................................................ 8
Installation overview............................................................................8
Replacing existing TV module with CA-DVBT-TV-01........................8
Software..............................................................................................9
OSD Operation.......................................................................................................................... 10
Using OE board monitor for menu navigation and control...............11
Using remote control for menu navigation and control......................12
Advanced Configuration enu............................................................................................12
Specifications................................................................................................................................ 14
Technical Support....................................................................................................................... 14
Warranty Information................................................................................................................ 15
1

Overview
Thank you for purchasing ura Car Accessories TV Tuner. Our product
is designed for vehicles operating on the B W I-BUS protocol. Providing
complete integration with OE car head unit, CA-DVBT-TV-01 offers
an easy to control bult-in digital (DVB-T) HD TV tuner along with a
multimedia interface, allowing you to view and record your favorite TV
shows when you are on the road.
Features
•High definition video output directly on existing car monitor screen
•Can be operated from existing car controls or by IR remote control
•Able to receive SD as well as HD broadcast
•USB host interface allows you to record streams on or view
audio/video content from a memory stick
•Support for Rear View Backup camera
•Support for Auxiliary AV input for connecting external audio/video
sources
Requirements
•CA-DVBT-TV-01 is designed for vehicles with an IBus interface.
The following car models implement this protocol:
B W 7er E38 with Professional Navigation K3/ K4
B W 5er E39 with Professional Navigation K3/ K4
B W 3er E46 with Professional Navigation K3/ K4
B W X5 E53 with Professional Navigation K3/ K4
B W X3 E83 with Professional Navigation K3/ K4
B W Z4 E85 with Professional Navigation K3/ K4
G ZT / G ZT-T with Professional Navigation K3/ K4
•Your car must be equipped with an OE navigation ( K3 or K4)
•Your system must also include an OE radio tuner (B 24, B 53,
B 54)
2

•CA-DVBT-TV-01 supports both 16:9 and 4:3 displays
•To benefit from the rear view camera feature, you must have one
such camera installed on your car. The camera must implement
either PAL or NTSC standards.
•For a Plug & Play installation you must already have an analog TV
tuner properly installed on your car. This assures that the
connections between the TV tuner, the navigation and the radio
module are already in place. The analog tuner will however be
removed. If you're not upgrading from an analog TV tuner, you will
need to make the above mentioned connections yourself or seek
guidance at a local service.
•ura Digital TV tuner implements the DVB-T digital protocol. DVB-
T is the most widely used protocol for digital television. If you are
from North or South America (except Panama, Colombia, Trinidad
and Tobago, Suriname, French Guiana and Falkland Islands) you
need a tuner that implements a different protocol. For other
countries, please check http://www.dtvstatus.net/map/map.html
for an up-to-date list of countries who adopted DVB-T.
Furthermore, the DVB-T2 is a slightly different protocol, that is not
supported by CA-DVBT-TV-01.
•CA-DVBT-TV-01 supports free-to-air channels only. Pay-per-
view channels are not supported by the current version of the
tuner.
Package Contents
This package contains:
•1 x CA-DVBT-TV-01
•1 x User anual
•1 x Remote Control
•1 x IR cable (5m) with sensor
•1 x USB cable (1.5 m)
3

Hardware
Rear Panel View
Port Connection
Blue connector Connects to car's blue
connector
White connector Connects to car's white
connector
4

USB port Connect USB data stick or
extender cable for data stick
IR port IR cable from present package
Antenna connectors Connects to OE car antenna
connections
All TV module functions can be accessed using both remote control and
OE B W head unit controls (similar to your old analog TV module).
Using IR Remote Control
Depending on the tuner version you are purchasing, you will receive one
of the two following remote controls versions.
5
Remote Control version 1

6

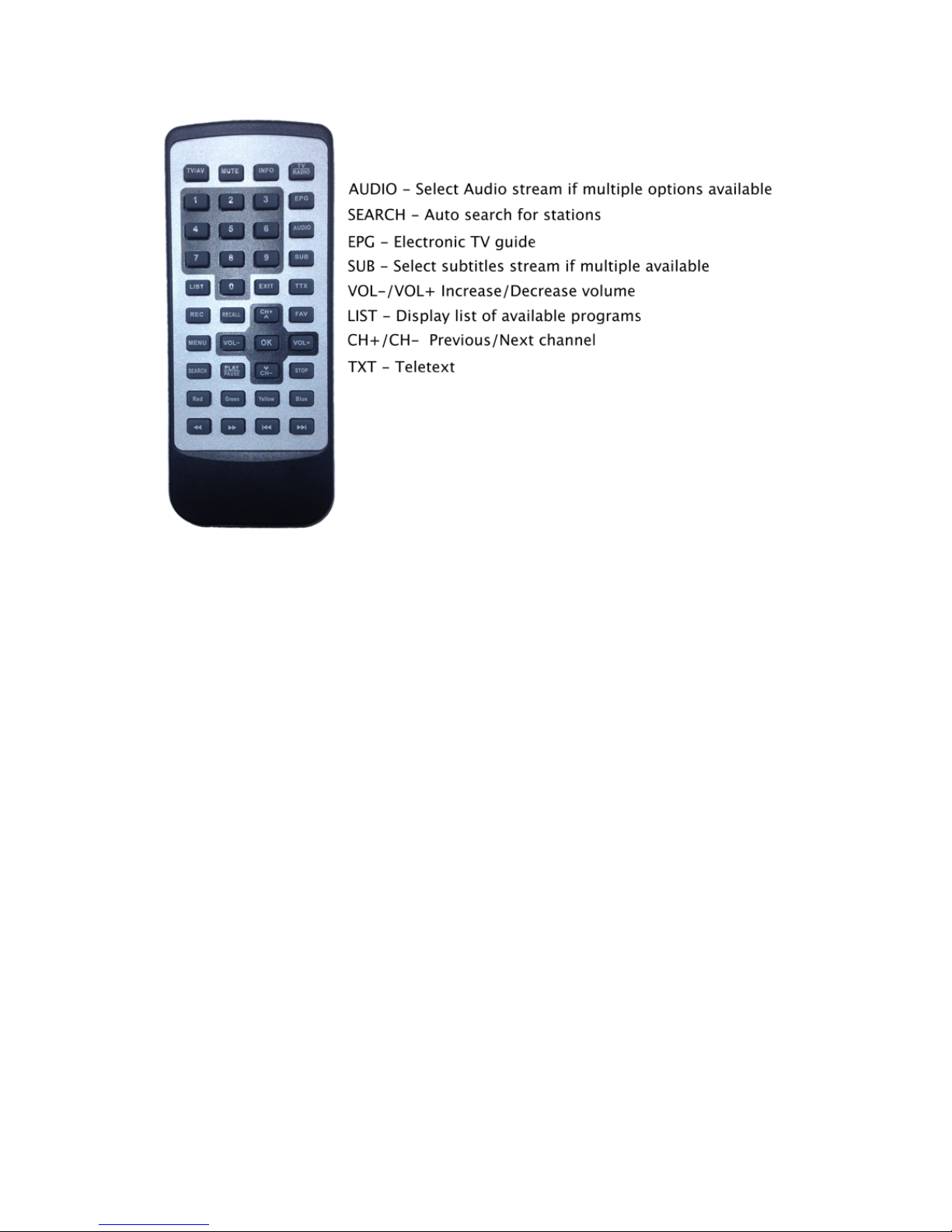

Remote Control version 2

Using Board Monitor Displa to Control TV functions
CA-DVBT-TV-01 supports both 16:9 and 4:3 B W OE head units.
onitor buttons were mapped to TV tuner functions in such a way as to
preserve the manner of operation from the old analog tuner. For the
users who are migrating from an analog tuner, controlling ura Digital
TV tuner should be a familiar operation.
For 16:9 monitors please see the following mapping.
For 4:3 monitors, the key mapping is illustrated in the figure below:
7

Installation
CA-DVBT-TV-01 is designed to replace your old, analog TV Tuner.
Therefore, it makes use of existing setup which is assumed to have
been put in place when you had your analog tuner installed. If this is
not your case and this is your first TV tuner, installation will take
additional steps for which external documentation should be available
from your car manufacturer.
Installation overview
•If you already have an installed TV tuner (an old analog TV tuner for
example), installing CA-DVBT-TV-01 is a simple plug and play
procedure.
•If this if the first TV module for your car, installation is similar to
retrofitting an original TV tuner. We recommend you to follow the
steps in the B W retrofit documentation for your particular car
model.
Replacing existing TV module with MCA-DVBT-TV-01
•Wait for navigation to shut down (for led to turn off). Depending on
your car equipment, it should take around 1-5 min
•Disconnect the negative terminal of the car battery
•Remove the old TV module and put the CA-DVBT-TV-01 in its
place
•Connect the white and blue car cable connectors to corresponding
connectors on CA-DVBT-TV-01 panel
•Connect car antennae to corresponding connectors on CA-DVBT-
TV-01 panel
•If you wish to control the TV tuner via remote control, connect
supplied IR cable to IR connector on CA-DVBT-TV-01 and route IR
cable so that the receiver ends up in a location that is most
8

convenient to you. You will need to be able to point the remote
control towards this receiver.
•Connect USB cable to the USB port on CA-DVBT-TV-01 and route
the other end of the cable to a convenient position for when you
want to use a USB stick
•Installation is now over. Reconnect the car battery.
The location where you can find your old TV tuner depends on your car
model.
Software
CA-DVBT-TV-01 announces itself to the car computer (just like the
OE analog TV tuner). This means that you will find it in the navigation
System enu, under the name 'Television'. The first time you access it
after installation, you will be taken to an 'Installation Guide' which
allows you to set OSD Language (menu language), Country and to
search for available channels. After you perform the channel search, you
can start enjoying digital TV in your car.
9

OSD Operation
Menu Sub Menu Description
Program Program Edit
EPG
Sort
LCN
Picture Aspect Ratio
TV Format
e.g. 16:9, 4:3
Channel
Search
Auto Search
anual Search
Country
Antenna Power
Automatic scan for channels
anual scan for channels
Time Time Offset
Country Region
Time Zone
If set to 'Auto' there is no need
to worry about the other
features in this sub-menu
Option OSD Language
Subtitle Language
Audio Language
Digital Audio
Sets menu language
If multiple options available,
sel. lang. for subtitle and audio
N/A (B W audio is all analog)
System - Present version of TV tuner
does not make use of 'System'
functions.
USB ultimedia
Photo Configure
ovie Configure
PVR Configure
USB →
ultimedia
usic
ovie
PVR
Access to usic, Photo and
ovie folders on your memory
stick
Access to streams recorded
using CA-DVBT-TV-01
10

Using OEM board monitor for menu navigation and
control
The following instructions refer to controls described in section “Using
Board onitor Display to Control TV functions” on page 6. ind that the
names by which we refer to them differ from what appears on your
board monitor, so please use the above mentioned picture to guide
your through the following steps.
•Press Menu to enter and Exit to exit the menu
•Navigate by using left/right arrows
•Select desired submenu by pressing rotary button
•Navigate submenu by means of rotary button
•Once you get to desired option, change value by pressing left/right
arrows
The following apply to USB ultimedia submenu only:
General controls:
•Hierarchical folder structure. Press rotary button to view folder
contents.
•Once you get to the desired file, select it by pressing rotary button
•By default, audio/video file plays in preview mode. For full-screen
mode, press Fav/Red.
•When viewing self recorded video streams, press Pause/ lue to pause
Start/Stop Recording:
•Press Record TV and recording starts.
•While recording a TV from channel, you can switch to watching a
different program, provided the two belong to the same transponder
•If you try to navigate outside the current transponder while recording,
you will not be allowed to continue navigation (Screen goes black and
the text 'Recording' is displayed). Navigate back to previous channels.
•End recording by first navigating back to the program you are
recording and then pressing Exit. The recording will then be saved to
on your USB stick.
11

Delete recording:
•Navigate to the desired file
•Press Pause/ lue
•Confirm deletion by pressing the rotary button
Using remote control for menu navigation and
control
enu navigating and control of TV tuner by means of remote control is,
in our opinion, quite intuitive. If you encounter problems, please use
the address at the end of this file for contacting our customer support.
Advanced Configuration Menu
To access the advanced configuration menu, switch to TV mode, then
long press SEL(ECT) button. This menu allows the following settings to
be made:
•TV motion: switch to ON if you want video output enabled while
driving.
•CA mode: PAL / NTSC / OFF. Choose whichever corresponds to your
rear view camera type.
•AUX ode: switch to ON as a first step in enabling stereo audio.
•AV ode: OFF / NTSC / PAL. If unsure which option to choose, you
should check the specifications of the device you wish to connect and
see what type of output it delivers.
•SW and HW refer to Software and Hardware version of your module.
This information will be asked when you contact customer support.
12

ura Digital TV Tuner features stereo audio output.
To be able to use this feature, you need to have a B 54 radio module with AUX input.
The procedure to enable this feature is not so straightforward, due to
the fact that audio TV input on B W OE radio modules is mono.
Consequently, hardware modifications need to be made. These consist
of pins re-routing and/or additional wiring. For instructions on this
process, please contact us by sending an email to
[email protected] or through our website,
http://mca.electricmura.ro .
After performing the necessary hardware modifications, software
configurations must also be made. First set AUX ode to ON (see
instructions above). Back to the menu of your navigation, press MODE
button until AUX input is selected (you may need to press it multiple
times). Next, enter TV mode, then long press TONE button on your
navigation's controls. At this point, TV audio output is switched to radio
auxiliary input (stereo).
13

Specifications
•Full compliance with HD DVB-T PEG2/ PEG4 AVC/H.264 Standard
•High Doppler effect correction
•On screen channel information
•OSD Teletext (DVB ETS 300 706) and subtitle function support (EU model)
•VBI Teletext support (EU model)
•Fast scan for high speed driving and cross difference area
Supported video and audio formats for playing from a USB stick:
•Video: R VB, R , Sorenson H.263, H.264, PEG-1,2,4, VC1, Divx, Xvid,
AVS, JPEG
•Audio: P2, P3, AC3, LPC , ADPC , AAC, HEAAC, W A
•Remark: Some formats need a license (for example: DivX, R VB, AC3)
Receiving frequency range:
•UHF 470 Hz ~ 862 Hz;
•VHF 174 Hz ~ 230 Hz
RF Input level: 81dBm ~ -20dBm
RF Input connector: S B terminal x2
Antenna power: 12V
Technical Support
CA is committed to offering quality products, as well as quality
information. If you need help with using ura TV tuner, please contact
our customer support at http://mca.electricmura.ro /en.
14

Warrant Information
This product is backed by a one-year warranty. In addition, CA
warrants its products against defects in materials and workmanship for
the period noted following the initial date of purchase. During this
period, the product may be returned for repair or replacement with an
equivalent product. The warranty covers parts and labor costs only.
CA does not warrant its products against defects or damage arising
from misuse, abuse, alteration or normal wear and tear.
15
