Mdac MBOX DSD User manual

* Do read this manual before using the equipment!
MBOX DSD HiFi Digital music player
User’s Manual

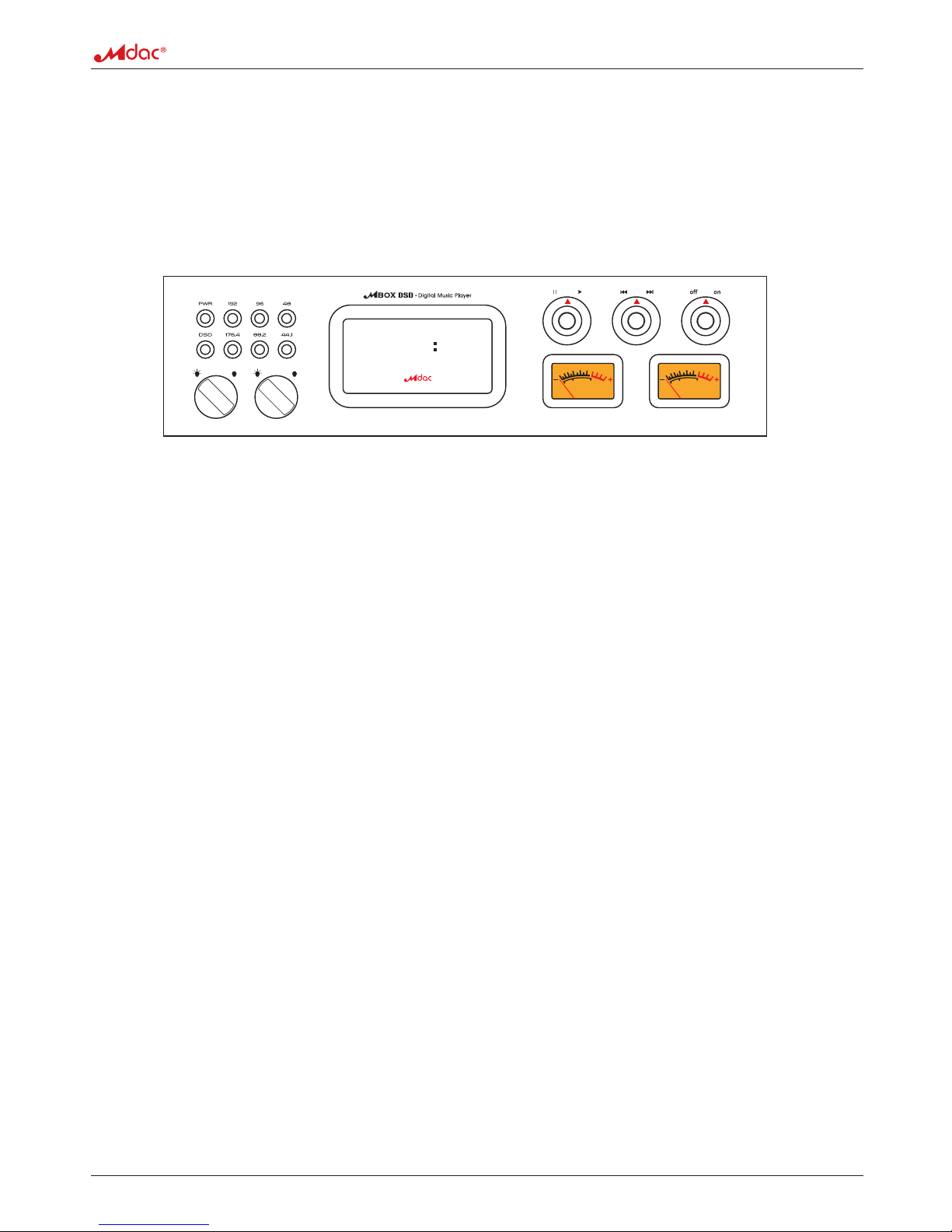

MBOX Connection
2/9
03 02 58
10123
050 100%
3
5
7
10
20
VU
10123
050 100%
3
5
7
10
20
VU
Power
Indicator
Light Switch
Level Meter
Switch
Left and Light Level Meter
WiFi Antenna
Interface
Power Socket
Connect to Amplifier
Connect to U disk / USB portable hard disk Connect to LAN / NAS device
Connect to USB external CD-Rom Drive
USB Port LAN Cable
Interface
Right Channel Out
Left Channel Out
Coaxial Out
Sampling Rate Light Track/Time Pause/Play OFF/ON
Pre /Next
Front:
Back:
AC IN 220V
Caution: Do not insert or pull the U disk and USB portable hard disk when the MBOX device is on.
Connect to Digital-to-Anology Converter

MBOX Remote Control Instructions
4/9
Note: If you use other Android mobile to download the App. from our website, pls enter theremote control
interface when the download is installed.
1. Start the MBOX
2. Open the mobile APP and enter the following interface:
4. Click to enter the music playlist interface 5. Click to see the present playlist, or add and delete files.
The small figure under the icon indicates file quantity of the present
playlist.
3. Wait till the four figure code is searched and click
to enter.

MBOX的技术特色
Intel N2600 CPU
MBOX uses new-generation Intel Cedarview-M 32nmAtom dual core processor N2600, which is
recommended to be adopted in built-in industrial control computer. From this design original intention, it is
easy to understand the MBOX pursuit of quality.
Intel N2600 processor’ s extra-low power consumption design enables MBOX a powerful and smooth
computing power while having the aluminum cooling, thus offers listeners a quiet listening status.
MBOX uses onboard non slot DDR3 memory chip, reduces the distances between memory and CPU
utmostly, and eliminates the EMI created by the two.
Power supply is the uppermost priority part of a audio device design, MBOX’ s has no exception.
MBOX adopts ring transformer and linear stability circuit to supply power and pure stable energy to CPU
chip, network chip, USB, DAC chip and analogous circuit, etc. The shunt and partition power supply mode
eliminates the interference and crosstalk to the utmost.
MBOX can play all common music file formats like WAV、APE、FLAC、AAC、MP3、WMA.
User-defined built-in operating system, preemptive multitasking, with sound system response and stability,
meets the basic needs of high quality music playback.
Relying on the technical support, MBOX research team has optimized the operating system components
and resource allocation, according to the practical demand of music playing.
MBOX DAC clock has an independent running mode without keeping pace with the CPU high speed
clock, which isolates the linkage effects of high speed clock jitter to DAC time base.
MBOX is dual time base designed, the time base comes from two low jitter OSC crystal oscillators. When
the sampling rate of music data steam is 48/96/192K, 24.576MHZ OSC starts to work.
Origianlity of power supply design
Support various music file formats
Built-in Operating System
Independent low-jitter dual time base
Support DSD data steam DXVA
MBOX uses top quality Chip PCM1792A supplied by Texas Instruments Co. The chip convert the DSD data
steam directly without converting into PCM format. With optimized Low-pass Filter circuit, the advantages of
DSD recording is shown when playing.
Support playing CD
MBOX can automatically recognize and play CD from an external portable USB CD-ROM when a CD is
inserted in.
Specialized Mobile phone App. remote control
We designs a specialized App. which allows a mobile phone to connect and control the MBOX easily and
conveniently when you enjoy the music.
1/9

MBOX Main Operation
3/9
Check Before Start
Check the following before turning on MBOX.
1. The device is connected to AC power.
2. External USB device is well connected and power on.
3. Network is on if the device will play sources online.
Auto reset knob on the front panel, it returns to the central position automatically when releasing from left or
right function.
1. Start the device
Rotate the “OFF / ON ” knob to the right, and release when the indicator light is on.
The device is being started as the screen shows a right running “C” letter, the process takes about 15
seconds.
The startup is completed when the screen shows “00 00:00” .
2. Shut down the device
Avoid to shut down the device when the startup is not finished. Startup finishes when screens shows “00
00:00” .
Rotate the “OFF / ON ” knob to the left, and release when the screen shows a left running “C” letter. The
shutdown process finishes when all indicator lights are off.
In normal cases, no need to turn off the AC power except long time no use.
3. Other operations
For the present playlist:
a)Play: Rotate the “Pause/Play” knob to the right and release.
b)Pause: Rotate the “Pause/Play” knob to the left and release.
c)Next: Rotate the “Pre /Next” to the right and release.
The last track will skip to the first track of the list if in loop playback.
d)Previous: Rotate the “Pre /Next” to the left release.
The first track will skip to the last track of the list if in loop playback.
e)Continual Next: Rotate the “Pre /Next” to the right and hold. The track keeps skipping to the next until
releasing the knob.
The last track will skip to the first track of the list if in loop playback.
f)Continual Previous: Rotate the “Pre /Next” to the left and hold. The track keeps skipping to the previous
until releasing the knob.
The last track will skip to the first track of the list if in loop playback.
03 02 58
10123
050 100%
3
5
7
10
20
VU
10123
050 100%
3
5
7
10
20
VU

MBOX Remote Control Instructions
5/9
6. Click to add a playlist. 7. Long press to a deletable mode, click to delete
the playlist.
8. Click to return to previous menu. 9. Click to enter browse interface, could check which device
is connected to this MBOX and where the music files are in, also to
add music files to the certain playlist.
“ SSD ” indicates the storage directory of the MBOX build-in SSD card;
“NET” indicates the network shared folder or folder on the NAS;
“CD-ROM” indicates the files from external connected CD-ROM;
Other icon indicates the files from portable U disk or hard disk.

Other Common Operations
7/9
Play music from U disk ( portable hard disk the same )
How to copy music files into a U disk:
File the music into differed sub-directories when storing the music into a U disk. For example, in the U disk root directory, a folder named “
female singers” for storing songs sang by female singers. Then another folder named “Faye Wong” in the “ female singers” directory for
the albums from Faye Wong, and the sub-folder named “ sky ” in the “Faye Wong” directory for tracks from “Sky” Album.
So the directory will be: U Disk root directory \ Femal Singers\ Faye Wong\ Sky
Icon Identification:
Each sub-directory and folder is identified by its own icon, this makes the operation direct and easier.
Eg: “ Female singers” in icon.“ Faye Wong” in icon. “Sky ” in icon ,which is the album cover.
Copy those icon photos into the corresponding folder, the icon will be shown when browsing the directory.
Steps to play music from a U disk:
1. Inset U disk into the MBOX USB port
2. Start MBOX
3. Start remote control
4. Wait till the remote control and MBOX are connected, click the “ directory browse” icon to enter the browsing mode.
5. If the present directory is not root, long press “previous directory” icon to enter the root directory.
6. Click the U disk icon, the remote control will show the content of the root directory.
7. Click “ Female singers ” to enter the sub-directory.
8. Click “ Faye Wong ” to enter the sub-directory.
9. Click “Sky” to enter the Album and play.
10. Long press “ Play Now ”, skip to playlist and start the first track of the Sky Album.
Steps to play CD music:
1. Connect an external CD-ROM to MBOX by an USB cable.
2. Better to use external power supply for the CD-ROM if it supports.
3. Start MBOX.
4. Press the button and slot a CD.
5. Reading indicator light of the CD-ROM flashes.
6. Music play starts when MBOX reads the CD.
Note: It takes a while for MBOX to read the CD. But if the playing hasn’t started after a long time, that means reading fails.

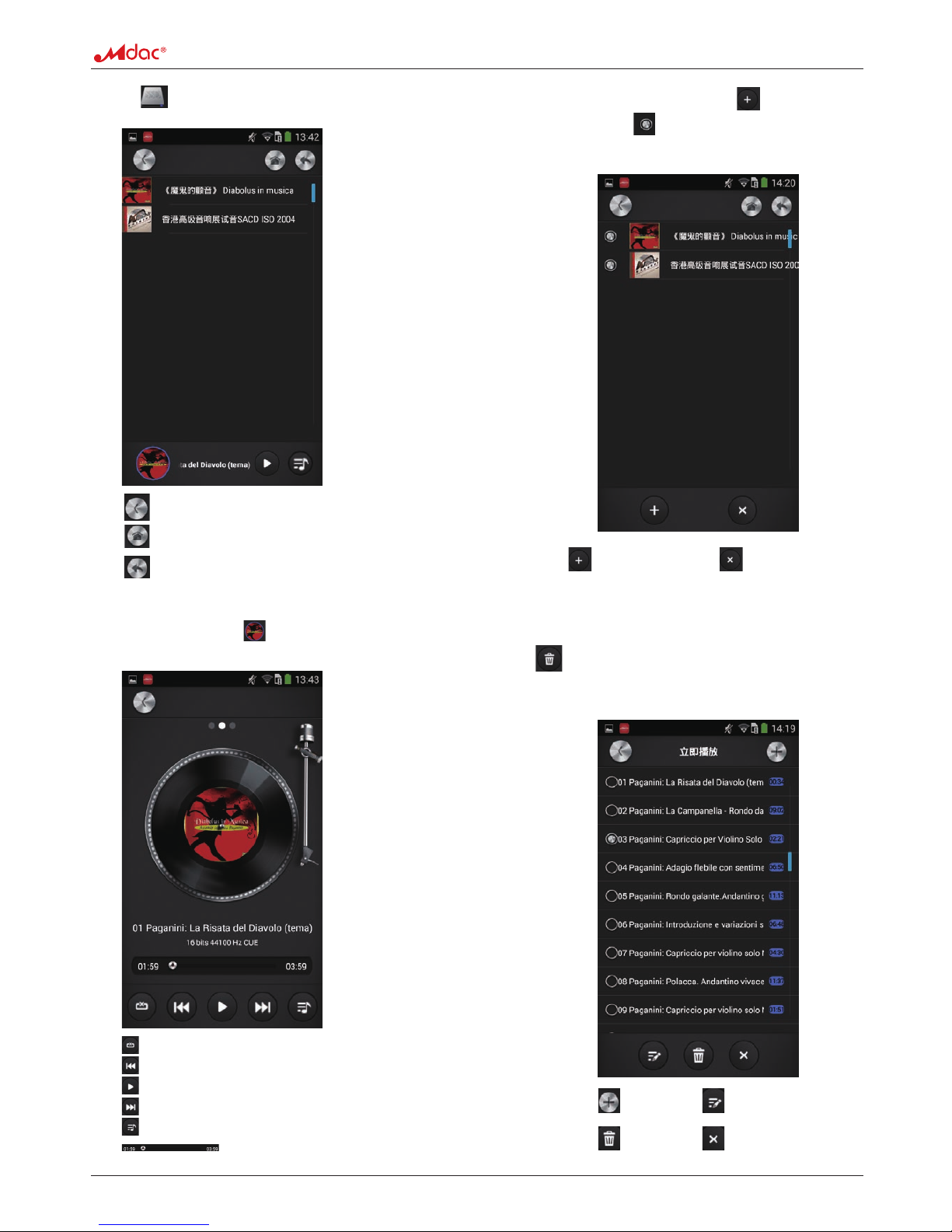

MBOX Remote Control Instructions
6/9
10. Click to enter the music file folder 11. Long press the folder column, click to add to playlist. Click
the folder front icon to add multi music files.
12、Click the bottom icon to play music 13. Add or delete music files or folders in the playlist by long press,
click to delete, multi-delete is allowed.
return to previous interface
To add to playlist Cancel operation
return to device connection interface
return to previous folder
Loop play mode sequence: no loop, single track loop, playlist loop
add files Select all
cancel operationdelete
previous track
next track
enter playlist
Process bar, can be dragged
Play / Pause

MBOX Common faults and troubleshooting
8/9
Remote control locks
Solution: Continually short press the controller button till main interface shows. If the remote control still locks, use a toothpick-like
object to stab the tiny hole at back of the controller to reset.
Remote Control fails to connect MBOX
Solution: Check if the WIFI antenna is blocked.
Continually dot press the controller button till main interface shows. Long press “ OFF ” icon to shut down the controller and
re-start.
Remote control has wrong connection when more than one MBOX in the same room
Solution: Press “ WIFI” icon in the main interface, switch to another MBOX connection.
Slow response of the controller when surfing network sources
Causes: weak network connection, or slow response of the external computer
Remote control locks or responses slowly when inserting U disk or portable hard disk.
Causes: U disk or portable hard disk faults. Poor contact of the USB cable
Slow response of the controller when clicking a certain sub-directory
Causes: The folder has too many files, or photo sizes too big.
MBOX can’t shut down
Solution: Stop the 220 V power supply for MBOX for 20 seconds and turn on the power again.
Get more technical support and product information by:
ADD to QQ group: 226192080
Call: 020-38807521
Website: www.mdac.com.cn

MBOX Packing List
9/9
MBOX
Mobile Remote Controller
USB cable
Adapter
WIFI Antenna
Power supply cable
1
1
1
1
1
1
Item Quantity
Website: www.mdac.com.cn
TEL：[phone]
7th Floor, Block No. 4, No.111 YingBin Road, Panyu District, Guangzhou City
Guangzhou ChenFang Electronics Co.Ltd.
