Mean Green Products CXR-52"/60" ZTR User manual

Mean Green Products, LLC
4404 Hamilton Cleves Rd. Ste. 2
Hamilton, OH 45013
513-738-4736 (Sales & Services)
www.meangreenproducts.com
CXR-52”/60” ZTR
Operator’s Manual

1
Index
Page:
General Information
3
Warranty Information
4-6
Warranty Registration
6
Warranty Registration Card
6
Safety Precautions
7
Safety and Instruction Decal
8-13
Deck Height Indicator
14
Lights On/Off Switch
14
High/Low Blades Switch
14
Mower Control Panels
14-15
PTO Deck Blades ON/OFF Switch
15
High/Low Drive Speed Control Switch
15
Battery Capacity Indicator (Smartec)
15-19
Master Power Ignition Switch
20
Blade Warning Light System
20-22
Drive Control Bars
22
Operation
22-25
Use of ramp
23
Slope Operation
24
Slope Guide
25
Children
26
Safety Interlock System
26
Starting/Stopping Your Mower
26
Driving The Mower
27
Smooth Travel
28
Basic Driving
28
Practice Turning Around Corner
28
Practice Turning In Place
29
Advanced Driving
29
Operating Suggestions
30
Discharge Chute
31
Deck Cutting Height Adjustment
31
Anti-Scalp Wheels
31
Towing or Manual Pushing
31-32
Emergency Drive Brake Release Levers
31-32
Install Mower Hitch Plate
32
Maintenance & Adjustments
33
Service
33
Jacking The Mower
33-34
Regular Maintenance
35
Torque Values
35
Tires
35
Lubrication
35
Electrical System
36

2
Seat Adjustment
36
Seat Release Latch
36
Filter Cleaning
37
Battery Compartment Open/Close Handle & Battery Lock
37
Mower Blade Maintenance
38
Mower Blade Removal
38-39
Mower Blade Installation
38-42
Electrical System Safety
42
Electrical System Information
43
Component Maintenance
43
Battery Safety
43
Battery Connectors
43
Battery Maintenance
43-44
Battery Charging Procedures & Options
44-45
Lithium Modules Weight (LEMs)
44
Battery Chargers
44-45
Charging Recommendations
46
Disconnecting Batteries
46
Battery Quick Disconnect Handle
46
Connecting Lithium Energy Modules
47
Battery Storage
47
Troubleshooting
47-48
Storage
48
New Season Preparation
48
Lithium Energy Module Maintenance
49
Seat Belt & ROPS
50

3
GENERAL INFORMATION
This manual applies to the following Mean Green Products equipment lines:
Mean Green Mowers –CXR 52-60” Zero Turn Model
To the new operator
The purpose of this manual is to assist owners and operators in maintaining and operating the mower.
Please read it carefully; information and instructions furnished can help you achieve years of dependable
performance. It is the owner’s responsibility to make certain that the operators and mechanics read and
understand this manual and all decals before operating this machine. It is also the owner’s responsibility
to make certain that the operators and mechanics are qualified and physically able individuals, properly
trained in the operation of this equipment. All operators and mechanics must become familiar with the safe
operation of the equipment, operator controls and safety signs. Never let children or untrained people
operate or service the equipment. Local regulations may restrict the age of the operator. The owner/user
can prevent and is responsible for accidents or injuries occurring to themselves, other people or property.
Using this manual
General operation, adjustment and maintenance guidance is outlined for both the experienced and novice
Mean Green Mower user. Operating conditions vary considerably and cannot all be addressed individually.
Through experience, however, operators should find no difficulty in developing good operating skills
suitable to most conditions. Directions used in this manual, for example RIGHT or LEFT, refer to directions
when seated on the mower/standing facing forward, unless otherwise stated. Photographs and
illustrations used were current at the time of printing, but subsequent production changes may cause your
machine to vary slightly in detail. Mean Green Products reserves the right to redesign and change the
machine as deemed necessary, without notification. If a change has been made to your machine which is
not reflected in this owner’s manual, or the parts manual, see your Mean Green Products dealer for current
information and parts .
Warranty registration
The Owner must register the unit by filling out the Warranty Registration Form, provided in the owner’s
packet, to validate your warranty protection. As the new equipment owner, you are
expected to see that this is done at the time of delivery. If using the Warranty Registration Form, it MUST
be completed and signed by the authorized dealer or original purchaser.
Be sure to register the mower plus each attachment that displays
a model and serial identification number plate with Mean Green
Products. IMPORTANT: Any unauthorized modification, alteration,
or use of non-approved attachments voids the warranty and
releases Mean Green Products from any liability arising from
subsequent use of this equipment.Model and serial number
The mower serial number is found on the serial identification plate
located on the right-side wall behind the operator seat. The model
is the type of Mean Green Mower purchased i.e. MGP-20, CXR-52,
SK-48 etc. The serial numbers and model are required on the
Warranty Registration form. They will also assure you of the correct
service parts when replacement becomes necessary.
Parts and service
All warranty repair and service must be handled through an authorized Mean Green Products dealer.
Arrangements should be made through your local service center.

4
Mean Green Products LLC
3 Year Limited Warranty for Residential and Commercial Use Mowers
WHAT IS COVERED BY THIS WARRANTY?
Mean Green Products, makes the following warranty to the original purchaser of mowers manufactured
by Mean Green Products, LLC:
A. Residential Use: Mean Green Mowers used for normal residential purposes* are warranted for two
(2) years or 500 hours total usage (whichever comes first) from date of delivery on all materials and
workmanship.
If the Purchaser discovers within this warranty period (two years from date of delivery) a defect in
materials or workmanship, he must promptly notify Mean Green Products or an authorized dealer, in
writing of the defect.
In no event shall such notification be received by Mean Green Products, or an authorized dealer later than
twenty-four (24) months from date of delivery. Within a reasonable time after such notification, Mean
Green Products, will correct any defect in material or workmanship on the Mean Green Mower by
repairing or replacing part(s) with either new or used replacement parts. Such repair, including parts and
labor shall be at the expense of Mean Green Products.
Green Lithium Batteries are warranted for a three (3) year pro-rated limited warranty or 500 hr. usage,
whichever comes first to the original owner (consumer) only.
1st year 100% Parts and labor
2nd year 100% Parts and labor
3rd year Parts only (cells/BMS)/no labor
NOTE: Failure to properly maintain batteries and keep them from one-half to fully-charged will reduce
battery life and will void battery warranty.
Provisions of this limited Green Lithium Batteries warranty shall not apply due to:
Abuse or neglect such as water damage, loose wiring, or rusted or corroded hardware; lack of proper
maintenance; damage caused by improper installation of the battery, dismantling of battery, apparent
outside force damage, operator not following manual instructions, expired warranty period, neglect,
breakage, sub-zero freezing, fire, explosion, wreckage, the addition of any chemical, operation of the
battery in an overcharged, or the operation of the battery in an uncharged condition (use after BMS shuts
off battery); and a battery charged by systems other than the original equipment type battery charger.
Provisions that constitute Green Lithium Batteries Warranty:
•Battery pack cannot be charged or discharged.
•Under the standard condition for testing, capacity is less than 80% of nominal AH rating in the first year,
70% of nominal AH rating in the 2nd year, 65% of nominal AH rating in 3rd year.
•Liquid leakage.
•Damage to battery pack’s case and/or accessories due to conditions caused by the battery.
* Normal residential purpose means use of product on same lot as your home. Use at more than one
location is considered commercial use, and then the commercial use warranty would apply.
B. Commercial Use: Mean Green Mowers used for commercial and institutional use are warranted for
two (2) years or 1200 hours total usage (whichever comes first) from date of delivery on all materials
and
workmanship of chassis and deck structures and one (1) year or 600 hours total usage (whichever
comes first) from date of delivery on all materials and workmanship. If the Purchaser discovers within
this warranty period a defect in materials or workmanship: He must promptly notify Mean Green
Products, or an authorized dealer, in writing of the defect. In no event shall such notification be received
by Mean Green Products, or an authorized dealer later than twelve to twenty-four (12-24) months from
date of delivery (depending on part effected). Within a reasonable time after such notification, Mean
Green Products, will correct any defect in material or workmanship on the Mean Green Mower, by
repairing or replacing part(s) with either new or used replacement parts. Such repair, including parts and
labor shall be at the expense of Mean Green Products.

5
Green Lithium Batteries are warranted for a three (3) year pro-rated limited warranty or 1200 hr. usage,
whichever comes first to the original owner (commercial) only.
1st year 100% Parts and labor
2nd year 100% Parts and labor
3rd year 100% Parts only/no labor
NOTE: Failure to properly maintain batteries and keep them from one-half to fully-charged will reduce
battery life and will void battery warranty.
Provisions of limited Green Lithium Batteries warranty shall not apply due to:
Abuse or neglect such as water damage, loose wiring, or rusted or corroded hardware; lack of proper
maintenance; damage caused by improper installation of the battery, dismantling of battery, apparent
outside force damage, operator not following manual instructions, expired warranty period, neglect,
breakage, sub-zero freezing, fire, explosion, wreckage, the addition of any chemical, operation of the battery
in an overcharged, or the operation of the battery in an uncharged condition (use after BMS shuts off
battery); and a battery charged by systems other than the original equipment type battery charger.
Provisions that constitute Green Lithium Batteries Warranty:
•Battery pack cannot be charged or discharged.
•Under the standard condition for testing, capacity is less than 80% of nominal AH rating in the first year,
70% of nominal AH rating in the 2nd year, 65% of nominal AH rating in 3rd year.
•Liquid leakage.
•Damage to battery pack’s case and/or accessories due to conditions caused by the battery.
C. Rental Use:Mean Green Mowers and Green Lithium Batteries used in rental applications are not
covered by warranty.
WHO MUST PERFORM THE WARRANTY SERVICE
All warranty service will be performed by dealers or owner mechanics authorized by Mean Green Products.
Service calls and/or transportation expense of the product to and from the authorized dealer or owner
mechanics for warranty work, will be paid by the owner of the product. For warranty service contact an
authorized dealer.
WHAT IS NOT COVERED BY THIS WARRANTY
Mean Green Products, does not warranty:
Some products, components or parts not manufactured by Mean Green Products. Repairs made by
unauthorized persons. Damage caused by use of the Mean Green Mower for purposes other than those for
which it was designed. Damages caused by disasters such as fire, flood, wind, and lightning. Damages
caused by neglect, abuse, abnormal use, improper or unreasonable use, accident, negligence, or misuse
such as water damage. Repairs or replacement resulting from the use of unauthorized parts, accessories
or attachments. Repairs or replacement as the result if any alterations or modifications, in the
determination of the Mean Green Mower, which adversely affects the operation, performance or durability
of the equipment. The Mean Green Mower which has the serial number removed or made illegible.
Depreciation or damage caused by normal wear, lack of reasonable and proper maintenance, failure to
follow the product’s owner’s manual operating, maintenance and adjustment instructions or other
operational instructions provided by Mean Green Products. Normal maintenance parts and service
including, but not limited to, lubricants, blades, blade sharpening, bearings, brake or steering adjustments.
DISCLAIMER OF WARRANTY
The foregoing warranties are in lieu of all other warranties, expressed or implied, including but not limited
to the implied warranties of merchantability and fitness for a particular purpose. However, if the Mean
Green Mower is purchased as a consumer product, any implied warranty of merchantability or fitness for a
particular purpose is limited to the duration of this limited warranty. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state.
LIMITATION OF REMEDIES
In no case shall Mean Green Products, be liable for any special, incidental, or consequential damages based
upon breach of warranty, breach of contract, negligence, strict liability in tort, or any other legal theory.
Such damages include, but are not limited to:
􀁏Loss of profits

6
􀁏Loss of savings or revenue
􀁏Loss of use of the Mean Green Mower or any associated equipment
􀁏Cost of capital
􀁏Cost of any substitute equipment, facilities, services or downtime
􀁏The claims of third parties including customers, and injury to property
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
TIME LIMIT
Any action for breach of warranty must be commenced within twenty-four (24) months following delivery
of the goods in a residential application. Any action for breach of warranty must be commenced within
twelve to twenty-four (12-24) months following delivery of the goods in a commercial application.
NO OTHER WARRANTIES
This agreement is understood to be the complete and exclusive agreement between the parties,
superseding all prior agreements, oral or written, and all other communications between the parties
relating to the subject matter of this agreement.
ALLOCATION OF RISKS
This agreement allocates the risks of product failure between Mean Green Products and the purchaser.
This allocation is recognized by both parties and is reflected in the price of the goods.
OWNER'S RESPONSIBILITY
You must maintain your Mean Green Mower following the maintenance procedures described in your
owner's manual. Such routine maintenance, whether performed by a dealer or by you, is at your expense.
This machine like any other powered equipment is potentially dangerous unless properly operated. Any
operator must be cautious and keep safety in mind at all times. Any operator, prior to using the Mean
Green Mower, should thoroughly familiarize himself with the owner's manual regarding operation and
safety of the machine, as well as all safety warnings on the machine itself.
WARRANTY REGISTRATION
1. Owners must register the unit by filling out the Warranty
Registration Form, provided in the owner’s packet. It MUST be completed and signed by the authorized
dealer or original purchaser.
2. For validation, the completed Warranty Registration Form
MUST be forwarded to Mean Green Products, within ten (10) days following date of purchase.
3. The date of purchase constitutes delivery.
www.meangreenproducts.com
4404 Hamilton Cleves Rd * Unit 2
Hamilton, OH 45013
513-738-GREN(4736)

7
SAFETY PRECAUTIONS
This safety alert symbol is used to call attention to a message intended to provide a reasonable degree of
PERSONAL SAFETY for operators and other persons during the normal operation and servicing of this
equipment.
DANGER (red color) –denotes immediate hazards which WILL result in severe personal injury or death.
WARNING (yellow color) –denotes a hazard or unsafe practice which COULD result in severe personal
injury or death. This manual uses two other words to highlight information. IMPORTANT (blue color) calls
attention to special mechanical information and NOTE: emphasizes general information worthy of special
attention. All operators and mechanics should read this manual and be instructed about safe operating and
maintenance procedures. If the operators or mechanics cannot read and understand English, it is the
owner’s responsibility to explain this material to them. However, improper use or maintenance by the
operator or owner can result in injury. To reduce the potential for injury, comply with these safety
instructions and always pay attention to the safety alert symbol, which means DANGER or WARNING -
“personal safety instructions.” Failure to comply with the instructions may result in personal injury or
death. Incorrect usage of this machine may result in severe injury. Personnel operating and maintaining
it should be trained in the proper use and should read the manuals completely and thoroughly before
attempting to set-up, operate, adjust, or service this machine.
It is the owner’s responsibility to make certain that the operators and mechanics read and understand this
manual and all decals before operating this machine. It is also the owner’s responsibility to make certain
that the operators and mechanics are qualified and physically able individuals, properly trained in the
operation of this equipment. All operators and mechanics must become familiar with the safe operation of
the equipment, operator controls and safety signs. Never let children or untrained people operate or service
the equipment. Local regulations may restrict the age of the operator. The owner/user can prevent and is
responsible for accidents or injuries occurring to themselves, other people or property. The owner should
also ensure that the operator/mechanic know that they are responsible for their own safety as well as the
safety of other persons within the vicinity. Remember, the operator is responsible for accidents or hazards
occurring to other people or their property.
Safety and Instruction Decals
Specific safety warning decals are located on the equipment near the immediate areas of potential hazards.
These decals should not be removed or obliterated. Replace them if they become non-readable.
The following illustrations show the various decals that are located on the machine. A brief explanation, for
those requiring one, is shown to help the operator understand the meanings of these decals.
• Read Owner’s Manual and Safety Warning Decals before attempting
to operate this machine.

8
LEFT CONTROL PANEL
DECALS: MGUPN064
1. Rollover protection is lost when the roll bar is in the down position.
2. Rollover protection is gained when the roll bar is in the up position.
3. Do not mow near drop-offs or on steep grades.
4. Do not mow on grades greater than 15°.
5. Mow on grades less than 15°.
6. When the power is off, make sure the PTO is off and the handlebars are in the outward Neutral
Lock position.
7. Look back when the mower is in reverse.
8. Watch out for small children that may be behind the mower.
9. Read and learn the manual before operation.
10. Refer to manual when needed
11. Handlebar position for operation.
When the handlebar is moved in the forward position, the mower will
move forward. The distance traveled forward will corelate with the
speed. Moving the handlebar forward slightly will move the mower
slowly. Moving it all the way will be fast. When the handlebar is in its
neutral position, the mower will not move. When the handlebar is
moved towards the back, the mower will go in reverse. Placing the
handlebars in the outward position will put the mower into the neutral
lock position. Power must be cycled off and back on to continue
operation.

9
RIGHT CONTROL PANEL DECALS: MGUPN065
1. Do not mow around people
2. No person should ride on the mower during operation
3. Read the manual before operation
4. Mow with the chute guard down
12. Master Power
ON & OFF Switch
13. USB PORT
14. Battery Capacity
Indicator

10
5. PTO Switch. Pull up to engage blades, push down to disengage blades
6. Handlebar position for operation.
When the handlebar is moved in the forward position, the mower
will move forward. The distance traveled forward will corelate
with the speed. Moving the handlebar forward slightly will move
the mower slowly. Moving it all the way will be fast. When the
handlebar is in its neutral position, the mower will not move.
When the handlebar is moved towards the back, the mower will
go in reverse. Placing the handlebars in the outward position will
put the mower into the neutral lock position.
MGUPN066: The torque values for the nut that secures the blade.
MGUPN067: Keep the chute down on the deck to prevent
flying objects from injuring or hitting people.
MGUPN068: DANGER! Hand and foot danger around deck decal.

11
MGUPN069: Connection from the battery to the mower.
MGUPN070: Electrical compartment
components must be serviced by a
certified technician. Disconnect the
battery before maintenance is
performed on the electrical
compartment. The electrical
compartment has a risk of electrical
shock as well as surfaces that will be
hot to the touch.
MGUPN071: Battery must not be washed. There is a risk of
electric shock with the battery. Refer to the manual if the
battery will be moved or replaced.
MGUPN072: CAUTION! Disconnect the battery before
maintenance or in an emergency. If the steps are not
performed, there is a chance for injury.
MGUPN073: BLADE WARNING LIGHT SYSTEM: If the blade indicator lights show up as
green, the drive speed and deck height are good. If the blade indicator lights show up
as yellow, the drive speed will have to decrease, but deck height is fine. If the blade
indicator lights show up as red, the drive speed must be slowed down, and the deck
height should be increased.

12
MGUPN074: This connection can function as a charger port, a
connection point to power the front-end blower or the 48V Inverter.
MGUPN075: This port is used for charging the mower only or connecting the 48V
Inverter.
1. When the roll bar is in the down position, do not buckle up when operating the
mower.
2. When the roll bar is up, keep the seatbelt fastened.
3. When moving fast, do not make sharp turns.
4. Make sharp turns only when moving slow.
MGUPN076
MGUPN077: No person should ride on the mower during operation.

13
1. Wear ear and eye protection when operating the mower.
2. When operating the mower with ROPS up, keep your seatbelt on
3. Read and learn the manual
4. Do not remove the ROPS from the chassis
MGUPNO78
MGUPN079: CAUTION! Surfaces in the electrical bay may
be hot to the touch and can cause burning. Do not wash the
electrical components inside the mower. There is a shock
hazard from the components in the electrical bay.
MGUPN080: Patent for the mower.
MGUPN081: Left parking brake decal. Slide & latch bar to right
to manually disengage brake. Always re-engage brake before
operating machine.
MGUPN082: Right parking brake decal. Slide & latch bar to left
to manually disengage brake. Always re-engage brake before
operating machine.

14

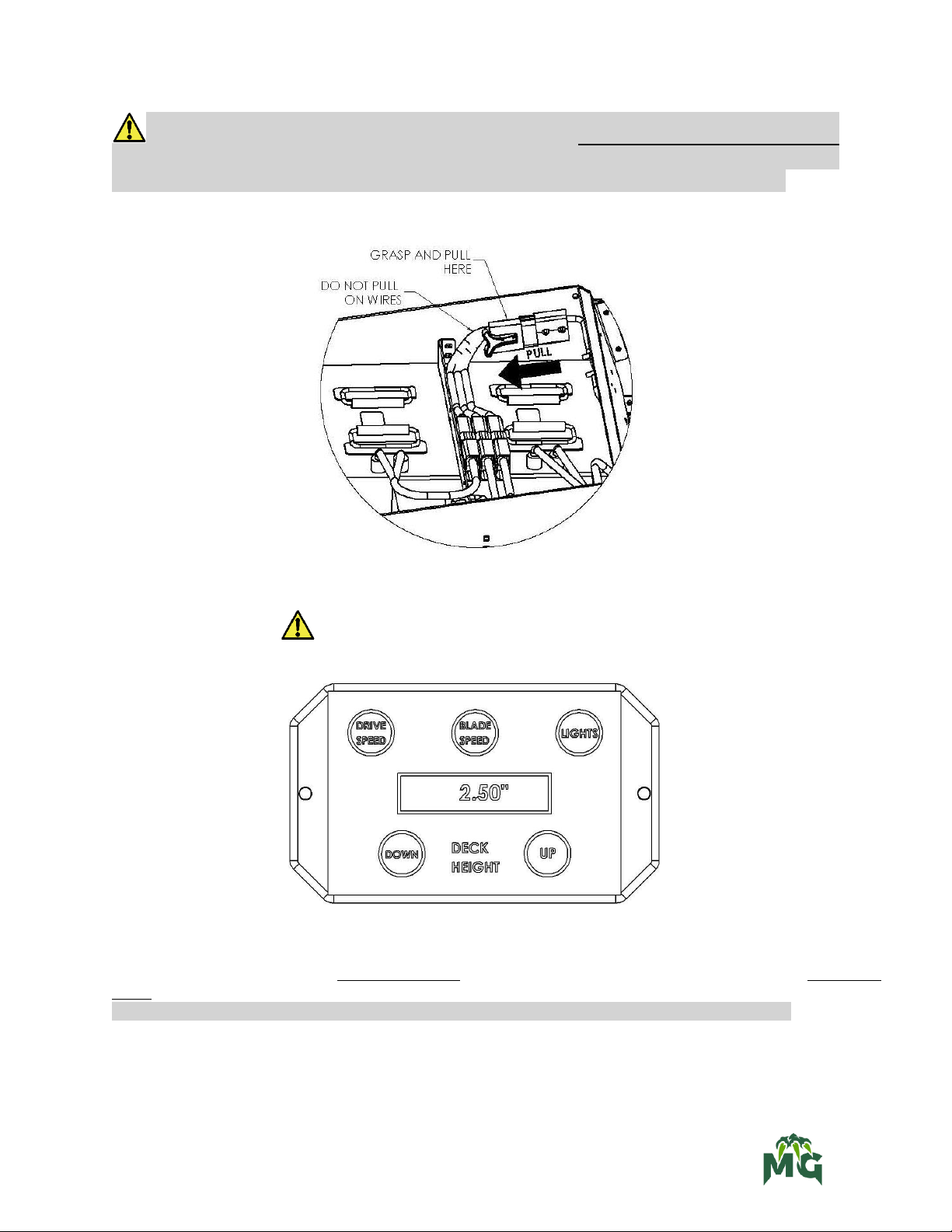

Important: Red Battery Quick Disconnect (Fig.7A) –(found in battery compartment)
PULL Red Handle rearward to disconnect all power to unit. (also see pages 20-31)
Disconnect with all maintenance, repairs, cleaning and transportation of mower!!
7A
Important: Deck Height Indicator (fig.1D)
*Shows mowing height level from 1.5” to 5.5”
1D
Fig.1D: Hi/Low Blades Switch: High Blade Mode is higher blade speed for cutting thicker grass. Low Blade
Mode provides lower blade speed used for lower battery consumption on thinner dry grass areas.
NOTE: Mowing time may be increased up to 15% when mowing in low blade mode when practical.
Fig.1D: Optional Lights Switch: Turns headlight On and Off when additional light is needed. (Located right side
of top mower control panel)

15
Fig.1D: Drive Speed Control Switch –Allows operator to select a comfortable driving speed Low or High
depending on terrain, grass conditions, slope, operator experience etc. Push button for Lowest, Slow Speed for
inexperienced operators, for trimming around objects, buildings and other obstacles.
Always EASY DOES IT when unsure or new user to the equipment! Get comfortable with mower before pushing
button into HIGH speed!

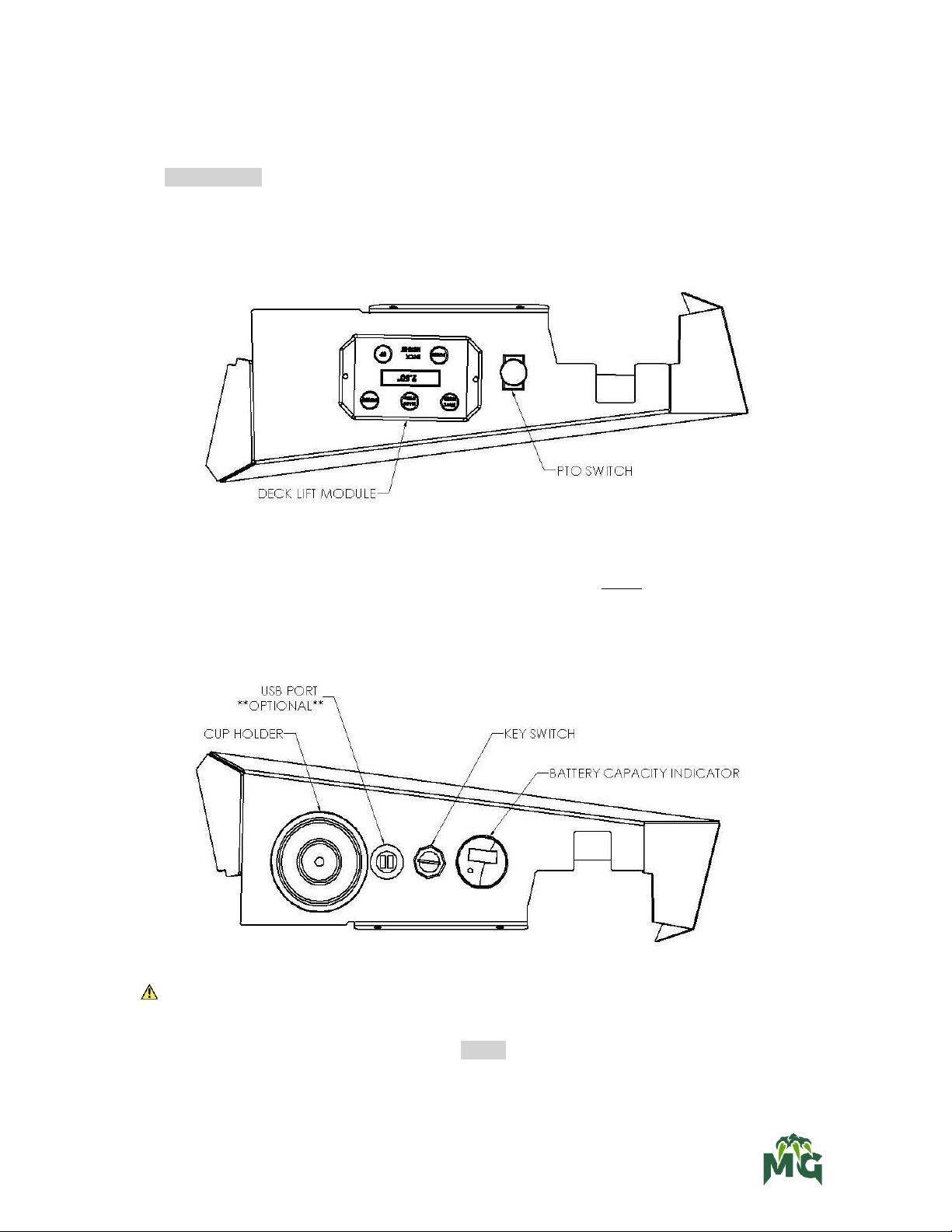

Right Side Mower Control Panel (With Operator Seated)
Fig.3
Fig.3:PTO Deck Blades ON and OFF Switch: This switch engages the deck blade motors. Pull the switch
up to engage blades and push switch down to disengage blade motors. NOTE: There may be a few second
delay before blades will start!
Left Side Mower Control Panel (With Operator Seated)
Important: Control Buttons –Left Side Control Panel (With Operator Seated)

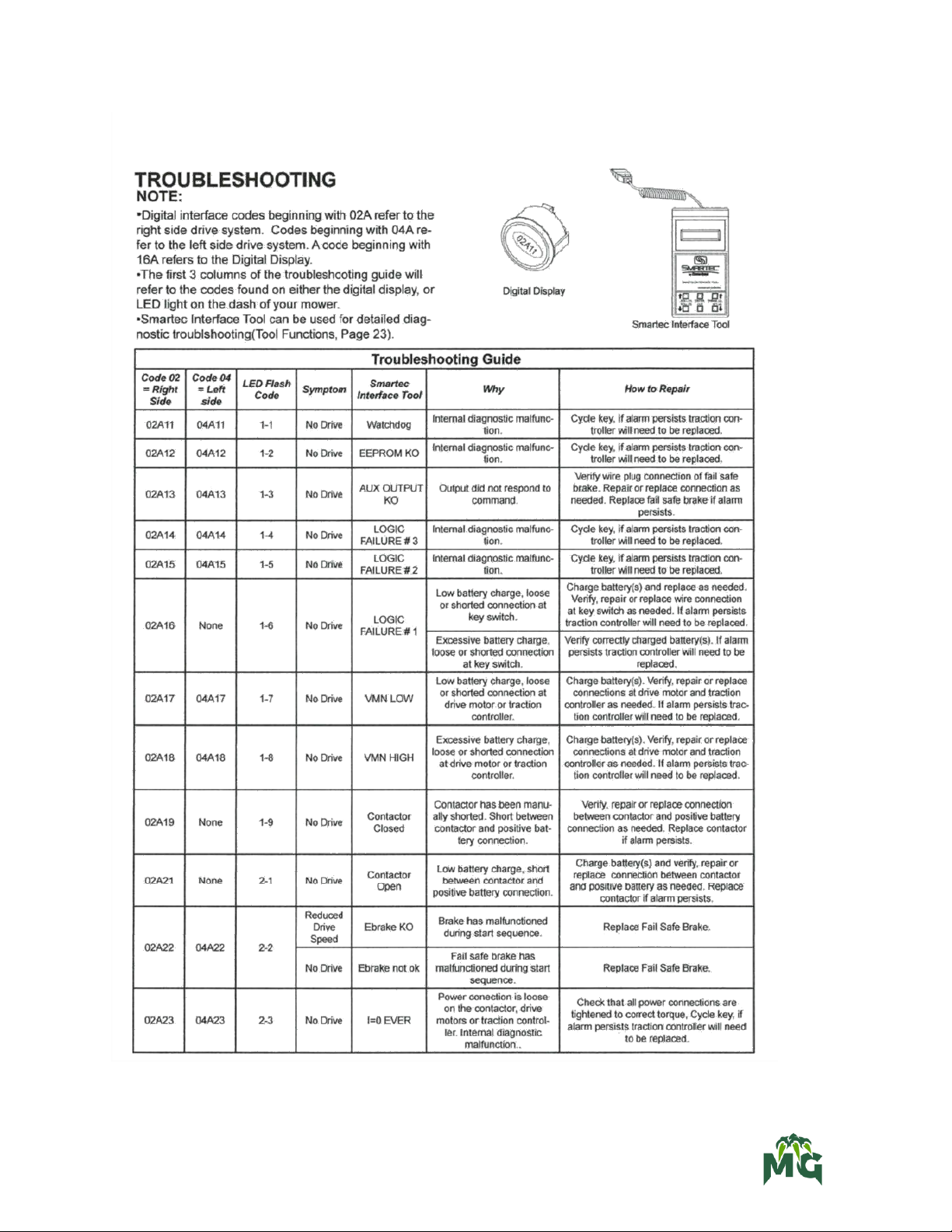

Fig.4: Battery Capacity Indicator: Indicates battery state of charge and diagnostic information. Turn the
key to the ON position, wait 3 seconds for diagnostics to load. Display will indicate battery status and drive
conditions with READY sign or FAULT indications. NOTE: If FAULT occurs, first reset computer by turning
key to OFF position and then to the ON position. If FAULT continues: Call your Mean Green Mowers Dealer

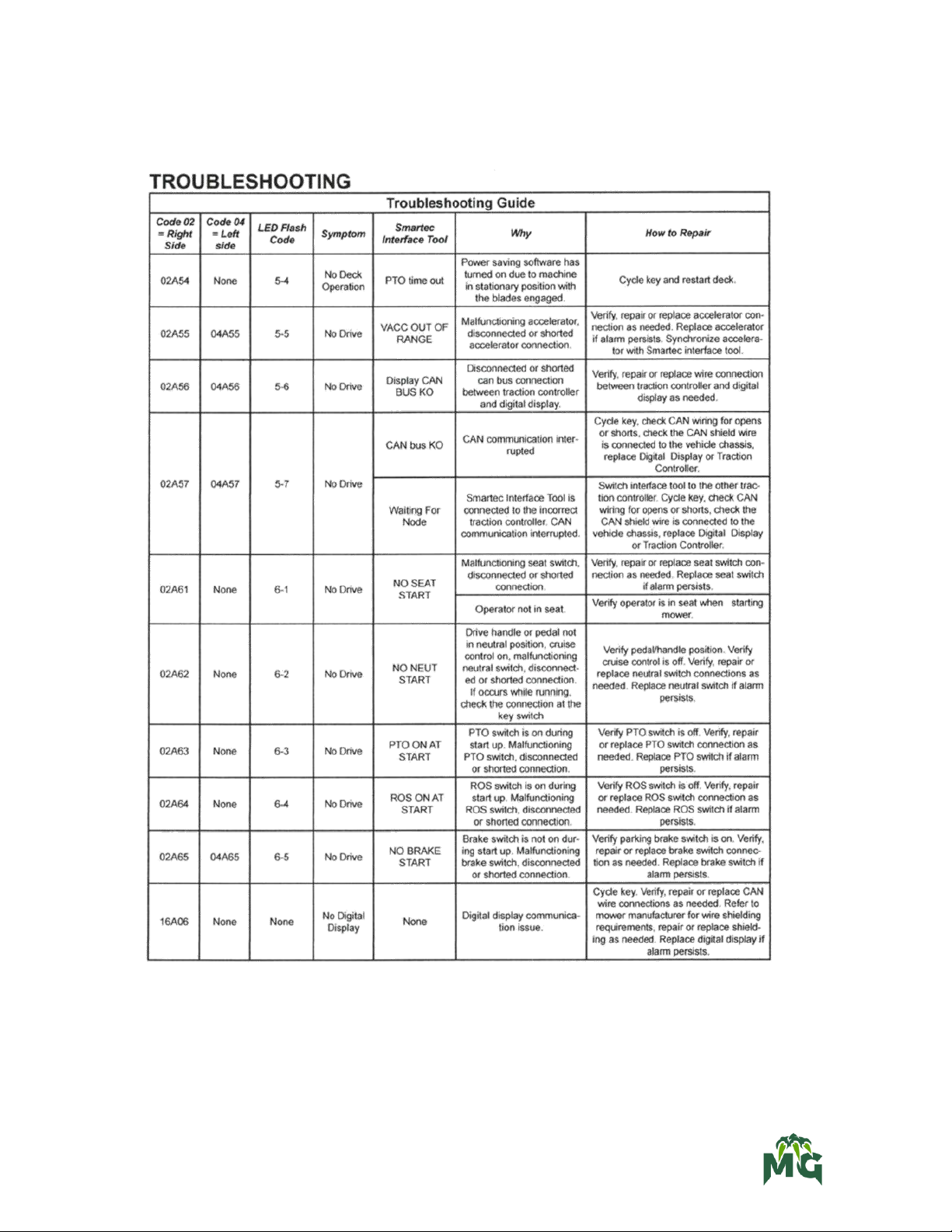

Immediately! ***SEE Appendix Smartec pages 16-19 for detailed Battery Capacity Indications,
Troubleshooting and Information Guide****
Fig.4

16

17

18

19
