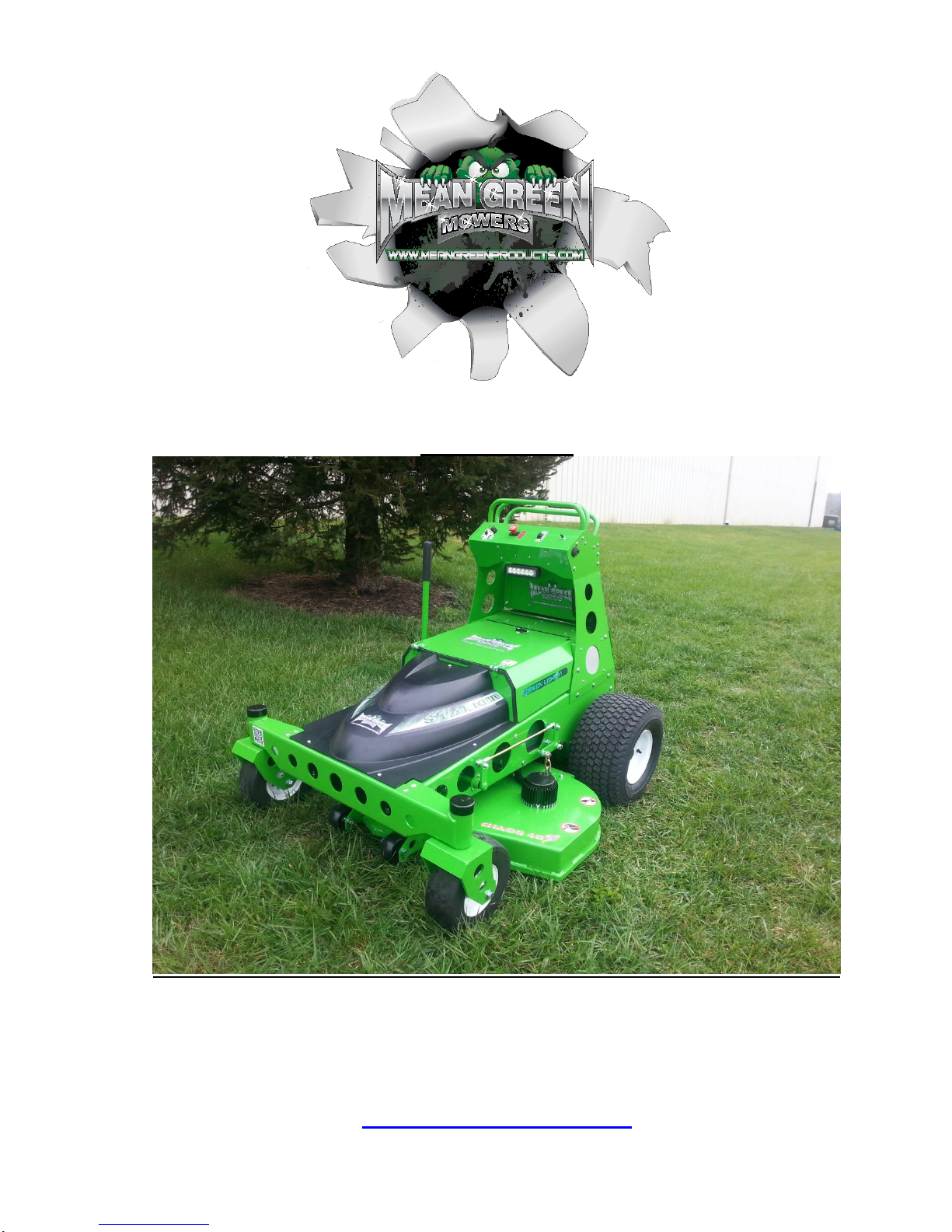

Mean Green Products STALKER 48 User manual

STALKER 48” STAND-ON MOWER
Owner’s Manual
Mean Green Products, LLC
4404 Hamilton Cleves Rd. Unit 2
Hamilton, OH 45013
513-738-4736 or 513-200-7561(Sales & Service)
www.meangreenproducts.com

Index
Page:
Warranty Information…………………………………………………………………..….A-C
Warranty Registration…………………………………..........................................C
Warranty Registration Card…………………………………..................................C
General Information…………………………………………………………………………….1
Safety Precautions…………………………………………………………………………..…..2
Safety/Instruction Decals………………………………………………………………….2-4
Mower Control Panels………………………………………………………….…………..5-9
2 Stage Shut Down Feature………………………………………………………………..13
Master Power Ignition Switch………………………………………………………………5
Optional Head Light Switch……………………………………………………………….5,9
Battery Capacity Indicator…………………………….. 6,Appendix Smartec 8-12
Hi/Lo Blade Switch……………………………………………………………………………….5
Deck Blades ON/OFF Switch……………………………………………………….………..5
Drive Speed Control Knob…………………………………………………………..………..9
Deck Height Adjustment……………………………………………………………………….4
Deck Height Adjustment Handle……………………………………………………….4,19
Drive Control Levers…………………………………………………………………………..6-8
Hand Stabilizer Bars………………………………………………………………………………7
Drive Control Lever Hand Positioning……………………………………………………8
Operation……………………………………………………………………………………….10-13
Use of ramp…………………………………………………………………………………...11-13
Slope Guide……………………………………………………………………………………….12A
Slope Operation……………………………………………………………………………..11-13
Children……………………………………………………………………………………………….13
Staring/Stopping Mower…………………………………………………………………13-14
Discharge Chute………………………………………………………………………………....17
Safety Interlock System……………………………………………………………………….13
Driving The Mower…………………………………………………………………………14-15
Operating Suggestions…………………………………………………………………….16-18
Operating the Platform……………………………………………………………….….17-18
Sound Power………………………………………………………………………………………17
Basic Driving…………………………………………………………………………………….14-15
Practice Turning Around Corner………………………………………………….……14-15
Practice Turning In Place………………………………………………………………….14-15

Index Continued
Page:
Advanced Driving……………………………………………………………………………..….15
Anti Scalp Wheels………………………………………………………………………..………19
Deck Height Locking Handle………………………………………………………………..19
Deck Height Adjustment Pin………………………..……………………………………...19
Height Adjustment Holes………………………………………………………………………19
Emergency Drive Brake Release Levers……………………………………………..…20
Towing & Manual Pushing……………………………………………………………………20
Maintenance & Adjustments…………………………………………………………..21-25
Service…………………………………………………………………………………………….21-22
Regular Maintenance………………………………………………………………………22-24
Torque Values………………………………………………………………………………...22-23
Tires…………………………………………………………………………………………………….23
Lubrication………………………………………………………………………………………23,32
Electrical System………………………………………………………………………..23,24-30
Mower Blade Maintenance…………………………………………………………....23-24
Mower Blade Removal………………………………………………………………………..24
Mower Blade Installation…………………………………………………………………….24
Electrical System Safety………………………………………………………………….24-27
Electrical System Information……………………………………………………………..25
Component Maintenance……………………………………………………………………25
Battery Safety………………………………………………………………………………..25-27
Battery Connectors……………………………………………………………………..……..26
Battery Charger…………………………………………………………………………26-27,29
Battery Maintenance……………………………………………………………………..26-27
Battery Charging……………………………………………………………………..…….27-29
Rear External and Front External Charging Ports…………………………………28
Internal Charging Port……………………………………………………………………27,30
Lithium Modules Weight (LEMs)………………………………………………………..30
Charging Recommendations……………………………………………………….…29-30
Disconnecting Batteries……………………………………………………..………….29-30
Reconnecting Batteries………………………………………………………………….29-30
Battery Compartment Open/Close Handle & Battery Lock…………………31
Battery Quick Disconnect Handle……………………………………………….4,27-30
Battery Storage……………………………………………………………………………….….31

Index Continued
Page:
Battery Electronics Bay…………………………………….……………………………20,25
Troubleshooting…………………………………………………………………………….31-32
Storage……………………………………………………………………………………………….32
New Season Preparation……………………………………………………………….……32
Lithium Energy Module Maintenance…………………………………………….……33
MGP-48 SK Diagram/ Main Elements Schematic

A
Tractors and Decks
Mean Green Products LLC
Two Year Limited Warranty For Residential and Commercial Use
WHAT IS COVERED BY THIS WARRANTY
Mean Green Products, makes the following warranty to the original purchaser only:
A. Residential Use: Mean Green Mowers used for normal residential purposes* are warranted for two (2) years
or 500 hours total usage (whichever comes first) from date of delivery on all materials and workmanship.
If the Purchaser discovers within this warranty period (two years from date of delivery) a defect in materials or
workmanship: He must promptly notify Mean Green Products or an authorized dealer, in writing of the defect.
In no event shall such notification be received by Mean Green Products, or an authorized dealer later than
twenty-four (24) months from date of delivery. Within a reasonable time after such notification,
Mean Green Products, will correct any defect in material or workmanship on the Mean Green Mower
by repairing or replacing part(s) with either new or used replacement parts.
Such repair, including parts and labor shall be at the expense of Mean Green Products, and,
the batteries are covered by a three (3) year pro-rated limited warranty or 500 hr. usage, whichever
comes first to the original owner (consumer) only.
1st year —100%
2nd year —66%
3rd year —33%
NOTE: Failure to properly maintain batteries
and keep them fully charged will reduce
battery life and will void battery warranty.
The provisions of this limited warranty shall not apply to failure due to:
Abuse or neglect such as improper fluid levels, water damage, loose wiring, or rusted or corroded hardware;
lack of proper maintenance; damage caused by improper installation of the battery;
neglect, breakage, freezing, fire, explosion, wreckage, the addition of any chemical, operation
of the battery in an overcharged, or the operation of the battery in an uncharged condition (below half-charge
-1.200 specific gravity); and a battery charged by systems other than the original equipment type battery charger.
* Normal residential purpose means use of product
on same lot as your home. Use at more than one
location is considered commercial use, and then the
commercial use warranty would apply.
B. Commercial Use: Mean Green Mowers used for commercial and institutional use are warranted for
two (2) years or 500 hours total usage (whichever comes first) from date of delivery on all materials and
workmanship of chassis and deck structures and one (1) year or 500 hours total usage (whichever comes first)
from date of delivery on all materials and workmanship. If the Purchaser discovers within this warranty period a
defect in materials or workmanship:
He must promptly notify Mean Green Products, or an authorized dealer, in writing of the defect. In no

B
event shall such notification be received by Mean Green Products, or an authorized dealer later than
twelve to twenty-four (12-24) months from date of delivery. Within a reasonable time after such notification,
Mean Green Products, will correct any defect in material or workmanship on the Mean Green Mower, by
repairing or replacing part(s) with either new or used replacement parts. Such repair,
including parts and labor shall be at the expense of Mean Green Products, and, the batteries
are covered by a two (2) year pro-rated limited warranty or 500 hr. usage, whichever comes
first to the original owner (commercial) only.
1st year —100%
2nd year —50%
NOTE: Failure to properly maintain batteries
and keep them fully charged will reduce
battery life and will void battery warranty.
The provisions of this limited warranty shall not apply to failure due to:
Abuse or neglect such as water damage, loose wiring, or rusted or
corroded hardware; lack of proper maintenance; damage caused by improper installation of the battery;
neglect, breakage, freezing, fire, explosion, wreckage, the addition of any chemical, operation of the battery
in an overcharged, or the operation of the battery in an uncharged condition (below half-charge
-1.200 specific gravity); and a battery charged by systems other than the original equipment type battery charger.
C. Rental Use: Mean Green Mowers used in rental applications are not covered by warranty. This also
includes no warranty on the batteries.
WHO MUST PERFORM THE WARRANTY SERVICE
All warranty service will be performed by dealers authorized by Mean Green Products. Service calls and/or
transportation expense of the product to and from the authorized dealer, for
warranty work, will be paid by the owner of the product. For warranty service contact an authorized dealer.
WHAT IS NOT COVERED BY THIS WARRANTY
Mean Green Products, does not warranty:
Some product, components or parts not manufactured by Mean Green Products.
Repairs made by unauthorized persons. Damage caused by use of the Mean Green Mower
for purposes other than those for which it was designed. Damages caused by disasters such as fire, flood,
wind, and lightening. Damages caused by neglect, abuse, abnormal use, improper or unreasonable use, accident,
negligence, or misuse such as water damage. Repairs or replacement resulting from the use of
unauthorized parts, accessories or attachments. Repairs or replacement as the result if any alterations
or modifications, in the determination of the Mean Green Mower, which adversely affects the operation,
performance or durability of the equipment. The Mean Green Mower which has the serial number
removed or made illegible. Depreciation or damage caused by normal wear, lack
of reasonable and proper maintenance, failure to follow the product’s owner’s manual operating, maintenance
and adjustment instructions or other operational instructions provided by Mean Green Products.
Normal maintenance parts and service including, but not limited to, lubricants, tune-up parts, blades, blade
sharpening, bearings, brake or steering adjustments.
DISCLAIMER OF WARRANTY
The foregoing warranties are in lieu of all other warranties, expressed or implied, including but not limited to the
implied warranties of merchantability and fitness for a particular purpose. However, if the Mean Green Mower is
purchased as a consumer product, any implied warranty of merchantability or fitness for a particular purpose is
limited to the duration of this limited warranty. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights which vary from state to state.
LIMITATION OF REMEDIES
In no case shall Mean Green Products, be liable for any special, incidental, or consequential damages based upon
breach of warranty, breach of contract, negligence, strict liability in tort, or any other legal theory.
Such damages include, but are not limited to:
�Loss of profits
�Loss of savings or revenue
�Loss of use of the Mean Green Mower or any associated equipment
�Cost of capital
�Cost of any substitute equipment, facilities, services or downtime
�The claims of third parties including customers, and injury to property
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
TIME LIMIT
Any action for breach of warranty must be commenced within twenty-four (24) months following
delivery of the goods in a residential application. Any action for breach of warranty must be commenced
within twelve to twenty-four (12-24) months following delivery of the goods in a commercial application.

NO OTHER WARRANTIES C
This agreement is understood to be the complete and exclusive agreement
between the parties, superseding all prior agreements, oral or written, and all other communications
between the parties relating to the subject matter of this agreement.
ALLOCATION OF RISKS
This agreement allocates the risks of product failure between Mean Green Products and the purchaser. This
allocation is recognized by both parties and is reflected in the price of the goods.
OWNER'S RESPONSIBILITY
You must maintain your Mean Green Mower following the maintenance procedures described in your owner's
manual. Such routine maintenance, whether performed by a dealer or by you, is at your expense.
This machine like any other powered equipment is potentially
dangerous unless properly operated. Any operator must be cautious and keep safety in mind at
all times. Any operator, prior to using the Mean Green Mower, should thoroughly
familiarize himself with the owner's manual regarding operation and safety of the machine, as well as
all safety warnings on the machine itself.
WARRANTY REGISTRATION
1. Owners must register the unit by filling out the Warranty
Registration Form, provided in the owner’s packet. It MUST be
completed and signed by the authorized dealer and original purchaser.
2. For validation, the completed Warranty Registration Form
MUST be forwarded to Mean Green Products, within
ten (10) days following date of purchase.
3. The date of purchase constitutes delivery.

GENERAL INFORMATION
This manual applies to the following Mean Green Products equipment lines:
Mean Green Mowers –48”/52” Stand-On Mower (STALKER)
To the new owner
The purpose of this manual is to assist owners and operators in maintaining and operating the mower.
Please read it carefully; information and instructions furnished can help you achieve years of
dependable performance. It is the owner’s responsibility to make certain that the operators and
mechanics read and understand this manual and all decals before operating this machine. It is also the
owner’s responsibility to make certain that the operators and mechanics are qualified and physically
able individuals, properly trained in the operation of this equipment. All operators and mechanics must
become familiar with the safe operation of the equipment, operator controls and safety signs. Never let
children or untrained people operate or service the equipment. Local regulations may restrict the age of
the operator. The owner/user can prevent and is responsible for accidents or injuries occurring to
themselves, other people or property.
Using this manual
General operation, adjustment and maintenance guidance is outlined for both the experienced and
novice Mean Green Mower user. Operating conditions vary considerably and cannot all be addressed
individually. Through experience, however, operators should find no difficulty in developing good
operating skills suitable to most conditions. Directions used in this manual, for example RIGHT or
LEFT, refer to directions when seated on the mower/standing facing forward, unless otherwise stated.
Photographs and illustrations used were current at the time of printing, but subsequent production
changes may cause your machine to vary slightly in detail. Mean Green Products reserves the right to
redesign and change the machine as deemed necessary, without notification. If a change has been made
to your machine which is not reflected in this owner’s manual, or the parts manual, see your Mean
Green Products dealer for current information and parts.
Warranty registration
The Owner must register the unit by filling out the Warranty Registration Form, provided in the
owner’s packet, to validate your warranty protection. As the new equipment owner, you are
expected to see that this is done at the time of delivery. If using the Warranty Registration Form, it
MUST be completed and signed by the authorized dealer and original purchaser.
Be sure to register the mower plus each attachment that displays a model and serial identification
number plate with Mean Green Products.
IMPORTANT: Any unauthorized modification, alteration, or use of non-approved attachments voids the
warranty and releases Mean Green Products from any liability arising from subsequent use of this
equipment.
Model and serial number
The mower serial number is found on the serial identification plate located on the right inside tower
below the top control panel. The model is the type of Mean Green Mower purchased i.e. residential,
estate, commercial, push, walk behind, zero turn or stand on model. The serial numbers and model are
required on the Warranty Registration form. They will also assure you of the correct service parts when
replacement becomes necessary.
Parts and service
All warranty repair and service must be handled through an
authorized Mean Green Products dealer. Arrangements should be made
through your local service center.
1

SAFETY PRECAUTIONS
This safety alert symbol is used to call attention to a message
intended to provide a reasonable degree of PERSONAL
SAFETY for operators and other persons during the normal
operation and servicing of this equipment.
DANGER –denotes immediate hazards which WILL result
in severe personal injury or death.
WARNING –denotes a hazard or unsafe practice which
COULD result in severe personal injury or death.
This manual uses two other words to highlight information.
IMPORTANT calls attention to special mechanical information
and NOTE: emphasizes general information worthy of special
attention.
All operators and mechanics should read this manual and be
instructed about safe operating and maintenance procedures. If
the operators or mechanics cannot read and understand English,
it is the owner’s responsibility to explain this material to them.
However, improper use or maintenance by the operator or owner
can result in injury. To reduce the potential for injury, comply with
these safety instructions and always pay attention to the safety alert
symbol, which means DANGER or WARNING - “personal
safety instructions.” Failure to comply with the instructions
may result in personal injury or death.
Incorrect usage of this machine may result in severe
injury. Personnel operating and maintaining it should be
trained in the proper use and should read the manuals
completely and thoroughly before attempting to set-up,
operate, adjust, or service this machine.
It is the owner’s responsibility to make certain that the
operators and mechanics read and understand this manual and
all decals before operating this machine. It is also the owner’s
responsibility to make certain that the operators and mechanics
are qualified and physically able individuals, properly trained in
the operation of this equipment. All operators and mechanics
must become familiar with the safe operation of the equipment,
operator controls and safety signs.
Never let children or untrained people operate or service the
equipment. Local regulations may restrict the age of the
operator.
The owner/user can prevent and is responsible for accidents or
injuries occurring to themselves, other people or property.
The owner should also ensure that the operator/mechanic
know that they are responsible for their own safety as well as the
safety of other persons within the vicinity. Remember, the
operator is responsible for accidents or hazards occurring to
other people or their property.
Safety and Instruction Decals
Specific safety warning decals are located on the equipment near the immediate areas of potential hazards. These
decals should not be removed or obliterated. Replace them if they become non-readable.
The following illustrations show the various decals that are located on the machine. A brief explanation, for those
requiring one, is shown to help the operator understand the meanings of these decals.
• Read Owner’s Manual and Safety Warning Decals before attempting
to operate this machine.
2

3
DANGER: Rotating blades! (fig.1A)
* Keep shields and covers in place while
machine is in operation
* Keep hands, feet and clothing away from
rotating blades
1A
Warning: Do Not Step! (fig.1B)
*Fall Hazard
1B
DANGER: Do Not Sit OR Ride! (fig.1D)
*Do Not Carry Passengers
*Ejection Warning! 1D

DANGER: Safety Precautions!: (fig.2A) (middle control panel)
1. Read Owner’s Manual Before Operation
2. Keep Hands, Feet, And Clothing Away From Rotating Blades
3. Maintain Safe Distance From People And Pets
4. Roll Over Warning –Never Operate Machine On Greater Than 15 Degree
Slope
5. Electrical Maintenance By Trained Professionals ONLY
6. Keep Safe Distance From Drop-Offs and Ditches
7. Do NOT Carry Passengers
8. Ejection Warning –Move Slowly On Slopes
9. Be Aware When Backing Up
10. See Owner’s Manual For Other Information
2A↓
Important: Red Battery Quick Disconnect Handle –(found in battery compartment)
PULL Red Handle inward toward center of mower to disconnect all power to unit. (also
see pages 25-30) Disconnect with all maintenance, repairs, cleaning and transportation of
mower!!
Important: Deck Height Adjustment Handle (fig.1C)
*Changes Deck Height from 1” to 4.5” (located on right operator side of mower)
1C
4

Mower Control Panel (Top Panel) Fig.3
Important: Control Buttons –Top Panel
Fig.3A: Optional Headlight Switch: Turns headlights On and Off when additional light is
needed. (Located left side of top mower control panel)
Fig.3B: Hi/Lo Blade Switch: (Located on top mower control panel) High Blade Mode is higher
blade speed for cutting thicker grass. Low Blade Mode provides lower blade speed used for
lower battery consumption on thinner dry grass areas.
NOTE: Mowing time may be increased up to 15% when mowing in low blade mode when
practical.
Fig.3C: Deck Blades ON and OFF Switch: This switch engages the
deck blade motors. Pull the switch up to engage blades and
push switch down to disengage blade motors. NOTE: There
is a few second delay before blades will start!
IMPORTANT: ALWAYS PUSH DOWN and DISENGAGE blades if children, pets, bystanders get in close
range of mower AND any EMERGENCY occurs!!
IMPORTANT: Never engage deck motors when the deck is under load. Motors or deck
could be damaged.
Fig.3D: Master Power Ignition Switch: A two position switch
Off and On. With key inserted, rotate key clockwise
to the On position to start mower.
Note: When switch is in the On position cooling fans will start
automatically. If fans do not start, turn key to Off position and
notify your service dealer. DO NOT use mower with fans off.
A. Headlight B. Hi/Lo Blade C. Deck Blades D. Master
On/Off Switch On/Off Power
Switch Switch Ignition
(optional) Switch
A. B. C. D.
IMPORTANT!
READ!
IMPORTANT!
READ!
5

Mower Control Panel (Front Panel) Fig.4
Fig.4A: Battery Capacity Indicator: Indicates battery state of charge and diagnostic
information.
Turn the key to the ON position, wait 3seconds for diagnostics to load. Display will indicate
battery status and drive conditions with READY sign or FAULT indications. NOTE: If
FAULT occurs, first reset computer by turning key to OFF position and then to the ON
position. If FAULT continues: Call your Mean Green Mowers Dealer Immediately!
***SEE Appendix Smartec pages 8-12 for detailed Battery Capacity
ndications,Troubleshooting and Information Guide****
IMPORTANT: When battery voltage becomes low, the
mower blades will stop, although the drive motors will continue
to run enabling driver to continue to drive unit. When the batteries discharge to this point they
require recharging. The unit should immediately be returned to the battery charging area
and the unit connected to the battery charger.
6
A. Battery Capacity B. Drive Control Lever
Indicator Lever Up…Stop
Lever Down…Go
A B
IMPORTANT
READ!!

Fig.4B: Drive Control Levers:
TO DRIVE MOWER FORWARD,push right & left Drive Control Levers forward an
equal distance.
TO DRIVE MOWER IN REVERSE,pull right & left Drive Control Levers rearward an
equal distance.
4B
Fig.4B: Forward and Rearward Hand Stabilizer Bars: To stabilize operator’s hands
while positioning Right and Left Drive Control Levers.
7
Left Drive Control Lever
Right Drive Control Lever
Hand Stabilizer Bar
Rearward
Forward
Hand Stabilizer Bar

Fig.1E: Drive Control Lever Hand Positioning
8
TO STOP,move right & left Drive Control
Levers to neutral, middle position and
release right Drive Control Lever. When
going forward to slow down, pull back
gently on both Drive Control Levers.
When going in reverse to slow down,
push forward gently on right & left Drive
Control Levers.
NOTE: Always remember middle is
neutral!
1E

(On certain models)
Fig.3F: Drive Speed Control Knob –Located on top mower control panel.
Allows operator to select a comfortable driving speed via the Drive Speed Control Knob on the
Mower Control Panel. Turn knob clockwise to INCREASE drive speed and
counterclockwise to REDUCE drive speed. Turn knob to Lowest, Slow Speed for
inexperienced operators, for trimming around objects, buildings and other obstacles.
Always EASY DOES IT when unsure or new user to the equipment!
Get comfortable with mower before increasing knob into faster speeds!
NOTE: Speed may be adjusted at any time whether mower is in motion or stopped.
LED Headlight Kit (Optional) - Headlight Switch on left side top mower control panel turns
headlights On and Off when additional light is needed.
3F
9

OPERATION
Safe Operating Practices
This product is capable of amputating hands and feet and throwing objects. Always follow
all safety instructions to avoid serious injury or death.
Operation
Evaluate the terrain to determine what accessories and attachments are needed to properly and
safely perform the job. Only use accessories and attachments approved by the manufacturer.
Clean battery compartment, drive motor compartment, mower deck, seat etc. of all dirt and
debris. Keep unit free of grass clippings, leaves and other debris. DO NOT
spray with water to clean unit. Do not use, solvents, hard cleaners or abrasives. Use only
compressed air. Wear adequate eye and hearing protection when cleaning the unit.
Never leave a running machine unattended. Always stop on level ground, disengage deck
blade switch, place drive control bars in neutral position, turn key to off position,
remove key and disconnect battery cables by pulling inward on RED battery quick
disconnect handle in battery box compartment for any reason including emptying the
catcher or unclogging the chute.
Always remain seated while operating machine.(riding mower models)
Always keep safety shields and covers in place.
Always maintain a safe distance from people and pets when mowing.
Always stop machine if someone enters the area.
Avoid injury. Keep area clear of bystanders when engaging deck blade switch.
Always operate machine in daylight or with adequate working lights.
Follow daily and weekly checklists, making sure electrical connections are secured and
bolts are tightened. Always observe traffic laws while driving machine from
one location to another. Watch for traffic when operating near or crossing roadways.
Always be alert for hazards such as rocks, metal objects and other debris which may be
thrown or entangled by mower blades. Watch out for holes or deep depressions.
Inspect area to be mowed for hazards such as rocks, metal objects and other debris which
may be thrown or entangled by mower blades. Remove these objects before mowing.
Always inspect machine for damage after striking a foreign object. If damage is found,
repair machine immediately. Be sure to stop on level ground, disengage deck blade
switch, place drive control bars in neutral position, turn key to OFF position,
remove key and disconnect battery cables by pulling inward on RED battery quick disconnect handle in battery
box compartment! Always wear adequate ear protection, such as earplugs, when operating this
equipment as prolonged exposure to uncomfortable or loud noises can cause impairment
or loss of hearing. Do not wear radios or music headphones while operating the machinery.
Safe operation requires your full attention.
Do not operate the equipment while wearing sandals, tennis shoes, sneakers, shorts or
any type of loose fitting clothing. Long hair, loose clothing or jewelry may get tangled in
moving parts. Always wear long pants, safety glasses, ear protection and safety shoes when
operating this machine.
Always wear safety goggles or safety glasses with side shields when operating the mower.
Always be aware of what is behind the machine before backing up. Do not mow in reverse
unless absolutely necessary.
Always look down and behind before and while backing up.
When moving in reverse, SLOWLY pull right and left Drive Control Levers rearward and avoid sudden
movement. Rapid movement of the Drive Control Levers in either direction
could result in a reaction of the machine that can cause serious injury.
Never operate a poorly maintained machine.
Never attempt high speed maneuvering, especially in crowded, congested areas or on slopes.
Never allow persons to operate this machine without proper instruction or allow children to
operate machine. Allow only responsible adults who have read and understand
these instructions to operate this machine.
Never put hands or feet under any part of the machine while it is running.
Never carry passengers.
Never direct discharged material toward anyone. Avoid discharging material against
a wall or obstruction. Material may ricochet back toward the operator. Always disengage
the blades and wait for them to stop before crossing gravel drives, walks or roads.
Always keep clear of the mower blades and attachments during their operation.
Turn off blades when not mowing.
10

Slow down before turning.
Turn the key to the OFF position, remove key and disconnect battery cables by pulling inward on RED battery
quick disconnect handle in battery box compartment before removing the grass catcher or unclogging the
discharge chute. Never clear the discharge chute with the machine running. Turn
the key to the OFF position, remove key, and make sure the blades have stopped before cleaning.
Use a stick to clear a plugged discharge area. Never use your hand!
Do not operate the machine while under the influence of alcohol or drugs.
Exercise caution when loading or unloading the machine onto a trailer or truck.
Data indicates that operators, age 60 years and above, are involved in a large percentage
of mower-related injuries. These operators should evaluate their ability to
operate the mower safely enough to protect themselves and others from serious injury.
If any attachment or additional weight is mounted on the rear or side of the unit (depending on
model), any rapid movement in either direction could result in a reaction of the machine
that can cause serious injury.
Clean flammable material from machine. Prevent
fires by keeping battery compartment, deck and operator’s
station clean of accumulated trash, grass clippings,
and other debris.
Using a ramp
Use extreme caution when loading and unloading a unit onto a truck or trailer with a ramp.
Use only a single, full width ramp; do not use individual ramps for each side of the unit.
Having a full width ramp provides a surface for the mower frame to contact if the
unit starts to tip backwards. It also reduces the risk of a wheel going off and the
machine tipping over. Do not exceed a 15 degree angle between the ramp and the ground
or between the ramp and the trailer or truck. When on a ramp avoid sudden acceleration.
NOTE: To lock deck height in highest position for travel or loading/unloading –Pull Deck Height
Adjustment Handle completely rearward until handle locks in highest position. To lower deck from highest
position –pull rearward on Deck Height Adjustment Handle with one hand next pull rearward on Deck
Height Locking Handle with other hand; proceed to lower Deck Height Adjustment Handle to desired
height. **See Fig.14 Page 19**
Slope operation (see page 12A)
Slopes are a major factor in loss-of-control and tip-over
accidents, which can result in severe injury or death. All
slopes require extra caution. If you cannot back up the slope
or if you feel uneasy on it; do not mow it. REMINDER: Only
operate on slopes of 15 degrees or less.
Use extreme caution when operating on slopes.
• Be extremely careful changing directions on a slope.
Slow down.
• Do not operate where the machine could slip or tip.
• Turn slowly
• Turn on the most level part of the slope
• To maximize traction, it is better to turn the front of the
machine uphill, rather than downhill. If drive tires lose
traction, steering control is lost which could cause
serious injury or death.
• If it becomes necessary to turn downhill, turn slowly
and gradually.
Do not remove or modify the stabilizer wheels.
Watch for holes, ruts, bumps, rocks or other hidden
objects. Uneven terrain could overturn the machine. Tall
grass can hide obstacles.
Remove obstacles such as rocks, tree limbs, etc.
Keep all movement on slopes slow and gradual. Do not
make sudden changes in speed or direction.
Avoid starting and stopping on a slope. If tires lose traction,
disengage the blades and proceed slowly straight
down the slope.
Mow a safe distance (minimum of 10 feet, 3.05 meters)
away from drop-offs, retaining walls, drainage ditches,
11

embankments, water, and other types of hazards to avoid
a wheel dropping over the edge or to avoid the ground
from breaking away. This will reduce the risk of the
machine suddenly rolling over causing serious injury or
death.
Use a walk behind, push mower or hand-held trimmer on
slopes and near drop-offs, retaining walls, drainage
ditches, embankments and water to avoid machine rollover
and serious injury or death.
Do not mow on wet grass. Reduced traction could cause
sliding and loss of steering control.
Do not tow on slopes. The weight of the towed equipment
may cause loss of traction and control.
Do not try to stabilize the machine by putting your foot
on the ground.
If the mower’s tires lose traction when operating on
slopes, disengage the deck blade switch, place the drive control levers
in the neutral position, and turn the key to the
OFF position and get help.
Never make sudden starts, stops, turns, or reverse direction,
especially when maneuvering on slopes. The steering
is designed for sensitive response. Rapid movement
of the steering control levers in either direction could
result in a reaction of the machine that can cause serious
injury.
Never stop suddenly while backing down slopes. This
action may result in a reaction of the machine that can
cause serious physical injury.
The Mean Green Mower is capable of operating horizontally
(traverse) on moderate slopes. When operating on slopes
up to 15 degrees, be aware of any conditions that may
cause the mower drive tires to lose traction resulting in a
possible loss of control of the machine. An operator
should not operate on a slope until he is thoroughly
familiar with the equipment.
Do not operate on slopes greater than 15 degrees.
Refer to Slope Guide, page 12A when determining the
degree of slope to be mowed.
It is strongly recommended that the operator drive the
machine off of the slope, using extreme caution, if any
sign of loss of traction is detected. Wait until the condition
that caused the problem is resolved before attempting
to operate on the slope again.
Terrain conditions can affect traction resulting in possible
loss of control of the machine. Some of the conditions
to be aware of are:
1. Wet terrain
2. Depressions in the ground; i.e. holes, ruts, washouts
3. Mounds of dirt
4. Soil type; i.e. sand, loose dirt, gravel, clay
5. Grass type, density, and height
6. Extremely dry conditions of grass
7. Tire pressure
The attachments mounted to the mower will also
affect the way it handles on a slope. Be aware that each
attachment’s characteristics vary.
Another consideration is to always mow a safe distance
(minimum of 10 feet 3.05 meters) away from drop-offs,
retaining walls, drainage ditches, embankments,
water, and other types of hazards to avoid a wheel dropping
over the edge or to avoid the ground from breaking
away and always be aware of what is located at the bottom
of the slope. This will reduce the risk of the machine
12

suddenly rolling over causing serious injury or death.
Extreme caution should be used when there is a hazard
located at the bottom of the slope. Some examples are:
1. Water; i.e. lake, river
2. Cliffs, retaining walls
3. Roads, highways
4. Buildings
5. Rocks
These are just a few examples of situations when caution
must be used when operating on a slope. There are
many other possibilities too numerous to mention. Just
remember to always exercise extreme caution when operating
on any slope.
Children
Tragic accidents can occur if the operator is not alert to the presence of children.
Children are often attracted to the machine and the mowing activity. Never assume that
children will remain where you last saw them.
Never leave machine unattended with key in switch, especially with children present.
Children or bystanders may be injured if they move or attempt to operate the machine while it is unattended.
Always disengage deck blade switch & turn key to OFF position and
remove key. Keep children out of the mowing area and under the watchful care of
a responsible adult other than the operator. Be alert and turn the machine off if children enter the area. Before and
while backing, look behind and down for small children.
Never carry children, even with the blades off. They may fall off and be seriously
injured or interfere with safe machine operation. Children who have been given rides
in the past may suddenly appear in the mowing area for another ride and be run over
or backed over by the machine. Never allow children to operate the machine.
Use care when approaching blind corners, shrubs, trees, the end of a fence or
other objects that may obscure vision. Never allow children or others in or on towed equipment.
Drive Overtemp 2-Stage Shut Down Feature:
If drive motor exceeds programmed temperature, the motor speed will decrease by one half. If temperature
continues to increase , drive will shut down at a higher programmed temperature. Allow motors 30-60 minutes
to cool down. Please call your Mean Green Dealer immediately for possible solutions to Overtemp Shut down.
Safety start interlock system
The machine is equipped with a safety start interlock system
consisting of the park brake switches, right control handle release activates safety interlock shutting down drives,
blades and applying brakes.
Check mower safety start interlock system daily, prior to
operation. This system is an important mower safety feature. It
should be repaired immediately if it malfunctions. Call your Mean Green Mower Dealer
immediately. After turning the machine on, confirm that blades and drive motors do not engage until the right
control lever is positioned to the left. Perform procedure before operating machinery daily!
Starting your mower:
1. With key inserted, turn Master Power Ignition Switch on by rotating key
clockwise to the On position.
2. Check for the appropriate speed mode by turning Drive Speed Control Knob counterclockwise
to SLOW speed. (If applicable on certain models)
NOTE: It is always recommended to start out in low mode/ slow speed.
3. Pull Right Control Lever inward to activate drive system.
4. Pull up on Deck Blades On/Off Switch to start cutting blades for mowing.
NOTE: ONLY engage blades when Drive Control Levers are in the NEUTRAL position!
NEVER engage blades when moving!!
5. Push Drive Control Levers Forward for forward motion and pull rearward for
reverse motion. Electric Brake will engage 1.5 seconds after Drive Control Levers are returned
to neutral.
13
IMPORTANT
READ!
IMPORTANT
READ!
