Meech A70025EX User manual

1
EX Cabinet Cooler
Operating
Manual

3
Products shown in this document may be covered by one or more patents, patents applied for
and/or registered designs and/or trade marks. For further information please refer to our Head
Ofce or visit www.meech.com.
© Meech Static Eliminators Ltd.
Contents
Section Page
1. Introduction 5
2. Safety and Inspection 6
3. Maintenance 7
4. Compressed Air Supply 9
5. Compressed Air Line Sizes 10
6. Installation 14
7. Operation 17
8. Solenoid Valve and Thermostat (Cabinet Cooler System Only) 20
9. Approvals 22
10. Troubleshooting 23

5
1. Introduction
The Meech Air Technology Cabinet Cooler (product code: A70025EX) uses
compressed air to provide a cold air source which stops industrial cabinet/panels
or enclosures overheating and prevents ingress of contamination such as dust or
moisture.
The EX Cabinet Cooler Unit (excluding Solenoid Valve and Thermostat) is intrinsically
safe, and requires virtually no maintenance. They have no moving parts making them
ideal for harsh environments.
Ex Cabinet Coolers can be used with electrical thermostats or solenoids but they need
to be positioned outside the hazardous area.

6
2. Safety and Inspection
Meech Cabinet Coolers are packed carefully at our factory. Nevertheless, we
recommend careful examination of the carton and contents for any damage.
To protect yourself and others when using compressed air, you should be aware of the
following general safety guidelines:
Warning – When compressed air is misused, it can cause serious injury or
even death.
Never point an air hose at anyone in fun or to remove dirt from clothing or the
body.
Never use compressed air without adequate eye and ear protection. Use
safety glasses with side shields or goggles and ear protectors.
Before attempting to disconnect a hose from an air line, the air should be cut
off, and the remaining air bled from the line.
Keep air hoses off the oor where they become tripping hazards and are
subject to damage by vehicles, doors, and dropped tools. If possible, suspend air
hoses from overhead.
Please be aware of the following safety guidelines specic to the Cabinet Cooler:
Cabinet Coolers create both hot and cold air so parts of the unit will become hot.
The user shall ensure that the certication of any enclosure onto which this is
installed, is not compromised by the installation or operation of this device.
The equipment shall be suitably earthed (grounded) prior to operation. Earth
continuity shall be maintained between the equipment and the enclosure to which
it is installed on.
Inlet pressure shall not exceed 5.5 Bar (80 PSI).

7
Inlet air temperature shall not exceed 55°C.
The Meech Cabinet Cooler has the following IECEx certication:
Ex h IIC T4 Gb Ta -10°C to +55°C
All other parts of the Cabinet Cooler System including the Solenoid Valve and
Thermostat must be installed outside the hazardous area.
The cold fraction adjustment valve must not be altered and remain at 2.5 turns
open.
Ambient operating temperature must not exceed 55°C
Ambient operating temperature can not drop lower than -10°C
3. Maintenance
The Meech Cabinet Cooler has no moving parts. Clean compressed air moving
through the Cabinet Cooler will not cause wear on any of the components.
Occasionally, dirt, water or oil may enter the cooler from the compressed air supply.
This could hinder the performance. If this happens simply take the unit apart, clean
the parts with soapy water, allow drying time and then reassemble.
When reassembling ensure you tighten all the components. If the parts are not
tightened correctly, the coolers performance may be affected. Also, please ensure the
generator is tted. At the same time the element in the air lter should be changed.

8

1 1
2 2
3 3
4 4
5 5
6 6
A A B B
C C D D
David.Hyde
22/08/2016
Drawn by:Date:
1 / 2

Sheet
Meech Internatio nal 2 Network Point Range Road, Witne y OX29 0YN, UK Tel: [phone] Fax: [phone] email: sales@meec h.com web: www.meec h.com
COPYRIGHT © MEECH ST ATIC ELIMINAT ORS THIS DOCUMENT AND THE INFORMATION THERE IN IS THE PROPE RTY OF THE ME ECH GROUP AND SHOULD NOT BE COPIED IN WHOLE OR PART OR USED FOR MANUFACTURE OR OTHERWISE DISCLOSED WITHOUT THE PRIOR WRITTEN CONSENT OF MEECH INTERNATIONAL
MATERIAL: FINISH: TOLERANCE UNLESS OTHERWISE SPECIFIED Machined Work Metric ±0.1mm Unmachined Fabrications ±1mm Angular ±0°30'
PROJECTION
DIMENSIO NS IN MM DO NOT SCALE
TITLE: DRAWING No: REVISION: SHEET:

STATUS:
CRITICAL TO FUNCTION (CTF) DIMENSION S AS MARKED
SIGNED OFF:
 

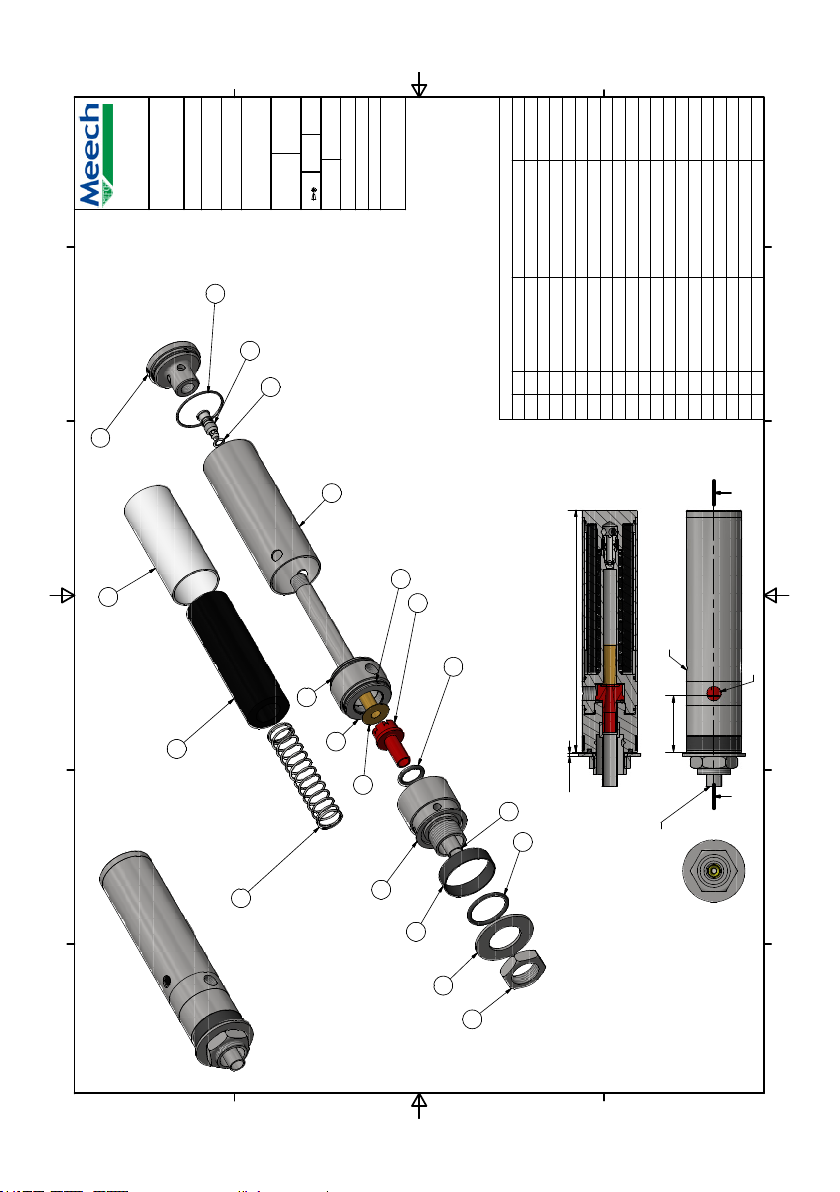

PARTS LIST
MATERIAL
DESCRIPTION
PART NUMBER
QTY
ITEM
BrassBrass SleeveD5038011 Stainless SteelBulk Head Fitting InsertD5038112 Stainless Steel
Bulkhead Fitting
D5003213
SteelSilencer SpringD5008814 Nitrile
O Ring 17 x 3
D5007515
Zytel 101GeneratorMultiple See Page 2 16 NitrileO Ring 3/8 x 1/4D5007617 Nitrile
O Ring 38 x 1.6D5007438
Stainless SteelSmall Hot End ValveD5008319 Nitrile
Relief Valve
D50035110
Stainless SteelSpin Chamber
D50383111
Stainless SteelHot End CapD50056112 NitrileO Ring 30 x 3D50034 113 Stainless Steel
Bulk Head WasherD50036114
Stainless SteelBulkhead Nut 33mmD50033115 Stainless SteelHot End Sleeve
D50061116
PVCEnd CapD50081117 PlasticPlastic InsertD50094118 Foam
Silencer FoamD50040119
Cabinet Cooler
4
14
15
10
13
3
6
5
1
11
8
19
16
18
9
12
7
2
45,24 [1,78]
194,4 [7,65]
2,4 [0,09]
Cold Air Outlet
Hot Air Outlet
Compressed Air Inlet
8
8
Cabinet Cooler Assembly
C000015
Various
Various

9
4. Compressed Air Supply
It is recommended to use a 5-micron (or smaller) lter to remove water and dirt from
the compressed air supply. A 5-micron lter will remove 99% of foreign material from
the air supply; the use of an oil lter with an effective ltration of 0.01 ppm will remove
the oil droplets for an even cleaner compressed air supply.
If this is not EX certied it will need to be installed outside the hazardous area.
Failure to use a lter may cause clogging and freezing of the compressed air line and
the components within the Cabinet Cooler.
When the temperature of the compressed air within the Cabinet Cooler reaches 0°C
the water vapour in the air will start to freeze. This could potentially cause a problem
with ice clogging the orices of the Cabinet Cooler.
In this instance an air dryer must be used to lower the dew point and keep water
vapour out of the air line. A dryer rated at -19°C will produce a dew point low enough
to eliminate the water vapour freezing.

10
5. Compressed Air Lines Sizes
Figuring the correct pipe size for your compressed air system is an important task.
Pipe that is sized too small can create big pressure losses and reduce operating
efciency.
Many people who plan the piping never consider the ttings or the future.
FITTINGS: Every pipe tting creates a certain amount of increased frictional air loss
that is equal to a specied length of pipe. Any turns in the pipe at ttings, ells, tees,
and valves increase pressure drops even more.
FUTURE: Are you planning to add more equipment in the next year or two? Then
plan for larger piping now. Since the material costs in piping are low compared to
installation or replacement cost, it’s wise to select pipe of an adequate size. If there
is any doubt that a pipe size may create a pressure drop, use the next largest size.
Remember that an oversize pipe compensates for possible scale build-up and
provides for future expansion of the overall air system.
Steps to calculating overall piping size for your compressed
air system:
1. Determine your air compressor’s maximum CFM.
2. Draw a piping schematic and show all pipe ttings, valves, etc.
3. Measure and write the corresponding lengths of pipe on your schematic, then
total the length of all straight pipes needed and note that on your schematic.
4. Using TABLE 1 (over page), nd your compressor’s CFM number on the far left
column, and then go to the right until you see the column header with nearest
length in feet to your total pipe length. Find where the CFM & PIPE LENGTH
intersect on the chart and it will show the recommended pipe size for that length.
5. Take that pipe size to TABLE 2 and use the table to nd all the EQUIVELENT

11
LENGTHS OF PIPE needed for each PIPE FITTING. Write these lengths on
your piping schematic at each tting.
6. TOTAL all the EQUIVELENT LENGTHS OF PIPE needed for each PIPE FITTING
and add to your total of straight length of pipe. This will give you a new and more
accurate total pipe length needed.
7. Take your new total of EQUIVELENT LENGTH OF PIPE IN FEET back to TABLE
1 and use this number to determine the PIPE SIZE you need.
Specic Cabinet Cooler Pipe Size
To obtain maximum performance from the Cabinet Cooler, accurate measures of air
pressure and air volume must be obtained. Line pressure of 70-80 psi (5-5.5 Bar) can
be present without a sufcient volume (cfm) of air.
To ensure that both pressure and volume are present to efciently operate the Cabinet
Cooler a line size of 3/8” pipe or ½” hose should be used for applications 10ft from the
main header. Use ½” pipe or ¾” hose up to 20ft. For pipe size over 20ft from he header
please refer to section 5.

12
How to determine what size of PIPE you need for
compressed air lines:
TABLE 1: EQUIVALENT LENGTH OF PIPE LINES IN FEET
Don’t forget to include *PIPE FITTINGS in your final calculations
Your Air
Compressor’s
CFM 25
feet
50
feet
75
feet 100 feet 150 feet 200 feet 250 feet 300 feet
1 ½ ½ ½ ½ ½ ½ ½ ½
2 ½ ½ ½ ½ ½ ½ ½ ½
3 ½ ½ ½ ½ ½ ½ ½ ½
5 ½ ½ ½ ½ ½ ½ ½ ½
10 ½ ½ ½ ¾ ¾ ¾ ¾ ¾
15 ½ ¾ ¾ ¾ ¾ ¾ ¾ ¾
20 ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾
25 ¾ ¾ ¾ ¾ ¾ 1 1 1
30 ¾ ¾ ¾ ¾ 1 1 1 1
35 ¾ ¾ 1 1 1 1 1 1
40 ¾ 1 1 1 1 1 1 1
50 1 1 1 1 1 1 1 1
60 1 1 1 1 1 - 1/4 1 - 1/4 1 - 1/4 1 - 1/4
70 1 1 1 1 1 - 1/4 1 - 1/4 1 - 1/4 1 - 1/4
80 1 - 1/4 1 - 1/4 1 - 1/4 1 - 1/4 1 - 1/2 1 - 1/2 1 - 1/2 1 - 1/2
100 1 - 1/4 1 - 1/4 1 - 1/4 1 - 1/4 1 - 1/2 1 - 1/2 1 - 1/2 1 - 1/2
125 1 - 1/4 1 - 1/4 1 - 1/4 1 - 1/4 1 - 1/2 1 - 1/2 1 - 1/2 1 - 1/2
150 1 - 1/4 1 - 1/4 1 - 1/4 1 - 1/4 1 - 1/2 1 - 1/2 1 - 1/2 1 - 1/2
175 1 - 1/2 1 - 1/2 1 - 1/2 1 - 1/2 2 2 2 2
200 1 - 1/2 1 - 1/2 1 - 1/2 1 - 1/2 2 2 2 2
225 1 - 1/2 1 - 1/2 1 - 1/2 1 - 1/2 2 2 2 2
250 2 2 2 2 2 2 2 2
275 2 2 2 2 2 2 2 - 1/2 2 - 1/2
300 2 2 2 2 2 2 2 - 1/2 2 - 1/2
350 2 2 2 2 2 - 1/2 2 - 1/2 2 - 1/2 2 - 1/2
400 2 2 2 2 2 - 1/2 2 - 1/2 2 - 1/2 2 - 1/2
450 2 - 1/2 2 - 1/2 2 - 1/2 2 - 1/2 2 - 1/2 2 - 1/2 3 3
500 2 - 1/2 2 - 1/2 2 - 1/2 2 - 1/2 2 - 1/2 2 - 1/2 3 3
550 2 - 1/2 2 - 1/2 2 - 1/2 2 - 1/2 3 3 3 3
600 2 - 1/2 2 - 1/2 2 - 1/2 2 - 1/2 3 3 3 3
750 2 - 1/2 2 - 1/2 2 - 1/2 3 3 3 3 4
1000 3 3 3 3 3 3 4 4
TABLE 2: * EQUIVALENT LENGTH OF PIPE (FT.) for PIPE FITTINGS
Add these numbers for each pipe fitting to total length of straight pipe
Pipe
Size
Long Rad, Ell or
run of tee
STD. Ell or Run of
reduced tee
Tee Thru
side outlet Globe Valve Gate Valve
½ 0.62 1.55 3.1 17.3 0.36
¾ 0.82 2.06 4.12 22.9 0.48
1 1.05 2.62 5.24 29.1 0.61
1 - 1/4 1.38 3.45 6.9 38.3 0.81
1 - 1/2 1.61 4.02 8.04 44.7 0.94
2 2.07 5.17 10.3 57.4 1.21
2 - 1/2 2.47 6.16 12.3 68.5 1.44
3 3.07 6.16 15.3 85.2 1.79
4 4.03 7.67 20.2 112 2.35

13
6. Installation
The Meech Cabinet Cooler is suitable for category 1 (zone 1) T4 applications where
ATEX and/or IECEx certication is required.
All other parts of the Cabinet Cooler System including the Solenoid Valve and
Thermostat must be installed outside the hazardous area.
The drawing below shows the recommended way to t Meech EX Cabinet Cooler.
To t the Cabinet Cooler follow the steps below:
A. Drill Hole
Drill 1.02” (26 mm) hole in the position you would like to t the Cabinet Cooler.
Please be aware that 200mm of the Cabinet Cooler will extend from the outside of
the enclosure so allow clearance.

14
It’s recommended that the Cabinet Cooler is installed in the top of the enclosure.
However, if space is an issue the Cabinet Cooler can be installed in any position, even
upside down, with no loss of performance.

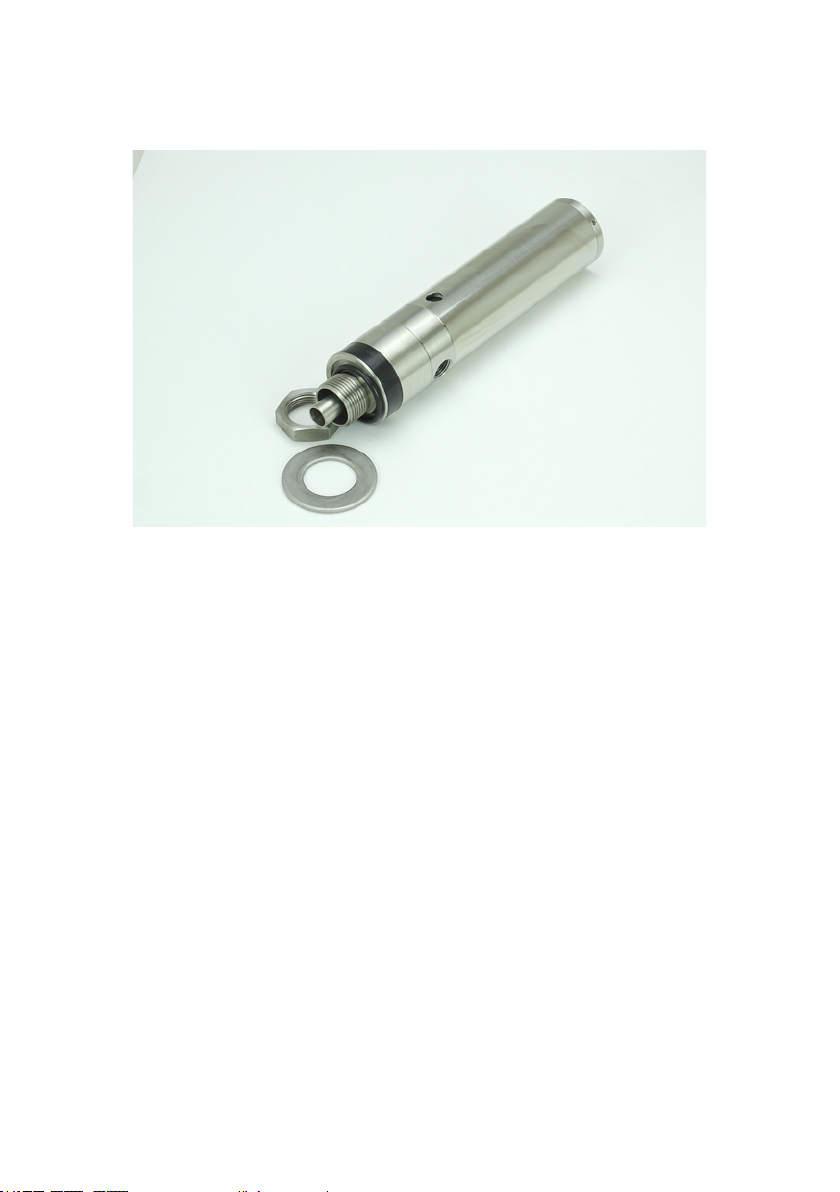

B. Remove bulk head nut & washer from the bottom of the
Cabinet Cooler
C. Fit desired generator
As standard the Cabinet Cooler is supplied with a red (Refrig) 15cfm, 293W (1000
Btu/hr) generator. To change the generator simply unscrew the bulk head tting and
replace the generator with another colour. Please remember to re-t the o-ring and
screw bulk head tting until tight.
Four generators are provided with the Meech Cabinet Cooler. Information on all
generators and sizing can be found in section 7.

15
D. Fit Cabinet Cooler in place
From outside the enclosure, place the cold end of the Cabinet Cooler into the drilled
hole.
E. Re-t bulk head nut and washer
Once this is done tighten bulk head nut & washer until the Cabinet Cooler is secure.
F. Connect cold air ducting to the end.
It’s recommended that the cold air ducting is directed from the cabinet cooler to the
bottom of the enclosure. This will allow for increased cooling throughout the cabinet/
panel. This will also avoid any excess water vapour in the compressed air being blown
over components.
If the air is clean and dry the cold air ducting can be directed to particularly hot areas
of the enclosure. Alternatively you can drill holes in the cold air ducting and allow air to
be distributed to several areas. If you choose this method you will need to plug the end
of the cold air ducting and ensure the holes drilled into the tube are equal to the hole at
the end.
Where necessary please t appropriate lters.
G. Connect air supply
The Cabinet Cooler has a ¼” bsp female air inlet. Standard pneumatic push-t
compressed air ttings can be used on the Cabinet Cooler.
Please refer to section 5 when deciding on pipe sizes.

16
7. Operation
1. Cabinet Cooler
The Cabinet Cooler is factory set to deliver the most efcient cooling needed to
maintain a desired temperature inside an enclosure.
At 80psi (5.5 Bar), 10cfm (70% of 15 cfm, red generator) of cold air will exit from the
Cabinet Cooler providing 293 Watts (1,000 Btu) of Cooling.
The bladder valve acts as a pressure relief valve. This will automatically release air
from the enclosure maintaining approximately 8” water column (0.0199 Bar) positive
pressure inside the cabinet/panel.
2. Generators
The generators within the Cabinet Cooler control the air consumption and air ow. They
also inuence the achievable temperatures.
The chart below shows achievable temperatures with different generators tted.
Please note these are approximate temperatures and should only be used as a guide.
The Cabinet Cooler will perform differently when used in other environments.
Inlet air pressure
Product
Code
Generator
Colour
Consumption in
CFM (l/min)
60 PSI (4.1 Bar) 80 PSI (5.5 Bar)
CFM at test 2.5 turns of
needle valve
CFM at test 2.5 turns of
needle valve
cfm (l/min) °C cfm (l/min) °C
A21010 Green 10L (283) 15 (425) -26.9 19 (538) -35.5
A20010 Yellow 10H (283) 13 (368) -27.2 18 (510) -35.0
A21015 15L (425) 17 (481) -29.8 22 (623) -34.2
A20015 Red 15H (425) 16 (453) -28.3 21 (595) -32.9
A21025 Grey 25L (708) 23 (651) -23.3 28 (793) -23.7
A20025 Blue 25H (708) 23 (651) -19.0 30 (849) -23.4
A21035 Beige 35L (991) 27 (765) -16.7 34 (963) -16.5
A20035 Brown 35H (991) 30 (849) -15.8 36 (1019) -18.6

17

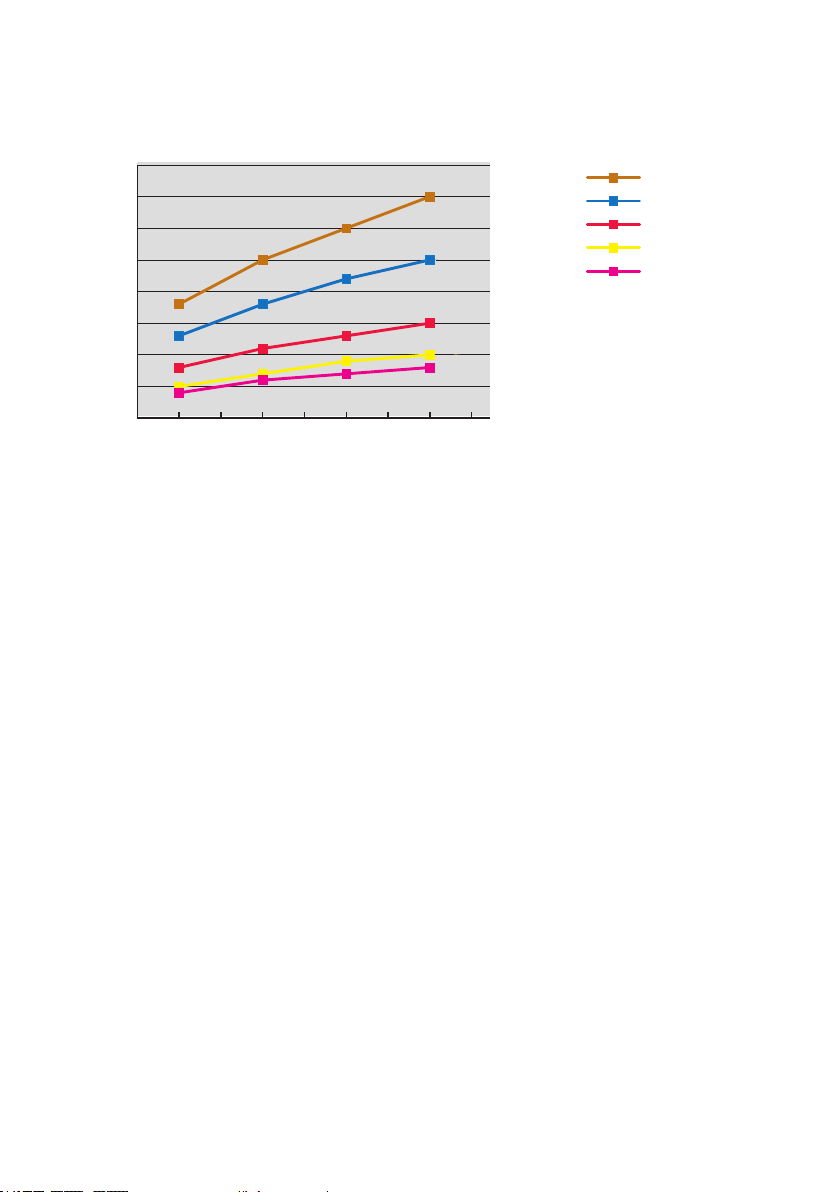

The graph below shows air consumption at varying inlet air pressures.
Inlet Air Pressure (psi)
Air Consumption (cfm)
0
5
10
15
20
25
30
35
40
A20035, A24036
A20025, A24026
A20015, A24016
A20010, A24011
A20008, A21008
10080604020
4 x High fraction generators are supplied as standard:
Yellow 10cfm (283 l/min) - Cooling capacity of 190W (650 Btu/hr)
Red 15cfm (425 l/min) – Cooling capacity of 293W (1000 Btu/hr)
Blue 25cfm (708 l/min) – Cooling capacity of 499W (1,700 Btu/hr)
Brown 35cfm (991 l/min) – Cooling capacity of 703W (2,400 Btu/hr)
A single Meech Cabinet Cooler is capable of cooling up to 703 Watts (2,400 Btu/hr).
Optimising the cooling capacity is still a vitally important factor, choosing the correct
generator will not only reduce running costs but also extend the life of the compressor.
To choose the most efcient generator you must calculate the total heat load in Watts
Btu/hr to which the enclosure is exposed. The total heat load is a combination of
the heat transfer from outside due to ambient air temperature and the heat which is
created internally.
For more information on calculating test loads refer to the Meech Air Technology
brochure, available to download from www.meech.com.

18
3. Humidity
If a cabinet cooler is run constantly relative humidity inside the cabinet stabilises at
approximately 45%.
To prevent condensation forming on the cold air pipe close off any vents or fan outlets
on the outside wall of the enclosure. This reduces the ambient air from circulating
within the cabinet/panel and reduces the chance of condensation.
Fans can be installed into the enclosure which will help to circulate air.
9. Approvals
The Meech Cabinet Cooler is IP56 (Nema 4/12)
Meech International Ltd
Witney, Oxon, OX290YN, UK
tel:[phone]; Fax:[phone]
e-mail:[email protected]; web:www.meech.com
Cabinet Cooler Ex
dims 85 x 25mm
Cool Gray 1
Temp Class T4(135
o
C); T amb -10
o
C to +55
o
C
Model: Cabinet Cooler Ex
1180
Ex h IIC T4 Gb II 2G
Baseefa16ATEX0042X
IECEx BAS 16.0087X
A Declaration of manufacture is available on request.

19
10. Troubleshooting
Air ow
Problems with compressed air ow can be caused by:
1. Air pressure too low – increase air pressure at the relevant regulator
2. Undersized compressed air lines – replace pipes with correct sizes, see
section 5
3. Blocked compressed air line – remove blockage
4. Insufcient compressor size – Check compressor size for tting Cabinet
Cooler
Air Temperature
Problems with air temperature can be caused by:
1. Incorrect generator tted – Check and replace generator, see section 7
2. Ambient compressed air temperature too high – Check compressed air
temperature and use cooler if necessary
3. Loose/missing parts – Check all Cabinet Cooler parts are screwed in tightly
and there are no missing parts.
4. Water vapour in the compressed air supply – Check compressed air supply
5. Air pressure too low – increase air pressure at the relevant regulator

20
www.meech.com
© Meech Static Eliminators Ltd 2016
Meech International (UK)
2 Network Point
Range Road, Witney
OX29 0YN, UK
Tel: [phone]
Fax: [phone]
email: [email protected]
Meech CE
Gábor László utca 2
Budapest 1041
Hungary
Tel: [phone]
[phone]
email: [email protected]
Meech Static Eliminators USA Inc
2915 Newpark Drive
Norton, OH 44203
USA
Tel: [phone]
Fax: [phone]
email: [email protected]
Meech Static Eliminators
(Shanghai) Co. Ltd
7G, 7F, LP Tower
#25 Xiangfeng Road
201103 Shanghai
China
Tel: [phone]
Fax: [phone]
email: [email protected]
Meech Elektrostatik SA
Kaiserbaracke 166
B-4780 St.Vith
Belgium
Tel: [phone]
Fax: [phone]
email: [email protected]
Meech Shavotech
Shavo House, Survey No.21A / 10 B, Plot No.394
South Main Road, Koregaon Park,
PUNE 411 001
India
Tel: [phone],
Fax: [phone]
e-mail: [email protected]
