User Manual for MZ3-4CHAHD
User Manual For
Menzel MVSS
MZ3-4CHAHD
(MDVR)
Mobile Digital Video Recorder
Copyright  2018 Menzel MVSS All Rights Reserved

For more information, please visit our website www.menzel-mvss.com
P a g e 2 | 20
User Manual for MZ3-4CHAHD
Notice
The information in this manual was current when published. The manufacturer
reserves the right to revise and improve its products. All specifications are therefore
subject to change without any notice.
The purpose of this manual is to kindly aid the user for the operation for our MDVR.
The user should have a basic understanding of computer operation and basic
knowledge of how to connect peripherals and make some settings.
Copyright
Under copyright laws, the content of this manual may not be copied, photocopied,
reproduced, translated or reduced to any electronic medium or machine- readable
form, in whole or in part, without prior written consent of Menzel MVSS (Copyright
2018)

For more information, please visit our website www.menzel-mvss.com
P a g e 3 | 20
User Manual for MZ3-4CHAHD
Guarantee & Warnings
1) Electrical Apparatus Safety
All installation and operation should comply with local electrical safety norms.
2) Transportation
In the process of transportation, storage and installation, please avoid heavy
stress, violent vibration, impact and water splashing.
3) Installation
Install the equipment in accordance with the requirements, handle carefully. Do
not heavily press the equipment before the MDVR installation is finished.
4) Requirements on Engineers & Technicians
All the work of checking and maintenance should be done by qualified
technicians and engineers. We do not undertake any responsibility caused by
unauthorized modifications.
5) Requirements on Environment
The equipment should be installed and stored in a cool and dry place, away from
direct sunlight, flammable or explosive substances, etc. Keep gaps not less than
3cm around the device to facilitate ventilation for cooling.
6) Accessories
Make sure to use accessories from the manufacturer
recommended in the attachment. Insulate circuit ground and metal
shell for all the peripherals.
Before installation, please open the package and ensure that all
parts are included. If there are any problems, please contact us
as soon as possible.

For more information, please visit our website www.menzel-mvss.com
P a g e 4 | 20
User Manual for MZ3-4CHAHD
1.Product characteristics
1.1. Overview
MZ3-4CHAHD is a functional Mobile Digital Video Recorder specially designed for
vehicle video surveillance and remote monitoring. It has a high-speed processor and
embedded operating system, combining with the most advanced H.264 video
compression / decompression technology, 3G/4G network, GPS positioning technology,
as well as WIFI. It supports not only video recording in 1080P, 720P, AHD, WD1, WHD1,
WCIF, D1, HD1 and CIF formats, but also vehicle travel information recording and
wireless data upload. With center software, it also achieves alarm linkage central
monitoring, remote management and playback analysis. It is easy to use with simple
design, with anti-vibration ability, anti-electromagnetic interference, radiation, flexible and
convenient installation, hard disk storage, SD card backup design and high reliability.

For more information, please visit our website www.menzel-mvss.com
P a g e 5 | 20
User Manual for MZ3-4CHAHD
1.2. Specifications
Function Overview
Preview, Recording, Playback, Network, Locating
System
OS
Linux 3.0.8
Control Mode
Easy Check, network, CP4, mouse (3G/4G/WIFI)
Video
Input
4 channels AHD + 1 channel IPC
Output
1 channel
Total Resource
PAL:
(4x25)FPS 720P(AHD)+1080P@30FPS(IPC)
Or (4x12)FPS 1080P(AHD)+1080P@30FPS(IPC)
NTSC:
(4x30)FPS 720P(AHD)+1080P@30FPS(IPC)
or(4x15)FPS 1080P(AHD)+1080P@30FPS(IPC)
Video Signal Standard
Electrical level: 1Vpp Impedance: 75Ω
NTSC/PAL Optional
UTC
Support setting AHD camera OSD
Audio
Input
5 channels (1 channel IPC audio input)
Output
1 channel
Audio Signal Standard
Electrical level: 2Vpp Input impedance: 4.7kΩ
Display
Display Split
1/4/9
OSD
Channel No., GPS Location, Alarm, Vehicle No,
Speed, Date/Time
Operation Interface
Semi-transparent GUI
Recording
Video/Audio Compression
Video: H.264
Audio: ADPCM (G.711A, G.711U optional)

For more information, please visit our website www.menzel-mvss.com
P a g e 6 | 20
User Manual for MZ3-4CHAHD
Recording
Image Resolution
PAL:
1080P,720P,WD1(928X576),WHD1(928X288),
WCIF(464X288),D1(704X576),HD1(704x288),
CIF(352x288);
NTSC:
1080P,720P,WD1(928X480),WHD1(928X240),
WCIF(464X240),D1(704x480),HD1(704x240),
CIF(352x240);
Digital:
1080P(1920X1080),720P(1280X720)
Image Quality
1-8 levels adjustable (1 is the best)
Recording Mode
Boot up/Manual/Schedule/Alarm
Pre-recording
0-60minutes
Post-recording
0-30 minutes
Mirror/Dual Recording
Support
Playback
Playback Channel
1 channel by local playback
Search Mode
Date/time, channel, event
Network
3G/4G optional
EVDO/WCDMA/TDD-LTE/FDD-LTE
Wi-Fi
802.11b/g/n
Network connection
Wi-Fi/3G/4G optional
IPC Ethernet
6-pin M12(10/100M x 1, PON power supply)
Locating
GPS
Location tracking, Speed detection and Time
sync
Storage
HDD
2.5" SATA hard disk x 1 / SSD
SD Card
1 x SD (Max. 256G)
Interface
USB
1 x USB2.0(Type A)+ 1 x USB2.0(Type B)
SIM
SIM slot x 1
RS232
RS232 x 2
RS485
RS485 x 2

For more information, please visit our website www.menzel-mvss.com
P a g e 7 | 20
User Manual for MZ3-4CHAHD
Interface
Sensor
8 inputs, 2 outputs
Speed
1 channel pulse speed detection
Control panel
CP4 optional
Inter communication
I MIC interface
Power
Input
DC8-36V, ACC
Output
5V@500mA, 12V@500mA
Max Power Consumption
30W
Standby Power
Consumption
≈0W
Physical
Characteristic
Dimension (L × W × H)
255.3 x 150 x 89.1mm
Weight
2.0 KG
Environment
Operating Temperature
-10℃~ +70℃；-40℃~ +70℃( with heater)
Operating Relative
Humidity
8%-90%(No Condense)

For more information, please visit our website www.menzel-mvss.com
P a g e 8 | 20
User Manual for MZ3-4CHAHD
1.3. External interface

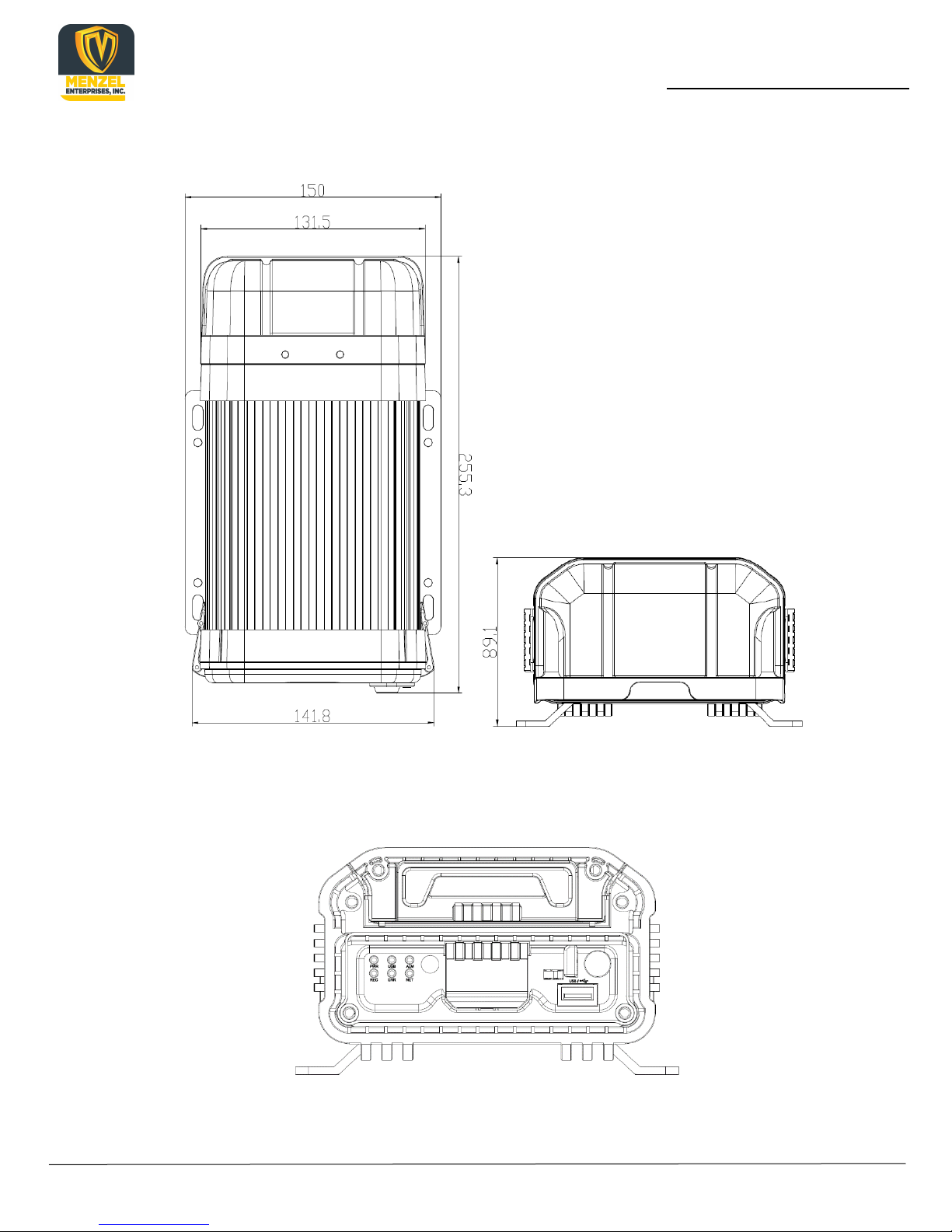

Dimension (Unit: mm)
Front panel

For more information, please visit our website www.menzel-mvss.com
P a g e 9 | 20
User Manual for MZ3-4CHAHD
Rear panel
Serial No.
Print
Description
1
A/V IN1~4
Audio & Video Input 1-4
2
IPC
IPC A/V input
3
USB
USB 2.0 interface
4
3G/4G/Antenna interface
5
GPS Antenna interface
6
x2
Wi-Fi Antenna interface
7
Serial
Serial interface
8
Sensor
Sensor interface
9
Panel
Control panel (CP4) interface
10
Power
DC 8-36 V power input

For more information, please visit our website www.menzel-mvss.com
P a g e 10 | 20
User Manual for MZ3-4CHAHD

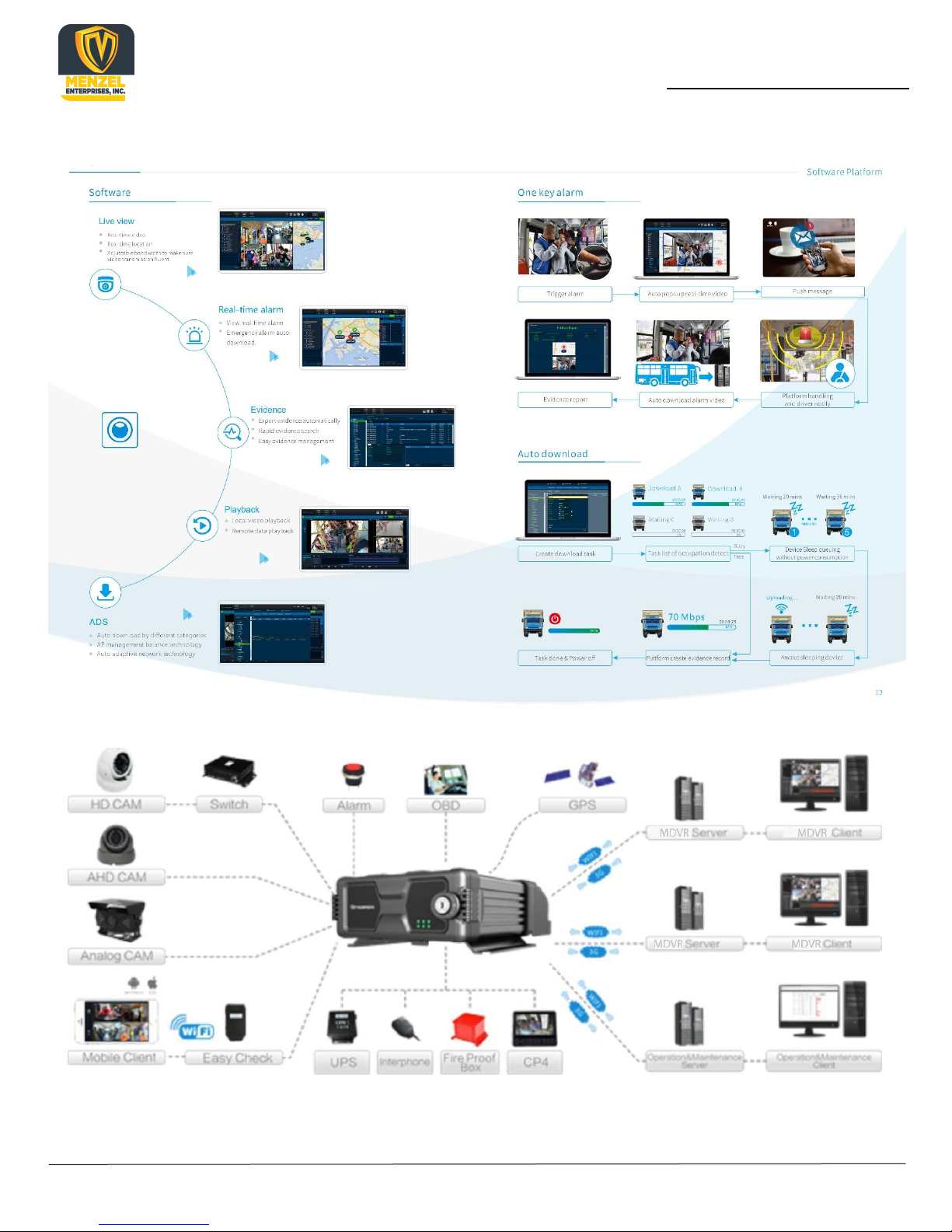

1.4. System diagram

For more information, please visit our website www.menzel-mvss.com
P a g e 11 | 20
User Manual for MZ3-4CHAHD
1.5. Hard disk installation

For more information, please visit our website www.menzel-mvss.com
P a g e 12 | 20
User Manual for MZ3-4CHAHD
1.6. Definition and pictures of external cables
Serial port definition

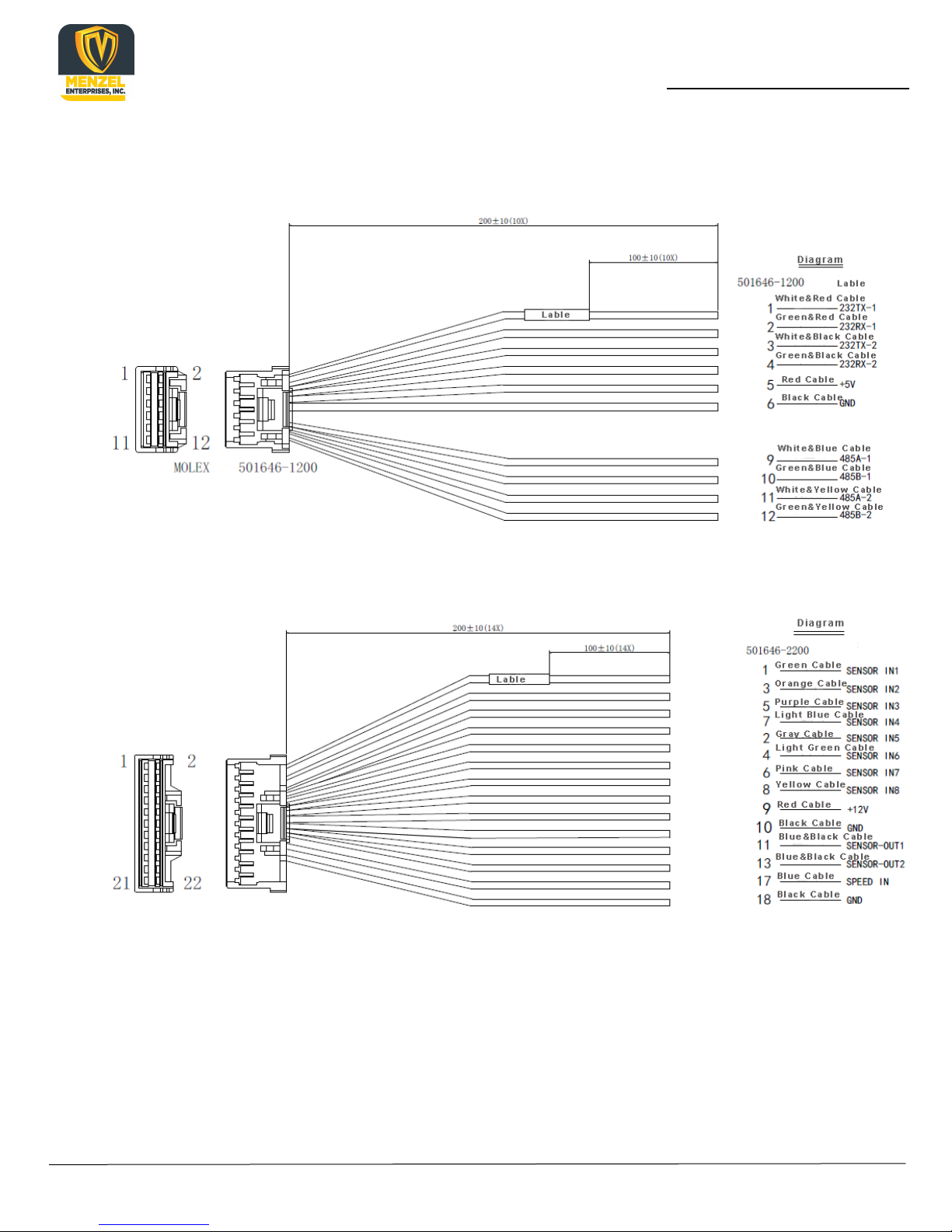

Alarm cable definition

For more information, please visit our website www.menzel-mvss.com
P a g e 13 | 20
User Manual for MZ3-4CHAHD
Standard accessories
Optional accessories
Accessories
Description
Accessories
Description
UPS
panic panel
Wi-Fi to laptop
Back up touch screen
Disk reader
A/V OUT cable
Fire proof box
(Black Box)
Serial connection box
Megaphone
Serial alarm wire
Built in 3G/4G module and
Antenna
GPS module and Antenna
Built-in WIFI module and
Antenna
PTZ Camera
Accessories
Description
Quantity
Accessories
Description
Quantity
Vehicle fuses
(7.5A and 15A)
2
MDVR key
1
9 pin aviation power
input wire
1

For more information, please visit our website www.menzel-mvss.com
P a g e 14 | 20
User Manual for MZ3-4CHAHD

For more information, please visit our website www.menzel-mvss.com
P a g e 15 | 20
User Manual for MZ3-4CHAHD

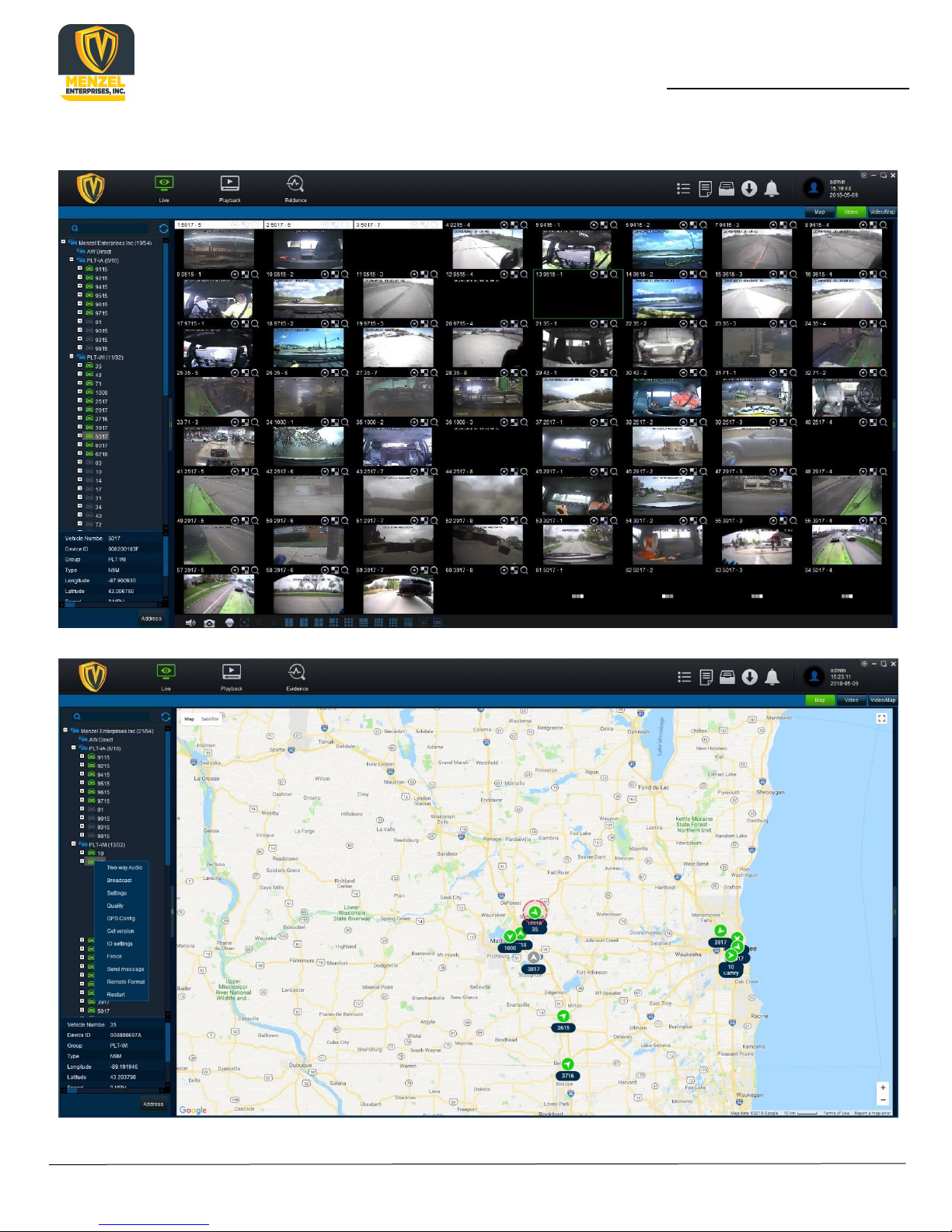

Desktop Software:

For more information, please visit our website www.menzel-mvss.com
P a g e 16 | 20
User Manual for MZ3-4CHAHD

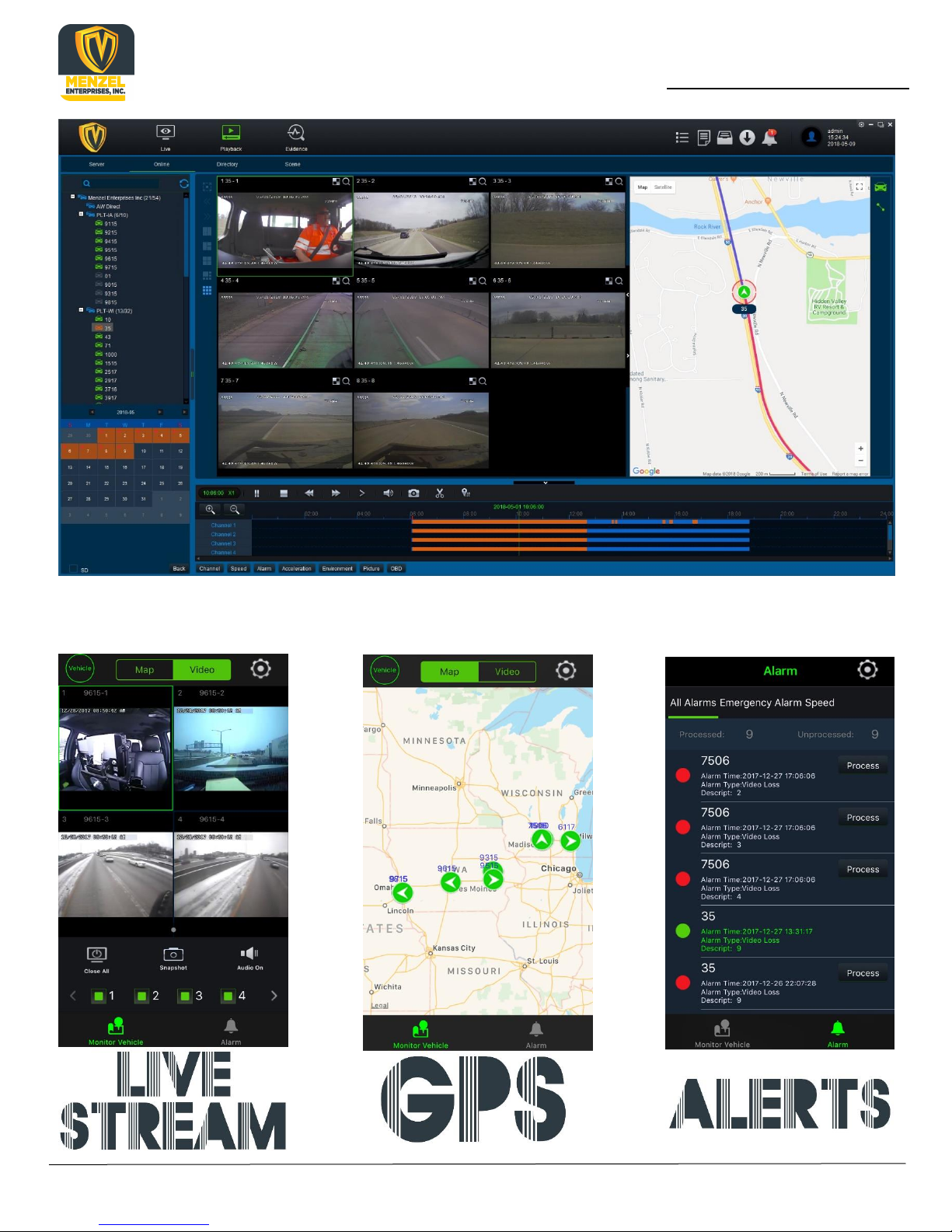

Apps IOS & Android:

For more information, please visit our website www.menzel-mvss.com
P a g e 17 | 20
User Manual for MZ3-4CHAHD
2.FAQ
1) The system can’t start?
Usually this problem results from the incorrect power connection. Please follow below steps to
check the power connection:
1. Check the input power, whether the power wire is connected correctly, whether the ground wire
is connected back to the battery, and whether the fuse on the power wire is in good condition.
2. Check whether the ACC signal wire input to the power is with voltage higher than 7 V.
3. Check whether the device key is closed.
2) The MDVR restarts uninterruptedly?
Please follow below steps to check it:
1. Check whether the voltage of MDVR is insufficient. If the voltage is less than the start-up voltage
of the device, the device would always restart.
2. The problem in hard disk/SD card may cause the failure to start. Take off the storage part and
check whether it is broken down.
3) The device can’t record?
Usually this problem results from the storage disk or camera. Please follow below steps to check it:
1. Check whether the storage disk is installed, whether it is in good contact, and whether the disk
can be read normally in computer.
2. Check whether the storage disk is formatted. The storage disk should be formatted before
normally storing record files.
3. Check whether there is video signal input into the device from camera, and whether there is
video/image on the screen.
4) There is no voice in record file?
Please follow below steps to check it:
1. Check whether there is an external pickup, or whether the camera features with the function of
audio collection.
2. Access to Video Channel Settings, check if Audio is set on.
3. There must be video input into the channel for recording and it must record normally.
5) The GPS works abnormally?
Please follow below steps to check it:
1. Check whether the GPS antenna is installed correctly. There is a silk print logo on the GPS
antenna holder behind the host device.
2. Check whether the antenna receiver is sheltered. It should not be covered by any stuff, which
may cause it not to receive signals.
3. Environmental influence such as tree shades, being inside tunnel, driving near tall building or
elevated roads, thunderstorms or other weather influence, etc. can also cause signal loss or
receiving wrong signals.
6) The device can’t shut down in ignition switch mode?
Please follow below steps to check it:
1. Check if the ACC line connection mode is correct; and check whether there is voltage on ACC
yellow line when the key is turned off.
2. If the device has been set with schedule recording, it can’t shut down if it is still during recording
time of the task table.
7) How to install the WIFI antenna?
The antenna must be installed on unobstructed place of the roof and be fixed with glue.
8) The device cannot be shut down when in ignition ON/OFF mode？
Check if the ACC signal wiring is correct and if there is voltage for ACC signal line after the
key is turned off. If you have set timing recording, and at the current time it is still in task
recording, the device may be impossible to be shut down.

For more information, please visit our website www.menzel-mvss.com
P a g e 18 | 20
User Manual for MZ3-4CHAHD
9) GPS anomaly.
Check if the GPS antenna is properly installed. There is silkscreen GPS identification on the GPS
antenna pedestal on the back of the MDVR device. Check if the antenna connector is blocked
and make sure the antenna connector not be covered by other things. Trees block, being inside
the tunnel, driving near tall buildings or viaduct, thunderstorms and other environmental effects
may also cause to receive no GPS signal or error signal.
10) No voice in video files.
See if there is an external microphone, or if the camera cannot capture audio;
Enter the video channel settings, then check if the audio is open;
Ensure video input and normal recording, on which the audio recording channels must be based.
11) The device doesn’t record.
Make sure the storage part is installed and of fine contact, the data can be read on PC, and the
storage device is not formatted.
Check if there are video signal input to the main device, and whether there are video images in
the channel pictures.
12) Why has the MDVR device always been in a state of restart?
Check whether the MDVR device voltage is insufficient. If the device voltage does not reach the
start voltage, the device will restart.
Hard disk or SD card may cause the MDVR device unable to start. You need to remove the storage
device and then boot up to verify whether it is caused by the storage device.
13) Why the MDVR device cannot start?
Check the device input power to see if the power wiring is correct, if there is ground wire connected
back to the battery, and if the fuse of the power wire is in good condition;
Check whether there is voltage (more than 7V) on power input ACC signal wire;
Check whether the hard disk key is turned off.
14) What is the log in user name and password for new device?
The default user name and password are both “admin”. The device password can be set as empty.
15) In the ON/OFF basic settings, the low voltage protection is 8V, why?
After testing, when the battery is lower than 8V, the voltage will lower down quickly. Therefore the
lowest voltage is set to be 8V. When it is lower than 8V, the MDVR device will recognize it as
external power-off and then enter shutdown state.

For more information, please visit our website www.menzel-mvss.com
P a g e 19 | 20
User Manual for MZ3-4CHAHD

For more information, please visit our website www.menzel-mvss.com
P a g e 20 | 20
User Manual for MZ3-4CHAHD
www.Menzel-MVSS.com
