Merloni Elettrodomestici
GB 2001-04-23/01 1-56
Language Issue/Edition Page
Service Manual
WASHING MACHINE 2000

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 2-56
Language Issue/Edition Page

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 3-56
Language Issue/Edition Page
Contents
1 CONTROL PANEL 5
1.1 Timer Selector 5
1.2 Timer Delay Setting 6
1.3 Buttons 10
1.4 Detergent drawer 11
2 SPECIAL PROGRAMMES 12
3 WASH CYCLE PERFORMANCE AND DURATION 13
4 PARTICULAR PHASES 14
5 BLEACH - STAIN REMOVAL BUTTON 15

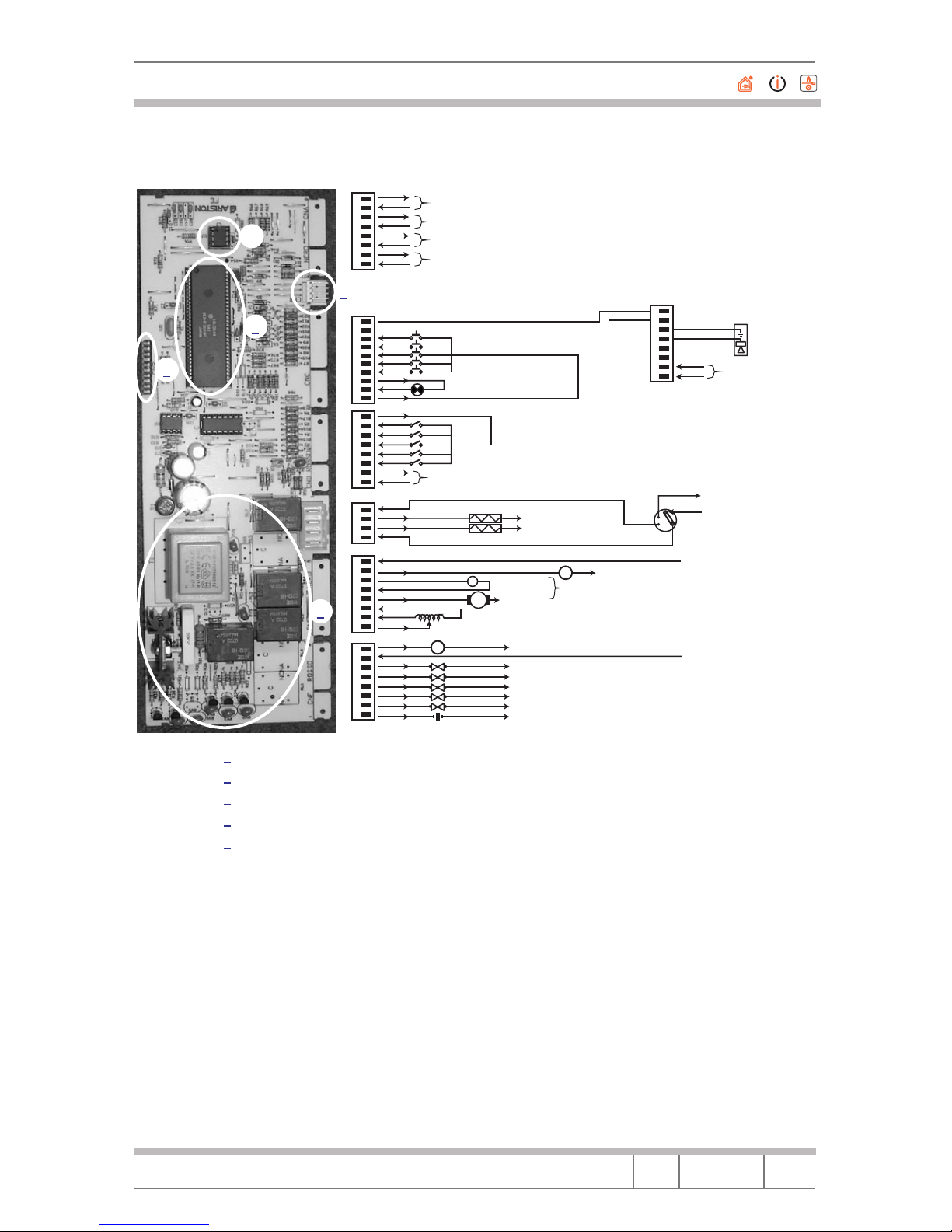

6 ELECTRONIC CARD 16

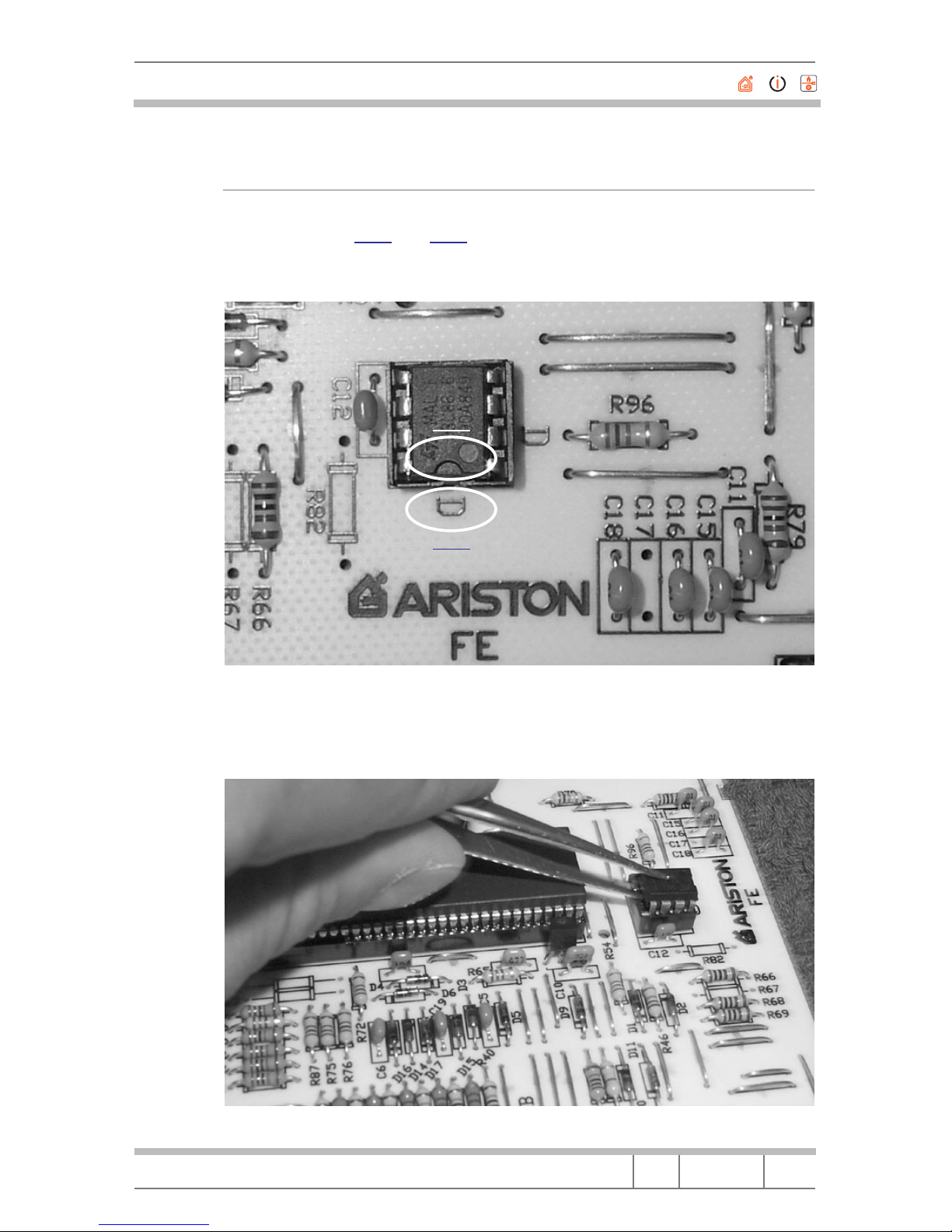

6.1 Removing the EEprom 19

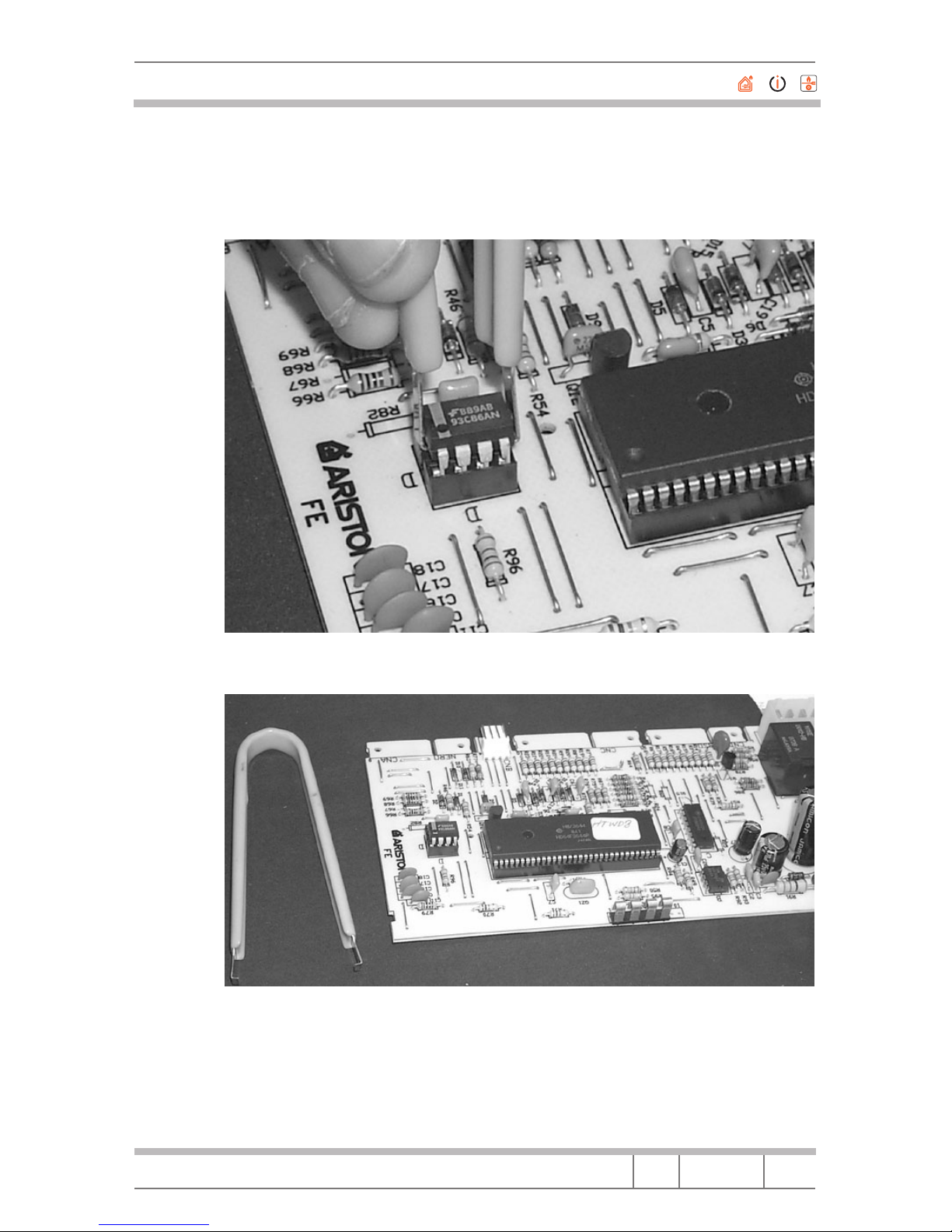

6.2 The Hardware key 21
6.3 Autotest 23
6.4 List of Faults LVB 2000 and procedures to follow to solve the problems 24
7 CONDUCTIVITY SENSOR 28

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 4-56
Language Issue/Edition Page
8 DISMANTLING AND REPLACING COMPONENTS 29
8.1 Top 29
8.2 Microdelayer 30
8.3 Control panel 32
8.4 Top Counterweight 35
8.5 Front counterweight 35
8.6 Driven Pulley 37
8.7 Engine 39
8.8 Temperature Probe 41
8.9 Programme Selector 42
8.10 Door Seal 44
8.11 Module 45
8.12 Door Handle 45
8.13 Drainage Pump 46
8.14 Shock absorbers 47
8.15 Enlarged Wash Dry 48

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 5-56
Language Issue/Edition Page
1 CONTROL PANEL

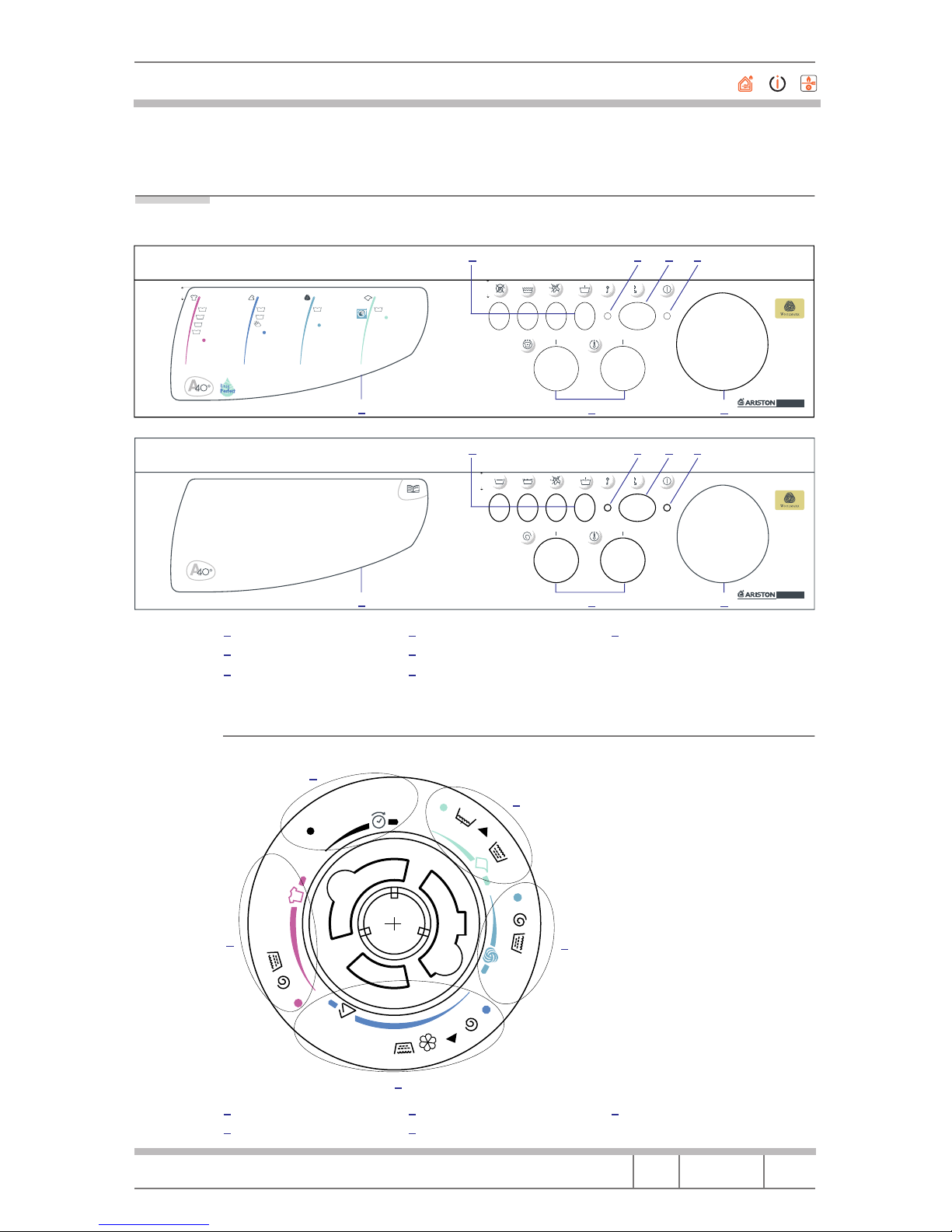

Fig. 1 Model AL68XIT Control Panel and Model AL109XIT Control Panel
1 Buttons Option 4 StandBy/O Led 7 Programme Selector
2 Door Lock Led 5 Detergent Drawer
3 ON/OFF 6 Component Knobs
1.1 Timer Selector
Fig. 2
1 Timer Delay 3 Synthetic 5 Silk/Curtains
2 Cotton 4 Wool
ON
OFF
11,3 15,40
1
2
4
COTTON
5
6
7
WOOL-CACHE IRESYNTHETIC
89
60˚
40˚
energy
normal
delicate coloured
stop/reset
energy
delicate
daily 300‘
60˚
40˚
40˚
40˚ 30˚ extra delicate
stop/reset
stop/reset
3
40° class A
SILK-CURTAIN
hand
wash
stop/reset
AL68X
ARGHERITA 2000
90˚
digital
5
1
6 7
2 3 4
ON
OFF
AL109X
15,40 ARGHERITA 2000
digital
5
1
6 7
2 3 4
1h
1
2
3
4
5
6
7
8
9
3h
6h
12h
1
5
4
3
2

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 6-56
Language Issue/Edition Page
Led
There are three ON-StandBy led management modes:
A. StandBy mode: the user is informed when the machine is not carrying out
a programme; this flashing mode is active after stopping and resetting. The
led flashes at a frequency of about 1 Hz
B. Programme Acceptance Mode: the led flashes for about 3" at a frequency
of 10 Hz
C. ON mode: the led is always alight
Programme Setting
Normal programme setting:
• The machine starts from a StandBy position (led in mode A)
• The user selects a programme
• If the selector remains in the same position for at least 5" the machine
passes to the programme acceptance mode (led in mode B) and then to
ON (led in mode C)
• At this point the programme starts
• It does not change if the selector position is modified
• The user can stop the cycle by moving to the Reset position (marked with
a dot)
1.2 Timer Delay Setting
• The machine starts from a StandBy position (led in mode A)
• The user turns the selector to the desired delay
• If the selector remains in the same position for at least 5" the machine
passes to the delay acceptance mode (led in mode B) and then to ON (led
in mode C)
• The user selects a programme
• If the selector remains in the same position for at least 5" the machine
passes to the programme acceptance mode (led in mode B) and then to
ON (led in mode C)
• It is not changed if the selector position is modified
• The user can stop the delay count by moving to one of the Reset positions
for at least 5" (marked with a dot on the programme disc)
• When the count down is completed the machine starts its cycle and passes
to ON (led in mode C)
• It is not changed if the selector position is modified
• The user can stop the cycle by moving to one of the 5 Reset positions for
at least 5"

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 7-56
Language Issue/Edition Page
By resetting a programme the machine returns to the StandBy position (led in
mode A).
The Door Lock led is only a user feedback to know when it is possible to
open the door.
1.2.1 Wash Intensity Knob
Fig. 3
This knob allows the characteristics of the selected wash programme to be
changed. By turning it the wash becomes more intensive and the programme
duration increases (Relative symbols).
By turning it ANTICLOCKWISE the wash becomes more delicate and the cycle
duration decreases.
N.B.
Even if the power supply is interrupted the programme that has been selected re-
mains.
N.B.
It can be used only with the programmes for resistant and synthetic fabrics, ex-
cept 3 and 7 (see timer selector).
R

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 8-56
Language Issue/Edition Page
The total duration reduction specification regarding the IEC cycle is the fol-
lowing:
The time variation set with the knob is the following:
IEC cycle 60˚
In relation to the movements the knob action is the following (difference
compared to standard setting):
Location Reduction
%
130
2 20
3 17
4 13
5 10
6 6
7 3
8 0
Cycle Steps
Location Time Decrease
%
Decrease
%
Mech
(Min)
Biol
(Min)
1 94 30 73 12.2 2.7
2
106 20 50 22.5 5.0
3
111 17 41 26.6 5.9
4
116 13 32 30.6 6.8
5
121 10 24 34.2 7.6
6
126 6 15 38.3 8.5
7
130 3 741.9 9.3
8
134 0 045.0 10.0
Location Handling Procedures
ON [s] OFF [s]
1–4 +4
2 –3 +3
3 –2 +2
4 –1 +1
5 0 0
6 0 0
7 0 0
8 0 0

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 9-56
Language Issue/Edition Page
1.2.2 Temperature Adjustment Knob
Fig. 4
This knob is used to reduce the programme recommended temperature until
giving a cold wash.
1.2.3 Spin Speed Adjustment Knob
Fig. 5
This knob is used to reduce the spin speed, until reaching no spin.
max
max807060504030
80
1000
9001000 800 700 600 500 400
900

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 10-56
Language Issue/Edition Page

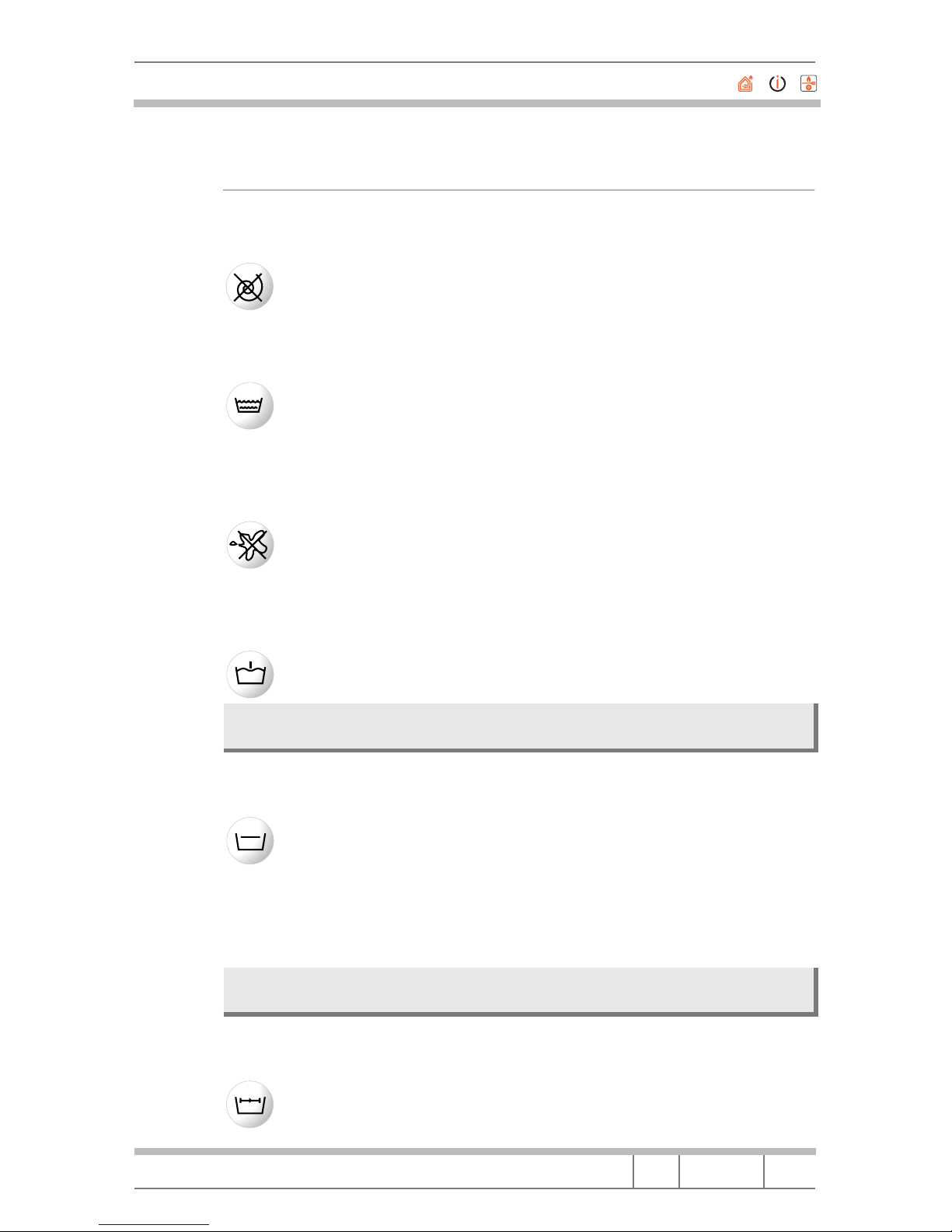

1.3 Buttons
1.3.1 No spin button
By pressing this button the washing machine does not spin, but rotates
the basket at moderate speed. It should be used when the garments
that are being washed are difficult to iron.
1.3.2 Extra rinse button
This button is used to increase the number of rinses in the pro-
grammes for resistant fabrics. It is recommended that this should be
used to improve the rinse when the machine has a full load and a lot
of detergent.
1.3.3 Stain removal button
By pressing this button the washing machine performs a more intensive
wash that improves the effectiveness of liquid additives (see chap. 5
BLEACH - STAIN REMOVAL BUTTON) thus allowing elimination of
even the most resistant stains.
1.3.4 Prewash button
This button allows a prewash to be performed in all programmes EX-
CEPT wool.
1.3.5 Anti-crease button
When this button is combined with programmes for synthetic fabrics
and silk/curtains it interrupts the wash programme leaving the gar-
ments to soak before draining.
This function is important as it avoids creasing delicate and synthetic
fabrics (e.g. when it is not possible to take the laundry out at the end
of the wash but only a few hours later). The programme can be com-
pleted by excluding the button.
1.3.6 Rapid Button
Press this button to reduce the wash programme duration by about
30%. It cannot be used with special programmes and with those for
wool and silk.
N.B. When using this function the bleach cycle cannot be performed (Stain removal
button).
N.B. If the machine is not provided with this button the programme can be completed
by turning the selector knob one notch.

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 11-56
Language Issue/Edition Page

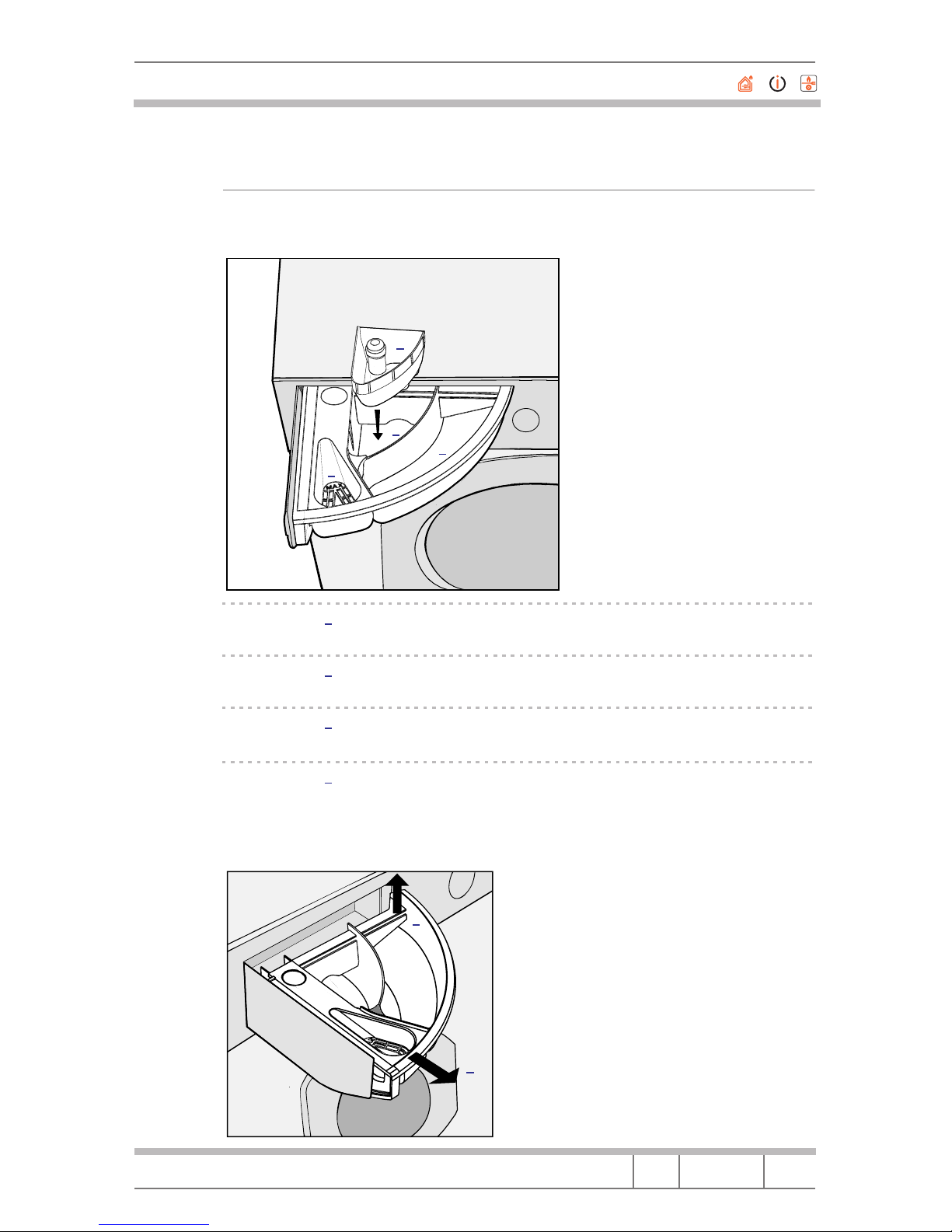

1.4 Detergent drawer
The detergent drawer can be opened by rotating it outwards. Pour the deter-
gent and the additive, if any, following the detergent dosage indications.
Fig. 6
Compartment 1
Prewash detergent (powder).
Compartment 2
Wash detergent (powder or liquid).
Compartment 3
Softeners, …
Compartment 4
Bleach and delicate bleach.
The detergent drawer is extractable. To remove it pull it upwards and then
outwards as shown in the following figure.
Fig. 7
AX
1
2
3
4
1
2

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 12-56
Language Issue/Edition Page
2 SPECIAL PROGRAMMES
40° AS 60°
It is a special programme that allows very good washing results to be ob-
tained even at low temperatures.
By setting programme 3 at 40 ˚C and thanks to a special action of the washing
machine and an increase of the washing time, the results will be the same as
washing at 60 ˚C.
Daily
This machine has a programme for daily washing.
By setting programme 7 at 30 ˚C it is possible to wash lightly soiled garments
together, even if they are of different types and colours (max 3 KG).
This programme allows savings in time and energy because the cycle lasts
about 30 minutes.
N.B. When using this programme the Intensive/Delicate knob is not active.
N.B. Liquid detergent is recommended.

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 13-56
Language Issue/Edition Page
3 WASH CYCLE PERFORMANCE AND DURATION
Tab. 1 MODEL AL68XIT
Performance summary of all the Standard wash cycles
Wash cycle performance using the stain button
Wash intensity knob functionality
Start
Progr.
Cycle Load
kg
Detergent Wash
Dur.
Cy-
cle
Dur.
Soiled Garment Reflectance Wash
Water
Total
Water
Ratio
Wascator
Ener-
gy
kWh
Wash
Class
Ener-
gy
Class
Blood Choc.
Milk
Coal
Oil
Wine Total
190˚ Cotton 5 (Cotton) IEC (134 g) 87 '147 '67.4 57.0 39.0 79.4 60.7 15.3 nd 1.09 1.57 A E
260˚ Cotton 5 (Cotton) IEC (134 g) 82 '134 '62.4 55.8 37.9 76.1 58.1 15.2 nd 1.05 0.95 A A
340˚ = 60˚ 5 (Cotton) IEC (134 g) 108 '163 '60.8 56.8 39.0 76.1 58.2 15.4 nd 1.05 0.74 A A
440˚ Cotton 5 (Cotton) IEC (134 g) 39 '95 '47.1 47.8 31.5 69.3 48.9 15.4 nd 0.88 0.50 F A
560˚ Synth. 2.5 (Ter/Cot) IEC ( 94 g) 61 '102 '66.0 56.5 40.4 76.7 59.9 8.5 35.1 1.08 0.68 A D
640˚ Synth. 2.5 (Ter/Cot) IEC ( 94 g) 33 '73 '55.9 52.7 34.6 68.9 53.0 9.3 36.7 0.95 0.37 D A
730˚ Daily 3 (Cotton) IEC (102 g) 16 '34 '35.4 46.7 32.1 61.3 43.9 11.2 31.2 0.80 0.21 G A
730˚ Daily 3 (Cotton) Dash liq.
(120 g)
16 '34 '47.1 48.6 31.6 56.8 46.0 11.2 31.2 0.84 0.20 G A
930˚ Silk 1 (Ter/Cot) IEC (120 g) 31 '54 '47.5 47.8 32.5 62.0 47.5 20.1 72.4 0.86 0.39 G F
Start
Progr.
Cycle Load
kg
Additive Wash
Duration
Cycle
Dura-
tion
Soiled Garment Reflectance Wash
Water
Total
Water
Blood Choc.
Milk
Coal
Oil
Wine Total
190˚ Cotton 5 (Cotton) Ace (150 cc) 96 '175 '70.1 68.4 40.3 80.7 64.8 16.2 74.0
260˚ Cotton 5 (Cotton) Ace (150 cc) 86 '160 '60.7 68.2 37.5 80.1 61.6 14.9 74.0
440˚ Cotton 5 (Cotton) Ace (150 cc) 52 '125 '50.6 49.4 31.9 78.4 52.6 16.3 72.4
560˚ Synthetics 2.5 (Ter/Cot) Ace gent. (150 g) 76 '134 '70.1 61.3 41.8 77.1 62.6 9.7 48.5
640˚ Synthetics 2.5 (Ter/Cot) Ace gent. (150 g) 47 '100 '58.3 55.6 37.0 73.5 56.1 9.4 47.8
Start
Progr.
Cycle Load
kg
Knob
Position
Wash
Duration
Cycle
Dura-
tion
Wash
Water
Total
Water
Energy
kWh
160˚ Cotton 5 (Cotton) 1 - Minimum 42 '94 '15.0 nd 0.80
260˚ Cotton 5 (Cotton) 5 - Recommended 61 '113 '14.3 nd 0.85
440˚ Cotton 5 (Cotton) 1 - Minimum 22 '74 '14.5 nd 0.51
440˚ Cotton 5 (Cotton) 5 - Recommended 34 '107 '14.5 nd 0.57
560˚ Synthetics 2.5 (Ter/Cot) 1 - Minimum 34 '70 '9.1 38.1 0.66
560˚ Synthetics 2.5 (Ter/Cot) 5 - Recommended 51 '86 '8.4 38.3 0.70
640˚ Synthetics 2.5 (Ter/Cot) 1 - Minimum 20 '53 '7.2 38.9 0.34
640˚ Synthetics 2.5 (Ter/Cot) 5 - Recommended 30 '65 '8.5 38.9 0.39
N.B. In the other models duration of the cycle corresponding to the rapid button is the
same as that obtained with the wash intensity knob in position 1.

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 14-56
Language Issue/Edition Page
4 PARTICULAR PHASES
Antishock
In the event that the machine goes to a draining phase (e.g. Spin) and the wa-
ter temperature is higher than the set limit (e.g. 60˚), the machine performs a
particular cycle before draining:
e.g.
1. Load 5 litres from Wash SV
2. Move 5" ON, 5" OFF, 25 rpm per 4'
3. If Temperature > Limit go to 1 otherwise go to 4
4. Drain + Spin
Antifoam
If there is too much foam in the machine during the spin it will carry out the
following cycle:
1. Stop for 2'
2. Load 10 litres from Wash SV
3. Move 5" ON, 5" OFF, 25 rpm per 2'
4. Restart the Spin that was interrupted at the beginning
This procedure is repeated until the foam problem is solved.

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 15-56
Language Issue/Edition Page
5 BLEACH - STAIN REMOVAL BUTTON

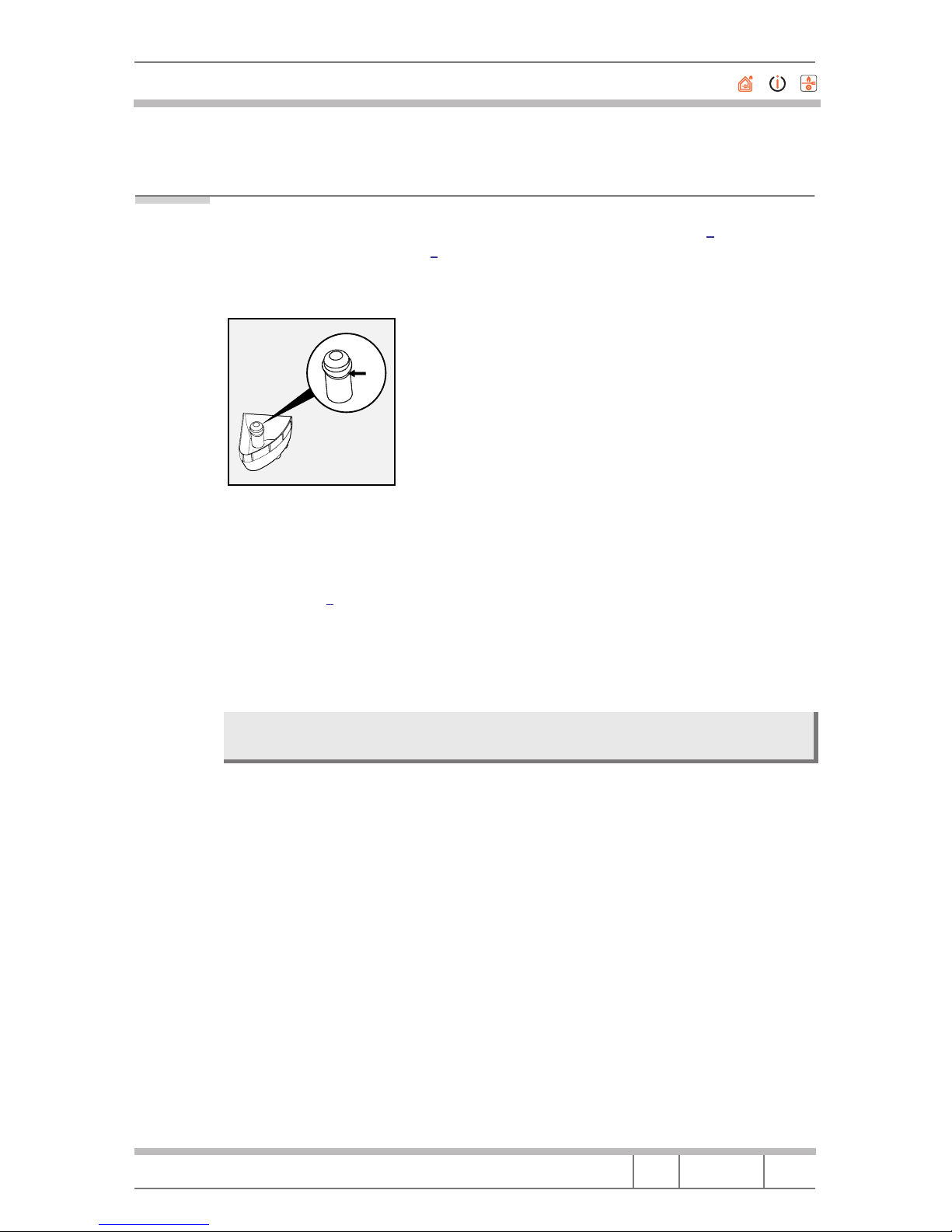

In case of bleaching it is necessary to insert an extra chamber 4in the deter-
gent drawer compartment 1; when pouring the bleach be careful not to ex-
ceed the max level indicated in the following figure.
Fig. 8
This washing machine is provided with a special function TO BE USED FOR
BLEACHING (Stain removal button).
When bleaching is carried out separately pour the bleach into the supplemen-
tary chamber 4, press the stain removal button, switch the machine on and turn
the selector to the rinse position after programme 4.
When bleaching is carried out during a normal washing cycle, pour the de-
tergent and the additives into the appropriate compartments, press the stain re-
moval button, switch the machine on and select the desired washing cycle.
N.B. Bleaching is not possible with the silk programme.
When the bleach chamber is used it is not possible to use the prewash function.
MAX
MAX

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 16-56
Language Issue/Edition Page
6 ELECTRONIC CARD

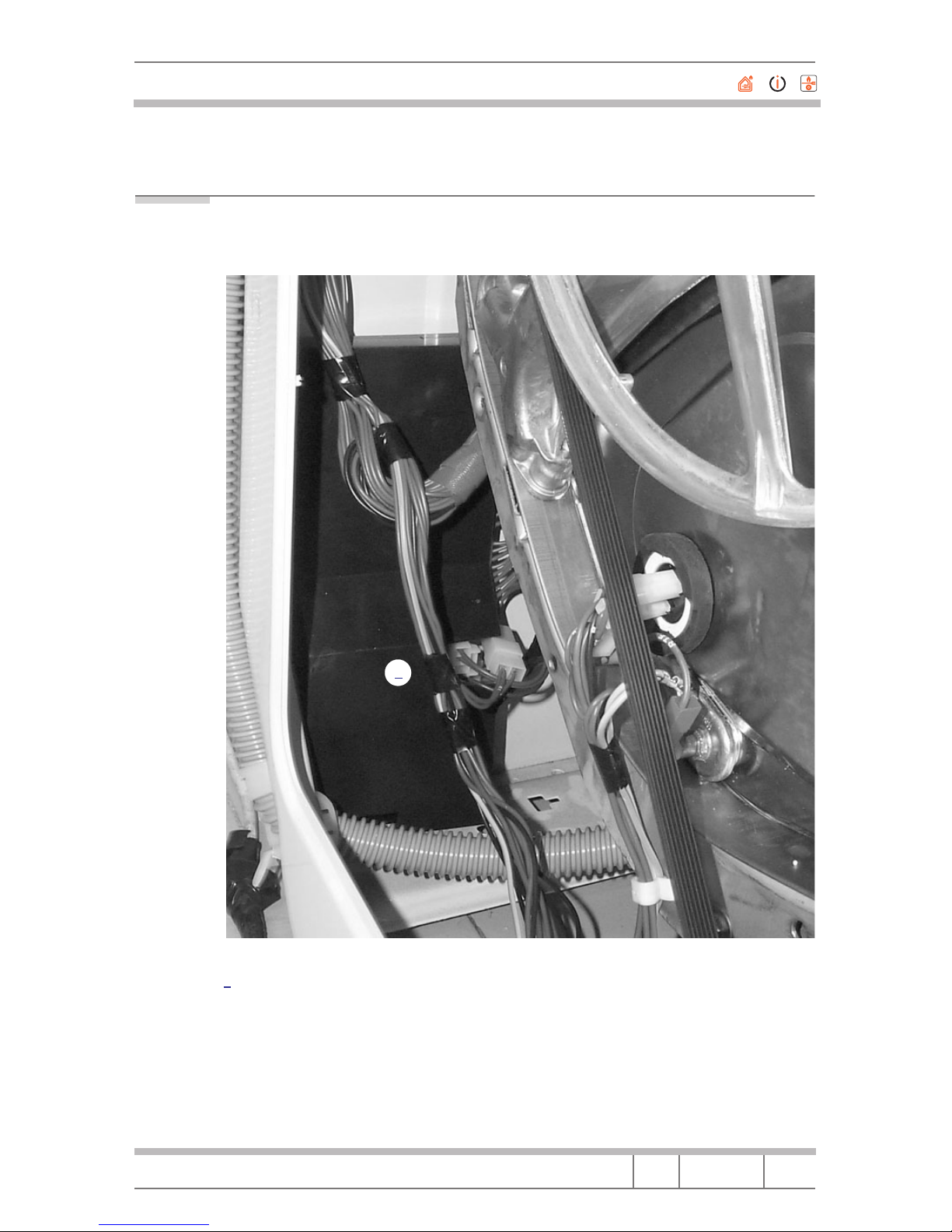

The card inside the machine:
Fig. 9
1The position of the card inside the machine is the usual electronic module position
1

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 17-56
Language Issue/Edition Page
Fig. 10
1Digital Connection WRAP
2EEPROM
3Microprocessor
4Serial Connection
5Power Zone
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
1
2
3
4
5
6
7
8
9
10
PS
T
M
MV
C
N
A
C
N
C
C
N
D
C
N
E
C
N
F
C
N
1
11
12
16
14
5
3
4
2
1
Pilot ON/Standby +XVCC/XΩ
Key button +XVCC
+XVCC
“Timer” Motor xxVAC; XXΩ
Variable or switch resistance. Potentiometer or Exterior key button. Between 0 VCC and XXVCC
Variable or switch resistance. Potentiometer or Exterior key button. Between 0 VCC and XXVCC
NTC of Drying Cycle. 15°C xxVCC; xxΩ; 20°C xxVCC; xxΩ; 30°C xxVCC; xxΩ; 40°C xxVCC; xxΩ;
NTC of Washing Cycle. 15°C xxVCC; xxΩ; 20°C xxVCC; xxΩ; 30°C xxVCC; xxΩ; 40°C xxVCC; xxΩ;
From +XmVCC
To +XmVCC
Earth
Earth
From +XmVCC
To +XmVCC
Conductivity
Sensor
Wash Cycle Resistance
Neutral
Neutral Phase 220 V
Phase 220 V
Dryer Cycle Resistance
Phase 220 V
Motor
Fase 220 V
Tachometer
Emptying Pump
Dryer Fan Phase 220 V
Phase 220 V
Phase 220 V
Phase 220 V
Phase 220 V
Phase 220 V
Phase 220 V
Neutral 220 V
Phase 220 VAC
Full Level
Empty Level
Overflow
Emptying Pump
Neutral 220 VAC
EV Pre-wash
EV Wash cycle
Micro door
EV Water stop
EV Drying cycle
EV Hot water
220 VAC Direct
PRESSURE SENSOR

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 18-56
Language Issue/Edition Page
Tab. 2 NTC temperature positioned in tub valid for washing cycle and wash dry cycle
Tab. 3 NTC temperature positioned on the washing cycle resistance
Card Replacement
The card is a neutral element, in the sense that the component is not tied to a
particular line graph or a particular machine.
The card is customised using the EEProm, so that should it be necessary to re-
place the card, the EEProm must be removed from the old card and the same
EEProm will have to be fitted on the new card before remounting it in the ma-
chine.
Fig. 11
1Digital Connection
CHARACTERISTICS
T°(°C)
Agitated Water
R (Ω)
Min
B = 4263
Max
B = 4200
25 18.80 K 20.00 K
80 2.03 M 2.23 K
T°(°C)
Agitated Water
R (Ω)
R. min R. max
25 °C 19600 20400
30 °C 15710 16470
60 °C 4737 5149
80 °C 2362 2622
90 °C 1713 1919
100 °C 1261 1427
1

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 19-56
Language Issue/Edition Page
6.1 Removing the EEprom
First of all, pay attention to which side the EEProm is mounted. There are two
reference marks, Ref. A and Ref. B, that must be aligned when the EEProm is re-
mounted.
Fig. 12
The EEProm is extracted with a specific device. The EEProm must be extract-
ed as shown in the figure.
Fig. 13
1
Ref. B
Ref. A

Merloni Elettrodomestici
WASHING MACHINE 2000
Service Manual
GB 2001-04-23/01 20-56
Language Issue/Edition Page
The extracted EEProm must be remounted as shown in the figure, always us-
ing the specific device.
Fig. 14
