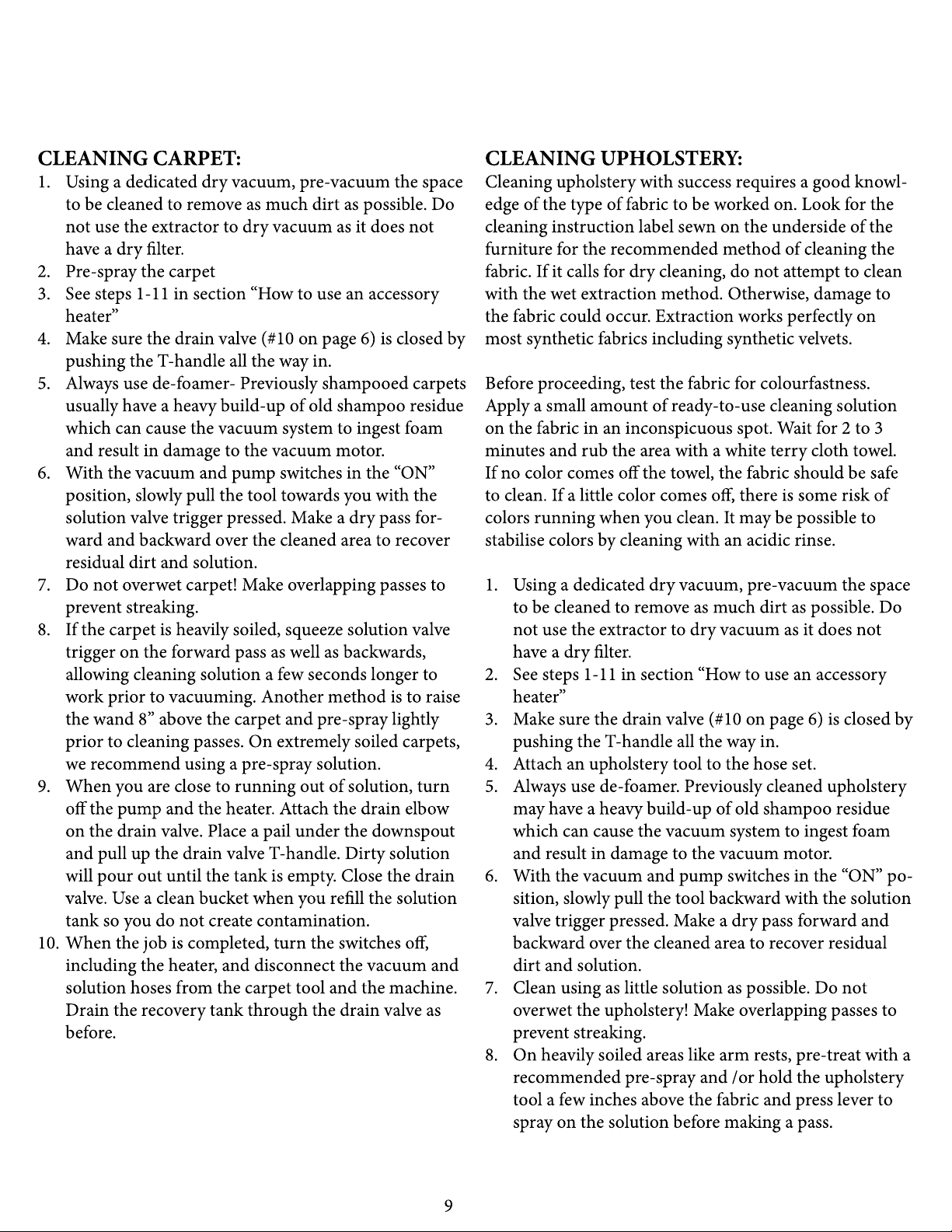

Michael PREMIER 120 Owner's manual
PROFESSIONAL
12 GALLON CARPET EXTRACTOR
OWNER’S/OPERATOR’S MANUAL
PREMIER 120
MICHAEL'S EQUIPMENT 1-800- 263-3731
°°
PREMIER 120
OVERVIEW

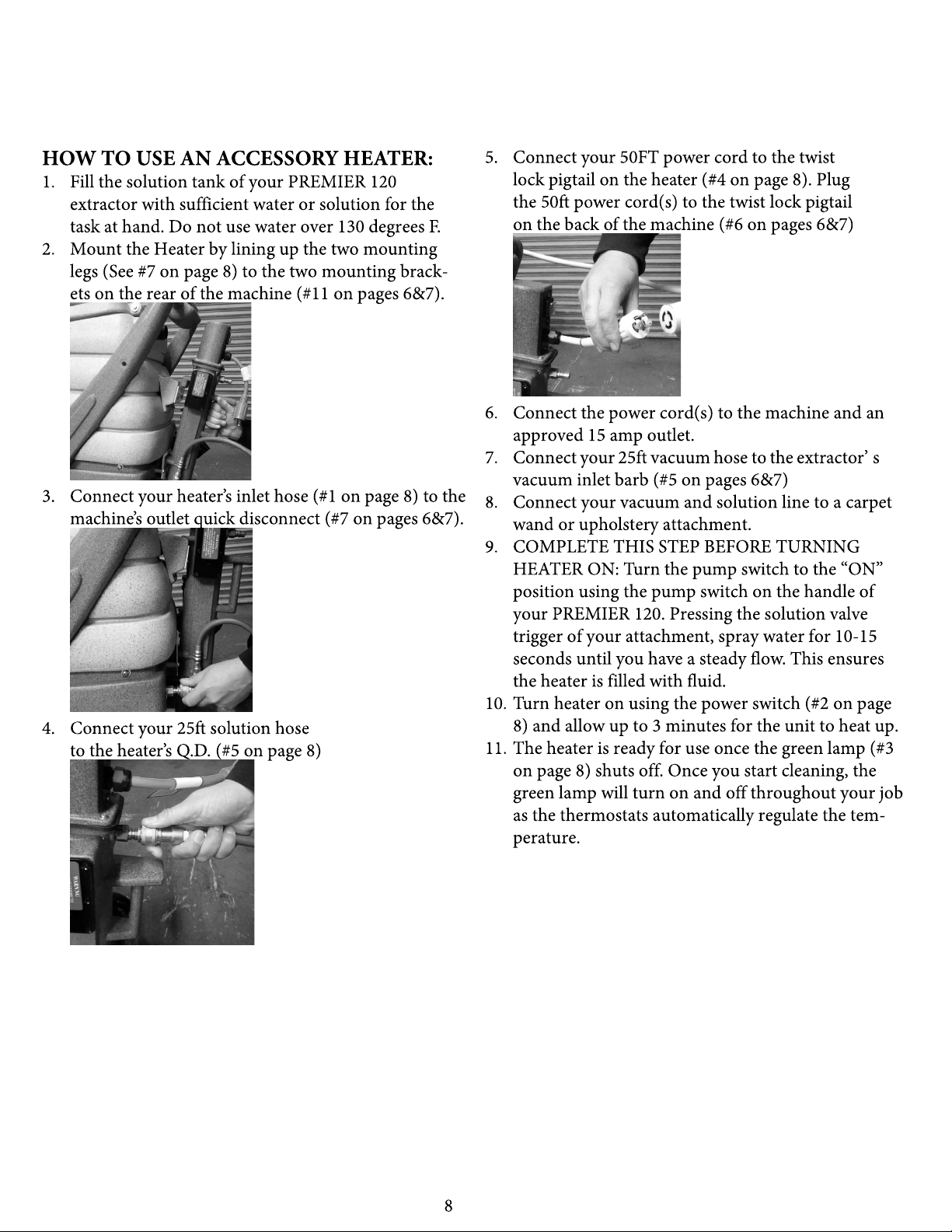

ACCESSORY HEATER KIT READY HEAT
OVERVIEW
(PURCHASED SEPARATELY)
WIRING DIAGRAM

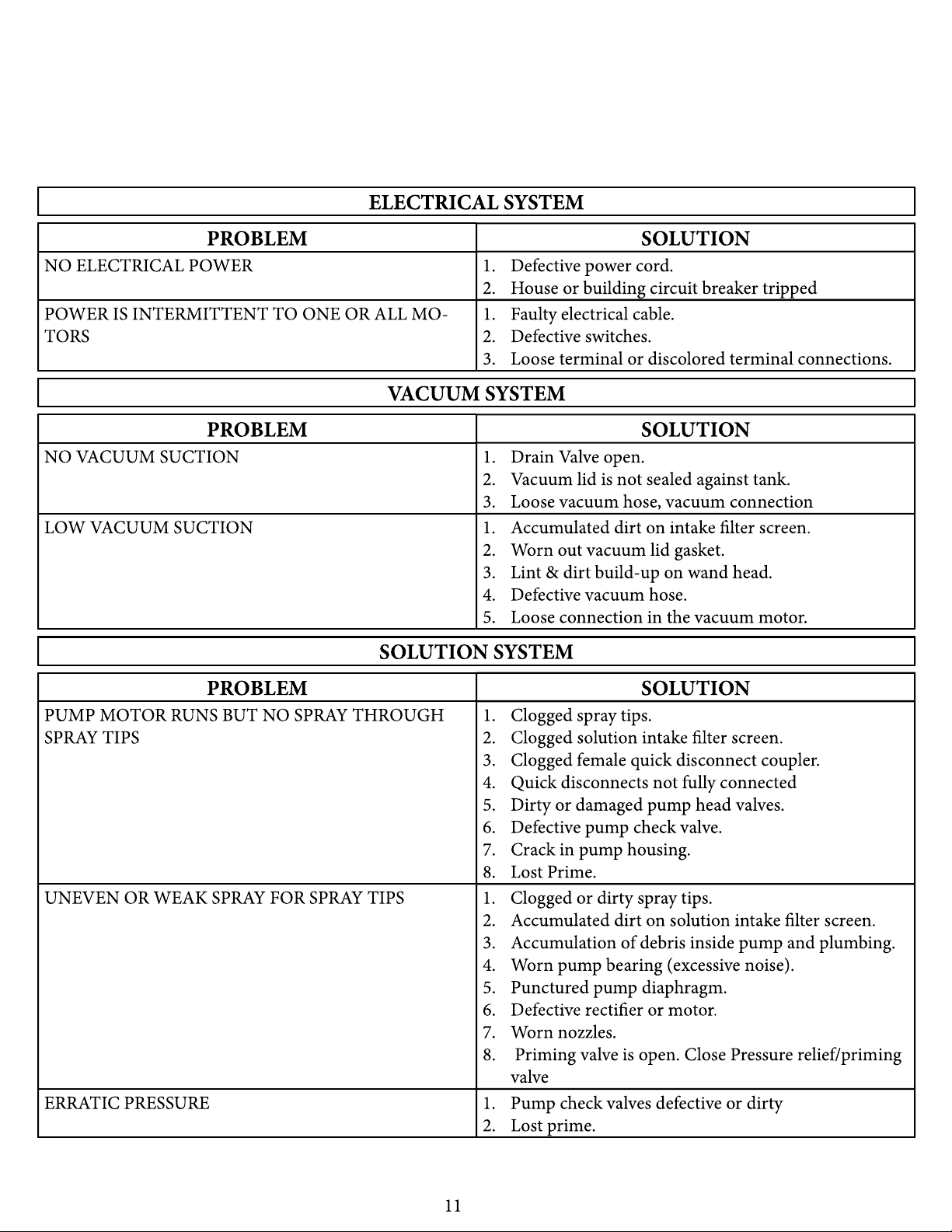

TROUBLESHOOTING
1
2
4
3
5
6
9
10
11 12 13 14 15
23
22
21
20
28
29
30
31
32
33
34
35
36 38
37
32
39
40
41
42
43
4445
47
48
7
8
19
27
49
16
25
1817
24
26
5-A
5-D5-C
5-B
50
46
PREMIER 120
UPPER
A
B
C
D
ITEM
NO. PART NUMBER DESCRIPTION QTY.
1 F11787 Solution Tank 1
2 F11788 Recovery Tank 1
3 F11791 Lid, Solution Tank 1
4 E11124 Gasket, Recovery Tank 1
5 12904A Stand Pipe Assembly 1
K11965 Elbow, 180 Deg. Float Ball 1
K00672 Pvc Pipe, 1.5 X 12 in, Sch 40 Wht 1
10989-2A Float Ball Screen 1
K00741 Adapter 1
6 F11785 Lid, Recovery Tank 1
7 C12039 Washer, 1-4 X 1, SS 2
8 C02322 1-4 X 20 Bolt 2
9 B11769 Extension Cord, 12-3 SJTW 1
10 C11177 Velcro Strap 1
11 H02548-2 Label, Important, Cord 1
12 B00185-30 Wires, 73 in 1
13 B00185-40 Wires, 73 in 1
14 B010314 Wire Harness 1
15 F11786 Handle 1
16 B00177 Terminal Lug, Female, QD, .25 X .032, 16-14 AWG, Fully Insulated 2
17 B00185-40 Wire,14 GA Black, UL1015, 5 in 1
18 C00295-1 #10 X .75in Pan, Black SMS, Phillips 2
19 C00293 #8 X .5in Pan, Black SMS, Phillips 2
20 D11168 Cover, Switchplate, Galaxy 1
21 B02211-1 Switch, Rocker, Green Light 3
22 D010284 Switchplate 1
23 E010453 Gasket, Switch Bracket 1
24 B00177-1 Terminal Lug, Female, QD, .25 X .032 4
25 B00185-30 Wire,14 GA White, UL1015, 5 in 1
26 C02315 Lockwasher, #10 Int. Str, SS 2
27 C00264 Nut, 10-32 1
28 C11141 Screw, Allen Head, 10-24 X 1.25 in 8
29 K00665-1 Hose Adapter, 1.5in, Black 1
30 E11128 Gasket, Drain Valve 2
31 C00313 Hex Bolt, .25 X 20 X .75 6
32 C00233 Washer, Flat, .25 in 8
33 C02312 Lockwasher, .25 in., Internal Star 2
34 D010283 Plate, Heater Mounting 1
35 F11804 Heater Mount 1
36 C00261 Nut, .25-20, Hex 2
37 K00711 Drain Valve, Black 1
38 K00710 Elbow, Drain Valve, Black 1
39 C00254 Lock Washer, 1-4in Split 2
40 C02294 Screw, 1-4 20 X 1.25 2
41 K11185 Elbow, 90, 1.5 in, MT-MS, PVC 1
42 K00672-1 Pvc Pipe, 1.5 X 2.25 in, Sch 40 Wht 1
43 E11129 Gasket, Base 1
44 A00060 3-8 Barb X 1-4MP, Brass 1
45 A00052 .25 X .375 M-F 90 deg Brass 1
46 C11244 Washer, .56 X 1.5 X .05 1
47 A00124 Hex Nut, .25 NPT Brass 1
48 D00373 Inlet Filter, .25 NPT 1
49 C11143 Screw, 1-4 20 X 1.5 in, SS Pan Head, Phillips 2
50 S11179 Non-Skid Tape, 1 in. Roll 1
PREMIER 120
UPPER
2 3 4 6 7 8 9
11
12
13
15
16
272625242220 21
22 28
34
3738
55
39
40
454647
46
4849
50
7
51
52
54
56 57 58 59
62
54
6
17
7
63
64
65
66
32
33
42
41
7
15
31
60
61
23
53
PREMIER 120

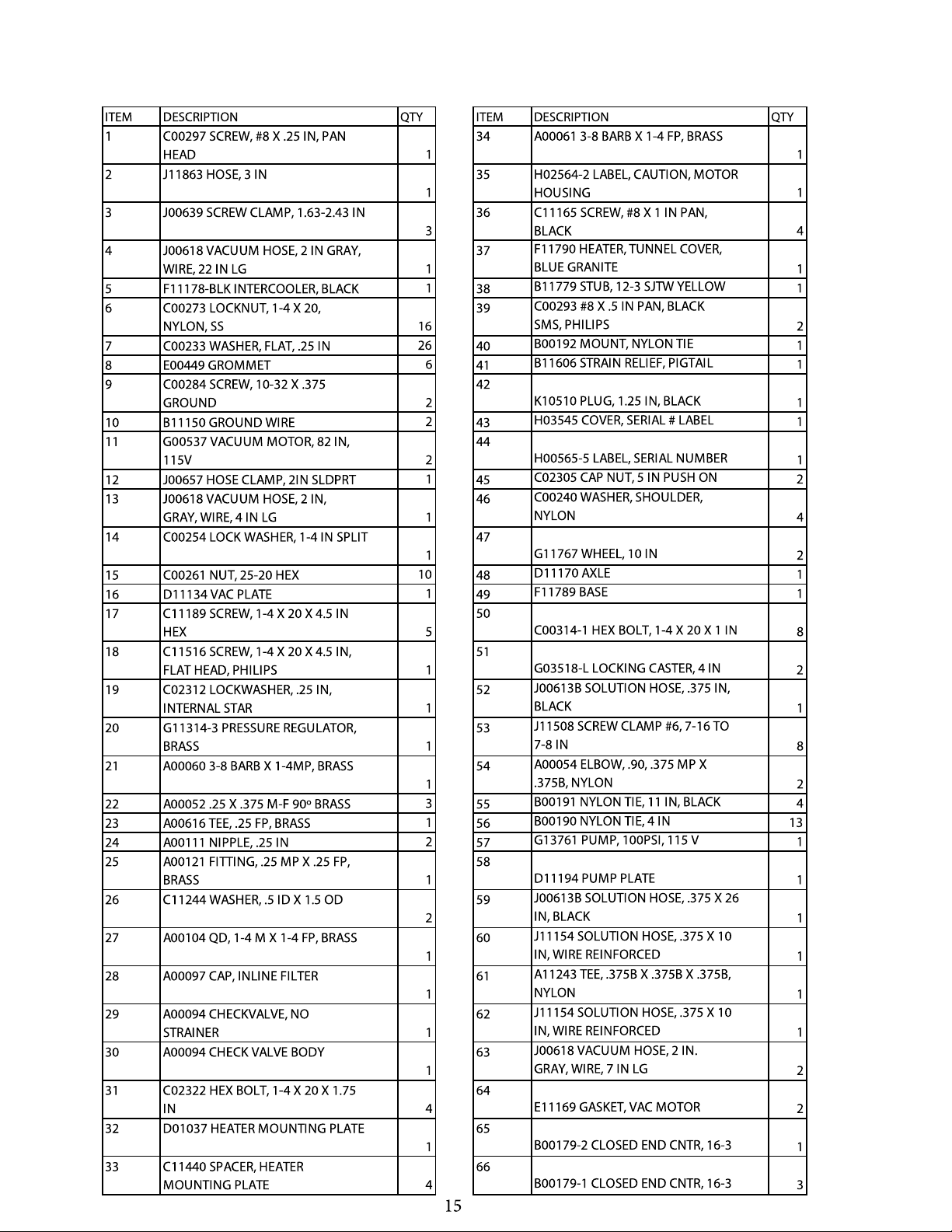

Base
36
1
14
19
18
29
43
44
55
6
35
30
5
10
PREMIER 120 Base 1-25-18
