Midea ES823ETB-S00E User manual

ES823ETB-S00E
PN: 261800312601

Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions(LxWxH):
Net Weight:
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can
result in harmful exposure to microwave energy. It is important not to
break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent person.
Specifications
23L
Ø270mm
Rated Input Power(Convection):
Rated Input Power(Grill):
ES823ETB
230V~50Hz
1300W
800W
1200W
1200W
Approx. kg
If the apparatus is not maintained in a good state of cleanliness, its surface could
be degraded and affect the lifespan of the apparatus and lead to a dangerous
situation.
ADDENDUM
2
485mmX405mmX292mm
14.23
-S00E

IMPORTANT SAFETY INSTRUCTIONS
WARNING To reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including
the following:
1. Warning : Liquids and other foods must
not be heated in sealed containers since
they are liable to explode.
2. Warning : It is hazardous for anyone other
than a competent person to carry out any
service or repair operation that involves
the removal of a cover which gives
protection against exposure to microwave
energy.
3. This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
4. Keep the appliance and its cord out of
5. Only use utensils suitable for use in
microwave ovens.
6. The oven should be cleaned regularly and
any food deposits should be removed.
7. Read and follow the specific:"PRECAU-
TIONS TOAVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition.
9. If smoke is emitted, switch off or unplug
the appliance and keep the door closed
in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage
purposes. Do not store items, such as
bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles
from paper or plastic containers/bags
before placing them in the oven.
13. Install or locate this oven only in
accordance with the installation
instructions provided.
14. Eggs in the shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even
after microwave heating has ended.
15.This appliance is intended to be used in
household and similar applications such
as:
-staff kitchen areas in shops, offices and
other working environments;
-by clients in hotels, motels and other
residential type environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance
outdoors.
18. Do not use this oven near water, in a
wet basement or near a swimming
pool.
19. The temperature of accessible surfaces
may be high when the appliance is
operating. The surfaces are liable to get
hot during use. Keep cord away from
heated surface, and do not cover any
events on the oven.
20. Do not let cord hang over edge of table
or counter.
21. Failure to maintain the oven in a clean
condition could lead to deterioration
of the surface that could adversely
affect the life of the appliance and
possibly result in a hazardous situation.
22. The contents of feeding bottles and
baby food jars shall be stirred or shaken
and the temperature checked before
consumption, in order to avoid burns.
knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children unless they are
older than 8 and supervised.
reach of children less than 8 years.
3

33.The rear surface of appliance shall be placed against a wall.
34.The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore
care must be taken when handling the container.
24.The appliance is not intended for use by persons (including children) with reduced
physical , sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
25.Children should be supervised to ensure that they do not play with the appliance.
26.The appliances are not intended to be operated by means of an external timer or
separate remote-control system.
27. Accessible parts may become hot during use. Young children should be kept away.
28.Steam cleaner is not to be used.
29 During use the appliance becomes hot. Care should be taken to avoid touching heating
elements inside the oven.
30. Only use the temperature probe recommended for this oven.(for ovens provided with a
facility to use a temperature-sensing probe.)
31. WARNING: The appliance and its accessible parts become hot during use.Care should
be taken to avoid touching heating elements. Children less than 8 years of age shall be
kept away unless continuously supervised.
32. The microwave oven must be operated with the decorative door open.(for ovens with a
decorative door.)
4

DANGER
Electric Shock Hazard
Touching some of the interna components
can cause serious personal injury or death.
Do not disassemble this appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding can result in
electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
To Reduce the Risk of Injury to Persons
Grounding Installation
CLEANING
Be sure to unplug the appliance from the
power supply.
1. Clean the cavity of the oven after using
with a slightly damp cloth.
2. Clean the accessories in the usual way
in soapy water.
3. The door frame and seal and
neighbouring parts must be cleaned
carefully with a damp cloth when they
are dirty.
1. A short power-supply cord is provided
to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is
used:
1)The marked electrical rating of the cord
set or extension cord should be at least as
great as the electrical rating of the appliance.
This appliance must be grounded. In the
event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for
the electric current. This appliance is
equipped with a cord having a grounding
wire with a grounding plug. The plug must
be plugged into an outlet that is properly
installed and grounded.
Consult a qualified electrician or
serviceman if the grounding instructions
are not completely understood or if doubt
exists as to whether the appliance is
properly grounded. If it is necessary to
use an extension cord , use only a 3-wire
extension cord.
2)The extension cord must be a grounding-
type 3-wire cord.
3)The long cord should be arranged so that
it will not drape over the counter top or
tabletop where it can be pulled on by
children or tripped over unintentionally.
4. Do not use harsh abrasive cleaners
or sharp metal scrapers to clean the
oven door glass since they can
scratch the surface, which may
result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the
cavity walls that the food cooked can
touch:
Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100%
microwave power for 10 minutes.
Wipe the oven clean using a soft, dry cloth.
5

CAUTION
Personal Injury Hazard
It is hazardous for anyone
other than a compentent person
to carry out any service or repair
operation that involves the removal
of a cover which gives protection
against exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
6

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
F
G
A
C B
ED

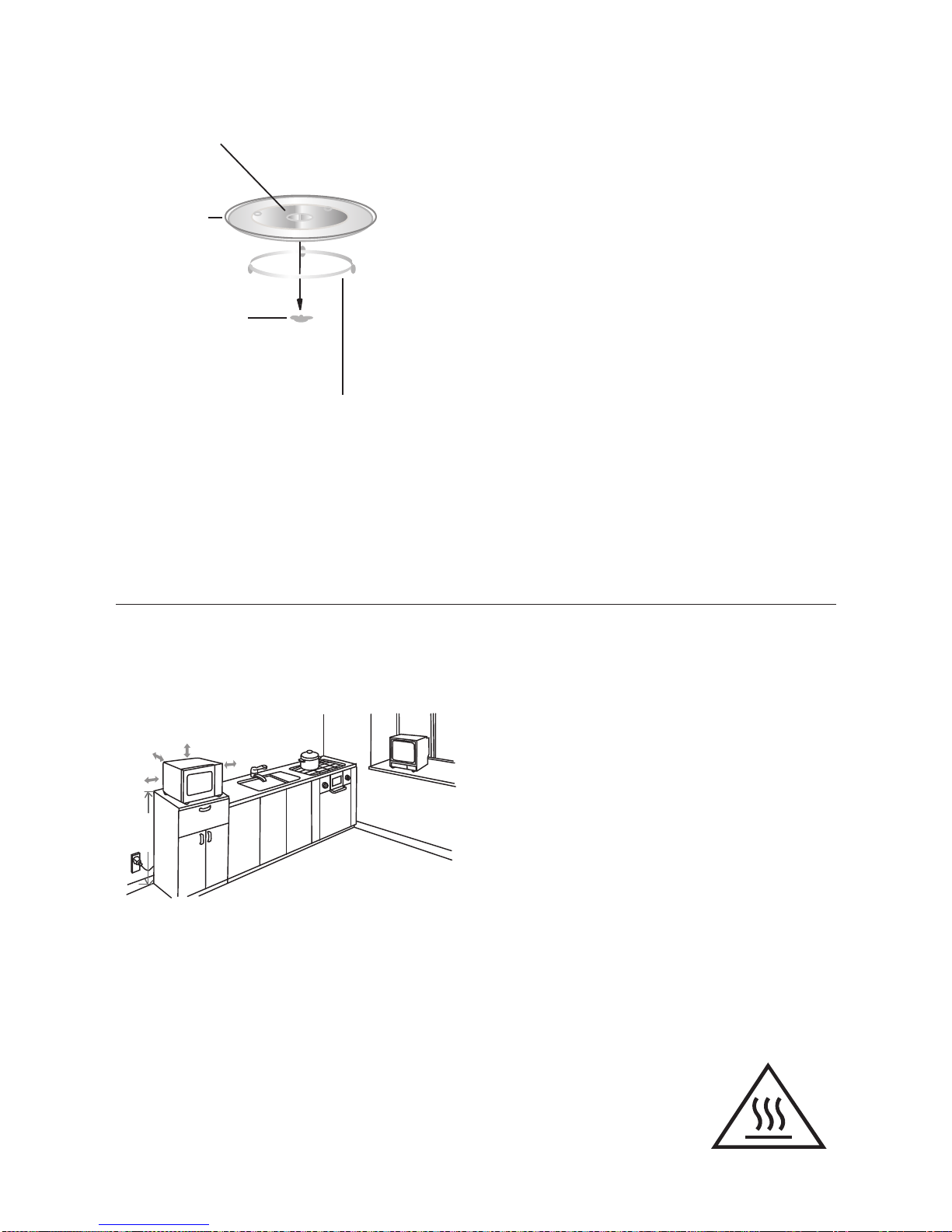

SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Grill Rack( Only for Grill series )
7

Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Installation
Select a level surface that provide
enough open space for the intake
and/or outlet vents.
(4) Blocking the intake and/or outlet openings
can damage the oven.
(5) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or TV
reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frequency is the same as the voltage
and the frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and
the warranty would be void.
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
1.
The accessible surface
may be hot during
operation.
(2) The rear surface of appliance shall
be placed against a wall.
Leave a minimum clearance of
30cm above the oven, a minimum
clearance of 20cm is required
between the oven and any adjacent
walls.
(3) Do not remove the legs from the
bottom of the oven.
(1) The minimum installation height is
85cm.
20cm
30cm
20cm
min85cm
0cm
8

Example: If you want to use 80% microwave power to cook for 10 minutes, you can
operate the oven as the following steps.
When the microwave oven is electrified,the oven will display "0:00", buzzer will
ring once.
OPERATION INSTRUCTION
The input time should be within 0:00--23:59.
Example: To set 12:12 .
(1) Press the " CLOCK/KITCHEN TIMER " button once;
(2) Press the number buttons of "1","2","1","2" in order.
(3) Press " CLOCK/KITCHEN TIMER" to finish clock setting. ":" will flash, and the time will light.
Note: 1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press "Stop/CANCEL ", the oven
will go back to the previous status automatically.
2. Microwave Cooking
Select different microwave power level and set cooking time as you wish. There are five
power levels available for choosing. Keep on pressing "MICROWAVE" to choose the power.
4) Press "START/+30SEC." to start cooking, ":" will light.
1) Press "MICROWAVE" once, the oven will display "P100".
Presses
Instructions Microwave
Power
Display
1
2
3
4
5
100%
80%
50%
30%
10%
2) Press "MICROWAVE" oncr again to choose 80% power, the oven will display "P80".
3) Press the number buttons of "1","0","0","0" in order, the oven will display "10:00"
P100
P 80
P 50
P 30
P 10
1.Clock Setting
Note: "MICROWAVE" Pad presses instructions
9

3. Grill Cooking
Example: If you want to use 100% to cook for 35 minutes, you can operate
the oven as the following steps.
4. Convection Cooking(With preheating function)
5. Convection Cooking(Without preheating function)
1) Press the "GRILL" key , the oven will display " G-1 ".
2) Press the number buttons of "3","5","0","0" in order, the oven will display "35:00".
3) Press the "START/+30SEC." key to start cooking.
1
2
Presses
Instructions Display Convection
1) Press the "CONVEC." key once, the oven will display "110".
(Press the "CONVEC." key several times to select the temperature.)
2) Press the "START/+30SEC." key to start cooking. The
temperature figure will flash when reach to the temperature in advance
and buzzer will ring twice to remind you to put the food into the oven.
3) Press the number buttons of "4","0","0","0" in order, the oven will display "40:00".
4) Press the "START/+30SEC." key to start cooking.
1) Press the "CONVEC." key once, the oven will display "110".
(Press the "CONVEC." key several times to select the temperature.)
2) Press the number buttons of "4", "0", "0", "0" in order, the oven will display"40:00".
3) Press the "START/+30SEC." key to start cooking.
110
120
Note: " CONVEC." Pad presses instructions
Note:If half the grill time passes, the oven sounds twice, and this is normal.
In order to have a better effect of grilling food, you should turn the food over,
close the door, and then press "START/+30SEC." to resume cooking.
If no operation the oven will not pause and continue cooking.
10

6. Combination Cooking
Example: If you want to use combination to cook (C-1) for 40 minutes, you can
operate the oven as per the following steps.
6
7
8
9
10
1) Press the "COMBINE" key once, the oven will display "C-1".
2) Press the number buttons of "4", "0", "0", "0" in order, the oven will display "40:00".
3) Press the "START/+30SEC." key to start cooking.
3
4
5
7. Kitchen Timer
(1) Press " CLOCK/KITCHEN TIMER " twice, LED will display 00:00.
(2) Press number keys "1","0","0","0" in order to adjust the cooking time;
(The maximum cooking time is 99 minutes 99 seconds.)
(3) Press " START/+30SEC./CONFIRM " to confirm setting.
(4) When the kitchen time is reached, the buzzer will ring 5 times.
If the clock be set(24-hour system), LED will display the current time.
Note: The kitchen Time is differ from 24-hour system,Kitchen Timer is a timer.
150
160
170
180
190
200
130
140
11

8. Defrost By time
9. Defrost By weight
11.Multi-Stage Cooking
Two stages of cooking can be maximumly set. If one of the stages is defrosting, it should
be put in the first stage, and auto menu cooking should not be set as one of the stage.
The buzzer will ring once after each stage and the next stage will begin.
10.MEMORY
1) Press "DEFROST" pad repeatedly, the oven will display "d-2","d-3","d-4".
3) Press "START/+30SEC./CONFIRM" key to start defrosting.
2) Input the figure of the food weight.
(The input figure of the weight should be within 100--2000g)
1) Press "DEFROST" once, the oven will display "d-1".
3) Press "START/+30SEC./CONFIRM" key to start defrosting.
2) Input the figure of the cooking time.
(the maximum cooking time is 99 minutes and 99 seconds.)
Example: If you want to cook the food with 100% microwave power for 10 minutes+ 80%
microwave power for 15 minutes. Do it as following:
1) Press "MICROWAVE" once to choose 100% microwave power;
2) Press number keys "1","0","0","0" in order to adjust the cooking time;
3) Press ""MICROWAVE" twice to choose 80% microwave power;
4) Press number keys "1","5","0","0" in order to adjust the cooking time;
5) Press "START/+30SEC. " to start cooking.
1) Press "MEMORY" key several times to set "memory 1" to "memory 3" program,
and the oven will display "1", to "3".
2) Set one or two stages program you want.
Example:a) Press "DEFROST" once,the oven will display "d-1".
b) Press number keys "5","0","0" in order to adjust the defrost time;
c) Press "MICROWAVE" once to choose 100% microwave power;
d) Press number keys "1","0","0","0" in order to adjust the cooking time;
3) Press "MEMORY" key to save the memory program setted, or press
"START/+30SEC." to start cooking and save the program automatically.
4) Next time when you want to cook with the memory program which has been set, you
just only need to press "MEMORY" key to choose the program wanted and then press
"START/+30SEC." to start cooking.
12

12. Speedy Cooking
(1) In waiting state,choose the menu you want,press "START/+30SEC." to confirm.
(2) Press "WEIGHT ADJ" button to choose weight.
(3) Press "START/+30SEC" to start cooking, and time will count down.
13. Auto Menu Cooking
The numeral pads 0—9 are matching different subjects respectively;
When the oven is in the waiting states, Press "START/+30SEC./CONFIRM" key to start
cooking with full microwave power for 30 seconds.(the maximum setting is 99 minutes
and 99 senonds)
When the oven is in the microwave, grill or combination cooking states, Press
"START/+30SEC./CONFIRM" key will add 30 seconds cooking time each time.
(Note: Defrosting by weight,Multi-stage cooking or Auto Menu state is invalidation with speed
cookint function.)
14. Inquiring Function
(1) In microwave, grill or combination cooking state, press "COMBINE","CONVEC." or
"MICROWAVE", the current power will be displayed for 2~3 seconds.
(2) In cooking state, press " "to inquire the time for cooking. The
cooking time will flash for 2-3 seconds.
15. Lock-out Function for Children
Lock: In waiting state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep"
denoting entering the children-lock state and a key " " will light.
Lock quitting: In locked state, press "STOP/CLEAR" for 3 seconds, there will be a long
"beep" denoting that the lock is releasedand " " will go out.
CLOCK/KITCHEN TIMER
13

dispaly menu Weight
display
Menu_1
A01 Avial 250g
A02 Bhindi Masala 250g
500g
A03
Ghobi
Masala/Baigan
Masala/
250g
A04 Baigan Masala 250g
A05 Aalo Masala 250g
A06 GujratiKadhi 4
A07 Hyderabadi
Chicken Masala 800g
A08 KhoyaMatar 250g
A09 Meat 800g
A10 Mutton Korma 500g
A11 Mutton Rogan
Josh 1
A12 Navratna korma 250g
A13 Mix Veg Korma 4
14
/

A14 PaneerMakhani 250g
A15 PaneerPasanda 8
A16 Paneer Masala 250g
A17 Pumpkin Sambar 4
A18 Veg Sambar 250g
A19 Shukto 250g
A20 Stuffed Capsicum 250g
500g
A21 Veg Kolhapuri 250g
500g
A22 Veg Makhanwala 250g
500g
A23 Vegetable
200 g
300 g
400 g
500 g
A24 Vegetables with
coconut curry
250g
500g
15

Menu_2
A25 Fruit Punch 200 g
A26 Grilled Chicken
Pieces
300g
600g
A27
Grilled
Salmon/Grilled
Chicken
Wings/Grilled
Chicken
Drumsticks
250g
A28 Grilled Chicken
Wings 250g
A29 Grilled Chicken
Drumsticks 250g
A30 Payasam 4
A31 Tomato Rasam 4
A32 Jacket Potato 250g
A33 Grilled Sandwich 2
A34 Cheese
Sandwich 1
16

Menu_3
A35 Chicken Club
Sandwich 250g
A36 Stuffed Sandwich 250g
A37 Veg Sandwich 250g
A38 Nachos 250g
A39 Pasta 250g
A40 Macroni 250g
A41 Cheese Pizza 300 g
A42 Veggie Pizza 1
Menu_4
A43 GajarHalwa 250g
A44 SeviyanKheer 250g
Menu_5
A45 Apple Jam/ 1
A46 Pineapple
Pudding 1
A47 Black Forest
Cake 1
A48 Cake 1
A49 Chocolate
Cookies 1
17

A50 Custard Cookies 1
A51 Fruit Cake 1
Menu_6
A52 Coconut Rice 150g
A53 Jeera Rice 150g
A54 Makai Ki Khichdi 250g
A55 Masala Rice 150g
A56 Rice Kheer 6
A57 STEAMED RICE 200g
A58 Boiled Rice 200g
A59 Tomato Rice 150g
Menu_7
A60 Fish Curry 250g
500g
A61 Tandoori Fish 500g
A62 Shrimps Curry 500g
A63 King Fish
Vindaloo 1
18

Menu_8
A64 Honey Chilli
Potato 4
A65 Fish
200 g
300 g
400 g
500 g
A66 Grilled
PaneerTikka/ 250g
A67 Grilled
Mushrooms 250g
A68 Dhokla 12
A69 Khandvi 4
A70 Potato
230 g
460 g
690 g
A71 Popcorn 50g
100g
A72 RawaDhokla 12
A73 Roast Chicken
800g
1000g
A74 Chicken Wings 8
A75 Chicken
Drumsticks 8
A76 Stuffed
Mushroom 4
19

A81 Rice Idli 8
A82 RavaIdli 8
A83 Tea
1
2
3
A84 Coffee
460 g
690 g
A85 Choco Milk
460 g
690 g
A86 Lemon Tea
460 g
690 g
A87 Oat Milk
460 g
690 g
A88 Upma 150g
A89 Uppti 8
Menu_10 A90 reheat
150g
250g
350g
450g
600g
Menu_9
A77 Boiled Potato 200g
300g
A78 Boiled Vegitables 250g
A79 Bread 1
A80 Garlic Bread 1
20
