Model MC4050PB
OPERATOR'S MANUAL
40V CORDLESS BUCKET
HIGH PRESSURE WASHER
Before operating this product, please read this manual
thoroughly and retain it for future reference.
SUMEC NORTH AMERICA
3939 Royal Drive NW
Unit #234
Kennesaw, GA30144
MC4050PB.indd 1 15-5-4 ��11:45

2
DO NOT RETURN PRODUCT TO PLACE OF PURCHASE.
IF YOU HAVE ANY QUESTIONS, CALL OUR TOLL-FREE HOTLINE.
(866)-902-9690
ForceToolsUSA.com
MC4050PB.indd 2 15-5-4 ��11:45

I
TABLE OF CONTENTS
MC4050PB Operator’s Manual
Description of Product Parts………………………………………………………………………………......02
Safety Symbols .....................................................................................................................................04
Technical Specifications…………………………………………………………………………………….....05
Intended Use……………………………………..…………………………………………………………......05
Important Safety Instructions……………………………………………………………………………….....06
Assembly……………………………………………………………………………………….........................12
Operation………………………………………………………………………………………........................16
Storing and Maintenance………………………………………………………………………………….......22
Troubleshooting…………………………………………………………………...........................................24
Warranty………………………………………………………………………………………………...............26
MC4050PB.indd 1 15-5-4 ��11:45

2

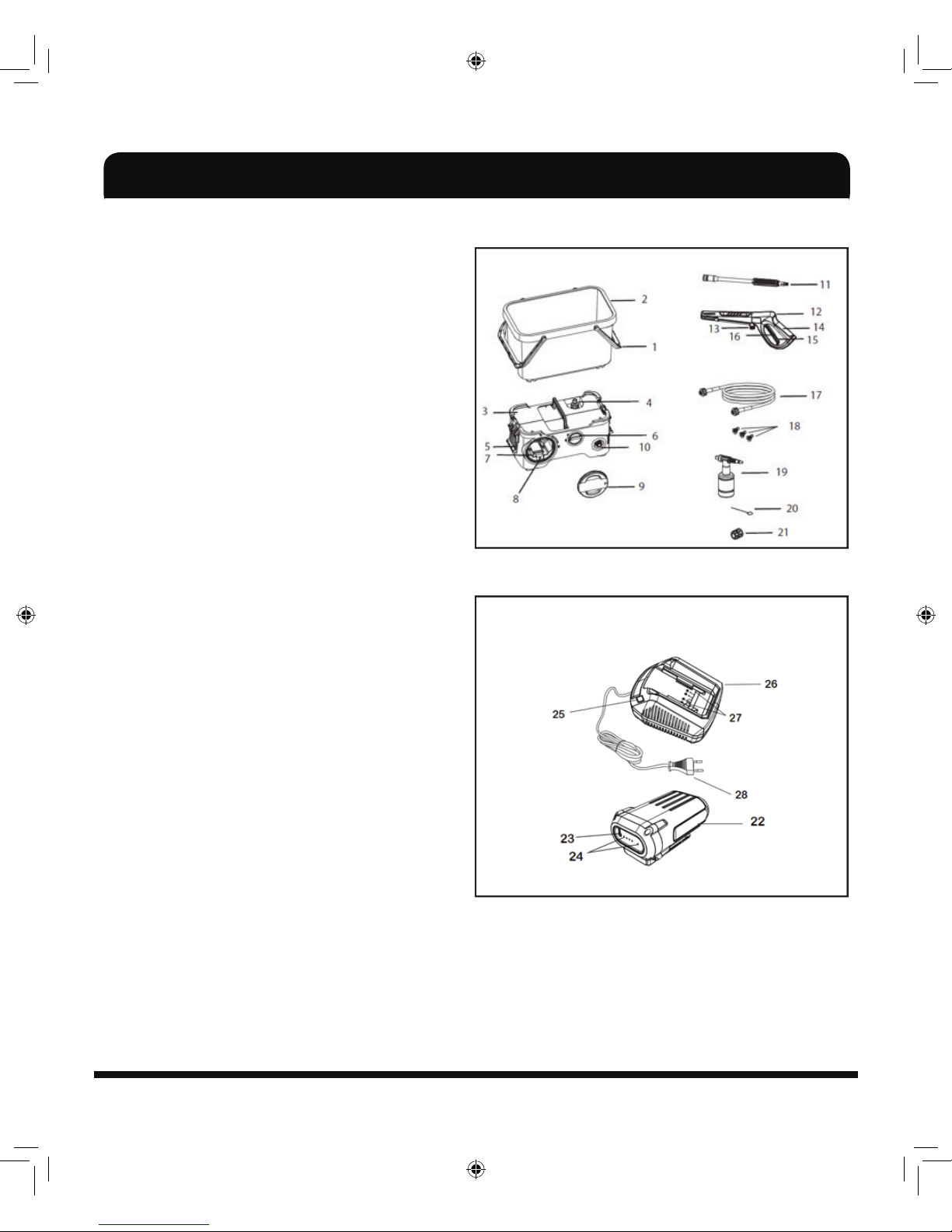

DESCRIPTION OF PRODUCT PARTS
Parts list
As shown in Fig. 1&2
1. Carrying handle
2. Water container
3. High-pressure washer main body
4. Inlet adapter
5. Locking hook
6. ON/OFF switch
7. Battery pack compartment
8. Battery pack releasing button
9. Battery pack compartment cover
10. High-pressure water outlet
11. Quick -connect wand
12. Trigger handle
13. Spray gun water inlet
14. Gripping handle
15. Safety lock
16. Trigger switch
17. High-pressure hose
18. Spray Nozzles
19. Cleaning agent tank
20. Nozzle cleaning needle
21. Female coupling connector
22. Battery pack
23. Power indicator button
24. Power indicator
25. GREEN /RED LED
26. Charger
27. Electric contacts
28. Plug
Fig. 1
Fig. 2
MC4050PB.indd 2 15-5-4 ��11:45

3
Fig. 2
Check the delivery parts
As shown in Fig. 3
Carefully remove the pressure washer and parts from its packaging. Identify all the parts packaged in
the carton against the parts list. Please contact our customer service center (Monday-Friday 8:30AM-
5:00PM ET) at [phone] if anything is missing.
A. High-pressure washer include follow items :
1) High-pressure washer main body
include battery pack compartment cover
2) Water container include cap-shape filter
B. Trigger handle 1pc
C. Quick-Connect wand 1pc
D. High-pressure hose 1pc
E. Spray nozzles
Include Follow items:
1) 0°Nozzle x1
2) 15°Nozzle x1
3) 40°Nozzle x1
F. Detergent bottle 1pc
G. Nozzle cleaning needle 1 pc
H. Manual 1pc
I. Battery pack 1pc
J. Charger 1pc
K. Female coupling connector 1pc
(Water backflow preventer was built-in)
WARNING: If any parts are damaged or missing, do not operate this tool until the missing parts
are replaced. Failure to heed this warning could result in serious personal injury.
NOTE! Always recycle the packaging in accordance with local recycling schemes.
MC4050PB.indd 3 15-5-4 ��11:45

4
SAFETY SYMBOLS
Read operating manual before using!
Use indoors only!
Keep clean and dry!
Avoid storage in direct sunlight!
Dispose of properly!
Dispose of properly!
MC4050PB.indd 4 15-5-4 ��11:45
Do not expose to heat or fire!

5
TECHNICAL SPECIFICATIONS
INTENDED USE
Model MC4050PB
Nominal voltage with battery 40V, DC, 4Ah
Working pressure with container water 450psi
Working pressure with tap water 500psi
Max pressure 800psi
Flow rate with container water 0.85GPM
Flow rate with tape water 1.00GPM
Inlet pressure 44 psi
Supply water temperature use cold water only (max.104°F)
High-pressure Hose 19 ft.
Detergent injection rate 3%~12%
Battery Charger
Input 100~120V, 50/60Hz
Output DC40V, 2A
Charger time approx.120 minutes for 4Ah battery pack
The pressure washer is intended for cleaning the walls of buildings, facades,
terraces, footpaths, garden equipment, pressure washer, vehicles, tools, etc. with a
pressure water nozzle. If required, you can also use the pressure washer with added
household cleaning agents.
The pressure washer is to be used only for its prescribed purpose . any other use is
Deemed to be a case of misuse. The user/operator and not the manuafacturer will be
liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade
or industrial applications. Our warranty will be voided if the pressure washer is used
in commercial, trade or industrial businesses or for equivalent purposes.
MC4050PB.indd 5 15-5-4 ��11:45

6
IMPORTANT SAFETY INSTRUCTIONS
Please read all of the safety precautions before operating this pressure washer
every time.
Please pay particular attention to all sections with following symbols.
The following signal words and meanings are intended to explain the levels of risk
associated with this product.
DANGER!
Indicates an imminently hazardous situation which, if not avoided, will result in death
or serious injury.
WARNING!
Indicates a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
CAUTION!
Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
CAUTION!
(Without Safety Alert Symbol) Indicates a situation that may result in property damage.
WARNING! - When using this product basic precautions should always be
followed, including the following:
1. Read all the instructions before using the pressure washer.
2. To reduce the risk of injury, close supervision is necessary when pressure washer
is used near children.
3. Know how to stop the pressure washer and release pressures quickly. Be
thoroughly familiar with the controls.
4. Stay alert-watch what you are doing.
MC4050PB.indd 6 15-5-4 ��11:45

7
5. Do not operate the pressure washer when fatigued or under the influence of
alcohol or drugs.
6. Keep operating area clear of all persons.
7. Do not overreach or stand on unstable support .keep good footing and balance at
all times.
8. Follow the maintenance instructions specified in the manual.
9. This pressure washer or its power cord contains lead, a chemical known to cause
cancer, birth defects or other reproductive harm. Wash hands after handling.
WARNING -Risk of injection or injury – Do Not Direct Discharge Stream At
persons.
10.Never operate the pressure washer without all components properly connected to
the pressure washer (handle, gun/wand assembly, nozzle, etc.).
11.Never operate pressure washer with broken or missing parts. Check equipment
regularly and repair or replace worn or damaged parts immediately.
12.Never put hand or fingers over the nozzle or spray tip while operating the pressure
washer.
13.Never spray flammable liquids or use pressure washer in areas containing
combustible dust, liquids or vapors. An electric spark could cause an explosion.
14.Never leave the wand unattended while the pressure washer is running or
switched on.
15.Never disconnect the High-pressure discharge hose from the pressure washer
while the system is pressurized. To depressurize pressure washer, turn power
and water supply off, then depress gun trigger 2-3 times.
16.Never cover the pressure washer during operation to allow free air cooling.
17.Always wear safety glasses or goggles when operating or performing
maintenance.
18.Always move switch on unit to “OFF” position before pulling the battery pack out.
19.Always turn water supply “ON” before turning pressure washer “ON” unless
draining for storage. Running pump dry causes serious damage.
20.Always hold gun and wand firmly when starting and operating the pressure
washer.
21.Always follow detergent manufacturer’s label recommendations for proper use
of detergents. Always protect eye, skin and respiratory system from detergent if
used.
22.Always lock the trigger of spray gun in the safety position when not in use.
23.Do not use pressure that exceeds the operating pressure of any of the parts (hoses,
fittings, etc.) in the pressurized system. Never use with any other manufacturer’s
MC4050PB.indd 7 15-5-4 ��11:45

8
accessories or components.
24.Do not spray electrical apparatus and wiring or the pressure washer itself.
25.Do not operate the pressure washer with the inlet water filter removed. Keep filter
clear of debris and sediment.
26.Discharge residual pressure by depressing the trigger until no more water comes
out of the nozzle.
27.Keep clear of nozzle. Never direct high-pressure spray at any person, animal or
self.
28.To minimize the amount of water getting into the pressure washer, the pressure
washer should be placed as far as possible from the cleaning site during
operation.
WARNING
RISK OF INJURY
INJECTION HAZARD
1. Equipment can cause serious injury if the spray penetrates the skin. Do not point
the gun at anyone or any part of the body. In case of penetration, seek medical
aid immediately.
2. This system is capable of producing 870psi. To avoid rupture and injury, do not
operate this pump with components rated less than 870psi working pressure
(including but not limited to spray guns, hose, and hose connections).
3. Before servicing, cleaning, or removal of any part, switch off power and relieve
pressure.
WARNING
RISK OF INJURY
DO NOT DIRECT DISCHARGE STREAM AT SELF OR OTHER
PERSONS.
1. High-Pressure jet can be dangerous if misused.
2. The jet must not be directed at persons, animals, electrical devices, or the unit
itself.
MC4050PB.indd 8 15-5-4 ��11:45

9
WARNING
RISK OF EXPLOSION-DO NOT SPRAY FLAMMABLE LIQUIDS
Do not use acids, alkaline, solvents or any flammable material in this product.
These products can cause physical injuries to the operator and irreversible damage
to the pressure washer.
CAUTION
GUN KICK BACK
1. Hold with both hands.
2. The trigger gun safety lock prevents the trigger from being engaged accidentally.
3. The safety feature does not lock trigger in the ON position.
CAUTION
This pressure washer has been designed for use with detergents that are
specifically approved for pressure washer use. The use of other cleaning
detergents may affect the operation of the pressure washer and void the
warranty.
SAFETY WARNINGS FOR BATTERY PACK
1. Do not dismantle, open or shred cells or battery pack.
2. Do not short-circuit a battery pack. Do not store battery packs haphazardly in a
box or drawer where they may short circuit each other or be short-circuited by
conductive materials. When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws or other small metal
objects, that can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
3. Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
4. Do not subject battery pack to mechanical shock.
5. In the event of battery leaking, do not allow the liquid to come into contact with
the skin or eyes. If contact has been made, wash the affected area with copious
amounts of water and seek medical advice.
6. Seek medical advice immediately if a cell or battery pack has been swallowed.
7. Keep battery pack clean and dry.
8. Wipe the battery pack terminals with a clean dry cloth if they become dirty.
MC4050PB.indd 9 15-5-4 ��11:45

10
9. Battery pack needs to be charged before use. Always refer to this instruction and
use the correct charging procedure.
10.Do not maintain battery pack on charge when not in use.
11.After extended periods of storage, it may be necessary to charge and discharge
the battery pack several times to obtain maximum performance.
12.Battery pack gives its best performance when it is operated at normal room
temperature (68 °F ± 9 °F).
13.When disposing of battery packs, keep battery packs of different electrochemical
systems separate from each other.
14.Recharge only with the charger specified by manufacturer. Do not use any
charger other than that specifically provided for use with the equipment. A
charger that is suitable for one type of battery pack may create a risk of fire when
used with another battery pack.
15.Do not use any battery pack which is not designed for use with the equipment.
16.Keep battery pack out of the reach of children.
17.Retain the original product literature for future reference.
18.Remove the battery from the equipment when not in use.
19.Dispose of properly.
GENERAL SAFETY WARNINGS FOR YOUR BATTERY CHARGER
WARNING Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/
or serious injury.
Save all warnings and instructions for future reference.
- This pressure wahser is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of
the pressure wahser by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the pressure
wahser.
Additional Safety Instructions For Your Battery Charger
1. Before charging, read the instructions.
MC4050PB.indd 10 15-5-4 ��11:45

11
2. After charging, disconnect the battery charger from the supply mains. Then
remove the chassis connection and then the battery connection.
3. Do not charge a leaking battery.
4. Do not use chargers for works other than those for which they are designed.
5. Before charging, ensure your charger is matching the local AC supply.
6. For indoor use, or do not expose to rain.
7. The charging device must be protected from moisture.
8. Do not use the charging device in the open.
9. Do not short out the contacts of battery or charger.
10.Respect the polarity “+/-“when charging.
11.Do not open the unit and keep out of the reach of children.
12.Do not charge the batteries of other manufactures or ill-suited models.
13.Ensure that the connection between the battery charger and battery is correctly
positioned and is not obstructed by foreign bodies.
14.Keep battery charger’s slots are free of foreign objects and protect against dirt
and humidity. Store in a dry and frost-free place.
15.When charging batteries, ensure that the battery charger is in a well-ventilated
area and away from inflammable materials. Batteries can get hot during charging.
Do not overcharge any batteries. Ensure that batteries and chargers are not left
unsupervised during charging.
16.Do not recharge non-rechargeable batteries, as they can overheat and break.
17.Longer life and better performance can be obtained if the battery pack is charged
when the air temperature is between 64°F and 75°F. Do not charge the battery
pack in air temperatures below 32°F, or above 113°F. This is important as it can
prevent serious damage to the battery pack.
18.Charge only battery pack of the same model provided by manufacturer and of
models recommended by manufacturer.
MC4050PB.indd 11 15-5-4 ��11:45

12
ASSEMBLY
WARNING!
Remove the battery pack before carrying out any work on the pressure washer, and
use only original parts.
Before starting any cleaning task, it is important to inspect the area for objects that
could create a hazard. Remove any objects from the work area that could be tripped
over, such as toys or outdoor furniture. Ensure that all doors and windows are closed
tightly.
Fig. 4 Fig. 5

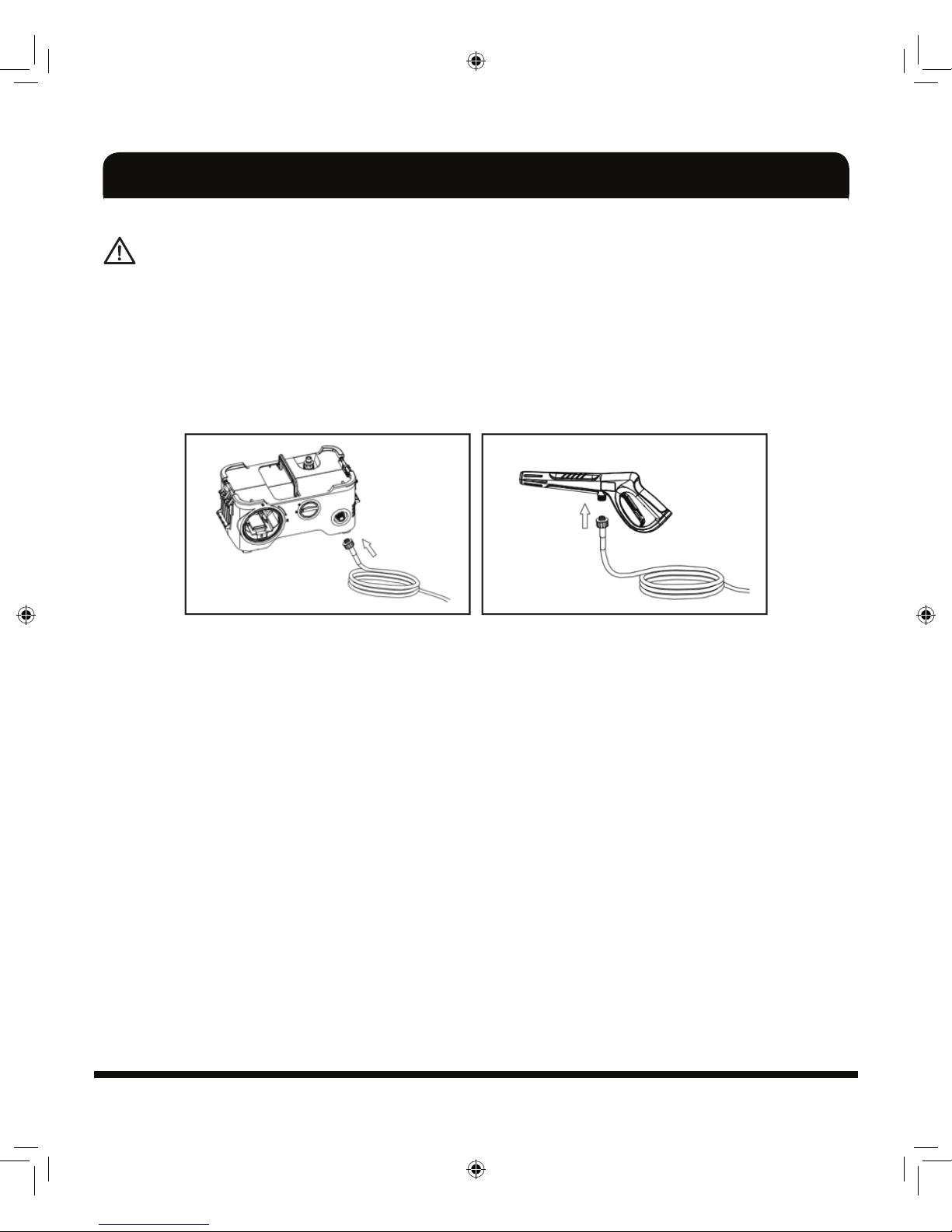

Connect the hose to the pressure washer
As shown in Fig. 4
Attach High-pressure hose to the pressure washer’s water outlet (hand tighten only).
Connect the hose to trigger handle
As shown in Fig. 5
Screw the High-pressure hose firmly onto the trigger handle.
Fit the spray nozzle to trigger handle
As shown in Fig.6
Attach desired color coded spray nozzle to quick-connect wand by pushing to
ensure it is clicked in securely. Insert quick–connect wand into the trigger handle and
twist it, hand tighten until two parts are locked.
MC4050PB.indd 12 15-5-4 ��11:45

13
Fig. 6 Fig. 7
Function of each spray nozzles
As shown in Fig.7
The spray nozzles are for purposes as below:
T1: Red -0 °: Concentrate water flow on work Area, quite useful for cleaning
stubborn dirt.
T2: Yellow-15°: Delivers balanced pressure and flow for general cleaning.
T3: White-40°: For delicate cleaning.
Connect to water supply
Two types of water source are available for this pressure washer. Based on your
actual demand to select one of them.
Option 1: By using female coupling connector with back-flow preventer function
(supplied), connect to potable water source. Or using other back-flow prevention
device which conforming to the requirements of the American Society of Sanitary
Engineers.
Option 2: Using the water container.
Using potable water supply as water source
As shown in Fig.8-9
Fig. 8 Fig. 9
MC4050PB.indd 13 15-5-4 ��11:45

14
WARNING!
Before following action, make sure the ON/OFF switch is on the "OFF "position.
The following accessory is required for connecting to the pressure washer (not
supplied):
1. A water supply hose – it is a fabric-reinforced hose with a minimum diameter of
½ inch.
2. Screw the inlet adapter onto the pressure washer.
3. Attach a water supply hose with coupling connector(supplied) to the inlet adapter.
4. Connect the other end of water supply hose to the potable water tap.

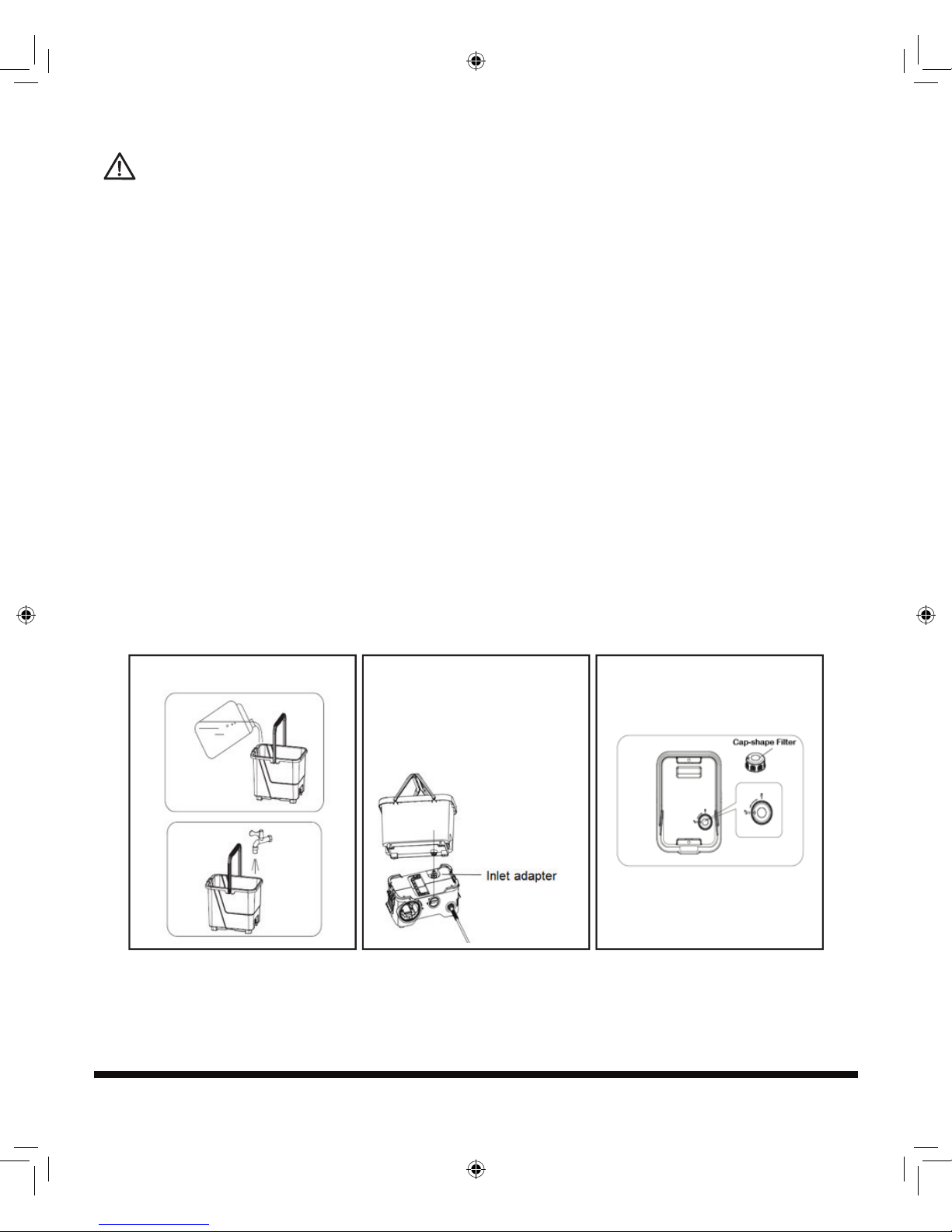

Using the water container as water source
As shown in Fig.10-13
This high-pressure washer is equipped with water container that is convenient to use
in case of no sustainable water supply or far away from the water source .
1. Fill the container with clean water either by using other water carriers or
sustainable water source.
Fig. 10 Fig. 11 Fig. 12
MC4050PB.indd 14 15-5-4 ��11:45

15

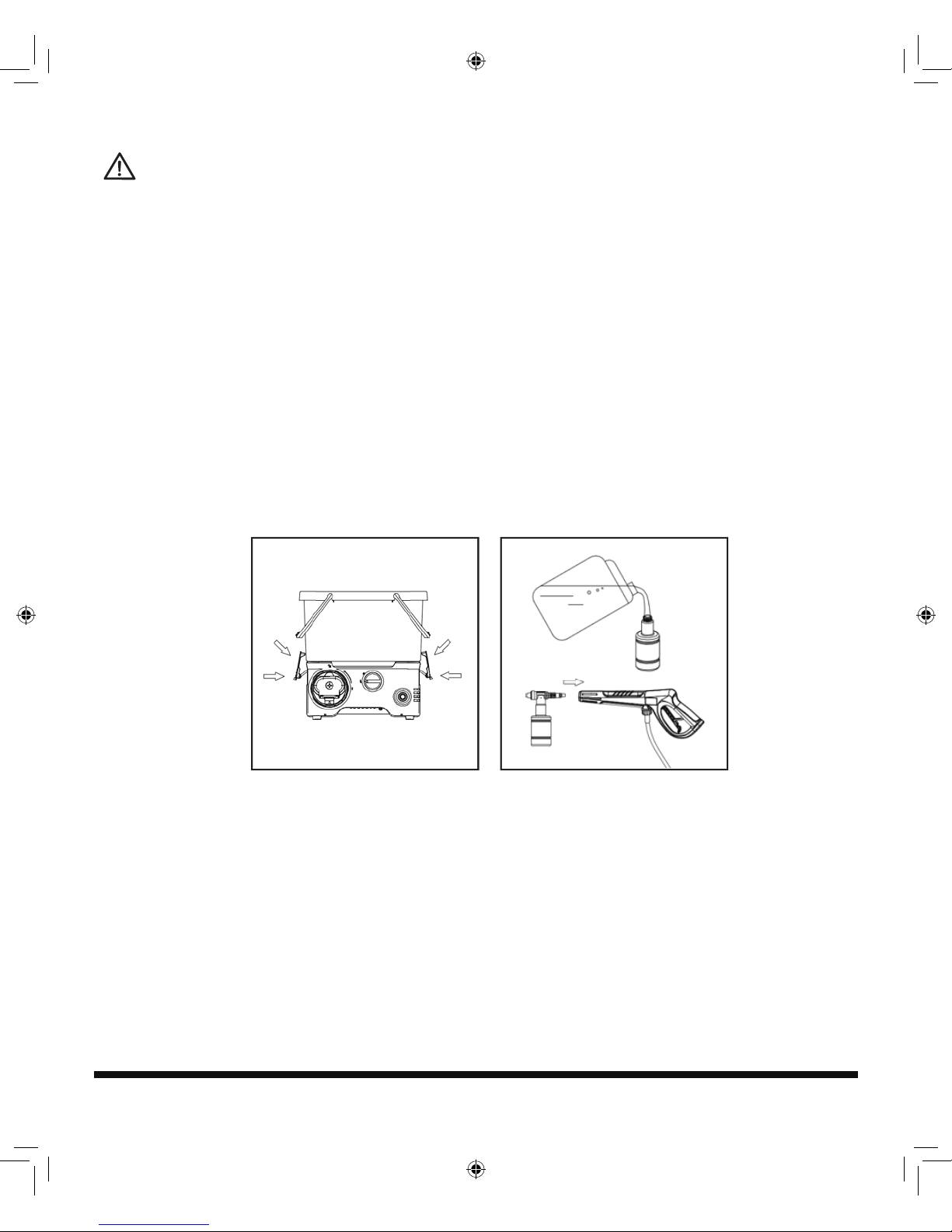

NOTE!
1. Make sure the inlet adapter stays on the inlet of the pressure washer.
2. Carefully place the container onto the pressure washer.
3. Align arrow on the cap-shape filter with the unlock position on the container.
then turn the cap-shape filter to lock position.
4. To fix the cap-shape filter in place.
5. Fasten the container to the high-pressure washer by using the locking hook,
make sure that the locking hook locks into place correctly.
Use the detergent bottle
As shown in Fig. 14
1. Stop the pressure washer.
2. Add detergent to the bottle.
3. Attach the detergent wand onto the trigger handle.
Fig. 13 Fig. 14
MC4050PB.indd 15 15-5-4 ��11:45

16

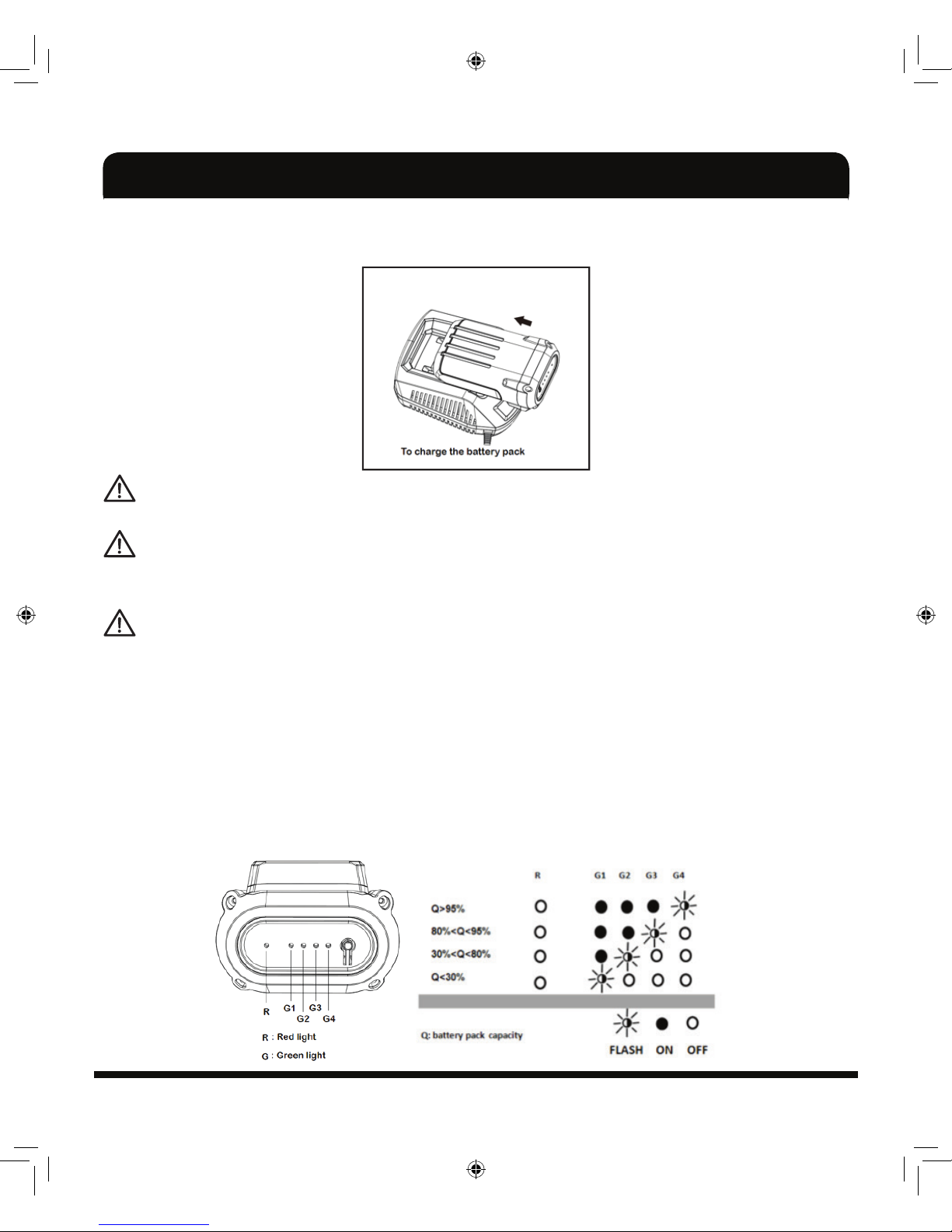

Charging the battery pack
As shown in Fig.15
Fig. 15
NOTE: Remove the battery pack from the charger after it has been fully charged .
NOTE: This battery pack has been shipped in a low charge condition. It should
be fully charged before first use.
WARNING: Make sure the main voltage is the same as rating label which located
on the charger.
1. Connect the charger to a power source. You will hear a beep sound, and the green
LED light will be on.
2. To insert the battery pack into the charger, align the raised ribs of the battery pack
with the grooves of the charger. Then push it in, ensure the battery pack is in its
place.
3. The charger will communicate with the battery pack’s circuitry to evaluate the
capacity of the battery pack.
Charging status as following chart:
OPERATION
MC4050PB.indd 16 15-5-4 ��11:45

17
4. The green LED light of the charger will flash continuously during normal charging.
5. After charging is complete, you will hear a beep sound again, the green LED on
the charger will be on and the four green lights of the battery pack will be on for 3-5
seconds then turn off.
If encounter one of following kind of situation, the light of charger will turn red, and
flash, you will hear beep sound per second until the problem has been corrected.
- Wrong communication. It refers to poor connection between charger and battery
pack .
- Internal temperature of the battery pack is out of range from 32°F to 122°F.
- Full voltage of the battery pack less than 32V.
- Short circuit of the output, or overload.

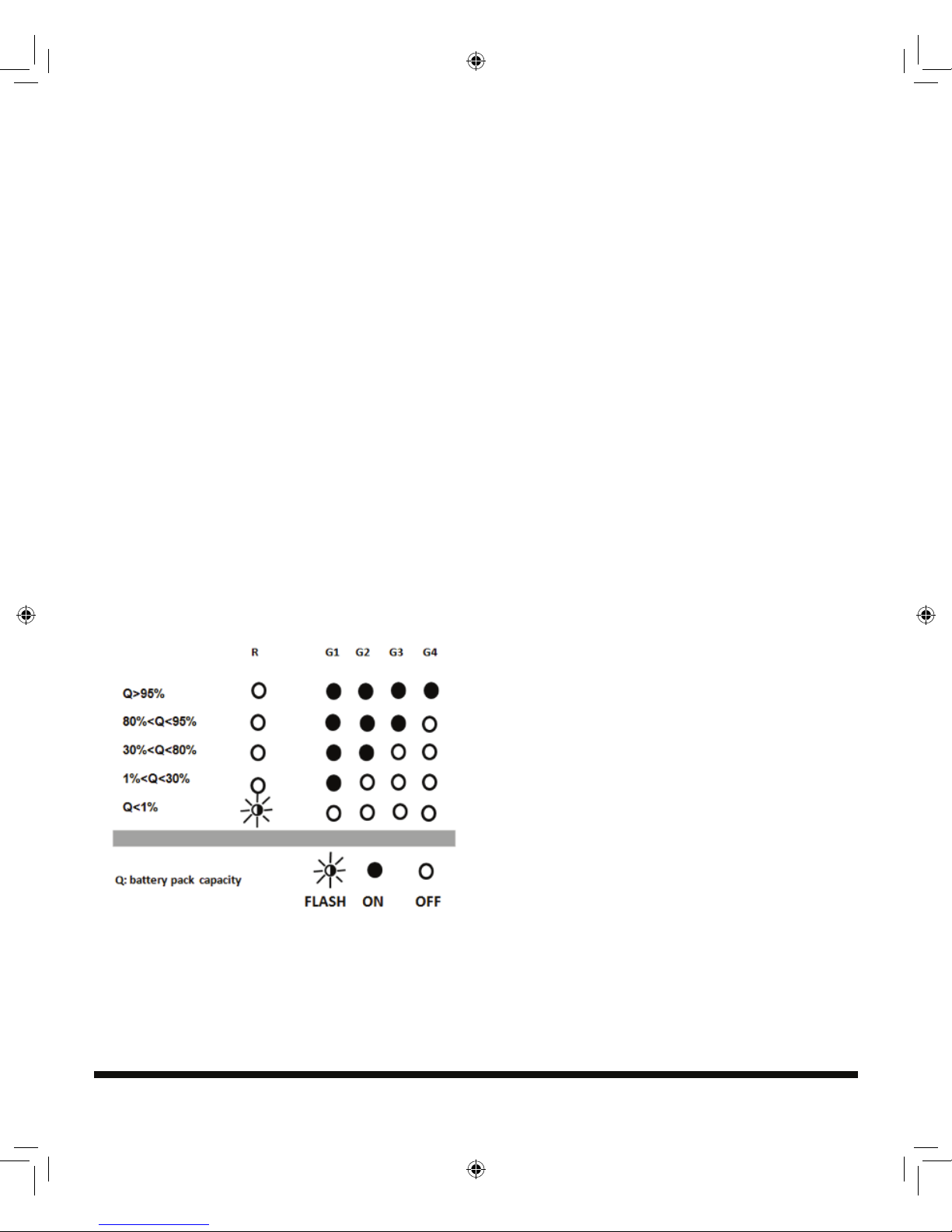

The power indicator LED lights
This Li-Ion battery pack is equipped with a power indicator which is used to give
an indication of the battery pack’s remaining charge. Press the power indicator
button to check battery charge as below. The LEDs will stay lit for approximately 4
seconds.
Meaning of power indicator:
Low capacity warning
Unlike other battery pack types, Lithium-Ion battery packs deliver fade-free power
for their entire run time. The tool will not experience a slow, gradual loss of power as
you work. If red LED on the battery pack begins to flash, the battery pack’s charge is
under 1% capacity and should be recharged.
MC4050PB.indd 17 15-5-4 ��11:45

18
To obtain the best life from the battery
1. Never allow the battery to completely discharge before recharging. The battery
pack should be placed on the charger whenever the battery pack is noticeably
running down or the tool no longer performs a task it previously performed.
2. Avoid conducting short charges. Make sure that the battery is fully charged every
time by allowing the charger to complete its full charging cycle.
3. Avoid allowing lose items like screws or nails etc. to be stored with battery packs
as these or similar items can short battery packs and cause a fire or explosion.
4. Always unplug the charger when not in use and store in a dry secure place.
5. Avoid charging or storing your battery in temperatures below 32°F and above
113°F.
6. Cool down hot battery pack from a just-operated tool for approximately 30
minutes before attempting to recharge.
Removing and inserting the battery pack
To remove the battery pack from the tool
As shown in Fig.16
WARNING: Make sure the ON/OFF switch is set in the "OFF" position. Before
installing or removing the battery pack.
Firstly turn the battery pack compartment cover to unlock position and remove it.
Then press the battery pack release button down, the battery pack will come out
automatically and remove it .
Fig. 16 Fig. 17
MC4050PB.indd 18 15-5-4 ��11:45
