Mikomi DS-306 User manual

USER MANUAL
MODEL: DS-306
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

TABLE OF CONTENTS
01-02
SAFETY PRECAUTIONS
IMPORTANT SAFETY INSTRUCTIONS 03
NOTICE 04
06
PANEL
06-07
BASIC CONNECTION
08
ACCESSORIES and REMOTE CONTROL
09
BASIC PLAYBACK
10-11
ADVANCED PLAYBACK
11
SPECIAL FUNCTION PLAYBACK
12-14
SYSTEM SETUP
SPECIFICATIONS
16
15
TROUBLE SHOOTING
05
PLAYABLE DISCS
CONTACT DETAILS
17
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

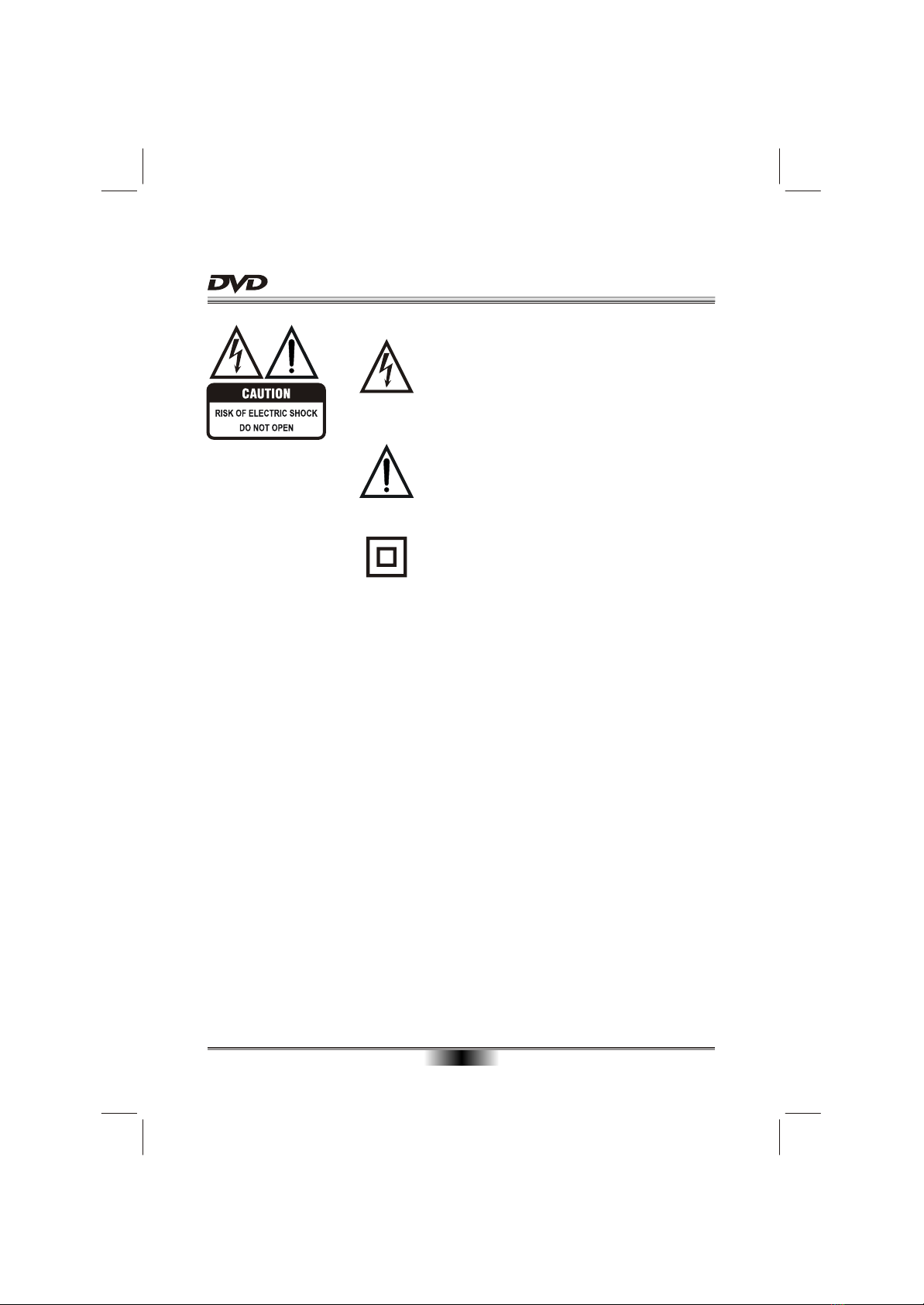

SAFETY PRECAUTIONS
01
The lightning flash with arrowhead symbol, within an equila-
teral triangle, is intended to alert the user to the presence
of uninsulated "dangerous voltage " within the product's en-
closure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
The symbol for CLASS II (Double Insulation).
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE, DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET, REFER
SERVICING TO QUALIFIED PERSONNEL ONLY.
WARNING:
When replace the direct plug in power supply or a separable, cord-connected power
supply, the replacement must be exact duplicate, or one recommended by the manu-
facturer.
CAUTION:
This product utilizes a laser.
Use of controls or adjustments or performance of procedures other than those
specified here in may result in hazardous radiation exposure.
Do not open the cover and do not repair yourself. Refer servicing to
qualified personnel.
DANGER: Visible and invisible laser radiation when open and interlock failed or
defeated. Avoid direct exposure to beam.
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

SAFETY PRECAUTIONS
02
Manufactured under license from Dolby Laboratories. " Dolby " and the double-D
symbol are trademarks of Dolby Laboratories. Confidential unpublished works.
Copyright 1992-1997 Dolby Laboratories. All rights reserved.
This product incorporates copyright protection technology that is protected by
method claims of certain U. S. Patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for
home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
Consumers should note that not all high definition television sets are fully compatible
with this product and may cause artifacts to be displayed in the picture.
In case of 525 or 625 progressive scan picture problems, it is recommended that he
used switch the connection to the "standard definition" output. If there are questions
regarding our TV set compatibility with this model 525p and 625p DVD player, please
contact our customer service centre.
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product, it means the
product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the
municipal waste stream via designated collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact
your city office, waste disposal service or the shop where you purchased the product.
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

03
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS MANUAL AND
THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire
hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation,
use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

04
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

* Player is DVD-Video, DVD+/-R, DVD+/-RW, VCD, CD-DA, CD-R, CD-RW compatible.
Region Management Information
This DVD Player is designed and manufactured to respond to the Region Management
Information that is recorded on a DVD disc. If the Region number described on the DVD
disc does not correspond to the Region number of this DVD Player, this DVD player can-
not play that disc.
This Region number of this DVD player is .
Audio &
Video
Audio
Disc size 12cm
single side, single layer / single side, double layer
PAL and NTSC DVD disc
Playback time 135min / 240min max.
Disc size 12cm / 8cm
CD disc
Playback time 74min/20min max.
JPG format disc
Getting Started
JPEG
Disc types
05
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

L
R
2-CH AUDIO OUT DIGITAL AUDIO OUT / VIDEO OUT
COAXIAL S-VIDEO VIDEO
Manufactured under
license from Dolby
Laboratories. "Dolby"
and the double-D
symbol are trademarks
of Dolby Laboratories.
Confidential
Unpublished works.
Copyright 1992-1997
Dolby Laboratories.
All rights reserved.
SCART OUTPUT
Apparatus
Claims of U.S.
Patent Nos. 4,
631,603;4,577,
216;4,819,098
and 4,907,093
licensed for
limited
viewing uses
only.
Y CB / PB CR / PR
110V-240V~ 50/60Hz
S/N:
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
Model no.: DS-306
POWER SOURCE: 110V-240V~ 50/60Hz 15W
0713
CLASS 1 LASER PRODUCT
PANEL
06
REAR PANEL OUTPUT
1. POWER LINE INPUT
2. SCART OUTPUT
3. 2 CHANNELS AUDIO OUTPUT
4. COAXIAL OUTPUT
5. VIDEO OUTPUT
6. Y, CB/PB, CR/PR OUTPUT
7. S-VIDEO OUTPUT
FRONT PANEL
1. TRAY
2. OPEN/CLOSE
3. STOP
4. REMOTE CONTROL SENSOR
5. PLAY/PAUSE
6. POWER INDICATOR
7. STANDBY/ON
Connecting to a TV with Scart cable
To Scart input
To Scart output
BASIC CONNECTION
L
S-VIDEO
VIDEOCOAXIAL
R
Y CB / PB CR / PR
2-CH AUDIO OUT VIDEO OUT / DIGITAL AUDIO OUT
SCART OUTPUT
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

BASIC CONNECTION
07
Connecting to a audio system and TV equipped with YUV video input
To audio inputs of the amplifier
To Y video input
To CB/PB video input
To CR/PR video input
To Y video output To CB/PB video output
To CR/PR video output
Connecting to an amplifier equipped with a digital audio input and TV
Coaxial cable
To COAXIAL type
digital audio input
To Y video input
To CB/PB video input
To CR/PR video input
To Y video output To CB/PB video output
To CR/PR video output
Connecting to a TV with Audio/Video cable
If the TV has a S-video input, connect the DVD player with a S-video cable.
When using a S-video cable, do not connect the yellow video cable.
To video input(yellow)
To audio inputs(red, white)
To S-video input
To S-video output
L
S-VIDEO
VIDEOCOAXIAL
R
Y CB / PB CR / PR
2-CH AUDIO OUT VIDEO OUT / DIGITAL AUDIO OUT
L
S-VIDEO
VIDEOCOAXIAL
R
Y CB / PB CR / PR
2-CH AUDIO OUT VIDEO OUT / DIGITAL AUDIO OUT
L
S-VIDEO
VIDEOCOAXIAL
R
Y CB / PB CR / PR
2-CH AUDIO OUT VIDEO OUT / DIGITAL AUDIO OUT
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

1 2 3
4 5 6
STANDBY MENU
OSD
V.MODE
OPEN/CLOSE
TITLE/PBC
PREV
F.REV
MUTE AUDIO
F.FWD
SUBTITLE
REPEAT A-BRPT
NEXT
VOLUME
7
PAUSE/STEP
STOP
ZOOMSETUP
SEARCH
010+
8 9
ANGLE
PROG
1 2 3
4 5 6
STANDBY MENU
OSD
V.MODE
OPEN/CLOSE
TITLE/PBC
PREV
F.REV
MUTE AUDIO
F.FWD
SUBTITLE
REPEAT A-B RPT
NEXT
VOLUME
7
PAUSE/STEP
STOP
ZOOMSETUP
SEARCH
010+
8 9
ANGLE
PROG
ACCESSORIES and REMOTE CONTROL
08
REMOTE CONTROL
FunctionFunction
1. OSD(On Screen Display)
2. STANDBY/ON
3. V.MODE
4. SUBTITLE
5. TITLE/PBC
6. PROGRAM
7. SEARCH
8. SETUP
9. ENTER/PLAY
10. CURSOR
11. FAST REVERSE
12. STOP
13. PAUSE/STEP
14. MUTE
15. REPEAT
16. MENU
17. OPEN/CLOSE
18. DIGITS AND 10+ BUTTONS
19. ZOOM
20. ANGLE
21. PREVIOUS
22. FAST FORWARD
23. NEXT
24. VOLUME+/-(Volume control)
25. AUDIO
26. A-B REPEAT
2
3
4
5
6
8
9
10
11
12
14
13
15
16
19
21
23
24
25
17
18
20
22
26
7
1
Loading Battery
Improper replacement of battery may result in explosive hazard. It will be replaced only by battery with the same or equivalent type.
Pls take out the insulated plastic piece,when you use the remote first time.
ACCESSORIES
Audio/Video cable .................... 1
Remote control ......................... 1
User manual .............................. 1
User manual
USER
MANUAL
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

BASIC PLAYBACK
09
Preparations
When you want to view a disc, turn on the TV and
select the video input connected to the DVD player.
Fast forward and Fast reverse
1. Press F.FWD to fast forward through the disc.
Each time the F.FWD button is pressed, the
fast forward motion speed changes.
2. Press ENTER/PLAY to resume normal playback.
3. Press F.REV to fast reverse through the disc.
Each time the F.REV button is pressed, the
fast reverse motion speed changes.
4. Press ENTER/PLAY to resume normal playback.
Basic playback
1. Press STANDBY/ON in the front panel, the DVD
player turns on and the TV screen will display the
start logo. If a disc is already in the tray, it will
begin to play automatically.
2. Press OPEN/CLOSE to open the disc tray,
place a disc on the disc tray.
There are two different disc sizes. Place the
disc in the correct guide on the disc tray. If the
disc is out of the guide, it may damage the disc
and cause the DVD player to malfunction.
Do not place a disc which is unplayable in this
DVD player.
3. Press OPEN/CLOSE to close the disc tray, the
playback will automatically start.
Some discs may not playback automatically,
you can press ENTER/PLAY button to start
playback.
4. Some discs may start playback with a menu,
use the cursor button on the remote control to
select menu options and press ENTER/PLAY to
start, or press digits to select a menu options
directly.
NOTES:
1.
1. Press STOP button to go to stop mode, the TV
screen will show the start logo. As some disc the
player can recall the location where stopped, such
as DVD.
2. Press ENTER/PLAY to playback to resume play-
-back from the location where playback is stopped
or from the beginning of the disc.
3. Press STOP twice to stop completely.
Stop playback
Previous and Next
During playing, press PREV key can back to start
of this chapter, then each press this key will skip a
chapter still the start of the disc.
Each press of NEXT during playing will skip
the current chapter and play the next one.
key
Pause/Step playback
1. Press PAUSE/STEP first time to pause
playback (still mode). The sound will be muted
during still mode.
2. Press PAUSE/STEP continuous to single step
forward to the next frame in the video.
3. Press ENTER/PLAY to resume normal playback.
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

ADVANCED PLAYBACK
10
TITLE/PBC
According to some DVD discs, press this button will
display "Title Menu", the unit will play from the disc
head or you can use digits to select tracks preferred.
According to some VCD, following the menu screen
on the TV screen, On this playing, the user can use
the digits buttons enter, during PBC playback.
SEARCH
Press this button and the screen display menu, then
press digits button into menu, for example:
first Title 02/10 Chapter /32
twice Title 02/10 Time : :
third Chapter 01/32 Time : :
According to operation, you could choose point that
you want to play.
MENU
Press this button and the screen will display " Root
Menu ", select item according to your preference.
(This key is valid to DVD disc possessing multi-layer
menu.)
IMPORTANT NOTE:
THE FOLLOWING FUNCTIONS ARE APPLICABLE ONLY TO DVD DISCS. IF OTHER DISC FORMATS ARE
PLAYED, SCREEN DISPLAYAND OPERATION WILL BE DIFFERENT.
OSD
Press this button and the screen will display some
information about disc, such as : " Title Elapsed " ,
" Title Remain ", " Chapter Elapsed ", " Chapter
Remain " and " Display Off ".
SUBTITLE
Press this button and the screen will display "SUBTI-
TLE 01/XX XXXXX", "01" indicates the ordinal
number of this language; "XX" indicates total number
of language; "XXXXXX" indicates the language of
country. (the number of language depends on disc).
V.MODE
This button can set VIDEO output among "CVBS",
"RGB" , "YUV" or "P-Scan" .
Note: The screen disappear when press this button,
press this button continuously until the screen turn
normal.If there are picture interferences or no picture,
please press "V.MODE" to correct it. ZOOM
Each time pressed, the picture enlarges.
In this mode, you can move the picture with CURSOR
button.
PROGRAM
Press this button and the screen will display info
window , press digits button to input the program
number what you want, when finished, move the
cursor to select the " Start " logo, at this time the unit
will start program playback and the screen will display
"Program" logo.
If you want to cancel this function, press " STOP "
and then press "ENTER/PLAY" .
ANGLE
For discs with this feature, press this key to view
action from different angles.(Depending on the DVD)
VOLUME and MUTE
Press " + " at the right of VOLUME to increase
volume, " - " to decrease to volume. The first press
of MUTE will display MUTE (no voice), the second
press will return to normal playback.
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

When playing JPEG disc, a navigation menu will be displayed automatically if the disc is loaded in succession.
In the menu, use UP or DOWN in the cursor to select a file, then press "ENTER/PLAY", the file will be play with
a slide - show. Press PREV or NEXT to select the previous or the next picture. Press PAUSE to pause the
current picture for enjoying, when press "ENTER/PLAY" , it will return to normal playing.
JPEG DISC PLAYBACK
SPECIAL FUNCTION PLAYBACK
11
AUDIO CD PLAYBACK
When playing Audio CD disc, a navigation menu will be displayed
automatically if the disc is loaded in succession.
In the menu, use UP or DOWN button in the cursors to select the
file, then press "ENTER/PLAY" to play this file. In this page, press
PREV or NEXT can go to the previous or next page.
TRACK01
TRACK02
TRACK03
TRACK04
TRACK05
TRACK06
00:00 00:00
001/010
CD
CD
CD
CD
CD
CD
A-B REPEAT
Press " A-B RPT " to begin start-point, press again
to set an end point and complete setting. The
selected section A-B will be repeated. The third
press will cancel this function.
AUDIO CHANNEL CHOOSE
Press this button on remote control to change the
mode of audio.
For example: Audio 1/2: AC 3 2 CH English
Audio 2/2: AC 3 5.1 CH English
Note: When press this button continuously, you must
above 3 seconds interval.
REPEAT
Follow this operation :
first Chapter
twice Title
third All
the fourth pressed will cancel repeat.
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

SYSTEM SETUP
12
1.5 SCREEN SAVER
SCREEN SAVER: If the screen saver is on,then there
will be an animated picture on the screen whenever
the DVD player is idle for a certain time.
1.3 OSD LANGUAGE
On Screen Display (OSD) Language: Users can
select the whole setup menu and on-screen display
language.
When you press SETUP key on the remote control,
the setup menu will be displayed.
1.Within the setup menu, you can use UP, DOWN,
LEFT and RIGHT buttons on the remote control
to move the cursor, and then press the
ENTER/PLAY button to make your selection.
Press LEFT can return the previous menu.
2.To exit setup menu, you can press SETUP
menu.
The TV Display which select the different ratio of
display format and the screen of TV, There are
various types of display on screen for different
matches between Disc and TV .
Note:
No matter which display format is selected, a
picture recorded in standard 4:3 format always
displays in the 4:3 aspect ratio.
The display format of DVD titles may vary; please
refer to the information that accompanies your
specific DVD title.
If the DVD title is recorded in 16:9 wide display
format while the TV is a standard 4:3 screen,
horizontal compression of the image will result.
Some DVD titles may be recorded in special
formats. In such cases, the DVD titles will always
appear on the screen in their original format,
regardless of which TV display format you select.
1.1 TV DISPLAY
Setup TV screen format, video type and all DVD
functions.
1. GENERAL SETUP PAGE
General Audio Dolby Video Preference
Tv Display
Angle Mark
Osd Lang
Captions
Screen Saver
PS
On
ENG
Off
On
Go To General Setup Page
General Setup Page
2. AUDIO SETUP PAGE
2.1 DOWNMlX SETUP
General Audio Dolby Video Preference
Lt/Rt
Stereo
Set Downmix Mode
Speaker Setup Page
Downmix
Spdif Output
1.2 ANGLE MARK
ANGLE MARK: Users can select a particular camera
angle when playing a DVD that offers multiple angles.
1.4 CAPTIONS
CAPTIONS: For hearing-impaired people. The
program can be displayed with recorded explanatory
captions.
Note: This is valid for a disc that has captions.
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

SYSTEM SETUP
13
Dolby Video Preference
General Audio
Dual Mono
Dynamic
Dolby Digital Setup
Go To Dolby Digital Setup
3. DOLBY DIGITAL SETUP PAGE
DOWNMIX MODE: Sets front speakers to LT/RT
STEREO.
The first 2 settings (LT/RT, STEREO) downmix
the sound Signal for 2-Speakers. This setting
allows you to enjoy a surround sound effect with
onIy two speakers. For this reason a setup for
additional speakers (described in the following
sections) is disabled when DOWNMlX MODE is
set to these settings.
This DVD player includes three kinds of audio output:
1. SPDlF OFF: An analog surround sound format is
output through the back-paneI connections for L, R.
2. SPDlF/RAW or SPDIF/PCM: This surround sound
format is output to a Dolby Digital decoder through
the coaxial connectors on the back panel of the
product.
2.2 SPDIF OUTPUT
SPDlF OUTPUT MODE: Sets the audio outputs.
Under the status of SPDIF/RAM , can not adjust
volume of DVD, CD , it can only adjust under the
MP3 format.
SPDIF the abb reviation of Sony Philips Digital
Interface Format .
DUAL MONO: If your amplifier / decoder has
Dolby Digital output, you may select stereo, left
mono, right mono, or mixed mono mode for your
amplifier decoder.
3.1 DUAL MONO
4. VIDEO SETUP PAGE
Dolby Video
General Audio
Video Setup Page
Component
TV Mode
Sharpness
Brightness
Contrast
RGB
Low
00
00
Go To Video Setup Page
Preference
COMPONENT: Sets the video output.
4.1 COMPONENT
DYNAMIC: This function is generally used when
playing high volume programs at night, in order
to minimize disturbances . This setting can dyna-
mically lower the volume and still keep the original
tone quality. This is the range, measured in deci-
bels(dB), between the loudest and the quietest
sound registers in a soundtrack.
3.2 DYNAMIC
TV MODE: Sets the scan mode to same of your TV.
If there are picture interferences or no picture, please
press "V.MODE" to correct it.
he component option must select YUV , the
TV MODE option is valid.
( T
)
4.2 TV MODE SETUP PAGE
SHARPNESS: Sets the sharpness level of video
output.
4.3 SHARPNESS
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

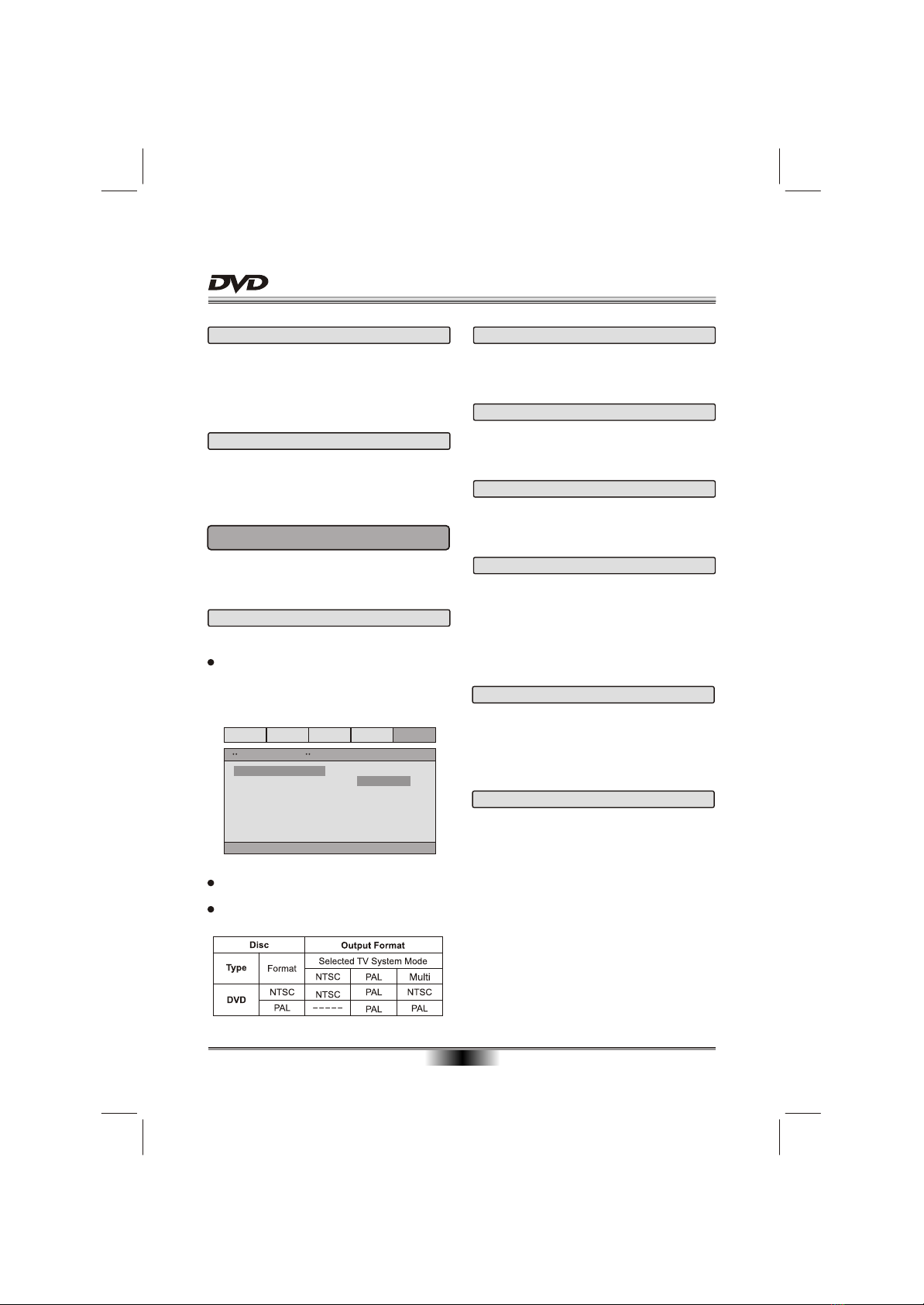

SYSTEM SETUP
14
The preference setting is only active with no disc,
and the setting is effective on each time power on
till exchanging the saved setting.
5. PREFERENCE SETUP PAGE
5.2 AUDIO
AUDIO: Sets the preferred audio language as the
default when playing DVD. (If the DVD supports the
languages)
5.3 SUBTITLE
SUBTITLE: Sets the preferred subtitle language as
the default when playing DVD.( If the DVD supports
the languages)
5.4 DISC MENU
DISC MENU: Sets the preferred menu language as
the default when playing DVD. (If the DVD supporst
the languages)
5.5 PARENTAL
PARENTAL: The parental control function works in
conjunction with the different censorship classes
assigned to DVDs. These classes help to control the
types of DVDs that the family watches, There are up
to 8 censorship classes for DVDs.
Note: If you change this set, you must input password.
(Initial password : 136900)
5.6 PASSWORD MODE
PASSWORD CHANGE: You can change the pass-
word, please type 6 numerals as new password.
Note: (Initial password : 136900)
Be sure remember new password. When set parental
control function you must input new password .
5.7 DEFAULT
DEFAULT: Resets to all the manufacturer's original
settings for this DVD player Press ENTER/PLAY to
perform the reset.
TV TYPE: This player supports different TV output,
including Multi(Auto), NTSC, and PAL systems.
lf your TV support only NTSC or PAL and you have
inadvertently selected the wrong TV type, the TV
image will flicker and become black-and-white.
In this case, you should press the SETUP button
to set as following Note.
5.1 TV TYPE
Dolby Video Preference
General Audio
Preference Page
Tv Type
Audio
Subtitle
Disc Menu
Parental
Password
Default
Multi
ENG
ENG
ENG
PAL
Multi
NTSC
Set Tv Standard
Note: How to Set the TV Type?
You may switch the NTSC/PAL setting of the DVD
player to match the video signal of your TV.
The table below shows what kinds of disc are com-
patible with each setting ( , PAL and NTSC)Multi
CONTRAST: Sets the contrast level of video output.
Press right button the TV will display below.
Press LEFT/RIGHT button to adjust, then press
ENTER/PLAY button to confirm and return upon menu.
4.5 CONTRAST
BRIGHTNESS: Sets the brightness level of video
output.
Press right button the TV will display below.
Press LEFT/RIGHT button to adjust, then press
ENTER/PLAY button to confirm and return upon menu.
4.4 BRIGHTNESS
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

TROUBLE SHOOTING
15
Please check the following guide for the possible cause and solution for a problem before contacting the
nearest service center or dealer for repairs.
SYMPTOMS AND CORRECTIONS
Check to make sure that the power connection is secure.
No power
SYMPTOMS CORRECTIONS
No picture
No sound
Failed to Play
Make sure the connection between the player and the TV is secure.
Make sure that the TV is in good working condition.
Make sure that the TV and AMP are in good working condition
and setup properly.
Check that the disc is properly inserted.
Clean the disc.
Failed to respond to
remote control
Remove obstacles between remote control and unit.
Aim remote control at the sensor on the front panel.
Check batteries and replace them if necessary.
Picture Disturbance
Check the disc for dirt and scratches. Clean or replace disc.
Shut down the unit, wait ten seconds, and restart the unit.
Failed to work
with keys
Power surges or other electrical phenomena.
Shut down the unit, wait ten seconds, and restart the unit.
Make sure the connection between the player and other devices
are secure.
Please press "V.MODE" button continuously until the picture returns
to normal.
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

SPECIFICATIONS
16
Note: We reserve the right to modify the design without advice!
VF Signal
system NTSC/PAL
Audio S/N ratio
> 90 dB
System and Outputs
Audio output
(analog audio)
Audio output
(digital audio)
Video output
S-Video output
Component video
(Y, CB,CR)
Electric level output: Brightness(Y)1.0Vp--p,
Chrominance (C): 0.286Vp--p, esistance: 75S
Resistance: 75S
R
Electric level output: 0.7Vp--p, resistance: 75S
Power
Power
consumption
Product
Dimensions
Weight
< 15W
Electric level output: 1.8 0.2V Resistance: 10KS
Electric level output: 0.5Vp--p esistance: 75SR
Electric level output: (1.0 0.2)Vp--p esistance: 75SUnbalanced negativeR
Operating
temperature
oooo
5 C to 35C (41F to 95F)
Operating
humidity 5% to 90%
Frequence
response
CD: 20Hz-20KHz(EIAJ)
DVD:
20Hz-22KHz(48KHz)(Sample result)
20Hz-44KHz(96KHz)(Sample result)
Video/Picture MPEG1 V2.0;
Audio MPEG LAYER2 standard
General
+
110V-240V~ 50/60Hz
L: 225mm W: 235mm H: 48mm
1.3kg
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

CONTACT DETAILS
We trust you are completely satisfied with this product from Argos Ltd., however
please feel free to contact us if you experience any difficulties, or if you would like
to express your views regarding our products.
Please write to:
Customer Services
Argos Ltd
489-499 Avebury Boulevard
Saxon Gate West
Central Milton Keynes
MK9 2NW
Telephone: [phone]
Through the process of continuous improvement, Argos Ltd. reserves the right to
change or alter specifications without prior notice. E&OE
CONTACT DETAILS
17
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor
