MiLAN MIL-S16000T User manual

MIL-S16000T
16-Port 1000BASE-T
Gigabit Ethernet Switch
USER GUIDE

Regulatory Approval
- FCC ClassA
- UL 1950
- CSA C22.2 No. 950
- EN60950
- CE
- EN55022 Class A
- EN55024
Canadian EMI Notice
This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.
European Notice
Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC)
issued by the Commission of the European Community Compliance with these directives imply conformity to the following
European Norms:
EN55022 (CISPR 22) - Radio Frequency Interference
EN61000-X - Electromagnetic Immunity
EN60950 (IEC950) - Product Safety
Five-Year Limited Warranty
MiLAN Technology warrants to the original consumer or purchaser that each of it's products,
and
all components thereof, will be free from defects in material and/or workmanship for a
period of five years from the original factory shipment date. Any warranty hereunder is
extended to the original consumer or purchaser and is not assignable.
MiLAN Technology makes no express or implied warranties including, but not limited to, any
implied warranty of merchantability or fitness for a particular purpose, except as expressly set
forth in this warranty. In no event shall MiLAN Technology be liable for incidental or
consequential damages, costs, or expenses arising out of or in connection with the
performance of the product delivered hereunder. MiLAN Technology will in no case cover
damages arising out of the product being used in a negligent fashion or manner.
Trademarks
The MiLAN logo and MiLAN Technology trademarks are registered trademarks of MiLAN Technology in the
United States and/or other countries.
To Contact MiLAN Technology
For prompt response when calling for service information, have the following information ready:
- Product serial number and revision
- Date of purchase
- Vendor or place of purchase
You can reach MiLAN Technology technical support at:
E-mail: [email protected]
Telephone: [phone]
Fax: [phone]
MiLAN Technology
1329 Moffett Park Drive
Sunnyvale, CA 94089
United States of America
Telephone: [phone]
Fax: [phone]
http://www.milan.com
[email protected]
© Copyright 2004 MiLAN Technology P/N: 90000425 Rev. A

Table of Contents
1. Introduction
Gigabit Ethernet Technology
Switching Technology
Features
Package Contents
2. Hardware Description
Front Panel
Rear Panel
LED Indicators
3. Hardware Installation
Desktop Installation
Rack mounted Installation
Power On
4. Technical Specifications
General Specifications
Physical and Environmental Specifications
Performance Specifications
Appendix A: Regulatory Information

1.
Introduction
Gigabit Ethernet Technology
Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the same packet
structure, format, and support for CSMA/CD protocol, full duplex, flow control, and
management objects, but with a tenfold increase in theoretical throughput over
100-Mbps Fast Ethernet and a hundredfold increase over 10-Mbps Ethernet.
Since it is compatible with all 10-Mbps and 100-Mbps Ethernet environments,
Gigabit Ethernet provides a straightforward upgrade without wasting a company’s
existing investment in hardware, software, and trained personnel.
The increased speed and extra bandwidth offered by Gigabit Ethernet are
essential to coping with the network bottlenecks that frequently develop as
computers and their busses get faster and user applications generate more traffic.
Upgrading key components, such as your backbone and servers to Gigabit
Ethernet can greatly improve network response times, as well as significantly
speed up the traffic between your subnets.
Gigabit Ethernet supports video conferencing, complex imaging, and similar
data-intensive applications. Likewise, since data transfers occur 10 times faster
than Fast Ethernet, servers outfitted with Gigabit Ethernet NIC’s are able to
perform 10 times the number of operations in the same amount of time.
Switching Technology
Another key development pushing the limits of Ethernet technology is in the field
of switching technology. A switch bridges Ethernet packets at the MAC address
level of the Ethernet protocol transmitting among connected Ethernet or fast
Ethernet LAN segments.
Switching is a cost-effective way of increasing the total network capacity available
1

to users on a local area network. A switch increases capacity and decreases
network loading by making it possible for a local area network to be divided into
different segments which do not compete with each other for network transmission
capacity, giving a decreased load on each.
The switch acts as a high-speed selective bridge between the individual segments.
The switch automatically forwards traffic that needs to go from one segment to
another, without interfering with any other segments. This allows the total network
capacity to be multiplied, while still maintaining the same network cabling and
adapter cards.
Switching LAN technology is a marked improvement over the previous generation
of network bridges, which were characterized by higher latencies. Routers have
also been used to segment local area networks, but the cost of a router and the
setup and maintenance required make routers relatively impractical. Today’s
switches are an ideal solution to most kinds of local area network congestion
problems.
Features
The MIL-S1600T Gigabit Ethernet Switch was designed for easy installation and
high performance in an environment where traffic on the network and the number
of users increase continuously.
16 1000BASE-T Gigabit Ethernet ports
Auto-Negotiation for 10/100/1000Mbps and duplex mode
Auto-MDI/MDIX for each port
Full/Half duplex transfer mode for 10 and 100Mbps
Full duplex transfer mode for 1000Mbps
Full wire speed reception and transmission
Store-and-Forward switching method
IEEE 802.3x flow control for full-duplex mode
Integrated address Look-Up Engine, supports 4K absolute MAC addresses
Supports 272K Bytes data buffer per device
Extensive front-panel diagnostic LEDs
2

Package Contents
Unpack the contents of the package and verify them against the checklist below.
MIL-S16000T Gigabit Ethernet Switch
AC Power Cord
Rack Mount Ears
Four Adhesive Rubber Feet
User's Guide
Warranty Card
If any item is missing or damaged, please contact your local dealer for service.
3

2.
Hardware Description
Front Panel
The front panel of the Gigabit Ethernet Switch consists of 16 1000BASE-T Gigabit
Ethernet ports and the LED Indicators for the unit, which displays the conditions of
the Gigabit Ethernet Switch and the status of the network.

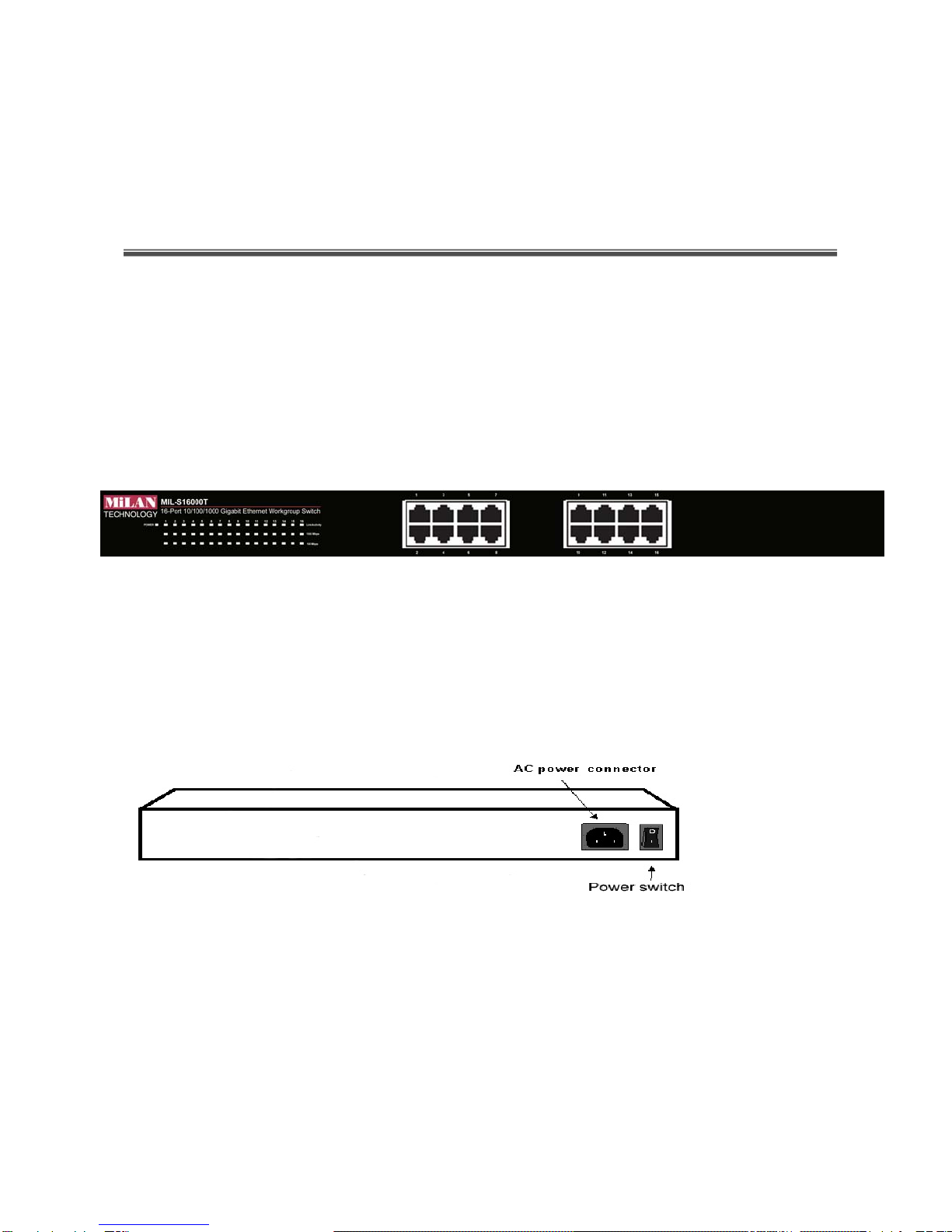

Figure 2-1. Front Panel view of the MIL-S16000T Gigabit Ethernet Switch
Rear Panel
The rear panel of the Gigabit Ethernet Switch consists of an AC power connecter
and a power switch.
Figure 2-2. Rear Panel view of the MIL-S16000T Gigabit Ethernet Switch
The AC Power Connector is a three-pronged connector that supports the power
cord. Plug the female connector of the provided power cord into this connector, and
the male into a power outlet. Supported input voltages range from 100 - 240 VAC
at 50/60 Hz.
4

LED Indicators
The LED indicators of the Gigabit Ethernet Switch provide a real-time indication of
system operating statuses. There are three LED-indicators for each Gigabit
Ethernet port and one Power LED for the Unit.
Figure 2-3. LED Indicators on the MIL-S16000T Gigabit Ethernet Switch
POWER
The Power LED indicator is solid green when the Gigabit Ethernet Switch is
receiving power.
Link/Act
The Link/Act LED indicators are solid when there is a secure connection (or link)
to the desired port. A blinking LED indicator signifies reception or transmission (i.e.
Activity—Act) of data occurring on a port.
1000Mbps
The 1000Mbps LED indicators are solid when there is a secure connection (or link)
to a 1000Mbps Gigabit Ethernet device at the desired port.
100Mbps
The 100Mbps LED indicators are solid when there is a secure connection (or link)
to a 100Mbps Fast Ethernet device at the desired port.
Note: When the connection (or link) is 10Mbps, both the 1000Mbps and
100Mbps LED indicators are off.
5

3.
Hardware Installation
Desktop Installation
Set the switch on a sufficiently large flat space with a power outlet nearby. The
surface where you put your switch should be clean, smooth, level, and sturdy.
Provide enough clearance around the switch to allow attachment of cables, power
cord and air circulation.
Attaching Rubber Feet
A. Make sure the mounting surface on the bottom of the Switch is grease and
dust free.
B. Remove adhesive backing from the rubber feet.
C. Apply the rubber feet to each corner on the bottom of the switch.
These footpads can prevent the Switch from shock/vibration.
Figure 3-1. Attaching Rubber Feet to each corner on the bottom of the Switch
6

Rack-mounted Installation
The MIL-S16000T comes with a rack-mounted kit and can be mounted in an EIA
standard size, 19-inch rack. The Switch can be placed in a wiring closet with other
equipment.
Perform the following steps to rack mount the switch:
A. Position one bracket to align with the holes on one side of the switch and
secure it with the smaller bracket screws. Then attach the remaining bracket
to the other side of the Switch.
Figure 3-2. Attach mounting brackets with screws
B. After attaching both mounting brackets, position the MIL-S16000T in the rack
by lining up the holes in the brackets with the appropriate holes on the rack.
Secure the Switch to the rack with a screwdriver and the rack-mounting
screws.
Figure 3-3. Mount the MIL-S16000T in an EIA standard 19-inch Rack
Note: For proper ventilation, allow at least 4 inches (10 cm) of clearance on the
front and 3.4 inches (8 cm) on the back of the Switch. This is especially important
for enclosed rack installation.
7

Power On
Connect the power cord to the power socket on the rear panel of the Switch.
Connect the other end of the cord to an appropriate power outlet. Press the power
On/Off switch to the on position and check the power indicator on the front panel
to see if power is properly supplied.
8

4.
Technical Specifications
General Specifications
Standards: IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3 10BASE-T
IEEE 802.3x Flow Control
Protocol: CSMA/CD
Data Transfer Rate: 10Mbps (Half-duplex)Ethernet: 20Mbps (Full-duplex)
100Mbps (Half-duplex)Fast Ethernet: 200Mbps (Full-duplex)
G
igabit Ethernet: 2000Mbps (Full-duplex)
Topology: Star
Network Cables: Ethernet: 2-pair UTP Cat. 3,4,5,
Unshielded Twisted Pair
(UTP )Cable
Fast Ethernet: 2-pair UTP Cat. 5,
Unshielded Twisted Pair
(UTP )Cable
Gigabit Ethernet: 4-pair UTP Cat. 5,
Unshielded Twisted Pair
(UTP )Cable
Number of Ports: Sixteen (16) 1000BASE-T Gigabit Ethernet ports
Physical and Environmental Specifications
AC inputs: 100 – 240 VAC Universal, 50/60 Hz
Power Consumption: 25 watts maximum
Operating
Temperature: 0 °C ~ 40°C
Storage Temperature: -10°C ~ 70°C
Humidity: 5% ~ 90% RH, non-condensing
Dimensions: 440mm x 210mm x 44 mm (1U), 19 inch
rack-mount width
Certification: FCC Class A, CE Marking Class A, VCCI Class A
Safety: cUL(1950), CB(IEC60950)
9

Performance Specifications
Transmission
Method: Store-and-forward
RAM Buffer: 272K Bytes per device
Filtering Address
Table: 4K MAC address per device
Packet
Filtering/Forwarding
Rate: Full wire speed
MAC Address
Learning: Self-learning, auto-aging
10

Appendix A:
Regulatory Information
FCC Warning
This equipment has been tested and found to comply with the regulations for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with this user’s guide, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at their own
expense.
CE Mark Warning
This is a ClassAproduct. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
VCCI Warning
This is a product of VCCI ClassACompliance.
UL Warning
a) Elevated Operating Ambient Temperature-If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack environment may be greater than room
ambient. Therefore, consideration should be given to installing the equipment in an environment
compatible with the manufacturer's maximum rated ambient temperature (Tmra).
b) ReducedAir Flow- Installation of the equipment in a rack should be such that the amount of air
flow required for safe operation of the equipment is not compromised.
c) Mechanical Loading-Mounting of the equipment in the rack should be such that a hazardous
11

condition is not achieved due to uneven mechanical loading.
d) Circuit Overloading- Consideration should be given to the connection of the equipment to the
supply circuit and the effect that overloading of circuits might have on over current protection and
supply wiring. Appropriate consideration of equipment nameplate ratings should be used when
addressing this concern.
e) Reliable Earthing-Reliable earthing of rack-mounted equipment should be
maintained. Particular attention should be given to supply connections other than direct
connections to the branch circuit (e.g., use of power strips).
12

90000425 Rev A
13
