MiLAN MIL-SM808GPxx User manual

8 Port 100BASE-FX
Plus One SFP
Intelligent Fiber Switch
MIL-SM808GPxx
USER GUIDE

ii
Regulatory Approval
- FCC Class A
- UL 1950
- CSA C22.2 No. 950
- EN60950
- CE
- EN55022 Class A
- EN55024
Canadian EMI Notice
This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.
European Notice
Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC)
issued by the Commission of the European Community Compliance with these directives imply conformity to the following
European Norms:
- EN55022 (CISPR 22) - Radio Frequency Interference
- EN61000-X - Electromagnetic Immunity
- EN60950 (IEC950) - Product Safety
Five-Year Limited Warranty
MiLAN Technology warrants to the original consumer or purchaser that each of it's products, and
all components thereof, will be free from defects in material and/or workmanship for a
period of five years from the original factory shipment date. Any warranty hereunder is
extended to the original consumer or purchaser and is not assignable.
MiLAN Technology makes no express or implied warranties including, but not limited to, any
implied warranty of merchantability or fitness for a particular purpose, except as expressly set
forth in this warranty. In no event shall MiLAN Technology be liable for incidental or
consequential damages, costs, or expenses arising out of or in connection with the
performance of the product delivered hereunder. MiLAN Technology will in no case cover damages
arising out of the product being used in a negligent fashion or manner.
Trademarks
The MiLAN logo and MiLAN Technology trademarks are registered trademarks of MiLAN Technology in the
United States and/or other countries.

iii
To Contact MiLAN Technology
For prompt response when calling for service information, have the following information ready:
- Product serial number and revision
- Date of purchase
- Vendor or place of purchase
You can reach MiLAN Technology technical support at:
E-mail: [e-mail]
Telephone: [phone]
Fax: [phone]
MiLAN Technology
1329 Moffett Park Drive
Sunnyvale, CA 94089
United States of America
Telephone: [phone]
Fax: [phone]
http://www.milan.com
[email protected]
© Copyright 2003 MiLAN Technology P/N: 90000407 Rev. A

iv
Table of Contents
1. Introduction
Features
Intelligent Management Features
Package Contents
Management Methods
Console and Telnet Management
Web-based Management
SNMP Network Management
2. Hardware Description
Front Panel
LED Indicators
Rear Panel
Desktop Installation
3. Network Application
Segment Application
4. Network Configuration

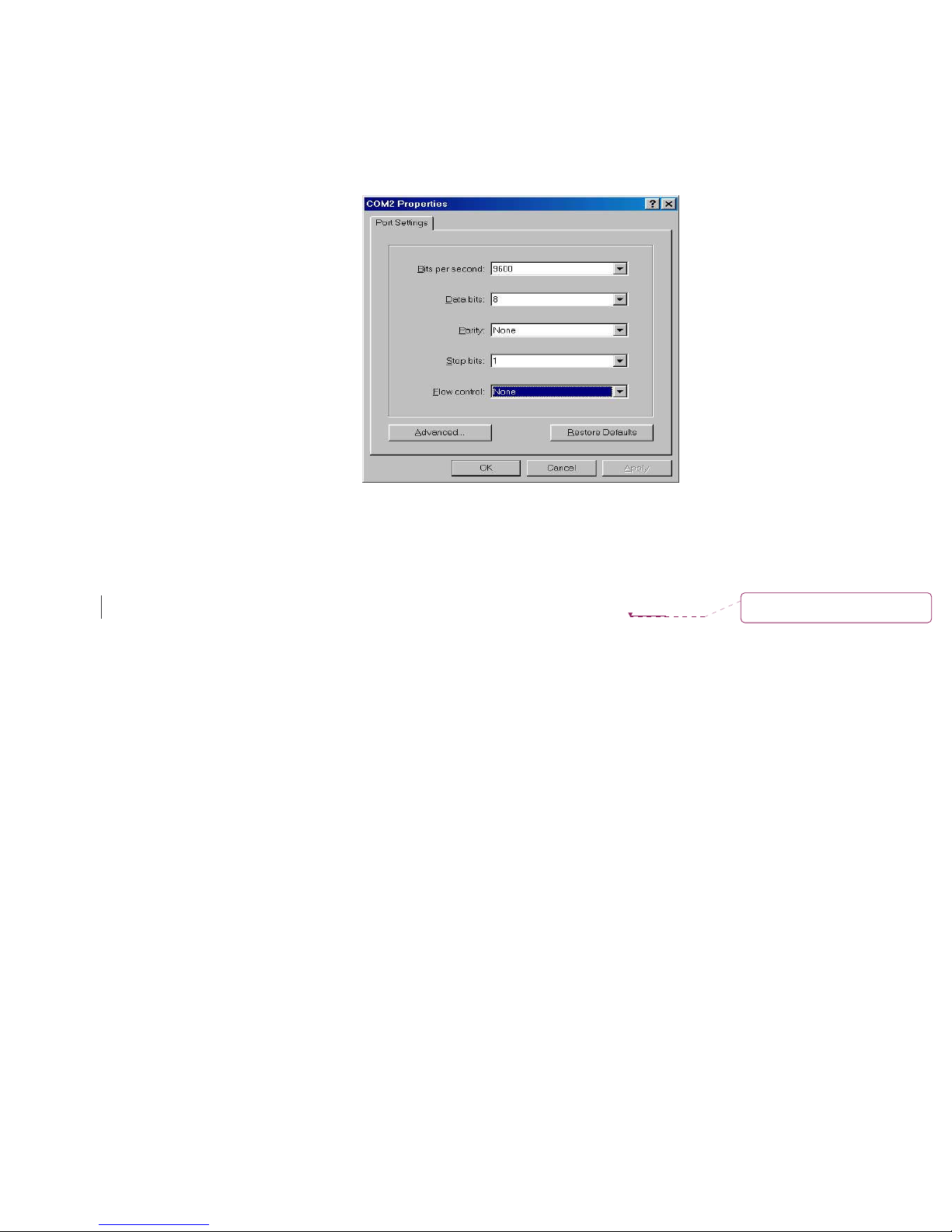

Connecting a Terminal or PC to the Console Port
Console - Menu

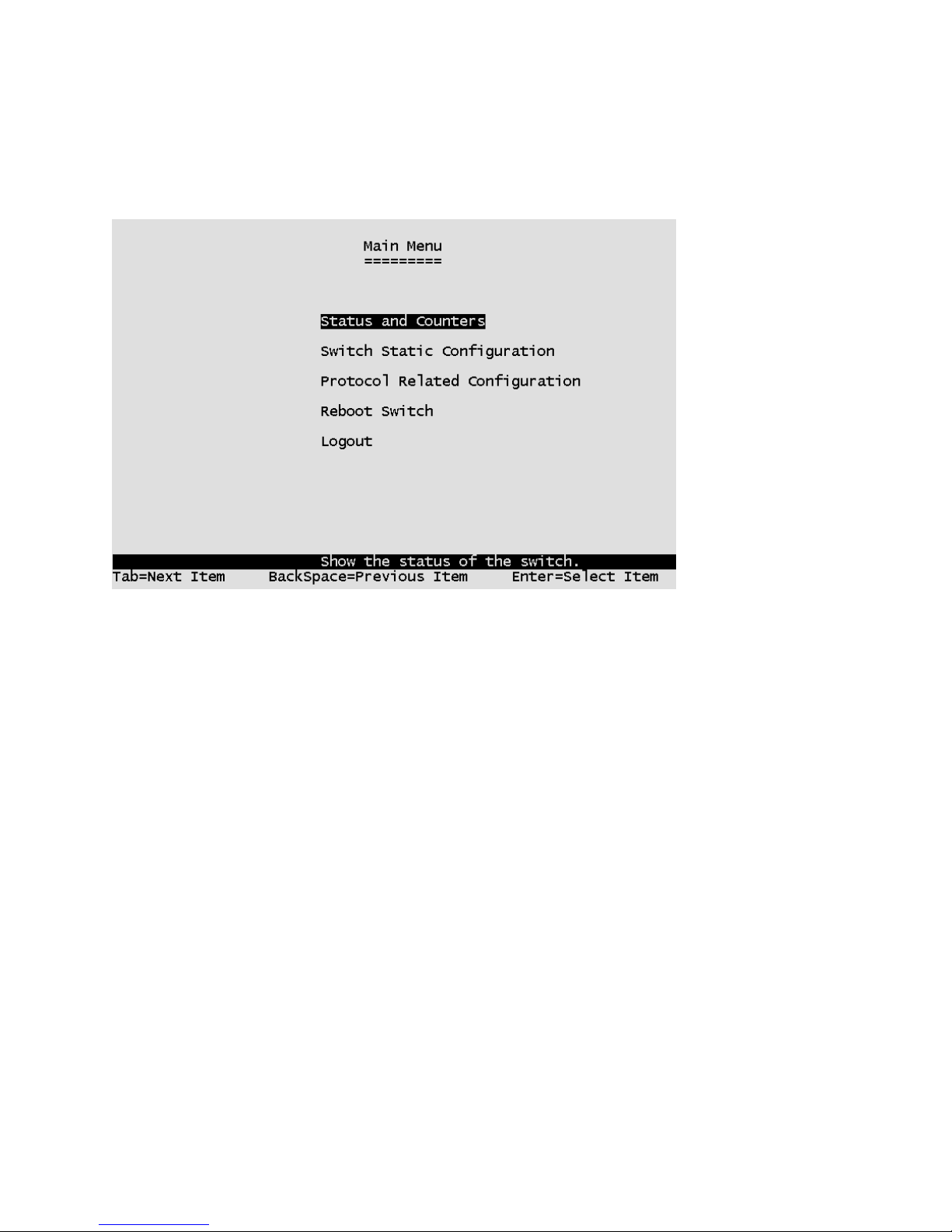

4-1. Main Menu
4-2. Status and Counters
4-2-1. Port Status
4-2-2. Port Counters
4-2-3. System Information
4-3. Switch Static Configuration
4-3-1. Administration Configuration
4-3-1-1. Device Information
4-3-1-2. IP Configuration
4-3-1-3. Change Username
4-3-1-4. Change Password
4-3-2. Port / Trunk Configuration
4-3-3. Port Mirroring Configuration
4-3-4. VLAN Configuration
4-3-4-1. VLAN Configure

v
4-3-4-2. Create a VLAN Group
4-3-4-3. Edit / Delete a VLAN Group
4-3-5. Priority Configuration
4-3-6. MAC Address Configuration
4-3-6-1. Static MAC Address
4-3-6-2. Filtering MAC Address
4-3-7. Misc. Configuration
4-3-7-1. Port Security
4-3-7-2. MAC Age Interval
4-3-7-3. Broadcast Storm Filtering
4-3-7-4. Max Bridge Transmit Delay Bound
4-4. Protocol Related Configuration
4-4-1. STP
4-4-1-1. STP Enable
4-4-1-2. System Configuration
4-4-1-3. STP Port Configuration
4-4-2. SNMP
4-4-2-1. System Options
4-4-2-2. Community Strings
4-4-2-3. Trap Managers
4-4-3. GVRP
4-4-4. LACP
4-4-4-1. Aggregator Setting
4-4-4-2. State Activity
4-4-4-3. LACP Status
4-5. Switch Reboot
4-6. Updating Firmware using the Console Port
5. Web-Based Management
5-1. Web Management Home Overview
5-2. Port Status
5-3. Port Statistics
5-4. Administrator
5-4-1. IP Address
5-4-2. Switch Settings
5-4-2-1. Basic
5-4-2-2. Advanced

vi
5-4-3. Console Port Information
5-4-4. Port Controls
5-4-5. Trunking
5-4-5-1. Aggregator Setting
5-4-5-2. Aggregator Information
5-4-5-3. State Activity
5-4-6. Filter Database
5-4-6-1. IGMP Snooping
5-4-6-2. Static MAC Address
5-4-6-3. Port Security
5-4-6-4. MAC Filtering
5-4-7. VLAN Configuration
5-4-7-1. Basic
5-4-7-2. Port VID
5-4-8. Set Spanning Tree
5-4-9. Port Mirroring
5-4-10. SNMP
5-4-11. Security Manager
5-4-12. TFTP Update Firmware
5-4-13. Configuration Backup
5-4-13-1. TFTP Restore Configuration
5-4-13-2. TFTP Backup Configuration
5-4-14. Reset System
5-4-15. Reboot
6. Technical Specifications
7. Troubleshooting
Incorrect connections
Diagnostic LED Indicators

1
1.
Introduction
The MIL-SM808G managed compact desktop switch is an ideal solution
for a Fiber network infrastructure. It provides wire-speed, Fast Ethernet
switching providing high-performance data transfer. The switch features a
store-and-forward architecture with auto-learning of source addresses
with an 8K-entry MAC address table.
Figure 1-1. The MIL-SM808G switch
The switch provides eight switched 100Mbps Fast Ethernet Fiber ports
and one SFP slot for a SFP transceiver. The fiber port connectors are
available in either SC (single mode or multi-mode) or ST (multi-mode).
With built-in Web-based Management, managing and configuring the
switch is simplified. The Web Browser may be used to configure and
manage the network, from cabinet level management to port level control
and monitoring. Use of a mouse replaces typing of command strings. The
switch can also be managed via Telnet, Console, or SNMP Management.

2
Features
Conforms to IEEE802.3u, IEEE802.3z and IEEE802.3x Ethernet
Standards
Eight 100Mbps Fast Ethernet Fiber ports and one SFP port
One Console port on the front for switch software configuration
Half-duplex mode for back pressure and flow control for
full-duplex
Store-and-forward switching architecture
Automatic address learning, address migration
8K-entry MAC address table
2Mbit memory buffer sharing
Non-blocking full wire speed performance
LED-indicators for Power, LNK/ACT, FDX/COL, LNK/ACT(SFP)
19-inch design for desktop or rackmount
Intelligent Management Features
Web-based management
SNMP network management
Console and Telnet management
Port Based VLAN and IEEE 802.1q Tag VLAN, and VLAN group
up to 256 , VLAN ID up to 4K
IEEE 802.3ad Port Trunk with LACP( Link Aggregation Control
protocol) supported
IEEE 802.1d Spanning Tree
MIB II ( RFC1213 ) supported
IGMP Query, IGMP Snooping, up to 256 IGMP groups
Quality of Service (system provides 8 levels) and Class of
service (per port Hi/Low Queue)
Port Mirroring
Broadcast Filtering
Static MAC Address filtering
Port Security
GVRP

3
Package Contents
Unpack the contents of the package and verify them against the checklist
below.
MIL-SM808G Switch
Power Cord
Four Rubber Feet
RS-232 cable
User Guide ( CD Manual)
Warranty Card
If any item is missing or damaged, please contact your local dealer for
service.
Management Methods
The MIL-SM808G switch series support the following management
methods:


Console and Telnet Management


Web-based Management


SNMP Network Management
Console and Telnet Management
Console Management is done through the RS-232 Console Port.
Managing the switch in this method requires a direct connection between
a PC and the switch. Telnet management requires a network connection.
The default IP address is 192.168.1.77 with a subnet mask of
255.255.255.0. This default address can be used to login and change the
configuration using Telnet.

4
Web-based Management
The switch provides an embedded HTML web server residing in flash
memory. It offers advanced management features and allows users to
manage the switch from anywhere on the network through a standard
browser such as Microsoft Internet Explorer or Netscape.

5
SNMP Network Management
SNMP (Simple Network Management Protocol) provides a means to
monitor and control network devices, and to manage configurations,
statistic collection, performance, and security.

6
2.
Hardware Description
Front Panel
The Front Panel of the MIL-SM808G switch series consists of eight
100Mbps Fast Ethernet Fiber ports, one SFP port, one console port, one
LED-Indicator for Power, one LED-Indicator (LNK/ACT) for the SFP port
and two LED-Indicators (LNK/ACT, FDX/COL) for each Fiber port.
Console LED SFP Fast Ethernet
Port Indicators Port Fiber Ports

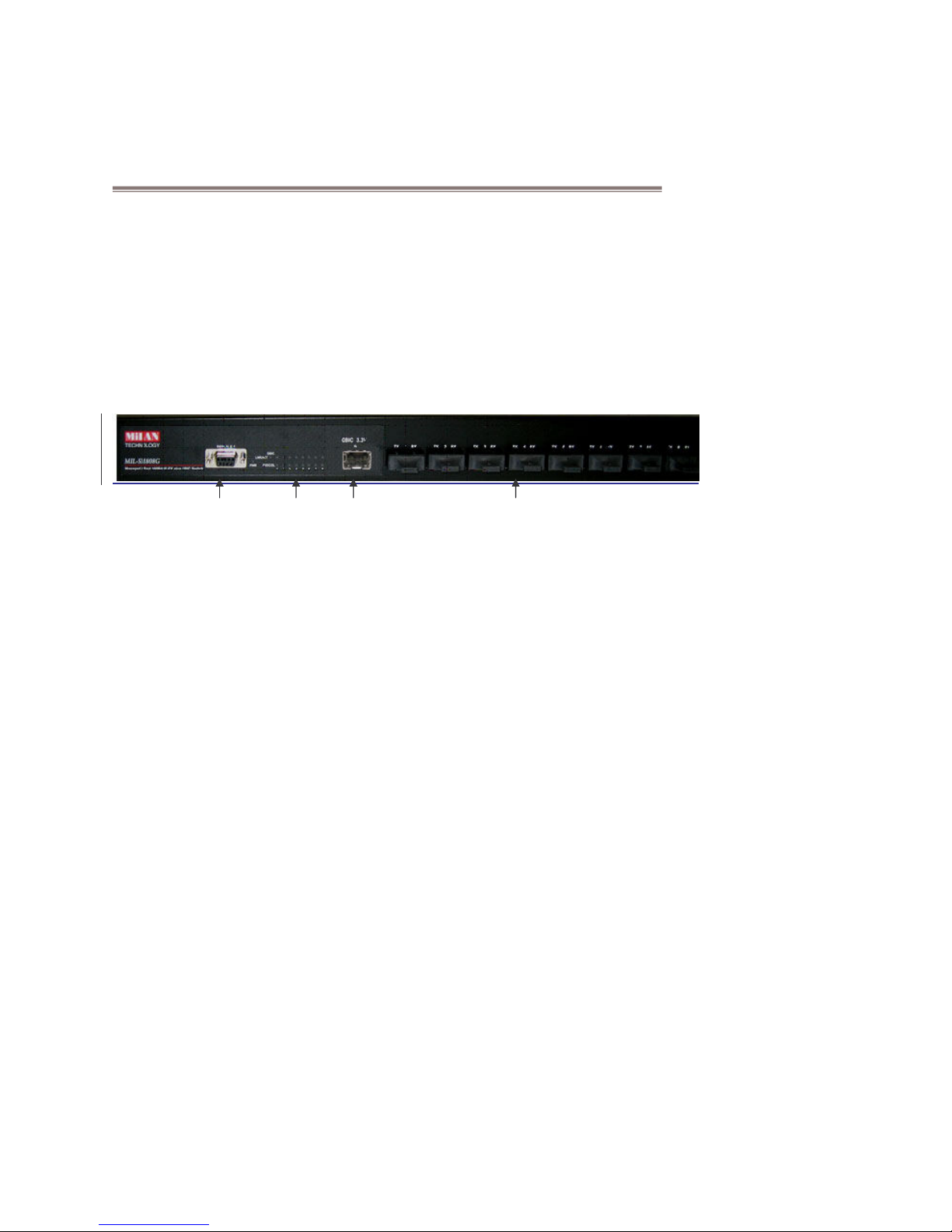

Figure 2-1. Front Panel for MIL-SM808G
 100BASE-FX Fiber Ports: The MIL-SM808G comes with eight SC
connectors (multi-mode or single mode) or eight ST connectors
(multi-mode).
 SFP Port: The MIL-SM808G supports the 3.3V model Gigabit
Transceiver for Gigabit SX or LX connector.
Console Port: Console management can be done through the
Console Port. It requires a direct connection between the switch and
an end station (PC) via a RS-232 cable.

7
LED Indicators

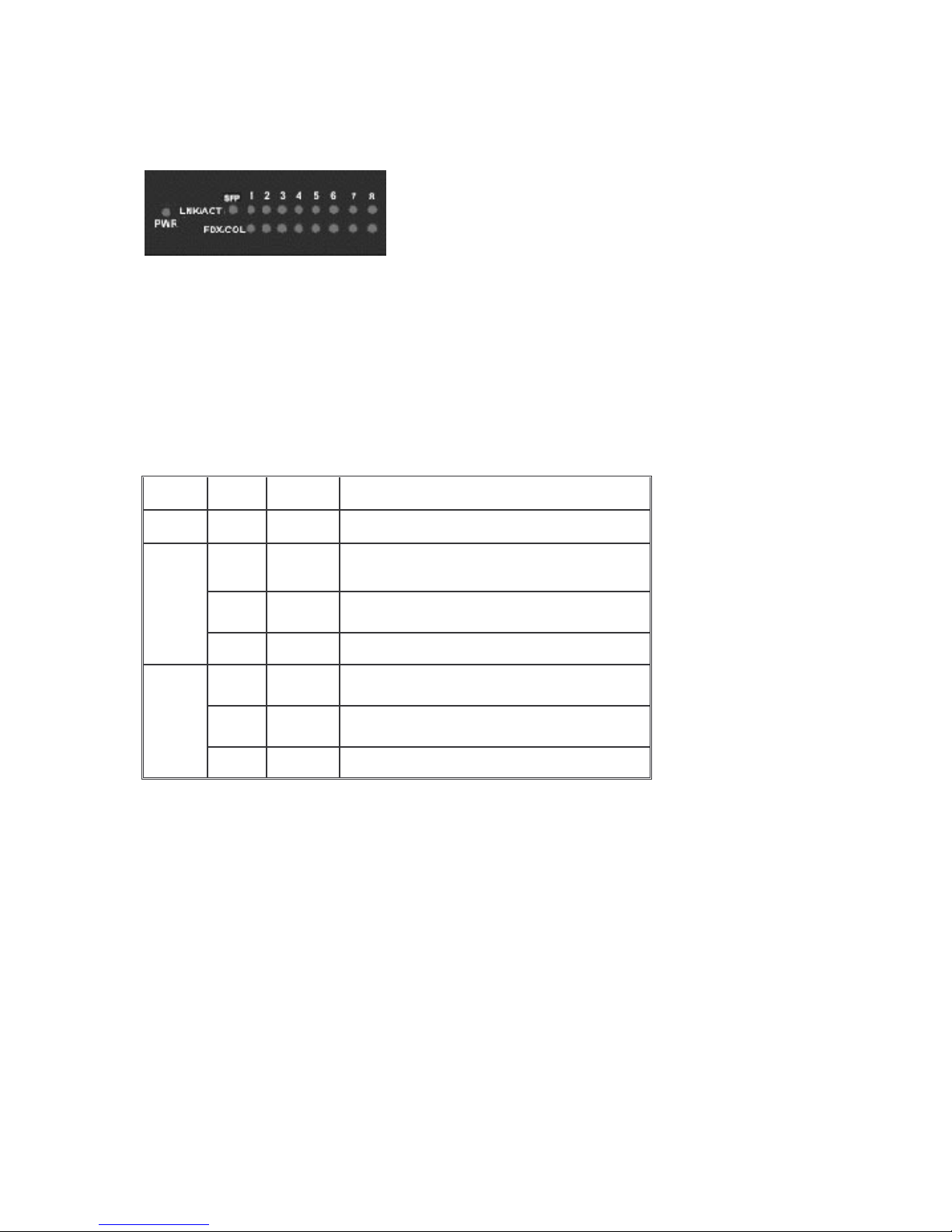

Figure 2-2. LED Indicators
There are two LED-Indicators (LNK/ACT, FDX/COL) for each Fiber port,
one LED-Indicator (LNK/ACT) for the SFP port and one LED-Indicator for
power. The following table provides descriptions of the LED statuses and
meaning. They provide a real-time indication of systematic operation
status.
LED Status Color Description
Power On Green Power On
On Green The port is successfully connecting with
a device.
Blinks Green The port is receiving or transmitting data.
LNK /
ACT
Off No device attached.
On Orange
The port is operating in full-
duplex mode
and device is attached.
Blinks Orange
Collision of Packets is occurring on the
port.
FDX /
COL
Off Half-duplex mode or no device attached.
Table 2-1. The description of LED Indicators

8
Rear Panel
The 3-pronged power plug and the power on/off switch are located at the
Rear Panel of the MIL-SM808G switch, as shown in Figure 2-3. The
switches will work with AC in the range 100-240V AC, 50-60Hz.
Power Plug
Power
On/Off
Switch

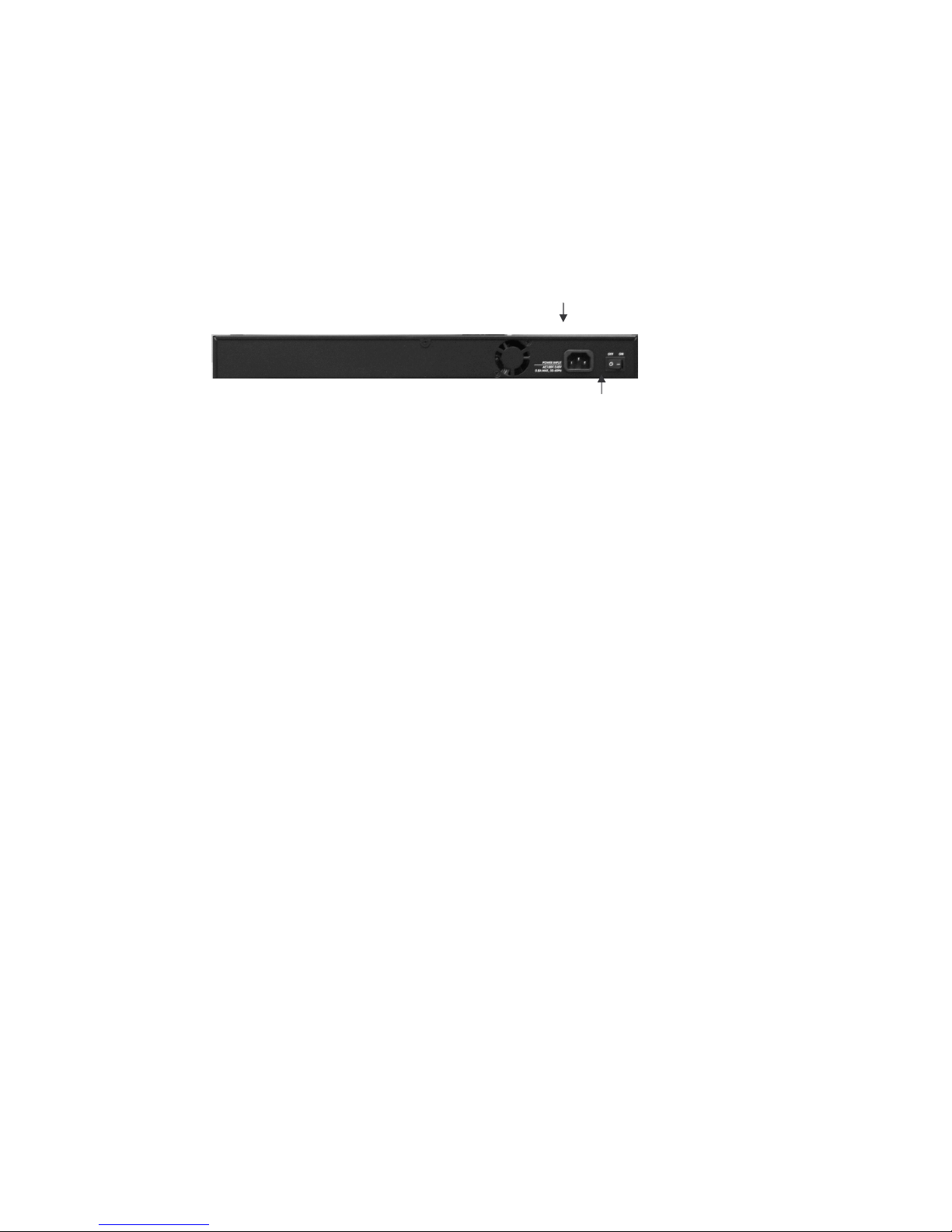

Figure 2-3. The Rear Panel of the MIL-SM808G Switch
Desktop Installation
Set the switch on a sufficiently large flat space with a power outlet nearby.
The surface where you put your switch should be clean, smooth, level,
and sturdy. Provide enough clearance around the switch to allow
attachment of cables, power cord and air circulation.
Attaching Rubber Feet
A. Make sure the mounting surface on the bottom of the Switch is grease
and dust free.
B. Remove adhesive backing from the rubber feet.
C. Apply the rubber feet to each corner on the bottom of the switch. These
footpads can prevent the Switch from shock/vibration.

9
Figure 2-4. Attaching Rubber Feet to each corner on the bottom of the
Switch
Power On
Connect the power cord to the power socket on the rear panel of the
Switch. Connect the other end of the cord to an appropriate power outlet.
The internal power supply in the switch works with AC in the voltage range
100-240VAC, frequency 50~60Hz.
Press the power On/Off switch to the On position and check the power
indicator on the front panel to see if power is properly supplied.

10
3.
Network Application

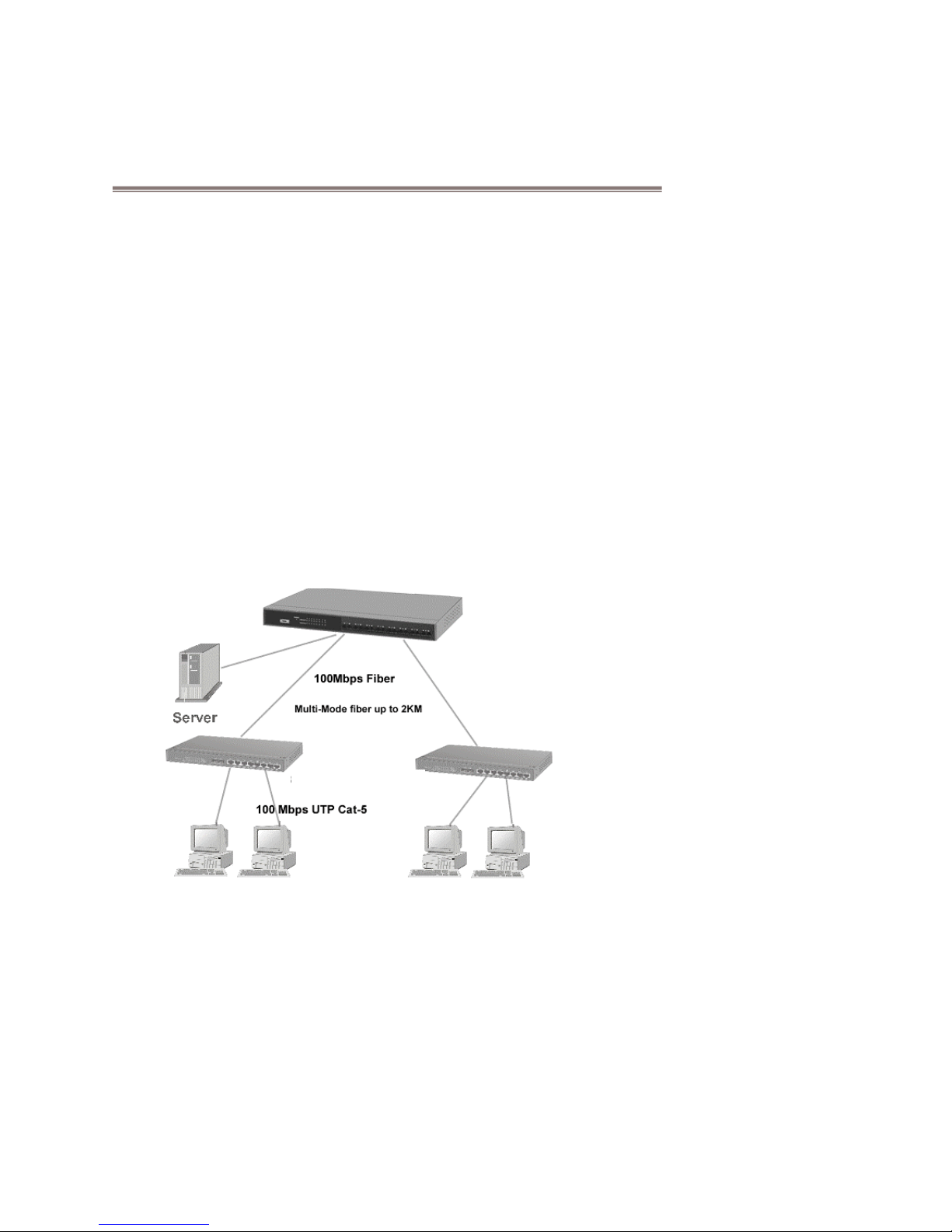

Segment Application
For enterprise networks where large data broadcasts are constantly
processed, this switch is suitable for department users to connect to the
corporate backbone.
You can use the MIL-SM808G switch to connect PCs, workstations, and
servers to each other by connecting these devices directly to the switch.
You can also use any of the Fiber ports of MIL-SM808G to connect with
another Switch or Hub to interconnect each of your small switched
workgroups to form a larger and long distance switched network.
MIL-SM808G
MIL-SM801P
Figure 3-1. Use the MIL-SM808G switch fiber ports to extend the distance between
workgroups

11
4.
Network Configuration
Connecting a Terminal or PC to the Console Port
Console management involves the administration of the switch via a
direct connection to the RS-232 console port. This port is a female DB-9
connector. From the main menu of the console program, the user has
access to manage the functions of the switch.
Figure 4-1. Connecting the switch to a terminal via RS-232 cable
Use the supplied RS-232 cable to connect a terminal or PC to the console
port. The terminal or PC to be connected must support the terminal
emulation program.

12
After the connection between Switch and PC is finished, turn on the PC
and run a terminal emulation program or Hyper Terminal to match the
following default characteristics of the console port:
Baud Rate: 9600 bps
Data Bits: 8
Parity: none
Stop Bits: 1
Flow Control: None
Figure 4-2. The settings of communication parameters
After you have entered the parameter settings, press the “Enter “Key and
the Main Menu of console management appears.
Console – Menu
1. The switch also provides a serial interface to manage and monitor the
switch. The user can follow the Console Port Information provided by
the web to use the Windows HyperTerminal program to link the switch.
2. Type the user name and password to login. The default user name is
“root”; the default password is “root”.
3. The timeout on the console port is 60 seconds. If no action is taken on
the console screen for one minute, the program reverts back to the
Deleted: “ Key

13
logon screen and a new login is necessary in order to continue.
4. The switch is shipped with a default IP address of 192.168.1.77. The
default subnet mask is 255.255.255.0.

14
4-1 Main Menu
There are five items for selection as follows:
Status and Counters: Shows the status of the switch.
Switch Static Configuration: Menus to configure the switch.
Protocol Related Configuration: Configures protocol features.
Reboot Switch: Restarts the system or resets the switch to the default
configuration.
Logout: Exits the menu line program.
<Control Key>
The control keys listed below are provided in all menus:
Tab: Moves the cursor to next item.
Backspace: Moves the cursor to previous item.
Enter: Selects item.
Space: Toggles selected item to next configuration.
