MILLASUR ANOVA TPB2202 User manual

Battery pruning scissors
Instructions and user manual
Millasur SLU
Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro
15688 – Oroso, A Coruña - 981 696 465 - www.millasur.com
TPB2202
EN

EN
2
Anova wishes to congratulate you for choosing one of our products and
guarantees the assistance and cooperation that has always distinguished
our brand over time.
This machine is designed to last for many years and to be of great use if
used in accordance with the instructions contained in the user manual. We
therefore recommend that you read this instruction manual carefully and
follow all our recommendations.
For more information or doubts, you can contact us through our web
supports such as www.anova.es
INFORMATION ABOUT THIS MANUAL
Please pay attention to the information provided in this manual and on the
appliance for your safety and that of others.
- This manual contains instructions for use and maintenance.
- Take this manual with you when you go to work with the machine.
- The contents are correct at the time of printing.
- The rights to make changes at any time are reserved without
affecting our legal responsibilities.
- This manual is considered an integral part of the product and must
remain with it in case of loan or resale.
- Ask your dealer for a new manual in case of loss or damage.
READ THIS MANUAL CAREFULLY BEFORE USING THE MACHINE
To ensure that your machine provides the best results, please
read the usage and safety regulations carefully before using it.
OTHER WARNINGS:
Incorrect use could cause damage to the machine or other objects.
The adaptation of the machine to new technical requirements could cause
differences between the content of this manual and the purchased
product.
Read and follow all instructions in this manual. Failure to follow these
instructions could result in serious personal injury.

EN
3
CONTENTS
1. SECURITY INSTRUCTIONS
1.1. General safety instructions
1.2. Security indicators
2. TECHNICAL SPECIFICATIONS
3. PRODUCT DESCRIPTION
4. UNPACKING AND ASSEMBLY
5. INSTRUCTIONS FOR USE
5.1. Start up
5.2. Use tips
5.3. Battery charge
5.4. Blade tension adjustment
6. MAINTENANCE
6.1. Blade lubrication
6.2. Blade replacement
6.3. Scissor maintenance
6.4. Battery maintenance
7. WARRANTY
8. ENVIRONMENT

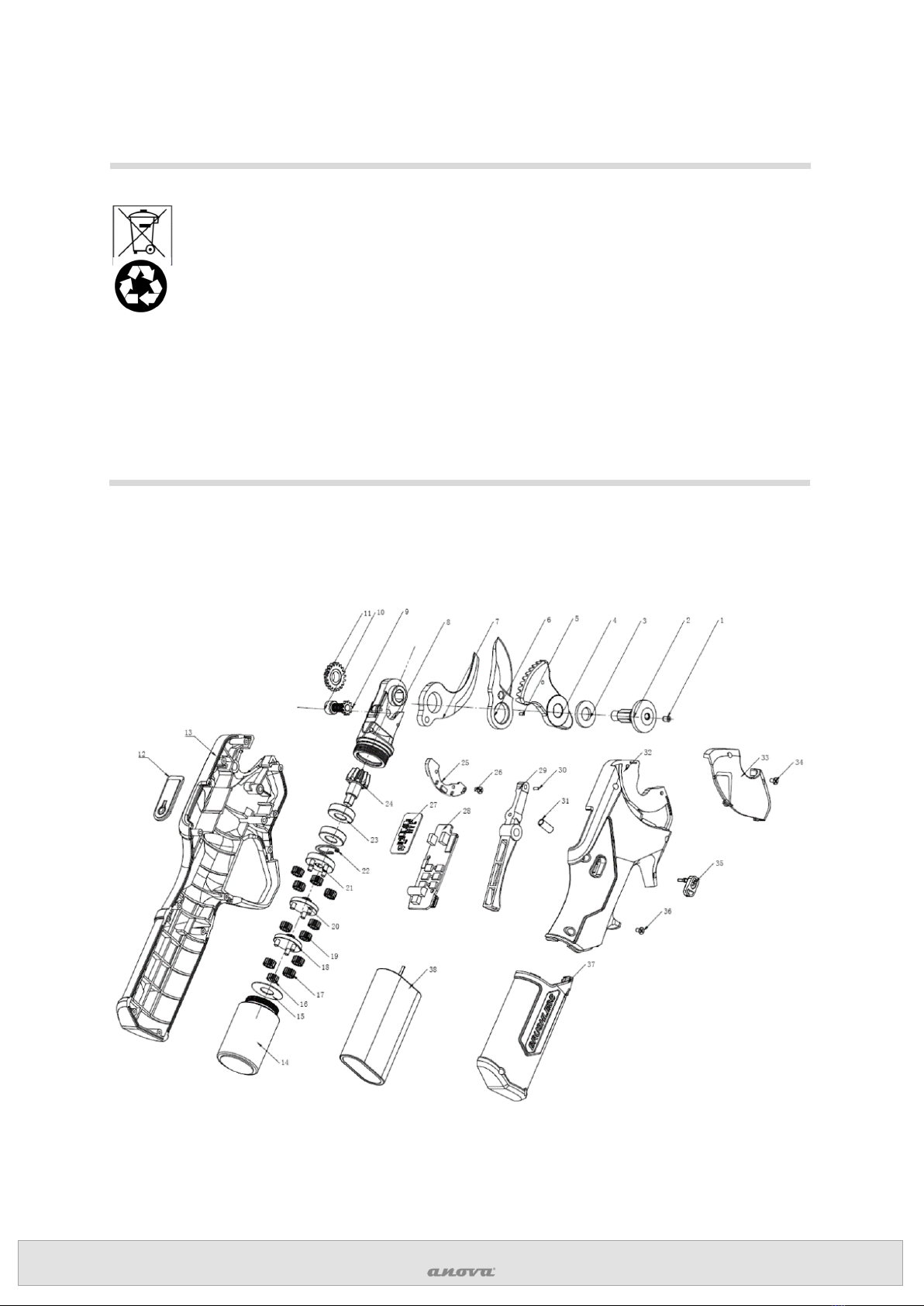

9. EXPLODED VIEW
10.CE CERTIFICATE

EN
4
1. SECURITY INSTRUCTIONS
1.1. General safety instructions
1. Read the instructions in their entirety.
2. Battery charging must only be carried out in protected indoor locations.
3. As it has double insulation, it is not necessary to ground when handling this tool.
4. It is distributed with a safety charging transformer.
5. If the battery charge overheats, it will automatically cut off the charging process.
6. Do not dispose of chargers in household waste.
7. Do not dispose of exhausted or damaged batteries in household waste.
Important
As we regularly improve our products, you may find slight differences between your machine
and the descriptions in this manual. Modifications to the machine may be made without prior
notice and without the obligation to update the manual, although the essential safety and
operating characteristics will remain unchanged. Also, due to technical product updates, this
document is subject to change without notice.
1.2. Security indicators
1.2.1. Location
1. Work in clean, uncluttered areas. Work in bright areas. Dark or cluttered workplaces
can lead to accidents.
2. Do not use the scissors in places with risk of fire, explosives or humid.
3. Avoid distractions at work and invite any children or bystanders to leave the work area
to prevent them from entertaining you.
1.2.2. Electricity
1. The electric plug on the battery and the plug on the scissor should fit easily; do not
connect any other plug instead.
2. Do not expose the scissors or the battery to rain or very humid environments. Water or
other liquids may increase the risk of electric shock or damage to other electrical
devices.
3. Do not force the connection cables; do not use power cords as ropes or points from
which to drag or hold the tool directly. Do not pull on the cable to unplug the
connections. Keep the scissors and their cables away from heat sources, oils, sharp
edges or moving parts. Do not use the charger if the power cord or plug is damaged.

EN
5
1.2.3. Staff
1. Stay alert: while using the scissors, be aware of the elements that may exist in your
work area; do not use the scissors if you are tired, or under the influence of medication
or other substances that affect your abilities. Any distraction can cause serious
damage.
2. Use protection elements such as protective glasses, dust mask, non-slip safety shoes
and safety helmet. Use each item under its proper conditions of use to reduce the risk
of accidents.
3. Before connecting the pruning shears, remove any tools used for adjustment or
maintenance. Avoid contact of the scissors with parts that could cause accidents.
4. While you are working, do not stretch your arms too far and work in a stable and
comfortable position; do not handle the lit scissor directly with your hands. Make sure
that the work area is free of other materials that could be damaged while pruning, such
as power cables, wires, etc. and keep a balanced position to ensure a good reaction in
case of an accident or fall.
5. Dress appropriately for the work to be performed: do not wear loose clothing or clothing
that is at risk of being caught in the scissors or in other trees for your discomfort or
insecurity; keep hair, clothing, and sleeves away from the scissor cutting area.
1.2.4. General
1. When you don't have any branches to be cut by the scissors, release the trigger and
keep the scissors in their open position.
2. When branches are too tough, release the trigger and the blade will return to the open
position to remove and attempt cutting in another area.
3. If the battery does not charge normally, first check if the charger is suitable for the
battery, and then check if the charging voltage is suitable for the battery.
4. If there is any electrical or mechanical damage, turn off the battery immediately.
5. If the battery is leaking; do not touch the liquid under any circumstances; if you contact
the liquid, wash immediately with plenty of water; If the liquid gets into your eyes, see
a doctor immediately and flush with plenty of water.
2. TECHNICAL SPECIFICATIONS
TPB2202
Working voltage
7.2V (DC)
Drums
7.2V - 4.2Ah
Charging voltage
AC110V~240V
Battery charging input
Type-C charger
Loading time
2-3h
Working time
4-6h
Cutting diameter
22mm
Working temperatures
-10°C ~ 65°C
Weight
0,89kg

EN
6
Read all safety instructions carefully. You may suffer electric shock, fire or burns if
you do not follow the safety instructions.
Do not use or directly expose the pruning shears to rain.
While working with the pruning shears, do not close or manipulate the cutting blades
with your hands. Take special care to bring any part of your body close to sharp
moving parts.
3. PRODUCT DESCRIPTION
3.1. Identification of machine components
1. Cutting blade
5. On/off switch
2. Bedknife
6. Type-C charging port
3. Gear
7. Lithium battery
4. Activation trigger

EN
7
4. UNPACKING AND ASSEMBLY
4.1. Items in the box
The tool includes the following components in the supplied packaging:
1. Pruning shears
2. Built-in lithium battery
3. Charger cable (Type C)
4. Tool kit and lubrication
4.2. Expected use
The pruning shears is a battery-powered tool and consists of a fixed blade, a movable cutting
blade, a built-in lithium battery, a charger, a tool kit and a carrying case. The charging voltage
ranges from 110V-240V AC.
The main application of this scissors is for the pruning of branches in fruit trees, treatment and
maintenance of orchard or fruit plants such as vineyards or similar.
This tool achieves high work efficiency and saves a lot of time and effort compared to traditional
manual pruning with mechanical scissors. Its efficiency is established between 8 and 10 times
higher than manual pruning. The quality of the cut and its speed is also significantly superior
to traditional manual pruning.

EN
8
5. INSTRUCTIONS FOR USE
5.1. Start up
1. Remove the machine from the packaging. Install the lithium battery, press and hold the
power switch for three seconds, and then release it. You should hear the sound of two
beeps; this means the battery is charged.
2. Press the trigger continuously and quickly twice to open the blade automatically.
3. Before starting the work, press the trigger to operate the blade several times and listen
for unusual noises or if the working speed is too fast or too slow. If everything is normal,
you can start working.
4. Power off: press the trigger and release it after hearing a beep twice. The blade will
close automatically.
5.2. Use tips
After a long time of use, the battery of the machine may rise in temperature, this is normal.
Add lubricating oil on the blade for proper maintenance. It is very important that you keep your
scissor in good clean and cared for condition.
While you are pruning, start pruning about 8mm from the shoot; the maximum
cutting diameter is 22mm.
Prune away from the shoot to prevent sap loss from the plant.
Do not prune branches too far from the tree as this will reduce the health of the
plant. Leave a small stretch of the branch to avoid stressing the plant.
While you are working with the scissors, keep your hands away from the cutting
blades and wear gloves or other suitable protective equipment.
Remove diseased shoots and remove dry branches on the plant.
When pruning on a tree, prune each branch separately and do not cut multiple
branches at once.
5.3. Battery charge
The battery of the new product does not come fully charged.
Before charging, please insert the charging cable into the
charging port of the scissors and insert the other end into the
charger. The battery light will show full when fully charged.
(Note: This product uses a Type-C interface for charging, which is
common with the mobile phone charging cable.)
Caveat
- Before charging, please turn off the switch; While charging, it is normal for the battery
to rise slightly in temperature.
Type-C charging port

EN
9
- If the batteries are not used for a long time, they should be recharged every 3 months
to increase the service life.
- New or long-unused batteries will reach full capacity after 5 charge-discharge cycles.
- Do not charge the batteries repeatedly after several minutes of operation as this may
reduce the working time and effectiveness of the batteries.
- Do not use damaged batteries or do not disassemble the charger or batteries.
- Do not expose batteries to fire or high temperatures. Risk of explosion.
- Do not charge batteries outdoors or in humid environments.
5.4. Blade tension adjustment
Attention: Please turn off the power of scissors before adjustment.
Keep the blades open and check for lateral oscillations. Side swing is an abnormal state, as it
creates a gap between the two blades, which makes the gear teeth unable to bite properly,
which will damage the mechanical structure, and the blade must be locked. (not too tight)
6. MAINTENANCE
6.1. Blade lubrication
Attention: Please turn off the power of the scissors before
the operation.
Re-add lubricant before using the blades or for more than 4
hours:
- Keep the blades open and add 1-2 drops of lubricant to
the connection between the moving and fixed blades (as
shown in the picture).
- Cut the scissors several times to evenly distribute the
lubricant.
lubrication
point

EN
10
6.2. Blade replacement
The power supply of the scissors must be disconnected before operation.

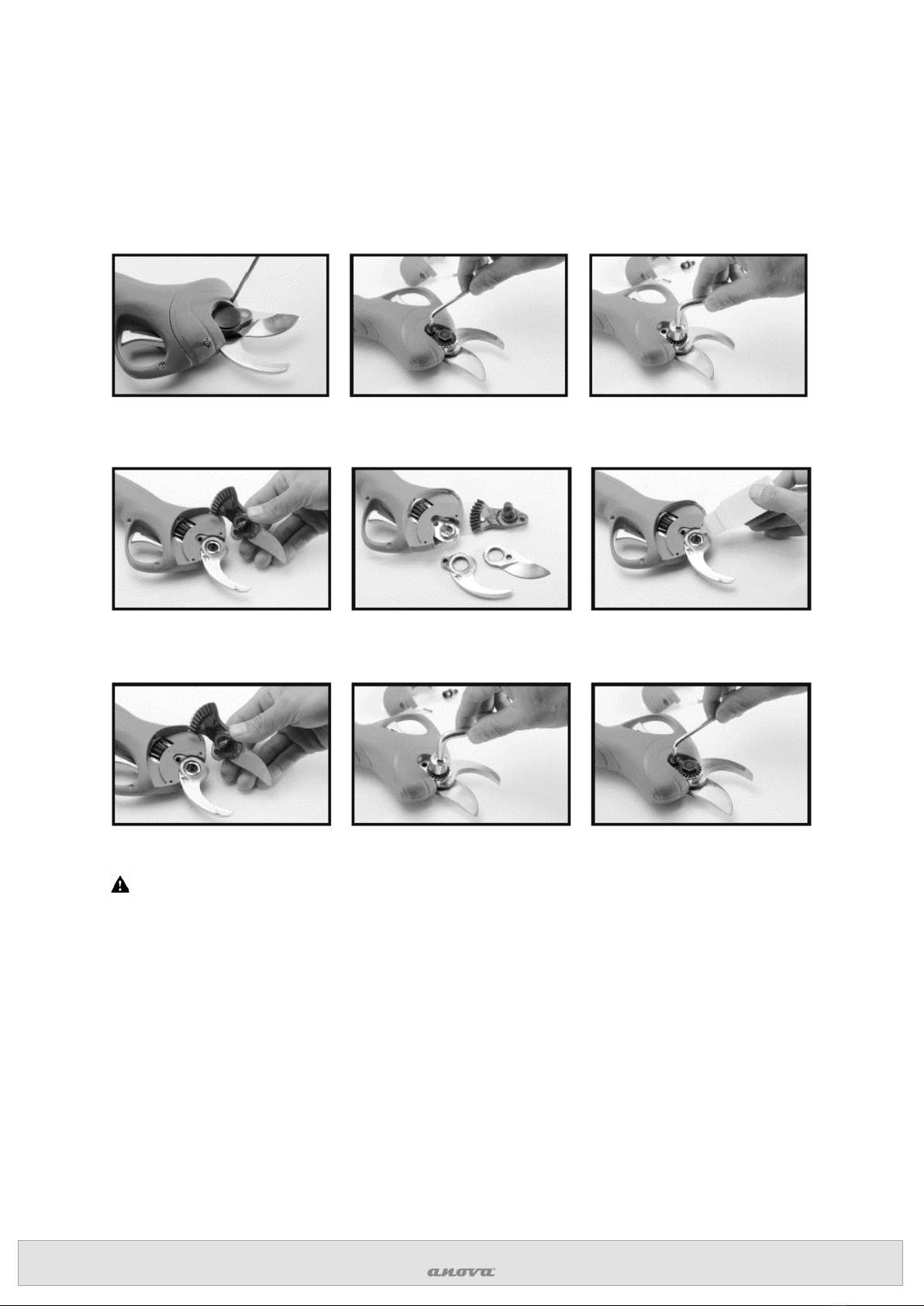

- Step by step as shown below. Replace blade.
- After replacement, clean it, turn on the test, close the blade, and complete.
Caveat
Support blade and moving blade can be replaced independently; As a replacement, don't worry
about too small a blade opening; after recovering the power of the scissor, the normal opening
size will recover automatically.
6.3. Scissor Maintenance
1. Do not cut branches outside the cutting range; do not cut non-vegetable materials, such
as metals and stones, etc. do not use clamps or the like to hold the scissors; always
replace the cutting blade if it is worn or damaged.
2. Keep the cutting equipment clean, clean the scissors, batteries and charger with a
clean cloth (do not use corrosive detergents) and a soft brush or dry cloth to clean the
dust on the upper scissors.
1. Remove the screws with
a screwdriver and open the
cover.
5. Remove stationary
knife.
8. Insert the nut.
7. Replace the blade
6. When replacing the blades,
lubricating oil should be added
between the blades.
3. Remove the blade nut.
2. Remove the screws from the blade
nut retainer (this step is important)
4. Remove the pin and
remove the moving knife.
9. Install the lock nut.
