Installation Manual
for Umbrella Type FX

Service Information
In case of questions or reclamations please fill out the information
below, so that you have access to it when needed.
3
Umbrella Type/Size:
Serial number:

Safety Note and Regulations:
About this installation instruction:
4
Both your safety and the safety of others are paramount. Please read the following safety
and installation instructions carefully before installation and use of your new umbrella.
Keep them in a safe place for later reference.
The installation instructions include important information regarding mounting, installation
and implementation of the . Please notice all instructions and warnings to avoid
unnecessary damage to people or property.
, it is important to adhere to these safety instructions.
To ensure safe use of
umbrella
umbrellas
The manufacturer excludes any warranty or liability for damage caused by
improper use or non-adherence to these safety and installation instructions.
Designated Use:
are designated exclusively for sun protection. The wind resistance of
each in its opened state is limited to a certain wind force, depending on the type
and size of and requires the fixing with the in-ground sleeve as per installation
instruction. The stability of the might be substantially reduced when using a mobile
base. Please refer to the literature enclosed with the goods for recommended foundation
dimensions for the in-ground sleeves and weights for the employment of mobile bases
or check on.
Closing the Umbrella:
We recommend closing your in windy and especially gusty conditions to prevent
damage of people or property. Closing the at high wind speeds is to be avoided!
Please note that the type FX has a maximum wind load of 40km/h.
Umbrellas
umbrella
umbrella
umbrella
umbrella
umbrella
umbrella
3
In windy and especially in gusty conditions, the umbrella must be closed!
Unsupervised umbrellas must not be opened!
Umbrella Type FX

Contents of Shipment:
Handling the Umbrella:
5
Ground Fixing:
The in-ground sleeve and the base plate need to be installed as detailed in the installation
instructions enclosed with the goods. The installation must be carried out by a qualified
engineer in accordance with local regulations.
›
›
›
›
Do not leave the parasol leaning unsecured against a wall. It could fall and cause damage
or injury to people or property.
› The umbrella must not be modified or equipped with components other than those
recommended. The stability and the functionality of the umbrella could suffer and the
warranty expire.
Only use the umbrella after you ensured that the umbrella is in perfect technical condition
at all times. Check regularly for possible defects. Ensure that any defects are rectified by
a qualified engineer using original components.
› Prior to opening and closing the umbrella, ensure that any obstructions are removed.
Close the umbrella prior to gales, thunderstorms, heavy snowfall, strong rain, or hailstones.
› Keep children away from the opening and closing mechanism.
Avoid any open flame near the umbrella.

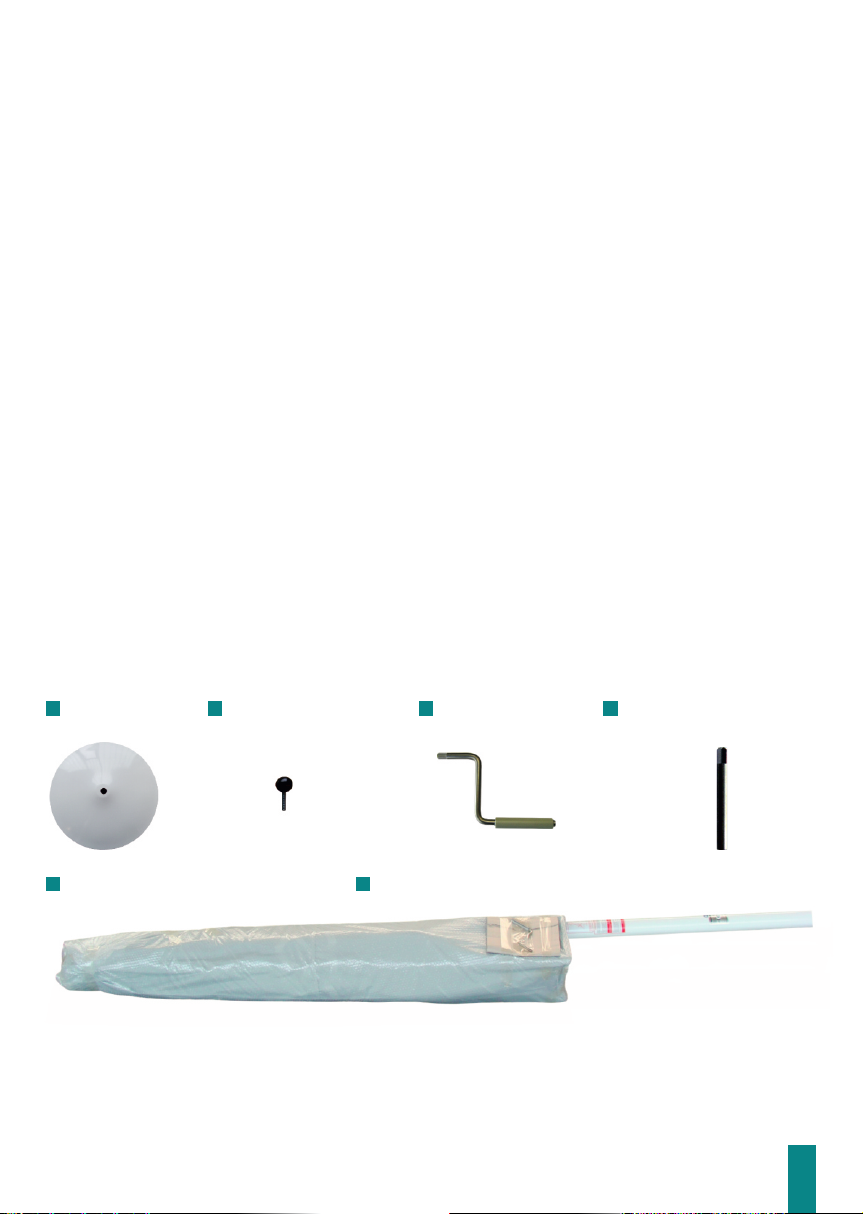

Umbrella in bubble wrap Protective cover (optional)
Top plate Top plate screw Crank handle Straight drive winder
(optional)

Location of the In-Ground Sleeve, Mobile Base or Base Plate:
6
Installing the Umbrella:
Please be aware that the type FX has a side mast. Carefully select the precise
location in which you intend to install the in-ground sleeve, mobile base or base plate for
the . Ensure that the erected will have at least 20 cm clearance in every
direction with regard to buildings, trees, fences, or any other objects.
If you are intending to use an in-ground sleeve with hinge, ensure that the hinge opens in
the correct direction, i.e. towards an open space, so that the closed can be easily
inserted.
The mobile base needs to be weighted with the layers and size of slabs mentioned in the
instruction for this kind of fixing. It is absolutely necessary to comply with these
requirements, otherwise the stability of the is reduced and may harm people or
property. The warranty expires!
Moderate height compensation between several is possible through the use of
extended upper sleeves and appropriate distance pieces.
The safe fixing of the can be guaranteed with one of three ground fixings shown
below. Due to special construction of the Type FX we strongly recommend using
the in-ground sleeve or base plate as safest ground fixing.
umbrella
umbrella umbrella
umbrella
umbrella
umbrellas
umbrella
umbrella

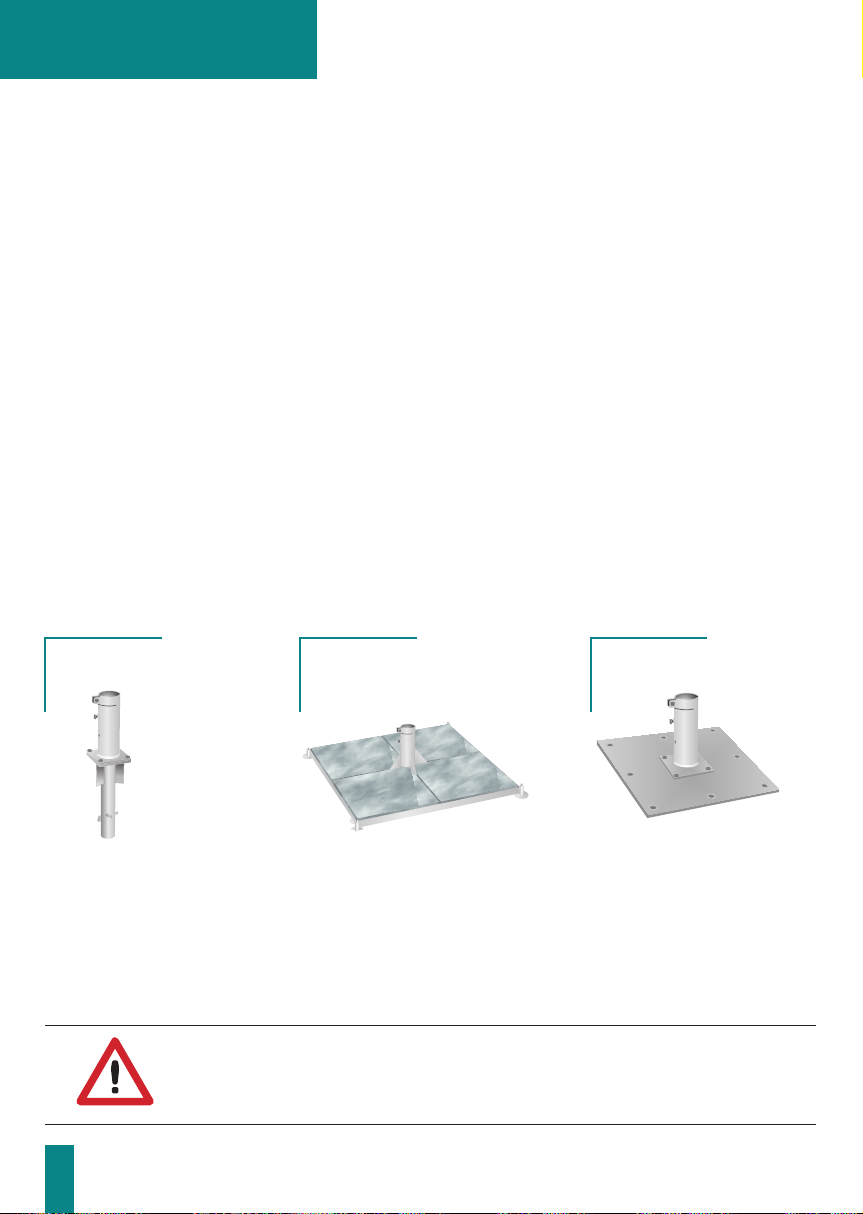

Upper and in-ground
sleeve
Mobile base Base plate
The is top-heavy. To avoid damage to both and property we strongly
advise the installation with at least two or more persons (depending on the type and size of
).
umbrella umbrella
umbrella
Install the umbrella with 2 or more persons. Don't drop the umbrella!
Do not leave the umbrella leaning.
Don't drag the umbrella over pointed objects or grit!
Umbrella Type FX

Installation of the Umbrella with Sleeve/Base Plate or Mobile Base
with Hinge:
(Picture a)
›Loosen both fixing- and clamping screw on the upper sleeve just enough so that the mast
can easily slide in.
›Remove the sleeve screw that fixes the in-ground and upper sleeve together and flip the
upper sleeve around by 90°. Place the upper sleeve on a soft bedding.
›Carefully insert the umbrella mast horizontally into the upper sleeve as far as possible.
›Fasten both fixing and clamping screw hand-tight.
(Picture b)
›Bring the umbrella to an upright position.
›Fix the upper sleeve to the in-ground sleeve with the sleeve screws. While doing so, the
umbrella needs to be secured by a second person.
›Remove the protective cover
›Mount the top plate with the suitable top plate screw (which is already mounted on the
top of the telescope) to the top of the umbrella.
The umbrella must never lie on the top plate when uninstalled.
7
Don't drop the umbrella mast into the upper sleeve, but carefully insert it!
Upper
sleeve
In-ground sleeve
Hinge
insert close
open
fix
Umbrella mast
Umbrella mast
Sleeve screw
Fixing screw
Fixing screw
Clamping screw
Clamping screw
Upper sleeve
Soft bedding
In-ground sleeve
Soil Soil
Foundation Foundation
Picture a: Picture b:

8
Umbrella Type FX
(Picture d)
›Align the umbrella with a spirit level or with
vertical lines of the surroundings (e.g.
buildings, lamp posts, etc.).
Turn the umbrella within the upper sleeve
till you have reached the desired position
(the fixing and clamping screw need to be
loose to do so).
›Once aligned, the fixing and clamping screw
must be tightened.
›Drill force: M10x16 light (approx. 10 Nm)
and M10x30 strong (approx. 40 Nm).
Fixing screw
Clamping screw
tighten
align
Edge of building
Open the umbrella
›Remove the securing strap.
›Open the umbrella using either the crank handle supplied or a portable electric drill and
Allen key bit. Ensure that you open the umbrella far enough for all segments of the
membrane to come under tension, while keeping an eye on the stop screw at the top
of the telescope to avoid over-tensioning. In case you are using a portable electric drill,
do NOT use the “Drill” position. Use the torque limiter of the drill to prevent damage.
›Once the stop screw approaches the tip of the mast when opening the umbrella and on
the final three to four turns when closing it, proceed winding by hand using the crank
handle provided with the umbrella.
Soil
Foundation
Picture d
Never leave the umbrella with loose
fixing or clamp screw.
Only install the umbrella
with no or low wind forces!
›Please remove the blue foam material
which is fixed on the umbrella to protect it
from possible damages during delivery.
Aligning the umbrella

9
In windy and especially in gusty conditions, the
umbrella needs to be closed!
Unsupervised umbrellas must not be opened!
To avoid the formation of mould, the umbrella needs
to be completely dry before the securing strap and
the protective cover are fitted!
Closing the umbrella:
When closing the keep an eye on the shear mechanism to avoid damage to
the fabric! It must be ensured that the fabric does not come between the scissor
mechanism and get stuck. Once the membrane fabric approaches the scissor mechanism,
stop the closing process and pull the fabric out again, now you can continue the closing
process until the is completely closed.
Fully close the as described above with the crank handle provided or with an
electric portable drill, using an Allen key bit.
Pull out the membrane fabric from between the arms of the closed , and wrap
them around the . Then use the elastic strap to secure the membrane against
fluttering.
If the is not to be used for some time, we recommend using a protective cover
(if available). Please ensure that the membrane is absolutely dry before fitting the
protective cover so as to avoid the formation of mould.
For storage during winter, we recommend a dry place. If the is to be left
installed when not used, a protective cover must be used so the stays dry.
›
umbrella
› umbrella
› umbrella
umbrella
› umbrella
› umbrella
umbrella
umbrella,
1 2 3 4

We thank you for the trust you have placed in our products and wish you many years
of joy with your umbrella.
