Mimosa SIGNATURE 0229114 User manual

UPRIGHT BLACK
OUTDOOR FIREPLACE
Provides warmth and ambiance for outdoor settings
For use with timber fuel
Easy assembly
Important: Please retain these instructions for future use
0229114

Thank you ....................................................... Page 1
Safety Warnings ............................................. Page 2
Parts List .......................................................... Page 3
Assembly Instructions ................................... Page 4
Operating Instructions .................................. Page 8
Location ......................................................... Page 9
Care and Maintenance................................ Page 9
Product Warranty .......................................... Page 10
Contents

Page 1
Thank you
Congratulations on the purchase of this product, and thank you for making it a
member of your household. The creators of this product strive to provide
excellent products at affordable prices. You can rest assured that all our
products are manufactured to high standards of safety and quality, backed
by a 12 month warranty. A lot of thought and development goes into all of
our products, and we truly hope you are satisfied with your purchase.

Page 2
Safety Warnings
l Outdoor use only. DO NOT use the fireplace indoors.
l DO NOT position this product on a timber deck or any combustible
surfaces.
l DO NOT leave the fireplace unattended during use.
l Remove bark, dried leaves and twigs well clear of this product prior to
use.
l Carbon Monoxide Warning. Carbon monoxide is produced whenever
solid fuels are burnt. To avoid poisoning or death, never use this product
indoors, and never move this product indoors when it contains hot coals.
l The chimney must not be located below overhead construction such as
a covered patio or alfresco ceiling.
l When in use, all surfaces of the fireplace will get hot. Do not touch the
fireplace during use.
l Do NOT allow children or pets near the fireplace during use.
l Ensure your fireplace is positioned on a level surface and positioned at
least 2 metres distance from any side or overhead combustible materials.
E.g. house, fence, deck, trees, etc.
l DO NOT overload the fireplace with fuel. It may result in product failure,
failure to contain hot coals and property damage.
l DO NOT use highly flammable chemicals such as petrol or spirits to light
the fire or relight the fire.
l DO NOT use in windy conditions.
l DO NOT store or use flammables in the vicinity of the fireplace.
l CAUTION: Use gloves when removing the door as the handles may be
hot.

Page 3
Part D Qty.1 Part E Qty.1 Part F Qty.1
Part I Qty.1
Part J Qty.6 Part L Qty.1
Part A Qty.1
FIREPLACE
Part B Qty.1
CHIMNEY
Part C Qty.1
GRATE
ASH TRAY BRACE FLUE TERMINAL
BOLT ALLEN KEY
Part G Qty.1 Part H Qty.2
Part K Qty.2
HANDLE BOLT
COVER DOOR INSULATOR HANDLE

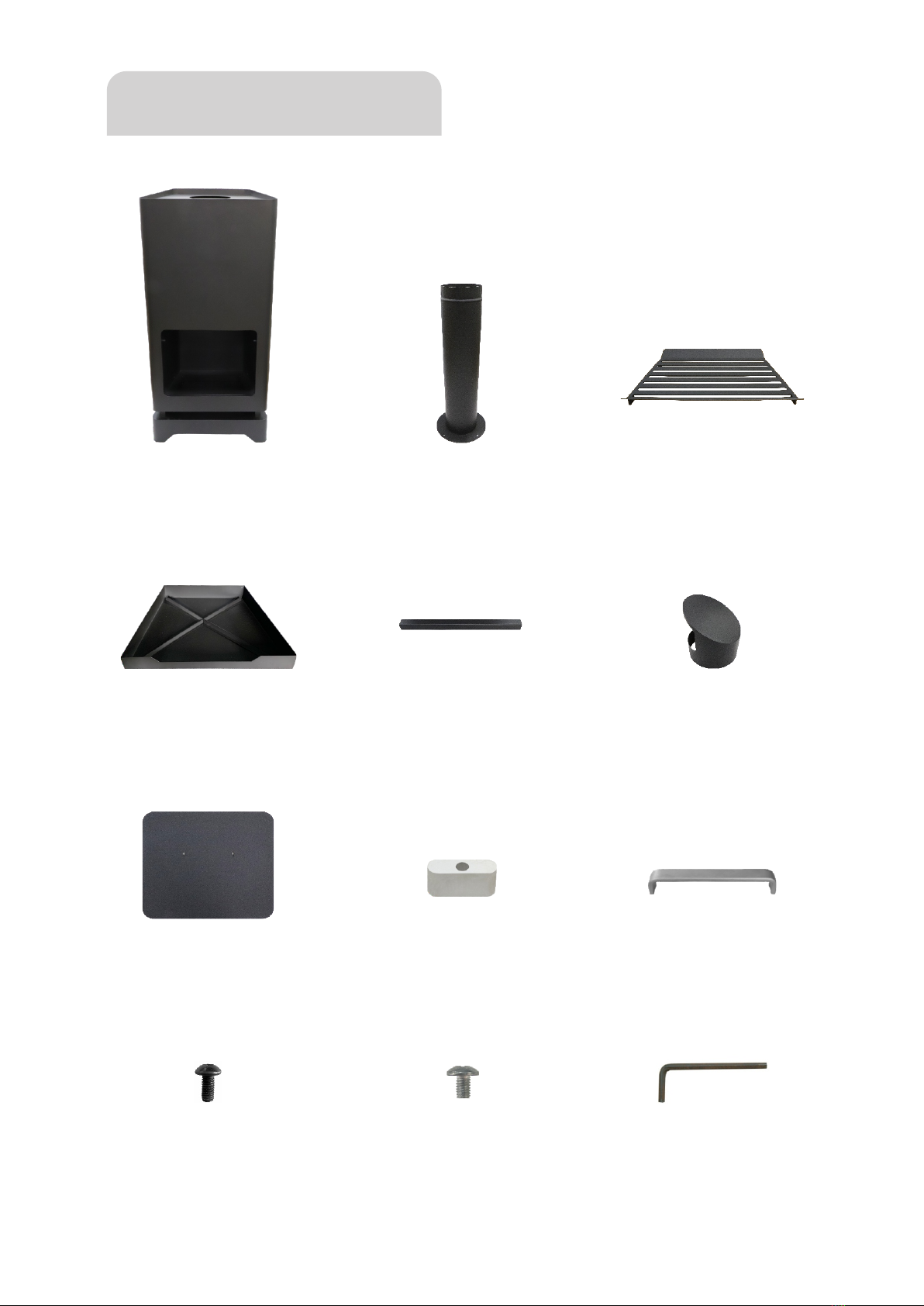

Parts List

An allen key has been provided to assist with assembly.
We recommend wearing gloves during assembly to prevent injuries from sharp edges.

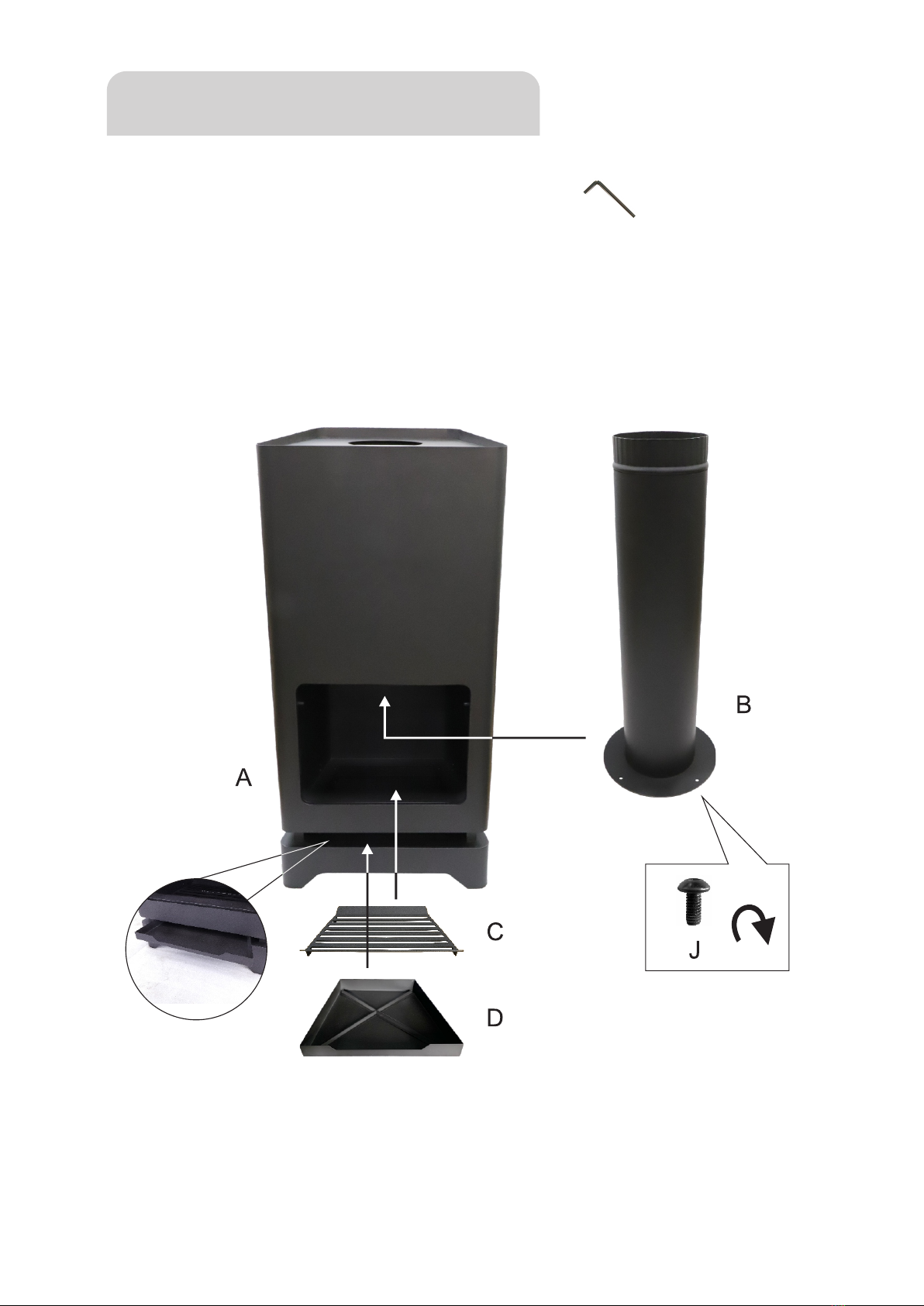

Step 1:
Insert the chimney through front of fireplace, and up through hole in the top.
Fasten chimney with the bolts.
Page 4
Step 2:
Place the ash tray and the grate in position as shown by the arrows above.
Assembly Instructions

Step 3:
Push the flue terminal onto
the top of the chimney.
Page 5
Step 4:
Fix the brace with the bolts.
Assembly Instructions

Page 6

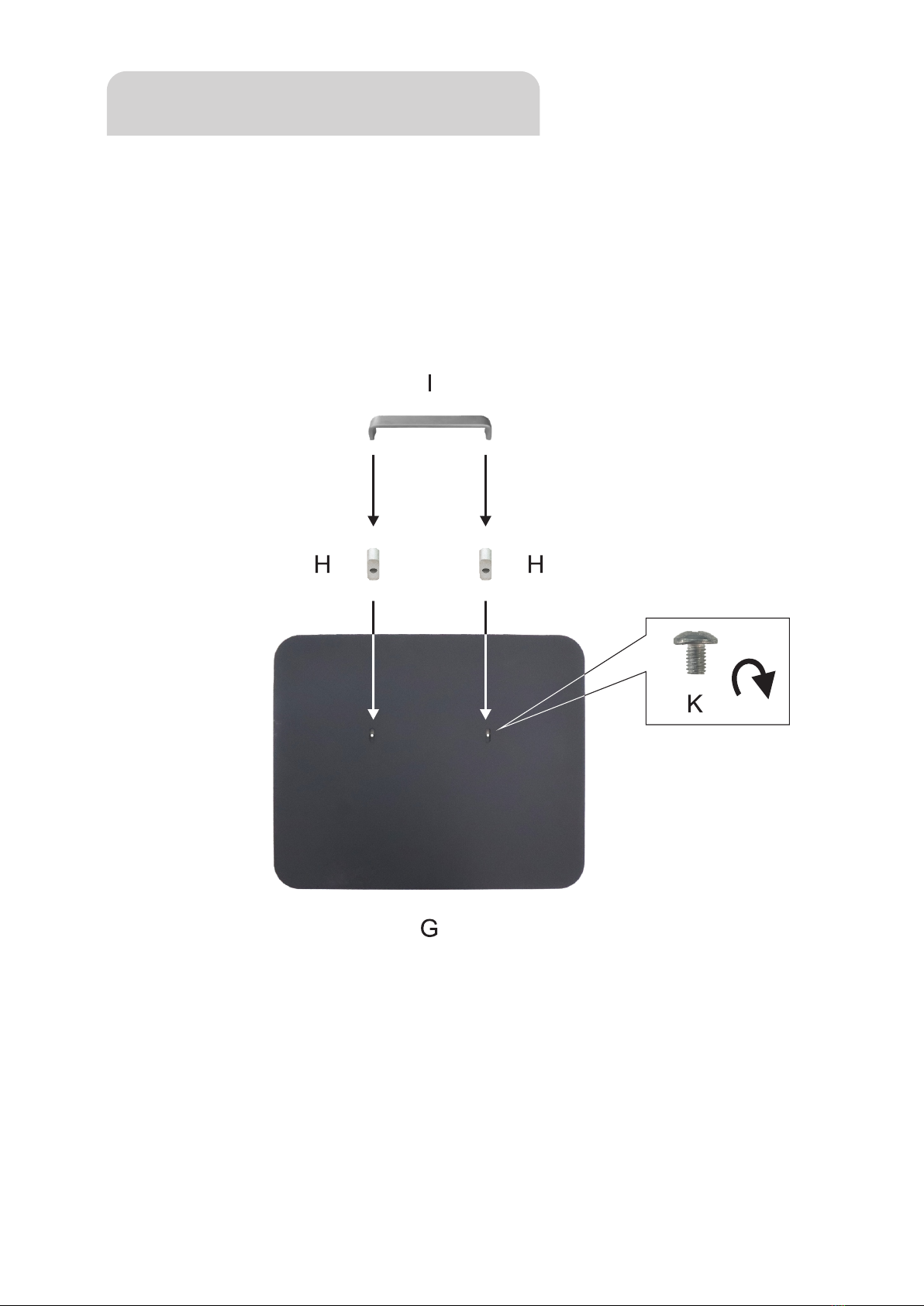

Step 5:
Assemble the insulators and
handle onto the cover door.
Assembly Instructions

Page 7
Fully assembled.
Step 6:
Locate the cover door
onto the fire place.
Assembly Instructions

Page 8
Preparation
1. To get the fire started, you will need material that can be readily ignited
or kindling and you will need firewood to fuel the fire.
2. Gather these materials before attempting to light the fire so you are
prepared.
3. If the available firewood is too large, cut, trim or split the firewood to fit in
the fireplace without overhang.
4. Don’t overload the fireplace. As a general rule, the maximum fuel load is
half the area of the grate.
5. Don’t arrange the fuel in tight bunches. Allow space between the
firewood pieces to ensure good air movement in the fire.
Lighting
We recommend using the door after ignition to make getting your fire started
easier.
CAUTION: Use gloves when removing the door as the handles may be hot.
1. Place a layer of dry kindling such as sticks or twigs. You can also use
firelighters.
2. Place a small amount of firewood directly above the kindling.
3. Use a long match or a gas lighter to light the kindling.
Maintaining the Fire
l Wear oven mitts or protective gloves when tending to the fire.
l After the fire has been established, add more firewood directly on top of
the fire as desired but do this gradually to avoid overloading.
l Use a poker to reposition coals and improve airflow as desired.
l Never pour Petrol, Kerosene, Diesel, lighter fluid or alcohol onto the
fireplace.
Extinguishing
Allow the fire to burn out. Do not douse the fire with water, the sudden
temperature change can cause immediate damage to the fireplace.
Operating Instructions

Page 9
Location
Ensure to position the fireplace outdoors, and well clear of any openings into
the home such as windows, vents or ducts.
Flue can be extended (for improved air draw and more remote smoke outlet)
by using standard 6" ue extensions.
When to use the Door
Always wear gloves when handling the door.
Mount the door on the replace during windy conditions or to reduce radiant
heat directly in front of the re during use.
When the replace is not in use, mount the door on the unit to prevent ash
being blown around your yard.
Care and Maintenance
Allow the fireplace to cool before cleaning.
Always empty the residual ash after each use.
To extend the life of your fireplace, protect it from the elements when not in
use.
The use of harsh, chemical cleaners or rough scourers can severely damage
the external surfaces of your fireplace. Only use soap and water during
cleaning and allow the surfaces to dry after cleaning to prevent excessive
corrosion.
Do not clean this fireplace with a high pressure washer or steam cleaner.
If your fireplace has a pre-rusted exterior, don’t apply any coatings or rust
preventative sprays because they will damage the rusted aesthetic.
Rust Prevention
Where fire and steel interact, rust will eventually appear due to the extreme
heat of the fire. If you want to minimise rust in your fireplace, you may use a
light oil or rust preventative spray to reduce rusting when the fireplace not in
use however, these oils and sprays are flammable so any oil or rust
preventative spray must be cleaned off before the next use.
Operating Instructions

Page 10
P R O D U C T W A R R A N T Y
Any claim under this warranty must be made within 12 Months of the date of
purchase of the product. To make a claim under the warranty, take the
product (with proof of purchase) to any Bunnings store (see
www.bunnings.com.au or bunnings.co.nz for store locations)
Bunnings Group Ltd bears reasonable, direct, expenses of claiming under the
warranty. You may submit details and proof to our store for consideration.
The warranty covers manufacturer defects in materials, workmanship and nish
under normal use.
This warranty is provided in addition to other rights and remedies you may have
under law: our goods come with guarantees which cannot be excluded under
the Australian Consumer Law or Consumer Guarantees Act 1993 (NZ). You are
entitled to replacement or refund for a major failure and to compensation for
other reasonably foreseeable loss or damage. You are also entitled to have
the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
The warranty excludes damage resulting from product misuse or product
neglect. The warranty covers domestic use only and does not apply to
commercial applications.
