ASSEMBLY INSTRUCTIONS
WARNING: Improper installation,Adjustment alteration, service ormaintenance can cause injury or property
damage. Read the installation, operating and
maintenance instructions thoroughly before
installing or servicing this equipment.
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.---- WHAT TO DO IF YOU SMELL GAS:- Do not try to light any appliance.- Do not touch any electrical switch.- Do not use any phone in your building.- Immediately call your gas supplier from a
eighbor’s phone. Follow the gas supplier’s
instructions.- If you cannot reach your gas supplier, call the
fire department.- Installation and service must be performed by
a qualified installer, service agency or the gas
supplier equipment.
WARNING:If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
WARNING: For Outdoor Use Only
FOR USE WITH 20LB. PROPANECYLINDER WITH TYPE 1
CONNECTION OR USE WITH
NATURAL GAS AFTER CONVERSION
KIT IS INSTALLED (MUST BE
PROFESSIONALLY INSTALLED) ALSO
THE LP REGULATOR MUST BE
SUPPLIED BY THE MANUFACTURER.
WARNING: Do Not Burn Wood or any
other materials in this firepit.
WARNING:USE FACTORY APPROVED
REPLACEMENT PARTS AND
ACCESSORIES ONLY. USE OF
UNAPPROVED PART OR
ACCESSORIES CAN VOID THE
WARRANTY ON THIS PRODUCT AND
RESULT IN A HAZARDOUS
CONDITION. PLEASE CONTACT US
FOR INFORMATION REGARDING
REPLACEMENT HOSES,
THERMOCOUPLES, ELECTRODES,
IGNITION MODULES, LAVA ROCKS,
ETC.

2
Important Safety Information 3
Information About Propane 4
Specifications 4
Parts Identification List 5
Installation 6
Natural Gas Conversion 9
Batteries 10
Lighting Instructions 10
Maintenance
11
Troubleshooting Guide 11
Warranty 12
TABLE OF CONTENTS

3
The information must conform with local codes or, in the absence of local codes, with the National
Fuel Gas Code, ANSI Z223.1, or CAN/CGA - B149.2, Propane Installation Code.
The appliance and its appliance main gas valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff
valve duringany pressure testing of the gas supply system at test pressures equal to or less than
1/2 psi (3.5kPa).
The appliance area must be kept clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas
control which has been under water.
Children and adults should be alerted to the hazards of high surface temperatures and
keep a safe distance to avoid burns or clothing ignition.
Young children should be carefully supervised when they are anywhere near the appliance.
Clothing or other flammable material should not be hung from the appliance, or placed on
or near the appliance.
Any screen or guard removed from servicing an appliance must be replaced prior to
operating the appliance.
Installation and repair should be done by a qualified service person. The appliance should
be inspected before use and at least annually by a professional service person. More
frequent cleaning may be required as necessary. It is imperative that the control
compartments, burners and circulating air passageways of the appliance be kept clean.
Do NOT burn solid fuels in this gas fireplace.
CAUTION: The propane gas pressure regulator provided with this appliance must be used. This
regulator is set for an outlet pressure of 11 inches under water column.
This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or boats.
Before each use of this gas appliance, open the LP(Liquid Propane) Tank Drawer and inspect the
LP Hose. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced
prior to the gas appliance being put into operation. Use only the replacement hose assembly
specified in this manual. Inspect the burner before each use of the appliance. The burner must be
replaced prior to the appliance being put into operation if it is evident that the burner is damaged.
Use only the burner listed in these instructions.
Keep the fuel supply hose away from any heated surfaces.
IMPORTANT SAFETY INFORMATION

4
CYLINDER CONTAINER SIZE: A self contained LP-gas cylinder for use with this appliance must
have a capacity of 20 lbs. and must be equipped with a Type I connector and
an OPD (overfill protection device).
The LP-gas supply cylinder to be used must be constructed and marked in accordance with the
specifications for LP-gas cylinders of the U.S. Department of Transportation (DOT) or the National
Standard of Canada CAN/CSA-B339, Cylinders, Spheres and Tubes for the Transportation of
Dangerous Goods.
- The cylinder supply system must be arranged for vapor withdrawal.
- The cylinder used must include a collar to protect the cylinder valve.
- This appliance shall be used only outdoors in a well-ventilated space and shall not be used in a
building, garage or anyother enclosed space.
- When this appliance is not in use, the gas must be turned off at the supply cylinder.
- Storage of this appliance indoors is permissible only if the cylinder is disconnected and removed
from the appliance.
- Cylinders must be stored outdoors in a well-ventilated area out of the reach of children.
Disconnected cylinders must have threaded valve plugs tightly installed and must not be stored
in a building, garage or any other enclosed area.
The item is approved for installation on combustible floors.
CSA (Canadian Standards Association) certified to CSA International Requirement
4.96 U.S. ( 3rd Edition) “Outdoor Gas Fireplaces” and CR97-003 “Outdoor Gas Fireplaces”.
TYPE 1 CONNECTOR
INPUT 40,000 Btu/hr High Fire 30,000 Btu/hr Low Fire
Propane Regulator Pressure 11 inches water column
Natural Gas Inlet Pressure 7 inches water column
Clearances to combustible surfaces: Sides 24 in. / 60.0cm Top 72 in. / 182.8cm
Figure 1
IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS
SPECIFICATIONS

5
PART # QTY
FP0704 1
FP0705 1
FP0712 1
FP0713 1
BB FP0714 1

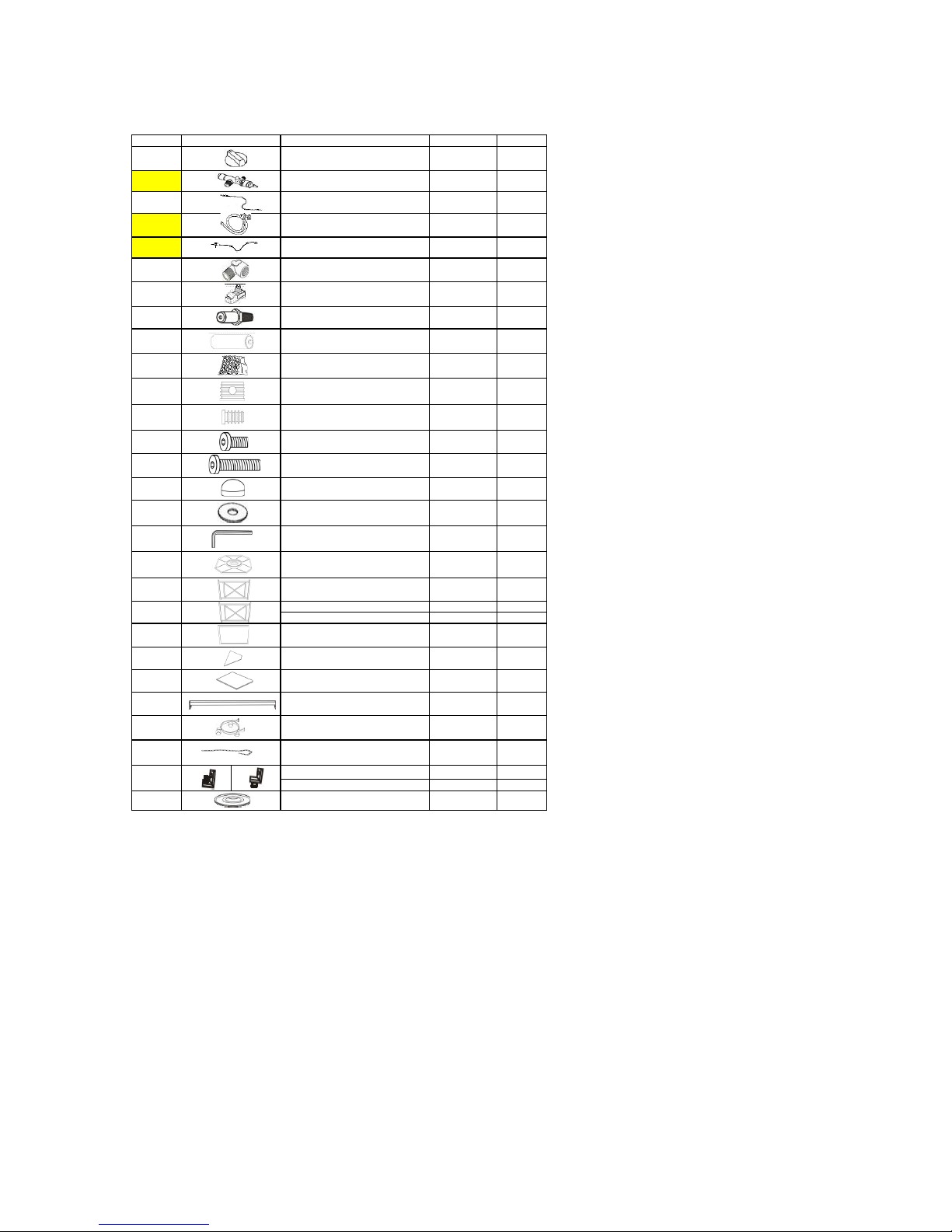

PARTS IDENTIFICATION LIST
I"AAA" BATTERY (1.5V)
PART
G
C
B
D
E
F
H
DESCRIPTION
A
ORIFICE ELBOW
J
S
M
O
U
K
L
N
1/4" X 15 MM BOLT
LAVA ROCK SET
P
FIREPAN / BURNER ASSEMBLY
R
RIGHT SIDE PANEL
BOTTOM CONNETOR
V
Q
WASHERS
1
4
4
Z
FOOTCAP
PROPANE ORIFICE
W
1
1
1
1
1
1
1
FP0002-29
FC0559
HW0652
HW0640
FC0560
4
16
8
4
THERMOCOUPLE
FP0307 1
FP0004
CONTROL KNOB
1
FP0245
FP0308
FP0312
FP0003
FP0310
LP REGULATOR HOSE
FP0006IGNITION MODULE
ELECTRODE
GAS VALVE
1
12
FP0010
18BOLT COVER
T
AA
X
Y
1
LP SUPPORT
1/4" X 40 MM BOLT
FOOTCAP
TILE-1
TILE-2
1
MIDDLE SUPPORT
TOP CONNETOR
1
1
HEX BOLT DRIVER
1
1HW0607
FIREPIT TABLETOP
BACK PANEL
FP0707
FP0708
DOOR PANEL
LEFT SIDE PANEL
HW0105
FP0702
FP0710
FP0711
FP0706
FP0709
FP0703
HW0530
LP SUPPORT CIRCLE

6
1. Identify parts packed in carton against the parts list. Remove all protective materials and set parts on a flat,
non-abrasive surface.

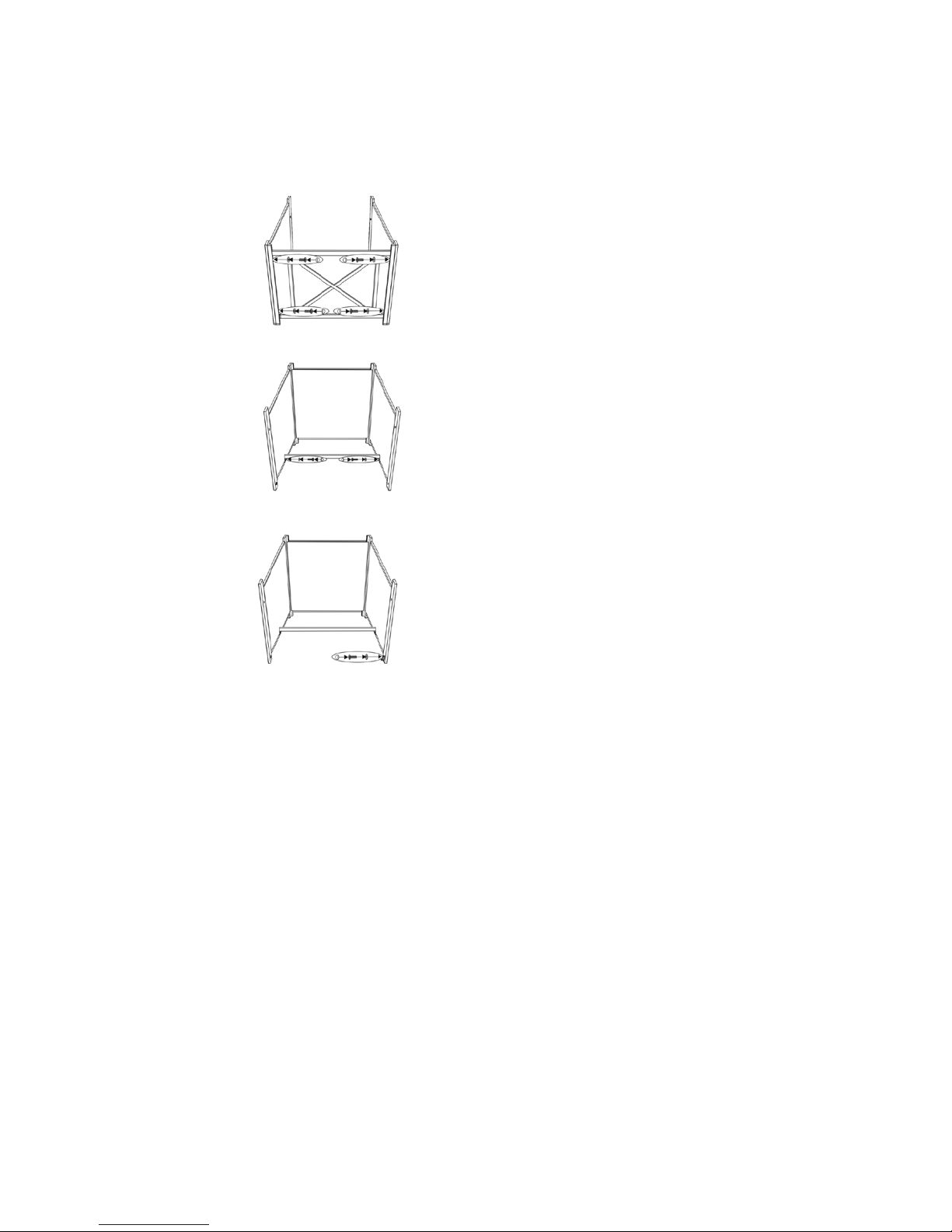

2. Attach the back panel to side panels by using four 1/4"x40 mm bolts and washers as shown in Fig 2.
Guide bolts through holes in back panel, into pre-drilled holes in the side panels. Hand tighten only.
Figure 2
3. Attach the middle support to side panels by using four 1/4"x15 mm bolts and washers as shown in Fig 3.
Guide bolts through holes in middle support, into pre-drilled holes in the side panels. Hand tighten only.
Figure 3
4. Attach the "L" connector to right side panel by using a 1/4"x15 mm bolt and washer as shown in Fig 4.
Guide bolt through hole in "L" connector, into pre-drilled hole in the right side panel. Do not over tighten.
Figure 4
INSTALLATION

7
5. Put the door onto the "L" pre-assembled connector,guide the pin of "L" connector into the hole under the door
Then guide the pin of another "L" connector into the hole upside of the door,use a 1/4"x15 mm bolt and washer
to attach this "L" connector to the right side panle as shown in Fig 5. Do not over tighten.
Figure 5

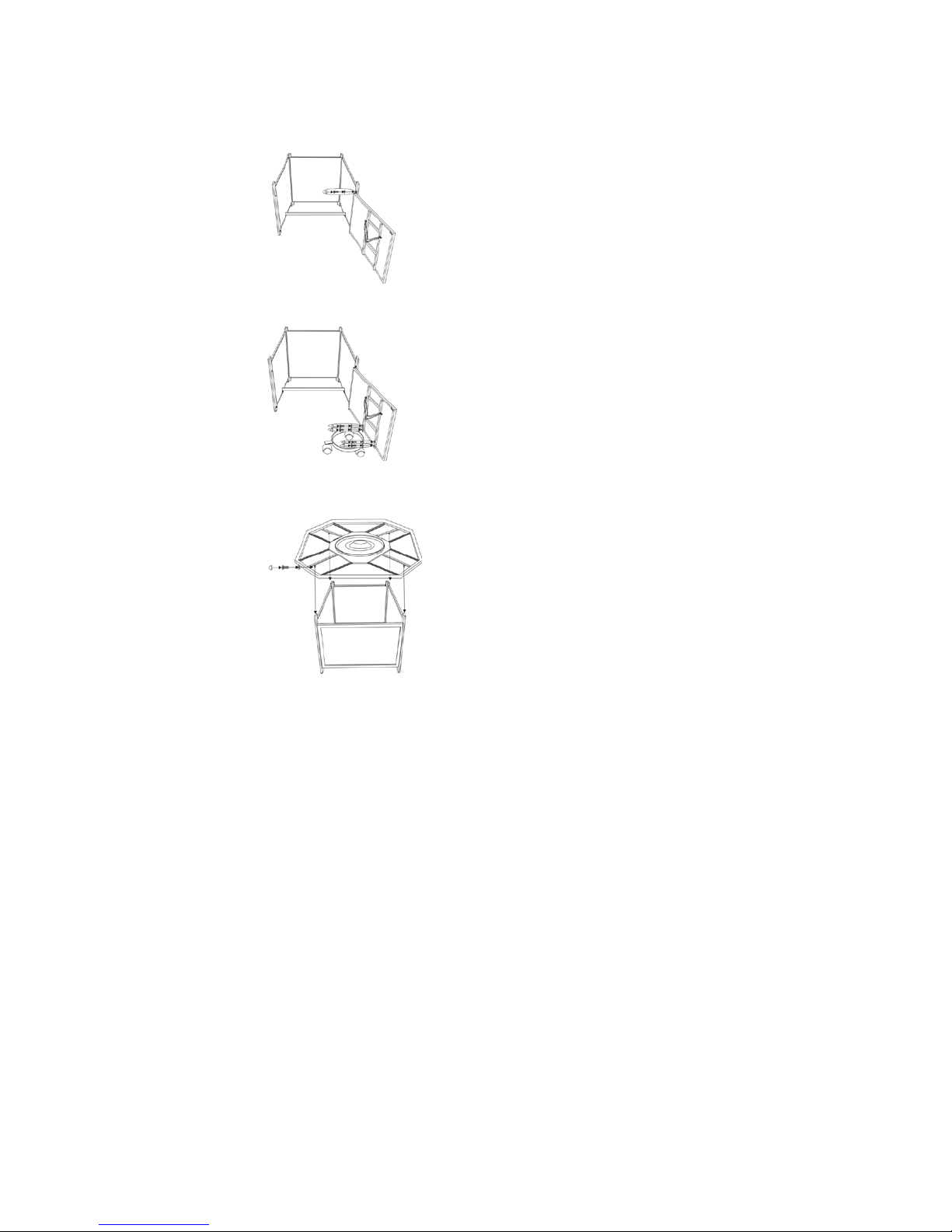

6. Attach the LP support to door panel by using four 1/4"x15 mm bolts and washers as shown in Fig 6a. Do not
over tighten.
Figure 6
7. With the help of another person, carefully place the table top onto the table base. After making any necessary
adjustments to the alignment of the table top and the assembled base, use four 1/4"x40 mm bolts and washers
as shown in Fig.7.Guide the bolts through the holes under the table top,into the pre-drilled holes in the side panles.
Do not tighten completely.
Figure 2
Figure 7

8
8. After making any necessary adjustments to the parts, use the hex bolt driver to tighten all bolts.
Note: each bolt must be tightened a few revolutions at a time.
Repeat until all bolts are tight. Do not over tighten. Over tightening may strip bolts. Cover all bolts with covers.
Figure 8
10. Pour the lava rocks into the burner pan
completely covering the burner. See Figure 10.
Figure 9
IGNITION WELL
the ignition well as shown in Figure 11.
Cardboard Cover
Connect the regulator as shown in figure 13. Screw the black handle clock-wise to tighten.
Turn the handle counterclock-wise to remove. The hose must point down. Check that the valve
is turned all the way clockwise to the "OFF" position. Open the tank valve.

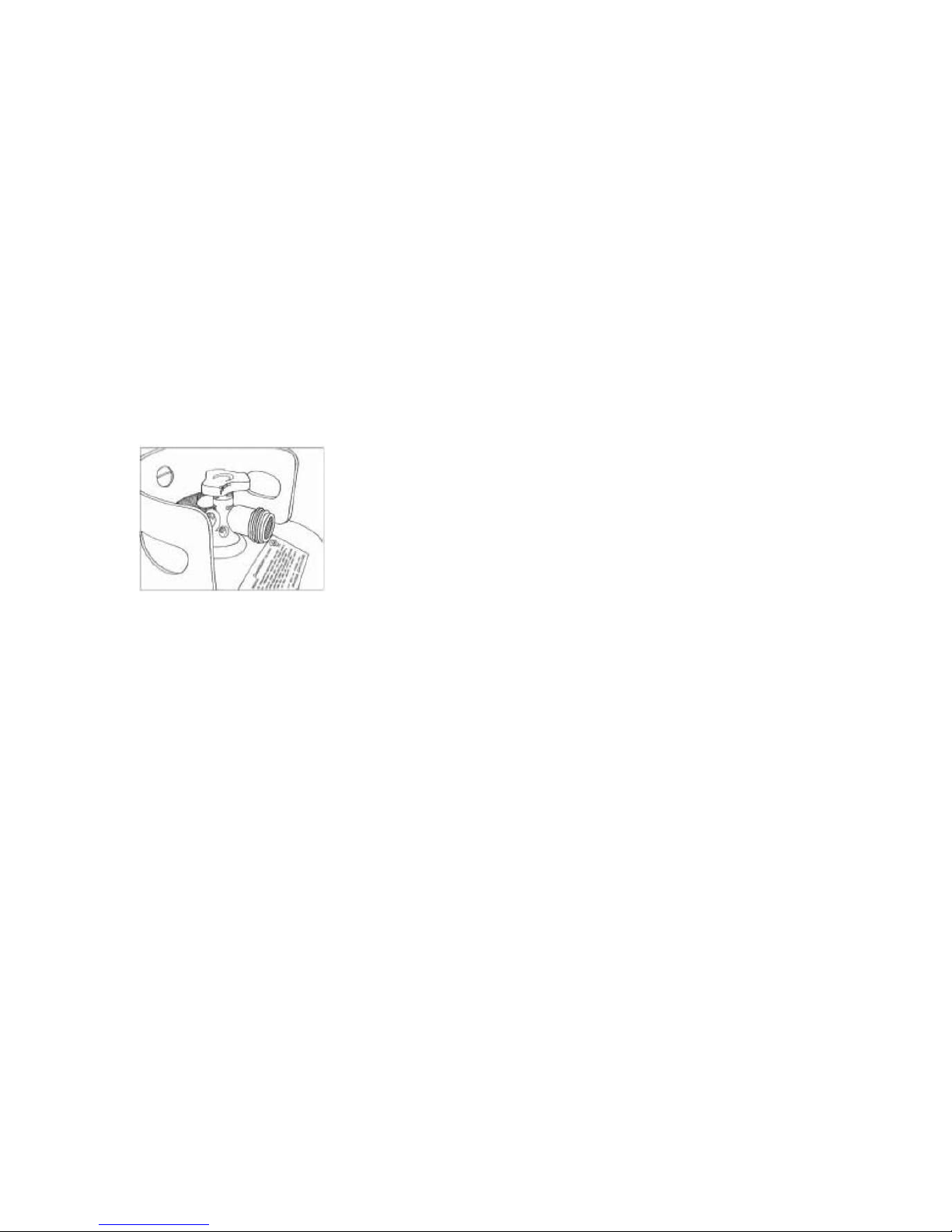

Apply a solution of soapy water to the tank-regulator connection and to the valve-hose connection
to check for leaks. If soap bubbles continue to form, the connection has a leak. If a leak is found,
close the tank valve and tighten all connections.
NEVER USE A FLAME TO CHECK FOR LEAKS.
9. Note the clear bumpers spaced evenly throughout the inside of the table top. Carefully place tiles inside table top,
resting on the clear bumpers as shown in Fig.8.
12. Draw the door out and place the LP tank on the support circle as shown in figure 12.
Figure 12
Figure 11
Figure10
11. Remove the cardboard cover from

9
Natural gas conversion must be performed only by your natural gas provider or service company.
1. Disconnect the regulator hose from the gas valve. See Figure 14.
Figure 13
Serial Number Model Number: 99000
CAUTION: The gas pressure regulator provided with this appliance must be used. This regulator is
set for an outlet pressure of 11 inches water column (2.7 kPa). The gas supply must be turned off
at the LP-gas supply cylinder when this appliance is not in use.
This appliance has been converted to use Natural Gas.
Input 40,000 Btu/hr.
Max Gas Supply Pressure 7 inch w.c. (12.2 kPa) MinGas Supply Pressure 5 inchw.c. (1.24 kPa)
FOR OUTDOOR USE ONLY. If stored indoors, detach and leave cylinder outdoors.
Make sure the control knob is in the "OFF" position.
Unscrew the push button cap on the ignition module
located on the control panel to access the battery
compartment. The ignition module requires one
Alkaline AAA size battery (1.5V). The negative (-) end goes
in first. See Figure 15. Dispose of batterysafely. May explode or leak
if charged or disposed of in fire. Make sure of the polarity. Mercury and cadmium free.
Warning: If these instructions are not followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
1. Make sure the control knob is in the "OFF" position. Open the tank valve all the way. See Fig. 16.

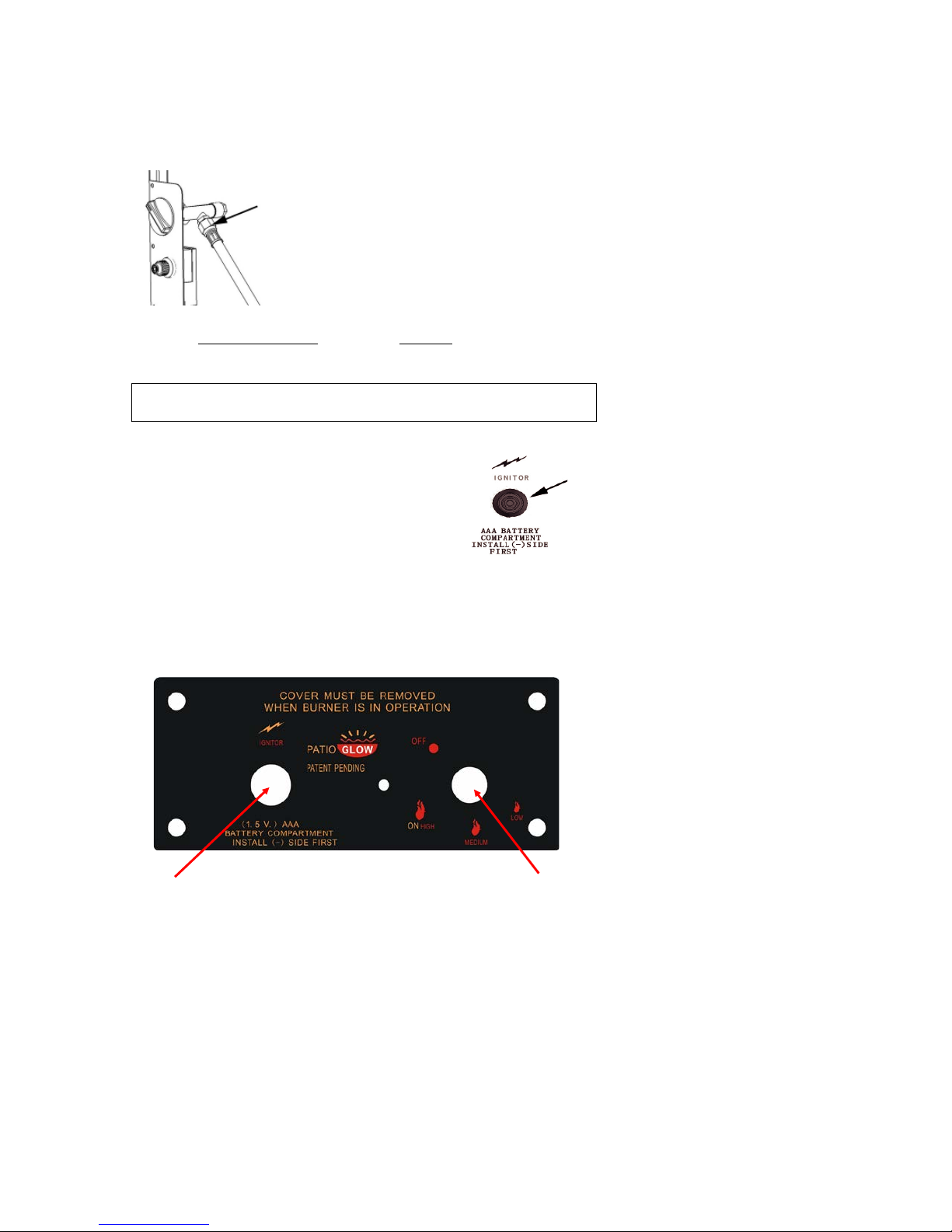

Figure 15 CONTROL KNOB
2. Push in the igniter button. You will hear a slight clicking sound. With the igniter button pushed in,
push and turn the control knob to the “ON” position.the fire should light within a few
seconds. Once the flame is lit, release the igniter button and continue to hold the control knob in
for 10 to 15 seconds. Release the control knob. The control knob should pop back out and then
remain lit.
Note: If the fire does not light, turn the knobto the “OFF” position and wait five (5) minutes
before trying again.
3. To turn down the flame, push the control knob in slightly and turn to Medium (medium flame),
or Low (small flame).
4. To shut down the fire pit, turn the control knob to the “OFF” position and turn off the tank valve.
BATTERIES
IGNITER BUTTON
NATURAL GAS CONVERSION
Figure 14
LIGHTING INSTRUCTIONS
