Miraxess Mirabook User manual
USER MANUAL
INTRODUCTION
This manual contains all the information you
need to use the Mirabook in good conditions.
It also contains all restrictions to be carefully
avoided so as not to damage the device and
ensure the safety of the user.
Follow this user manual as strictly as possible for
you to ensure the validity of the warranty in case
of issue.
NOTE: the Mirabook uses DisplayPort technolo-
gy for video transfer, which makes it non-com-
patible with some Smartphones and other
devices, this will NOT be considered as an issue
for repair, replacement or refund.
For more information about compatible
systems, please go to our website:
WARNING: In case of damage or malfunction of
the Mirabook, do not attempt to repair by your-
self, contact the support team of Miraxess (sup-
port@miraxess.com) or the support of your
reseller.
www.miraxess.com
What’s in the box?...............................................4
External ports.........................................................5
Keyboard and notifications Icons.................6
Positioning the Colour touch..........................7
Installation of the USB-C Cable.....................8
Turning ON the Mirabook and plugging
the Smartphone (or device)..........................10
Unplugging the Smartphone (or device)
and turning OFF the Mirabook......................11
Safety precautions..............................................12
Warranty and Support......................................14
Certifications..........................................................15
CONTENTS

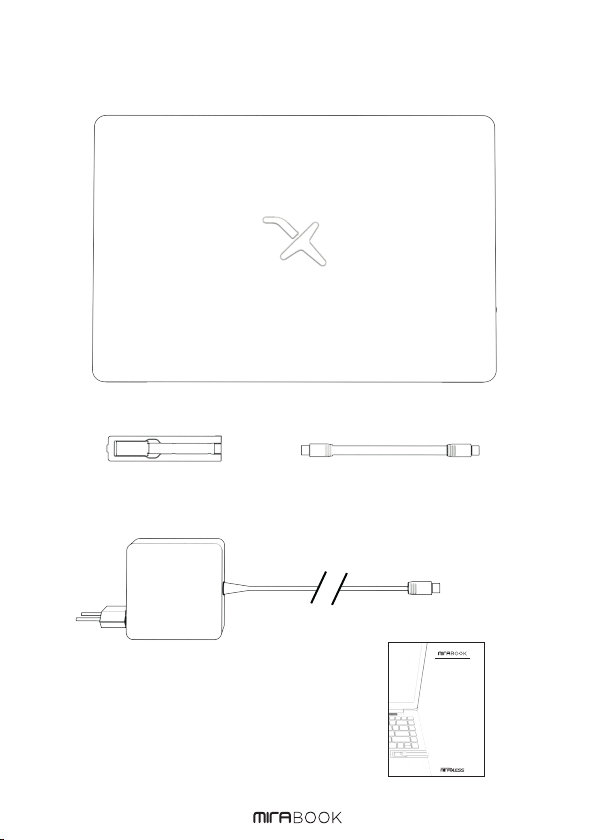

WHAT’S IN THE BOX
1 x Mirabook
1 x Color Touch 1 x USB-C to USB-C cable
1 x USB-C charger with cable
1 x Mirabook User Manual
4
USER MANUAL
EXTERNAL CONNECTORS
123
5
67
4
1. USB-C Port for charging
2. USB-A for peripheral devices
3. Audio output Jack
4. Micro SD Reader
5. Miraxess «Slide» slot
6. USB-A for peripheral devices
7. HDMI out to extend the screen
5
WARNING: do not insert anything but the ocial accessory «The Slide»
into the dedicated slot (number 5 in the picture above) as it may
damage it.
KEYBOARD AND NOTIFICATIONS
ICONS
1. Trackpad on/o
2. Backlit on/o
3. Volume down
4. Volume up
5. Screen brightness down
6. Screen brightness up
7. Battery Level
8. Smartphone/device charging on/o
9. HDMI out on/o
10. MiraKey, menu/all apps key
11. Right Click Key
12. Mirabook Charging on/o LED
13. Smartphone/Device charging on/o LED
14. Caps Lock on/o LED
12 13 14
123456789
10 11
*US QWERTY Keyboard
6

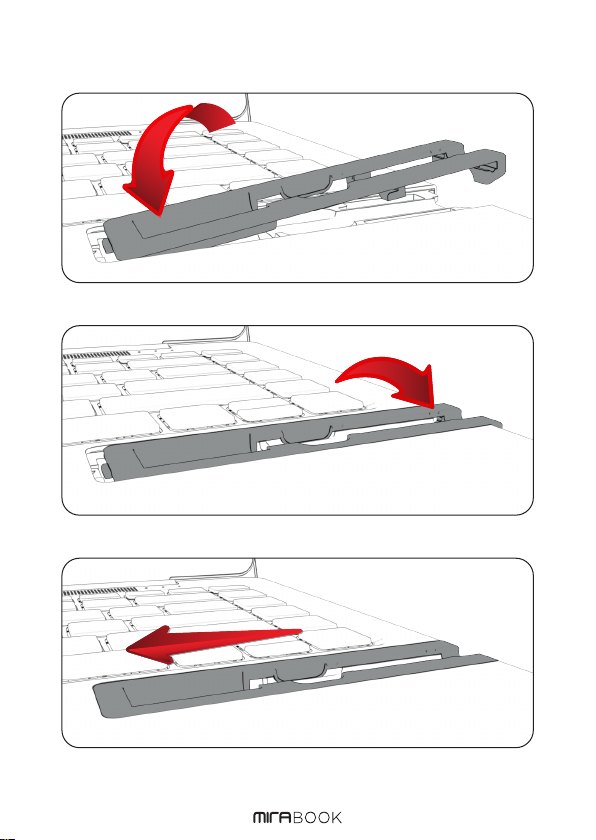

COLOR TOUCH POSITIONING
1. Tilt the Color Touch and place it, head first, as shown in the image above
2. Lay the rest of the Color Touch as shown in the image above
3. Push the Color Touch until you hear a click and feel it locked
4. To take o the Color Touch, just reverse the process above-mentioned
7

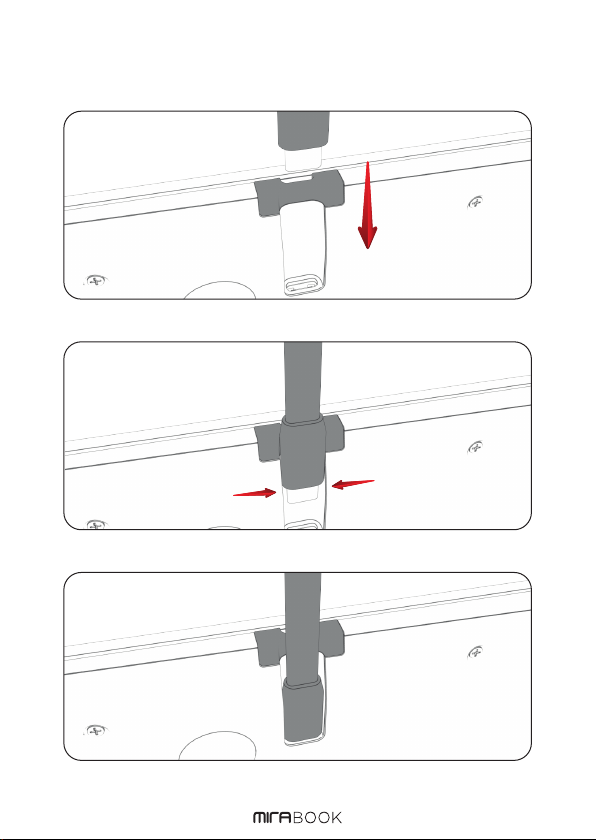

USB-C CABLE INSTALLATION
1. Turn the Mirabook to install the cable in its slot.
2. Align the cable on the rail adapted for it.
3. Push the cable until you feel or hear a «click».
CLICK!
8
3. To lock the cable on the colour touch, fold it against the touch.
4. Hold it with the colour touch pins.
9

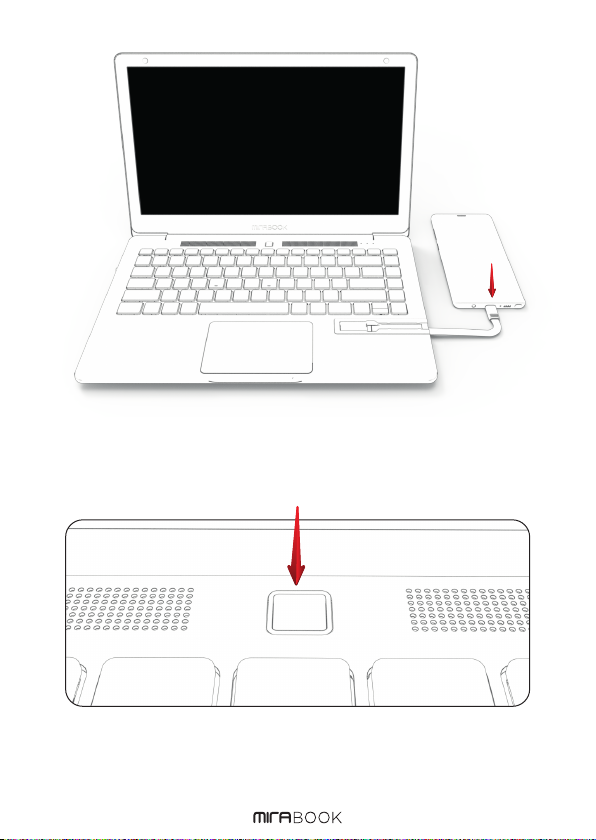

HOW TO TURN ON/OFF THE MIRABOOK
Connect your device
1. Press the «ON/OFF» button for 1 second to turn «ON» the Mirabook.
2. A message inviting to «connect your device» will appear. Take out
the cable from the cable holder.
10
3. Connect your device to the USB type C cable and the video display
should start.
4. To turn «OFF» the Mirabook, press the «ON/OFF» button a few seconds
then unplug your device.
11
12
SAFETY & PRECAUTIONS
The following precautions will increase the life of the Mirabook.
Failure to follow these precautions may result in injury or damage.
It is strongly recommended to use common sense.
DO NOT place on uneven or unstable work surfaces.
Seek servicing if the case has been damaged.
DO NOT expose to dirty or dusty environments.
DO NOT operate during a gas leak.
DO NOT place or drop any objects on top.
DO NOT shove any foreign objects into the Mirabook.
DO NOT expose or place under any liquids, heavy steam
or strong humidity.
13
DO NOT expose to strong magnetic or electrical fields.
DO NOT expose to strong heat or fire.
DISPOSAL OF THE MIRABOOK AND BATTERY
DO NOT throw the Mirabook in municipal waste.
The Mirabook has been designed for proper reuse of
parts and recycling.
Check local regulations for disposal of electronic products.
BATTERY SAFETY WARNING:
DO NOT throw the battery on fire.
DO NOT short circuit the contacts.
DO NOT disassemble the battery.
DO NOT drop any objects on the battery.
Miraxess S.A.S is not responsible for any injuries or damages caused by the
non-respected «Safety & Precautions» guidelines of this manual.
DO NOT try to open or dismount the Mirabook. You
may suer injury or make the mirabook malfunction.
14
Warranty
Miraxess provides all customers 24 months warranty from the
date of purchase.
If the device fails due to manufacturer defects, please contact
us by e-mail at support@miraxess.com to launch a warranty
claim. We will instruct you how to return the product for
repair/replacement.
We can only provide after sale service for products purchased
directly from Miraxess or Miraxess authorized distributors. If
you have purchased from a dierent seller, please contact them
for any request.
The warranty may NOT be valid in case of non-respected
«Safety & Precautions» guidelines of this manual.
Support
For all inquiries, please contact us with your purchase number
or reference for dealing with the issue quicker.
E-mail: support@miraxess.com
WARRANTY AND SUPPORT
Note: The warranty of the Battery is 12 months from the date
of purchase of the Mirabook
15

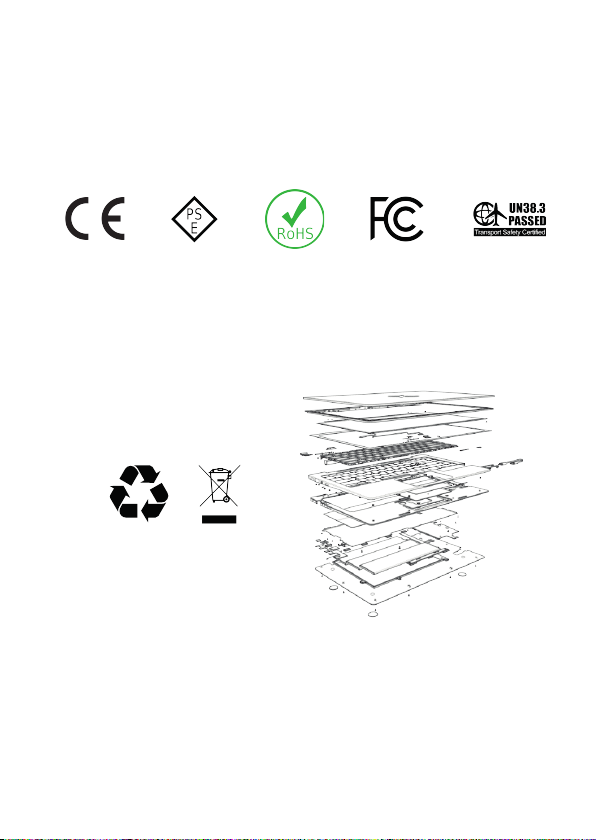

Mirabook Main Certifications
Find more information on our website
www.miraxess.com
CERTIFICATIONS
The Mirabook is completely removable for better recycling of
components. Please respect and follow local guidelines for
electronic waste and recycling.
16
1. It is strongly recomended, for a better operation and
maintenance of the device, to turn «OFF» the Mirabook
BEFORE unpluging your device.
2. It is strongly recommended to use the Mirabook in a
stable and even surface when one or several external
connections are in use. This is due to the potential heat
released by the device when one or more ports are in
use.
Please be careful if the Mirabook starts heating, DO NOT
place the heating zones directly on the skin or
flammable materials.
3. The provided charger is only intended to work with
the Mirabook, DO NOT use it to charge other devices.
RECOMMENDATIONS
17
«We foresee a world where we have one pocket
computer that is capable of powering
full-featured devices.
The Mirabook Extension fits into this natural
motion that makes the smartphone the universal
engine of our digital activities.
This mobile convergence is the heart of
Miraxess, and we will continue to innovate in this
direction.»
