Mitsubishi Electric MF-U16R Series User manual

Smart tips for using your freezer
MF-U16R
SERIES MODEL
Non-Freon Freezers
This freezer uses non-Freon refrigerant (isobutane) and non-Freon foam insulation (cyclopentane).
These materials are harmless to the environment and do not affect the ozone layer and global warming.
Maintenance work shall only be carried out at workshop by well-trained maintenance worker.
Please read this manual carefully and follow the information contained within. In particular, be sure to read the safety precautions before using this freezer.
Be sure to receive your copy of the warranty from the retailer and confirm that the purchase date and retailer name are written on the warranty.
Store this operating instructions manual and the warranty in a safe place.
This freezer was manufactured for freezing of foods in general households. For commercial use, please use a commercial freezer.
The principal plastic components indicate the material name to facilitate recycling.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
This appliance is intended to be used in household application only.
WARNING - When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING - Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
WARNING - Just in case of having damaged the refrigerant circuit, do not use electric items or fire equipments near by, and open the window to ventilate
the room. And contact the retail store at which you purchased it or the following MITSUBISHI SERVICE CENTRE.
It is strongly recommended to use only lukewarm water and a soft cloth when cleaning.
Cleaning agents can cause cracking to the plastic components of your freezer.
Cleaning Instruction - Important!

Away from other household appliances
Leave at least 2 cm of space to the left
and right of the freezer, at least 10 cm
of space above the freezer and at least
10 cm of space behind the freezer.
Follow the arrow sign to adjust up or down
the level of the appliance by turning the
supports located at the bottom.
WARNING
child safety
WARNING
How to remove the energy label
Remove the energy label carefully. A glue residue
may remain, particularly if the label has been in
place for a long period of time.
Apply either Eucalyptus or Tea Tree oil directly on any residue.
Do not allow the oil to run or drip onto plastic parts as it may
cause the plastic to degrade and potentially crack over time.
Allow the oil to sit for approximately 1-2 minutes,
or until the glue residue has softened.
Wipe off with a damp cloth.
If any residue remains, repeat the above process.
Rinse with clear water.
Dry thoroughly.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Corrosion control treatment may be required for the refrigerant
circuit (pipe) due to generation of corrosive gases.
Contact the retail store where you purchased the freezer.
Use in hot spring areas
Do not obstruct the freezer vents or the space around the freezer.
If refrigerant leaks, it may accumulate and catch fire or explode.
WARNING
WARNING
WARNING - Do not use mechanical devices or
other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
WARNING - Do not use electrical appliances inside
the food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
The refrigerator contains flammable refrigerant
(R600a: iso-butane).
The refrigeration system behind and inside the
refrigerator contains refrigerant.
Do not allow any sharp objects to come into
contact with the refrigeration system.
This freezer uses flammable foaming gas for
insulation. Please deliver the unit to specialized
industrial waste dealer when you do away it.
Please follow the rules in your country.
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING
Although R600a refrigerants are combustible, the refrigerant
circuit is hermetically sealed and normally leaks will not occur.
Then, contact the retail store where you purchased the freezer.
Should the refrigerant circuit be damaged:
1. Do not use flames or electrical appliances nearby.
2. Open the windows to fully ventilate the room.
Do not damage the refrigerant circuit
(pipes) or drive screws into it.

CAUTION
Temperature control
Smart tips for using your freezer

Rapid Freeze
and maximum freezing
Rapid Freeze
Rapid Freeze
Rapid Freeze
Rapid Freeze
By Pressing
once power is
restored.
CAUTION
1. This appliance is designed for use in ambient temperature listed below.
The internal temperatures could be affected by such factors as the location of the refrigerating appliance, ambient
temperature and the frequency of door opening, and, if appropriate, a warning that the setting of any temperature
control device might have to be varied to allow for these factors.
2.
A rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
3. Food to be frozen is not to be placed in direct contact with food in storage and, if appropriate, that it could be
necessary to reduce the quantity to be frozen if freezing every day is anticipated.
4. The electrical power failure for 1-2 hour will only slightly effect the inside temperature. However, open & close of
the door results in the temperature loss. In case there is more than 24 hours electrical power failure, the food
should be taken out from the fridge.
5. In case you are leaving or there is no food in the fridge for more than 3 weeks, The fridge should be unplugged
and cleaned.
MODEL NAME AMBIENT TEMPERATURE RANGE CLIMATIC CLASS
MF-U16R-P 16 oC ~ 43 oCT
MF-U16R-ML 16 oC ~ 43 oCT
MF-U16R-H 16 oC ~ 38 oCST

out.

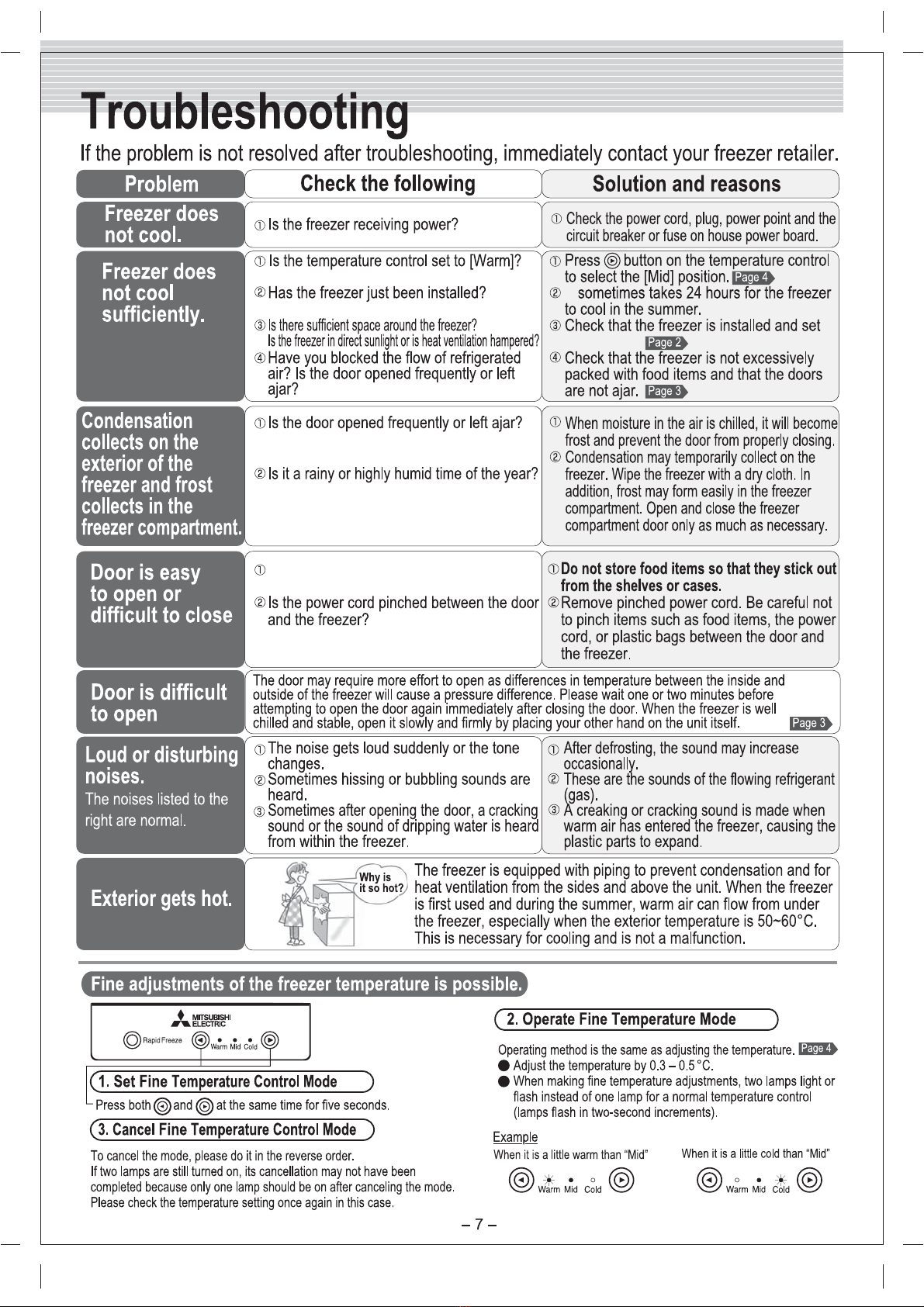

Troubleshooting
blacken.
The freezer is pulled out (forward).
The freezer is pulled out (forward).
cause mold and odours.
To get rid of grease and dirt
WARNING
WARNING
10
For stubborn dirt, wipe using kitchen detergent (neutral)
that was diluted to the prescribed guideline for use.
(Oily deposits or citrus fruit juices left on plastic parts
can cause them to break.)
Do not use alcohol, benzene, scouring brushes,
alkaline detergent, or undiluted neutral kitchen detergents.
They can damage the surface of plastic parts (door handles,
caps, cases, etc.) and cause them to break.
Dust build up or damage to the power plug
can cause electric shock or fire.

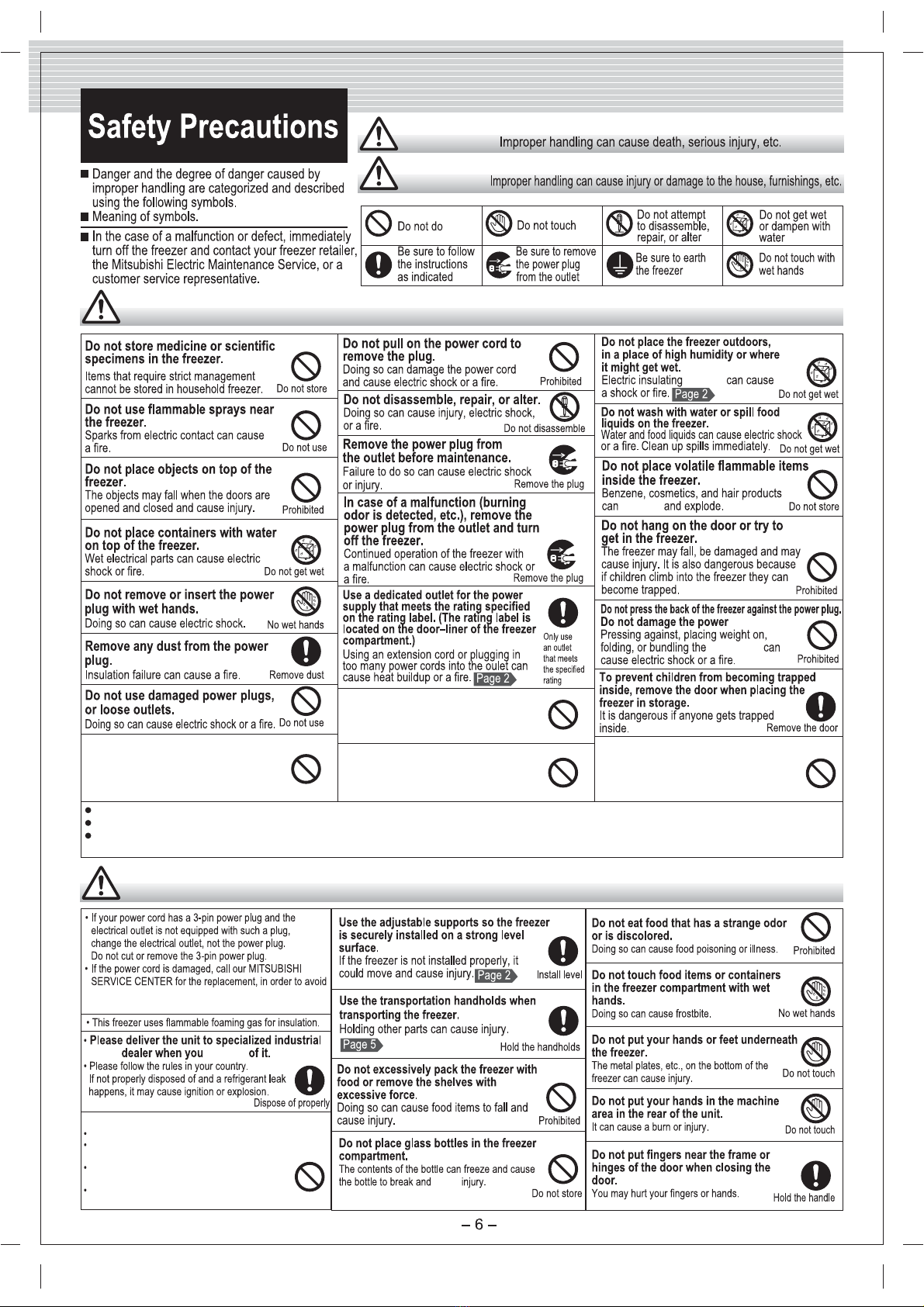

WARNING
CAUTION

Do not do
waste dispose
a hazard. An electrician or technician is required to
replace the power plug.
cause
Do not do
Do not do
Ventilate the room
Ventilate the room
damage
combust
This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.
Young children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
power plug
plug.
WARNING
CAUTION
WARNING
CAUTION
Do not open or close the door while someone else is in the way.
Do not place your fingers at the top of drawer-type
doors when closing the door.
Do not close the lower drawers with your foot
(as it may get caught).
Do not open or close the door forcefully
(food items may fall and cause injuries)
When opening and closing the door.
If the refrigerant (gas) is leaking inside
the unit, there is a risk that a spark from
the electrical product’s contact can be
a source for ignition or explosion.
Do not use electrical products inside the freezer unit.
Because a flammable refrigerant (gas) is used,
there is the danger of igniting or explosion.
Do not damage the refrigerant circuit (piping)
of the freezer; do not drive in screws.
A spark from the electrical contact can
cause an explosion or a fire.
If you sense a gas leakage, do not touch the freezer.
Open the window and ventilate the room.
When the refrigerant circuit is damaged, please consult
the store in which the unit was purchased.
If the refrigerant circuit (piping) is damaged,
do not touch the freezer, open the window
and ventilate the room.

Are any food items in contact with the door?
Is the freezer excessively packed with food items?
up correctly.
It

楁㷗䷥ẋ䎮
ᶱ厙暣㨇ġĩ楁㷗Īġ㚱旸℔⎠
楁㷗⣒⎌❶劙䘯忻IJIJIJIJ嘇ġ⣒⎌❶󰵶⽫ᶨ⹏ġijı㦻
暣娙ĻġĩĹĶijĪġijĶIJıġıĶĶĶġġġġġġġ⁛䛇ĻġĩĹĶijĪġijijĴĵġĶIJĴĹ
SOLE AGENT in Malaysia
MITSUBISHI ELECTRIC SALES MALAYSIA SDN. BHD. (CO.NO.:11098W)
LOT 11, JALAN 219, PO BOX 1036,
46860, PETALING JAYA, SELANGOR DARUL EHSAN, MALAYSIA.
Head Office: Tel. [phone] (10 lines)
SOLE AGENT in Singapore
MITSUBISHI ELECTRIC ASIA PTE LTD
307, ALEXANDRA ROAD # 05-01/02
MITSUBISHI ELECTRIC BUILDING SINGAPORE 159943
Head Office: Tel. [phone]
SOLE AGENT in Hong Kong
MITSUBISHI ELECTRIC (HONG KONG) LIMITED
20/F., Cityplaza One, 1111 King's Road,
Taikoo Shing, Hong Kong
Tel. [phone] Fax: [phone]
ᶱ厙暣㨇㟒⺷Ể䣦
䷥℔⎠烉˲IJııĮĹĴIJıġ㖍㛔㜙Ṕ悥⋫ẋ䓘⋨󰶁󰶔ℏijĮĸĮĴġĩ㜙Ṕ⣏⹰Ī
暣娙烉ĬĹIJġĩĴĪġĴijIJĹĮijIJIJIJ
HEAD OFFICE : TOKYO BUILDING 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
PHONE: [phone]
This appliance is designed for use in Singapore, Malaysia and
Hong Kong only and can not be used in any other country.
No servicing is available outside of Singapore, Malaysia and Hong Kong.
MF-U16R
NZ79F489H02
The appliance is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure
that they do not play with the appliance.
WARNING - Do not use mechanical devices or
other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
WARNING - Do not use electrical appliances inside
the food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
WARNING - Just in case of having damaged the
refrigerant circuit, do not use electric items or fire
equipments near by, and open the window to
ventilate the room. And contact the retail store
at which you purchased it or the following
MITSUBISHI SERVICE CENTRE.
WARNING - When positioning the appliance,
ensure the supply cord is not trapped or damaged.
WARNING - Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
The refrigerator contains flammable refrigerant
(R600a: iso-butane).
The refrigeration system behind and inside the
refrigerator contains refrigerant.
Do not allow any sharp objects to come into
contact with the refrigeration system.
Do not block the openings on the circumstances
of the freezer.
The user manual should be handed over to any
person who would use or handle the refrigerator
whenever the refrigerator would be transferred to
another location and delivered to a recycling plant.
This freezer uses flammable foaming gas for
insulation. Please deliver the unit to specialized
industrial waste dealer when you do away it.
Please follow the rules in your country.
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
This appliance is intended to be used in
household application only.
