Installation and Operating Manual

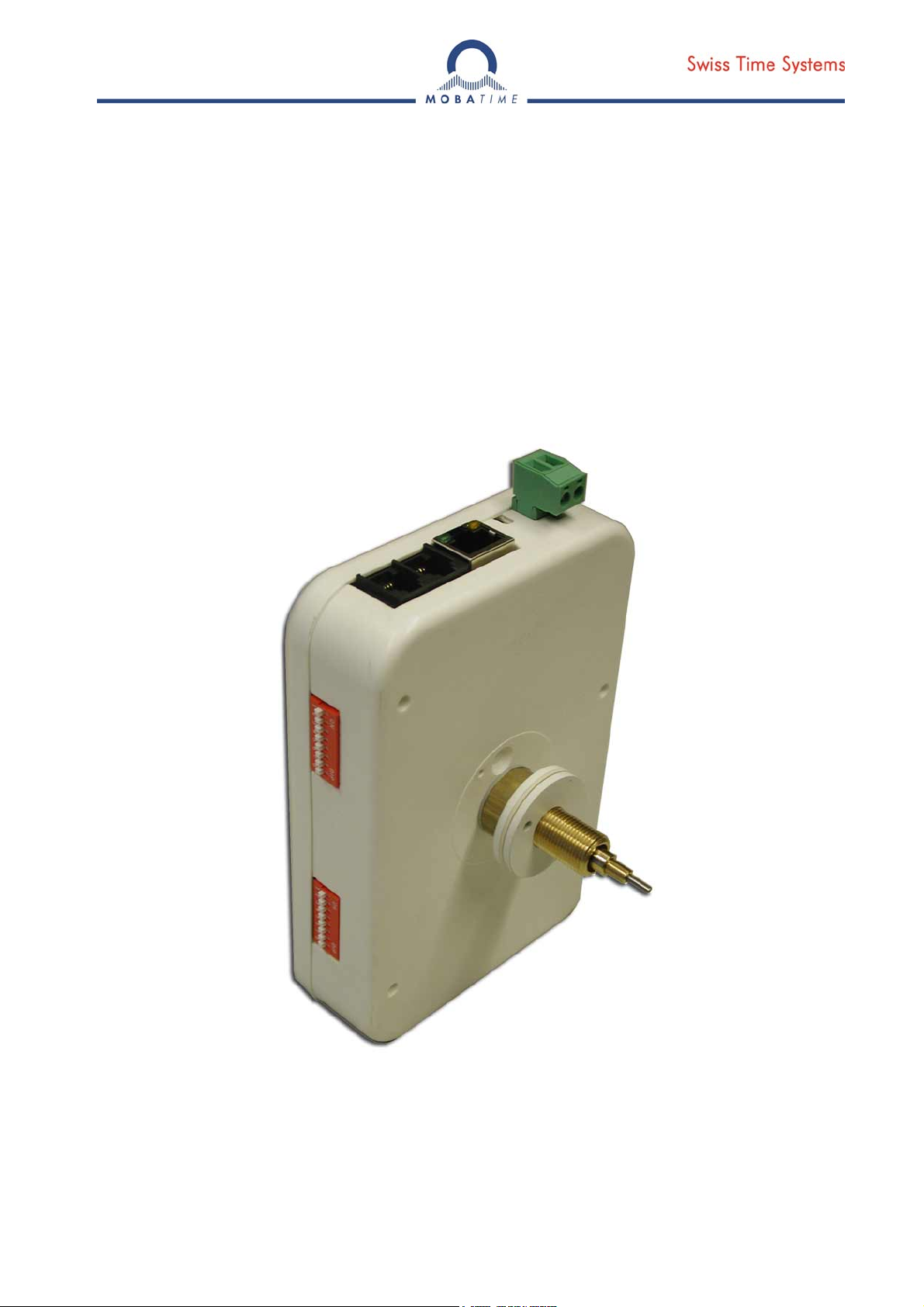

NBU 190(t) (S) 24/PoE
NTP Movement
Please read these instructions carefully before installation.

© MOBATIME 2 / 24 800695.14
Product Certification
STANDARDS
The NTP movement NBU 190 was developed and produced in accordance with the EU Guidelines:
2006 / 95 / EC
2004 / 108 / EC
96 / 48 / EC
References to the Instruction Manual
1. The information in this Instruction Manual can be changed at any time without notice.
The current version is available for download at www.mobatime.com.
2. This Instruction Manual has been composed with the utmost care, in order to explain all details in re-
spect of the operation of the product. Please do not hesitate to contact us if you have any questions.
Thank you for reporting any possible mistakes.
3. We do not answer for direct or indirect damages which could occur when using this manual.
4. Read the instructions carefully. Only start setting-up the product if you have understood the information
for installation and operation.
5. The installation must only be carried out by skilled staff.
6. It is prohibited to copy this publication or to store it on a computer system. All rights reserved. Copy-
right © BÜRK MOBATIME GmbH D-78026 VS-Schwenningen / GERMANY and MOSER-BAER AG
CH 3454 Sumiswald / SWITZERLAND.
7. This manual is valid from the software version v1.17. For older versions, the manual BE
800695.04 is to be used.
Guidelines for installation and handling
1. The movement may only be transported in the original packing and must be stored in a dry environment.
!

© MOBATIME 3 / 24 800695.14
Content
1.Dimensions and definitions..........................................................................................................4
2.Function description.....................................................................................................................5
3.Mounting guidelines......................................................................................................................6
3.1Mounting of movement series 190(t) (S) .................................................................................. 6
3.2Mounting of hands and starting-up.......................................................................................... 6
3.2.1Mounting of hands ............................................................................................................................6
3.2.2Starting-up and check of the hand positions ....................................................................................6
4.Configuration.................................................................................................................................7
4.1Overview...................................................................................................................................7
4.2Switches ...................................................................................................................................7
4.2.1Reset.................................................................................................................................................9
4.3Operation modes....................................................................................................................10
4.3.1Unicast ............................................................................................................................................10
4.3.2Multicast..........................................................................................................................................10
4.3.3Slave Mode.....................................................................................................................................12
5.Operation details .........................................................................................................................13
5.1Power supply..........................................................................................................................13
5.1.1Current consumption ......................................................................................................................13
5.2DHCP .....................................................................................................................................13
5.3IPv6 ........................................................................................................................................13
5.4DHCPv6..................................................................................................................................13
5.5Autokonfiguration / SLAAC.....................................................................................................13
5.6SNMP .....................................................................................................................................14
5.7Local time calculation .............................................................................................................14
5.8Accuracy / synchronization loss ............................................................................................. 15
5.9Time source redundancy........................................................................................................15
5.9.1NTP Client Unicast .........................................................................................................................15
5.9.2NTP Client Multicast .......................................................................................................................15
5.10MOBA-NMS (MOBATime Network Management System)..................................................... 15

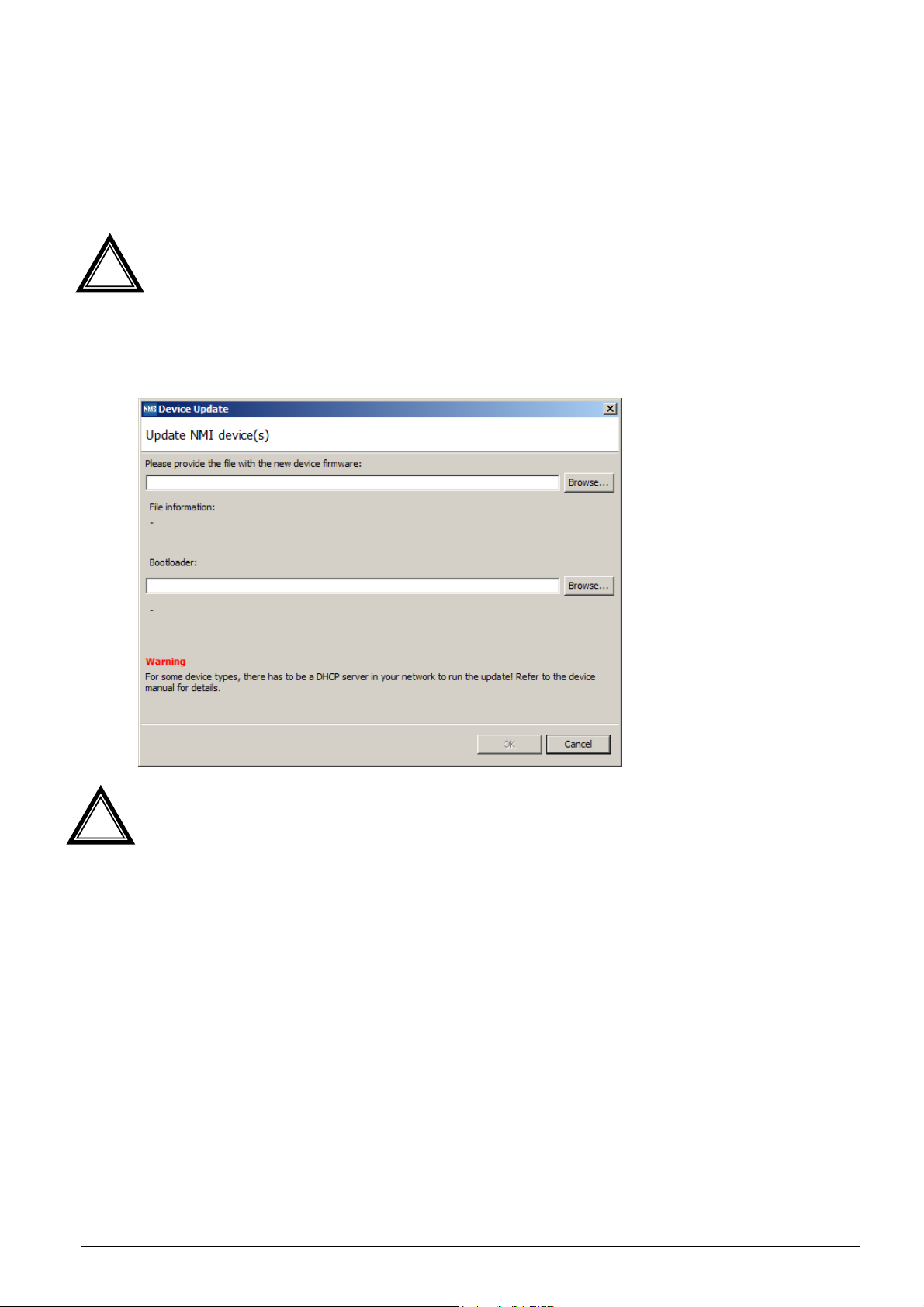

6.Update...........................................................................................................................................16
6.1Bootloader update ..................................................................................................................17

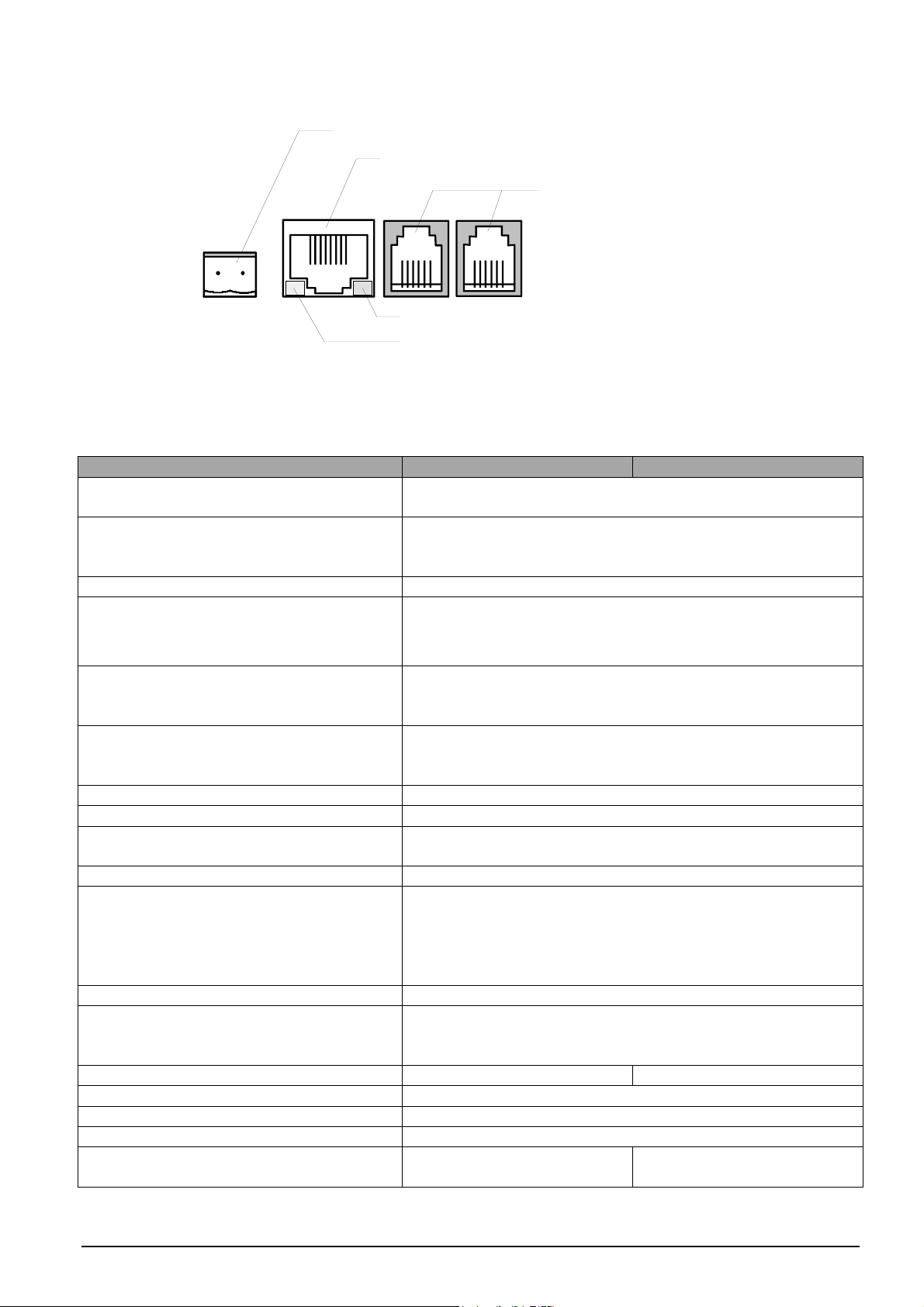

7.Connectors...................................................................................................................................18
8.Technical specifications.............................................................................................................18
9.Time Zone Table ..........................................................................................................................19

© MOBATIME 4 / 24 800695.14
1. Dimensions and definitions
Diameter Type Art. No.
30 - 80 cm Movement: NBU 190t S 24/PoE 203433
30 - 80 cm Movement: NBU 190 S 24/PoE 204003
30 - 80 cm Movement: NBU 190t 24/PoE 204004
30 - 80 cm Movement: NBU 190 24/PoE 204005
Secondhand
Minutehand
Hourhand
Ø 12.3
NBU 190t S 24/PoE
Cover glas
35 5
10 136.5
67.5
Disc nuts
Clock dial
Fig. 1
Fig. 2
NBU 190 S NBU 190t S
136.5
67.5
94 35
9.4
13.7
20.2
26.6
M12x1
2
6 4
35
M12x1
2
6 4
9
32
36.5
42.4
48.6
ON
12345678
DIPON
12345678
DIP
ON
12345678
DIPON
12345678
DIP

© MOBATIME 5 / 24 800695.14
2. Function description
The NBU 190 is a self-setting movement with hour, minute and second display. It is part of the family
of xBU 190 movements and supplements it as NTP synchronized / network capable variant. The
movement is suitable for indoor and outdoor slave clocks with dial diameters up to 800 mm. It is avail-
able for clocks with or without illumination.
Naming:
NBU 190(t) (S) 24/PoE
Options:
t Movement with long shafts for clocks with illumination
S Movement with second shaft
Note: This document describes the functions for all available movement types (refer to table in chap-
ter 1). Instructions concerning the operation of the second hand are only applicable for types with op-
tion S.
Features:
10/100 Mbit/s Ethernet LAN connection.
Power supply PoE (Power over Ethernet) and/or DC input. Allows supply redundancy.
Synchronization by a NTP server in the network.

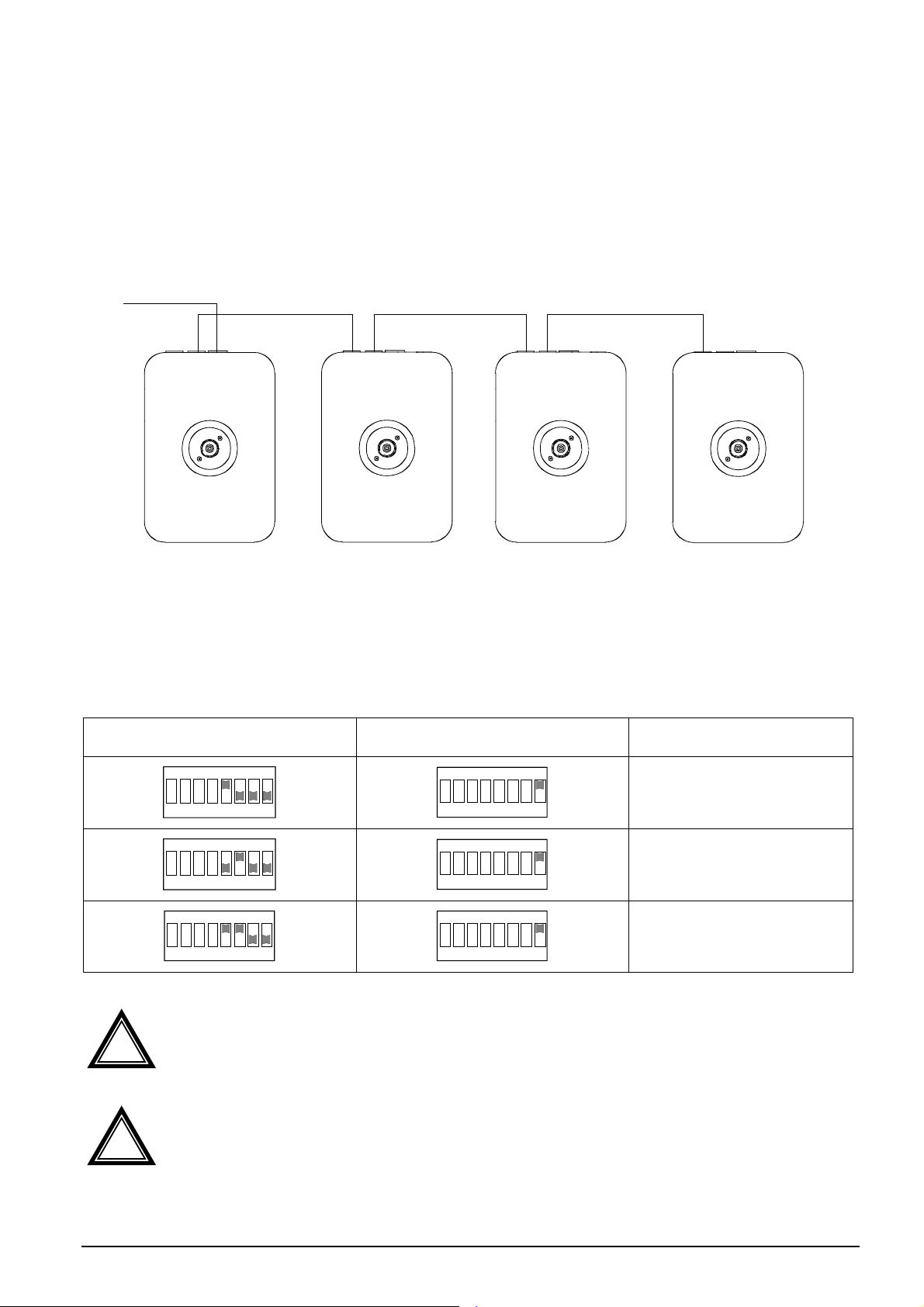

Cascade of up to three slave movements (I2C bus). Synchronisation, power supply and supervi-
sion by the master movement. For double or four sided clocks only one LAN connection is re-
quired.
Operation mode selectable by means of 2 x 8 DIP switches.
Automatic takeover of the network configuration:
IPv4: from a DHCP server in the network: IP address, gateway address, subnet mask, up to 4
NTP server addresses, time zone server address, SNMP manager address.
IPv6: -SLAAC: IP address
-DHCPv6 server in the network: IP address, up to 4 NTP server addresses, time zone
server address, SNMP manager address
Alternatively: the network configuration can be set manually using the PC tool MOBA-NMS.
Alternatively use of a multicast IP address for synchronization / communication. Address se-
lectable by means of DIP switches for minimum configuration effort.
Alternatively use of SNMP V2c for configurations.
Automatic daylight saving time change according to a predefined daylight saving time rule (1 out of
64 rules selectable by means of DIP switches).
Alternatively automatic daylight saving time change according to a daylight saving time rule pro-
vided by a MOBATime time zone server in the network. (1 out of 15 rules selectable by means of
DIP switches).
Integration of the movement to a network management system (SNMP manager) supported: For
supervision, master movements can send out SNMP V2c alarm and periodic alive traps and re-
quest them with GET/SET.
Signalization of missing NTP synchronization after 24 hours by setting the hands to the 12:00 posi-
tion.
Different running modes of the second hand selectable by means of DIP-switches: Stepwise
(wobbling) or continuous. Revolution within 58 s with stop at 12:00 position or revolution within 60
s without stop.

© MOBATIME 6 / 24 800695.14
3. Mounting guidelines
3.1 Mounting of movement series 190(t) (S)
The dial must be sufficiently stable. The fixing hole must have a
diameter of 12.3 mm. The movement must be fixed in vertical position.

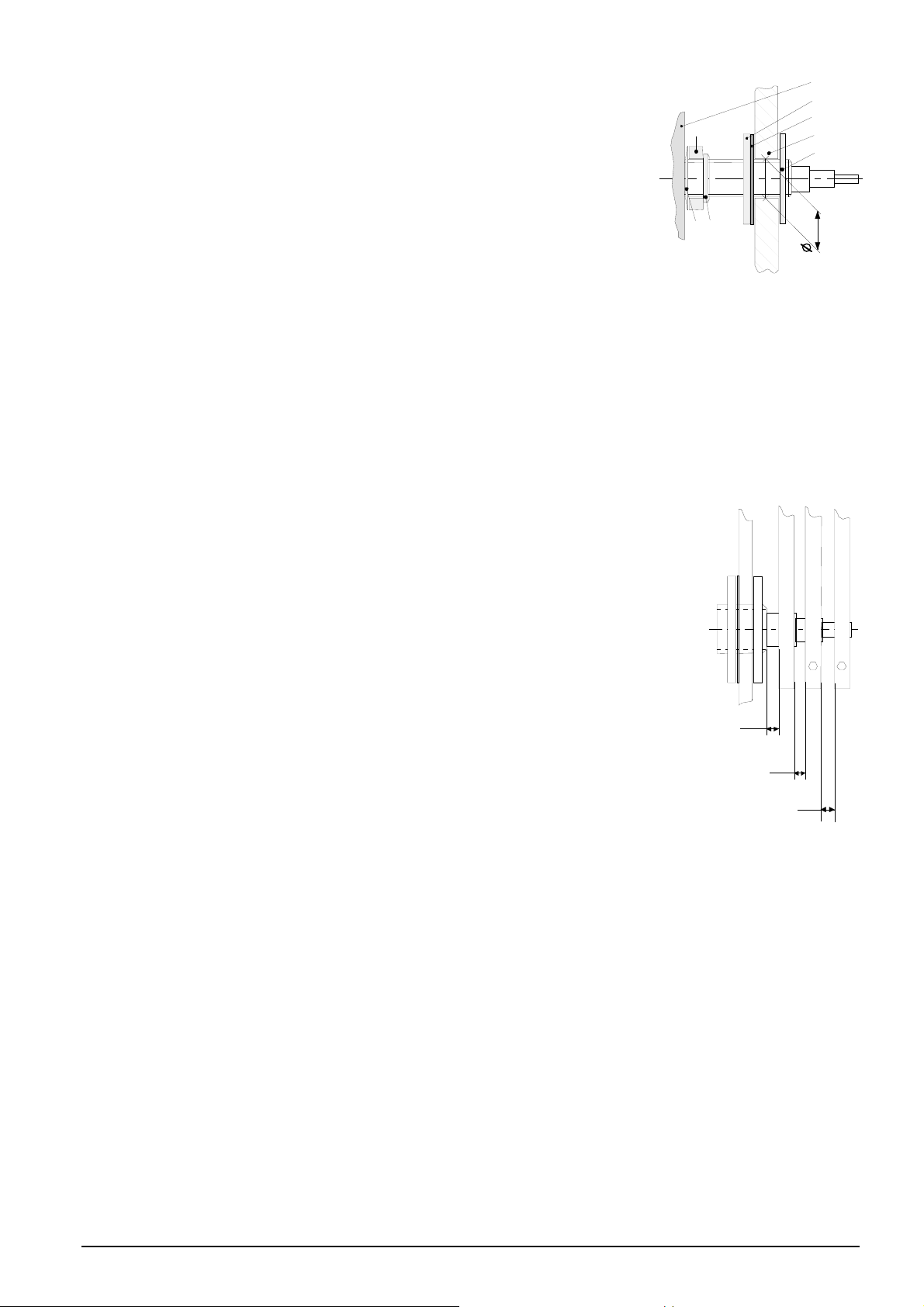

Fig. 3 shows the positions of the mounting parts.
The disc nut (2*) M12 x 1 has to be tightened carefully with a special
wrench tool (Art. No.: 201998) and a torque wrench with a torque of (4.5
+/- 0.2) Nm.
Caution:
The ring nut (5), the compensation ring (6) and the spring washer (7)
must not be removed.
After tightening the disc nut (2*), the movement must not be wrenched!
3.2 Mounting of hands and starting-up
3.2.1 Mounting of hands
The shafts of the hour, minute and second hands are positioned ex-work on
the reference position (12 o’clock). The hands must be carefully fixed and
tightened on the shafts. Enough space must be provided between the hands.
See Fig. 4.
The position 12 o’clock must be checked for each movement after mounting
(see chapter 3.2.2).
3.2.2 Starting-up and check of the hand positions
Set DIP switch 1.1 to ON position (12:00 position, refer to chapter 4.2).
Either install a 24 VDC power supply and/or connect to PoE (Power over Ethernet). The clock runs
to the 12:00 position.
Are the hands exactly positioned at 12:00 position?
If any hand position is wrong the hands must be adjusted again (axis must not be moved).
Check the 12:00 position again (initialize procedure by interrupting the power supply or by
disconnecting PoE respectively).
If the hand position is OK continue with chapter 4 for further configuration.
Fig. 3
1 Movement
2 Disc nut
3 Rubber washer
4 Dial
5 Ring nut
6 Compensation ring
7 Spring washer
1
2
3
4
2*
190t
5
6
12.3
7
Fig. 4 x
x
x

© MOBATIME 7 / 24 800695.14
4. Configuration
4.1 Overview
The NTP movement NBU 190 has three different operation modes:
Unicast
The movement works as NTP Client and as a master movement. It has an own IP address. See
chapter 4.3.1.
Multicast
The movement works as NTP Client and as a master movement. It joins a group address (mul-
ticast IP address). See chapter 4.3.2.
Slave Mode
The movement is working as a slave movement in the cascade and is controlled by a master
movement. The slave movement has no network connection. See chapter 4.3.3.

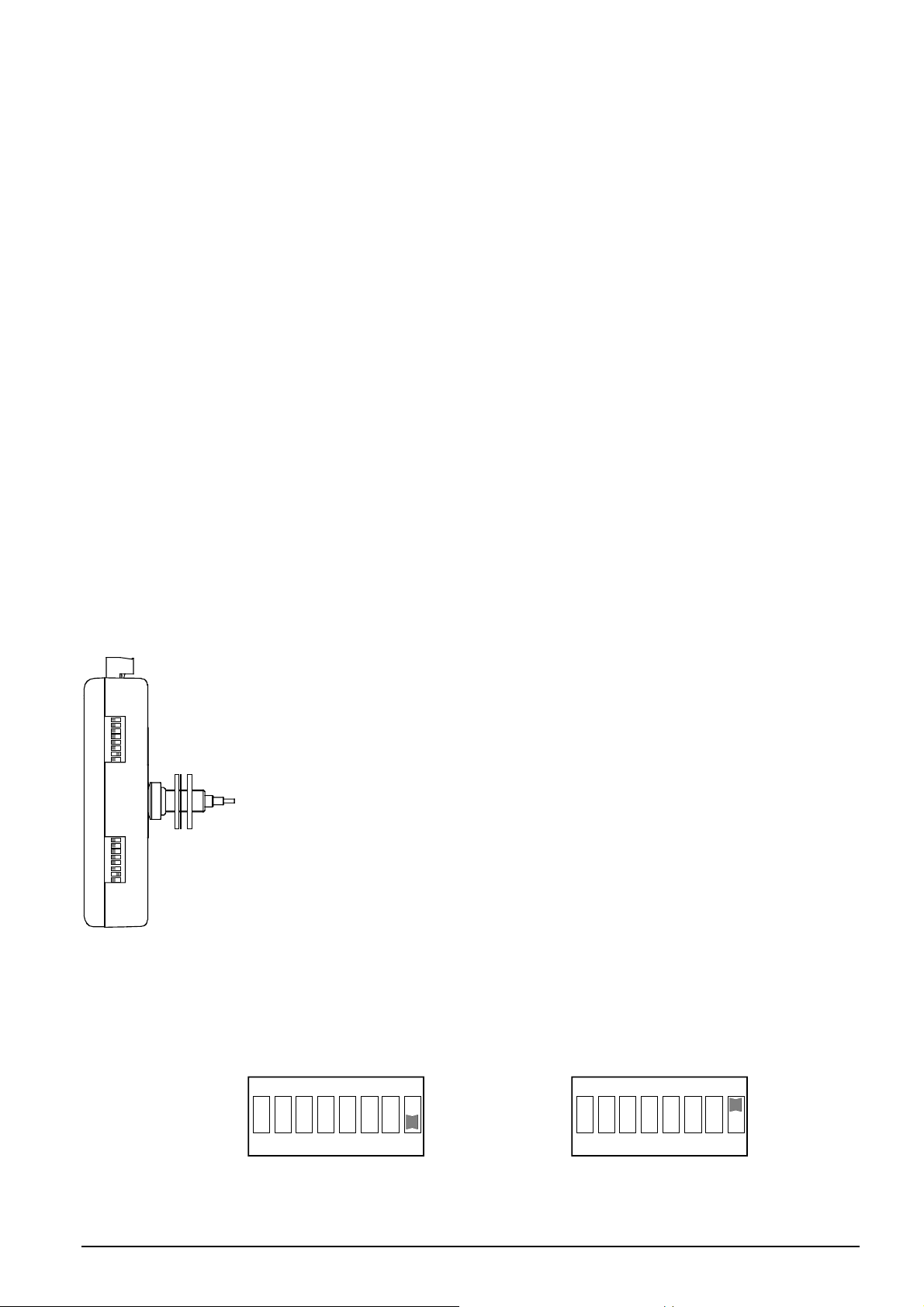

Configuration takes place via two DIP switch groups located on the housing side of the movement
(see chapter 4.2). The network configuration is automatically done by:
-IPv4: DHCP server (see chapter 5.2)
-IPv6: SLAAC or DHCPv6 Server (see chapter 5.3 and 5.5)
-manually using the PC tool MOBA-NMS (see chapter 5.10)

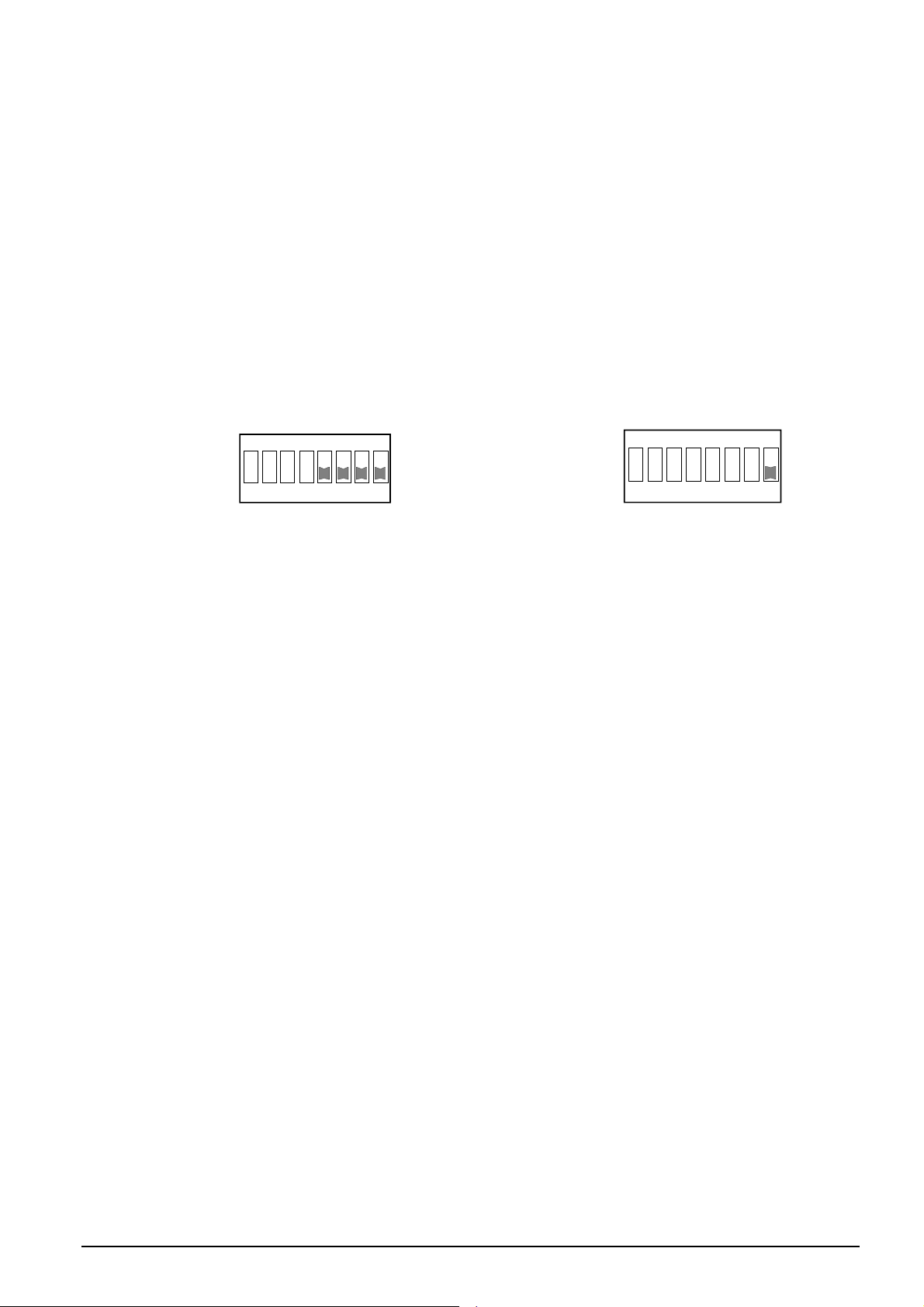

4.2 Switches
The movement has two switch groups (1 and 2). Each group contains 8 DIP switches.
ON
12345678
DIPON
12345678
DIP
switch group 1
switch group 2
Definition of the switch positions:
Switch Position OFF: Switch Position ON:
ON
12345678
ON
12345678

© MOBATIME 8 / 24 800695.14

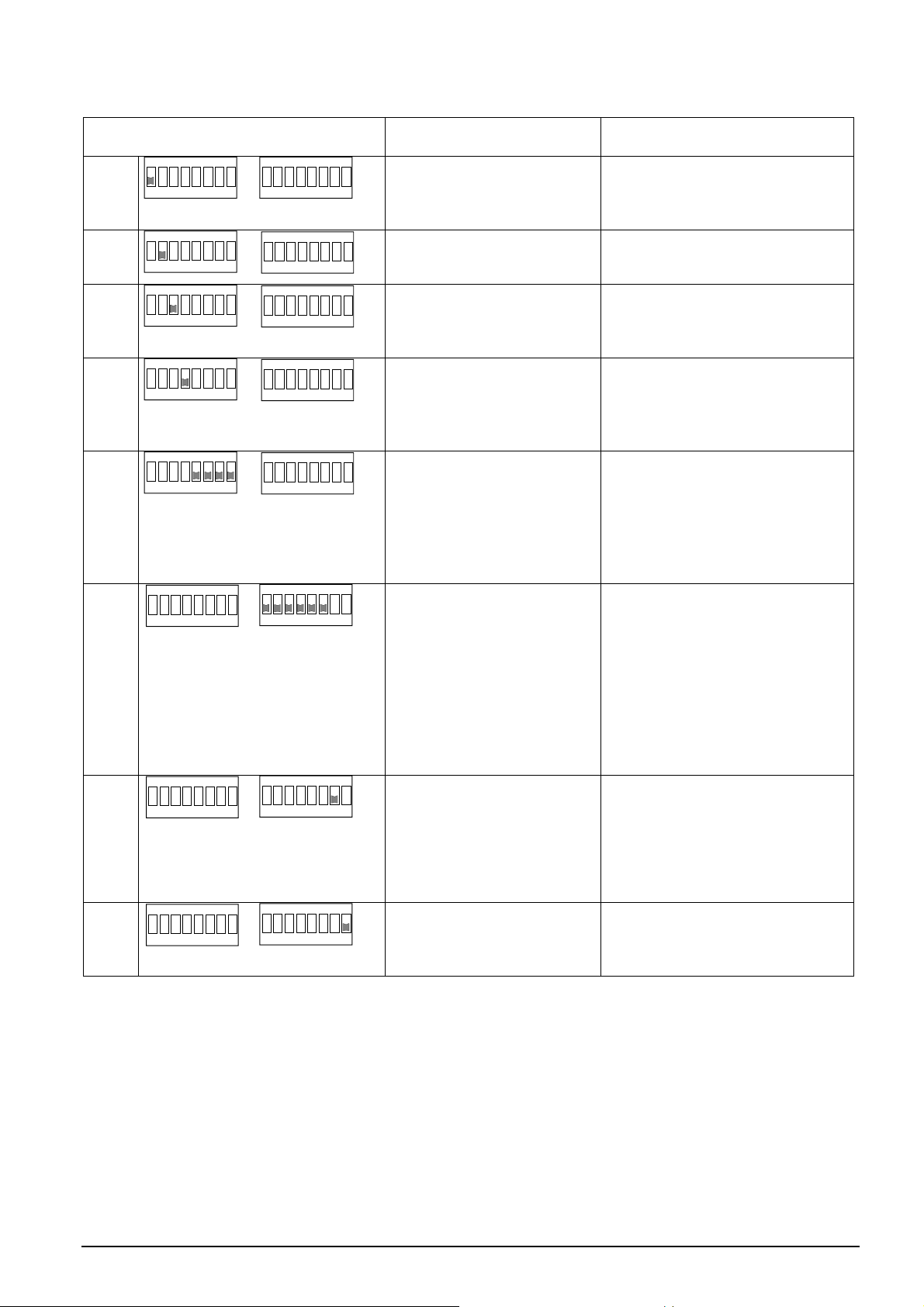

The following settings are possible:
Switch: Position OFF: Position ON:
1.1 ON
123456781
ON
12345678 2
Movement runs on time (if
synchronized)
Movement runs to 12:00 posi-
tion
1.2 ON
12345678 1
ON
12345678 2
Second hand in stepwise
(wobbling) mode
Second hand in continuous
mode
1.3 ON
12345678 1
ON
12345678 2
Second hand with stop at
12:00 (rotation time ap-
proximately 58 s)
Second hand without stop at
12:00
1.4 ON
12345678 1
ON
12345678 2
Time zone from internal
time zone table
(selection 0..63 with
switches 2.1 to 2.6)
Time zone table provided by
time zone server
(selection of entry 1..15 with
switches 2.1 to 2.4)
1.5 to
1.8
ON
12345678 1
ON
12345678 2
Unicast mode:
1.5: 0
1.6: 0
1.7: 0
1.8: 0
Multicast group address or
slave address (binary value):
1.5: 1
1.6: 2
1.7: 4
1.8: 8
2.1 to
2.6
ON
12345678 1
ON
12345678 2
Time zone (binary value)*:
2.1: 0
2.2: 0
2.3: 0
2.4: 0
2.5: 0
2.6: 0
Time zone entry from internal
table or from list sent from time
zone server (binary value):
2.1: 1
2.2: 2
2.3: 4
2.4: 8
2.5: 16
2.6: 32
2.7 ON
12345678 1
ON
12345678 2
Multicast address range
239.192.54.1-15 resp.
FF38::EFC0:3601-360F
(selection 1..15 resp. 0x1-
0xF with switches 1.5 to
1.8)
Multicast address range
239.251.34.1-15 resp.
FF38::EFFB:2201-220F
(selection 1..15 resp. 0x1-0xF
with switches 1.5 to 1.8)
2.8 ON
12345678 1
ON
12345678 2
Synchronization by NTP
server in the network.
Master mode.
Slave mode: Synchronization
by master movement
* Internal time zone 0 = UTC. With external time zone server, the value 0 means “undefined”.

© MOBATIME 9 / 24 800695.14
4.2.1 Reset
Most changes of the configuration switches cause the movement to restart (software reset). It is there-
fore recommended to set the switches correctly prior to applying power.
Switches 1.1 to 1.3 and 2.1 to 2.6 do not trigger a reset. All other switch changes lead to a restart (de-
pending on the selected operation mode the movement needs to re-initialize).
If all switches are set to ON position for 10 seconds the movement executes a factory reset. All
configuration settings will be reset to default values.
Switch group 1:
ON
12345678 Switch group 2:
ON
12345678
Default values:
Description (20 chars) NTP Movement NBU 190
IP mode IPv4 and IPv6 on
DHCP IPv4 on
IPv4 IP address 1.255.255.253
IPv4 subnet mask 255.255.255.0
IPv4 gateway address 1.255.255.252
IPv6 fix address/prefix 0::0/64
IPv6 link local address see calculation in chapter 5.3
DHCPv6 on
IPv6 autoconfiguration (RA, SLAAC) on
Host name MOBATIMExxxxxx, with the last 6 digits corre-
sponding to the last 6 digits of the MAC address.
e.g. MAC 00:16:91:12:34:56
MOBATIME123456
DNS server (for NTP server only) 0.0.0.0 / 0::0
NTP server address 1 0.0.0.0
NTP server address 2 0.0.0.0
NTP server address 3 0.0.0.0
NTP server address 4 0.0.0.0
NTP request interval [s] (10...999) 10
Configuration port number 65532
Time zone client port number 65534
DHCP support on/off on
SNMP manager address 1 0.0.0.0 / 0::0
SNMP manager address 2 0.0.0.0 / 0::0
SNMP alive trap interval [min] (1…1440) 30
Additionally the NBU 190 can be reset by means of the PC tool MOBA-NMS.

© MOBATIME 10 / 24 800695.14
4.3 Operation modes
4.3.1 Unicast
The movement has a network connection and is synchronized to UTC (Universal Time Coordinated)
from a NTP server. It is able to control up to three cascaded slave movements over the I2C bus (syn-
chronize, power and supervise).
This operating mode supports the monitoring and configuration of the movement via the network con-
nection. Network parameters can be automatically obtained from a DHCP server or can be manually
configured by means of the PC tool MOBA-NMS.
For supervision and configuration with MOBA-NMS one of the group addresses (multicast IP address-
es) 239.192.54.0 or 239.251.34.0 for IPv4 resp. FF38::EFC0:3600 or FF38::EFFB:2200 for IPv6 or the
IP address (selection with switch 2.7) is used.
The following switch settings select the operating mode Unicast (switches 1.5 to 1.8 and switch 2.8 in
OFF position):
Switch group 1:
ON
12345678 Switch group 2:
ON
12345678
In this operating mode the movement will attempt to obtain the following network parameters from a
DHCP server (see chapter 5.2):
-IP address
-Gateway address
-Subnet mask
-NTP server address(es) / Time zone server address
-SNMP manager address
In this operating mode, the clock will try to obtain the following network parameters in an IPv6 network
from a DHCPv6 server (see also chapter 7.4):
-IP address
-NTP server address(es) / time zone server address
-SNMP manager address
The NTP server addresses must be configured by the network administrator as DHCP options on the
DHCP server. If a server address was provided to the movement it will request time and time zone
packets (switch 1.4 in ON position) from this server. The request interval can be configured with the
PC tool MOBA-NMS.
4.3.2 Multicast
The movement has a network connection and is synchronized to UTC (Universal Time Coordinated)
from a NTP server. It is able to control up to three cascaded slave movements over the I2C bus (syn-
chronize, power and supervise).
Configuration can completely be done by means of the DIP switches on the movement (minimal con-
figuration effort). Further this mode supports monitoring of the movement via the network connection.
Single configuration parameters can be changed with MOBA-NMS via network.
For supervision and configuration with MOBA-NMS one of the group addresses (multicast IP address-
es) 239.192.54.0 or 239.251.34.0 is used (selection with switch 2.7). The group address is an IP ad-
dress in the multicast range (224.0.0.0 to 239.255.255.255), addresses selected by Moser-Baer AG
from a freely available range:
-IPv4: 239.192.54.x and 239.251.34.x, whereat x = 1..15

© MOBATIME 11 / 24 800695.14
With IPv6, the ranges mentioned above are implemented as follows:
-IPv6: FF3y::EFC0:360x and FF3y::EFFB:220x, whereat x = 0x1..0xF and y=scope
E.g.: 239.192.54.5 FF38::EFC0:3605 or 239.251.34.10 FF38::EFFB:220A
For scope, the following values are possible: 2 = Link Local Scope
5 = Site Local Scope
8 = Organization Local Scope
14 = Global Scope
In contrast to the Unicast mode, the movement receives multicast addressed time and time zone
packets from a fixed server group address (multicast IP address). The standard port numbers are 123
(NTP) and 65534 (time zone). The Multicast operating mode signifies only a minimum amount of con-
figuration work for a network administrator. The server group address is selected with the switches 1.5
to 1.8. In addition switch 2.7 allows selection of two different address ranges. The following settings
are possible:
Switch 1: Switch 2: Group address Switch 1: Switch 2: Group address
ON
12345678
ON
12345678
239.192.54.1
FF38::EFC0:3601
ON
12345678
ON
12345678
239.251.34.1
FF38::EFFB:2201
ON
12345678
ON
12345678
239.192.54.2
FF38::EFC0:3602
ON
12345678
ON
12345678
239.251.34.2
FF38::EFFB:2202
ON
12345678
ON
12345678
239.192.54.3
FF38::EFC0:3603
ON
12345678
ON
12345678
239.251.34.3
FF38::EFFB:2203
ON
12345678
ON
12345678
239.192.54.4
FF38::EFC0:3604
ON
12345678
ON
12345678
239.251.34.4
FF38::EFFB:2204
ON
12345678
ON
12345678
239.192.54.5
FF38::EFC0:3605
ON
12345678
ON
12345678
239.251.34.5
FF38::EFFB:2205
ON
12345678
ON
12345678
239.192.54.6
FF38::EFC0:3606
ON
12345678
ON
12345678
239.251.34.6
FF38::EFFB:2206
ON
12345678
ON
12345678
239.192.54.7
FF38::EFC0:3607
ON
12345678
ON
12345678
239.251.34.7
FF38::EFFB:2207
ON
12345678
ON
12345678
239.192.54.8
FF38::EFC0:3608
ON
12345678
ON
12345678
239.251.34.8
FF38::EFFB:2208
ON
12345678
ON
12345678
239.192.54.9
FF38::EFC0:3609
ON
12345678
ON
12345678
239.251.34.9
FF38::EFFB:2209
ON
12345678
ON
12345678
239.192.54.10
FF38::EFC0:360A
ON
12345678
ON
12345678
239.251.34.10
FF38::EFFB:220A
ON
12345678
ON
12345678
239.192.54.11
FF38::EFC0:360B
ON
12345678
ON
12345678
239.251.34.11
FF38::EFFB:220B
ON
12345678
ON
12345678
239.192.54.12
FF38::EFC0:360C
ON
12345678
ON
12345678
239.251.34.12
FF38::EFFB:220C
ON
12345678
ON
12345678
239.192.54.13
FF38::EFC0:360D
ON
12345678
ON
12345678
239.251.34.13
FF38::EFFB:220D
ON
12345678
ON
12345678
239.192.54.14
FF38::EFC0:360E
ON
12345678
ON
12345678
239.251.34.14
FF38::EFFB:220E
ON
12345678
ON
12345678
239.192.54.15
FF38::EFC0:360F
ON
12345678
ON
12345678
239.251.34.15
FF38::EFFB:220F

© MOBATIME 12 / 24 800695.14
4.3.3 Slave Mode
The Slave movement has no network connection. It is synchronized with local time and monitored by a
Master movement (operating mode Unicast or Multicast possible). The cascade can help to reduce
wiring effort since only one LAN connection is required. The disadvantage is that the slave movements
cannot be addressed directly via a network connection. Monitoring is only possible via Master move-
ment. Power supply in the cascade is only possible through the Master movement (with PoE or DC
power supply). See chapter 5.1.
Ethernet LAN 10/100 Mbps
Power over Ethernet PoE
Master Slave 1 Slave 2 Slave 3
I2C: SDA, SCL
Supply, GND
Figure 1: Max. 4 NBU 190 in cascade
Switch 2.8 must be set to ON position to operate the NBU 190 in Slave Mode. In addition an address
1..3 must be set by means of the switches 1.5 to 1.8 (Caution: each address 1..3 may only be used
once!):
Switch 1: Switch 2: Address for Slave:
ON
12345678
ON
12345678
1
ON
12345678
ON
12345678
2
ON
12345678
ON
12345678
3
The cascading connection may only be connected or disconnected in a powerless state
of the master movement.
The Slave movements may only be powered through the cascading cable from the master
movement. Additional DC power supply is not allowed.
!
Attention!
!
Attention!

© MOBATIME 13 / 24 800695.14
5. Operation details
5.1 Power supply
The movement has a supply input for direct current +24 VDC. In addition, the NBU 190 can be pow-
ered by PoE (Power over Ethernet) from a switch. The variants of the power supply can be used indi-
vidually or in combination.
The power supply is internally connected to the plug for the cascade. Only one source (connected to
the master movement) is needed to power all movements of the cascade.
5.1.1 Current consumption
With network connection Without network connection
U [V] Imin [mA] Imax [mA] Imin [mA] Imax [mA]
24 54 59 42 45
5.2 DHCP
If the movement operates in Unicast mode it automatically tries to obtain the network configuration
from a DHCP server within the network. The DHCP options will be evaluated automatically.
The accurate description can be found in the manual BE 800793 Description MOBATime Network
clocks.
The network administrator must configure the DHCP options accordingly.
5.3 IPv6
IPv6 allows for up to 4 parallel IP addresses, prioritized in decreasing order:
-address given by DHCPv6
-fix address
-address calculated with auto-config (SLAAC / RA)
-link local address
It is possible to deactivate DHCPv6 and / or auto-configuration.
Calculation of the link local address from the MAC address:
fe80::2[2nd part MAC]:[3rd part MAC]ff:fe[4th part MAC]:[5th part MAC][6th part MAC]
Example: MAC: 00:16:91:12:34:56
IPV6: fe80::216:91ff:fe12:3456
5.4 DHCPv6
In the unicast operating mode, the NPR tries to get the network configuration from a DHCPv6 server in
the IPv6 network. The DHCP options are automatically evaluated.
A detailed description can be found in the manual BE-800793 Description MOBATIME network clocks.
The network administrator is responsible for configuring the DHCP options accordingly.
5.5 Autokonfiguration / SLAAC
In the unicast operating mode, the NPR tries to calculate the network configuration from the infor-
mation of a router (RA) in the IPv6 network: IPv6 address.

© MOBATIME 14 / 24 800695.14
A detailed description can be found in the manual BE-800793 Description MOBATIME network
clocks.
5.6 SNMP
To allow an integration into a network management system, the NBU 190 supports SNMP version 2c.
The definition is specified MOBANetClock.MIB. The manual BE 800793 shows the possibilities and
use of SNMP.
5.7 Local time calculation
NTP movements are synchronized to UTC (Universal Time Coordinated). In order to calculate and
display the current local time the movements require additional information. This information is provid-
ed by a so called time zone entry (daylight saving time rule). The NBU 190 has a pre-defined table
with 64 entries. One of these entries can be selected using the switches 2.1 to 2.6 (Note: Switch 1.4
must be switched off to use the pre-defined table. See chapter 4.2).
The NBU 190 alternatively supports the calculation of local time based on the time zone entry provid-
ed by time zone server (switch 1.4 set to ON position). If the movement is operating in Unicast mode it
will request the entry from the configured NTP server. If it is operating in Multicast mode it will receive
the corresponding entry from the configured server group address (see chapter 4.3.2).
Only values 1 to 15 are valid settings. Otherwise the time zone is not defined.
Cascaded slave movements receive local time from the master movement. The switch settings are
ineffective.

© MOBATIME 15 / 24 800695.14
5.8 Accuracy / synchronization loss
In synchronized state the deviation typically is lower +/-50 ms.
The movements continues running autonomously for 24 hours without synchronization with
quartz accuracy. After that the clock signalizes synchronization loss by setting the hands to 12:00 po-
sition and waiting for renewed synchronization. The deviation without synchronization after 24 h is
typically lower +/-2 s (quartz accuracy: 20 ppm at room temperatures). Slave movements totally con-
tinue running for 48 hours without synchronization (timeout master + timeout slave).
Note: The mentioned deviations depend on the accuracy and ability of the time source
(NTP server). NTP reception can be affected by network traffic and network devices
(hubs, switches, routers, firewalls, etc.).
5.9 Time source redundancy
The availability of the time source in the network can be enhanced by redundant installation of NTP
servers. Depending on the selected operation mode of the NBU 190 one of the following strategies is
recommended (also adequate for time zone servers):
5.9.1 NTP Client Unicast
Up to four different NTP server addresses can be provided to the NBU 190 by means of DHCP/
DHCPv6 or the PC tool MOBA-NMS. If three NTP requests stay unanswered by the current NTP
server the movement changes to the next server (if available). The duration until a change happens is
depending on the configured NTP request time interval (default: 3 x 10 seconds). After a reset the
movement sends the NTP requests to the first server.
5.9.2 NTP Client Multicast
Two NTP servers have to be installed sending out NTP packets on the same multicast address. The
sending intervals of the servers have to be chosen in a ratio that synchronization in normal operation
is done by the first server. Only in case of failure of the primary server the secondary server should
take over synchronization. The ratio of the number of transmitted packets between primary and sec-
ondary server should be about 4:1:
• Sending interval primary server: 1 packet / 1 minute
• Sending interval secondary server: 1 packet / 4 minutes
The selection of the server hence depends on the dominance of the server with the shorter sending
interval. If the primary server fails the secondary server thus becomes dominating.
5.10 MOBA-NMS (MOBATime Network Management System)
MOBA-NMS is a Java based PC program used for the configuration and status
requests of NTP movements. This software allows for a central configuration of
one or multiple devices.
Further informations, manuals and the software itself are available on our website
http://www.mobatime.com. These are also available on a USB stick (must be or-
dered separately).

© MOBATIME 16 / 24 800695.14
6. Update
The firmware resp. the bootloader of a clock can be updated using MOBA-NMS. However, de-
pending on the reason for change the settings on the clock are lost. The protocol TFTP UDP
Port 69 is used.
In the multicast operating mode, an update is carried out sequentially on multiple clocks. In the
unicast operating mode, this is done parallel.
Attention: For the update, a DHCP server in the network is required.
The update window is opened by right-clicking on the device Commands Firmware Up-
date…:
Attention: The newest versions of the firmware and bootloader are available at www.mobatime.com Customer Area 
Product Resources in the respective product folder. If the delivered device contains newer software than
displayed in this manual, please check the settings.
Firmware update
Bootloader update
!
!

© MOBATIME 17 / 24 800695.14
6.1 Bootloader update
A bootloader update is only necessary if the respective alarm is displayed:
In case of a bootloader alarm, the selection field for the firmware (application) is deac-
tivated and only made available after a successful bootloader update:
Important: The bootloader file must be a .zip file.

© MOBATIME 18 / 24 800695.14
7. Connectors
8. Technical specifications
NBU 190(t) NBU 190(t) S
Network interface 10/100 Mbit/s Ethernet controller, RJ45 connector
Only shielded cable is allowed
Network IPv4 and / or IPv6 with:
IPv4: static or DHCP
IPv6: static, SLAAC and / or DHCPv6
Synchronization Network Time Protocol (NTP), UTC
Supervision State request with PC tool MOBA-NMS
SNMP V2c alarm and alive traps for integration to a net-
work management system
Setting times:
Running time to reference position and
for daylight saving time changes
< 6 minutes
Operation mode second shaft
(Option S only) -Continuous or stepwise (wobbling) -1 revolution in 60 s or 1 revolution in 58 s with stop at
12:00 and start with the minute change
Operation mode minute shaft 1 step every 60 s
Operation mode hour shaft continuous
Power supply PoE, phantom or pins 4,5, and 7,8 (Class 2)
and/or DC Input +24 VDC +/-20 %
Current consumption < 60 mA at 24 VDC
Calculation of local time
and daylight saving time change
Automatic daylight saving time change according to 1 out
of 64 pre-defined rules
or
automatic daylight saving time change according to 1 out of
15 rules provided by a MOBATime time zone server
Accuracy Deviation typically < +/-50 ms (synchronized)
Synchronization loss Signalization after 24 h by setting the hands to 12:00
position
Deviation typically < +/-2 s after 24 h
Number of motors 1 (hour / min.) 2 (hour. / min. + sec)
Temperature range -30 ... +70 °C
Weight 400 g
Dial diameter 250 – 800 mm
Maximum dial thickness NBU 190: 4 mm
NBU 190t: 14.5 mm
NBU 190 S: 4 mm
NBU 190t S: 14.5 mm
Ethernet LAN 10/100 Mbps, PoE
Cascade IN/OUT
1 Power +
2 Power -
3 SDA (Data)
4 SCL (Clock)
5 GND
6 -
11
green: connectivity
yellow: data activity
1
DC Input +24 VDC
+

© MOBATIME 19 / 24 800695.14
9. Time Zone Table
Time zone entries of the standard time zone table (version 10.1).
The first 7 entries can be changed by MOBA-NMS.
Time
zone City / State UTC Offset DST Change Standard →DST DST →Standard
00 UTC (GMT),
Monrovia, Casablanca
0 No
01 London, Dublin,
Edinburgh, Lisbon
0 Yes Last Sun. Mar. (01:00) Last Sun. Oct. (02:00)
02 Brussels, Amsterdam,
Berlin, Bern, Copenhagen,
Madrid, Oslo, Paris,
Rome, Stockholm, Vienna,
Belgrade, Bratislava, Bu-
dapest, Ljubljana, Prague,
Sarajevo, Warsaw, Zagreb
+1 Yes Last Sun. Mar. (02:00) Last Sun. Oct. (03:00)
03 Athens, Istanbul, Helsinki,
Riga, Tallinn, Sofia, Vilnius
+2 Yes Last Sun. Mar. (03:00) Last Sun. Oct. (04:00)
04 Bucharest, Romania +2 Yes Last Sun. Mar. (03:00) Last Sun. Oct. (04:00)
05 Pretoria, Harare,
Kaliningrad
+2 No
06 Amman +2 Yes Last Thu. Mar. (23:59) Last Fri. Oct. (01:00)
07 UTC (GMT) 0 No
08 Kuwait City, Minsk,
Moscow, St. Petersburg,
Volgograd
+3 No
09 Praia, Cape Verde -1 No
10 UTC (GMT) 0 No
11 Abu Dhabi, Muscat, Tbilisi,
Samara
+4 No
12 Kabul +4.5 No
13 Adamstown (Pitcairn Is.) -8 No
14 Tashkent, Islamabad,
Karachi, Yekaterinburg
+5 No
15 Mumbai, Calcutta, Madras,
New Delhi, Colombo
+5.5 No
16 Astana, Thimphu, Dhaka,
Novosibirsk
+6 No
17 Bangkok, Hanoi, Jakarta,
Krasnoyarsk
+7 No
18 Beijing, Chongqing, Hong
kong, Singapore, Taipei,
Urumqi, Irkutsk
+8 No
19 Tokyo, Osaka, Sapporo,
Seoul, Yakutsk
+9 No
20 Gambier Island -9 No
21 South Australia: Adelaide +9.5 Yes 1st Sun. Oct (02:00) 1st Sun. Apr. (03:00)
22 Northern Territory: Darwin +9.5 No
23 Brisbane, Guam,
Port Moresby, Magadan,
Vladivostok
+10 No
24 Sydney, Canberra, Mel-
bourne, Tasmania: Hobart
+10 Yes 1st Sun. Oct. (02.00) 1st Sun. Apr. (03:00)
25 UTC (GMT) 0 No
26 UTC (GMT) 0 No
27 Honiara (Solomon Is.),
Noumea (New Caledonia),
+11 No
28 Auckland, Wellington +12 Yes Last Sun. Sep. (02:00) 1st Sun. Apr. (03:00)

© MOBATIME 20 / 24 800695.14
29 Majuro (Marshall Is.), ,
Anadyr
+12 No
30 Azores -1 Yes Last Sun. Mar. (00:00) Last Sun. Oct. (01:00)
31 Middle Atlantic -2 No
32 Brasilia -3 Yes 3rd Sun. Oct. (00:00) 3rd Sun. Feb. (00:00)
33 Buenos Aires, Santiago -3 No
34 Newfoundland, Labrador -3.5 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00)
35 Atlantic Time (Canada) -4 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00)
36 La Paz -4 No
37 Bogota, Lima, Quito,
Easter Island, Chile
-5 No
38 New York, Eastern Time
(US & Canada)
-5 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00)
39 Chicago, Central Time
(US & Canada)
-6 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00)
40 Tegucigalpa, Honduras -6 No
41 Phoenix, Arizona -7 No
42 Denver, Mountain Time -7 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00)
43 Los Angeles, Pacific Time -8 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00)
44 Anchorage, Alaska (US) -9 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00)
45 Honolulu, Hawaii (US) -10 No
46 Midway Islands (US) -11 No
47 Mexico City, Mexico -6 Yes 1st Sun. Apr. (02:00) Last Sun. Oct. (02:00)
48 Adak (Aleutian Is.) -10 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00)
49 UTC (GMT) 0 No
50 UTC (GMT) 0 No
51 UTC (GMT) 0 No
52 UTC (GMT) 0 No
53 UTC (GMT) 0 No
54 Scoresbysund, Greenland -1 Yes Last Sun. Mar. (00:00) Last Sun. Oct. (01:00)
55 Nuuk,
Qaanaaq,Greenland
-3 Yes Last Sat. Mar. (22:00) Last Sat. Oct. (23:00)
56 Qaanaaq, Greenland (old) -4 Yes 2nd Sun. Mar. (02:00) 1st Sun. Nov. (02:00)
57 Western Australia: Perth +8 No
58 Caracas -4.5 No
59 CET standard time +1 No
60 Santiago, Chile (old) -4 Yes 2nd Sun. Oct. (00:00) 2nd Sun. Mar. (00:00)
61 Chile, Easter Island (old) -6 Yes 2nd Sat. Oct. (22:00) 2nd Sat. Mar. (22:00)
62 Baku +4 Yes Last Sun. Mar. (04:00) Last Sun. Oct. (05:00)
63 UTC (GMT) 0 No
64 UTC (GMT) 0 No
In countries where the DST switch date changes annually (e.g. Iran, Israel), the time zone has to be
defined manually in the user time zone table (entries 80 – 99).
Legend:
UTC: Universal Time Coordinate, equivalent to GMT
DST Daylight Saving Time
DST Change: Daylight Saving Time changeover
Standard DST: Time change from Standard time (Winter time) to Summer time
DST Standard: Time change from Summer time to Standard time (Winter time)
Example:
2nd last Sun. Mar. (02:00) Switch over on the penultimate Sunday in March at 02.00 hours local time.
Note: Usually the time zone table is adapted each year. You can download the latest time zone table at our homepage:
www.mobatime.com Downloads Customer support Support Resources Software Tools Time
Zone Table. If the delivered device contains a newer version than printed in this manual please check the time
zone entries.
!
