Modellbahn Union MU-H0-T20001 User manual

Draisine Klv 20 HO gauge
Manual
In 1954/55 new handcars were ordered by
the DB. A total of 30 Klv 20 vehicles were
ordered based on the body of the VW T1.
An air-cooled VW industrial engine with a
displacement of 1.2 liters and 28 hp served
as the drive. Top speed 70 km/h, total weight
approx. 1400 kg.
The DB retired Klv 20 by 1977, they conti-
nued to be used by other railways and some
of them have survived to this day.
Scale model for adult collectors. Recom-
mended for collectors aged 14+. Due to
scale and
prototypical implementation or function-
related design, tips, edges and small parts
are included.
choking hazard. Please keep the packaging
for future reference.
Detailed scale model for adult collectors.
Recommended for collectors aged 14 years
or older. Product could contain functional
sharp edges and small parts which can
present a choking hazard.
Please handle with care. Please retain
packaging for future reference.
GENERAL INFORMATION
Do not expose the model to intense sunlight
or other strong heating light sources. Strong
UV radiation changes or ages paintwork.
High temperatures can deform the plastic
parts and cause the paint to fade.
The statutory regulation applies to any
warranty claims. Please contact the seller of
the model. Please keep the proof of purchase
as a basis for warranty claims.
Modellbahn Union GmbH
Gutenbergstr. 3a
D-59174 Kamen
email: [email protected]
Information on the Modellbahn Union range
can be found at info.modellbahnunion.com
ATTENTION:
Adult scale model
Collectors aged 14+.
Detailed scale model for adult collectors.
Recommended for collectors aged 14 years or
older.
1.1/2021
EQUIPMENT
The recommended minimum radius that can
be driven on is 360mm.
The model has a 6-pin interface according to
NEM 651 for the
digital operation.
The model features for the better
Contact security not about traction tires.
The model is operated in analog mode with
max. 12V DC and is
Compatible with all common Gauge H0
direct current railway systems.
14+

MAINTENANCE INSTALLATION OF A DIGITAL DECODER INSTALLATION OF A DIGITAL DECODER

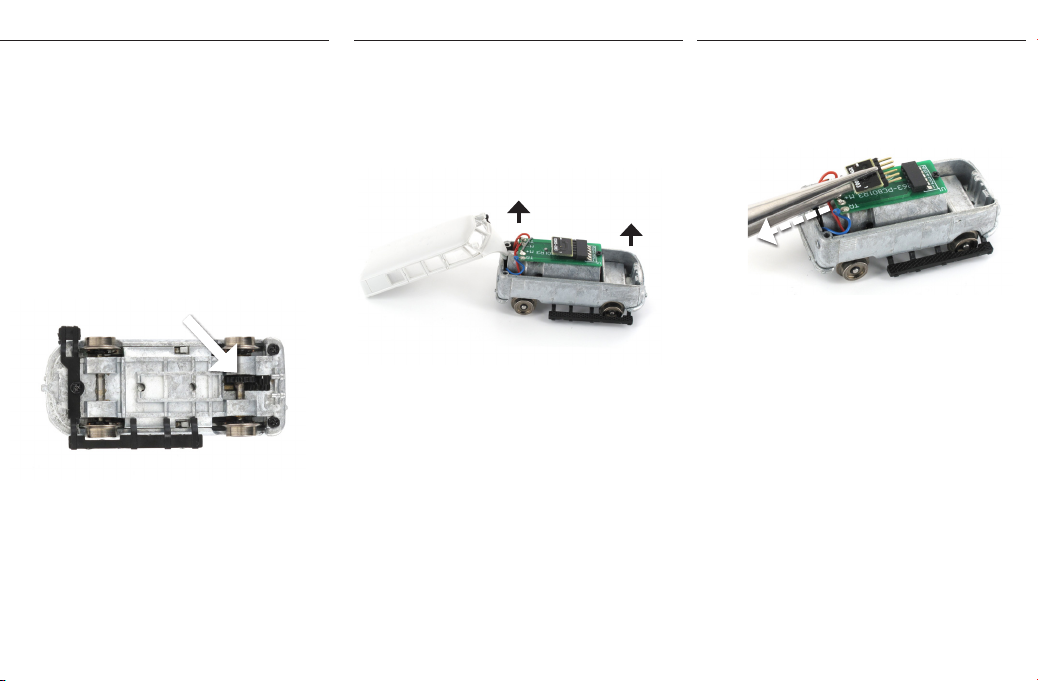

You can easily pull off the dummy plug from
the side with pointed pliers.
This exposes the contact points for the deco-
der. You can now plug in the decoder.
To install a digital decoder, the upper part of
the housing must be lifted off.
The separating edge is below the windows,
with slight lateral pressure on the upper
part, the component can be easily removed
from the three holding points.
For safe storage of the individual parts and
for further work on the model
we recommend the Modellbahn Union
Locomotive MU-H0-A00500.
The 6-pin interface for the decoder is on the
top of the board.
When putting on the housing later, make
sure that it is in the correct position and that
no cables etc. are pinched.
To ensure proper power consumption, both
your rails and the wheels of the handcar
should be kept free of dust and dirt. The
wheels of the draisine can be used with the
usual
cleaning liquids are cleaned.
We recommend AC13 Track Magic by
Deluxe materials.
When using the model for the rst time,
please run it in for about 20 minutes in each
direction at medium speed.
After an operating time of approx. 10 hours,
the gear wheels of the gearbox must be
lightly greased from the outside.
To grease the bogie gears, apply some model
railway grease to the visible axle gears. Do
not use oil! The grease is distributed in the
drive mechanism.
Make sure that the installation position is
correct and that the decoder does not touch
any other metal components.
Information on this can be found in the
Decoder instructions.
Important note:
In the case of digitization you need to
replace the 100nF capacitor (C1) on the
bottom of the motherboard with a 10nF
capacitor.
Soldering work is necessary for this, for
which the corresponding soldering skills on
SMD components are required. The SMD
capacitor to be used should be size 0805.
Please note that the decoder you retrot
may not respond if the capacitor is not
replaced.
