MODI T10 Series User manual

MODI-T10
Multifunctional Bluetooth Helmet Intercom
T10-3/T10-4

Table of Contents
Packet Contents -------------------Page 1
Introduction ------------------------- Page 2
Install Instructions ----------------- Page 3
Led State ----------------------------- Page 6
Pair to Cell Phone ------------------ Page 8
Pair to Common BT Headset----- Page 10
Internal Intercom -------------------Page 11
FM Operation ----------------------- Page 17
Technical Specifications ----------- Page 18
Certification ------------------------- Page 19

1
Packet Contents
T10 Main Unit:
HIFI Speaker and Microphone
USB Cable
Clip Mounting Bracket
User Manual

2

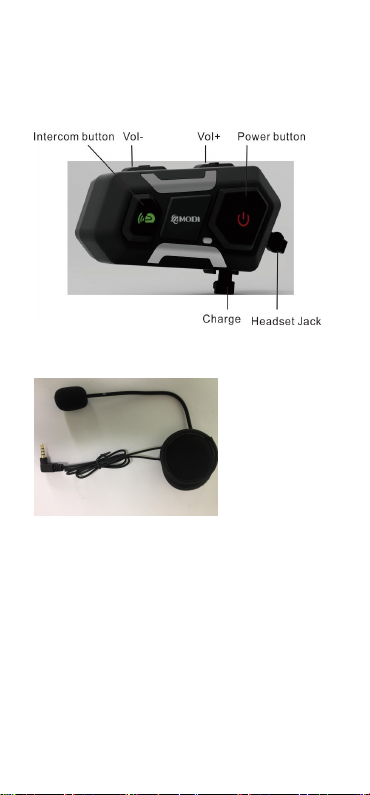

T10_3/T10_4 Introduction
Power on / Power off Button
1: Power on/Power off
2: Pair mobile phone
3: Power prompt
4: Hang up Bluetooth intercom
5: Music play / pause
6: Call answering /
Third party call answer /End / Reject
Bluetooth Intercom Button
1: Pair Bluetooth intercom
2: Open / exit Bluetooth intercom
Volume + Button
1:Volume +
2:Last song
3:FM turn up
4:Last number redial
Volume - Button
1:Volume -
2: Next song

3
3: FM turn down
4: FM Turn on / Turn off
5:Voice dialing

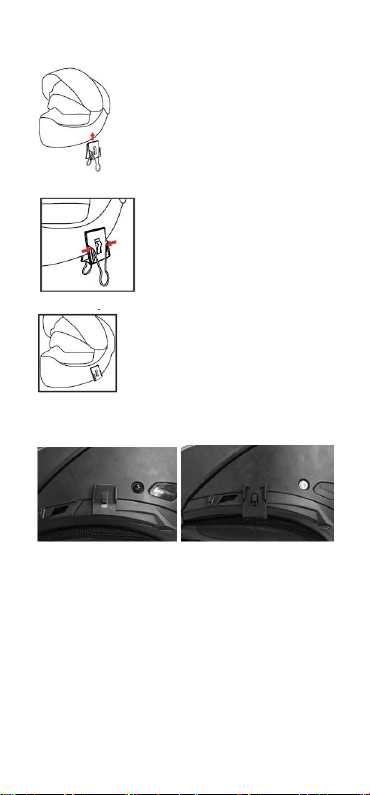

Fixed installation method
1:Locate the helmet at the left and clean it up
2:Peel off the 3M rubber protective film
3:Apply pressure to the metal carrier to secure the
holder firmly
Note: it takes 24 hours after drying.
Temporary installation method
1:Clip on the left edge of the helmet
2:Remove metal handle after installation
3:If required, use additional anti slip rubber
patches

4

5
Install host
1:Slide T10 host off the top of the clip and you'll
hear a click when it is completely plugged in
2:Plug in the 3.5mm headset plug
Headset mounting method
1:Stick the left and right horns of the headphones
in the position of the left and right ears of the
helmet
2: Keep the microphone in front of the mouth，
Note: microphone holes point to the mouth

6
Led State
Blue light slow flash once：
Bluetooth connection is not connected
Red and blue light flash slowly alternately:
Bluetooth in paired mode
Blue light flash quickly：
Bluetooth in searching situation and pairing mode
Red and blue light flash quickly twice
simultaneously：
Bluetooth intercom status
Red and blue light flash slowly twice
simultaneously：
Bluetooth bridge intercom status
Blue lights flash continuously twice：
Bluetooth connected
Red light flash: Charging
Blue light on: Charge complete
Low battery warning: Red light quickly flash
three times

7
Charging
1. You can charge with the Micro USB cable in
the package. During charging, red light is flash,
After full charging, the light will turn blue. and it
is recommended to recharge the battery before
each use. Suggest full charge before each use.
2. Low battery warning：Headset will
automatically voice prompt low battery at every 5
minutes, meanwhile the red light flashes quickly
3. times to prompt the user to recharge it
3. Battery state notify: When standby, double
press K_POWER to report battery level.
Power on /Power off
1. Press K_POWER for approx. 2S, blue light
flashing, and power on.
2. When power on status, press K_POWER for
approx. 2s, red light flashing, power off.

8
Pairing with cell phone and using
Mobile pairing steps
1. When power off，press K_POWER for
approx 8S, red and blue light flash alternately，
headset prompt “pairing”. Open the phone
Bluetooth, search for ‘T10-3’or ‘T10-4’, then
click on the phone connection pair. After the
pairing, the phone light goes back to standby
mode, and the blue light flashes 2 times.
Answer phone calling dialing method
Answer phone calling: When there is call, press
K_POWER to answer.
Automatically answer phone calling: When
there is call, headset will automatically answer
after 12s if haven’t pressed K_POWER to
answer.
End phone calling: during talking, short press
K_POWER to end the call。
Reject phone calling: When have incoming calls,
long press K_POWER about 2s to reject

9
within 12s。
Voice dial: When phone standby, double press
K_DOWN to make voice dialing (The phone
itself must have voice dialing function)
Last number redials: When cell phone standby,
double press K_UP to make last number
redialing. When dialing a number, short press
K_POWER to cancel the last number
redialing.
Memory connects with cell phone: once pairing
with cell phone, when power on again, headset
will re-connect with mobile automatically. Or in
case disconnect during standby mode, short press
K_POWER will connecting again.
Connect third party calls:When connecting two
cell phones, during phone call with first cell
phone and second cell phone dial in, can press
K_POWER to answer the second cell phone
and keep the first cell phone conversation. When
finish the second cell phone conversation, will

10
back to the conversation with fist cell phone.
Play /Pause Music: Short press K_POWER to
control play/pause the music.
Music next/previous: During music playing,
double press or to choose next/previous
songs.
Voice volume control: Short press K_UP
/K_DOWN to adjust the voice volume
Pairing common Bluetooth device and
using
Pair to common Bluetooth device: Power on
other brand Bluetooth device into pairing suitable,
meanwhile T10-3/T10-4 at standby mode, long
press K_INTERCOM for approx. 2s, blue and
red light flash alternately, then short press
K-INTERCOM . After pair successfully, blue
light flash slowly
Connect with normal headset: T10-3/T10-4 at
standby mode, short press K_up and K_down
at the same times, T10-3/T10-4 reconnect

11
with Bluetooth headset which connected before.
End talking with headset: short press
K_POWER one times to end the talking
between T10-3/T10-4 and headset.
Bluetooth intercom pairing and usage

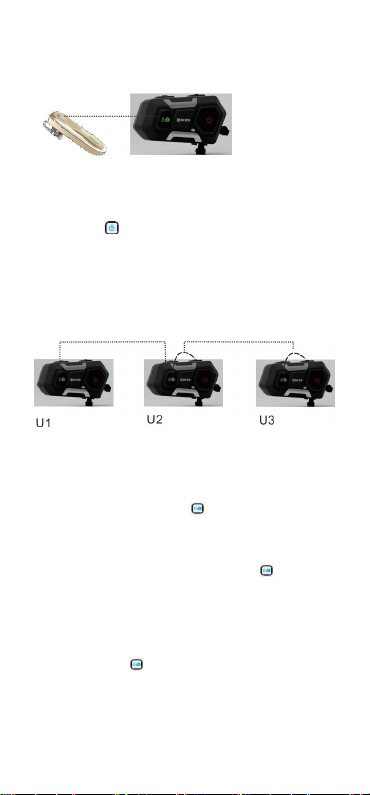

T10_3 Three person intercom operation:
T10_3(1) and T10_3(2) pairing:
Two of T10_3 headset power on , long press
T10_3(1) K_INTERCOM for approx. 2s, blue
and red light flash alternately into Paired mode.
Long press T10_3(2) K_INTERCOM for
approx. 2s ,blue and red light flash alternately
means into Paired mode, then short press
K_INTERCOM on either unit, the blue led

12
will flash quickly, after paring finish there will be
a voice prompt "pairing success", blue light will
slowly flash.
T10_3(2) and T10_3(3) pairing:
Two of T10_3 headset power on, long press
T10_3(2) K_INTERCOM and K_UP at the
same time for 2S, blue and red light flash
alternately means into Paired mode, long press
T10_3(3) K_INTERCOM and K_UP for 2S,
blue and red light flash alternately means into
Paired mode too, then short press K_INTERCOM
on either unit, the blue led will flash quickly, after
paring finish there will be a voice prompt
"pairing success", blue light will slowly flash.
T10_3 Active/Quit Intercom:
Activate T10_3(1) and T10_3(2) intercom: after
pairing successfully, short press T10_3(1)
K_INTERCOM or T10_3(2) K_INTERCOM
to connect two intercom,red and blue light flash
quickly twice.

13
Quit T10_3(1) and T10_3(2) intercom: During
the intercom mode, short press K_INTERCOM
or K_POWER once to end intercom, blue
light flash slowly back to standby mode.
Activate T10_3(2) and T10_3(3) intercom: after
pairing successfully, press T10_3(2) or T10_3(3)
double press K_INTERCOM to connect two
intercom, red and blue light flash quickly twice.
Quit T10_3(2) and T10_3(3) intercom: During
the intercom mode, short press K_POWER
once to end intercom, blue light flash slowly back
to standby mode.
T10_4 Four person intercom
T10_4(1) and T10_4(2) pairing:
Two of T10_4 headset power on , long press
T10_4(1) K_INTERCOM and K_UP for
approx. 2s, red and blue light light flash

14
alternately.
Then long press T10_4(2) K_INTERCOM
and K_UP for approx. 2s ,red and blue light
flash alternately into Pair mode, then short press
K_INTERCOM on either unit, the blue led
will flash quickly, after paring finish there will be
a voice prompt "pairing success", blue light will
slowly flash.
T10_4(2) and T10_4(3) pairing:
Two of T10_4 headset power on , long press
T10_4(2) K_INTERCOM and K_DOWN
for approx. 2s, red and blue light light flash
alternately.
Then long press T10_4(3) K_INTERCOM
and K_DOWN for approx. 2s ,red and blue
light flash alternately into Pair mode, then short
press K_INTERCOM on either unit, the blue
led will flash quickly, after paring finish there
will be a voice prompt "pairing success", blue
light will slowly flash.

15
T10_4(3) and T10_4(4) pairing:
Two of T10_4 headset power on , long press
T10_4(3) K_INTERCOM and K_UP for
approx. 2s, red and blue light light flash
alternately.
Then long press T10_4(4) K_INTERCOM
and K_UP for approx. 2s ,red and blue light
flash alternately into Pair mode, then short press
K_INTERCOM on either unit, the blue led
will flash quickly, after paring finish there will be
a voice prompt "pairing success", blue light will
slowly flash.
T10_4 Active/Quit Intercom:
Connect T10_4(1) and T10_4(2): after pairing
successfully, short press T10_4(1)/T10_4(2)
K_INTERCOM to connect T10_4(1) and
T10_4(2) intercom, red and blue light flash
quickly twice.
Connect T10_4(2) and T10_4(3): after pairing
successfully, double press T10_4(2)/T10_4(3)

16
K_INTERCOM to connect T10_4(2) and
T10_4(3) intercom, red and blue light flash
quickly twice.
Connect T10_4(3) and T10_4(4): after pairing
successfully, short press T10_4(1)/T10_4(2)
K_INTERCOM to connect T10_4(1) and
T10_4(2) intercom, red and blue light flash
quickly twice.
End intercom: During the connection mode,
short press K_POWER once to end intercom,
blue light flash slowly back to standby mode.
Adjusting volume:
Short press K_UP to increase volume, short
press K_DOWN to decrease volume.
Clear internal intercom pairing record:
long press K_UP and K_DOWN for approx.
3s, red light flash 3 times, then Clear all internal
intercom pairing records.

17
FM radio usage
Power on FM radio: When standby, long-press
K_DOWN button for approx. 2s to turn on FM
radio.
Power off FM radio: During FM working,
long-press K_DOWN button for approx. 3s to
turn off FM radio.
Choose a FM channel: During FM working,
double press K_UP or K_DOWN to choose
a next/previous FM channel.
Radio volume adjustment: during FM working ,
single press K_UP to increase volume, single
press K_DOWN to decrease volume.

18
Technical specifications：
1. Bluetooth 3.0 Support :
HSP,HFP,A2DP,AVRCP, AGHSP
2. Working hours: 15 hours
3. Standby time: 350 hours
4. Charging time: 3 hours
5. Battery: lithium containing rechargeable
lithium battery 800mAH, 3.7v
6. Dimensions: 85 mm *42 mm *23 mm
7. Weight: 47.5g
8. Certification ：CE, FCC, TELEC, NCC
