Mody Pumps NC 06360-M Guide

MODELS: NC 06360/08360/10360-M
OPERATING INSTRUCTIONS, INSTALLATION & MAINTENANCE
MANUAL INCLUDING SPARE PARTS LIST
Mody Pumps Inc.
2166 Zeus Court
Bakersfield, CA 93308
Tel.: [phone] FAX.: [phone]
E-Mail: [e-mail]
http://www.modypump.com
ISO 9001 Certified

L
LI IF FE E I IS S P PR RE EC CI IO OU US S - - T TH HI IN NK K S SA AF FE ET TY Y
1. Most accidents can be avoided by using COMMON SENSE.
2. Please read the operation and maintenance instruction manual supplied with the
pump. If you did not receive one, please call your local distributor before pump
installation.
3. Do not wear loose apparel that may become entangled in the impeller or other
moving parts.
4. Always use appropriate safety equipment, such as safety glasses, when working on
the pump or piping.
5. Pumps build up heat and pressure during operation-allow time for pumps to cool
before handling or servicing.
6. Only qualified service personnel should install, operate and repair pump.
7. Keep clear of suction and discharge openings. DO NOT insert fingers in pump with
power connected.
8. Do not pump flammable or hazardous materials (gasoline, acids, alkalis, etc.)
9. Do not block or restrict discharge hose, as it may whip or burst catastrophically
under pressure.
10. Make sure lifting handles/hooks are securely fastened each time before lifting.
11. Do not lift pump by the power cord under any circumstances.
12. Do not exceed manufacturer's recommendation for optimum performance, as this
could cause the motor/pump to overheat and lead to premature wear or failure.
13. Secure the pump in its operating position so it does not tip over, fall or slide.
14. Keep away from impeller when power is connected.
15. Submersible Pumps are not approved for use in swimming pools, recreational water
installations, decorative fountains or any installation where human contact with the
pumped fluid is common.
16. Do not operate pump without adequate protection and safety devices in place.
17. Always replace safety devices that have been removed during service or repair.
18. To reduce risk of electrical shock, pump must be properly grounded in accordance
with the National Electric Code and all applicable state and local codes and
ordinances.
19. To reduce risk of electrical shock, always disconnect the pump from the power
source before handling or servicing.
20. Any wiring of pumps should be performed by a qualified electrician.
21. Never operate a pump with a power cord that has frayed or brittle insulation.
22. Cable should be protected at all times to avoid punctures, cuts, and
abrasions - inspect frequently.
23. Never handle connected - "hot" power cords with wet hands.
24. Never operate a pump with a plug-in type power cord without a ground fault circuit
interrupter, adequate overload and short circuit protection.
IMPORTANT !!! MODY Pumps Inc. is not responsible for losses, injury, or death resulting
from a failure to observe these safety precautions, misuse or abuse of pumps or
equipment.
Mody Pumps Inc.: 2166 Zeus Court, Bakersfield, CA 93308 Tel.: [phone] Fax: [phone]

GENERAL INFORMATION.
THE “mody” NC-M SERIES LINE OF SUBMERSIBLE PUMPS ARE PRIMARILY DESIGNED FOR
HANDLING SLUDGE AND SOLIDS. THEY CAN ALSO BE USED FOR HANDLING WASTE WATER, FLY
ASH, CERAMIC SLIP AND IN OTHER ALLIED APPLICATIONS WHERE THE CONCENTRATION OF
SUSPENDED SOLIDS IS HIGH.
THE SERVICE LIFE OF A SUBMERSIBLE PUMP DEPENDS MAINLY ON TWO THINGS: THE
DEPENDABILITY OF THE SEALING SYSTEM AND THE WEAR RESISTANCE OF THE PUMP ITSELF.
IN THE NC-M SERIES PUMPS, THE WEAR PLATE IS RUBBERLINED WHILE THE VOLUTE AND
IMPELLER ARE MADE OF CAST STAINLESS STEEL. THE IMPELLER IS A RECESSED VORTEX
DESIGN THAT ALLOWS THE PUMP TO HANDLE 2 1/2" SPHERICAL SOLIDS. ALL LARGE
PARTICLES ARE SUCKED IN USING THE VORTEX CREATED BY THE IMPELLER AND PASS OUT
DIRECTLY THROUGH THE DISCHARGE.
ALL MODELS HAVE BUILT-IN THERMAL PROTECTION, WHICH CAN BE AUGMENTED WITH AN
OVERCURRENT RELAY. IT IS HOWEVER RECOMMENDED THAT IRRESPECTIVE OF TYPE OF PUMP,
ADEQUATE MOTOR PROTECTION SWITCHGEAR SHOULD BE USED AT THE INSTALLATION. WE
STRONGLY RECOMMEND THE USE OF SUITABLE CONTROL PANELS WHICH ARE AVAILABLE FROM
US INCORPORATING ALL REQUIRED PROTECTION.
IT IS IN THE INTEREST OF THE USER THAT HE GO THROUGH THIS MANUAL IN DETAIL
PRIOR TO USING THE PUMP. THIS MANUAL WILL HELP HIM UNDERSTAND THE
CONSTRUCTIONAL FEATURES AND TO OBTAIN TROUBLE FREE SERVICE FROM THE PUMP.
TECHNICAL DESCRIPTION.
THE PUMPSET IS IN A MODULAR CONSTRUCTION ENSURING EASY AND SIMPLE
SERVICEABILITY. THE MAJOR DESIGN FEATURES ARE AS UNDER:
A] THERMAL PROTECTION: SEE UNDER "MOTOR PROTECTION"
B] THE MOTOR: A RUGGED ALUMINUM DIE CAST ROTOR, DYNAMICALLY BALANCED TO GRADE
2.5 ACCURACY OF ISO 942. A STAINLESS STEEL SHAFT RUNNING IN TWO DEEP GROOVE
BALL BEARINGS. INSULATION CLASS "H" (180 DEGREES CELSIUS). END WINDINGS DULY
EPOXY COATED TO PREVENT DETERIORATION OF INSULATION EVEN IN EXTREMELY HUMID
CONDITIONS. WINDING WIRE IS DUAL COATED SUITABLE FOR "H" CLASS INSULATION.

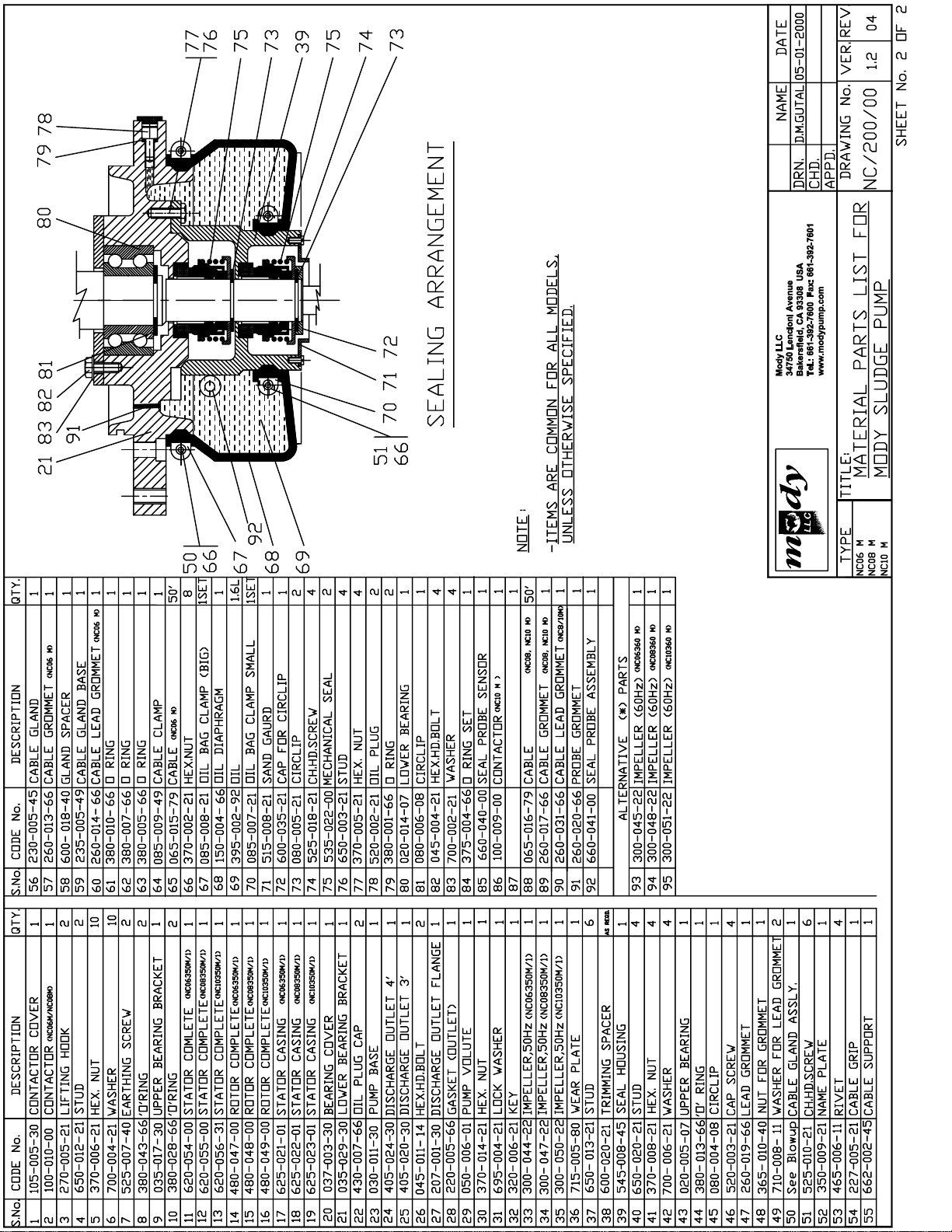

C] THE SEAL CHAMBER: THE HEART OF THE "MODY" PUMP. DUAL MECHANICAL SEALS,
TUNGSTEN CARBIDE V/S TUNGSTEN CARBIDE SEAL FACES (LOWER SEAL) AND TUNGSTEN
CARBIDE V/S TUNGSTEN CARBIDE (UPPER SEAL). SECONDARY SEALS OF HNBR RUBBER AND
METAL PARTS IN STAINLESS STEEL, RUNNING IN AN OIL BATH, ENCLOSED IN A PRESSURE
COMPENSATING RUBBER BAG - CREATES THE ULTIMATE SEAL SOLUTION. THE DESIGN
OPTIMIZES SEAL LIFE AND ALLOWS FOR SIX MONTHLY (2500 HRS) SERVICE INTERVALS.
D] BEARINGS: SINGLE ROW DEEP GROOVE BALL BEARING (UPPER), DOUBLE ROW ANGULAR
CONTACT BEARING (LOWER) SEALED FOR LIFE WITH A SPECIAL HIGH TEMPERATURE BEARING
GREASE REQUIRING NO PERIODIC MAINTENANCE WHATSOEVER.
E] THE HYDRAULIC ELEMENTS : A RECESSED VORTEX STAINLESS STEEL IMPELLER
(AVAILABLE IN CORROSION RESISTANT 304 SS OR IN ABRASION RESISTANT 410 HARDENED
SS RUNNING AGAINST A RUBBERLINED WEAR PLATE. THE VOLUTE IS STAINLESS STEEL OF
AISI 304 QUALITY, DESIGNED FOR LARGE SOLID HANDLING CAPACITY OF 2 1/2"

F] CABLE GLAND ASSEMBLY: THE PUMP IS SUPPLIED WITH 50 FEET CABLE AS STANDARD.
THE CABLE IS A 4 CORE EPR SHEATHED AND INSULATED CONFORMING TO INT'L STD. THE
CABLE IS WATERPROOF AND CAN BE COMPLETELY SUBMERGED IN WATER. THE CABLE IS
TERMINATED IN THE PUMP AT THE CABLE GLAND. THE GLAND ASSEMBLY SEALS THE CABLE
ON THE OUTSIDE SHEATH. A WATER DAM ARRANGEMENT IS ALSO PROVIDED WHICH SEALS THE
INDIVIDUAL CORES OF THE CABLE. THIS FEATURE IS UNIQUE AND IS ESSENTIAL TO
PREVENT WATER SEEPING THROUGH THE CORES OF THE CABLE INTO THE TERMINAL CHAMBER
IN THE EVENT OF A CUT CABLE. THE CABLE IS ALSO SHEATHED FOR THE FIRST ONE METER
BY MEANS OF A CABLE GRIP MADE OF STAINLESS STEEL. THIS IS ESSENTIAL TO ENSURE
THAT THERE IS NO UNDUE STRAIN ON THE CABLE IF THE PUMP IS PULLED OR LOWERED
INADVERTENTLY BY MEANS OF THE CABLE. COMPLETE DETAILS OF THE CABLE GLAND
ASSEMBLY ARE SHOWN IN THE DRAWING.

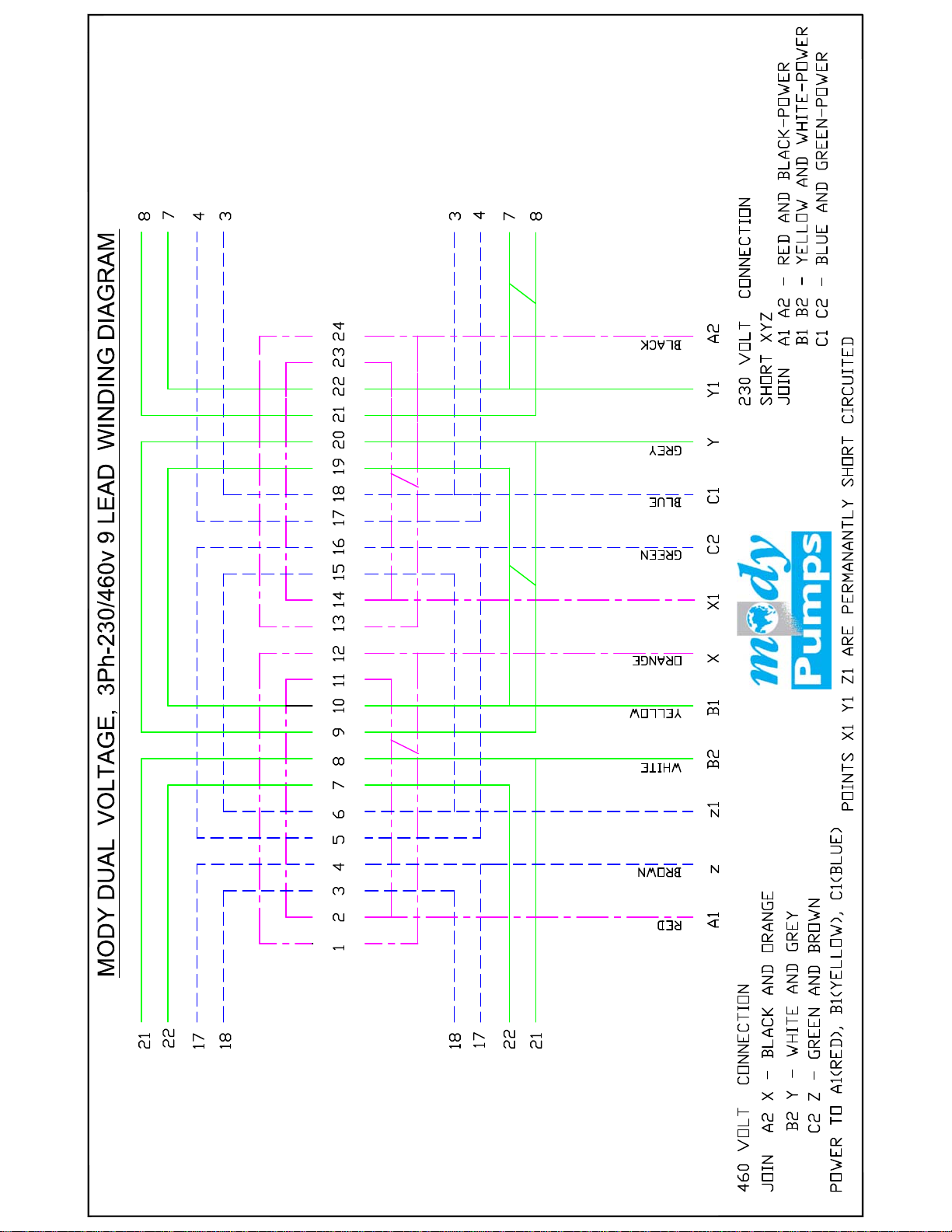

G] ELECTRICAL INFORMATION: MOTORS ARE TYPICALLY DESIGNED TO OPERATE ON
230/460V AT 60 HZ, 415V AT 50 HZ. EXPORT DESTINED PUMPS ARE PREWIRED FOR SINGLE
VOLTAGE AND FREQUENCY. MAXIMUM DEVIATION IN VOLTAGE ALLOWED IS -/+ 6% AND
FREQUENCY -/+ 3%. CHECK NAME PLATE FOR OPERATING VOLTAGE AND FREQUENCY.
INSTALLATION.
•CHECK THAT THE SITE VOLTAGE CORRESPONDS WITH THAT OF THE PUMP.
•CHECK THAT FUSES ARE INTACT.
•USE SHORTEST POSSIBLE HOSE IN RECOMMENDED DIMENSION. AVOID SHARP BENDS,
CREASES, AND CONTRACTIONS.
•THE MAXIMUM SUBMERGENCE RECOMMENDED IS 50 FEET.
•THE SPECIFIC GRAVITY OF THE PUMPED FLUID SHOULD NOT EXCEED 1.1.
•NEVER LIFT OR PULL THE PUMP BY MEANS OF THE CABLE. SUSPEND THE PUMP BY A
ROPE OR PREFERABLY PLACE IT ON A SOLID BASE.
•WIRE THE PUMP TO THE MAINS CORRECTLY. ALWAYS USE A STARTER OR A PANEL BOARD.
SEE INSTRUCTIONS UNDER "MOTOR PROTECTION" BELOW.
•AT THE STARTING MOMENT, THE PUMP SHALL MAKE A KICK, WHICH IS OPPOSITE TO THE
DIRECTION OF ROTATION OF THE IMPELLER. SHIFT TWO PHASES IN THE POWER
CONNECTION IF THE KICK IS IN THE WRONG DIRECTION. THE CORRECT DIRECTION IS
INDICATED ON THE PUMP COVER AT THE TOP OF THE PUMP.
•CHECK LEVEL AND CONDITION OF THE OIL AT SERVICE EVERY SIX MONTHS. IF THE OIL
IS EMULSIFIED BY WATER THE SEALS MUST BE REPLACED.
•THE SHAFT SEAL SHOULD BE CHECKED FOR WEAR EVERY 2500 HRS. OF OPERATION. IF
SEAL FACES SHOW ANY SIGNS OF WEAR, THEY SHOULD BE REPLACED. REFER TO PAGE 5
FOR SERVICING THE PUMP SEALS.
HRC FUSE RECOMMENDED
MAINS VOLTAGE AT SITE NC06 M NC08 M NC10 M
220 VOLTS 3 PHASE 25 AMPS 30 AMPS 40 AMPS
380 VOLTS 3 PHASE 16 AMPS 20 AMPS 25 AMPS
415 VOLTS 3 PHASE 16 AMPS 16 AMPS 25 AMPS
460 VOLTS 3 PHASE 16 AMPS 16 AMPS 25 AMPS

TROUBLE GUIDE CAUSE REMEDY
1.FUSES BLOWN. 1.REPLACE FUSES
2.CABLE DAMAGED 2.SHORTEN/REPLACE CABLE
PUMP DOES NOT START 3.NO POWER 3.CHECK POWER SUPPLY
4.BLOCKED IMPELLER 4.CLEAN WET END
5.STATOR WINDING BURNT. 5.REPLACE STATOR.
6.CONTACTOR COIL BURNT 6.REPLACE COIL
7.SEAL PROBE SENSOR 7.CHANGE OIL/MECH. SEALS
1.BLOCKED IMPELLER. 1.CLEAN BOTTOM PARTS.
2.IMPELLER ROT.WRONG 2.SHIFT TWO PHASE CONN.
PUMP STARTS BUT 3.CONNECTED FOR WRONG 3.CHECK & RECONNECT.
BUT STOPS VOLTAGE.
4.VOLTAGE TOO LOW/HIGH. 4.APPROACH POWER CO.
5.PUMP RUNNING DRY 5.SWITCH OFF POWER
6.WATER TOO WARM 6.SWITCH OFF POWER
(ABOVE 60 DEGREES C)
1.IMPELLER ROT.BACKWARD. 1.SHIFT TWO PHASE CONN.
2.PUMP WORN DOWN. 2.REPLACE IMPELLER.
PUMP OUTPUT LOW3.LONG HOSE AND DIAMETER 3.CHECK PRESSURE LOSSES
TOO SMALL.
4.PRESSURE HEAD TOO HIGH 4.INSTALL BIGGER PUMP.
5.LEAKING/CRACKED OUTLET 5.REPLACE OUTLET/GASKET
MOTOR PROTECTION
IT IS ESSENTIAL THAT THE PUMP BE USED WITH A STARTER AND PREFERABLY A PANEL
BOARD. PANEL BOARDS INCORPORATING ALL PROTECTIVE DEVICES ARE AVAILABLE WITH US.
THE FULL LOAD AMPERE RATINGS OF THE THREE MODELS ARE AS PER TABLE BELOW. THE
OVERLOAD RELAY IN THE STARTER SHOULD CHOSEN ACCORDINGLY AND AMPERES SET AT THE
FULL LOAD SETTING FOR THE PARTICULAR MODEL OF THE PUMP.(DETAILS BELOW ARE FOR
460 VOLT PUMPS. CHECK FULL LOAD AMPERES FOR DIFFERENT VOLTAGES ON PUMP NAME
PLATE)
MODEL FULL LOAD AMPERES.
230v 415v 460v
NC 06360M 20 AMPS 10.8 AMPS 9.8 AMPS
NC 08360M 24 AMPS 13.3 AMPS 12 AMPS
NC 10360M 31 AMPS 15.5 AMPS 14 AMPS

BUILT-IN CONTROLS
THE BUILT-IN MOTOR PROTECTION OF THE PUMP AUTOMATICALLY BREAKS THE CURRENT IF
THE MOTOR IS OVERHEATED. WHEN THE CURRENT IS CUT OFF, IT IS NECESSARY TO FIND
THE CAUSE AND TAKE REMEDIAL ACTION.
OVERLOAD/OVERHEAT PROTECTION (REFER CIRCUIT DIAGRAM ABOVE)
THE CONTACTOR COIL IS COUPLED IN SERIES WITH THE BI-METALLIC SWITCHES. THE COIL
CIRCUIT IS CONNECTED BETWEEN TWO OF THE INCOMING PHASE WIRES. WHEN THE PUMP IS
CONNECTED TO THE POWER MAINS, THE COIL GETS VOLTAGE AND ATTRACTS THE CONTACT
BRIDGE. THE MOTOR STARTS AND THE PUMP BEGINS TO OPERATE. IF THE MOTOR GETS
OVERHEATED THE BI-METALLIC SWITCHES OPEN AND CUT OFF THE CURRENT TO THE COIL.
WHEN THE MOTOR HAS COOLED DOWN TO NORMAL OPERATING TEMPERATURE THE SWITCHES
CLOSE, THE CONTACTOR COIL IS AGAIN ENERGIZED AND THE PUMP RE-STARTS. IT IS
ADVISABLE TO FIND OUT THE CAUSE OF OVERHEATING IF THE PUMP TRIPS OFTEN.

SEAL PROBE (WATER-IN-OIL SENSOR)
PUMP CAN ALSO BE EQUIPPED WITH A WATER-IN-OIL SENSOR FITTED IN THE CONTACTOR
CHAMBER. A CONDUCTIVITY PROBE IS FITTED IN THE SEAL CHAMBER & MONITORS THE
CONDITION OF THE OIL. IN THE EVENT OF A CONTAMINATION OF THE LUBRICATING OIL BY
PUMPED WATER THE PROBE SENDS A SIGNAL TO THE BUILT IN SENSOR WHICH CUTS OFF
POWER TO THE MOTOR. THIS INDICATES A SEAL FAILURE OR WORN OUT SEAL AND IT IS
NECESSARY TO REPLACE THE SEALS AND FILL IN NEW OIL.
THE CONDUCTIVITY PROBE IS CONNECTED TO A 24V AC SUPPLY THROUGH A TRANSFORMER.
IN THE EVENT OF A SEAL FAILURE AND CONTAMINATION OF OIL BY WATER (APPROX. 10%)
THE PROBE GENERATES A SIGNAL, DETECTED BY A SENSOR, WHICH OPERATES A RELAY
THROUGH THE BRIDGE RECTIFIER. THIS RELAY OPERATES THE CO CONTACT WHICH OPENS
THE COIL CIRCUIT OF THE MAIN CONTACTOR AND ISOLATES THE PUMP FROM THE POWER
SUPPLY.
THE SENSOR COMPLETE WITH TRANSFORMER IS HOUSED IN A SHEET STEEL ENCLOSURE DULY
WIRED. THE ENCL. INCORPORATES AN LED AND A REMOVABLE FUSE. IN THE EVENT OF
WATER CONTAMINATION IN THE OIL THE SENSOR WILL ISOLATE THE PUMP AND THE LED
WILL LIGHT UP INDICATING THE OPERATION OF THE SENSOR. THE PUMP WILL NOT START
IN THIS CONDITION. IF YOU WOULD LIKE TO OPERATE THE PUMP, REMOVE THE FUSE AND
START THE PUMP.
WARNING: THE UNIT SHOULD NOT BE OPERATED FOR MORE THAN 10 DAYS AFTER THE SENSOR
HAS TRIPPED THE PUMP. THE PROBE OPERATION IS AN EARLY WARNING SIGNAL THAT THE
SEALS NEED REPLACEMENT --- DO NOT IGNORE THE SAME. IT IS ESSENTIAL THAT THE
SEALS BE REPLACED AND NEW OIL FILLED AS SOON AS POSSIBLE TO PREVENT FURTHER
DAMAGE TO THE UNIT. THE FUSE SHOULD BE REMOVED AND THE PUMP OPERATED IF
ABSOLUTELY NECESSARY.
IN THE EVENT OF OVERHEATING OF THE STATOR WINDING FOR ANY REASON, THE EMBEDDED
THERMAL SWITCHES WILL OPEN, CAUSING THE STARTER COIL TO DROP OUT AND ISOLATE
THE PUMP UNIT FROM THE MAINS. THESE SWITCHES DO NOT PROVIDE ANY PROTECTION IN
THE CASE OF A SHORT CIRCUIT, AND ADEQUATE H.R.C. FUSES SHOULD BE USED FOR SHORT
CIRCUIT PROTECTION.
GENERAL OVERHAUL AND OIL CHECK. (ALL MODELS)
DIS-ASSEMBLY (REFER DRG.NO.NC/200/01 SHEET 1 & 2)AT END OF MANUAL
1. ALWAYS REPLACE O-RINGS WITH NEW ONES WHENEVER DISMANTLING AND RE-ASSEMBLING
A PUMP. NEVER RE-USE OLD O-RINGS.
2. ALWAYS ISOLATE THE UNIT BEFORE REMOVING THE CONTACTOR COVER (1).BE CAREFUL
WITH O-RINGS (8) AND SEALING SURFACES. PROTECT THE CONTACTOR CHAMBER AGAINST
RAIN AND MOISTURE. CLEAN THE SEALING SURFACES CAREFULLY AND GREASE THE NEW
O-RINGS BEFORE FITTING THE SAME. DO NOT USE THE OLD O-RINGS.
3. DISCONNECT STATOR LEADS AND CHECK COIL OF CONTACTOR AND CONDITION OF
CONTACTS. IF CONTACTS ARE CORRODED OR PITTED, REPLACE CONTACTOR OR A NEW SET OF
CONTACTS. SNIP OFF LEAD WIRE CONNECTORS AND UNSCREW GROMMET NUT (48). REMOVE
LEAD WASHER (49) AND LEAD GROMMET (47). SLACKEN MOTOR LEAD WIRES TO FACILITATE
REMOVAL OF STATOR LATER, IF NECESSARY.
4. LOOSEN NUT (5) AND REMOVE OUTLET (24/27).
5. LOOSEN NUTS (5)(4 NOS TIGHTENING VOLUTE AGAINST PUMP BASE) AND REMOVE
VOLUTE. THE VOLUTE HAS TO BE MANEUVERED AND SLIDES OUT FROM ONE OPENING IN THE
PUMP BASE (23).
6. THE IMPELLER (33/34/35/93/94/95) IS NOW IN VIEW.

7. LOOSEN NUT (30),REMOVE LOCK WASHER (31). SLIDE IMPELLER OFF THE SHAFT.
REMOVE KEY (32) AND SLIDE OFF TRIMMING SPACER.
8. LOOSEN NUTS (41)(4 NOS WHICH TIGHTEN THE PUMP BASE AGAINST THE LOWER BEARING
BRACKET (21) AND TAP OFF THE PUMP BASE. THE WEAR PLATE (36)WILL COME OFF WITH
THE PUMP BASE.
9. UNSCREW THE FOUR CHEESE HEAD SCREWS (74) AND REMOVE THE SAND GUARD (71) FROM
THE SEAL HOUSING(39).
10. THE OIL DIAPHRAGM (68) IS NOW IN VIEW. PRY OUT OIL PLUG CAPS (22) AND
UNSCREW BOTH THE OIL PLUGS (78). DRAIN OUT THE OIL FROM THE OIL CHAMBER.
LOOSEN SCREWS AND NUTS (51 & 66) FROM THE BIG OIL CLAMP (67) AND REMOVE CLAMP.
TURN OIL DIAPHRAGM INSIDE OUT AND REMOVE SMALL OIL CLAMP IN THE SAME FASHION.
REMOVE OIL DIAPHRAGM. SLIDE OFF CIRCLIP CAP (72) AND REMOVE CIRCLIP (73) FROM
ROTOR SHAFT. REMOVE LOWER MECHANICAL SEAL (75) FROM ROTOR SHAFT. BE VERY
CAREFUL IN HANDLING THE TUNGSTEN CARBIDE SEAL FACE. LEAVE THE STATIONARY
TUNGSTEN CARBIDE SEAT IN THE SEAL HOUSING (39). UNSCREW FOUR NUTS (77) AND PULL
OUT SEAL HOUSING. THE TC SEAL FACE WILL COME OUT WITH THE HOUSING. HANDLE THE
FACE CAREFULLY. DO NOT REMOVE FROM HOUSING IF IT SEEMS OK AND DOES NOT NEED
REPLACEMENT. THE UPPER MECHANICAL SEAL IS NOW IN VIEW. REMOVE THE UPPER SEAL IN
THE SAME WAY AS THE LOWER SEAL. LEAVE THE TC SEAT IN THE LOWER BEARING BRACKET
(21).
11. REMOVE THE FOUR NOS DEEP SEATED CAP SCREWS (40) THAT HOLD THE LOWER BEARING
BRACKET AGAINST THE STATOR CASING. BY MEANS OF TWO SCREW DRIVERS REMOVE THE
LOWER BRACKET FROM THE STATOR CASING. THE COMPLETE ROTOR (14,15,16) WITH
BEARINGS (80), BEARING COVER (20) AND TC SEAT WILL COME OUT WITH THE LOWER
BRACKET. REMOVE BOLTS (82) AND REMOVE BEARING COVER. PULL OUT ROTOR WITH
BEARINGS FROM LOWER BRACKET. (IF THIS IS DIFFICULT, USE A HAND PRESS TO REMOVE
ROTOR FROM BEARING BRACKET. ENSURE NO DAMAGE OCCURS TO THE TC SEAT IN BRACKET).
THE TC SEAT CAN NOW BE PUSHED OUT FROM THE BEARING SIDE BY GENTLY TAPPING THE
SAME. USE FINGERS OR A NYLON TIPPED HAMMER ONLY.
12. CHECK BOTH UPPER AND LOWER BEARINGS FOR ANY RADIAL OR AXIAL PLAY OR ANY
ABNORMAL NOISE WHILE SPINNING THE SAME. CHECK FOR ANY LEAKAGE OF GREASE THROUGH
THE SHIELD OF THE BEARING. IF THE BEARING SEEMS WORN OUT OR ANY GREASE LEAKAGE
IS OBSERVED, REPLACE BEARING. USE BEARINGS WHICH ARE FILLED WITH A HIGH
TEMPERATURE GREASE WITH A DROP POINT OF AT LEAST 240 DEGREES CELSIUS.
13. THE UPPER BEARING BRACKET (9) IS HELD IN PLACE BY TWO STUD BOLTS (4) ON THE
STATOR CASING (17/18/19). UNSCREW NUTS (5) AND REMOVE BEARING BRACKET FROM
STATOR CASING. USE SCREWDRIVERS TO PRY OUT THE SAME.
14. THE STATOR IS SHRINK FITTED IN THE CASING AND IS SUPPLIED WITH O-RINGS (10)
AS ONE UNIT.
RE-ASSEMBLY OF THE PUMPSET:
THE RE-ASSEMBLY OF THE UNIT CAN BE DONE BY REVERSING THE DIS-ASSEMBLY
PROCEDURE. IT IS MANDATORY THAT ALL "O" RINGS BE REPLACED WHENEVER A PUMP IS
OVERHAULED OR DISMANTLED. UNDER NO CIRCUMSTANCES SHOULD OLD "O" RINGS BE USED,
EVEN IF THEY SEEM O.K.

OIL SPECIFICATIONS
A) H.P. ENKLO OIL 46/48
B) SHELL TELLUS 29.
C) CHEVRON UNIVOLT 60/N61
USE NON-CONDUCTIVE, NON-FOAMING OIL ONLY
PLEASE NOTE THE SEAL CHAMBER CONTAINS APPROX. 1.6 LITRES OF OIL.
RECOMMENDED SPARES FOR TWO YEARS OPERATION (NC SERIES)
S. NO. DESCRIPTION PART NO. QUANTITY
1. MECHANICAL SEAL 535-022-00 1 NO.
2. MECHANICAL SEAL 535-022-00 1 NO.
3. "O" RING SET 375-004-66 2 SETS.
4. CABLE GROMMET 260-017-66 2 NOS.
5. LEAD GROMMET 260-031-66 2 NOS.
6. UPPER BEARING 020-005-07 1 NO.
7. LOWER BEARING 020-014-07 1 NO.
8. IMPELLER(NC10360M) 300-051-22 1 NO.
9. WEAR PLATE 715-005-80 1 NO.
10. CONTACTOR(NC10360M) 100-009-00 1 NO.
11. LOCK WASHER 695-004-21 1 NO.
* PLEASE SPECIFY IMPELLER # PER PUMP MODEL and Frequency

LIMITED WARRANTY
We warrant to our immediate customer and to the ultimate consumer that products of our manufacture will be free of
defects in material and workmanship under normal use and service for the following time periods, when installed and
maintained in accordance with our instructions.
PUMPS: One (1) year from date of installation or (18) months from date of shipment, whichever occurs first. As used
herein, “the ultimate consumer” is defined as the purchaser who first uses the product after it’s initial installation or, in
the case for product designed for non-permanent installation, the first owner who uses the product. It is the purchaser’s
or any sub-vendor’s obligation to make known to the ultimate consumer the terms and conditions of this warranty. This
warranty gives you specific legal rights, and there may also be other rights which vary from state to state. In the event
the product is covered by the Federal Consumer Product Warranties Law (1) the duration of any implied warranties
associated with the product by virtue of said law is limited to the same duration as stated herein, (2) this warranty is a
LIMITED WARRANTY, and (3) no claims of any nature whatsoever shall be made against us, until the ultimate
consumer, his successor, or assigns, notifies us in writing of the defect, and delivers the product and/or defective part(s)
freight prepaid to our facility or nearest authorized service station. Some states do not allow limitations on how long an
implied warranty lasts, so the above limitation may not apply. THE SOLE AND EXCLUSIVE REMEDY FOR
BREACH OF ANY AND ALL WARRANTIES WITH RESPECT TO ANY PRODUCT SHALL BE TO
REPLACE OR REPAIR AT OUR ELECTION, FOB POINT OF MANUFACTURE OR AUTHORIZED
REPAIR STATION, SUCH PRODUCTS AND/OR PARTS AS PROVEN DEFECTIVE. THERE SHALL BE
NO FURTHER LIABILITY, WHETHER BASED ON WARRANTY, NEGLIGENCE OR OTHERWISE.
Unless expressly stated otherwise, guarantees in the nature of performance specifications furnished in addition to the
foregoing material and workmanship warranties on a product manufactured by Mody, if any, are subject to laboratory
tests corrected for field performance. Any additional guarantees, in the nature of performance specifications must be in
writing and such writing must be signed by our authorized representative. Due to inaccuracies in field testing if a
conflict arises between the results of field testing conducted by or for user, and laboratory tests corrected for field
performance, the latter shall control. Components or accessories supplied by us but manufactured by others are
warranted only to the extent of and by the terms and conditions of the original manufacturer’s warranty.
RECOMMENDATIONS FOR SPECIAL APPLICATIONS OR THOSE RESULTING FROM SYSTEMS
ANALYSES AND EVALUATIONS WE CONDUCT, WILL BE BASED ON OUR BEST AVAILABLE
EXPERIENCE AND PUBLISHED INDUSTRY INFORMATION. SUCH RECOMMENDATIONS DO NOT
CONSTITUTE A WARRANTY OF SATISFACTORY PERFORMANCE AND NO SUCH WARRANTY IS
GIVEN.
This warranty shall not apply when damage is caused by (a) improper installation, (b) improper voltage, (c) lightning,
(d) sand or other abrasive materials, (e) scale or corrosion build-up due to excessive chemical content. Any modification
of the equipment will also void the warranty. We will not be responsible for loss, damage or labor cost due to
interruption of service caused by defective parts. Neither will we accept charges incurred by others without our prior
written approval. This warranty is void if our inspection reveals the product was used in a manner inconsistent with
normal industry practice and/or our specific recommendations. The purchaser is responsible for communication of all
necessary information regarding the application and use of the product. UNDER NO CIRCUMSTANCES WILL WE
BE RESPONSIBLE FOR ANY OTHER DIRECT OR CONSEQUENTIAL DAMAGES, INCLUDING BUT
NOT LIMITED TO LOST PROFITS, LOST INCOME, LABOR CHARGES, DELAYS IN PRODUCTION,
IDLE PRODUCTION, WHICH DAMAGES ARE CAUSED BY ANY DEFECTS IN MATERIAL, AND/OR
WORKMANSHIP AND/OR DELAYS IN SHIPMENT. THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY
OTHER EXPRESS OR IMPLIED WARRANTY, INCLUDING ANY WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE.
No rights extended under this warranty shall be assigned to any person, whether by operation or otherwise, without our
prior written approval.
Mody Pumps Inc.: 2166 Zeus Court, Bakersfield, CA 93308 Tel.: [phone] Fax: [phone]
