Mondi Utility & Sump pump User manual

GOLD SERIES MODEL# 1585X OWNER’S MANUAL
m
|
o
|
n
|
d
|
i
TM
GENERAL SAFETY ......... 2
INSTALLATION ............. 3
OPERATION ................ 4
SPECIFICATIONS ........... 5
MAINTENANCE & STORAGE 5
TROUBLESHOOTING ...... 6
WARRANTY ................. 6
EXPANDED VIEW .......... 7
UTILITY & SUMP PUMP
1/2 HP 1585 GPH
SAVE THIS MANUAL!
PLEASE READ ALL
INSTRUCTIONS BEFORE
USING THIS PRODUCT

m
|
o
|
n
|
d
|
i
TM
PLEASE READ AND SAVE THESE SAFETY INSTRUCTIONS!
This safety alert symbol will alert you to cautionary measures in the use and
operation of this pump, and give you instructions on how to avoid potentially
serious personal injury or property damage.
GENERAL & ELECTRICAL SAFETY
The following directions are included for your safety and the long-life of your MONDI
Utility & Sump Pump. Please carefully read and follow all safety instructions in this
manual and on the pump. Keep the safety labels in good condition. Replace missing
or damaged safety labels.
1. The pump is designed for use with clean, or slightly turbid fresh water. Not
intended for use in salty/briny water, oil or corrosive liquids.
2. Do not lift pump by power cord - attempting to lift or support the pump by the
power cord causes damage to the cord and cord connections, and voids your
warranty. Lift the pump by its handle only. If you need to lower the pump into
position, use a rope attached to the loop provided above the handle.
3. Follow the National Electrical Code, Canadian Electrical Code, and local codes
in regards to outlets and voltage for this pump.
4. Installation must comply with all local codes pertaining to utility pumps.
5. Know the pump application, limitations, and potential hazards. See Specifications
for more information.
6. Disconnect the power source, release all pressure within the system and drain
water from the pump before maintenance.
7. Secure the discharge line before starting pump to avoid personal injury and/or
property damage due to sudden discharge line movement.
8. Check pump and hoses for weakened or worn condition before each use, and
make certain that all connections are secure.
9. Periodically inspect the pump and system components to make sure the inlet is
free of debris or foreign objects.
GENERAL SAFETY
GENERAL SAFETY
!
2

GOLD SERIES MODEL#1585X
10. Wear protective eye-wear at all times when working with the pump.
11. This equipment is only for use on 115V (single phase) and is equipped with an
approved 3-conductor cord and 3-prong, grounding type plug.
WARNING HAZARDOUS VOLTAGE. CAN SHOCK, BURN OR CAUSE DEATH.
To reduce the risk of electrical shock, disconnect plug before servicing. Use only
with a individual branch circuit and proper 3-prong receptacle. Do not remove the
grounding pin under any circumstances - you will void your warranty.
12. Make certain the power source conforms to requirements of this pump.
13. Protect the electrical cord from sharp objects, hot surfaces, oil, and chemicals.
Avoid kinking cord.
14. Do not open the pump casing or motor housing. Warranty void if opened.
15. Disconnect power before handling or inspecting the pump to remove the risk of
electric shock.
INSTALLATION
This submersible pump is designed for use as a utility pump – an oil-less motor system
inside does not require lubrication. Please follow the instructions below carefully for the
long-life of your pump.
1. Place the pump on a hard level surface, making sure there is no debris that may
lodge in the pump inlet. Use a board or piece of metal if needed to raise the pump
in the case of muddy/debris covered base. If you have doubts as to debris in the
water, we recommend using a pump filter/pump bag (sold separately) to extend
the life of your pump.
2. Protect the power cord from damage. Uncovered cords should be checked at
regular intervals to ensure safe operation of the pump. Do not operate the pump if
the power cord or plug is damaged. The power cord is not replaceable.
3. Choose an adapter according to your requirements. Included with your MONDI
Utility & Sump Pump is a adjustable fitting with ½”, ¾”, 1” and 1¼” sizes (see
Figure 1.1), as well as a garden hose adapter (½”)(see Figure 1.2). To choose
INSTALLATION & OPERATION
INSTALLATION
!
3

m
|
o
|
n
|
d
|
i
TM
your custom size, simply use one of the pre-cast saw grooves to cleanly cut
through the plastic.
OPERATION
WARNING – HAZARDOUS VOLTAGE. CAN SHOCK, BURN OR CAUSE DEATH.
DISCONNECT POWER BEFORE MOVING OR INSPECTING PUMP.
1. The pump must be submersed in at least 1’(30cm) of water to operate - for
continuous operation complete submersion is preferable to prevent the
motor from overheating.
2. The pump will remove water down to 1/2”(1.0cm) in ideal conditions. If the pump
is operating and no water comes out of the discharge line, shut off the power
immediately. The water level is likely very low and the pump is no longer primed.
3. The pump is designed to pump cool water only. Pumping heated water, or liquids
other than water can overheat the motor. Do not pump flammable liquids - there
is a risk of explosion.
4. Keep the pump inlet free of debris or foreign material at all times – if required, use
a raised base for the pump to sit on (see Installation 1). We also recommend
using a pump bag or filter to extend the life of your pump.
OPERATION
OPERATION
!
FIG 1.1
CUSTOM FITTING SIZES INCLUDE:
0.50” | 0.75” | 1.00” | 1.25” GARDEN HOSE FITTING:
Standard 0.50”
SAW GROOVE
FIG 1.2
4

GOLD SERIES MODEL#1585X
SPECIFICATIONS
Max. Head, Max. Height, and Gallons Per Hour at Height are achieved in ideal conditions - your results may vary slightly.
MODEL NUMBER HP HZ
Gold Series 1585X 0.55 60Hz
CORD VOLTS ROTATION SPEED
20Ft/6.6m 115V 3450 RPM
DISCHARGE DIAMETER AMPS MAX HEAD
1.25”/2.9cm 5.5 1585 Gal/6000 L
DIMENSIONS WATTS MAX HEIGHT
13” x 7.5” x 9.8 ”/33 x 19 x 25cm 750W 27ft/9m
GALLONS/LITRES PER HOUR AT HEIGHT
1ft 5ft 10ft 15ft 20ft 25ft
1585Gal 1500Gal 1300Gal 1075Gal. 900Gal. 400Gal.
0.1m 2.0m 4.0m 6.0m 8.0m 10.0m
6000L 5488L 4450L 3690L 2100L 0L
MAINTENANCE & STORAGE
Always ensure that the pump is operating with adequate water supply. Periodically
shut off the power supply and check the pump for debris lodged in the intake grill.
The intake grill may be removed and cleaned by removing the screws underneath
the pump housing. The pump’s motor is completely sealed in the motor housing and
does not require regular service. Disassembly of the motor housing or modification or
removal of the power cords voids your warranty. The power cord is non-replaceable.
Make sure the pump is dry and clean before storing. Retain the original packaging for
the purpose of storing your pump. Always store your pumpin a cool dry place. Never
store it while it is stilled connected to power. Do not stress the cord by wrapping it
too tightly around the pump, as it could cause the cord to eventually fray and break
down. DO NOT store in water. When re-using the pump, please re-read the instructions.
INSTALLATION & OPERATION
SPECIFICATIONS & MAINTENANCE 5

m
|
o
|
n
|
d
|
i
TM
TROUBLESHOOTING
SYMPTOMS POSSIBLE CAUSES SOLUTION
Pump does not start Blown fuse/circuit breaker
has tripped
Low line voltage
Defective motor
If fuse is blown, replace with
new fuse/reset circuit breaker
Check size of wiring from main
switch on property/contact
your local power authority
Contact Dealer
Pump operates but
pumps very little or
no water
Low line voltage
Debris caught in impeller
Worn or defective parts
Check size of wiring from main
switch on property/contact
your local power authority
Contact Dealer
Contact Dealer
Pump has stopped Lower than operating
water level has caused
pump to overheat
Increase operating water level
or pump cooler water
2-YEAR LIMITED WARRANTY
MONDI warrants to the original consumer purchaser (“Purchaser”) of its products that they are free from defects in material or
workmanship. If within twenty-four (24) months from the date of the original consumer purchase any such product shall prove
to be defective, it shall be repaired or replaced at MONDI’s option, subject to the terms and conditions described below. The
original purchase receipt is required to be eligible for warranty. TERMS AND CONDITIONS Purchaser must pay shipping charges
necessary to replace product covered by this warranty. This warranty shall not apply to natural acts or disasters such as but
not limited to: lightning, power surges, flash flooding, earthquake, nor shall it apply to products which in the sole judgement
of MONDI, have been subjected to negligence, abuse, accident, misapplication, tampering, alteration; nor due to improper
installation, operation, maintenance, or storage; nor to other than normal application, use or service, including but not limited
to, operational failures caused by corrosion, rust or other foreign materials in the system, or operation at pressures in excess
of recommended maximums. Requests for service under this warranty shall be made by returning the defective product to
the Retail outlet or to MONDI as soon as possible after the discovery of any alleged defect. MONDI will subsequently take
corrective action as promptly as reasonably possible. No requests for service under this warranty will be accepted if received
more than 30 days after the term of this warranty. This warranty sets forth MONDI’s sole obligation and purchaser’s exclusive
remedy for defective products. MONDI SHALL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT
DAMAGES WHATSOEVER. THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES.
IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, SHALL NOT EXTEND BEYOND THE DURATION OF THE APPLICABLE EXPRESS WARRANTIES PROVIDED
HEREIN. Some states in the U.S.A. do not allow the exclusion or limitation of incidental or consequential damages or limitations
on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you
specific legal rights and you may have other rights which vary between provinces and states.
TROUBLESHOOTING & WARRANTY
6

GOLD SERIES MODEL#1585X

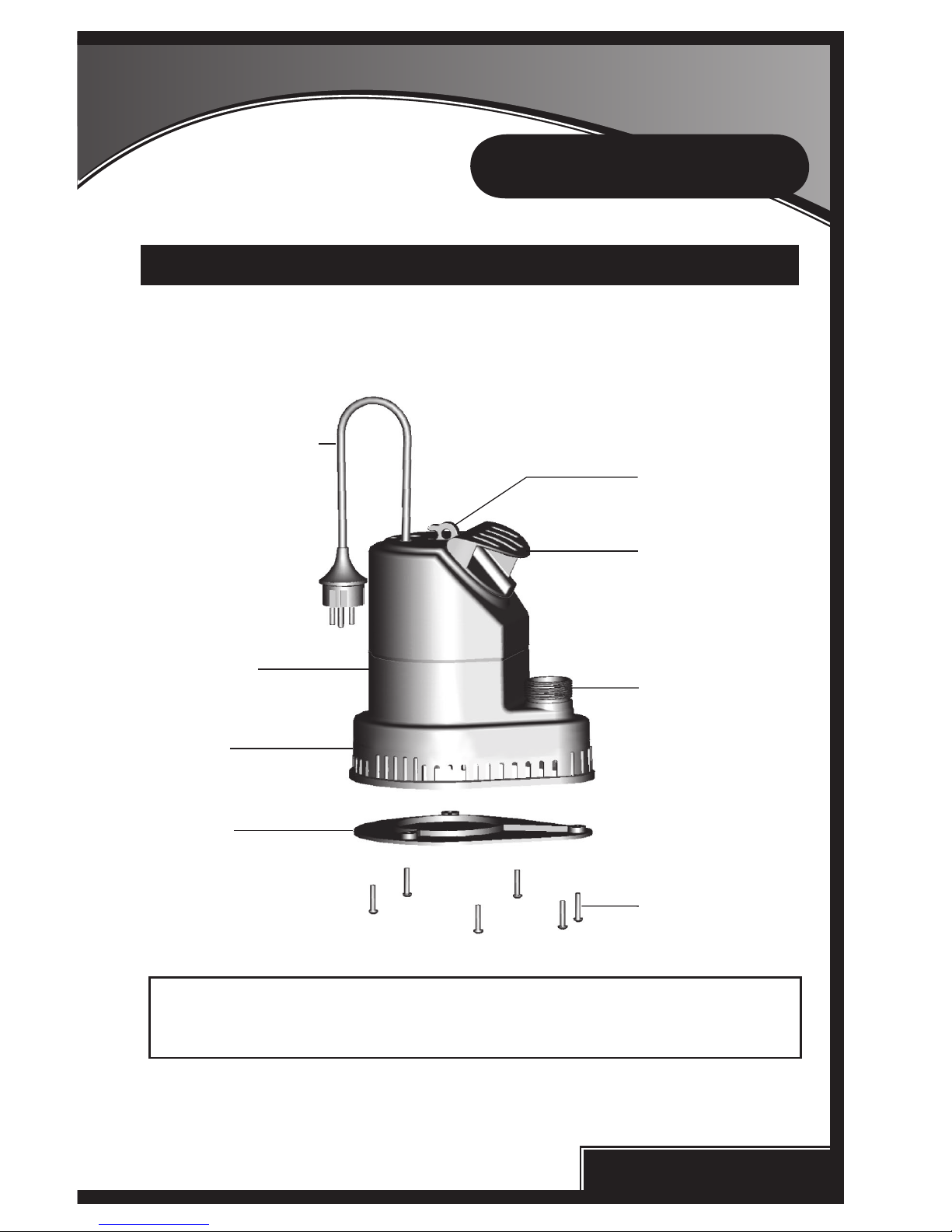

EXPANDED VIEW
NOTE: DO NOT OPEN THE MOTOR HOUSING!
DOING SO VOIDS YOUR WARRANTY.
EXPANDED VIEW
3-Prong Grounded Cord
(20ft./6.6m)
Motor Housing
(Sealed)
Intake Grill
(Keep clean)
Pump Base
(Can be removed for
cleaning impeller)
Pump Handle
(Removable)
Support Loop
(To lower pump
into flooded areas)
Discharge Outlet
(Use with either
the Adjustable Adapter or
Garden Hose Adapter)
Pump Base Screws
The following diagram is for your reference to operate and clean your MONDI
Utility & Sump Pump. Do not open the motor housing - you will void your warranty.
7

COPYRIGHT 2004
MONDI PRODUCTS LTD.
CALL:1-888-88MONDI
WWW.MONDIPRODUCTS.COM
VANCOUVER, CANADA
m
|
o
|
n
|
d
|
i
TM
07/04 MONDI™ IS USED UNDER LICENSE
