ZIFP360NX
GE Monogram® 36" Built-In Professional All-Freezer
Dimensions and Installation Information
ZIFP360NXRH, Freezer
Handle on the left side, the door swings left to right.
ZIFP360NXLH, Freezer
Handle on the right side, the door swings right to left.
Caution
*Shipping height. The freezer can be adjusted to fit into
a cutout 83-1/2" min. to 84-1/2" max. height. Note: the
top case trim at the front is 1/2" higher and will overlap
upper cabinetry or soffit. Use leveling legs and wheels for a
maximum 1" height adjustment.
The water and electrical supply must be located as shown.
The finished cutout width must be 35-1/2".
Note: The case trim overlaps cabinets at the top and
sides. Frameless cabinets may require filler strips to
prevent interference with cabinet door swing. The opening
width must allow for filler strips.
36" Frame to
Frame Width
*84" From
Floor to
Top Frame
35"
Case Width
*83-1/2"
at
Rear
25-3/4" Stainless Steel Models
Case Depth
Depth Including Handles:
27-3/4" Stainless Steel Models
28-11/16" Professional Models
Product Clearances
These units are equipped with a 2-position door stop. The fac-
tory set 130˚ door swing can be adjusted to 90˚ if clearance
to adjacent cabinets or walls is restricted. Order WX14X99
door stop for precise settings between 90˚and 130˚.
251Dia59
25"
Minimum
to Wall
130°Door Swing
36-3/4"
23-7/8"
Behind Frame
251Dia60
5" Min.
to Wall
90°Door Swing
Allow 25" minimum clearance for a full 130˚ door swing.
Allow 15" for pan removal. for a 90˚ door swing, allow 5"
minimum clearance for professional models. If the 90˚
doorstop position is used, pan access is maintained but
pan removal is restricted.
These units are top-heavy and must be secured to prevent the
possibility of tipping forward. Anti-Tip protection is required.

For answers to your Monogram,® GE Profile™
or GE®appliance questions, visit our website
at ge.com or call GE Answer Center®service,
800.626.2000.
110151
Specification Revised 10/09
Listed by
Underwriters
Laboratories
ZIFP360NX
GE Monogram® 36" Built-In Professional All-Freezer
Dimensions and Installation Information

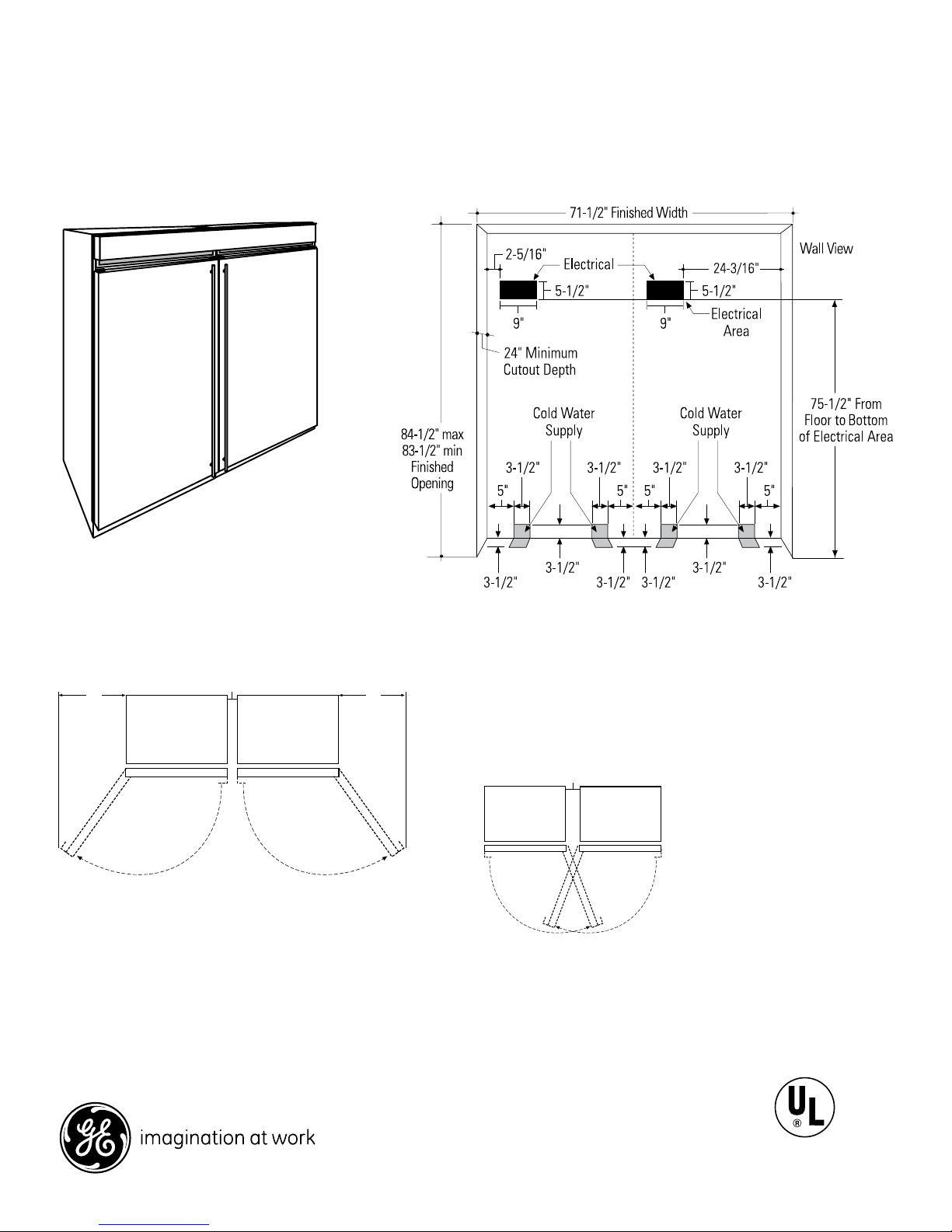

Cutout and Clearances for Multiple Product Installations
If you are installing two units, side by side, the installation
space must be 71-1/2" wide. Additional cutout width may be
required when side panels are used. Add side panel thickness
to the finished cutout to calculate rough-in width.
• The water and electrical locations for each product must be
located as shown.
• A separate 115V, 60Hz., 15 or 20 amp power supply is
recommended for each product.
251Dia35
251Dia61
25"
Min. to
Wall
0" 25"
Min. to
Wall
130°Door Swing 130°Door Swing
Clearances for two products installed side-by-side with
right and left side hinges together
Allow 5" minimum between the two products to prevent
one door from striking the other. Use the WX14X99
adjustable door stop to reduce the factory set 130˚ door
swing and to allow pan removal. NOTE: A unified grille
panel kit will NOT fit this installation.
Clearances for Multiple Single Door Installations
In a side-by-side installation of a left and right door swing
product, the inside trims touch at the front, with a 1" clearance
between the units at the rear. Order ZUGPP2 Professional
Unified Grille Panel Kit for one continuous grille panel.
ZUGPP2: For side-by-side installation of two
professional models. This kit provides a unified stainless
steel grille panel to span the width of two units.
For a complete food storage center, install a Monogram
All-Refrigerator and All Freezer side-by-side. For even
more capacity, install two refrigerators or two freezers.
5"

For answers to your Monogram,® GE Profile™
or GE®appliance questions, visit our website
at ge.com or call GE Answer Center®service,
800.626.2000.
110151
Specification Revised 10/09
ZIFP360NX
GE Monogram® 36" Built-In Professional All-Freezer
ZIRP360NX
ZIFP360NX
Features and Benefits
• Stainless Exterior - Conveys a sense of
solidity and beauty with tubular handles,
louvered grille and chamfered, hand-
finished edges
• Enhanced Temperature Management
System - With precise electronic controls
and thermistors, maintains ideal storage
conditions for frozen foods
• Concealed Halogen Lighting System
- Illuminates contents without
compromising space
• Concealed Ice Drawer - Provides quick
and easy access to filtered ice
• GE Water Filtration System - Provides
clean, fresh-tasting water to the freezer's
icemaker
• ENERGY STAR®Qualification - As an
ENERGY STAR partner, GE has determined
that Monogram all-freezers meet the
ENERGY STAR guidelines for energy
efficiency
• Adjustable, Wire Shelves, Gallon-Size
Door Bins and Pullout Baskets - Allow
customizable storage for foods and
containers of varying sizes
• Model ZIFP360NXRH – Stainless steel
wrap (right-handed door swing)
• Model ZIFP360NXLH – Stainless steel
wrap (left-handed door swing)
