monolith HTP-1 User manual

P/N 37887
User’s Manual
HTP-1 16-CHANNEL HOME THEATER PROCESSOR
with Dolby Atmos®, DTS:X®, Auro-3D®, and Dirac Live®Compatibility

2
CONTENTS
SAFETY WARNINGS AND GUIDELINES...................................................................................................................................5
INTRODUCTION.......................................................................................................................................................................................... 7
CUSTOMER SERVICE .............................................................................................................................................................................. 7
PACKAGE CONTENTS............................................................................................................................................................................8
REQUIREMENTS..........................................................................................................................................................................................8
PRODUCT OVERVIEW ...........................................................................................................................................................................9
Front Panel...............................................................................................................................................................................................9
Rear Panel...............................................................................................................................................................................................10

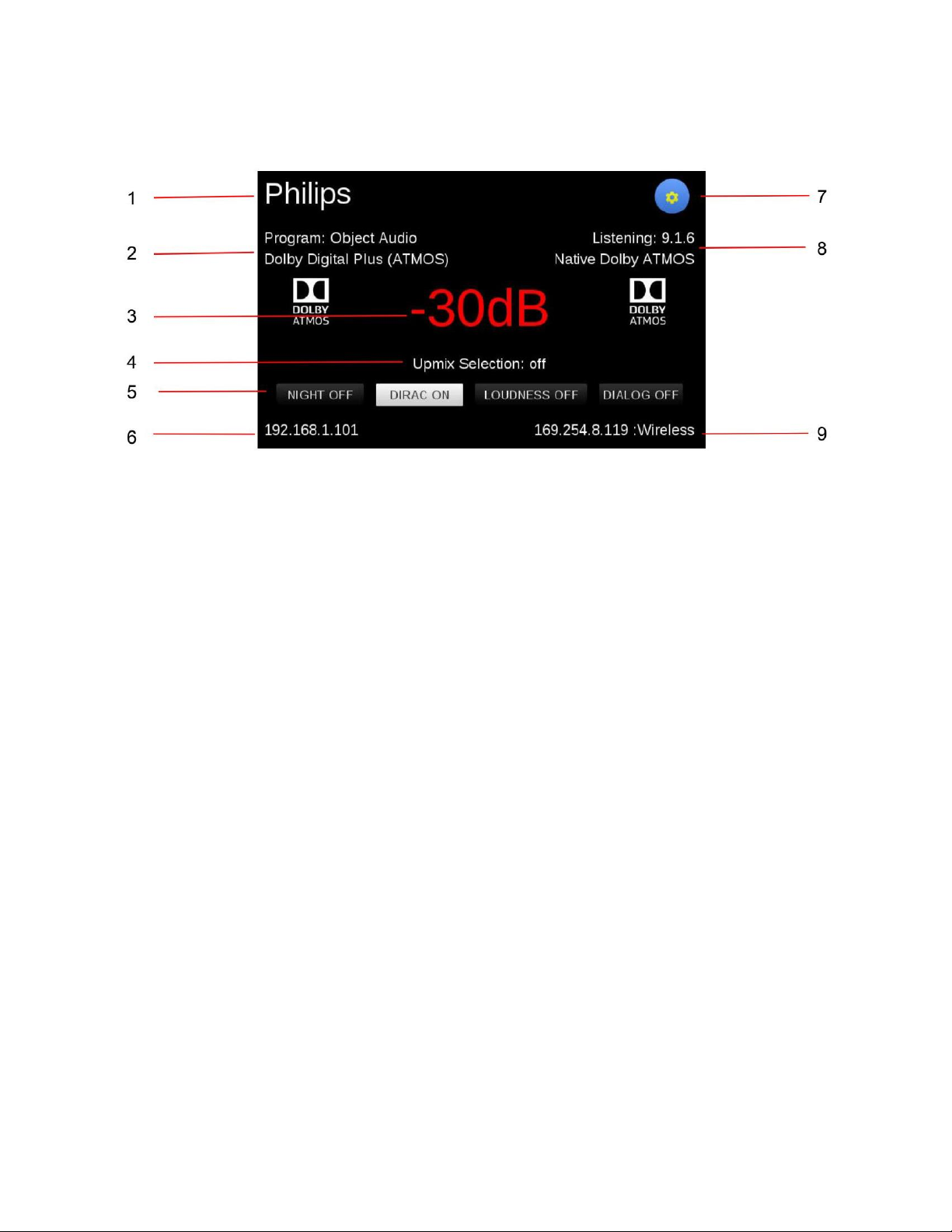

Front Panel LCD Display .............................................................................................................................................................12

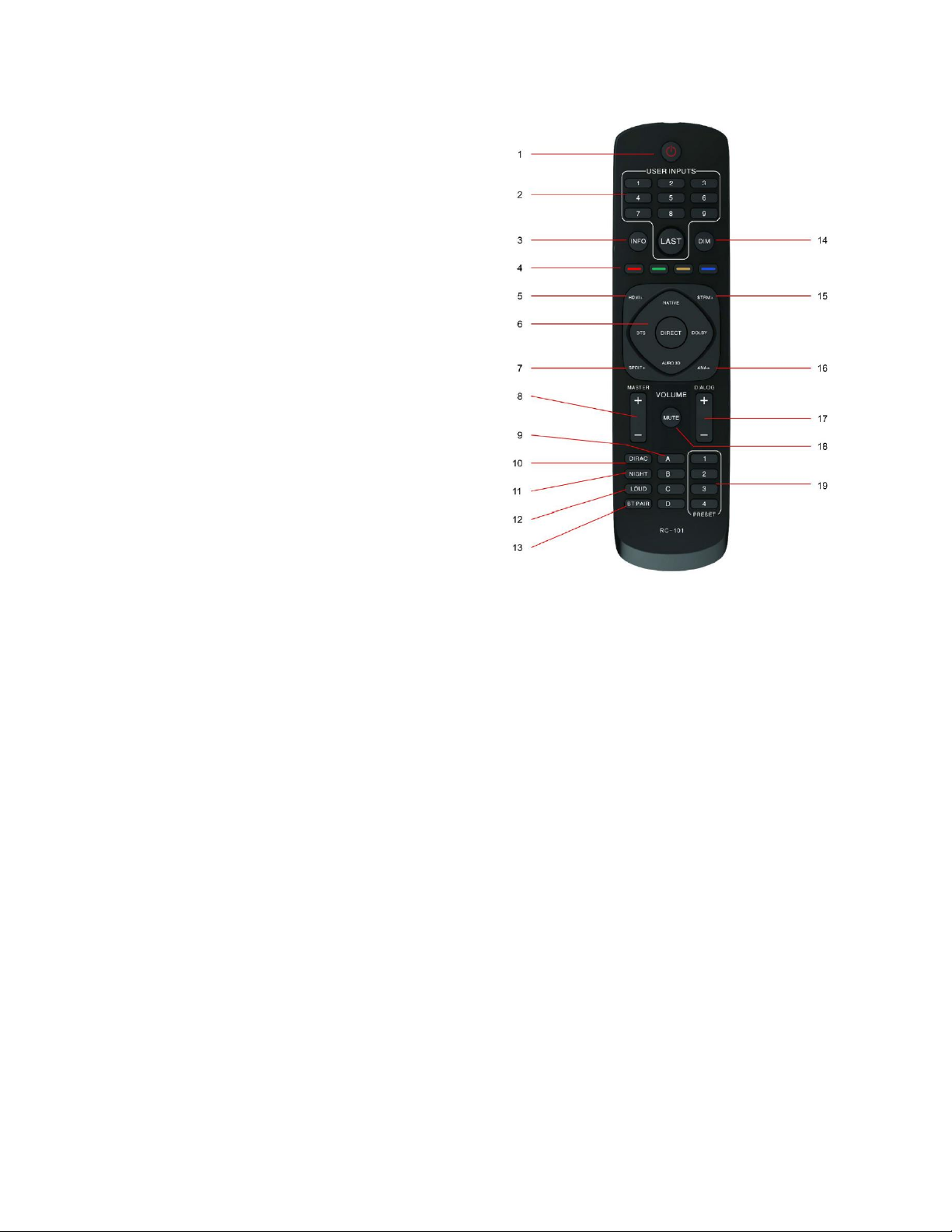

Remote Control ................................................................................................................................................................................. 13

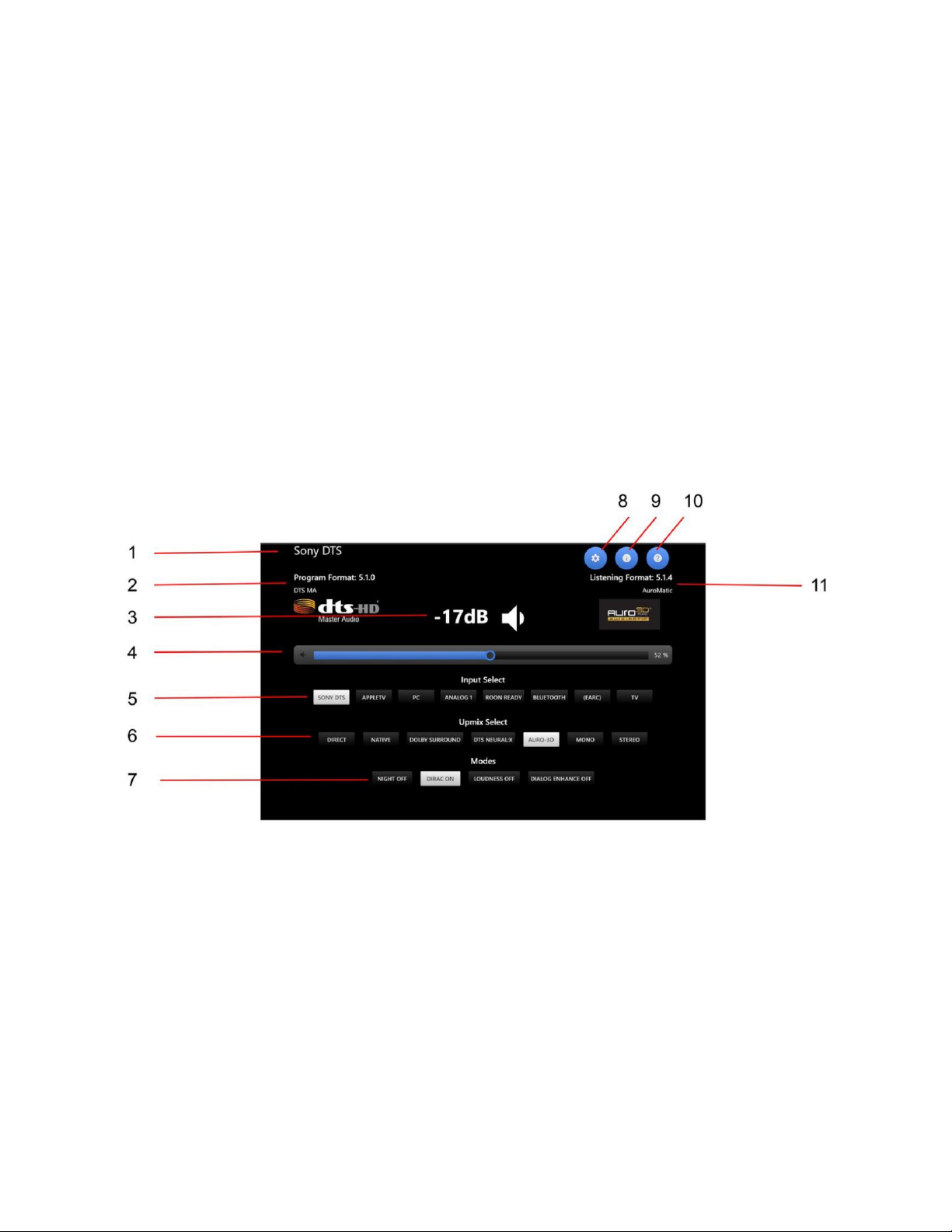

Web GUI Home Page.....................................................................................................................................................................15
BASIC SETUP............................................................................................................................................................................................... 17

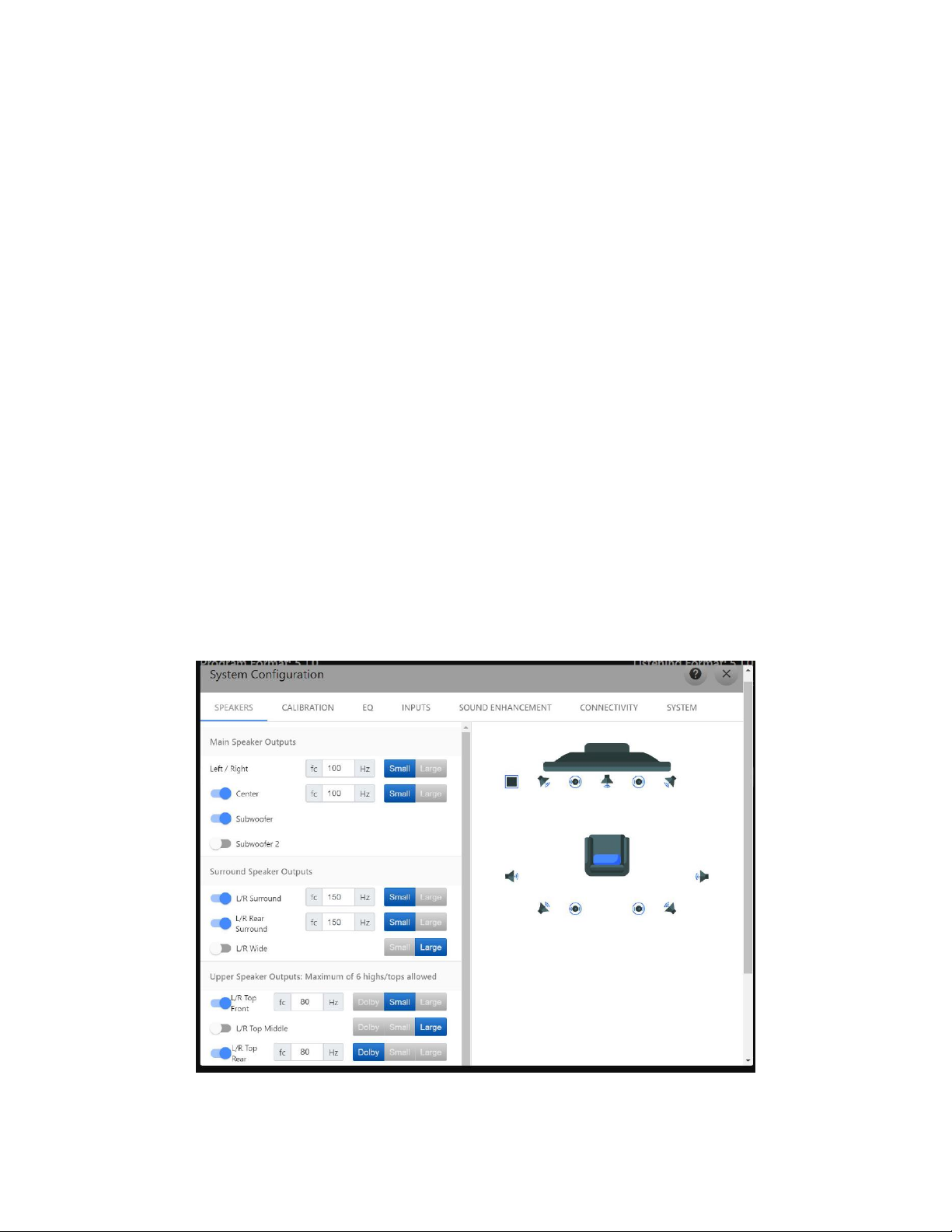

SYSTEM CONFIGURATION ..............................................................................................................................................................19
SPEAKERS.....................................................................................................................................................................................................20
About Speaker Configurations ............................................................................................................................................20

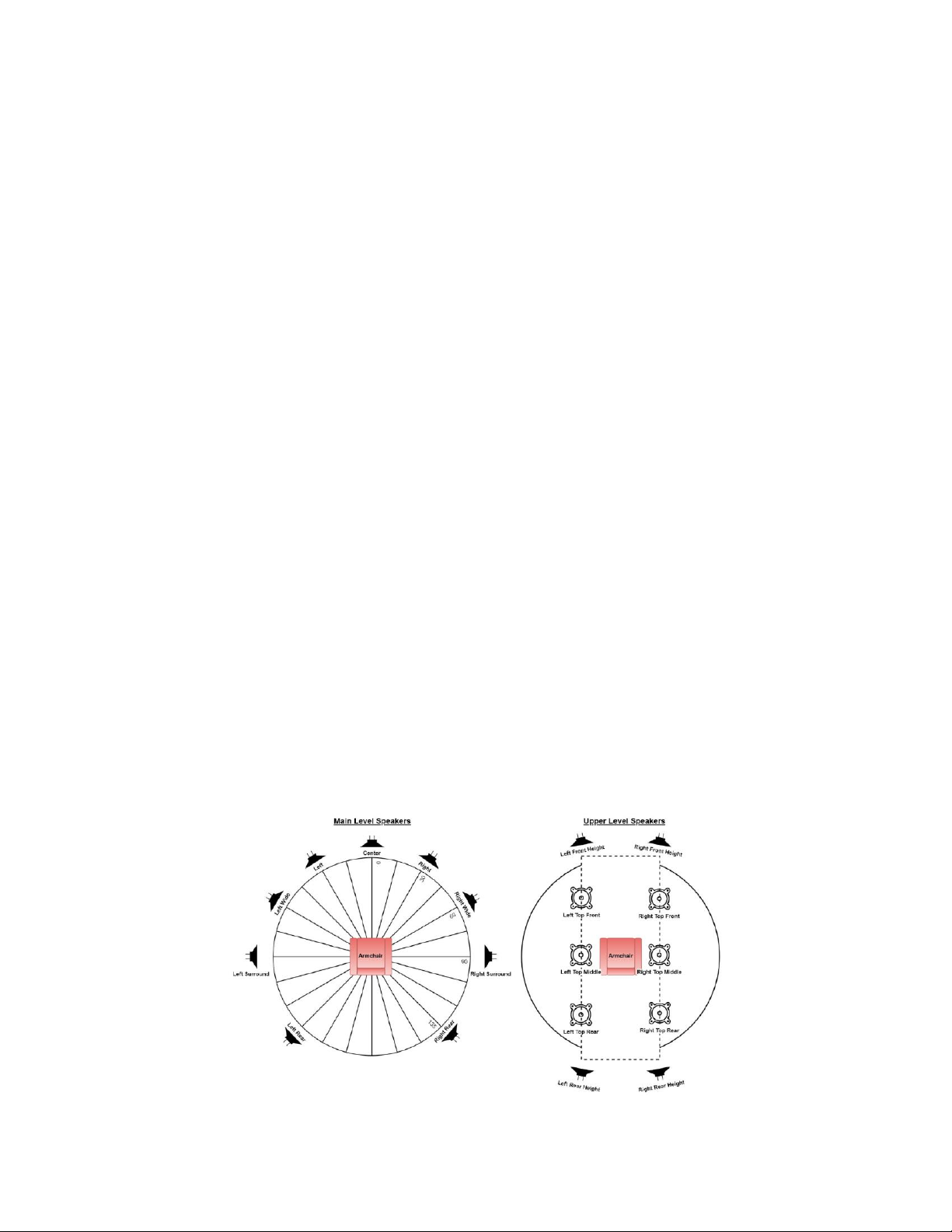

Speaker Location Diagrams....................................................................................................................................................20
Valid Speaker Configurations.................................................................................................................................................21
Speaker Setup....................................................................................................................................................................................25
Example Speaker Configurations....................................................................................................................................... 27
Dolby Enabled Speakers............................................................................................................................................................. 31
CALIBRATION............................................................................................................................................................................................. 31
Voltage Range and Amplifier Input Sensitivity....................................................................................................... 31
Dirac Calibration................................................................................................................................................................................33
Manual Calibration......................................................................................................................................................................... 39
Using the PEQ.....................................................................................................................................................................................40

3
Adjusting the Cutoff Frequencies .....................................................................................................................................40
EQ........................................................................................................................................................................................................................41
INPUTS............................................................................................................................................................................................................42
Selecting Inputs................................................................................................................................................................................42
Naming and Activating Inputs .............................................................................................................................................43
UHD Capable.......................................................................................................................................................................................44
Bluetooth ...............................................................................................................................................................................................45
PCM Detect Sensitivity ..............................................................................................................................................................45
SOUND ENHANCEMENT ..................................................................................................................................................................46
CONNECTIVITY ........................................................................................................................................................................................50
Setting Up ARC/eARC and CEC...........................................................................................................................................50
Ethernet...................................................................................................................................................................................................54
Wi-Fi...........................................................................................................................................................................................................54
SYSTEM..........................................................................................................................................................................................................56
AUDIO FEATURES..................................................................................................................................................................................58
Night Mode ..........................................................................................................................................................................................58
Dialog Enhancement ....................................................................................................................................................................59
Loudness.................................................................................................................................................................................................59
Bass Reinforcement.......................................................................................................................................................................60
Highest Quality Audio Guidelines .....................................................................................................................................60
VIDEO FEATURES....................................................................................................................................................................................61
EDID Management..........................................................................................................................................................................61
Dolby Vision.........................................................................................................................................................................................62
TRIGGERS......................................................................................................................................................................................................62
USING ROON.............................................................................................................................................................................................63
SOFTWARE UPGRADE........................................................................................................................................................................64

4
FEEDBACK ...................................................................................................................................................................................................65
IR CODE TABLE ........................................................................................................................................................................................66
SIGNAL PROCESSING FLOW ........................................................................................................................................................68
TECHNICAL SUPPORT.........................................................................................................................................................................68
SPECIFICATIONS.....................................................................................................................................................................................69
REGULATORY COMPLIANCE ........................................................................................................................................................70
Notice for FCC....................................................................................................................................................................................70
RF Exposure Statement for FCC........................................................................................................................................... 71
Notice for Industry Canada...................................................................................................................................................... 71
RF Exposure Statement for Industry Canada............................................................................................................ 71

5
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
•This device is intended for indoor use only.
•Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power outlet and allow it to fully dry
before reapplying power.
•Do not touch the device, the power cord, or any other connected cables with wet
hands.
•Do not install this device on an unstable surface where it could fall and cause either
personal injury or damage to the device and/or other equipment.
•Do not subject the product to extreme force, shock, or fluctuations in temperature
or humidity.
•Do not expose this device to excessively high temperatures. Do not place it in, on,
or near a heat source, such as a fireplace, stove, radiator, etc. Do not leave it in
direct sunlight.
•This device ventilates excessive heat through the slots and openings in the case. Do
not block or cover these openings. Ensure that the device is in an open area where
it can get sufficient airflow to keep from overheating.
•Do not place or install this device in an area where it can be exposed to excessive
amounts of dust, humidity, oil, smoke, or combustible vapors.
•Use only in a well-ventilated area. Do not use in close, confined spaces. Ensure that
there is at least 3" of space around and above the device.
•Prior to operation, check the unit and power cord for physical damage. Do not use if
physical damage has occurred.
•Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.

6
•This device uses a grounded power cord and requires a ground connection for safe
operation. Ensure that the power source has a proper ground connection. Do not
modify the plug or use a "cheater" plug to bypass the ground connection.
•Disconnect the unit from the power source when replacing the fuse. Replace the
fuse only with the same type.
•Unplug this device from the power source when not in use.
•Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that the
power cord does not present a tripping hazard.
•Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.
•Ensure that power is turned off and disconnected before making any electrical
connections.
•Remove the batteries from the controller if it will go unused for a lengthy period of
time.
•Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
•This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.

7
INTRODUCTION
The Monolith™ HTP-1 is an "AVR" or "Pre-Processor" designed for use in home theaters. It
supports Dolby Atmos®, DTS:X®, Auro-3D®, and Dirac Live®. It features eight HDMI® Ultra
High Definition (4K UHD) inputs and two HDMI 4K UHD outputs. It has seven digital audio
inputs, two stereo analog inputs, one secondary stereo analog output, and sixteen
balanced XLR analog outputs. It has a built-in web GUI, which allows you to configure it
using a computer, smartphone, or tablet, as well as an infrared remote control for adjusting
volume, changing the upmix, and selecting inputs. It is designed for easy software updates
using an internet connection.
The HTP-1's software and this manual may be updated from time-to-time. The latest manual
will always be available on the Monoprice website. Refer to the SOFTWARE UPDATE
section for details about updating the HTP-1's software.
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com or via email at [e-mail]. Check the website for
support times and links.

8
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x HTP-1 Home Theater Pre-Processor
1x IR Remote Control
1x Bluetooth®/Wi-Fi® Antenna
1x AC Power Cord
REQUIREMENTS
•A laptop or desktop computer with a calibrated microphone (not included) are
required to perform a Dirac® calibration. A smartphone or tablet cannot be used to
perform a Dirac calibration. Dirac recommends using the MiniDSP UMIK-1
microphone.
•The HTP-1 must be connected to an existing Ethernet wired or wireless network and
to the internet. Computers or mobile devices connected to the network can be
used to control and configure the HTP-1. For the initial BASIC SETUP , you should
have a wired Ethernet connection.
•One or more separate power amplifiers or powered speakers are required.
•One or more audio and/or video source devices.
•A web browser. Note that the system has been tested and works well with the
Chrome™, Firefox®, and Safari® browsers, but has had some problems with
Microsoft Edge®.

9
PRODUCT OVERVIEW

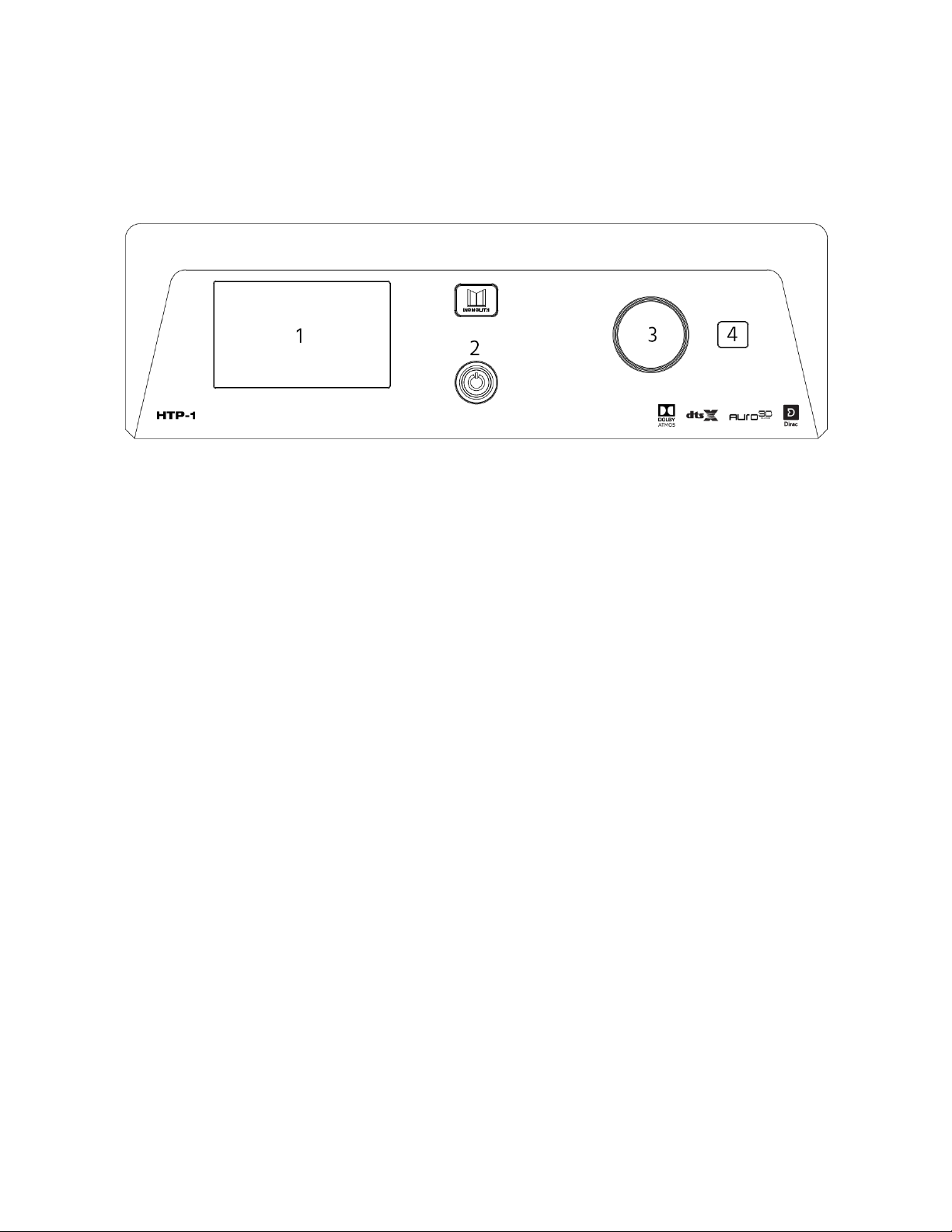

Front Panel
1. LCD Display: This 5" touchscreen displays the volume level, selected input, upmix
selection, and various other system statuses. See the Front Panel LCD Display
section below for details.
2. Power Button: If the Master Power Switch on the rear panel is in the ON position,
the front panel Power Button turns the unit on or puts it into standby. While the
unit is booting, the button flashes blue. When fully powered on, the button
illuminates blue.
IMPORTANT! If you switch the unit off using the Master Power Switch on the rear
panel, wait at least 15 seconds before flipping the Master Power Switch to the ON
position, again.
3. Volume Knob: Rotate the Volume Knob counterclockwise to decrease the volume
level or clockwise to increase the volume level.
4. IR Receiver: The IR Receiver accepts infrared signals from the included IR Remote
Control.

10

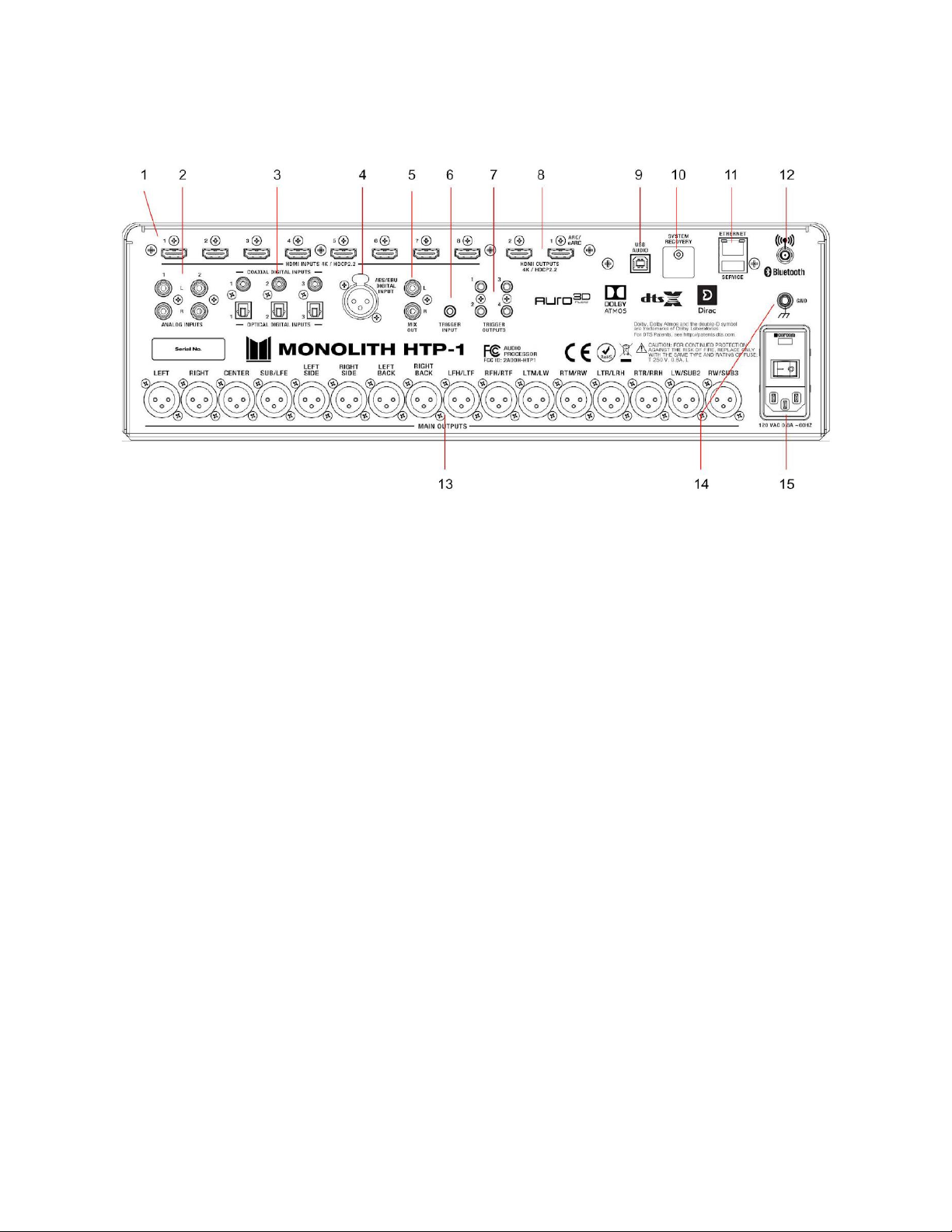

Rear Panel
1. HDMI INPUTS: Eight HDMI® inputs for connecting HDMI source devices. Each input
supports the 4K resolution and the HDMI 2.0 and HDCP™ 2.3 standards.
2. ANALOG INPUTS: Two pairs of RCA analog stereo jacks for connecting up to two
analog stereo audio sources.
3. COAXIAL/OPTICAL DIGITAL INPUTS: Three digital coaxial and three digital optical
S/PDIF audio connectors for connecting digital audio inputs. All six inputs are active
and can be independently selected.
4. AES/EBU DIGITAL INPUT: Three-pin XLR jack for connecting an audio device that
outputs an AES/EBU (aka AES3) digital audio signal.
5. MIX OUT: One pair of RCA analog stereo jacks for connecting a stereo amplifier or
powered speakers. The input signal is mixed down to a stereo signal.
6. TRIGGER INPUT: This 3.5mm trigger input turns the HTP-1 on when a 12V signal is
applied. The HTP-1 will go into standby mode when the trigger signal is removed.
Note that the Master Power Switch on the rear panel must be in the ON position for
the trigger signal to turn the HTP-1 on.
7. TRIGGER OUTPUTS: These four 3.5mm jacks send a 12V 50mA trigger signal when the
HTP-1 is powered on. The 12V signal is sent continuously while the HTP-1 is powered
on. These triggers are typically used to power on the power amplifiers.

11
8. HDMI OUTPUTS: Two HDMI® outputs for connecting HDMI displays. The 1output
supports the Audio Return Channel (ARC)/Extended Audio Return Channel (eARC)
HDMI features, which receives audio signals from the connected display. This is
necessary if you are going to stream video from an app on your TV or if you are
receiving over-the-air television broadcasts using an HD antenna.
9. USB AUDIO: Not supported.
10. SYSTEM RECOVERY: The cover hides a miniSD™ card slot which is used at the
factory for production purposes only.
11. ETHERNET/SERVICE: An RJ45 jack for making a wired connection to an existing
Ethernet network. The USB port is for performing service at the factory.
12. ANTENNA: An SMA connector for attaching the included Bluetooth®/Wi-Fi®
Antenna.
13. MAIN OUTPUTS: Sixteen balanced XLR jacks for connecting external power
amplifiers.
14. GND: Screw terminal for making a ground connection to the chassis.
15. POWER SECTION: The POWER SECTION contains the Master Power Switch, the C14
Power Connector for attaching the included AC Power Cord, and a Fuse Holder.
Always disconnect the power cord from the power source before replacing the
fuse, and replace the fuse with the same type.
IMPORTANT! If you switch the unit off using the Master Power Switch, wait at least
15 seconds before flipping the Master Power Switch to the ON position, again.

12
Front Panel LCD Display
1. Input: The current active Input is displayed in the upper left corner of the screen.
The sample screenshot above shows Philips as the Input. The text for each input can
be configured on the INPUTS tab on the System Configuration screen in the Web
GUI.
2. Program Format: The Program Format displays the audio format of the selected
Input. The sample screenshot above shows Object Audio Dolby Digital Plus
(ATMOS) as the Program Format. See the About Speaker Configurations section for
details of the number displayed.
3. Volume: The Volume level is displayed in the center of the screen. The sample
screenshot above shows -30dB as the Volume. The decibel (dB) value is relative to
the amplifier input sensitivity setting, which can be configured on the CALIBRATION
tab on the System Configuration screen in the Web GUI. When the audio is muted,
the display changes from white to red. Mute can be toggled on or off by touching
the Volume display on the screen, using the IR remote control, or by clicking the
Volume display on the built-in Web GUI Home Page.
4. Upmix Selection: The current Upmix Selection setting is displayed beneath the
Volume on the screen. The upmix is selected using the IR remote control or with the
built-in Web GUI. The selected mode is only the desired/requested upmix mode.
The system will perform the requested upmix mode only if it is supported. The
Listening Format (see 8 below) is displayed beneath the Setup icon and shows the

13
actual upmix mode algorithm being used, which may not match the requested
mode. See the Using Surround Modes section for details.
5. Special Listening Modes: The status of the NIGHT, DIRAC, LOUDNESS, and DIALOG
modes is displayed beneath the Upmix Selection.
6. IP Address: The current wired Ethernet IP Address is displayed in the lower left
corner. The sample screenshot above shows the IP Address as 192.168.1.101. You
access the built-in Web GUI by typing the IP Address into the address bar of your
web browser. Some browsers default to https:// before the address, which will not
work. The address must begin with http://.
7. Wi-Fi Setup: Touch the gear icon to display the Wi-Fi®Setup screen. See the Wi-Fi
section for details. If the icon is yellow, a software update is available for the HTP-1.
8. Listening Format: The Listening Format is displayed beneath the Setup icon and
shows the actual upmix mode algorithm being used, which may not match the
requested mode. See the Using Surround Modes section for details.
9. Wireless: If the HTP-1 is connected to a Wi-Fi Ethernet network, the IP Address will
be displayed in the lower right corner. The sample screenshot above shows
192.254.8.119 for the wireless IP address. Note that if both a wired and wireless
connection is available, you can use whichever you prefer.
Remote Control
1. POWER: Press the POWER button to turn the unit on or or to put it into standby
mode.
2. USER INPUTS: Press the number buttons to select individual inputs. The numbers
map to the visible inputs, from left to right, that are display on the Web GUI Home
Page. Press the LAST button to select the last input used.
3. INFO: Press the INFO button to display the relevant information on the LCD Display.
4. Red, Green, Yellow, Blue: Not used.

14
5. HDMI+: Press the HDMI+ button to
cycle forward through the available
HDMI® inputs, as well as the HDMI TV
input. Note that when using the HDMI+
button, the display will show the new
input about 3 seconds before the
change is actually made. This allows you
to cycle through unwanted inputs to
get to the one you want without having
to change to each input in between.
6. SURROUND MODES: Press the buttons
to select the NATIVE, DTS®, DIRECT,
DOLBY®, or AURO-3D® surround modes.
7. SPDIF+: Press the SPDIF+ button to
cycle forward through the available
digital audio inputs. The cycle order is
COAXIAL 1, COAXIAL 2, COAXIAL 3, OPTICAL 1, OPTICAL 2, OPTICAL 3, and AES/EBU.
8. MASTER: Press the +button to increase the MASTER volume level or press the -
button to decrease the MASTER volume level.
9. A, B, C, D: Not used.
10. DIRAC: Press the DIRAC button to enable or disable Dirac® Room Correction.
11. NIGHT: Press the NIGHT button to enable or disable Night Mode for low volume
movie viewing or to set it to auto. Refer to the Night Mode section for details.
12. LOUD: Press the LOUD button to enable or disable Loudness Mode, which boosts
low and high frequencies for low volume music listening. Refer to the Loudness
section for details.
13. BT PAIR: Not used.
14. DIM: Press the DIM button to cycle through several brightness levels for the LCD
Display.

15
15. STRM+: Press the STRM+ button to cycle through the Roon® and Bluetooth®
streaming inputs.
16. ANALOG+: Press the ANALOG+ button to toggle between the two analog audio
inputs.
17. DIALOG: Press the +button to increase the DIALOG volume level or press the -
button to decrease the DIALOG volume level.
18. MUTE: Press the MUTE button to turn audio muting of all speakers on or off.
19. 1, 2, 3, 4: Not used.
Web GUI Home Page
1. Active Input: The current Active Input is displayed in the upper left corner. The
sample screenshot above shows Sony® DTS as the Active Input. The specific text
used for each input is configured on the INPUTS tab of the System Configuration
screen.
2. Program Format: The Program Format displays the audio format of the selected
input. The sample screenshot above shows 5.1.0 DTS MA as the Program Format. See
the About Speaker Configurations section for details of the number displayed.

16
3. Volume: The Volume level is displayed in the center of the screen. The sample
screenshot above shows -17dB as the Volume. The decibel (dB) value is relative to
the input sensitivity, which can be configured on the CALIBRATION tab on the
System Configuration screen. When audio is muted, the display changes from white
to red. Mute can be toggled on or off by touching the Volume display on the LCD
Display, using the IR remote control, or by clicking the Volume display on the Web
GUI Home Page.
4. Volume Slider: Click and drag the slider to change the volume level.
The Volume Slider can be replaced by Volume Buttons on the
SYSTEM tab on the System Configuration screen. The Volume
Buttons display is shown in the image to the right.
5. Input Select: Click one of the buttons to select one of up to nine inputs. Which
inputs are displayed and how they are named can be configured on the INPUTS tab
on the System Configuration screen.
6. Upmix Select: Click one of the buttons to select one of up to nine upmix/surround
modes. The selected mode is only the desired/requested upmix mode. The system
will perform the requested upmix mode only if it is supported. The Listening Format
(see 11 below) shows the actual upmix mode algorithm being used, which may not
match the requested mode. See the Using Surround Modes section for details.
7. Modes: Click the buttons to toggle the state of the NIGHT, DIRAC, LOUDNESS, and
DIALOG special listening modes.
8. Setup: Click the gear icon to display the System Configuration screen with the
SPEAKERS, CALIBRATION, EQ, INPUTS, SOUND ENHANCEMENT, CONNECTIVITY, and
SYSTEM setup tabs.
9. Information: Click the iicon to display a screen with detailed status, as well as
access to updates and the ability to roll back the current software installation. If the
button is yellow, a software update is available.
10. Help: Click the ?icon to see useful information about the current tab or page.
11. Listening Format: The Listening Format is displayed beneath the Help icon and
shows the actual upmix mode algorithm being used, which may not match the
requested mode. See the Using Surround Modes section for details.

17
BASIC SETUP
The best way to become familiar with the HTP-1 is to simply start using it! Before delving
into more advanced topics, we will connect one HDMI® source, an HDMI display, and a
power amplifier in stereo 2.0.0 mode. Perform the following steps connect these devices.
1. Place the HTP-1 in its desired location. Ensure that it is not in an enclosed cabinet,
that it has at least 3" of space around and above the unit, and that it is in a well-
ventilated area to ensure sufficient cooling airflow.
2. Ensure that all equipment to be connected is powered off and unplugged from its
power source.
3. Connect the included Bluetooth®/Wi-Fi® Antenna to the antenna jack on the rear
panel.
4. Using a Cat5e or Cat6 Ethernet cable (not included), plug one end into the
ETHERNET jack on the rear panel, then plug the other end into your Wi-Fi® router or
Ethernet switch. Note that the HTP-1 supports Gigabit (1000Mbps) data rates.
5. Using a Premium High Speed HDMI Cable (not included), plug one end into the
input on your HDMI® display, then plug the other end into HDMI OUTPUT 1 on the
rear panel.
Note that HDMI OUTPUT 1 supports the Audio Return Channel (ARC) and Enhanced
Audio Return Channel (eARC) HDMI features, which send audio from the connected
display back to the amplifier. The ARC/eARC feature is necessary if you plan on
streaming content from the internet using an application on your TV or if you plan
on receiving over-the-air TV broadcasts using an HD antenna connected to the TV.
6. Using an appropriate gauge of speaker wire (not included), connect your left and
right speakers to the left and right speaker outputs on your power amplifier. Ensure
that there are no stray wires and that polarity is properly maintained.
7. If your power amplifier has XLR inputs, plug a 3-pin XLR cable (not included) into
the left channel input on your power amplifier, then plug the other end into the
LEFT MAIN OUTPUT on the rear panel. If your power amplifier only has RCA inputs,
use an XLR to RCA cable (not included) instead. Repeat for the right channel.

18
8. Using a Premium High Speed HDMI® Cable (not included), plug one end into HDMI
INPUT 1 on the rear panel, then plug the other end into the HDMI output on a video
source device (e.g., DVD player, Blu-ray Disc™ player, satellite receiver, cable box,
etc.).
9. Ensure that the Master Power Switch on the rear panel is in the OFF position (Oside
depressed).
10. Plug the included AC Power Cord into the C14 Power Connector on the rear panel,
then plug the other end into a nearby AC power outlet.
11. Plug in and power on all connected devices. Start video playback on your video
source device.
12. Flip the Master Power Switch on the rear panel to the ON position (Iside
depressed) to boot the system. The Monolith™ logo will be shown on the LCD
Display and the Power Button on the front panel will flash blue while the HTP-1 is
booting up.
Once the unit has finished booting, the LCD Display will look similar to the display in
the PRODUCT OVERVIEW section and the Power Button on the front panel will
illuminate solid blue to indicate that the unit is fully powered on. For normal
operation, use the Power Button on the front panel or on the included remote
control to turn the unit on or put it into standby mode, rather than using the Master
Power Switch on the rear panel. The initial volume level shown on the LCD Display
should be -50dB.
Note that the HTP-1 has a Slow Start/Eco mode and a Fast Start mode. By default,
the unit is configured for Slow Start, which takes about a minute. The Slow Start
mode uses a lower power standby mode (below 500mW). You can configure the
HTP-1 for Fast Start on the SYSTEM tab on the System Configuration screen in the
Web GUI.
13. Slowly turn the Volume Knob on the front panel clockwise until the volume is at a
comfortable level. Verify that both the left and right audio channels are playing
audio properly and that there is video on your display.
14. Note the Wired IP Address in the bottom left corner of the LCD Display.

19
15. Open a web browser on your computer, then type http:// followed by the IP
Address on the display into the address bar and hit Enter to display the Web GUI
Home Page. Note that some browsers default to using https:// on the address,
which will not work. To be safe, it is best to explicitly type http:// before the
address. Create a bookmark in your browser, so you can quickly access the Web GUI
Home Page.
Note that the system has been tested and works well with the Chrome™, Firefox®,
and Safari® browsers, but has had some problems with Microsoft Edge®.
Congratulations! You have finished the Basic Setup and are ready to learn more
about the advanced features and functionality of the HTP-1.
SYSTEM CONFIGURATION
Click the gear icon in the upper right corner of the Web GUI Home Page to display the
System Configuration screen, as shown below. The specific functionalities and options on
each tab are described in following sections. The ?icon displays help information for the
current page.

20
SPEAKERS
About Speaker Configurations
A speaker configuration (also known as a Listening Mode) is described using 3 numbers
separated by dots and an optional letter suffix.
The first number is the number of speakers on the main listening level, with the speakers
arranged at the ear level of a seated listener. The second number is the number of
subwoofers in the system. The third is the number of speakers that are above the seated
listener, which are known as Upper or Height speakers. The hsuffix indicates that the
Upper speakers are arranged High on the walls, as opposed to in the ceiling, which are
known as Top speakers. Note that it is common to only use two digits rather than all three
(e.g., 5.1 rather than 5.1.0) when there are no height speakers.
For example, 5.1.4h indicates that there are 5 main level speakers, 1 subwoofer, and 4 High
speakers. A 7.1.4h configuration adds two additional Surround speakers at the back of the
listening area. A 9.1.4h configuration adds two additional Wide Surround speakers.
Speaker Location Diagrams
The following diagrams illustrate the ideal placement of the main level and upper level
speakers. Real world conditions may not allow for ideal placement, so this is just a guide to
the ideal. The upper level speakers should be mounted high on the wall or in the ceiling. All
speakers should be aimed toward the listener, if possible.
