1. Introduction
Thank you for choosing a Moondyne 3GExtreme Trail Camera.
Our cameras have been developed for Australian conditions and have been tested in some of
the most demanding conditions Australia has to offer. We are confident that you will be happy
with yourpurchase and we encourage any feedback youhave that will help to continually improve
our products.
1.1 Full Functionality Introduction
Our trail cameras are designed to be easy to use, whilst still having all ofthe functions you would
expect from today’s high tech devices. Such as 52°FOV lens, 56pcs (Black Flash) IR LEDs, 0.4
seconds trigger time, 1 photo/sec (up to 5 photos per trigger) multi-shot, HD Video, and a user
friendly operational menu.
1.2 Application
This camera is the ideal product for farm security, property surveillance, or animal monitoring.
Its camouflage finish combined with black flash IR LEDs keeps it out of sight, whilst monitoring
your property or game trails.
A hassle free surveillance camera for home, farm, construction site, warehouse or outdoors that
can send a photo directly to your phone or email (requires SIM card for this function) and also
keeps a copy on your SD card.
1.3 Power Supply
A. Batteries
The camera runs on 8 x AA size batteries. It can work with alkaline, high-quality NiMH, or Lithium
rechargeable batteries.
It is suggested to run the camera with NiMH or Lithium batteries as these provide better power
and longer run times.
Batteries should be inserted as indicated inside the battery case. Batteries inserted contrary to
this may cause device malfunction. We strongly recommend changing the batteries when the
power icon on camera screen or photo stamp shows empty or near empty.
Note: Do not mix batteries types. Mixing battery types in the camera may cause permanent
damage, which also violates our warranty policy.
Due to different settings, subject movement within the camera detection zone, different brands
and qualities of batteries, and the environment, we are unable to list exact number of photos and
videos that the camera can achieve. The table below shows approximate number of photos or
videos the camera can take with 8 x AA alkaline batteries. Better performance can be achieved
by using rechargeable NiMH or Lithium batteries.

- 2 -
Test Condition: LCD screen off. Mode: “Power On” _PIR intelligent automatically monitoring
8 x AA Alkaline Batteries
Photos shot per day
Working time
Video clips shot per day
Working time
IR LEDs On
Max.Range
100 pics
36 days
10secs video clips
10 clips
37 days
Balanced
100 pics
31 days
Min. Blur
100 pics
21 days
IR LEDs Off
100 pics
89 days
10secs video clips
10 clips
179 days
B. Solar Panel
Our engineers have designed this camera to be able to work with most standard 12V/1~2 Amp
built-in lithium battery, solar panels. Solar panels with built in batteries are only designed to re-
charge their in-built batteries. They will not recharge the AA batteries inside the camera.
C. Power Adaptor—Security Surveillance Purpose
This camera can also be powered by an external 12V/ 1~2A DC adapter. It is recommended to
remove the batteries when a power adapter is being used. Electrical power is recommended for
security purposes.
1.4 SD Card Selection
A memory card is required to operate the camera. When the camera is "ON" and there is no
memory card inserted, the screen will display "No Card!". The SD slot of the camera has a 32GB
SD memory card capacity. Before inserting or removing the memory card the camera must be
turned "OFF". Failing to do so may cause loss of or damage to the pictures on the card. When
the SD card is full, the viewing screen indicates "Memory Full". Camera function can be set to
overwrite, allowing new pictures to overwrite the old ones once the memory card is full.
The chart below shows the approximate capacity of different size SD cards. Please check to see
which size card will best suit your needs.
SD
Size
Capacity
8 GB
16 GB
32 GB
Photo (pictures)
5MP
7492
15307
30936
8 MP
4798
9794
19795
12 MP
3371
6887
13919
Video (hours)
640x480
00:46:57
01:35:56
03:13:52
HD
00:33:53
01:09:14
02:19:56
FHD
00:17:48
00:36:20
01:13:21
1.5 USB Connection
When the camera is connected via the USB cable the screen will display “MSDC”. Files on the
SD card can then be viewed using the camera as an external device.

- 3 -
1.6 Key Features
0.4s Trigger speed
520Field of view and 700PIR angle
Max 12mp / 1080P
Programmable 5/8/12 Megapixel high-quality resolution
56pcs (Black Flash) Invisible LEDs offer 20 metres of real night vision distance
Crystal clear day & night photo/video quality
Multi-shot 1 shot per second (1~5 photos per trigger)
Adjustable PIR sensitivity, multi-shot (1~5 photos per trigger), programmable delay between
motions, time lapse, timer, audio recording, TV out, time stamp (camera ID, date/time,
temperature, moon phase)
Built-in 2.0" TFT color screen
Operating temperature -250c to 600c
With MMS/3G/SMTP/FTP function, camera can transmit photos to 1-2 preset mobile phones
and 1-2 email addresses per trigger
Supports Telstra 3G SIM card
Optional small size (640*480) and large size (1920*1440) Email/FTP photos
APP available in IOS & Android APP store. APP can be used to change settings remotely
2. Whole View and Details of Camera
2.1 Figure 1: Front View of Camera
25 IR LEDs
Indicator Light
Light Sensor
Lens (day/night)
PIR Sensor
31 IR LEDs
(Can be turned off)

- 4 -
2.2 Figure 2: Bottom View of Camera
Push slightly to open this cover
DC in
SD Card Slot TV Out
USB Port
Battery Slot

- 5 -
2.3 Figure 3: Internal, Side and Back View of Camera
IP54 Waterproof Seal SIM Card Slot. Chip Part Face Down
Battery Case

- 6 -
2.4 Function Keys & Other Details
A. Switch Buttons
Camera/Video Switch Cellular Switch
Power Switch IR LEDs Group Switch
Power Switch
Test and setup
mode
1) Switch ON, wait 2 seconds then press “OK” once to wake up camera
LCD screen and enter Test/Function Mode
2) After 60sec of no input, camera will automatically revert to PIR Auto
Mode or Press and hold “OK” button for 3 seconds to activate PIR
Auto Mode
3) Switch OFF—Camera turns off.
Power Switch
“ON”
Switch ON to enable camera to work
Note: The indicator light flashes 5 times before camera starts to work on
PIR Auto Mode
Video/Photo Switch
Switch up to Camera icon for photo mode and photo + video mode
Switch Down to Video icon for video only recording mode
IR LEDs Group
Switch
Switch up 25:For top 25 pcs IR LEDs
Switch down 56:For both top and bottom IR LEDs. Total 56 pcs
Cellular Switch
Switch up On: Cellular function enabled (Sim Card Required)
Switch down Off: Cellular function disabled.
Note: When configuring the camera settings we suggest disabling the
Cellular function to quick wake up the LCD screen.
B. Buttons
Menu OK/ Photo & Video Record/ TEST Mode
Navigation

- 7 -
3. Quick Start
3.1 How to Start the Camera
(1) Remove the rear battery pack and insert batteries (4 into battery pack and 4 into camera)
(2) Insert SD card (8gb –32gb)
(3) Switch power switch to “ON” The red indicator light on front of the camera will flash 5 times
and is then ready for use.
Although the camera comes pre-programmed with factory default settings and is ready to use as
soon as batteries and SD card are installed we strongly suggest user setting of the required
functions before use. Once the camera functions have been set they will be retained within the
camera. When the camera is next used, just switch the power switch on, attach the battery pack
and the camera is ready for use.
(A SIM card needs to be installed and country/provider set up, for the camera to send photos)
3.2 How to Set Functions
(1) Switch the power switch to “ON”, and press “OK”. The logo screen will display whilst the
camera is starting up. Once it is ready it will enter test mode and you will be able to view
surroundings through the screen. (When in test mode you can take photos/videos manually
by pressing OK)
(2) Once the logo screen changes to the test screen, press “M” to enter the settings menu
(3) Use navigation buttons “←”, “↑”, “→”, or “↓”to obtain your favored
settings. (See 4.5 Operation Menu on page 9).Press “OK” for confirmation and to save the
preferred changes.
Press “M”to exit current page or follow the prompts on the bottom of the screen.
After 60 seconds of no input, the camera will revert to PIR auto working mode or you can
press the “OK” button for 3 secs to enable camera to work on PIR.
(4) Camera LED indicator flashes 5 times before it goes into PIR auto working mode.
For saving and exiting, follow the prompts on the bottom of the screen
3.3 How to Enable Camera to Send Photos
(1) Insert SIM Card and turn Cellular switch “ON”
(2) Start camera as above in (3.2 How to set Functions)
(3) Enter “Country Set” under the 3G tab. Choose yourAustralia and then Telstra. Press “OK” to
confirm your settings
(4) MMS:When “ON” will allow camera to send photos to up to two mobile phone numbers and
two email addresses via MMS (set number and addresses under “Send To”)
(5) SMPT: When “ON” will allow camera to send photos to up to two email addresses via SMPT.
For this function SMPT must be set to “ON”and Mail Server IP, Port, Mail Account and Mail
Password all need to be set (your email provider will be able to provide you eith the correct
details)
(6) Send To: Enter up to two mobile phone numbers and two email addresses
When choosing your prepaid SIM card plan it is suggested that you choose one that offers
unlimited free MMS messages. Data plans are not suggested as they generally have a
charge for MMS messages.

- 8 -
4. Operation List
4.1 Video/Photo Playback
(1) Switch the power switch to “ON”, Press “OK” once to enter test mode. When the logo screen
changes to the test screen, press ↑ arrow button to enter playback. Press ← and → for
selection, “OK” to play video.
(2) Press button ↑ again to exit.
4.2 Delete
(1) In playback mode (4.1) Press “M” button to delete files, or format SD card. Press “M” again
to exit.
(2) Del one: Delete selected photo/video Press “OK” to choose, press ↑ and ↓ “Yes” to confirm,
“No” to exit to previous page.
(3) Del All: Deletes all photos/videos. Press “OK” to choose, press ↑ and ↓ “Yes” to confirm,
“No” to exit to previous page
4.3 Format SD Card
In playback mode (4.1) to format the SD card via camera.
(1) Press “←” and “→” for selection, “Yes” to confirm, “No” to exit to previous page.
Caution: This will format the SD card to suit camera and all existing data on the card will be
erased.
4.4 Auto switch to PIR mode
In test mode the camera will automatically enter PIR Auto mode if there has been no keypad use
for 60 seconds.
Once it changes to PIR Auto mode you will need to switch power switch off and back on again
for further configuration changes.
Note: The camera will stay in “Test” mode if it is left in the menu configuration pages.
Ensure you exit menu configuration before leaving camera in the field.

- 9 -
4.5 Operation Menu
Enter Test Mode: Press “M” once to enter camera setting menu. Navigate the settings interface
by pressing ←, ↑, →, or ↓, press “OK” for selection, “M” to exit to previous page, and “M” to
switch alpha/ digits/ symbols.

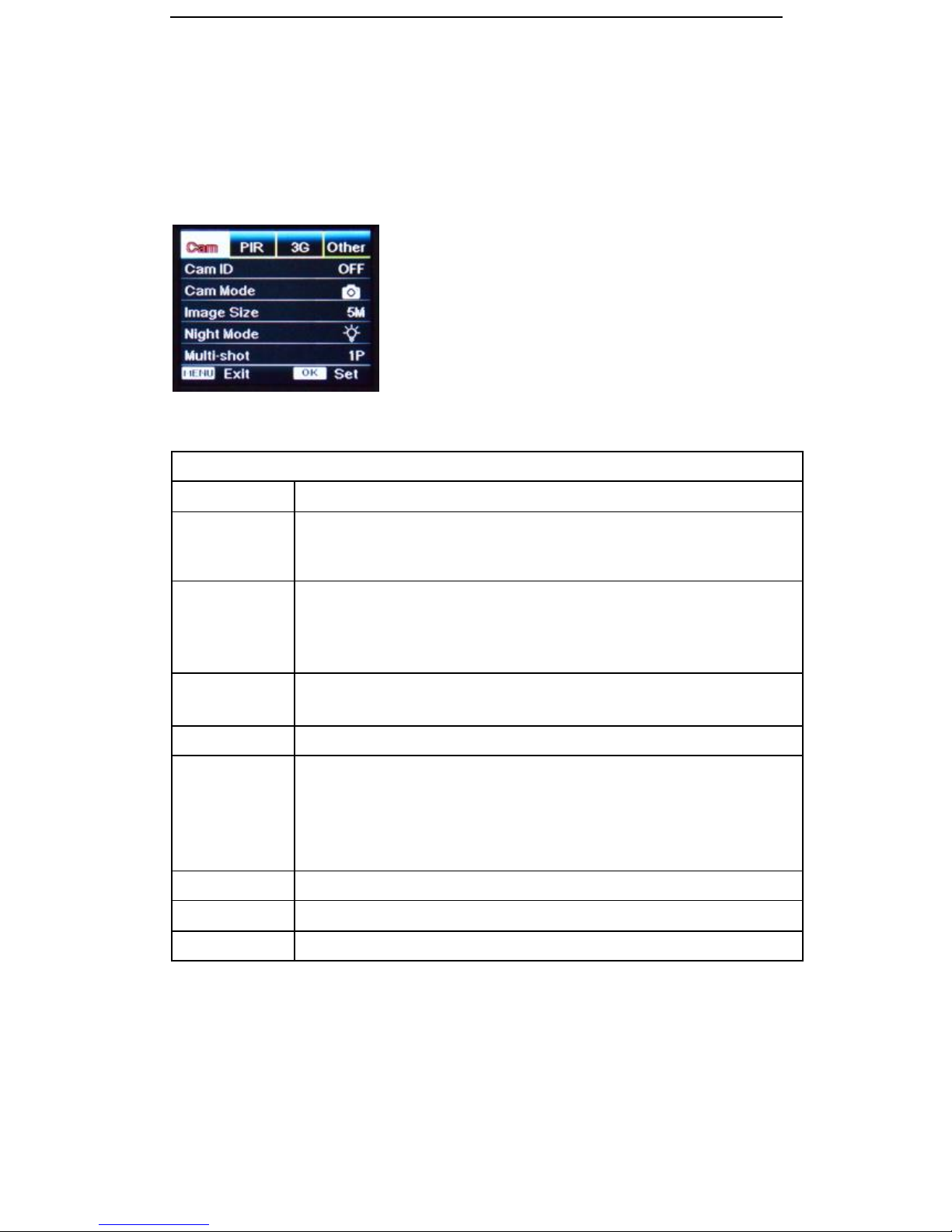

Cam
Settings
Programmable Options
Cam ID
Select “ON”, press “OK”, to set 4 numbers / letters for ID of camera.
This function lets you identify photos taken from this particular camera and is
shown on the timestamp
Cam Mode
When “Camera/Video Switch” is set to Camera icon
1) If select “PIC+Video”, camera shoots photo(s) first, then video on the same
trigger event. Based on Multi-shot and Video Length can be user
configured.
Video Mode
When “Camera/Video Switch” is set to Video icon
Video Recording mode only. Video Length can be user configured
Image Size
5MP (2560*1920) 8MP (3264*2448) 12MP (4000*3000)
Night Mode
1) Min. Blur: Short exposure time to minimize motion blur for better image
quality. Shortened IR flash range.
2) Max. Range: Longer exposure time to extend IR flash range for better
night vision. Lower image quality.
3) Balanced: Combination of the above 2 options.
Multi-shot
Programmable 1~5 photos per trigger
Video Size
VGA (640*480) HD-720P (1280*720) FHD-1080P (1920*1080)
Video length
5~60 Secs

- 10 -
PIR
Settings
Programmable Options
Sensitivity
High, Medium and Low
Higher sensitivity is;
1) More sensitive to movements by smaller subjects
2) Longer detection distance
3) Easier for sensor to detect the difference between body heat and outdoor
temperature
In high temperature environments (>350c) the difference in temperature
between the body heat of subjects and the environment is more difficult to
distinguish by the camera. Suggested setting for this environment is High.
Delay
This option turns off the PIR sensor for the user set timeframe after each
trigger and stops the camera from taking too many photos in high activity
areas.This feature is particularly useful when the camera is used at feedlots or
watering points where subjects may linger for some time.
Select “ON”, press “OK”, to set a time interval that you desire between
photos/videos upon PIR trigger.
Example: Camera will wait 1 minute between photo/video recordings with
motion if pre-set time interval is 00:01:00
Configurable delay time: 3 seconds to 24 hours.
Note: Time Lapse and Delay will not work simultaneously.
Time Lapse
Select “ON” then press “OK” to set the interval. The PIR sensor of camera
will be turned off. The camera will shoot pics or video clips automatically
upon the interval that is set by the user.
Example: Camera will take a photo or video every 1 minute if pre-set time
interval is 00:01:00
Configurable interval: 5 seconds to 24 hours.
Note: Time Lapse and Delay will not work simultaneously.
Timer
Select “ON”, press “OK”, to set the beginning time and end time (hour/minute)
The camera and PIR Sensor will only work during the time period set by user.
Example: 15:00 –18:00 Camera will only work between 15:00 –18:00
Useful when you only want photos at set times, such as dawn or dusk

- 11 -
3G
Australia:
Country Set
Press “OK”. Use ↓to find Australia and press “OK”. press “OK” for Telstra and
then press “M” to exit
Other
Country Setup
If you can’t find your local operator from “Country Set” list, contact your
operator for URL/ APN/ IP/ Port (Username & Password if required); and
enter this info manually
MMS
“ON” will send MMS to 2 preset mobile phone numbers and emails when SIM
card installed. Enter numbers and emails under “Send To”
SMTP
If setting up and using SMTP select “ON” and setup as follows
1) Mail Server IP: Press OK and enter your mail server IP using ←, ↑, →,
↓, arrows to navigate, “M” to toggle number/letters/characters, “<” to delete
“^” to save, press “OK to select.
EXAMPLE Hotmail: smtp.live.com
EXAMPLE Gmail: smtp.gmail.com
2) Port: Most mailboxes use port 25. Check with your provider
EXAMPLE Hotmail: Port 25 or 465
EXAMPLE Gmail: Port 25 or 587
3) Mail Account: Your email account name (email address)
4) Mail Password: The password for your email account
Please note that the camera will send a picture to an email address entered in “Send To” via MMS
if SMTP is not setup. If SMTP details are setup and is “ON” then emails only will be sent via SMTP
using data component of your SIM plan.
FTP
If setting up and using FTP select “ON” and setup as follows
1) FTP Server IP: Press OK and enter your mail server IP using ←, ↑, →,
↓, arrows to navigate, “M” to toggle number/letters/characters, “<” to delete
“^” to save, press “OK to select.
Port: Most FTP servers use port 21. Check with your provider
2) FTP Account: Your FTP account name
3) FTP Password: Your FTP account password
Send To
Phone
Enter recipients mobile phone numbers (1~2)
Email
Enter recipients email accounts(1~2)
SMTP/ FTP Pic Size
Pictures sent via SMTP and FTP have optional size as 640*480, or 1920*1440
Pictures sent via SMS are limited to 640*480
Images are all stored at full preset size 5mp, 8mp or 12mp on SD card within camera
Our cameras are pre-set to work on Telstra NextG –3G –
850MHz –Metropolitanand regional network within Australia,
due to its greater coverage in regional areas.
Please ensure you use a compatible SIM card when using
the MMS/SMTP functions. 850/1900MHz

- 12 -
Max Num/Day
Default: unlimited
Optional: 1~99
EXAMPLE: User set 50, then the camera will only send the first 50 pictures each day. All the rest
of the photos will be stored on your SD card in the camera
SMS Ctrl
As some settings can be changed remotely through the app, these settings determine when the
camera accepts those commands
By Trigger
New settings are accepted next time the camera is triggered by the
PIR
All The Time
Accepts commands at any time.
This setting requires the camera to continually check for new
commands and drains the batteries very quickly.
Not recommended unless using mains power adapter.
Daily Report
Set to ON and set time to receive daily reports from Camera via SMS at the set time
Other
Language
English
Date/Time
Day: Month: Year
Hour: Minute: Second
Note: Please ensure camera date/time is correct to ensure all functions
work as expected.
Stamp
Imprints the camera ID, moon phase, temperature, date, and time on each
Battery Type
Alkaline or NI-MH / Lithium
Choose correct battery type used in camera for better performance.
Frequency
50Hz, 60Hz: Improper setting may cause camera screen flicker
SD Cycle
Select “ON”, and press “OK”, the camera will continue to record photos/videos
once SD card is full by deleting earliest photos or video clips
Reset
Select “Yes” to reset camera back to factory default settings
Password
Select “ON”, press “OK”, to enable password protection for your camera.
Use ←, ↑, →, ↓, arrows to set password. If set to “ON”, password will be
required on each startup of camera.
About
Shows firmware version of camera

- 13 -
5. Specification
Image Sensor
5 Mega Pixels Color CMOS
Effective Pixels
2560x1920
Day/Night Mode
Yes
IR Flash Range
20m
IR LEDs
Top: 25 LED, Bottom: 31LED
Memory
Supports SD Card (8MB –32 GB)
Lens
F=3.0; FOV=52°; Auto IR-Cut (at night)
LCD Screen
2” TFT, RGB, 262k
PIR Sensitivity
3 Sensitivity levels: High, normal and low
PIR distance
20m
PIR Angle
70°
Picture size
5MP (2592x1944) 8MP (3264x2448) 12MP (4000x3000)
Picture Format
JPEG
Video resolution
1080P (1920x1080) 720P (1280x720) VGA (640x480)
Video Format
AVI
Video Length
Programmable 5 - 60sec
Multi Shot Photo
Programmable 1 - 5
Trigger Time
0.4sec
Trigger Interval
4 - 7sec
Trigger Delay
Programmable 3sec –24hrs
Camera + Video
Yes
Device Serial No.
Yes
Time Lapse
Yes
SD Card cycle
ON/OFF
Operation Power
Battery: 12V or DC: 12V
Battery Type
8 x AA
External DC
12V/ 1~2A DC
Stand-by Current
0.173mA
Stand-by Time
4~6 months (8 x AA)
Power Consumption
IR LEDs Off
Photo: 120mA; Video: 110mA
IR LEDs On
Max.Range: 670mA. Balanced: 850mA
Min.Blur: 1050mA. Video: 6700mA
Interface
TV out/USB/SD Card/DC Port
Mounting
Strap (supplied) ¼” In-built tripod thread.
Operating Temperature
-30°C to 60°C
Operation Humidity
5% - 90%
Waterproof spec
IP54
Dimensions
130 x 100 x 80mm (Not including aerial)
Dry Weight
350g Including aerial
Certification
CE FCC RoHs
APP
IOS & Android

- 14 -
6. Trouble Shooting
6.1 Photos Do Not Capture Subject of Interest
(1) Check the “Sensor Level” (PIR sensitivity) parameter setting. For warm environmental
conditions, set the sensor level to “High” and for cold weather use, set the sensor for “Low”.
(2) Try to set your camera up in an area where heat sources are not in the camera’s field of view.
Rising or setting sun can sometimes trigger the sensor.
(3) In some cases, setting the camera near water can cause false activations. Try to aim the
camera over solid ground.
(4) Set the camera on stable and immovable objects, such as large trees as movement of the
camera can also trigger PIR. Try to avoid setting the camera up on small trees that are prone
to being moved by strong winds.
(5) Remove any limbs or grass which are in front of the camera lens or PIR sensor
(6) At night, the motion detector may detect movement beyond the range of the IR illumination.
Reduce distance setting by adjusting sensor sensitivity to low.
6.2 Camera Stops Taking Images or Won’t Take Images
(1) Please make sure that the SD card is not full. If the card is full the camera will stop taking
images. You can turn on Cycle Recording to avoid such problem, but it will overwrite earliest
images on the SD card.
(2) Check batteries: Low voltage will reduce the ability to take images.
(3) Make sure that the camera power switch is in the “On” and that the camera is not still in setup
mode.
(4) When MMS/ SMTP function is on, there will be about a 1minute interval for the camera to
send out the photo before camera can take the next photo.
(5) Please format the SD card with camera before using or when camera stops taking images.
6.3 Night Vision Flash Range Doesn’t Meet Expectation
(1) Ensure all 8 x AA batteries are installed and in good condition.
(2) Check to make sure that batteries are fully charged or new.
(3) High-quality 1.5V NiMH or Lithium rechargeable AA batteries can also offer much better IR
flash range.
(4) “Max Range”offers better IR flash range.
(5) To ensure accuracy and quality of night time image s, please mount camera in a dark
environment without any obvious light sources.
(6) Certain surroundings such as trees, walls or ground within flash range can get you better
night time images.
(7) Do not aim the camera to a totally open field where there is nothing within IR flash range to
reflect flash back.

- 15 -
7. Warranty
Moondyne trail cameras come with a 12 Month Guarantee.
Should you have a warranty issue, we recommend you return the item to your place of purchase
with a copy of your receipt. The retail partner will then work with us to deal with the claim in a
timely and professional manner. If returning the product to the store is not possible, then send
the items directly back to us for further investigation. All claims are dealt with on a priority basis,
and we will repair it if possible or replace all valid warranty items. Before arranging the claim,
please clean your product before returning it to us to assist in speeding up the review process.
Normal wear and tear, modifications, alterations, negligence, damage and use for a purpose
other than for which it was designed, are not covered by the Moondyne warranty.
Send your Moondyne product needing warranty attention or repair to:
Moondyne
c/oAussie Outback Supplies Pty Ltd
Attn: Warranty Department - Moondyne Claim
PO BOX 1143
Midland DC, Western Australia
Australia 6936
Please include a contact name and number, and a brief description of your issue.
Postage of all Moondyne products will be at the customer’s expense. There will also be a charge
for repairs not covered by the Warranty, for which you will be notified of the amount prior to any
work being started. Proof of purchase must be presented when making any Warranty claims.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure. Goods presented for repair may be replaced by refurbished goods of the same type rather
than being repaired. Refurbished parts may be used to repair the goods.
Once the claim has been approved and dealt with, we will return the product to your Australian
address without delay using our nominated freight partner and at our expense.
Want to know more? Visit our website www.aussieoutbacksupplies.com or call our offices on
[phone].
We are always open to feedback as we move forward with improving and expanding our product
lines. Send us what you think –[e-mail]

Distributed by Aussie Outback Supplies Pty Ltd www.aussieoutbacksupplies.com
