MOONKI MX-SB140BT21 User manual

HOME CINEMA
MX-SB140BT21
USER MANUAL

2.1 SOUNDBAR WITH WIRELESS SUBWOOFER
MODEL NO: MW-SB140BT2.1
Thank you for selecting Moonki Sound
Before operating this product,please read and follow the instrctiions in this manual.
*Actual product may differ from the picture shown.*
INSIDE THE PACKAGE
Soundbar Unit 1 Unit
Wireless Subwoofer Unit 1 Unit
User Manual 1 Unit
AC-DC Adapter 1 Unit
Remote Control 1 Unit
AUX Cable 1 Unit
Power Cord 2 Units

WHAT MOONKI SOUND OFFERS
Built-in Sub woofer 140 WATTS
Bluetooth V5.0:
Easy connectivity with Bluetooth.
Multiple Inputs：
Optical in,Line-in,HDMI ARC in
Built-in USB Port:
Supports MP3/WAV playback
3 Modes EQ：
E-01:Movie
E-02:Music
E-03:News
Built-in DSP
For richer and fuller audio experience

PREVUE OF SOUNDBAR
1. POWER Button:To switch the unit ON/OFF
2. SOURCE Button:To switch betwwen BT/USB/LINE/OPT/ARC
3. BT Button:To connect the Bluetooth
4. VOL- Button:To decrease the volume
5. VOL+ Button:To increase the volume
6. HDMI ARC Input
7. LINE IN Jack (3.5mm)
8. OPTICAL Input
9. DC IN Jack
REMOTE CONTROL
1. FM Antenna
2. Power ON/OFF switch button
3. AC Power Connect Inlet
1. :To switch ON/OFF the soundbar
2. :To increase volume
3. ：To skip to previous track in Bluetooth/USB mode
4. ：To decrease volume
5. EQ:To select an appropriate preset equalizer modes such
as Movie,Music,News
6. MODE: To select the appropriate input
modes.(Bluetooth,USB,LINE,Optical,RAC)
7. MUTE: To switch to mute function
8. ：To start or pause playback in Bluetooth/USB mode.
9. ：To skip to next track in Bluetooth/USB mode
10. BT: To switch to bluetooth mode

USING THE REMOTE CONTROL
Insert/Replace Batteries in Remote Control
1. Open the battery compartment
2. Insert 2pcs AAA type batteries
3. Observe correct polarity while inserting the batteries
4. Replace the battery compartment
Note:Remove the batteries from the battery compartment,if it is not bo be used for a long period of time
to avoid battery leakage.
PRECAUTIONS FOR BATTERIES
If you observe there is any leakage in the battery immediately replace them with new ones
Use batteries types and grades as specified and mentioned in the user guide
Do not heat or disassemble the batteries.Never expose the batteries to fire or water
Do not carry or store the batteries with any metallic objects.Doing so may result in short
circuit,battery leakage or explosion.

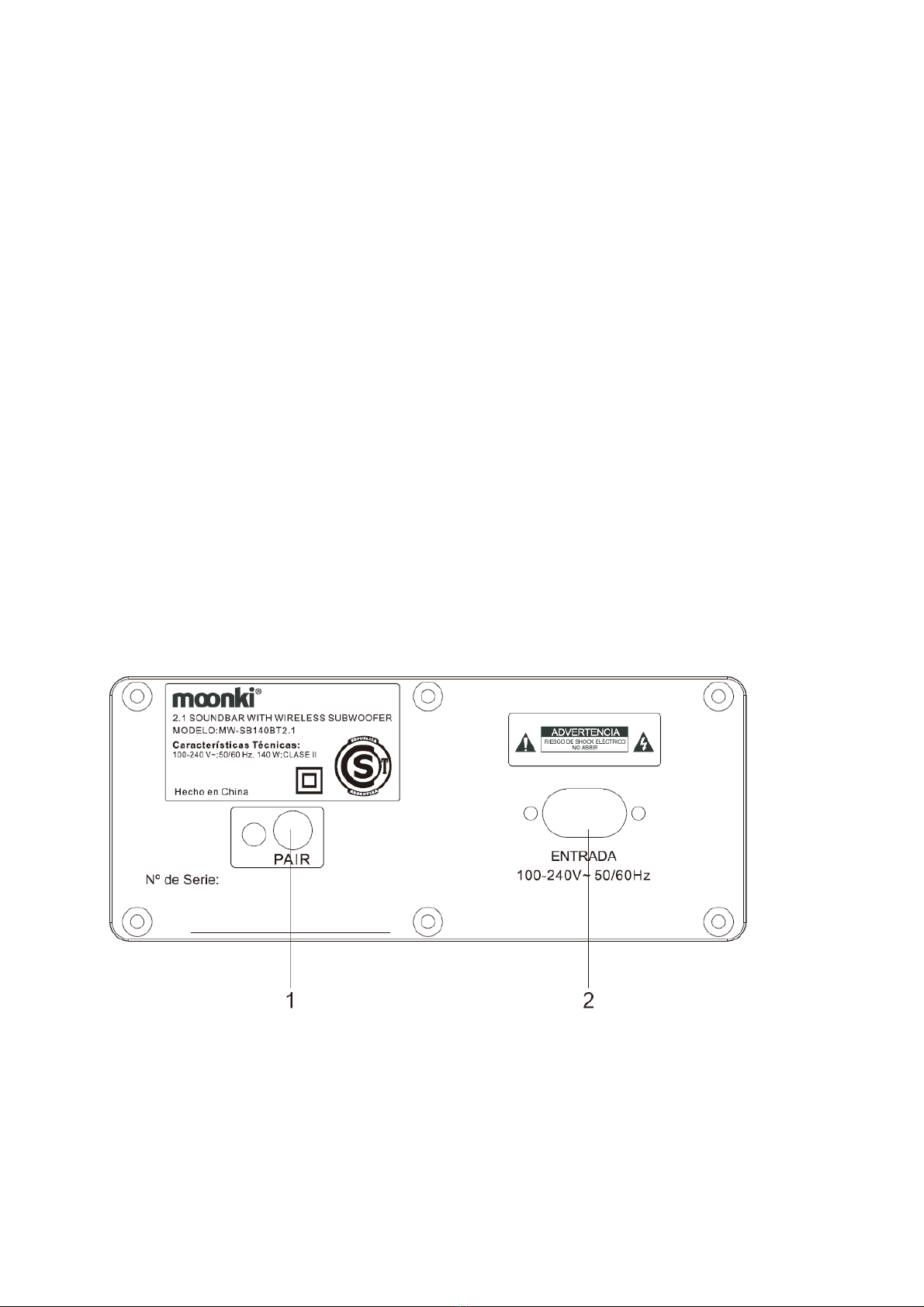

SUBWOOFER
1. Wireless Pairing Indicator
The indicator will be a Steady Blue when the subwoofer and main unit are linked and will be blinks
fast when they are not linked
2. AC Input

USING YOUR SOUNDBAR
PLACING THE SOUNDBAR ON THE TABLE
If your TV is a tabletop,you can place the soundbar on the table directly in front of the TV,centered with
the TV screen.The subwoofer can be placed on aflat and stable surface.
WALL-MOUNTING THE SOUNDBAR
BASIC OPERATION
Before connecting the AC power,ensure that the power supply voltage corresponds to the voltage
printed on the rating label of the product.
1. Insert the DC plug of the AC-DC power adaptor into the DC IN jack on the back of the soundbar
unit,then connect the AC-DC adapter to an AC wall outlet.
2. Press the POWER button to switch the soundbar on.The LED display will light up and ”BT” symbol
will flash on the display.
3. Plug the connector of power cord into the AC socket on the back of the subwoofer,then plug it into
the main power supply
4. The subwoofer will automatically get connected with soundbar.The Wireless Pairing led indicator
changes to steady blue once the connection is carried out successfully.

PAIRING THE SUBWOOFER WITH
THE SOUNDBAR MANUALLY
For first time use,sometimes,the subwoofer cannot connect with the soundbar automatically.In such
case,users need to pair them manually.
1.Ensure the soundbar is in powered on state and the subwoofer is powered off,press and hold the BT
button on soundbar or on remote control for 3 seconds until “BT” symbol flashed on the display,the
soundbar is ready for pairing with the subwoofer,and then press the POWER button to turn off the
soundbar.
2.Power on the subwoofer,the Wireless PAIR Indicator blinks blue three times,then changes to steady
red.
3.Restart soundbar by pressing the POWER button again,the Wireless PAIR Indicator changes to
steady blue,thereby indicating the connection is successfully established.
CONNECTING AN EXTERNAL DEVICE
The figure above shows the various connectivity options available in the soundbar
SELECTING THE INPUT MODE
Short press the SOURCE button on the main unit or press the MODE button on the Remote Control to
select amongst the various available input sources.
Input Moder
Display
Bluetooth Mode
Line Input (3.5mm)
Optical Input
ARC (HDMI OUT)

PLAYBACK WITH THE BLUETOOTH DEVICE
This soundbar can be used with any Bluetooth enabled device such as mobile phone,table,etc.The
Bluetooth range is limited to approx 10 metres.Please ensure there is no obstruction between the
soundbar and the Bluetooth device for proper operation.
PAIRING
Before using the soundbar with a compatible Bluetooth device,such as a mobile phone,table,etc.,you
are required to pair and establish connection between them.
Activate the Bluetooth on your device.
In power on mode and automatically switch to BT mode,short press the BT button on the main unit
or the MODE button on the remote control to select the Bluetooth mode.”BT” symbol will flash on
the display to show that the pairing mode is activated.
Search for Devices and connect with MW-SB140BT2.1 from the list of available
Bluetooth devices.
If prompted,enter the passwaord 0000 to confirm.(Password may be required only when pairing
devices for the first time).
A voice prompt CONNECTED will confirm the connection and the “BT” symbol stops flashing.
Note:Only one Bluetooth device can be connected the soundbar.If the soundbar is already connected
to a device,it will not appear in the Bluetooth selection list with a fresh scan.
Press and hold BT or button on remote control for 3 seconds to un-pair an existing Bluetooth
connection and initiate a new device pairing in Bluetooth mode.
Press +/ - button on remote control or VOL + /VOL - button on the main unit to increase or decrease
the volume level.
OPTICAL OPERATION
The Soundbar can be connected to a television or any other device such as DVD player,play
station,etc. having Optical output.
Establish proper connectivity using an optical cable
In Power On mode,short press the SOURCE button on the main unit or the MODE button on the
remote control to select the OPTICAL mode and enjoy the audio.
Press +/- button on remote control or VOL+/VOL- button on the main unit to increase or decrease
the volume.
NOTE:If there is no sound from the soundbar and the status indicator LED blinks fast,make sure the
digital output setting of the source play (e.g. TV,DVD player,game player) is set to PCM.
3.5MM LINE IN OPERATION
Ensure that the unit is securely connected to the TV or other audio device via a 3.5mm audio cable
While in Power On mode,press the SOURCE button on the main unit or MODE button on the remote
control,till LINE flashes on display.
Operate the device directly to start playback.

USB PLAYBACK
While in Power On mode,short press the SOURCE button on the main unit or MODE button on the
remote control,till USB flashes on display.
Connect a USB storage device directly into the USB port,after a few seconds,it will start music
playback automatically.
Press the or button on remote control to go to the previous or next track.
CARING FOR MW-SB140BT2.1
When using this product,basic safety precautions should always be observed,including the following:
Please read the instruction manual carefully before using the product.Keep the user manual safely
for future reference
Do not expose the product to fire,moisture and direct sunlight
Power On the products as instructed in this manual
Do not attempt to service the product on your own,as this may expose you to potential electric
shocks and hazards,resulting in electrocution.This will also render the warranty claim void.
It is advisable to unplug the unit from the power source;if the unit is not to be used for a long time
Ensure that the ventilation holes provided on the unit are free from any obstruction,failure to do so
may result in overheating of the product and can damage the ciruits
Please ensure the product is fixed on a stable,even surface or is wall mounted,for safety of the
product
Do not use any accessory which is not compatible with the product,as this may result in
malfunctioning of the product;which will also render the warranty claim void
CLEANING AND MAINTENANCE
Do not subject the unit to excessive force,shock,dust or extreme temperature.
Do not tamper with the internal components of the unit.
Avoid leaving your unit in direct sunlight or in hot,humid or dusty places.
Keep your unit away from heating appliances and sources of electrical noise such as fluorescent
lamps or motors.
To prevent fire or electrocution hazard,disconnect your unit from the AC power source while
cleaning.
The finish on the unit may be cleaned with a soft damp cloth and cared for as other furniture,use
caution while cleaning and wiping the plastic parts.
If the cabinet becomes dusty wipe it with a soft dry cloth.Do not use any wax or polish sprays on
the enclosure of the cabinet..
If the front panel becomes dirty or smudged with fingerprints it may be cleaned with a soft cloth
slightly dampened with a mild soap and water solution.Never use abrasive cloths or plishes as
these will damage the finish of your unit.
CAUTION:Never allow any water or other liquids to get inside the unit while cleaning.
