MOTINI FAN-CL-0002 Manual

INSTALLATION AND SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
SAFETY PRECAUTION
• WARNING –To make sure power is off before attempting installation.
• WARNING – Support Directly From Building Structure.
• WARNING –To reduce the risk of fire, electric shock, or injury to persons, unplug or disconnect the
appliance from the power supply before the fan installation, cleaning, or servicing.
• WARNING –To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State
Speed Control Device.
• WARNING –To Reduce The Risk Of Personal Injury, Do Not Bend The Blade Brackets When Installing
The Brackets, Balancing The Blades, Or Cleaning The Fan. Do Not Insert Foreign Objects In Between
Rotating Fan Blades.
• The installation is to be in accordance with the National Electrical Code, ANSI/NFPA 70-1999 and local
codes. Consult a qualified electrician if in double.
• WARNING – To Reduce The Risk Of Electric Shock, This Fan Must Be Installed With A General-Use,
Isolating Wall Control/Switch.
• All set screws must be checked, and retightened where necessary, before installation.
• After making the wire connections, the wires should be spread apart with the grounded conductor and
the equipment-grounding conductor on one side of the outlet box and the ungrounded conductor on the
other side of the outlet box.
• The splices after being made should be turned upward and pushed carefully up into the outlet box.
• Conductor of a fan identified as grounded conductor to be connected to a grounded conductor of power
supply, conductor of fan identified as ungrounded conductor to be connected to an ungrounded conductor
of power supply, conductor of fan identified for equipment grounding to be connected to an
equipment grounding conductor.
• CAUTION–To Reduce The Risk Of Electric Shock, Disconnect The Electrical Supply Circuit To The Fan
Before Installing Light Kit.
• WARNING – To reduce the risk of fire, electric shock, or personal injury, mount directly to a
structural framing member of to an outlet box marked (acceptable for fan support of 22.5 kg(50
lbs) or less). For outlet box mounting, use mounting screws provided with the outlet box.
1

MED LOW
HI OFF
Transmitter Kit
Transmitter Wire Connectors x 6
Install the safety
cable parts kit
Assembly Kit
Install the hanger parts kit
Spring Washers x 4
Antiskid gasket x 4 Flat Washers x 4
Machine Screw x 2 Self Tapping Screw x 2
Install the safety cable parts kit
plastic expansion screw x 1 Spring Washers x 1
Safety Wire Clamp x 1 Flat Washers x 1
Machine Screw x 1 Self Tapping Screw x 1
Transmitter Holder Battery Wall Screw x 2
Canopy
Downrod
Housing
Blade
PARTS & ACCESSORIES
2

INSTALLATION INSTRUCTION
STEP 1A - OUTLET BOX CEILING
SWITCH OFF THE ELECTRICAL MAINS AT THE
CIRCUIT BREAKER FUSE BOX.
Install the mounting bracket
onto outlet box with the 2
Supplied with Outlet Box
Screws (2) & Spring Washers (3)
& Flat Washers(4) & Antiskid
gasket(5).
IMPORTANT : SCREWS MUST BE TIGHTENED
TILL SNUG
STEP 1B - WOODEN CEILING
1) Use the Mounting Bracket (1) as a guide,
mark the spots where the 2 Self Tapping
Screws (2) will be drilled.
2) Remove the Mounting Bracket (1), drill 2
holes for 1MM diameter, install the
mounting bracket onto wooden ceiling with
the 2 Self Tapping Screws (2) & Spring
Washers (3) & Flat Washers(4) & Antiskid
gasket(5).
SWITCH OFF THE ELECTRICAL MAINS AT THE
CIRCUIT BREAKER FUSE BOX.
IMPORTANT : SCREWS MUST BE TIGHTENED
TILL SNUG
3

INSTALLATION INSTRUCTION
4

INSTALLATION INSTRUCTION
STEP 2
1) Remove the hairpin clip (7) and clevis pin (8) from the bottom of the downrod (6).
Retain the pin and clip For subsequent installation.
2) Loosen the Screw (1) from Hanger Ball (3), remove the Hanger Ball (3)and Lock Pin (2).
3) Loosen the two set screws (10) in the downrod support of the motor assembly. Route
the black, white, blue, green wires and safety cable through the downrod (6).
4) Slide downrod (6) into the downrod support (9) on top of the motor. Install the clevis pin
(8) by aligning the holes in the downrod support (9) with holes in the downrod (6).
Secure clevis pin (8) with hairpin clip (7). Tighten the two set screws (10) with in the
downrod support,to prevent fan shaking during operation.
5) Route the Canopy Ring (5), Canopy (4) and Hanger Ball (3) through the Downrod (6)
in turn, and then install the Lock pin (2) through the hole on the Downrod (6). Slip the
hanger ball (3) upward to lock Pin (2), and fix it by Screw (1).
6) Install the light bulbs (11). (maximum wattage for each bulb is 4w)
5

INSTALLATION INSTRUCTION
1) Raise the fan and place the hanger ball onto
mounting bracket.
2) Rotate the fan until the notch on hanger ball snapped
into the slot on mounting bracket and sits firmly.
NOTE : THE DOWNROD AND HANGER BALL
SHOULD NOT ROTATE IF THIS STEP IS
DONECORRECTLY.
3) Tighten the safety wire clamp.
4) Place ring of safety wire through the plastic expansion
screw tand self tapping screw
fix it to the building structure.
NOTE: The remote unit has 16 different code
combinations. To prevent possible interference
from or to other remote units, simply
change the combination code in the
remote and receiver.
1. To set the code on receiver unit, slide dip
switches to the same positions as set on
the remote.
NOTE: Factory setting is all up. Do
not use this position.
STEP 3
STEP 4
Dip Switch
6

INSTALLATION INSTRUCTION
Canopy Ring
Screws
Canopy
Controller
WHITE
BLACK
BLUE
WHITE
BLACK
BLUE
WHITE
BLACK
WHITE
BLACK
N
LMOTOR HOUSING
HANGER
BRACKET
GREEN
GROUND
AC POWER
~
BLACK
ANTENNA
SWITCH OFF THE ELECTRICAL MAINS AT
THE CIRCUIT BREAKER FUSE BOX.
1) Connect wires from controller to
power supply with wire connectors.
2) Insert the controller into the
space of the mounting bracket, and
tidy up the wiring.
1) Carefully push the canopy to the
bottom of the mounting bracket,
make two sliding holes aligned to the
two prominent screws on the
mounting bracket, and then turn
clockwise until tight.
2) Push the canopy ring to the
bottom of the canopy, slide the inner
holes aligned to the two prominent
screws on the mounting bracket
again, and turn the canopy ring
clockwise until tight.
STEP 5
STEP 6
7

INSTALLATION INSTRUCTION
Load the battery into the transmitter, turn on the fan power supply and use it properly.
ATTENTION
To make fan operational, install 6F22 9V battery
(included) in hand-held remote transmitter, with fan power off. Then
follow the remote code setting process. (If not used for long periods
of time, remove battery to prevent damage to transmitter). Store the
remote away from excessive heat or humidly.
8

TRANSMITTER FUNCTION
MED LOW
HI OFF
FUNCTIONS OF TRANSMITTER
HI --- Turn on ceiling fan at high speed.
MED --- Turn on ceiling fan at medium speed.
LOW --- Turn on ceiling fan at low speed.
OFF --- Turn off ceiling fan.
ON/OFF: Press and release immediately to
turn on / off the light.
DIMMER : Press and hold on to dim or brighten
Lights to the desired level and release.
Forward
Fan rotates anti-clockwise creating a
downward airflow delivering a cooling
effect.
Suitable for hot weather condition or
air-conditioned condition.
Reverse
Fan rotates clockwise creating an upward
airflow moving warm air off the ceiling
areas. This function works best at lower fan
speed.
Suitable for cold weather or air-conditioned
condition.
Holder
Install the transmitter holder to the wall or any
flat surface with the two mounting
screw provided.
Installing Transmitter Holder
9

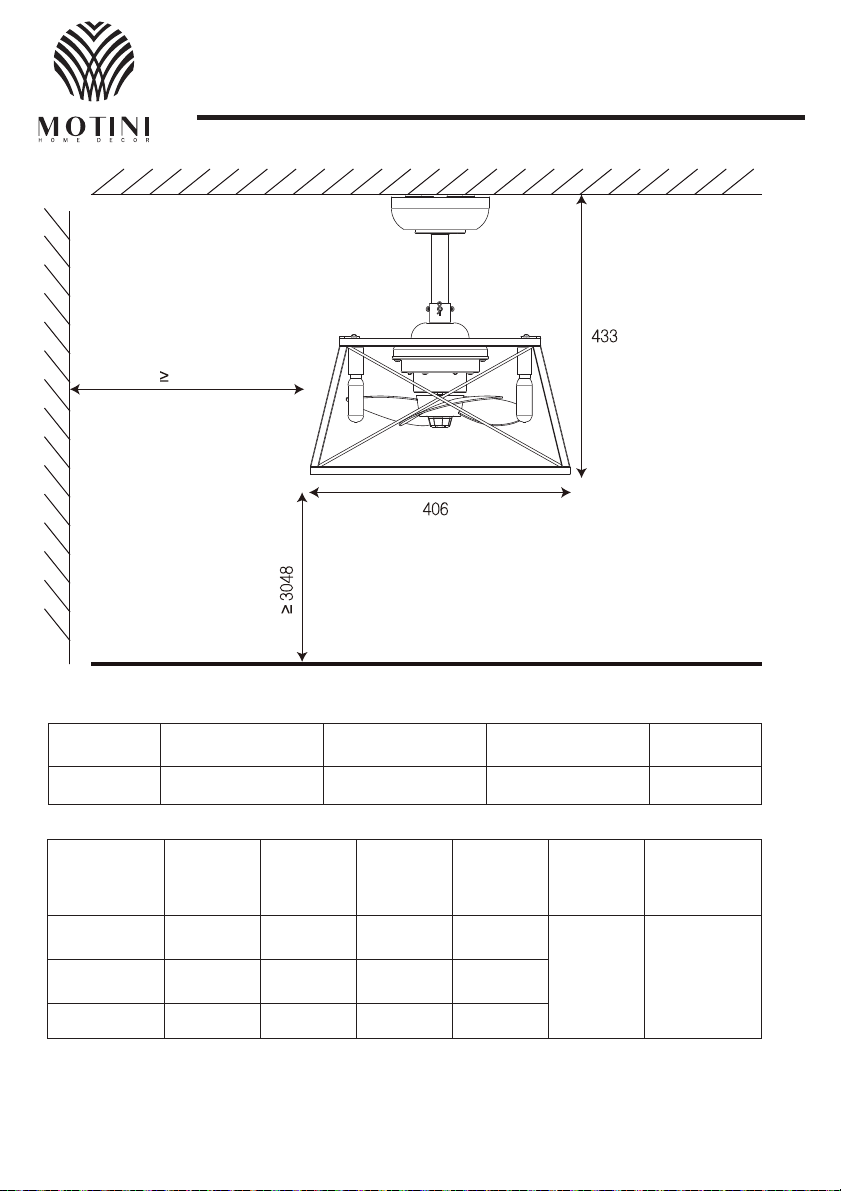

TECHNICAL SPECIFICATIONS
mm
mm
m m
1000mm
Specifications & measurements shown are subject to ±10% variations.
Model
FAN-CL-0002
No. of blades
3
Fan width
406mm
Light Wattage
4 x 4W
Voltage
110-120V~ 60Hz
Speed Amps Wattage RPM CFM Nett
weight
Gross
weight
HI
MED
LOW
0.207
0.202
0.198
25.5
22.0
19.0
1220
1050
880
953
815
677
4.46KG 5.86KG
10

MAINTENANCE
Due to the fan’s natural movement, connections may get loose after a period of usage. To
ensure a proper and safety usage, inspect the suspension system and tighten all
connections every 6 months.
Cleaning your fan periodically will prolong its useful life. Basic cleaning procedures are as
follows:
1. Please shut off the power before you clean the light fan and replace the bulbs.
2. The bulbs and nearby parts will be still hot after the power is shut off. To avoid burn,
please clean them after they are cooled down.
3. Don’t use sandpaper, wire brush and other sharp tools to clean the light fan.
4. Don’t clean the light fan by using detergents, acid or alkaline solvents.
5. Use only soft or lint-free cloth to clean the light fan.
6. Please dry the light fan by cold-blast air after cleaning, in order to prevent dangerous
leakage caused by water infiltrated into electriferous parts of the light fan or prevent rust
of wet metal parts.
7. There is no need to oil the fan
Cleaning
