Motorola STARLINE SLE Series User manual

Installation and
Operation Manual
SLE*-*
STARLINE Line Extender

Caution
CautionCaution
Caution
These servicing instructions are for use by qualified personnel only. To reduce the risk of electrical shock, do not perform any servicing other than that
contained in the Installation and Troubleshooting Instructions unless you are qualified to do so. Refer all servicing to qualified service personnel.
Special Symbols That Might Appear on the Equipment
Special Symbols That Might Appear on the EquipmentSpecial Symbols That Might Appear on the Equipment
Special Symbols That Might Appear on the Equipment
This symbol indicates that dangerous voltage levels are present within the equipment. These voltages are not
insulated and may be of sufficient strength to cause serious bodily injury when touched. The symbol may also appear
on schematics.
The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important
installation, servicing, and operating instructions in the documents accompanying the equipment.
For continued protection against fire, replace all fuses only with fuses having the same electrical ratings marked at
the location of the fuse.
FCC Compliance
FCC ComplianceFCC Compliance
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the Installation Manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his/her own expense. Any changes or modifications not expressly approved by Motorola could void the user’s
authority to operate this equipment under the rules and regulations of the FCC.
Canadian Compliance
Canadian ComplianceCanadian Compliance
Canadian Compliance
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe A respects toutes les exigences du Règlement sur le matériel brouilleur du Canada.
Declaration of Conformity
Declaration of ConformityDeclaration of Conformity
Declaration of Conformity
We Motorola, Inc.
101 Tournament Drive
Horsham, PA 19044, U.S.A.
declare under our sole responsibility that the
STARLINE Model SLE*-*
to which this declaration relates is in conformity with one or more of the following standards:
EMC Standards
EMC StandardsEMC Standards
EMC Standards
EN55022 EN55024 EN50083-2 CISPR-22 CISPR-24
Safety Standards
Safety StandardsSafety Standards
Safety Standards
EN60065 EN60825 EN60950 IEC 60950 + A1: 1992 + A2: 1993 + A3: 1995 + A4: 1996
following the provisions of the Directive(s) of the Council of the European Union:
EMC Directive 89/336/EEC Low Voltage Directive 73/23/EEC

Copyright © 2004 by Motorola, Inc.
All rights reserved. No part of this publication may be reproduced in any formor by any means or used to make any derivative work (such as translation,
transformation or adaptation) without written permission from Motorola, Inc.
Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola to
provide notification of such revision or change. Motorola provides this guide without warranty of any kind, either implied or expressed, including, but not
limited to, the implied warranties of merchantability and fitness for a particular purpose. Motorola may make improvements or changes in the product(s)
described in this manual at any time.
MOTOROLA, the Stylized M Logo, and Intelligence Everywhere are registered in the US Patent & Trademark Office. All other product or service names are
the property of their respective owners. © Motorola, Inc. 2004

PRELIMINARY - Motorola Internal Use Only SLE*-* Installation and Operation Manual
Contents
Section 1
Introduction
Using This Manual...........................................................................................................................................................................1-3
Related Documentation...................................................................................................................................................................1-3
Document Conventions...................................................................................................................................................................1-3
If You Need Help ..............................................................................................................................................................................1-4
Calling for Repairs...........................................................................................................................................................................1-5
Technical Support:.................................................................................................................................................................. 1-5
Repair Logistics:..................................................................................................................................................................... 1-5
Section 2
Overview
Configuration....................................................................................................................................................................................2-2
Housing.............................................................................................................................................................................................2-3
Gaskets.............................................................................................................................................................................................2-4
Port Locations..................................................................................................................................................................................2-5
Power Supply...................................................................................................................................................................................2-6
Forward Path....................................................................................................................................................................................2-6
Return Path.......................................................................................................................................................................................2-7
Ingress Control Switch....................................................................................................................................................................2-8
Options and Accessories................................................................................................................................................................2-8
Section 3
Amplifier Setup
Forward Path Alignment.................................................................................................................................................................3-1
Before You Begin.................................................................................................................................................................... 3-1
Cable Equalizer ....................................................................................................................................................................... 3-2
STARLINE Cable Simulators.................................................................................................................................................. 3-5
Input and Midstage Pads........................................................................................................................................................ 3-6
Flatness Control...................................................................................................................................................................... 3-6
Directional Coupler Test Points............................................................................................................................................. 3-8
SLE-Bode Equalization........................................................................................................................................................... 3-8
Amplifier Level Control........................................................................................................................................................... 3-9
Manual Gain Control...................................................................................................................................................... 3-9
SLE-TDU........................................................................................................................................................................ 3-10
SLE-ADU........................................................................................................................................................................ 3-11
SLE-ADU Pads and Levels.......................................................................................................................................... 3-12

ii Contents
SLE*-* Installation and Operation Manual PRELIMINARY - Motorola Internal Use Only
Return Path Alignment...................................................................................................................................................................3-12
Before You Begin...................................................................................................................................................................3-12
Alignment Procedure............................................................................................................................................................3-13
Powering and Surge Protection....................................................................................................................................................3-14
Section 4
Bench Testing
Before You Begin .............................................................................................................................................................................4-1
Test Equipment and Connections..................................................................................................................................................4-2
Measuring Forward Gain.........................................................................................................................................................4-2
Testing Return Gain and Response.......................................................................................................................................4-4
Completing the Test Procedures...........................................................................................................................................4-4
Section 5
Installation
Aerial Installation..............................................................................................................................................................................5-1
Pedestal Installation.........................................................................................................................................................................5-3
Surface Mounting.............................................................................................................................................................................5-3
Section 6
Operating Tips
Using Amplifiers in Lower-Frequency Systems............................................................................................................................6-1
Using Amplifiers in Lower-Gain Systems......................................................................................................................................6-1
Appendix A
Specifications
SLE*-*................................................................................................................................................................................................A-1
AC Current .......................................................................................................................................................................................A-2
Return Path......................................................................................................................................................................................A-2
SLE-ADU...........................................................................................................................................................................................A-2
Appendix B
Torque Specifications
Figures
Figure 1-1 SLE*-* closed................................................................................................................................................................1-1
Figure 1-2 SLE*-* open....................................................................................................................................................................1-2
Figure 2-1 SLE*-* base....................................................................................................................................................................2-1
Figure 2-2 SLE*-* configurator.......................................................................................................................................................2-2

Contents iii
PRELIMINARY - Motorola Internal Use Only SLE*-* Installation and Operation Manual
Figure 2-3 SLE*-* housing dimensions.........................................................................................................................................2-3
Figure 2-4 Housing gaskets...........................................................................................................................................................2-4
Figure 2-5 Housing ports ...............................................................................................................................................................2-5
Figure 2-6 SLE*-* power supply.....................................................................................................................................................2-6
Figure 2-7 SLE*-* block diagram...................................................................................................................................................2-7
Figure 2-8 SLE*-* options and accessories................................................................................................................................2-10
Figure 3-1 Equalizer slope versus cable ......................................................................................................................................3-4
Figure 3-2 Frequency versus cable slope....................................................................................................................................3-6
Figure 3-3 8LDR/*/III component layout (top-left, bottom-right).................................................................................................3-7
Figure 3-4 Typical flatness and control ranges...........................................................................................................................3-8
Figure 3-5 SLE-TDU cable selector.............................................................................................................................................3-10
Figure 3-6 SLE-ADU......................................................................................................................................................................3-11
Figure 3-7 SLE*-* fuses ................................................................................................................................................................3-14
Figure 4-1 Test equipment connections for bench sweeping....................................................................................................4-2
Figure 5-1 Center-conductor pin length.......................................................................................................................................5-1
Figure 5-2 Torque sequence..........................................................................................................................................................5-2
Tables
Table 2-1 SLE*-* options and accessories...................................................................................................................................2-8
Table 3-1 STARLINE Forward Equalizers – SFE*-*......................................................................................................................3-3
Table 3-2 STARLINE cable simulators..........................................................................................................................................3-5
Table 3-3 Gain reserve versus ambient temperature..................................................................................................................3-9
Table 3-4 SLE-ADU pad levels.....................................................................................................................................................3-12

PRELIMINARY - Motorola Internal Use Only SLE*-* Installation and Operation Manual
Section 1
Introduction
The Motorola STARLINE®Line Extender, SLE*-*, accepts a single input and provides up to
40 dB of gain (depending on model) to a single output. A second output is possible using the SP
splitter accessory. The SLE*-* series of line extenders meets Telcordia GR-1098 core voltage
surge requirements using surge waveforms as described in IEEE C62.41.
Features of the SLE*-* include:
! 870 MHz power doubling technology in gallium arsenide (GaAs)
! Modular diplex filter splits
! “Ease of use” ergonomics
! 60/90 VAC line power option
! Thermal and auto-controlled Bode equalization (optional)
! Second output option using SP splitter or DC coupler
! −20 dB directional coupler test points
! Optional return path ingress control and LIFELINE®status monitor
! Two-way operation capability
! 10-amp power passing
Figure 1-1 illustrates a closed SLE*-* line extender:

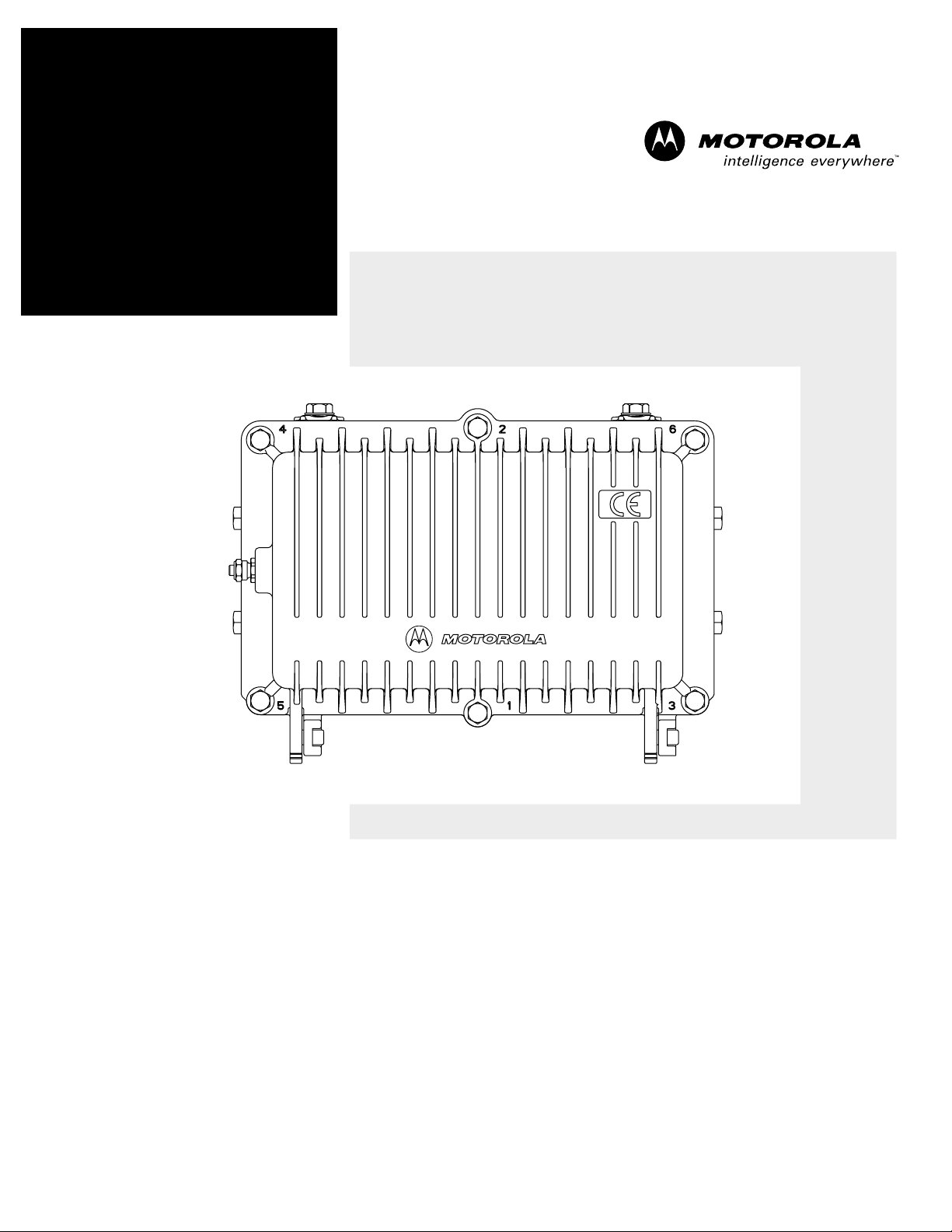

Figure 1-1
SLE*-* closed

1-2 Introduction
SLE*-* Installation and Operation Manual PRELIMINARY - Motorola Internal Use Only
Figure 1-2 illustrates an open SLE*-*:
Figure 1-2
SLE*-* open
E
S
A
K
SLE 87 J
H
XXX
I
NPUT VOLTAGE: 30~95 VOLTS AC
FREQ. 50/60 Hz
O
UTPUT VOLTAGE: 24 ± 0.5VOLTS DC
CURRENT: 1.5 AMPS DC
CAUTION
CONSULT INSTALLATION MANUALPRIOR TO
REMOVING PROTECTIVE COVER.
VOLTAGES INEXCESSOF 300 VOLTSARE PRESENT
UNDERCOVERANDMAY BEPRESENTAFTER
POWER IS REMOVED
Base
Lid
CAUTION: CONTAINS PARTS AND
ASSEMBLIES SUSCEPTIBLE TO
DAMAGE BY E LE CTRO STATIC
DIS CHARGE (ESD)
CHECK VOLTAGE
SELECTOR
REFER TO MANUAL
AC
TEST
POINT
RTN EQ
JXPIN
JXPOUT
LPF
LPF ICS
DC AC
P
OWER PORT
FUSE
FUSE 1
SP
ADJ
JXP
JXP MID
JXP IN
FUSE 2
+24 DC
TESTPORT
STATUS
MONITOR
STATUS
MONITOR
MAN
ADJ
ADJ
ADU
RCB87
FWD EQ
LDR BD
EATT
-20dB
-20 dB
H
H
L
L
-20 dB
-20 dB
-16dB
RF IN 0
0
0
0
0
0
0
R
F OUT2
R
F OUT1
REFER TO
MANUAL FOR
FUSE VALUES
MGC AUTO
R1
R2
R3
R4
C1
C2
C3
C6
C8
P1 P2
P4 P3

Introduction 1-3
PRELIMINARY - Motorola Internal Use Only SLE*-* Installation and Operation Manual
Using This Manual
The following sections provide information and instructions to bench test, install, and operate
the SLE*-*.
Section 1 Introduction provides a brief description of the product, identifies the information
contained in this manual, and gives the help line telephone number and repair return
information.
Section 2 Overview describes the SLE*-* and includes details on the various options and their
functions.
Section 3 Amplifier Setup provides instructions for full configuration and forward- and return-path
alignment.
Section 4 Bench Testing describes the bench test procedures that are recommended before
installing the SLE*-*.
Section 5 Installation provides instructions for installing the SLE*-* and performing field alignment.
Section 6 Operating Tips provides suggestions for handling field-encountered variables and
addressing maintenance tasks.
Appendix A Specifications lists the applicable technical specifications for the SLE*-* and options.
Appendix B Torque Specifications provides the appropriate torque specifications for the screws,
clamps, connectors, and bolts used in the SLE*-*.
Abbreviations
and Acronyms The Abbreviations and Acronyms list contains the full spelling of the short forms used in
this manual.
This installation manual assumes that all channels are standard National Television Standards
Committee (NTSC) analog channels. Refer to catalog specifications for further details pertaining
to signal levels of digital channels above 550 MHz.
This installation manual uses 870 MHz as the reference frequency unless another frequency is
given. For example, quoted cable loss is understood to be at 870 MHz.
Related Documentation
This installation manual is complete and you should not require any additional documentation
to install, test, or operate the SLE*-* line extender.
Document Conventions
Before you begin to use the SLE*-*, familiarize yourself with the stylistic conventions used in
this manual:
Bold type Indicates text that you must type exactly as it appears, or indicates a default value.
SMALL CAPS Denotes silk screening on the equipment, typically representing front- and rear-panel
controls, I/O connections, and indicators (LEDs).
* (Asterisk) Indicates that there are several versions of the same model number and the information
applies to all models. When the information applies to a specific model, the complete model
number is given.
Italic type Denotes a displayed variable, a variable that you must type, or is used for emphasis.

1-4 Introduction
SLE*-* Installation and Operation Manual PRELIMINARY - Motorola Internal Use Only
If You Need Help
If you need assistance while working with the SLE*-*, contact the Motorola Technical Response
Center (TRC):
! Inside the U.S.: 1-888-944-HELP (1-888-944-4357)
! Outside the U.S.: 215-323-0044
! Motorola Online: http://businessonline.motorola.com
The TRC is open from 8:00 AM to 7:00 PM Eastern Time, Monday through Friday and 10:00 AM
to 5:00 PM Eastern Time, Saturday. When the TRC is closed, emergency service only is
available on a call-back basis. Motorola Online offers a searchable solutions database, technical
documentation, and low priority issue creation/tracking 24 hours per day, 7 days per week.
http://businessonline.motorola.com888-944-4357 / 215-323-0044 / 888-944-HELP
DataNetworks/
Transmission Products
PRESS 3
Products
PRESS 1
Cable Router VOIP
PRESS 2
Cable Modems Products
PRESS 3
Transmission Transport
Products
(MBT/MWT/MEA)
PRESS 5
Multiservice
Management
PRESS 4
Network
Licensing
PRESS 1
Network Management
Products
PRESS 2
Network
Technical Response Center
Telephone Menu Options
Video Products
PRESS 1
Issued: 06/2004
Consumer
Support
PRESS 4
Broadcaster,
Satellite IRD or
Encoder Products
PRESS 2
SeverityLevel
1 - Critical Failure
2 - Serious Failure
3 - Non-Serious Failure
4 - Escalated Support
5 - Technical Assistance
PRESS 3
Settops
PRESS 2
Headend
PRESS 1
Controllers
PRESS 2
Analog
PRESS 1
Digital
IRD
PRESS 1
Commercial Encoder
PRESS 2
Uplink
Modem
PRESS 2
Cable PRESS 3 DCP
Satellite
C Band
PRESS1
Consumer

Introduction 1-5
PRELIMINARY - Motorola Internal Use Only SLE*-* Installation and Operation Manual
Calling for Repairs
If repair is necessary, call the Motorola Repair Facility at 1-800-642-0442 or e-mail
[e-mail] for a Return for Service Authorization (RSA) number before
sending the unit. The RSA number must be prominently displayed on all equipment cartons.
The Repair Facility is open from 7:00 AM to 4:00 PM Pacific Time, Monday through Friday.
When calling from outside the United States, use the appropriate international access code, and
then call 52-631-311-1100 to contact the Repair Facility.
When shipping equipment for repair, follow these steps:
1 Pack the unit securely.
2 Enclose a note describing the exact problem.
3 Enclose a copy of the invoice that verifies the warranty status.
4 Ship the unit PREPAID to the following address:
Motorola, Inc.
Broadband Communications Sector
c/o Exel
Attn: RSA #_________
6908 East Century Park Drive
Suite 100
Tucson, AZ 85706
For Europe, Middle East, and Africa (EMEA) customers:
Technical Support:
David King
Product Support Engineer
Motorola EMEA
Tel.: [phone]
Email: [e-mail]
Repair Logistics:
Ship to:
Motorola BCS
Klaus Gawol
TecCenter
D – 31162 Bad Salzdetfurth
Tel.: [phone]
Fax: [phone]
Email: [e-mail]

PRELIMINARY - Motorola Internal Use Only SLE*-* Installation and Operation Manual
Section 2
Overview
The SLE*-* is a two-way capable line extender used in CATV distribution systems. The SLE*-*
is powered by the 60–90 VAC cable supply and can be configured to pass this power to
additional line extenders. The standard model SLE*-* includes the amplifier with an integrated
DC power supply and active return path for two-way signal flow.
Figure 2-1 illustrates the base of the SLE*-*:
Figure 2-1
SLE*-* base
C
AUTION: CONTAINS PARTS AND
ASSEMBLIES SUSCEPTIBLE TO
DAMAGE BY ELECTROSTATIC
DISCHARGE (ESD)
CHECK VOLTAGE
SELECTOR
REFER TO MANUAL
AC
TEST
POINT
RTN EQ
JXP IN
JXP OUT
LPF
LPF ICS
DC AC
P
OWER PORT
FUSE
FUSE 1
SP
ADJ
JXP
JXPMID
JXP IN
FUSE 2
+24 DC
TEST PORT
STATUS
MONITOR
STATUS
MONITOR
MAN
ADJ
ADJ
ADU
RCB87
FWD EQ
LDR BD
EATT
-20 dB
-20 dB
H
H
L
L
-20 dB
-20 dB
-16 dB
RF IN 0
0
0
0
0
0
0
RF OUT2
RF OUT1
REFER TO
MANUAL FOR
FUSE VALUES
MGC AUTO
R1
R2
R3
R4
C1
C2
C3
C6
C8
P1 P2
P4 P3

2-2 Overview
SLE*-* Installation and Operation Manual PRELIMINARY - Motorola Internal Use Only
Configuration
The SLE*-* is fully configured by Motorola per customer request. It is recommended that you
verify the configuration listed on the outside of the shipping carton with the configuration you
ordered. The shipped configuration is also noted on labels located on the side of the housing.
Please confirm the availability of frequency splits with your Motorola sales representative.
Figure 2-2
SLE*-* configurator
Key
87J 5-55 MHz, 70-870 MHz
5-42 MHz, 54-870 MHz
5-30 MHz, 47-870 MHz
5-65 MHz, 85-870 MHz
5-40 MHz, 52-870 MHz
87K
87E
87A
87S Bandpass Split
Key
1
9 dB Station GainL
X
X
H
8
dB (Fmin - 870 MHz)
E-GaAs (High Output w/ 35 dB Gain)
E-GaAs (High Output w/ 40 dB Gain)
Gain
Station Slope
ReturnAmplifier w/ JXP-ZXs
SLE
-
Key
Key

Overview 2-3
PRELIMINARY - Motorola Internal Use Only SLE*-* Installation and Operation Manual
Housing
The SLE*-* is furnished in an aluminum housing that protects the electronics from weather and
dissipates internally generated heat.
Figure 2-3 illustrates the SLE*-* housing and provides its dimensions:
Figure 2-3
SLE*-* housing dimensions
10.75
inches
4.5
inches
Coaxial cable connections to the housing are made using conventional 5/8 inch ×24 threads-per-
inch stinger-type connectors.
For strand mounting, use the two messenger clamps located on the side of the housing
(Figure 2-5) that are secured with 5/16 inch ×24 threads-per-inch stainless steel bolts. Use the
“L”bracket feature for pedestal and surface mounting installations.

2-4 Overview
SLE*-* Installation and Operation Manual PRELIMINARY - Motorola Internal Use Only
Gaskets
Each housing is equipped with a recessed woven-wire RF gasket and a silicone-rubber gasket to
provide a seal between the housing base and lid. These gaskets provide efficient ground
continuity, RF shielding, and weather protection. Both gaskets must be in place and in good
condition to ensure proper operation and protection of the station. The weather gasket should be
lightly coated with silicone grease each time the SLE*-* is opened. Replace this gasket if it
becomes damaged or deformed.
Figure 2-4 illustrates the SLE*-* housing gaskets:
Figure 2-4
Housing gaskets
I
NPUT VOLTAGE: 30~95 VOLTS AC
FREQ. 50/60 Hz
O
UTPUT VOLTAGE: 24 ± 0.5VOLTS DC
CURRENT: 1.5 AMPS DC
CAUTION
C
ONSULT INSTALLATION MANUAL PRIOR TO
REMOVING PROTECTIVE COVER.
V
OLTAGES IN EXCESSOF 300 VOLTSARE PRESENT
UNDER COVER AND MAY BE PRESENT AFTER
POWER IS REMOVED
C
AUTION:CONTAINS PARTS AND
ASSEMBLIES SUSCEPTIBLE TO
DAMAGE BYELECTROSTATIC
DISCHARGE (ESD)
CHECK VOLTAGE
SELECTOR
REFER TO MANUAL
AC
TEST
POINT
RTN EQ
JXP IN
JXP OUT
LPF
LPF ICS
DC AC
P
OWER PORT
FUSE
FUSE 1
SP
ADJ
JXP
JXP MID
JXP IN
FUSE 2
+24 DC
TEST PORT
STATUS
MONITOR
STATUS
MONITOR
MAN
ADJ
ADJ
ADU
RCB87
FWD EQ
LDR BD
EATT
-20 dB
-20 dB
H
H
L
L
-
20 dB
-
20 dB
-16 dB
RF IN 0
0
0
0
0
0
0
R
F OUT2
R
F OUT1
REFER TO
MANUAL FOR
FUSE VALU ES
MGC
A
UTO
R1
R2
R3
R4
C1
C2
C3
C6
C8
P1 P2
P4 P3
W
eather gasket
(
silicone rubber)
RF gasket
(woven wire)
E
S
A
K
SLE 87 J
H
XXX

Overview 2-5
PRELIMINARY - Motorola Internal Use Only SLE*-* Installation and Operation Manual
Port Locations
Three housing ports provide connection for coaxial cables (one is for the optional second output).
A fourth housing port provides access to the return-path RF test point. All ports are protected
by factory-inserted threaded plugs or plastic cap plugs. Discard the plastic cap plugs when you
install the cable connectors.
Figure 2-5 illustrates the housing port locations:
Figure 2-5
Housing ports
Output
port 1
Output
port 2
Input
port
AC test
point
Return
test
point
M
essenger
c
lamp bolts

2-6 Overview
SLE*-* Installation and Operation Manual PRELIMINARY - Motorola Internal Use Only
Power Supply
The SLE*-* power supply is a separate circuit board mounted in the lid of the housing and is
capable of 60 VAC or 90 VAC powering. The power supply provides a regulated 24 VDC output
over an AC input between 38 Vrms and 90 Vrms with a line frequency of 50 –60 Hz.
Figure 2-6 illustrates the SLE*-* power supply:
Figure 2-6
SLE*-* power supply
AC
GND
GND
+24V
The factory-installed 20-ampere fuse, illustrated in Figure 2-8, provides power-passing to
additional line extenders.
Forward Path
The minimum full gain of the SLE*-* is 35 dB or 40 dB depending on model. If you use the
SLE-BODE option, the operational gain of the SLE*-* amplifier is 28 dB or 32 dB (depending on
model) with 16 dB of return loss. If you use the SLE*-* in a system that may require Bode
equalization in the future, you should install a 7 dB JXP at the JXP-MID1 location (Figure 2-7)
between the input and output hybrid. The 7 dB JXP ensures that the appropriate operational
gain is used when the SLE-BODE is later installed.
The operating gain includes provisions for the insertion loss of the input cable equalizer and
required reserve gain to operate the Bode equalizer in the middle of its range. The low-noise
figure, pre-amplifier stage, is a conventional 870 MHz hybrid followed by a power-doubled
output stage. Between the two stages is a JXP-*B pad socket, the Bode board, and the flatness
and equalizer board. Because these losses are located interstage, the noise figure is only
significantly impacted by the insertion loss of the forward cable equalizer or broadband cable
simulator, and the input pad if its value is increased from zero.

Overview 2-7
PRELIMINARY - Motorola Internal Use Only SLE*-* Installation and Operation Manual
Figure 2-7 illustrates the interconnection of these components:
Figure 2-7
SLE*-* block diagram
Input
port
Output
port 1
Output
port 2
**
RTN
EQ
-16 dB
LPF
-20 dB
TP
-20 dB
TP
-20 dB
TP
-20 dB
TP
*
*
**
**
*
*
I
CS
J
XP
J
XP
IN
H
L
2
4 Vdc
D
C test port
Power
supply
Fuse
Fuse
Fuse
** Plug-in module
S
urge
p
rotector
Surge
protector
P
ilot
filter
-1.0 dB
-1.0 dB
-0.8 dB -0.0 dB-0.0 dB 0.0 dB25 dB
PP
-
0.4 dB
-
0.4 dB
0.0 dB
-0.4 dB
RF
AC
-0.5 dB
-0.5 dB
-4.0 dB -0.5 dB
-0.5 dB
-4.0 dB
**
**
**
** **
** **
**
**
JXP
IN
FWD
EQ JXP MID 1 JXP MID 2 BodePP PD
MGC
**
LDR
Manual Auto
Auto
-1.0 dB
18.5 dB for SLE 87*-X
24 dB for SLE 87*-H
23 dB
0
.0 dB with jumper
(7.0 dB w/Bode)
-1.0 dB -5.0 dB
-5.0 dB
0.0 dB0.0 dB0.0 dB
A
GC
**
STATUS
M
ONITORPIN
H
L
-
1.0 dB
-
1.0 dB
RF
AC
RF
AC
TVS
Return Path
The circuit board of the SLE*-* accommodates the return path. This equips the SLE*-* to pass
signals in the return or upstream direction. The standard circuit board contains all components
including the diplex filters with extended return bandwidth for the amplifier input and output.
All items are plug-in and easily installed.
Optional SRE-*-* return equalizers compensate for cable attenuation and are available in 1 dB
increments for S-split, and 2 dB increments for all other splits, from 0 dB through 12 dB.
The input and output of the return path each include a JXP-*B pad facility. You can also use
either pad socket as a test point or a signal injection point. The return output pad value is
normally selected to control the return signal level into the next upstream amplifier. Select an
appropriate return input pad to attenuate excessive input signal.
The return-input test point and the return-output test point are −20 dB directional couplers.
Both test points present 75-ohm source impedance and do not require special test probes.

2-8 Overview
SLE*-* Installation and Operation Manual PRELIMINARY - Motorola Internal Use Only
Ingress Control Switch
The ingress control switch (ICS) provides return-path signal attenuation or cutoff in the SLE*-*.
This is accomplished through the frequency-agile LIFELINE®status-monitoring module,
LL-SLE-HMS-*/*. (Figure 2-8 illustrates the location of the optional ICS). Please consult your
Motorola sales representative for the availability of LL-SLE-HMS-*/*.
To properly install the LL-SLE-HMS-*/*, the deeper housing cover (SLE-LID/SM is required.
The ICS provides a means of isolating sources of ingress from a centralized location. Using a
downstream command through the LIFELINE status-monitoring system, you can attenuate the
return path through the line extender by 6 dB or by 38 dB. By reducing the ingress level at the
headend or monitoring point, you can further isolate the ingress source.
After an ingress source is isolated to the last possible amplifier, node, or line extender, you can
shut the return path off at that location. This limits the impact of the ingress on the remainder
of the network while eliminating the source of ingress.
Options and Accessories
The factory ships the SLE*-* as a fully functional unit, but you must configure it appropriately
for the field-location requirements. You must install the correct forward equalizer or broadband
cable simulator and input pad to place the unit into service. Section 3, “Amplifier Setup,”
provides information to assist you in this task. Use model JXP-*B pads to control field signal
levels. To compensate for temperature, install the automatic drive unit (SLE-ADU) or thermal
drive unit (SLE-TDU) before placing the SLE*-* into service. You can install other items at your
discretion, but these options do not render the SLE*-* inoperative if they are not included.
Table 2-1 provides a comprehensive list of options and accessories for the SLE*-*:
Table 2-1
SLE*-* options and accessories
Model Description Function
SLE-ADU-* Automatic Drive Unit This board automatically controls amplifier output levels
that change with cable attenuation and hybrid output.
The selection of a pilot frequency is required.
SLE-TDU Thermal Drive Unit This board controls amplifier gain and slope for
changes in cable attenuation for the sensed
temperature.
SFE-0, SFE-1 STARLINE Forward
Equalizer These equalizers are not bandwidth-specific and compensate for 0 dB and 1 dB of cable, respectively,
from 5 MHz to 1 GHz.
SFE-*-* STARLINE Forward
Equalizer This bandwidth-specific (750 MHz or 870 MHz) equalizer compensates for cable properties in 1 dB
increments from 2 dB through 22 dB. The appropriate
value must be installed. See the product catalog for
additional information.

Overview 2-9
PRELIMINARY - Motorola Internal Use Only SLE*-* Installation and Operation Manual
Model Description Function
SRE-*-* STARLINE Return Equalizer This bandwidth-specific equalizer compensates for
cable attenuation in 1 dB increments from 0 dB through
12 dB for S-split (2 dB increments for all other splits).
The appropriate value must be installed. See the
product catalog for additional information.
SCS-* STARLINE Cable Simulator This simulator compensates for cable properties. The
appropriate value must be installed. See the product
catalog for additional information.
JXP-*B Fixed attenuator This pad attenuates excessive input signal. It is
available in 1 dB increments from 0 dB through 26 dB.
The appropriate value must be installed.
JXP-TH*C Thermal attenuators This option compensates for gain changes with
temperature in the return path.
LL-SLE-HMS-*/* Status monitor module This module enables monitoring of the unit’s operating
parameters by the LIFELINE status-monitoring system.
This accessory also requires the deep housing cover.
SLE-LID/SM Deep housing cover This optional cover is required to contain the LIFELINE
status monitor module.
RCB87 Response Correction Board This optional board compensates for system roll-off at
870 MHz. The SLE*-* is shipped with a jumper in this
location which you can replace when additional
response correction is required.
JXP-RPC Return Path Correction board This optional board provides additional flatness
response correction in the return path for systems that
must meet especially stringent return path flatness
requirements.
ICS-II Ingress Control Switch This option enables remote monitoring, isolation, and
reduction of ingress on the return path by providing
signal attenuation of 6 dB or cutoff of 38 dB typical. The
unit is shipped with a jumper in this location.
