SERVICE MANUAL

17K1E 17K2E

GENERAL INFORMATION

RECEIV ER MODEL, BREAKDOWN CHART

M odel Type of R ecei er

17K1E Console, red -b rn m ahogany

17K1BE C on sole, lim ed oak

17K2E C on sole, red-b rn mahogany

17K2BE C on so le, lim ed oak

C - CHASSIS - T ele ision ch assis TS-172 is built around a 17"

rectangular picture tube. The picture, sound,

and scanning circu its, together with a con en

tional transform er type "B " supply, are con 

tained on a single ch assis.

TUNING RANGE - Channels 2 through 13

11, 12 & 13IF FREQ - Channels 2, 3, 4, 5, 6,

Sound: 21.9 me

P ictu re: 26 .4 me

Channels 7, 8, 9 & 10

Sound: 27.3 me

P ictu re: 22. 8 me

ANTENNA - T A -6 "B ilt-In -T en na". P ro ision s for connec

tion of an external antenna.

ANTENNA IMPEDANCE - 300 ohm s

CHASSIS

TS-172

MODELS

I7K1E

17K1BE

I7K2E

17K2BE

POW ER SU PPLY - 117 olts, 60 cy cle AC current only

POW ER CONSUMPTION - 205 watts

AUDIO OUTPUT - 4 watts

CHASSIS TU BE CO M PLEM ENT -

Ref.

No. Tube Function

V -l i

6CB6 R F A m p lifier

V -2 12AT7 M ix er -O sc illa to r

V -3 6AU 6/6AG 5 1st IF A m p lifier

V -4 6AU 6/6AG 5 2nd IF Am p lifier

V -5 6 AG 5 3rd IF A m plifier .

V -6 6AL5 or

1N60 xtal Video D etector

V -7 6AH6 or

6C B6/6B C5 Video Am plifier

V -8 6AU 6/6AG 5 Audio D ri er-L im iter

V -9 6AL5 R atio D etector

V -10 6J5/G T Audio A m plifier

V -l l 6V 6/G T Audio Output

V -l 2 6SN7GT 1st & 2nd C lippers

V -l 3 12AU7 or

6SN7GT V ertical Sweep G enerator

V -14 6W6GT or

6 AS 5 V ertica l Sweep Output

V - 1 5 6AL5 or

6H6 Phase D etector

V -16 6SN7GT H orizontal O scilla tor

V - 1 7 6BQ6GT H orizontal Output & High

Voltage G en erator

V -18 6W4GT Damping Diode

V-19 1B3GT High Voltage R ectifier

V -20 17BP4 or

17AP4 P ictu re Tube: rectan gular

V-21 5U4G Low Voltage R ectifier

HIGH VOLTAGE WARNING

Operation of this r e ce i e r, outside its cabinet or with

co e rs rem o ed, in ol es a shock hazard from the pow ef

su pplies. No w ork should be attempted on this re cei er by

anyone not thoroughly fa m iliar with the precaution s n ec e s

sary when working on high oltage equipm ent.

CATHODE RAY PICTURE TUBE HANDLING PRECAUTIONS

Extrem e care m ust be used in handling the picture tube*

The tube is highly e acuated and, due to its large siz e, is

subjected to a con sid erable atm osph eric p re ssu re. The

handler should wear safety goggles and glo es for p rotec

tion. A oid nicking or scratch ing the glass by rough contact

with other ob jects.

4545 AUGUSTA BOULEVARD

B efore rem o ing glass tubes, disch arge the capacity

form ed by the inner and outer aquadag coatings on the tube

by shorting the anode contact on the side of the tube to the

outer surface with a w ell insulated piece of w ire.

CHICAGO 51, ILLINOIS

PART NO. 54P70217 4 Price 15 Cents PRINTED IN U. S. A.

Scanned by mbear2k - Jan 2012

INSTALLATION AND OPERATING INSTRUCTIONS

RECE IVER LOCATIONS

The re ce i e r m ay be placed anywhere in the room , but

for greatest satisfaction it should be located.

1. Away from any bright light that m ay fa ll directly on the

screen or be reflected from it; this includes windows and

lam ps. Som e illum ination in the room , off to one side, is

d esirable, how e er, to pre ent ey e-stra in .

2. T o pro ide com fortable iewing and ease of operation.

3. At least on e-inch away from a wall to allow for cabinet

entilation. This is ery im portant.

ANTENNAS

The ch oice of tele ision antenna depends entirely on the

location of the re ce i er with respect to all tele ision station

transm itting antennas in the area. M aximum pick-up is ob 

tained when the recei ing antenna is d irectly in line of sight

with the transm itting antenna.

"B ilt-In -T en n a". All re cei ers using theT S-172 series

tele ision ch assis are equipped with the M otorola "B ilt-In -

Tenn a", m ounted inside the cabinet, for use in good signal

areas.

to recei e stations on channels of w idely separated frequ en 

cie s.

Location of the antenna should be decided from the stand

point of m axim um signal pick -up. In general, the antenna

should be broadside to the transm itting antenna and should

be as high as p ossible. If a re fle ctor is used, the antenna

should be oriented so that the d ri er elem ent is clo se st to

the station and the reflector farthest away.

Locating the antenna and lead -in as far away as possible

from highw ays, hospitals, d octors' o ffices, electric a l m a

chinery, etc. , w ill help to reduce noise pick-u p from such

sou rces. A lso, it is desira ble to keep the antenna at least

six feet away from other antennas, m etal ro o fs, gutters, or

other m etal objects to pre ent unwanted reflection s and

shielding.

Lead-In. Since the T S-172 ch a ssis is designed for 300

ohm input, the standard 300 ohm twin lead line should be

used for connecting the outside antenna to the re ce i er.

Tw isting the line one com plete turn per foot of running length

helps to reduce noise pick -up on the line. The lead -in

should be supported on stan d-off insu lators and kept tight

enough to pre ent m echanical dam age through swaying.

A oid running the lead -in clo s e to m etal gutters, iron

standpipes, etc.

When this antenna is used, the follow ing precau tions

should be obser ed for best recep tion:

1. In order to get m axim um perform ance and sa tisfa ctory

pictures from the "B ilt-In -T en na ", am ple signals from the

tele ision station must be present at the location of the r e 

ce i e r s . N orm ally, the strength of the signals w ill ary

throughout the room in which the recei er is located. F or

this reason, better pictures will be obtained if the re cei e r

is tried in all possible location s in the iewing room and is

then placed where the clea re st pictu res are recei ed from

all stations. A oid large m etallic objects, such as radia

tors, m etal panels, etc.

2. Lam ps, ases and m etallic ob jects, when placed on top

of the rece i er, m ay affect the efficien cy of the "B ilt-In -

T enna".

Indoor Antenna. If additional pick -up is n ecessa ry, an

indoor antenna, placed on or near the re ce i er, m ay be

used. The antenna should be rotated and the arm s should

be adjusted for the best signal, with no ghosts or r e fle c

tions. N orm ally, the arm s should be extended on the low

channels (2 -6 ) and telescoped on the high channels (7-13).

Outdoor Antenna. The M otorola "B ilt-In -T en na " or the

indoor type antenna w ill gi e satisfa ctory recep tion in strong

signal areas; but, if the recei e r is located in a fringe or

weak signal area, an outdoor antenna is recom m ended.

In areas free of obstructions and reflection s, within re a 

sonable proxim ity to tele ision transm itters, a dipole and

re flecto r will pro e satisfactory. Since such an antenna has

a rela ti ely sm all band co era ge , a specia l antenna co erin g

all twel e tele ision channels should be used if it is desired

In ery strong signal area s, or w here se ere local in 

terferen ce is encountered, 300 ohm sh ielded twin lead is

recom m ended. The shield braid should be grounded.

An appro ed lightning arre stor should be used.

RECE IVER ANTENNA CONNECTION

The antenna lea d -in to the tele ision r e cei er is con 

nected to the two screw s of the term inal strip on the rear

of the cabinet. D isconnect the "B ilt-In -T en na " leads from

the term inal strip before attaching an external antenna lead -

in. S om etim es, re ersin g the lead -in connections at the r e 

cei er may im pro e picture quality and o erall p erform an ce.

OPERATING CONTROLS

There are two dual con trols, consisting of a sm all and

a large knob each, on the front panel of the r e ce i er . See

Figure 1 for front panel control functions.

FIGURE I. OPERATING CONTROLS

SERVICE ADJUSTMENTS

The recei e r is com pletely adjusted at the factory, so

norm ally none other than the front panel con trol operating

instructions need be follow ed inputting the re cei er in op er 

ation. H ow e er, to pro ide for any m isadjustm ent of the

ser ice con trols, due to handling, the follow ing instructions

are in ord er. See F igure 2 fo r location of the se r ice ad

justm ent con trols.

Scanned by mbear2k - Jan 2012

FIGURE 2. SERVICE ADJUSTMENT CONTROLS

FOCUS CONTROL

The FOCUS con trol should be adjusted until the fine h or

izontal line stru ctu re of the ra ster is clea rly isible o er

the picture area. The con trol should be turned through the

co rr e ct point se era l tim es so that optimum focus is ob 

tained.

CENTERING

By m eans of a le er extending from the focus co il, thru

the rear screen , the focus co il can be shifted to center the

pictu re in its m ask.

VE R TIC AL SIZE AND VE R TIC A L LINEARITY

Adjust the VE R TIC AL SIZE control until the picture fills

the m ask ertically. Adjust the V ERTICAL LINEARITY

con trol for best o erall ertica l linearity. Adjustm ent of

the VERTICAL SIZE con trol will requ ire a readjustm ent of

the VERTIC A L LIN EARITY con troland p o ss ib ly of the V ER 

TICAL HOLD control. Center picture with the centering

le er on the focus co il.

HORIZONTAL SIZE

Adjust the HORIZONTAL SIZE le er until the picture

fills the m ask h orizon tally. Center picture with the cen 

tering le er.

HORIZON TAL OSCILLATOR ADJUSTMENT

The H ORIZONTAL HOLD con trol should ha e a sync

range of approxim ately 180 d egre es. If the con trol is too

critica l, adjust as follow s:

1. Short out HORIZON TAL OSCILLATO R co il L -2 3 . This

m aybe done with the ch assis in the cabinet by shorting pins

3 & 8 of the test socket on ch assis rear.

2. With the centering le er, m o e the picture to the left so

that the right edge of the raster can be seen. Adjust the

HORIZONTAL HOLD control to about the m iddle of its range

andnote the width of the blanking pulse. (The blanking pulse

appears as a gray bar at the right edge of the pictu re).

3. Rem o e short from HORIZO N TAL OSCILLA TO R coil.

4. A djust HORIZON TAL O SCILLATOR co il until the sam e

amount of blanking pulse can be seen as was noted in step 2.

VER TIC A L HOLD ADJUSTM ENT

Adjust the V ERTIC A L HOLD con trol for the cen ter of

the ertica l sync lo ck -in range.

BRIGHTNESS

Adjust the BRIGHTNESS con trol, in com bination with

the CONTRAST con trol for the m ost pleasing pictu re. K eep

the brillian ce slightly below m axim um , how e er, in order

to protect the fluorescen t screen of the picture tube and to

pre ent poor picture detail.

ADJUSTM ENT OF ION T RA P

Under conditions of rough shipm ent, it is p ossible for

the ion trap to becom e m isaligned. To pre ent seriou s dam 

age to the picture tube, the follow ing method of adjustment

should be used. See F igu re 3.

The m agnet should be placed on the neck of the tube in

the direction indicated by the m arking on the magnet (usu 

ally an arrow which points toward the picture tube screen)

so that the stron ger magnet of the double m agnet type or the

only magnet in the single m agnet type is positioned o er the

internal pole p ieces which are mounted on the gun stru ctu re.

Adjust the BRIGHTNESS control for low intensity and m o e

the m agnet a short distance forw ard and backw ard at the

sam e tim e rotating it to obtain the brightest ra ster. If, in

obtaining the brightest raster, the ion trap magnet has to be

m o ed m ore than 1 /4" from the gun pole p ie ces the m agnet

is probably weak and a new m agnet should be tried. Ne er

co rrec t for a shadowed raster with the ion trap magnet if

Scanned by mbear2k - Jan 2012

FIGURE 3. PICTURE TUBE ADJUSTMENT LOCATIONS

such co rrection results in d ecrea sed brightness. The ion

trap m agnet m ust always be adjusted for m axim um bright

ness and if shadows occu r at this setting they should be

elim inated by adjusting the focus and deflection co ils as ex 

plained under "F ocu s C oil and D eflection Yoke A djustm ent1'.

CAUTION: Keep BRIGHTNESS con trol at low intensity

until ion trap is p rop erly set.

A m irror placed in front of the recei e r w ill aid in m ak

ing this adjustm ent.

DEFLECTION YOKE ADJUSTMENT

If the deflection yoke shifts, the picture w ill be tilted.

To co r r ec t, loosen the thum bscrew on top of the deflection

yoke and rotate yoke until the picture is straight. B efore

tightening the thum bscrew , m ake certain that the deflection

yoke is as far forw ard as p ossib le.

If the yoke support and the picture tube ha e shifted in

transit, or if fo r any reason these parts ha e been rem o ed

and replaced , it is best to do a com plete job of reposition 

ing. See Figure 3. The starting point is the position of the

picture tube. It should be adjusted so that the distance from

the center of the tube face to the front edge of the ch assis is

1-1/16". The clam p on the front of the tube should then be

tightened. The picture tube rear support bracket position 

ing adjustm ent screw s should be loose enough to perm it

sliding the brack et forw ard until the rubber cushion fits

snugly up against the flare of the tube. L oosen the yoke ad

justm ent thum bscrew and push the yoke up against the flare

of the tube. CAUTION: Do not use force in sliding the

brack et up. If to much force is used, a strain w ill be

placed on the neck of the tube when the support bracket

positioning adjustment screw s are tightened. A lso the yoke

m ay be force d out of position. The opening in the yoke

should be con cen tric with the neck of the tube.

FOCUS COIL

The focu s co il should be positioned so that it is spaced

l / 4 " from the d eflection yoke when parallel with the yoke.

The opening in the focu s co il should be con cen tric with the

neck of the tube. The spacing should be adjusted before the

front of the picture tube is clam ped down because it is n ece s 

sa ry to rem o e the tube to change the position of the focus

co il. Its position is changed by ch oice of location of the co il

mounting studs in the scallop ed holes on the top and bottom

of the coil mounting bracket. The opening in the focu s c oil

can be made con cen tric with the neck of the tube by lo osen 

ing the nuts on the studs which support the focus co il b r a ck 

et and turning the studs with a screw dri er in the slots p ro 

ided. The studs are eccen tric and m o e the c oil both e r 

tically and horizontally. They should be used only to center

the neck of the tube in the opening of the co il.

TEST SOCKET

A test socket is pro ided on the rear of the ch a ssis

which allow s adjustm ent of the h orizontal oscillato r and

checking of sen siti ity without rem o ing cha ssis from ca b i

net. See F igu re 2 for socket conn ection s.

ALIGNMENT

g e n e r a l

The ch assis should be m ounted on angle iron brackets

(M otorola Part Num ber 7X700210) so that all connections

and adjustm ents m ay be made easily.

Since the pow er cord circu it is broken by the interlock

when the cabinet back is rem o ed , it w ill be n ecessa ry to

obtain an extra pow er cord with the fem ale interlock re ce p 

tacle in order to make a power connection to the re cei er.

O rder M otorola P art No. 30B470756.

Scanned by mbear2k - Jan 2012

A com plete re cei e r alignm ent can be m ost con eniently

perform ed in the follow ing ord er:

1. Audio T ake-O ff & Ratio D etector

2. 4. 5 Me Trap

3. IF C oils & M ixer T ra n sform er

ORDER OF ALIGNMENT 3. F rom either side of capacitor C -52 , conn ect an e le c 

tronic oltm eter to ch assis decoupled thru 10K ohm s.

4. Set the contrast control for m axim um gain (fully clo ck 

w ise).

5. Peak L -20 for m aximum reading on m eter.

6. Peak T -3 prim ary (top core) for m axim um reading on

m eter.

4. O sc & RF Sections 7. M o e the m eter and decoupling r e sisto r from C -52 to

junction of R-41 and lead to olum e control.

AUDIO TA K E -O FF & RATIO DETECTOR ALIGNMENT

Equipment Required:

AM Signal G enerator: A ccu ra tely calibrated at 4. 5 me

(Optional) Adjustable output

DC M eter: Low range electron ic oltm eter

R efer to Figure 4 for location of adjustm ents.

1. If possible it is d esirable to align the audio section from

an actual station signal, since the 4. 5 me alignm ent fr e 

quency will be exact. The fine tuning trim m er should be

turned of the station slightly, to pre ent o erloading the

ratio detector.

2. If a signal generator is used, tune it a ccu rately to 4. 5

me and adjust the output to approxim ately 10,000 m icro 

olts. Connect the high side of the signal generator through

a 1000 m m f ca p acitor to the grid (pin 1) of the ideo am p li

fier tube V -7 , and the low side to ch assis. The follow ing

applies whether the. station signal or signal generator is

used.

8. Adjust T -3 secondary (bottom core) for z e ro response

on the low est scale of the m eter. This corresp on ds to the

cr o ss -o e r point on the FM detector cu r e. If desired , the

sym m etry of the cur e m ay be checked by tuning the g e n er

ator ± 2 5 kc from 4. 5 me and noting the oltage produced,

re ersin g the m eter connections as n ecessa ry. F or proper

balance of the ratio d etector system , the oltage in each d i

rection should be approxim ately equal. If not, ch eck the

tuning of L -20 and the prim a ry & secondary of T -3 , the

ratio d etector. If nece ssa ry, replace the ratio detector tube

V -9 (6AL 5). The generator m ay be calibrated by tuning the

secondary of T -3 to ze ro on a station signal and tuning the

generator to the sam e zero respon se, noting whether it in 

dicates 4. 5 m e.

NOTE: As the adjustm ents are brought to resonance, it is

ad isable to redu ce the signal generator output to pre ent

o erloading.

With a 10,000 m icro o lt signal fed into the grid of the

ideo am plifier tube, and the contrast control turned fully

clock w ise, the oltage read from one side of cap a citor C -52

to chassis should be greater than 5. 0V.

NO. TYPE FUNCTION

V-l 6C86 R-F AMP.

V-2 I2AT7 MIXER-OSC.

V-3 6AU6/6AG5 1 ST. IF AMP.

V- 6AU6/6AG5 2 ND. IF AMP,

V 5 6AG5 3 RD. IF AMP

V 6 6AL5 VIDEO DET.

V-7 6AH6/6CB6 VIDEO AMP.

V-8 6AU6/6AG5 AUDIO DRIVER LIMITER

V-9 6AL5 RATIO DET.

V-IO 6J5GT AUDIO AMP.

V-ll 6V6GT AUDIO OUTPUT

V-12 6SN7GT 1 ST. a 2ND. CLIPPER

V-13 I2AU7/6SN7GT VERT SWEEP GEN.

V-l 6W6GT/6AS5 VERT. SWEEP OUTPUT

V-15 6AL5/6H6 PHASE DET.

V-16 6SN7GT HORIZ. OSC.

V-17 6B06GT HORiZ. OUTPUT a H.V. GEN.

V-18 6W GT DAMPING DIODE

V-19 IB3GT H.V. RECT.

V-2! 5U G L.V. RECT.

*1N60 CRYSTAL USED IN PLACE OF V-6 IN SOME SETS.

-FINE TUNING

-CHANNEL SELECTOR

POWER SWITCH a

VOLUME

^ ANTENNA

INPUT

©C-6

R'F

TRIMMER

©MIXER l-F

C&(PRI - TOP)

v>l2 (SEC-BOT)

sosc

TOP VIEW

OF CHASSIS

©-L-I5

L -l l (TOP) L-I2 (BOT.)

(TOP) L-I (BOT)

Cgp2ND. I-F LOW TRAP ©RATIO

0ET ( O )

(PRI. T 0 P )V V

fSFr. arm

• V -|9|

l I

r1-------

L-'8 jx, L-20

4.5 MCHjP S!P sound ta k e -o f f

TRAP

“ S ? - ! f -16 ^is) T-8

GET NO 69C70I993-0

FIGURE 4. TUBE AND ALIGNMENT ADJUSTMENT LOCATIONS

Scanned by mbear2k - Jan 2012

1. Connect the high side of the signal gen erator thru a 1000

m mf cap acitor to the grid (pin 1) of the ideo am p lifier tube

V -7, and the low side to ch a ssis.

2. Connect the oltm eter and germ anium crysta l rectifie r,

as shown in Figure 5, between the cathode of the picture

tube (yellow lead) and ch assis. Use the low est oltage scale

on the m eter.

4. 5 MC TRAP ALIGNMENT to ch assis. Set the center frequ en cy of the sw eep to about

24. 6 me and adjust initially for a sw eep de iation of ap

proxim ately 12 m e. H ow e er, a sweep of from 8 to 10 me

may be found better for o e rall alignm ent.

4. Using R -26 (100K) as a decoupling re sisto r, connect the

scope to pin 4 of test socket and ch assis. If a stronger out

put is required, connect the scope between the picture tube

cathode and ch assis. The cu r e seen at this position w ill be

the re e rse of the polarity shown in Figure 6.

3. With the signal generator accurately set at 4. 5 me and

m aximum output, adjust trap L.-18 for m inimum reading on

the m eter.

IF AM PLIF IE R ALIGNMENT

5. Set the contrast con trol at m inimum .

NOTE: If a distorted or unstable picture is seen on the o s 

cillo scop e during alignm ent, it may be n ece ssa ry to stop the

oscilla to r by discon n ecting re sisto r R -9 (1500) from the

plate (pin 6) of the oscilla to r tube V -2B (12A T7), or by sub

stituting another tube with pin 6 rem o ed.

Equipment R equired: CAUTION:

IF Sweep G enerator m eeting the follow in g requirem ents:

18 to 30 m e, approxim ately 12 me sw eep width. Output

constant and adjustable to at least . 1 olt m aximum

with accu rately calibrated, adjustable m arkers.

Cathode Ray O scillo scope : p referably one with a ca li

brated input attenuator.

NOTE: If there is no bu ilt-in m arker in the sweep gen era 

tor, lo o se ly couple the output of an accurately calibrated

AM signal generator to the IF strip. At all tim es, keep the

m arker output low enough to pre ent the m arker from d is

torting the response cu r e.

A. Do not reduce the o scillosco p e gain and in crea se signal

input so that the top of the cur e is flattened, due to lim it

ing in the ideo or scope a m p lifiers.

B. The d ress of plate & grid com ponents in the IF affects

tuning. Do not m o e in discrim ina tely.

C. On the IF co ils and on the traps, the resonance point

w ill be found at two settings of the slug. The c or r e c t setting

is the one which is found with the greater part of the adjust

ing screw out of the co il.

NOTE: The 1st & 2nd IF traps are tuned from bottom of

ch assis while IF co re s are adjusted from the top.

If a wide band scope is used, the m arker w ill be m ore

distinct if a capacitor of 100 to 1000 m m f is placed a cro ss

the scop e input. Use the sm allest size p ossible, since too

large a alue w ill affect the shape of the cur e.

1. R em o e the high oltage generator tube V-17 (6BQ6GT)

from its socket to elim inate horizontal pick-up in the o s c il

loscop e. Replace 6BQ6 with 2500 ohm 25 watt resisto r con 

nected from B plus side of fuse to ch assis.

2. By m eans of an external battery, apply a negati e 3. 0

olt bias from the bottom of the 1st IF tube grid co il dam p

ing re sisto r, R-13, to chassis.

3. Using leads as short as p ossib le , connect the hot side of

the sw eep generator to the grid (pin 1) of the 1st IF tube V -3

through a 5000 m m f cap acitor (do not use the loose or

"sp rayin g" method of coupling). The low side is connected

6. Tune the low frequency trap L-14 located on the 2nd IF

coil for m axim um attenuation on the cur e at 21.9 m e,

DIAG. NO 63A791272-0

DC PROBE 220K

H I I00MMF

it 22UK

3—avvw—< >—9 i ——►

1 N 3

220K

B - B -

FIGURE 5. ELECTRONIC VOLTMETER CONNECTIONS

21.9 27.3 21. 27.3

FIGURE 6. IF RESPONSE CURVE FIGURE 7. OVERALL RESPONSE CURVE FROM MIXER

Scanned by mbear2k - Jan 2012

7. Tune the high frequ ency trap L-12 located on the 1st IF

co il for m aximum attenuation on the cur e at 27. 3 m e.

8. Adjust the 1st IF co il, L - l l , to place a 26 .6 me m arker

on the high side of the resp onse cur e 60% down from m ax

im um respon se. See Figure 6.

9. Adjust the 2nd IF coil, L -15, to place a 22. 7 me m arker

on the low side of the respon se cur e 6 0 down from m axi

mum respon se.

10. Adjust the 3rd IF plate tran sform er T -2 to pro ide a

flat top or sym m etrica l response cur e.

11. R eset the traps (steps 6 and 7) and again check the IF

for prop er resp on se.

NOTE: It is suggested that the bias be rem o ed for accurate

setting of the traps.

12. With bias applied, connect the sw eep between the grid

(pin 2) of the m ixer tube V -2A (12AT7) and ch assis.

13. D isconnect the trim m er, C -14, in LC circu it in the

grid of the m ixer tube, or short the trim m er thru a 10,000

m m f cera m ic disc type to chassis.

14. B ring both core s of the m ixer tra n sform er, T - l, s i

m ultaneously from the outside tow ards the center. The

half-w ay m arkers should be 26.4 me and 22 .9 m e.

NOTE: In aligning the three IF co ils , each co il is adjusted

indi idually, but when adjusting the p rim a ry and secondary

of the m ixer tra nsform er, the adjustm ents should be made

sim ultaneously. The im portant point to keep in mind is to

obtain a flat response cur e with as m uch gain as possible.

The sides of the cur e should be straight and as steep as

possible. Simultaneous adjusting of the prim ary and s e c

ondary is the easiest way to obtain this result. The tra n s

form er by itself is, in effect, tuned for the sam e pass band

as the three staggered circu its. See F igure 7. The only

difference in the o erall w a eform should be that the sides

of the o erall wa e are steeper. Constant use of the 50%

m arkers (22. 9 me and 26. 4 me) should be resorted to,

since it is absolutely n ecessa ry to obtain the prop er cur e.

A slight dip (not exceeding 10%) is p erm issib le in the m ixer

transform er response cu r e.

BANDWIDTH

The bandwidth m ay be determ ined by connecting an AM

generator to the m ixer grid. With the generator frequency

at 24. 6 m e, adjust the output for 1 olt reading on a VTVM

connected to pin 4 of test socket and ch a ssis. Double the

output of the generator. Now by tuning either side of 24. 6

me and noting the frequ encies at which the VTVM again

reads 1 olt, the 6 db bandwidth points are indicated. These

points should be 22.9 m e and 26. 4 m e. By watching the

m eter while tuning slow ly thru the band any seriou s peaks

or holes in the respon se can also be detected.

REGENERATION CHECK

After the abo e IF and m ixer tran sform er alignm ent has

been m ade, a check for regeneration in the IF am plifier

strip should be m ade. This is done by rem o ing the battery

bias and obser ing the output respon se cur e on the o sc illo 

scop e, as taken between the picture tube cathode and ch a s

sis. The bandwidth m ay change with the bias rem o ed but

should not change m ore than 0. 2 m e. Set the contrast co n 

trol to m aximum gain. D ecrease the input until the output

signal show s a m arked de crea se. Any regen eration present

w ill be indicated by sharp peaks on the o e rall respon se

cur e. The oscilla tor should be stopped, as d escrib ed

abo e, during this proced u re.

CAUTION: Do not inject too m uch m arker signal.

MIXER LC ADJUSTMENT

Reconnect bias rem o ed for regen eration check. R e 

place trim m er C-14 in LC circu it of m ixer grid or rem o e

10, 000 m m f cera m ic between trim m er and ch assis. A djust

the trim m er so it is tuned to the center of the m ixer r e 

sponse cur e. This is indicated by obser in g the effect of

the LC circu it on the m ixer resp on se. Increasing the c a 

pacity of the trim m er and bringing the LC circu it from

abo e the IF range into the IF range, it w ill be noted that

the m ixer cur e w ill pull down on the high side, straighten

out as the LC circu it approaches the m iddle of the range,

and pull down on the low side as the LC circu it approaches

the low end of IF range. The proper tuning point is that

point at which the m ixer cur e straightens out. In effect,

the LC circu it is sim ilar to a jack coil when it is within the

IF range.

CAUTION: Tuning the LC circu it ery low wil cause

oscilla tion.

IF SENSITIVITY MEASUREMENTS

IF Stages Only

1. Rem o e the battery bias from 1st IF tube grid.

2. Connect an AM signal gen era tor, set at 24. 6 m e, thru

a blocking capacitor of 5000 m mf, between ch a ssis and the

gr.d (pin 1) of the 1st IF tube V -3.

3. Connect an ele ctron ic oltm eter a cross the ideo d etec

tor load resisto r R -28 (5600). Both leads fro m the m eter

should be decou pled with 100K ohm resisto rs.

4. 5iet the contrast control for m aximum sensiti ity.

5. Stop the oscillato r tube by disconnecting resisto r R -9

(1500) from the plate (pin 6) of tubeV -2 B (12AT7) or by su b

stituting another tube with pin 6 rem o ed.

6. The signal required to produce 1 olt (negati e) abo e

contact potential on the m eter should be less than 700 m ic r o

olts.

M ixer & IF Stages

The prelim inary preparations are the sam e as for ch eck 

ing the sensiti ity of the IF stages except:

1. Connect the AM signal generator, set at 24. 6 m e, thru

a 5000 m m f cap acitor, between ch assis and the grid (pin 2)

ri the m ixer tube V -2A (12AT7).

2. The signal required to produce 1 olt (negati e) abo e

contact potential on the m eter should be less than 125 m ic ro 

olts.

OSCILLATO R, ANTENNA AND RF ALIGNMENT

NOTE: The IF m ust be aligned before the RF section can

be p rop erly phased.

Equipment Required:

Sweep G en erator: F requen cy range 40-220 m e; 10 me sweep

Scanned by mbear2k - Jan 2012

width

Output constant and adjustable

Adjustable m arkers (m ark ers should be

calibrated occasio n ally by checking

against an accurate signal generator)

O scilloscop e : Prefera b ly one with a calibrated input atten

uator.

Signal G enerator: F requen cy Range 40 to 220 me

A ccu rately calibrated

AM m odulated, 400 cycle

FREQUENCY CHART

Chan F requency Picture Sound O scillator

254-60 55. 25 59. 75 81.65

360-66 61. 25 65. 75 87.65

4 66-72 67. 25 71. 75 93. 65

576-82 77. 25 81. 75 103.65

682-88 83. 25 87. 75 109.65

7174-180 175. 25 179.75 152.45

8180-186 181.25 185. 75 158.45

9186-192 187. 25 191.75 164.45

10 192-198 193.25 197. 75 170.45

11 198-204 199.25 203.75 225.65

12 204-210 205. 25 209.75 231.65

13 210-216 211.25 215. 75 237. 65

ANTENNA & RF ALIGNMENT PROCEDURE

1. R em o e high oltage generator tubeV-17 (6BQ 6GT) from

its socket and substitute a 2500 ohm 25 watt resistor co n 

nected from the B plus side of the fuse to ch assis. Stop the

oscilla tor by discon necting R -9 (1500) fro m plate (pin 6) of

V -2B (12AT7).

2. Connect the sw eep generator a cross the antenna term i

nals on the ch assis with the antenna le a d -in rem o ed . The

line from the sw eep generator should be as short as p o ss i

ble.

3. Connect the o scilloscop e through a decoupling resisto r

of 150,000 ohm s, between the cathode (pin 3) of the m ixer

tube V -2 (12AT7) and chassis.

4. Short out the AGC circu it with a clip lead from the AGC

bus to ch assis.

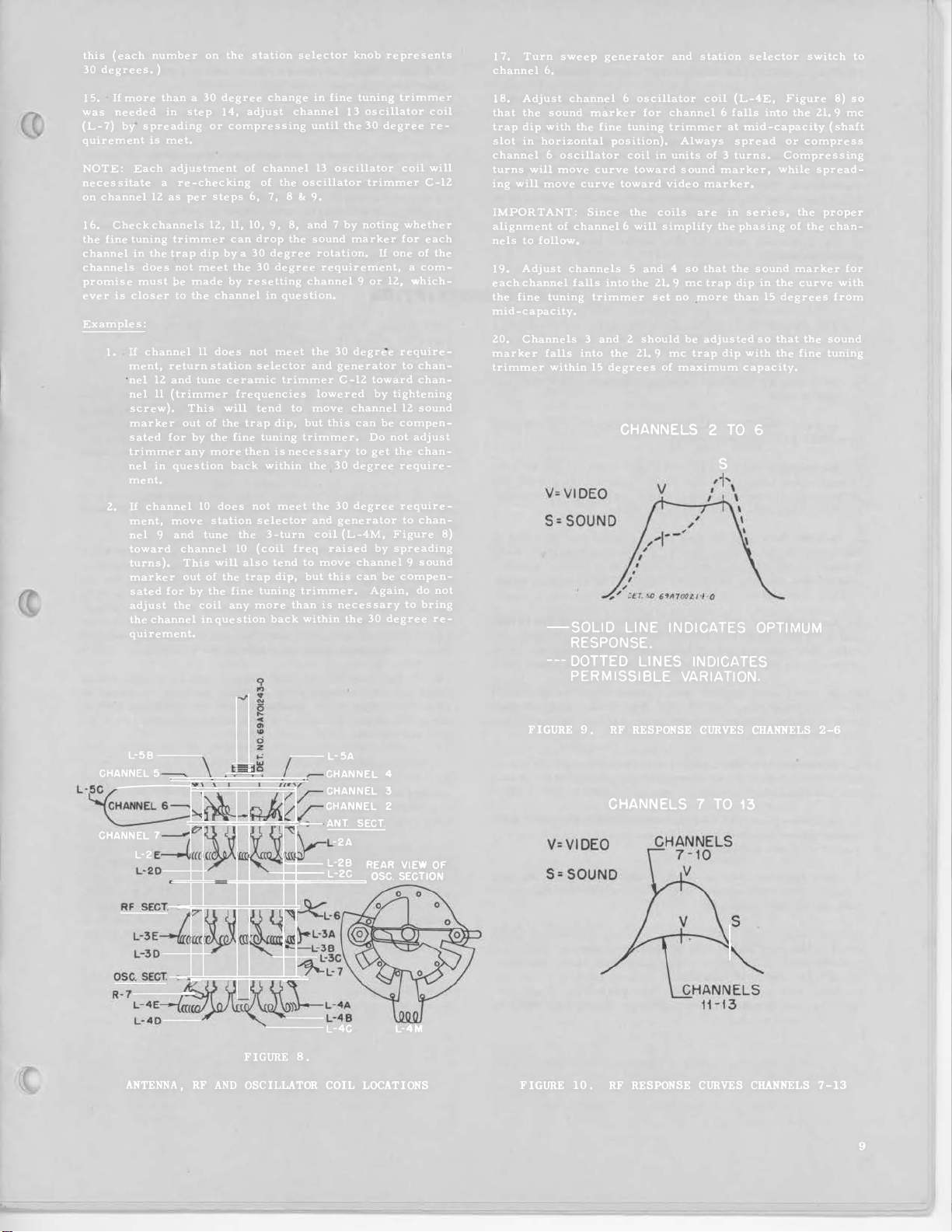

5. R efer to F igure 4 for the RF trim m er location and to

Figu re 8 for the locations of the antenna and RF co ils. The

frequency chart listed pre iously gi es the channel and

alignm ent frequ en cies.

6. The antenna coils are tuned to the ideo ca rrie r fr e 

quency and the RF co ils are tuned to the sound ca rrie r s.

Figu re 9 shows the shape of the cur e which should appear

on the scope for channels 2-6 and Figure 10 the cur es for

channels 7-10 and 11-13.

7. Turn the station selector switch to channel 10. Set the

center frequ ency of the sw eep generator to the cen ter fr e 

quency of channel 10 (195 m e).

8. Adjust ce ra m ic trim m er, C -6 , so that picture and sound

m arkers are as in Figure 11.

9. Check channels 7 to 13 for proper resp onse and, if n e c e s

sary, tune the co ilL -6 . These co ils may be tuned by spread -

ingthem to decrea se inductance or com p ressing them to in

crea se their inductance. See F igu re 8 for location of coils .

This w ill ha e m ore effect on channels 10 to 13 than'7 to 9.

If L -6 is adjusted, it m ay be n ece ssa ry to readjust RF trim 

m er C -6 and rech e ck the high channels.

10. M o e bandswitch to channel 6.

11. With center frequen cy of sw eep generator at the center

frequ ency of channel 6 (85 m e) introduce m a rk ers c o r r e s 

ponding to sound and picture c a rriers and com pare with

cur e of Figu re 9.

NOTE: A con enient method of determ in ing whether a coil

is tuned c orre ctly is to insert a brass or iron slug into the

co il. B rass d ecreases and iron increa ses the inductance.

12. A fter channel 6 has been aligned, p rogress downward

through channel 2.

CAUTION: Make certain the station selector sw itch is

on the c o rr e ct channel before checking band pass.

OSCILLATOR ADJUSTM ENT

1. Put oscilla tor back in circu it.

2. Rem o e the short from the AGC circu it and apply a -3

olt battery bias to the AGC bus.

3. M o e the scope to the test socket on the ch assis rear

with the high side connected to pin 4 and the low side to

ch a ssis.

4. Set the contra st con trol at m inim um (cou n terclock w ise).

5. Rem o e the fine tuning knob and turn shaft until the slot

is in a horizontal position. This rep resen ts the m id -cap acity

position.

6. Turn station selector sw itch to channel 12.

7. Set the sw eep generator on channel 12 with a center fr e 

quency of 207 m e and at least a 12 me sw eep. K eep the out

put low enough to show no e idence of lim iting in the o erall

response cu r e.

NOTE: B efore aligning the oscilla tor section , make certain

that L -8 (3. 3 m icroh e n ries) in the m ixer grid is d resse d

away from C-16 (2 m m f) tied to the sam e grid.

8. Introduce a m arker corresp ondin g to the sound ca rrier

of channel 12 (209. 75 m e).

9. A djust C-12 oscilla tor cera m ic trim m er so that the

sound m arker fa lls into the 21.9 me trap dip in the response

cu r e.

10. Turn generator and station sele ctor to channel 9 with

the fine tuning shaft slot still in the h orizontal position.

11. Spread or com p ress the 3-turn co il located in the ce n 

ter of the o scilla tor plate (L -4M , Figu re 8) so that the sound

m ark er for channel 9 falls into the 27. 3 m e trap dip in the

response cu r e. A s the oscilla tor is tunedbelow the ca rrie r

on channels 7, 8, 9, 10, the 27. 3 me trap w ill be in the sam e

position as the 21. 9 m e trap in step 9.

12. Repeat steps 6, 7, 8 & 9.

13. Turn generator and station se lector to channel 13.

14. Turn fine tuning trim m er so that the sound m arker for

channel 13 falls into the 21. 9 me trap dip of respon se cu r e.

The slot in the fine tuning shaft should not ha e m o ed m ore

than 30 degrees from the horizon tal position to accom plish

Scanned by mbear2k - Jan 2012

this (each num ber on the station selector knob represen ts

30 d e gr e e s .)

15. If m ore than a 30 degree change in fine tuning trim m er

was needed in step 14, adjust channel 13 oscillator co il

(L -7 ) by spreading or com pressing until the 30 degree r e 

quirem ent is m et.

NOTE: Each adjustment of channel 13 oscilla to r coil will

necessitate a re-ch eck in g of the oscillator trim m er C-12

on channel 12 as per steps 6, 7, 8 & 9.

16. Check channels 12, 11, 10, 9, 8, and 7 by noting whether

the fine tuning trim m er can drop the sound m arker for each

channel in the trap dip by a 30 degree rotation. If one of the

channels does not m eet the 30 degree requirem ent, a co m 

prom ise m ust be made by resetting channel 9 or 12, w hich

e er is clo ser to the channel in question.

Exam ples:

1. If channel 11 does not m eet the 30 degree re q u ire

m ent, return station selector and generator to chan

nel 12 and tune cera m ic trim m er C-12 toward chan

nel 11 (trim m er frequ encies low ered by tightening

screw ). This w ill tend to m o e channel 12 sound

m ark er out of the trap dip, but this can be com pen

sated for by the fine tuning trim m er. Do not adjust

trim m er any m ore then is necessa ry to get the chan

nel in question back within the 30 d egree re q u ire

ment.

2. If channel 10 does not m eet the 30 degree re q uire

ment, m o e station selector and generator to chan

nel 9 and tune the 3-turn co il (L -4M , F igure 8)

toward channel 10 (c o il freq raised by spreading

turns). This w ill also tend to m o e channel 9 sound

m arker out of the trap dip, but this can be com pen 

sated for by the fine tuning trim m er. Again, do not

adjust the coil any m ore than is n ecessa ry to bring

the channel in question back within the 30 d egree r e 

qu irem ent.

17. Tilrn sw eep gen erator and station sele ctor sw itch to

channel 6.

18. Adjust channel 6 o scillato r co il (L.-4E, Figure 8) so

that the sound m arker for channel 6 fa lls into the 21.9 me

trap dip with the fine tuning trim m er at m id-cap a city (shaft

slot in horizontal position ). Always spread or com p ress

channel 6 o scilla tor co il in units of 3 turns. C om pressing

turns w ill m o e cur e tow ard sound m a rk er, while spread

ing w ill m o e cur e toward ideo m arker.

IM PORTA N T: Since the co ils are in se r ie s, the proper

alignm ent of channel 6 w ill sim plify the phasing of the chan

nels to follow .

19. A djust channels 5 and 4 so that the sound m arker for

each channel falls into the 21.9 m e trap dip in the cur e with

the fine tuning trim m er set no m ore than 15 d egrees from

m id-ca p acity.

20. Channels 3 and 2 should be adjusted so that the sound

m arker fa lls into the 21. 9 m e trap dip with the fine tuning

trim m er within 15 degrees of m axim um capacity.

CHANNELS 2 TO 6

----

SOLID LINE INDICATES OPTIMUM

RESPONSE.

— DOTTED LINES INDICATES

PERMISSIBLE VARIATION.

FIGURE 9. RF RESPONSE CURVES C ANNELS 2-6

CHANNELS 7 TO 13

FIGURE 8.

ANTENNA, RF AND OSCILLATOR COIL LOCATIONS FIGURE 10. RF RESPONSE CURVES C ANNELS 7-13

L-5B

CHANNEL 5

CHANNEL 7

L-2

L-5A

CHANNEL

CHANNEL 3

CHANNEL 2

ANT. SECT.

-2A

L-2B REAR VIEW OF

L-2C OSC. SECTION

L- C L- M

Scanned by mbear2k - Jan 2012

OVER A LL RECE IVER SENSITIVITY MEASUREMENT

An o erall m easurem ent of sen siti ity is made as fo l

low s:

1. Connect an AM signal generator to the input term inals

of the re cei er ch assis after rem o ing the short 300 ohm

lead which conn ects to the antenna input strip on the back of

the cabinet. To m atch the generator to the re cei er input,

a resisti e m atching netw ork should be used. In the case of

a generator with a 50 ohm output im pedance, for exam ple,

place a 100 ohm resisto r in series with the output term inal

of the generator and a 150 ohm re sisto r in se ries with the

ground term inal.

2. F rom cathode of picture tube to ch assis connect a c a li

brated oscillo s co p e.

NOTE: T o calibrate scop e, conn ect it a cro ss 6.3 olt fila 

ment supply. The p eak -to-peak amplitude on the screen w ill

then be approxim ately 18V (6. 3x2. 8).

3. Set contrast con trol for m axim um sen siti ity.

4. Tune signal generator to the ideo c a rrie r frequ ency of

the channel being checked. G enerator signal should be 30%

m odulated at 400 cy cles. The signal fro m the generator to

produce 20 olts peak -to-peak at picture tube cathode should

be less than 25 m icro olts on channels 2 to 6 and less than

75 m icro olts on channels 7 to 13.

CIRCUIT DESCRIPTION

The circu it description appearing in the TS-89 ser ice

manual applies to the T S-172 chassis with the follow ing ex 

ceptions:

1. C -17 , the RF to m ixer coupling condenser, is 6 m m f in 

stead of 8 m m f.

2. In som e sets, V -6 (6A L 5) the ideo d etector, is replaced

by a 1N60 germ anium crystal.

3. C apacitor C-41 and resisto r R -32, a part of the cathode

com pensating netw ork on the T S -89, between the ground end

of the con trast con trol and the low est tap^ha e been rem o ed.

L -17 is changed to a red -g reen dot coil.

4. In som e sets, a 6CB6 tube is substituted for the 6AH6 in

the ideo am p lifier stage (V -7 ). The screen re s isto r, R -35

changes from 33K to 22K with this substitution. Another

substitution for the 6AH6 is a 6BC5. The screen resisto r

R -35 is changed to 22K with this substitution also.

5. An additional RC netw ork, consisting of R-100 (470K)

and C -92 (100 m mf) has been added in the clipp er input c ir 

cuit. This network, w hich has a short time constant, helps

to m inim ize the effect of noise pulses at the clipp er grid.

I6. In som e sets, a 6SN7 tube is substituted for the 12AU7

ertical sw eep generator (V-13). The second m ulti ibrator

grid re sisto r, R -63 , changes from 330K to. 100K with this

substitution.

7. In som e sets a 6AS5 tube is substituted for the 6W6 e r 

tical output tube. No com ponent changes are required with

this substitution.

8. In som e sets a 6H6 tube is substituted for the 6AL5 h or

izontal phase detector V-15. No com ponent changes are r e 

quired with this substitution.

9. The dam ping re sistor a cro ss oscilla tor coil L -4E was

changed from 2200 ohm s to 3900 ohm s to stabilize the o s c il

lator on the low channels.

10. In som e sets, 6AG5 tubes are substituted for 6AU6

tubes in the first and second IF am plifier stages. L -ll, the

first IF coil, L-12, the low frequency trap, L-15, the s ec 

ond IF co il, and L-14, the high frequency trap, are changed

in alue with this substitution. See parts list. R-13, the

dam ping resisto r acro ss T -l , changes from 6800 ohm s to

4700 ohm s. R-14, the first IF stage cathode res isto r, is

bypassed with a 1500 m mf capacitor and R-14 and R-19, the

second IF stage cathode re s isto r, change from 47 to 56

ohm s with this substitution.

11. In som e sets, a 6AG5 is substituted for the 6AU6 in the

audio d ri e r-lim iter stage. This is an exact replacem ent

and requ ires no circu it or com ponent changes; how e er,

substitution of one for the other in the field requires r e 

touching the alignm ent of the p rim ary of the discrim in ator

tra n sform er for best perform a n ce.

12. R-15, R -20, C -24, and C -29 are rem o ed . R-14 and

R-19, the cathode resisto rs for V -3 and V -4 , are grounded

directly. The su pp ressors are also grounded.

13. The ideo am plifier B plus supply was changed from

the 240 olt bus to the 265 olt bus and the audio am p lifier

B plus supply was changed from the 265 olt bus to the 310

olt bus. The bootstrap cap a citor C -83 , which was conn ect

ed to the 240 olt bus is now conn ected to the 310 olt bus.

14. In later sets, the horizontal output tube screen re sisto r

R -94 , is returned to the load side of the fuse F -l .

15. It has been found that certain pow er tra n sform ers

raise the "B " oltage 35 to 45 olts too high. In order to

afford a m easure of p rotection for the 6BQ6 and 6W4 in

these instan ces, a resistor R-104 has been placed in se ries

with the speaker field.

This condition arises only with certain issu e "O ", "A ",

or "B " tra n sform ers (issue designation follow s the part

num ber stam ped on tra n sform ers). In issue "C " tra n sform 

ers, which are currently being produced, this d ifficulty has

been rem edied and the re sistor is no longer n ecessa ry .

In future replacem ents of tra nsform ers, a ch eck should

be m ade of "B " oltage. If it is found to be low after the

new transform er has been installed, rem o e the re sistor

mentioned abo e. If "B " oltage is found to be higher than

norm al, insert co rr e ct R-104 resistor in se ries with speak

er field, as shown in schem atic diagram . C orre ct part

num bers for these resisto rs w ill be found in R E PL A C E 

MENT PARTS LIST.

The tube substitutions w ere necessa ry because of the

critica l shortage in som e tube types. These substitutions

do not affect the operation or circu it theory.

)

Scanned by mbear2k - Jan 2012

REPLACEMENT PARTS LIST

NOTE: When ordering parts, specify m odel number of set in addition to part number and description of part.

Ref. Part List

No. Number Description Price

C ASSIS PARTS - ELECTRICAL

Capacitors

C-l _See Tuning Unit Parts List.. -

C-2 21K77375 Ceramic tubular: 220 mmf 500V .20

C-3 21A470789 Ceramic disc: 5000 mmf 450V .30

C-4 21K77375 Ceramic tubular: 220 mmf 500V .20

C-5 21K470322 Molded: 20 mmf 500V

...... .25

C-6 1X701662 Trimmer,, ceramic: .5-3 mmf;

complete with screw & mtg

nut . . . .

.................

.20

Ref. Part List

No. Number Description Price

C-62 8R9851 Paper: .02 mf 20 0 V ..........20

C-63 8R9870 Paper: .01 mf 60 0V ..........25

C-64 8R9866 Paper: .001 mf 6 0 0 V .........20

C-65 21R6590 Mica: 500 mmf 50 0 V..........25

C-66 8R9873 Paper: .05 mf 6 0 0V ..........25

C-67 8R9875 Paper: .15 mf 60 0 V ..........35

C-68A,B

C & D 23B700160 Electrolytic: 4-section; 80

mf/400V, 40 mf/300V, 20 mf/

300V, 10 mf/300V.......... 3.05

C-69A,B

C-7

C-8

C-9

C-10

C-ll

C-12

C-13

C-14

C-15

C-16

C-17

C-18

C-19

C-20

C-21

C-22

C-23

C-24

C-25

21A470790

21K482726

1X701662

1X792784

21K478280

21K470324

21A470789

21K77375

21K478280

21A470789

21A470790

21A470789

Ceramic disc: 1500 mmf 500V

Ceramic disc: 10,000 mmf 450V

See Tuning Unit Parts List..

Fine Tuning Trimmer (part of

station selector switch)...

Trimmer, ceramic: .5-3 mmf;

complete with screw & mtg

nut

......................

See Tuning Unit Parts List..

Trimmer, ceramic: 3-13 mmf;

complete with screw & mtg

nut

.....................

See Tuning Unit Parts List..

Molded: 2 mmf (temp comp)..

Molded: 6 mmf 500V

.......

Ceramic disc: 5000 mmf 450V

Ceramic tubular: 220 mmf

500V

....................

Molded: 2 mmf

Ceramic disc:

500V ...

5000 mmf

1500 mmf

450V

500V

5000 mmf 450V.

.30

.20

.45

.25

.30

.20

.25

.30

C & D 23B700159

C-70

C-71

C-72

C-73

C-74

C-75

C-76

C-77

C-78

C-79

C-80

C-81

C-82

C-83

C-84

C-85

C-86A ,B

& C

Electrolytic: 4 section; 80

mf/400V, 40 mf/400V, 100 mf/

50V, 20 mf/25V ........... 3.10

8R9869 Paper: .005 mf 600V

......

.20

8R9866 Paper: .001 mf 600V

.....

.20

8R9866 Paper: *.001 mf 600V

......

.20

8R9866 Paper: .001 mf 600V

......

.20

8R9870 Paper: .01 mf 600V

........ .25

8R9869 Paper: .005 mf 600V

......

.20

21K400037 Ceramic tubular: 270 mmf 500V .25

21R2741 Mica: 680 mmf 500V

....... .35

8R9869 Paper: .005 mf 600V

......

.20

8R9854 Paper: .1 mf 200V

.......

.25

8R9874 Paper: .1 mf 600V

....... .35

8R490263 Molded paper: .1 mf 600V... .35

21K700883 Ceramic tubular: 180 mmf

3000V

...................

.50

8R9874 Paper: .1 mf 600V

........ .35

21K790574 Ceramic tubular: 60 mmf 1500V

(in deflection yoke)

.....

.35

8R9874 Paper: .1 mf 600V

........ .35

i23B700613 Electrolytic: 3-section; 80 mf/

400V, 20 mf/300V, 10 mf/300V 2.55

C-26 21A470789 Ceramic disc: 5000 mmf 450V .30 & C 23B700614

C-27 21K77375 Ceramic tubular: 220 mmf 500V .20

C-28 21K470329 Molded:

comp) 30 mmf 500V (temp .30 C-88

A & B 23B700615

C-30 21A470789 Ceramic disc: 5000 mmf 450V .30 C-89 8R9810

C-31 21K77375 Ceramic tubular: 220 mmf 500V .20 C-91 8R9854

C-32 21A470789 Ceramic disc: 5000 mmf 450V. .30 C-92 21R6574

C-33 21A470789 Ceramic disc: 5000 mmf 450V. .30 C-93 21K482726

C-34 21A470789 Ceramic disc: 5000 mmf 450V .30 C-94 21K482726

C-35 21A470789 Ceramic disc: 5000 mmf 450V .30 C-95 21K780599

C-36 21K470329 Molded:

comp) 30 mmf 500V (temp .30 C-96 21K780599

C-37 21K470324 Molded: 6 mmf 500V ....... .25 Capacitor-Resistc

C-38 8R9854 Paper: .1 mf 200V ....... .25

C-42 21K470329 Molded: 30 mmf 500V ...... .30 CR-1 21B702478

C-43 21A478274 Molded: 2.2 mmf 500V

....

.25

C-44 21K790683 Molded: 60 mmf 500V

.....

.25

C-45 21A470789 Ceramic disc: 5000 mmf 450V. .30 CR-2 21B702479

C-46 21A470789 Ceramic disc: 5000 mmf 450V. .30

C-47 21K790439 Silver mica: 15 mmf (part of

T-3 base)

...............

.20 CR-3 21B702636

C-48 8R9866 Paper: .001 mf 600V

.....

.20

C-49 21A790131 Ceramic tubular: 150 mmf 500V .35

C-50 21R6590 Mica: !

500 mmf 500V

...... .25

C-51 21R6590 Mica: J500 mmf 500V ...... .25

C-52 23A90205 Electrolytic: 10 mf 50V.... .45 Crystal

C-53 21K482726 Ceramic disc: 10,000 mmf 450V .30 E-l 48B702302

C-54 8R9869 Paper: .005 mf 600V

.....

.20

C-55 21R6650 Mica: 68 mmf 500V

.......

.20

C-56 8R9869 Paper: .005 mf 600V

.....

.20 Fuse

C-57 21K470322 Molded: 20 mmf 500V

....... .25 F-l 65K702901

C-58 8R9873 Paper: .05 mf 600V ...... .25

C-59 8R9869 Paper: .005 mf 600V...... .20 Coils

C-60 8R9869 Paper: .005 mf 600V

.....

.20 L-l 24A790033

C-61 8R9870 Paper: .01 mf 600V

.....

.25

Electrolytic: 3-section; 60 mf/

400V, 40 mf/300V, 20 mf/25V. 2.45

Electrolytic: 2-section; 35 mf/

400V, 100 mf/50V

.........

1.50

Paper: .25 mf 100V

......

.25

Paper: .1 mf 20 0 V

...........

Mica: 100 mmf 500V

.......

.15

Ceramic disc: 10,000 mmf 450V .30

Ceramic tubular: 1000 mmf 500V .25

coupling(optional to C-54,

R-46 & R-47)

......

..........

Capacitor-Resistor: video

compensating (optional to

C-39, C-40, R-32 & R-33).. . .70

Capacitor-Resistor: vertical

integrating (optional to

C-59, C-60, C-61, R-58, R-59,

& R-60)

.....................

(optional to 6AL5 video

detector)

................

1.35

leads

Coil

.25

.50

Scanned by mbear2k - Jan 2012

Ref. Part List Ref. Part List

No. Number Description Price No. Number Description Price

L-2 _See Tuning Unit Parts List.. _R-7 _See Tuning Unit Parts List.. -

L-3 -See Tuning Unit Parts List.. -R-8 6R6320 10,000 10% 1/2W

___

... doz 1.20

L-4 -See Tuning Unit Parts List.. -R-9 6R6038 1500 10% 1/2W

.......

,doz 1.20

L-5 -See Tuning Unit Parts List.. -R-10 6R6117 5600 10% 1/2W

.......

,doz 1.20

L-6 24K792825 RF coil: channel 13

....... .25 R-ll 6R6393 1200 10% 1/2W

.......

.doz 1.20

L-7 -See Tuning Unit Parts List.. -R-12 6R6080 4700 10% 1/2W

.......

.doz 1.20

L-8 24K792577 RF choke: 3.3 microhenries.. .20 R-13 6R6428 6800 10% 1/2W (for 6AU6)dz 1.20

L-9 24K780128 RF choke: 2.2 microhenries.. .20 or 6R6080 4700 10% 1/2W (for

L-10 24K790035 RF choke: 5.6 microhenries.. .30 6AG5)

...............

.doz 1.20

L-ll 24B701343 1st IF: complete with LC R-14 6R5550 47 10% 1/2W (for 6AU6),

.doz 1.20

trap, cores, & mtg nuts or 6R5614 56 10% 1/2W (for 6AG5).

.doz 1.20

(for 6AU6)

..............

.90 R-16 6R6069 2200 10% 1/2W

.......

.doz 1.20

or 24K702495 1st IF: complete with LC R-17 6R6394 12,000 10% 1/2W

.....

.doz 1.20

trap, cores, & mtg nuts R-18 6R6229 1000 10% 1/2W

.......

.doz 1.20

(for 6AG5)

..............

.90 R-19 6R5550 47 10% 1/2W (for 6AU6).

.doz 1.20

L-12 -27.3 me trap (part of L-ll). -or 6R5614 56 10% 1/2W (for 6AG5).

,doz 1.20

L-13 24K790035 RF choke: 5.6 microhenries.. .30 R-21 6R6069 2200 10% 1/2W

.......

,doz 1.20

L-14 -21.9 me trap (part of L-15). -R-22 6R6428 6800 10% 1/2W

.......

,doz 1.20

L-15 24K701344 2nd IF: complete with LC R-23 6R2035 82 10% 1/2W

.........

doz 1.20

trap, cores, & mtg nuts R-24 6R6038 1500 10% 1/2W

.......

.doz 1.20

(for 6AU6)

..............

.90 R-25 6R6031 100,000 10% 1/2W

....

.doz 1.20

or 24K702496 2nd IF: complete with LC R-26 6R6031 100,000 10% 1/2W

....

.doz 1.20

trap, cores, & mtg nuts R-27 6R3966 1.5 meg 20% 1/2W

....

.doz 1.20

(for 6AG5)

..............

.90 R-28 6R6117 5600 10% 1/2W

.......

.doz 1.20

L-16 24K792771 RF choke: yellow dot

...... .35 R-29 6R6004 1 meg 20% 1/2W

......

,doz 1.20

L-17 24K792772 RF choke: red-grn dot

......

.35 R-30 6R5550 47 10% 1/2W

.........

.doz 1.20

L-18 24B792735 4.5 me trap: less core & mtg R-31A

nut

.....................

.50 & B 18A792009 Contrast & Volume control:

or 1X792736 4.5 me trap: complete with dual; 2000 tapped & 1 meg

core & mtg nut

..........

.75 respectively; includes

L-19 24K701652 Compensating coil: black dot .50. power switch .........

1.75

L-20 24A470159 Sound take-off: less core & R-35 6R6400 33,000 10% 1W (for 6A 6)... .20

mtg nut

.................

.35 or 6R6341 22,000 10% 1W (for 6CB6).. .20

or 1X790341 Sound take-off: complete with .R-36 - 12,000 (not replaceable;

core & mtg nut

..........

.80 part of L-19)

........

L-21 24K701651 Compensating coil: green dot R-37 6R5671 4700 10% 2W

.........

.25

(wound on R-99)

.........

.50 R-3 8 6R3933 220 20% 1/2W

........

.doz 1.20

L-22 24B700548 Focus coil . . . ,

...........

10.20 R-39 6R2004 8200 10% 1/2W

.......

.doz 1.20

L-23 24K790059 orizontal oscillator: less R-40 6R5660 180 10% 1/2W

........

.doz 1.20

core & clip

.............

.95 R-41 6R6012 33,000 20% 1/2W

.....

.doz 1.20

or 24B790055 orizontal oscillator: com R-42 6R6428 6800 10% 1/2W

....... .doz 1.20

plete with core & clip .... 1.45 R-43 6R6428 6800 10% 1/2W ....... .doz 1.20

L-24 24K700776 R-44 6R2122 4.7 meg 20% 1/2W

....

.doz 1.20

or 24K700778 R-45 6R6414 270,000 10% 1/2W

....

.doz 1.20

or 24K700694 R-46 6R6032 470,000 20% 1/2W

....

.doz 1.20

or 24K700714 R-47 6R6032 470,000 20% 1/2W

....

.doz 1.20

or 24K700774 Deflection yoke: complete... 11.00 R-48 6R6022 330 10% 1/2W ........ .doz 1.20

L-25 24K790145 RF choke: 0.47 microhenries. .20 R-49 6R476004 1000 20% 2W ......... .25

L-26 24K790145 RF choke: 0.47 microhenries. .20 R-50 6R6320 10,000 10% 1/2W

.....

.doz 1.20

L-27 24K700089 orizontal size: less core & R-51 6R3927 2.2 meg 20% 1/2W

....

.doz 1.20

.55 R-52 6R6004 1 meg 20% 1/2W

...... .doz 1.20

or 24B700088 orizontal size: complete R-53 6R6397 22,000 10% 1/2W .... doz 1.20

with core, clip, & mtg nut. 1.35 R-54 6R2096 330,000 10% 1/2*

....

.doz 1.20

R-55 6R6428 6800 10% 1/2W ....... .doz 1.20

Speakers R-56 6R5581 3300 10% 1/2W

....... .doz 1.20

LS-1 50K700850 Speaker: 8” electro; 100 ohm R-57 6R5581 3300 10% 1/2W ....... 1.20

field (hot); 3.2 ohm voice ■* R-58 6R6031 100,000 10% 1/2W

---

.doz 1.20

coil (17K1E, 17K2E)

....... 6.30* R-59 6R603I 100,000 10% 1/2W

....

.doz 1.20

exch 4.75 R-60 6R6397 22,000 10% 1/2W

.....

.doz 1.20

50C701846 Speaker: 8” electro; 100 ohm R-61 6R6031 100,000 10% 1/2W

....

.doz 1.20

field (hot); 3.2 ohm voice R-62 6R5577 2700 10% 1/2W

.......

.doz 1.20

coil (17K1E)

.....

......

6 .30* R-63 6R2096 330,000 10% 1/2W (for

exch 4.75

or 6R6031 100,000 10% 1/2W (for .doz 1.20

Resistors .doz 1.20

Note: All resistors are insulated carbon R-64 18A90147 Vertical old Control: 1 meg .80

type unless otherwise specified. R-65 6R6428 6800 10% 1/2W

....... 1.20

R-66 6R5577 2700 10% 1/2W ....... 1.20

R-l 6R6397 22,000 10% 1/2W ......doz 1.20 R-67 6R6032 470,000 20% 1/2W

.....

.doz 1.20

R-2 6R6056 47,000 10% 1/2W

......doz 1.20 R-68 18A702403 Vertical Size Control: 5 meg .80

R-3 6R5614 56 10% 1/2W

.........

doz 1.20 R-69 6R2118 3.3 meg 20% 1/2W

....

.doz 1.20

R-4 6R2036 33 10% 1/2W .

........doz 1.20 R-70 6R3949 470 20% 1/2W ........ .doz 1.20

R-5 6R6229 1000 10% 1/2W ........doz 1.20 R-71 18A702407 Vertical Linearity Control: 1.50

R-6 6R5659 3900 10% 1/2W ........doz 1.20

♦Plus Federal Excise *ax At Current Rate

Scanned by mbear2k - Jan 2012

Ref. Part List

No. Number Description Price

R-72 6R6291 560 10% 1/2W (in deflection

yoke)

............

....doz 1.20

R-73 6R6291 560 10% 1/2W (in deflection

yoke)

............

....doz 1.20

R-74 6R6056 47,000 20% 1/2W

---

....doz 1.20

R-75 18A702401 Brightness control: 1 meg. . . .80

R-76 6R6004 1 meg 20% 1/2W

---

....doz 1.20

R-77 17K700782 Wire wound: 375 10% 10W

___

.35

R-78 18A702404 Focus control: 1000 . 1.55

R-79 17K792705 Wire wound: 2000 10% 10W. , .35

R-80 6R6477 15,000 10% 1/2W ... 1.20

R-81 6R6031 100,000 10% 1/2W .. 1.20

R-82 6R6031 100,000 10% 1/2W .. 1.20

R-83 6R2122 4.7 meg 20% 1/2W .. 1.20

R-84 6R2122 4.7 m?g 20% 1/2W . . 1.20

R-85 6R6428 6800 10% 1/2W

....

1.20

R-86 6R6229 1000 10% 1/2W

....

1.20

R-87 6R3949 470 20% 1/2W

.....

1.20

R-88 6R5631 120,000 10% 1/2W .. ....doz 1.20

R-89 18A791574 orizontal old: 100,000

___

.80

R-90 6R6074 68,000 10% 1/2W ... 1.20

R-91 6R6038 1500 10% 1/2W

....

1.20

R-92 6R6032 470,000 20% 1/2W .. 1.20

R-93 6R5583 47 10% 1W

.......

.20

R-94 6R5690 6800 10% 2W

...... .25

R-95 6R5721 150,000 10% 1W

---

.20

R-96 6R5721 150,000 10% 1W

___

.........

.20

R-97 6R5577 2700 10% 1/2W (in deflec

tion yoke)

........ ....doz 1.20

R-98 6R6328 100,000 10% 1W (in deflec

tion yoke) ........

.........

.20

R-99 -2700 (not replaceable

of L-21) .......... ; part _

R-100 6R6032 470,000 20% 1/2W .. 1.20

R-101 6R6018 100 20% 1/2W

......

1.20

R-102 6R5551 120 10% 1/2W

.....

1.20

R-103 6R5551 120 10% 1/2W

.....

....doz 1.20

R-104 17K702449 Wire wound: 150 10% 15W

(for 25C701025 & 25C700161

trans)

...........

.50

or 17X700423 Wire wound: 75 10%

25C700169 trans)

___

10W (for .25

Tr ansforrears

T-l 24K792578 Mixer IF: less cores & mtg

nuts

....................

.45

or 1X792591 Mixer IF: complete with cores

& mtg nuts

..............

.85

T-2 2*B792585 3rd IF: less core, mtg nut, &

colored leads

...........

.65

or 1X792592 3rd IF: complete with core,

mtg nut, C-35, & colored

leads

...................

1.10

T-3 24B790125 Ratio Detector: complete less

shield can

..............

2.00

T-4 25B790686 Audio Output

.............

1.40

T-5 25K701619 Vertical Output

..........

3.25

T-6 24K792753 igh Voltage Transformer .... 7.25

T-7 35B790140 Filament Transformer:

isolating (for V-18)

...... 3.05

T-8 25C700161

or 25C700169

or 25C701025

or 25K700882 Power Transformer ......... 16.65

Tubes

V-l 6CB6 RF Amplifier

.............

V-2 12AT7 Mixer-Oscillator

.........

V-3 6AU6

or 6AG5 1st IF Amplifier

.........

V-4 6AU6

or 6AG5 2nd IF Amplifier

.........

V-5 6AG5 3rd IF Amplifier

.........

V-6 6AL5

or 1N60 Video Detector

...........

V-7 6A 6

or 6CB6 Video Amplifier

.....

Ref. Part List

No. Number Description Price

V-8 6AU6

or 6AG5 Audio Driver-Limiter

......

V-9 6AL5 Ratio Detector ............ -

V-10 6J5/GT Audio Amplifier

..........

V-ll 6V6/GT Audio Output

.............

V-12 6SN7GT 1st & 2nd Clipper ......... -

V-13 12AU7

or 6SN7GT Vertical Sweep Generator ... -

V-14 6W6

or 6AS5 Vertical Sweep Output

.....

V-15 6AL5

or 6 6 Phase Detector

...........

V-16 6SN7GT orizontal Oscillator

.....

V-17 6BQ6GT orizontal Output & igh

Voltage Generator ........ -

V-18 6W4GT Damping Diode

............

V-19 1B3GT igh Voltage Rectifier

....

V-20 17BP4

or 17AP4 Picture Tube: 17” rectangular -

V-21 5U4G Low Voltage Rectifier

.....

TUNER

Model TT-13 Tuning Unit

1X700100 TT-13 Tuning Unit: includes

station selector switch,

fine tuning trimmer, and

the following components:.. 10.85

C-l 21K478234 Capacitor, molded: 8 mmf

500V

...................

. .25

C-10 21K482726 Capacitor, ceramic disc:

10.000 mmf 4 5 0 V

............

C-13* 21K482726 Capacitor, ceramic disc:

10.000 mmf 4 5 0 V

............

C--15 21K400173 Capacitor, molded: 10 mmf

500V (temp comp)

........

.30

L~2 24C792764 Coil, antenna: channels 2

thru 6; includes L-2A thru

L-2E (L-2F thru L-2L are

part of switch)

.............

L-3 24K790536 Coil, RF: channels 2 thru 6;

includes L-3A thru L-3E

(L-3F thru L-3L are part

of switch)

..................

L-4 24C700114 Coil, oscillator: channels 2

thru 6; includes L-4A thru

L-4E (L-4F thru L-4L are

part of switch)

.............

L-4M 24K700115 Coil, oscillator; channel 10 .10

L-5 24K792765 Coil, antenna primary: low

frequency; includes L-5A,

L-5B , & L- 5 C

................

L-7 24K700116 Coil, oscillator: channel 13 .10

R-7 6R5659 Resistor: 3900 10% l/2W.doz 1.20

42K790136 Clip, spring (on collar)

.......

43K700725 Collar, spring (on rear end

of fine tuning shaft).........10

47K700726 Shaft, fine tuning

........ .50

Part List

Number Description Price

C ASSIS PARTS - MEC ANICAL

7K700153 Bracket, coil mtg (L-27)

............

7B700194 Bracket, focus coil housing (around

focus coil)

........................

7A700196 Bracket, focus coil mtg (across top

of focus coil)

.....................

7A791965 Bracket, interlock safety

...........

7K700661 Bracket, picture tube rear support:

with grounding spring & 2nd anode

lead insulator

.....

............

2.00

7A792568 Bracket, yoke adjustment (across top

of yoke)

...........................

Scanned by mbear2k - Jan 2012

Part

Number

35K700532

35A700603

38K7927.73

42K471342

42A701441

42A700147

42B70721

42A76244

42A801062

42K791405

39K17396

46A478242

46K791756

46A470310

46K480256

46A70023

46A470302

46K471143

46A700090

35K792757

5K792031

5A790684

14K791892

14K87179

14A791787

4S7655

4S7688

4S9751

4S2635

2A470049

27K791404

2S7022

257004

257005

2S7003

2S7051

2S7050

2A790191

2B70703

35K702281

35K702282

35K702279

64A702001

64K791818

Description

Bumper, rubber (circular bumper in

rear support bracket)

..............

Bumper, rubber (used with RCA yokes

only)

.............................. 05

Button, plug (covers V-6 socket hole

when 1N60 used)

.............

doz .40

Cap, plate (V-19) .........

......

.05

Cap, plate: with lead (V-17)....... .25

Clamp, lead retainer (dresses V-19

filament leads)

.............

doz .15

Clip, coil mounting (T-3 second

ary)

........................

doz .25

Clip, coil retainer (L-23)

....

doz .25

Clip, hairpin (L-27) ..........doz .50

Connector, 2nd anode

................

Contact, pin terminal (on speaker

leads)

....................

per/c .50

Core, brass, & screw (T-2)

......

: .15

Core, brass, & screw (L-ll & L-15). .05

Core, iron, & screw (T-l primary,

L-18, & L-20)

.......

..............

Core, iron, & screw (T-l secondary

& L-12)

............................ 15

Core, iron, & screw (T-3 primary &

L-14) ..............................15

Core, iron, & screw (T-3 secondary) .20

Core, iron, & screw (L-23)

..........

Core, iron, & slide adjustment

(L-27)

..............

Cushion, focus coil (between coil &

tube) ..............................20

Grommet, insulating: 9/32” hole.doz .30

Grommet, tube socket ..........doz .35

Insulator, coil (in T-2 can)....doz .35

Insulator, coil (in T-3 shield

can)

.............

......

.doz .25

Insulator, 2nd anode lead: armite

(on picture tube rear support brkt) .05

Lockwasher, int: 3/8"; cad pi

(front controls mtg)........per/c .50

Lockwasher, int-ext: 1/4”; cad pi

(7B700194 brkt mtg)

.........

doz .15

Lockwasher, int-ext: #8; cad pi

(T-8 mtg)

.................

per/c .50

Lockwasher, int: thin; 1/2” cad pi

(7B700194 bracket mtg)........doz .15

Nut, coil & core mtg (T-l, T-2,

L-ll, L-12, L-14, L-15, L-18 &

L-20)

.......................

doz .50

Nut, coil & core mtg (L-27)

....

doz .50

Nut, hex: 1/4-20 x 7/16; cad pi

(7B700194 bracket mtg)

....

....doz .15

Nut, hex: 3/8-32 x 9/16; cad pi

(front controls mtg) . . .

......

doz .20

Nut, hex: 6-32 x 1/4; cad pi (for

3S490459 screw) ....

....

per/c .50

Nut, hex: 8-32 x 5/16 stl ; cad pi

(T-8 mtg)

.....

.50

Nut, hex: palnut ; 3/8--32 :

x 9/16;

cad pi (rear controls mtg)

....

doz

Nut, hex: palnut; 6-32 (T-2 shield

mtg)

...............

.....

per/c

Nut, special: cad pi (ceramic

trimmer mtg)

................

doz

Nut, special: palnut (T-3 primary

coil mtg)

...................

doz

Pad, cushion (around top of picture

tube)

............

. . . .

.........

Pad, cushion (long pad at bottom of

picture tube) .........

........

Pad, cushion (small pads on picture

tube mtg strap)

..........

. .doz

Plate, adaptor (to adapt V-14 socket

hole to miniature socket) .......

Plate, chassis cover (removable

plate on chassis side)

.........

64A90034 Plate, electrolytic mtg (for two

electrolytics)

.....................

64A700690 Plate, electrolytic mtg (for three

electrolytics)

..............

doz .35

64K700748 Plate, socket cover (covers unused

hole when two electrolytics used

.................

...........

doz .30

64A700745 Plate, transformer cover (for

25C700161 & 25K700882 transformers

only)

..........................

.10

1X700523 Plate, tube mtg: with socket & mtg

bracket (V-19)

.................

.35

28K471323 Plug, line cord: 2-pin

..........

. .20

9A22367 Receptacle: 5-prong (spkr recep

tacle) . ..

.................

........

5S8497 Rivet: .088 x 1/8 stl; pol nkl

(V-l, V-2 & V-5 socket mtg)..per/c .50

5S7771 Rivet: .088 x 3/16 stl; pol nkl

(mounts V-14 socket when 6AS5

used)

.....................

per/c .50

5S2815 Rivet: .088 x 7/32 stl; pol nkl

(9A485495, 9K780442, 9K484167

socket mtg)

...............

per/c .50

557706 Rivet: .122 x 1/8 stl; pol nkl

(radiation shield spring mtg)per/c .50

557707 Rivet: .122 x 5/32 stl; pol nkl

(9K471270 socket & terminal strip

mtg)

......

...............

per/c .50

5S7701 Rivet: .122 x 3/16 stl; pol nkl

(mounts 2nd anode lead insula

tor)

.................

....

per/c .50

5S7700 Rivet: .122 x 1/4 stl; (line cord

plug mtg) ..........

.......

per/c .50

5S7728 Rivet: .122 x 5/16 stl; pol nkl

(V-19 socket mtg) ..........per/c .50

5S6842 Rivet: .145 x 7/32 stl; pol nkl

(T-5 mtg)

.................

per/c .50

5K71246 Rivet, shoulder: nkl pi (V-14 &

V-16 socket mtg)

............

doz .15

3A700198 Screw, eccentric: cad pi (7B700194

bracket mtg)

......

.................

3S490822 Screw, machine: 6-32 x 1 slotted

hex head; cad pi (ceramic trimmer

adj)

........................

doz .15

3S490459 Screw, machine: 6-32 x 1-1/8 slotted

round head; brass (secures hi-

voltage transformer plates)....doz .15

3S7163 Screw, machine: 8-32 x 1/4 plain hex

head; cad pi (V-19 mtg brkt).per/c .50

3S490642 Screw, machine: 10-32 x 1-1/2 plain

hex head; cad pi (picture tube re

tainer strap mtg)

...........

doz .15

3S7454 Screw, sheet metal: #8 x 1/4 plain

hex head; cad pi (tuner shield

mtg)

......................

per/c .50

3S7467 Screw, sheet metal: #8 x 3/8 plain

hex head; cad pi (T-7 mtg)

....

doz .15

3S7453 Screw, sheet metal: #8x1 plain hex

head; cad pi (mount picture tube

.15 mounting strap)

.............

doz .15

3K790107 Screw, thumb: cad pi (deflection

.50 yoke adjustment) .............doz .50

26K485936 Shield,coil (T-3)

..................

.30 1X792785 Shield, coil: with spade bolts

(T-2 can)

..........

...............

.30 1X701853 Shield, radiation: with springs

(around picture tube)

..........

.65

.35 26A702497 Shield, tube (for glass 6J5)..........15

26A90301 Shield, tube: miniature

.............

.10 1X701546 Shield, tuner: with pad

.............

26A700717 Shield, video (shields video amp

.40 from high voltage transformer)

.......

9K700549 Socket, picture tube: 5-pin; with

.05 leads ........

..................

.70

9K700551 Socket, picture tube: 12-pin; with

.30 leads

..............

...............

List Part List

Price Num er Description Price

Scanned by mbear2k - Jan 2012

Part

Number

9A792167

9K780442

9K484167

9K702361

9A471343

9A485495

9K484816

9K471270

9A790685

9A480274

41A70705

41A700563

41A701851

41K702738

41K702739

41A702638

1X701097

1X701098

31K31217

31K90044

31A700148

31K471564

31K51511

31A700697

31K471565

31K37494

31A790122

31K471569

31K26658

31K90046

31A21990

24A792821

24K702048

24A792827

24K700145

451719

4S7569

451720

4S1706

4S7646

4A791447

Description

Socket, tube: min; 7-prong (V-l)..

Socket, tube: min; 7-prong (V-3,

V-4 & V-6)

.........

..........

tube: miniature; 7-prong

V-8, V-9 & V-14 when 6AS5

Socket,

(V-7,

used)

Socket, tube: miniature (V-15 when

6AL5 used)

Socket, tube:

less adaptor

min; tan molded (V-5)

noval; laminated;

(V-13)

Socket, tube: noval; molded (V-2) .

Socket, tube: octal (all octal

sockets except V-14, V-16 & V-19)

Socket, tube: octal (for V-16 &

V-14 when 6W6 used)

...

........

Socket, tube: octal; molded (V-19)

Spring, coil (T-3)

...........

doz

Spring, grounding (grounds picture

tube outer coating)

............

Spring, shield (on radiation shield)

Spring, tension (low voltage

rectifier)

..................

doz

Spring, tension (picture tube

support)

.......................

Spring, tube hold-down (around top

of low voltage rect) .........doz

Strap, picture tube mounting: with

pads (lower strap around picture

tube front)

....................

Strap, picture tube retainer: with

pad

.............

ins

#2 gnd

#2 mtg

#2 gnd

#3 gnd

#4 gnd

#3 gnd

#4 gnd

#3 gnd

Strip, terminal: 1

3/8” spacing

....

Strip, terminal: 2

3/8" spacing

....

Strip, terminal: 2

3/8” spacing

....

Strip, terminal: 3 ins

3/8" spacing

....

Strip, terminal: 3 ins

3/8" spacing

....

Strip, terminal: 3 ins

special

......

Strip, terminal: 3 ins

3/8" spacing

Strip, terminal: 4 ins

3/8" spacing ,

Strip, terminal: 4 ins

1/2" spacing

....

Strip, terminal: 4 ins

3/8" spacing

....

Strip, terminal: 5 ins

3/8" spacing

....

Strip, terminal: 5 ins

3/8” spacing

Strip, terminal: 2-screw (antenna

terminal)

......................

Trap, ion: PM

...................

Washer, flat: .140 x 3/8 x .030;

cad pi (mounts 2nd anode lead

ins) . . . .

..................

per/c

Washer, flat: 5/16 x .145 x .027;

cad pi (V-14 & V-16 socket

mtg)

......................

per/c

Washer, flat: 3/8 x .156 x .030 stl;

cad pi (rear support brkt mtg)pei/c

Washer, flat: 3/8 x .203 x .033 stl;

cad pi (picture tube retainer strap

mtg)

......................

per/c

Washer, flat: 11/16 x 3/16 x .067

wrought iron; cop pi (T-8 mtg)per/c

Washer, insulating (T-7 mtg)....doz

#2 gnd

#4 gnd

List

Price.

.20

^ .20

.15

.35

.25

.40

.20

.15

.10

, 05

.50

.20

.30

1.40

1.20

.05

.10

1.00

.50

.15

Part

Number Description List

Price

4A77577 Washer, insulating (L-27 mtg)...doz .15

39A702285 Wiper, grounding (on tuner switch

assembly)

..........................

Insulating Compounds

11M490423 Coating, hi-voltage insulating: red-

brn (on hi-volt rect socket)

.....

11M490387 Wax, biwax (on hi-voltage trans)...

MODEL 17K1E CABINET PARTS

1X702641 Back Cover: complete with picture

tube rear cover, centering ad

justment cover, & line cord

......

3.90

1JD700605 Bezel, picture tube (window frame) 5.10

7K485464 Bracket, chassis m t g

................

16F702557 Cabinet, console: red-brn mahogany;

less window, bezel, & mask

.......

42A792193 Clamp, window mtg

............

doz .25

13K701503 Cloth, grille: eggshell & brown;

21-1/2 x 13-5/8

................

2.70

30B470756 Cord, line: with plug & receptacle. 1.50

15K792068 Cover, centering adjustment: rub

ber (on back cover)

............

,40

1X792546 Cover, chassis bottom: with hi-

voltage insulator

..............

3.30

15B790987 Cover, picture tube rear (on back

cover)

....

......................... 70

5S3139 Eyelet: .202 x .475 brass; ant cop

finish (on back cover)

....

...doz .15

5K4553 Eyelet, pin terminal (line cord

mtg)

........................

doz .20

14B792069 Insulator, high voltage (on bottom

cover)

.............................

36B790505 Knob, control (contrast)

............

36K780522 Knob, control (hold controls on

chassis rear)

......................

36B790506 Knob, control (station selector)... .80

36K792078 Knob, control: wal-mahog (fine

tuning & off-volume)............. .45

4S7657 Lockwasher, external: #8; cad pi

(speaker mtg)

.............

per/c .50

4S7688 Lockwasher, int-ext: 1/4; cad pi

(chassis mtg)

...............

doz .15

4S2639 Lockwasher, int-ext: 5/16; cad pi

(chassis mtg)

...............

doz .40

4S400488 Lockwasher, int-ext: #8; cad pi

(speaker mtg)

..............

per/c .50

62K70581 Logotype: "Motorola"

................

13D701043 Mask, picture tube

..............

4.95

13A790824 Medallion: brs pi ("M" on grille

cloth)

.............................

2S7022 Nut, hex: 1/4-20 x 7/16 stl; cad

pi (chassis mtg) .............doz .15

2S7007 Nut, hex: 8-32 x 1/4; cad pi (spkr

mtg) ......,

...............

per/c .50

2S7003 Nut, hex: 8-32 x 5/16 stl; cad pi

(speaker mtg)

.............

per/c .50

35K792499 Pad, cushion (window mtg)

......

doz .30

5S7703 Rivet: .122 x 7/32 stl; pol nkl

(picture tube rear cover

mtg)

......................

per/c .50

5S6846 Rivet: .145 x 5/32 stl; pol nkl

(hi-voltage insulator mtg)

....

doz .15

3S2226 Screw, machine: 1/4-20 x 1-1/4

plain hex head; cad pi (chas

sis mtg)

....................

doz .50

3S7374 Screw, machine: 8-32 x 5/16 plain

hex head; cad pi (bezel mtg).per/c .50

3K653 Screw, machine: 8-32 x 1-1/4; cop

oxide (speaker mtg) ..........doz .20

3S7536 Screw, sheet metal: #6 x 3/8 slotted

acorn head; ant cop finish (window

& back cover mtg) ..........per/c .50

3S7509 Screw, sheet metal: #6 x 5/8 slotted

acorn head; ant cop finish (back

cover mtg)

................

. .doz .15

Scanned by mbear2k - Jan 2012

3S490819 Screw, sheet metal: #6 x 7/8 slotted

acorn head; statuary bronze (back

cover mtg)

..................

doz .15

3S3397 Screw, sheet metal: #8 x 5/16

plain hex head; cad pi (mounts

chassis mtg brackets)

.......per/c .50

3S400220 Screw, sheet metal: #10 x 3/4 plain

hex head; cad pi (bottom cover

mtg) ........................ doz .15

35A791581 Strip, lead (dresses leads to side

of cabinet)

.................

doz .20

64K700637 Strip, trim: brass pi (20-1/2”

strip across cabinet front)

..... 1 .“65

4A792497 Washer, cut: cad pi (bezel mtg).doz .25

4K780040 Washer, felt (under control knobs)

.............................doz .25

4S7565 Washer, flat: 1/2 x 7/32 x .048 stl;

cad pi (bottom cover mtg)....per/c .50

61K700607 Window, picture tube: rectangular.. 6.65

MODEL 17K1BE CABINET PARTS -Same as 17K1E except:

16K702558 Cabinet, console: limed oak; less

window, bezel, & mask .......

....

36K792079 Knob, control: tan (fine tuning &

off-volume)

.............

.....

.45

MODEL 17K2E CABINET PARTS

Part List

Num er Description Price

1X702539

13D700605

7K485464

16F702532

55B72307

42A792193

13K700794

30B470756

15K792068

1X792546

a5B790987

5S3139

5K4553

55K700797

14B792069

36K700734

36C700732

36A485457

Back Cover: with picture tube rear

cover, centering adjustment cover,

line cord .

....................

Bezel, picture tube (window frame).

Bracket, chassis mtg

.........

Cabinet, console: red-brn mahogany;

less window, bezel, & mask ......

Catch, bullet: statuary bronze (door

latch - on cabinet)

............

Clamp, window mtg

............

doz

Cloth, grille: mahogany & gold;

20-1/2 x 12-3/8

................

Cord, line: with plug & receptacle.

Cover, centering adjustment: rubber

(on back cover)

.................

Cover, chassis bottom: with high

voltage insulator ........

Cover, picture tube rear (on back

cover)

...................

Eyelet: .202 x .475 brs; ant cop

finish (on back cover)

......

doz

Eyelet, pin terminal (line cord mtg)

.............................doz

inge, stop: semi-invisible; sta

bronze

.....................

pair

Insulator, high voltage (on bottom

cover)

.........................

Knob, control (contrast)

....

Knob, control (fine tuning & off-

volume)

........................

Knob, control (hold controls on

&3.75

5.10

.10

.05

.25

2.35

1.50

. .40

0,30

.70

,15

.20

1.35

.20

.25

.70

Part List

Number Description Price

13D701043 Mask, picture tube

..............

4.95

13A790824 Medallion: brs pi (MM" on cabinet

front)

.........................

.50

2S7022 Nut, hex: 1/4-20 x 7/16 stl; cad pi

(chassis mtg)

...............

doz .15

2S7007 Nut, hex: 8-32 x 1/4; cad pi (spkr

mtg)

...............

.....

per/c .50

2S7003 Nut, hex: 8-32 x 5/16 stl; cad pi

(speaker mtg) ..............per/c .50

35K792499 Pad, cushion .(window mtg)

.....

doz .30

55K700796 Pull, door: pol brs

.......

.....

1.60

5S7703 Rivet: .122 x 7/32 stl; pol nkl

(picture tube rear cover mtg)per/c .50

5S6846 Rivet: .145 x 5/32 stl; pol nkl

(hi-volt insulator mtg)

.......

doz .15

3S2226 Screw, machine: 1/4-20 x 1-1/4 plain

hex head; cad pi (chassis mtg).doz .50

3S7374 Screw, machine: 8-32 x 5/16 plain

hex head; cad pi (bezel mtg).per/c .50

3S7536 Screw, sheet metal: #6 x 3/8 slotted

acorn head; ant cop fin (window &

back cover mtg)

...........

per/c .50

3S7509 Screw, sheet metal: #6 x 5/8 slotted

acorn head; ant cop fin (back

cover mtg)

.............

.....doz .15

3S490819 Screw, sheet metal: #6 x 7/8 slotted

acorn head; statuary bronze finish

(back cover mtg)

............

doz .15

3S3397 Screw, sheet metal: #8 x 5/16 plain

hex head; cad pi (mounts chassis

mtg brackets)

.............

per/c .50

3S400220 Screw, sheet metal: #10 x 3/4 plain

hex head; cad pi (bottom cover

mtg)

........................ doz .15

3K27913 Screw, speaker mtg

...........

doz .20

55K72308 Strike, bullet: statuary bronze;

with 1/2" steel nail (door latch -

on door)

...........................

35A791581 Strip, lead (dresses leads to side

of cabinet)

............

.....doz .20

4A792497 Washer, cut: cad pi (bezel mtg).doz .25

4K780040 Washer, felt (under control knobs)

............................. doz ,25

4S7565 Washer, flat: 1/2 x 7/32 x .048

stl; cad pi (bottom cover mtg)

........................... per/c .50

615700607 Window, picture tube: rectangular.. 6.65

MODEL 17K2BE - Same as 17K2E except:

'02533

55K482792

13K700795

55K700798

55K482793

Cabinet, console: limed oak; less

window, bezel & mask ............ **

Catch, bullet: brs pi (door latch-

on cabinet)

........................

Cloth, grille: eggshell & gold;

20-1/2 x 12-3/8

................

2.35

inge, stop: semi-invisible; brs

....

...................

pair 1.35

Strike, bullet: brs pi; with 1/2”

steel nail (door latch-on door)... .05

chassis rear)

....

.15 BILT-IN-TENNA

36C700733 Knob, control (station selector)... .50 TA-6

4S7657 Lockwasher, external : #8; cad pi

(speaker mtg)

.....

........

per/c .50 1X791900 TA-6 Single Loop Antenna: complete. 4.00

4S7688 Lockwasher, int-ext: 1/4; cad pi 21R2763 Capacitor, mica: 6 mmf 300V

......

.20

(chassis mtg)

....

..........

doz .15 21R2764 Capacitor, mica: 18 mmf 300V ...... .20

4S2639 Lockwasher, int-ext: 5/16 ; cad pi 24A791748 Coil, antenna loading (on terminal

(chassis mtg)

....

. . .

.......

doz .40 .25

4S400488 Lockwasher, int-ext: #8; cad pi 24A791989 Coil, high frequency compensating.. .25

(speaker mtg)

....

.........per/c .50 31K71393 Strip, terminal: 2 ins, #3 mtg;

13K700118 Logotype: ’’Motorola" ; gold

......

.25 3/8" spacing

...................

.05

PRICES SUBJECT TO C ANGE WIT OUT NOTICE

** Prices Furnished Upon Request

16 10MUM1250

Scanned by mbear2k - Jan 2012

TELEVISION CHASSIS TS-172

Date: 24 Novem er 1950

Diag. No. 63E702110-0

LSI

Scanned by mbear2k - Jan 2012

r i i

5000L

NOTES

O.C. VOLTAGE MEASUREMENTS MADE WITH A VTVM FROM POINT

INDICATED TO CHASSIS. CONTRAST CONTROL MAX CLOCKWISE

POSITION. ALL OTHER CONTROLS IN NORMAL OPERATING POSITION.

STATION SELECTOR SWITCH ON CHANNEL POSITION DEVELOPING

LESS THAN I VOLT NOISE AT PIN OF TEST SOCKET. ANTENNA

DISCONNECTED. LINE VOLTAGE 117 VOLTS. VOLTAGES OMITTED

HAVE NO SERVICE VALUE.

A.C. WAVE FORMS AND AMPLITUDES TAKEN WITH CONTRAST

CONTROL SET FOR SIGNAL OF 5 VOLTS PEAK TO PEAK LEVEL

AT PLATE OF VIDEO AMPLIFIER. ALL OTHER CONTROLS IN

OPERATING POSITION. (DUMONT 2 1 SCOPE a LOW CAR PROBE USED.)

RESISTORS INDICATED IN OHMS, K* IOOO (ONE THOUSAND) OHMS.

CAPACITORS INDICATED IN MICROMICROFARADS UNLESS

OTHERWISE SPECIFIED.

INDUCTANCES INDICATED IN MICROHENRIES UNLESS

OTHERWISE SPECIFIED.

caution: DO NOT ATTEMPT VOLTAGE READINGS ON

HIGH VOLTAGE RECTIFIER OR SCOPE READINGS ON 6BQ6

PLATE WITH ORDINARY EQUIPMENT.

•

----

» - w/*

------------------------------------

—

---------------

AJW f'1 I'

R S O I S

22K C

TRANSFORMER USE RESISTOR

25C701025-0, A a B

------

150/1 15 WATT

25C700I6 I -0, A a B

------

150 A 15 WATT

25C700I69-0, A a B

------

75 £1 10 WATT

Scanned by mbear2k - Jan 2012

I2200

RI6

5000

C26

1000

RI8

5000

C30

2200

R2I

5000

C32

JlM F

TEST POINT T X

SOCKET ^ w

(FRONT VIEW)

- VARIES WITH R68

VI3

I2AU7

VERT SWEEP GEN.

EE ALSO

ETAIL 'G\

WITH R6 VI

I J 6W6GT

VERT. SWEEP OUTPUT

(SEE ALSO DETAIL 'O '

VERT

LIN. JL

C69C

C68B

I50K

REP7

YOKE (HORIZ.) 38 OHMS

2700 IOOK

IQOV.

VI7

6BQ6GT

■IORIZ. OUTPUT a H.V. GEN.

VI9 L2 C

IB3GT

H.V. RECT.

j I4KV |

T6 D C. RESISTANCES

TERM. RES.

1 TO 2 1.2 OHMS

2 TO 310 OHMS

3 TO 9 OHMS

TO 570 OHMS

V20

17BP

17AP

PICTURE TUBE

PI AG. N0.63E70g|IQ-0

Scanned by mbear2k - Jan 2012

This manual suits for next models

Table of contents

Other Motorola TV manuals

Motorola

Motorola 14T3 User manual

Motorola

Motorola 16T1H User manual

Motorola

Motorola 7VT1 Series User manual

Motorola

Motorola 10VT10 User manual

Motorola

Motorola 7VT1 Series User manual

Motorola

Motorola 21CT2 Series User manual

Motorola

Motorola VT71 User manual

Popular TV manuals by other brands

Haier

Haier DTA2181 Service manual

Sony

Sony KD-32W830L reference guide

Samsung

Samsung 55S9 B Series Quick setup guide

Evervue

Evervue BN185 Operation manual

LG 29FS2AL Service manual

JVC

JVC AV-16N311 instructions

Sony

Sony Bravia KD-65X80K Setup guide

Panasonic

Panasonic TX-29AK10F Service manual

JVC

JVC InteriArt HV-28P37SUE Service manual

Electrohome

Electrohome EH14E501 user manual

Daewoo

Daewoo DTC-14 Service guide

Philips

Philips 24PT6341/37 user manual

Philips

Philips 32PFL2507 quick start guide

Loewe

Loewe Table Stand Reference 55 user manual

SunBriteTV

SunBriteTV Pro 2 1K Series Operator's manual

Denver

Denver DTX-1410 user manual

JVC

JVC AV-27530/SC Service manual

Panasonic

Panasonic SuperFlat CT-27SF26 operating instructions

Motorola 17K1E User manual

Popular TV manuals by other brands
