THERMAEGH English V1.2

Instruction

TheTHERMAEGH thermostat controlsthefloor heating systembasedon built-in weekly program. The

weekly program runs in 4 or 2 stages per day, 7 days a week. Thedefault weekly program parameters

cansatisfy most usage scenarios. If your living habits are different, you can also modify theweekly

program parameters in thethermostat or APP. When there is no one in thehouse, it is recommended

to set the temperature down to save energy. Besides, the thermostat has built-in adaptive function.

When this function acts, the thermostat heats or stops heating in advance of next stage to bring the

room temperature to theset temperature of the next stage. Please note that after turning adaptive on,

the thermostat takes a fewdays to learn thetime required.

Installation

To avoid risk of electric shock, disconnect all power coming to

heater at main service panel before installation of the thermostat. Keep air vents of thermostat clean

and free from obstructions. All wiring must conform to local and national electrical codes and

ordinances. Installation must be carried out by qualified personnel.

WARNINGS

Classication

The thermostat is a Class II device (reinforced insulation) and used for controlling electrical floor

heating. The product must be connected tothe following leads:

L/N lead: Connect the power cord using the terminal block.

L1/N1 lead: Use a terminal block to connect the load line(Max 15A).

Note:

Electric floor heating cable/mat must be in accordance with the supply voltage.

The terminals are designed to handle a cross-section of wire measuring 12-22AWG.

Technical specication

Supply voltage: 120/240 VAC 50/60 Hz Load: max.15 A (resistive load)

GFCI: Class A (5 mA trip level) Setpoint range: +5to+40°C / +41 to+104°F

Temperature range: +5to+45°C / +41 to+113°F

unscrew it.

2. Wire as shown:

L/N lead:Connect the power cord using the terminal block.

L1/N1 lead:Use a terminal block to connect the load line.

IN/SNR terminal:Connect the floor sensor.

OUT terminal: Connect toIN/SNR of Power Module.

Note: Disconnect the main power supply before wiring.

If an electric floor heating cable or mat system requires more than 15 Amps, install a power module.

Wiring diameter: 12 to 22 AWG.

3. Install the back

cover into the

terminal box and

secure it with

the set screw.

4. Fit the left side of the front and rear covers as shown.Rotate to

the right again and press the upper half of the right

border until you hear a click. Use a screwdriver to

secure the bottom screw. Turn on the power and

test the GFCI function.

Symbols

Ground Fault Circuit Interrupter (GFCI)

This thermostat has a built-in GFCI function that protects people from electric shock. It is very

important tocheck whether the GFCI function is normal or not every month. Here are the check

steps:

1. Confirm that the thermostat is turned on.

4. Press the [Reset] button again. The thermostat is turned on.

If in daily use, the red light is on and the screen appears GROUND FAULT. Then you need to

check if the ground fault is present by pressing the [Reset] button. If the red light is off and the

screen shows the shutdown status, it is nuisance tripping. If not, it means that ground fault has

occurred. Please contact your dealer or professional technician immediately.

2. Press the [Test Monthly] button. If a red light appears in the upper left corner of the

thermostat and GROUND FAULT appears on the screen, the GFCI function is normal. If there is

no response, it means the function is invalid, please contact the dealer or electrical installer.

Note: Do not press and hold the [Test Monthly] button.

3. Press the [Reset] button. The red light is off and the screen shows the power off state.

WiFi connection(Only for THERMAEGH)

Step 1: Scan the QR code or download Warmme from APP store/Google browser.

Step 3:

Click ‘Add Device’ or ‘+’ on the top-right to add device.

Step 4: Click ‘WiFi thermostat’.

Step 5: Operate thermostat. If the WIFI icon flash quickly,

Click ‘Press to connect’.

Step 6: Enter Wifi password, and click ‘Confirm’.

Step 7:

If device added successfully, you can change the device name

and set region,

then, click ‘Done’.

Attention: If failed, please confirm the Wifi is 2.4G version and check the Wifi

signals, then, use the ‘AP mode’ in the top right to connect again.

Step 8: You can check the real-time temperature and set temperature etc. at the control

interface.

Functions and operation

On/Off

The GFCI Reset button is also the switch button. Press the [Reset] button toswitch on and off.

Temporary Override Temperature

This function is enabled in the automatic intelligent mode, when the temperature demand changes

at this moment, the setting temperature is enabled, but the parameters in the Event are not

changed.

Operation method:

Under the interface showing the real-time temperature, tap ▲ or ▼ to modify the set temperature.

Tap OK to confirm and return tothe interface showing the real-time temperature.

Mode selection

This thermostat provides three operating modes:

How toset the mode selection:

In the interface displaying the real-time temperature, tap OK to enter the first level menu, and

Mode is flashing.

Tap OK to enter the mode selection.

Tap ▲ or ▼ to change the mode.

Tap OK to confirm your selection.

If you select manual mode or freeze protection mode, you also need totap ▲ or ▼ to set the

temperature.

Tap OK to return tothe interface showing the real-time temperature.

The thermostat provides a key lock function to prevent the thermostat setting parameters from

being incorrectly modified.

Note: the [Reset] button and the [Test Monthly] button can still operate normally so as to response

to an emergency.

Key lock

Set the key lock mode:

1. Under real-time temperature interface, press and hold until the lock symbol appears.

2. Under real-time temperature interface, tap OK to enter the first level menu, and Mode is

flashing.

Tap ▲ or ▼ to select Key Lock.

Tap OK to enter the key lock setting.

Tap OK to confirm.

Tap OK to return tothe interface showing the real-time temperature.

Cancel the key lock mode:

Under real-time temperature interface, press and hold until the lock mark on the screen

disappears.

Automatic mode: According tothe weekly program, the thermostat automatically adjuststhe set

temperature operation.

Manual mode: The thermostat runs continuously according tothe set temperature.

Frost protection mode: The temperature controller runs at a lower set temperature. The temperature

range is set from 41°F to 59°F in this mode. This mode is used when you want tokeep your room at a

lower temperature when you are on vacation.

Weekly program parameter setting

In the automatic mode, the thermostat runs automatically according tothe setting parameters of the

weekly program. The weekly program parameters contain two parameters: Schedule and Event.

1. Schedule

Assign seven days a week tothe following two schedules:

5+1+1: The Event parameter is the same from Monday toFriday, with separate Event parameters

on Saturday and Sunday.

7: With separate Event parameters every day.

Schedule parameter setting method:

Under real-time temperature interface, tap OK to enter the first level menu, and Mode is flashing.

Tap ▲ or ▼ to select Schedule.

Tap OK to enter the parameter settings.

Tap ▲ or ▼ to select a parameter.

Tap OK to confirm.

Tap OK to return tothe real-time temperature interface.

2. Event

In the Home scenario, the day is divided into four events: Wake-- Leave-- Return-- Sleep--

(In the Office scene, the day is divided into two phases: on work-- off work-- ). The set

temperature for each stage can be set separately.

Event default parameter list

Office

Home

Week

Mon--Fri

Sat--Sun

Week

Mon--Fri

Sat--Sun

Start time

8:00

8:30

69°F

79°F

Tempera-

ture

Leave Return Sleep

Start time

17:00

17:30

78°F

Tempera-

tureStart time

22:00

69°F

Tempera-

ture

off-work

Wake

Start time

6:00

8:00

78°F

Tempera-

ture

on-work

Start time

7:00

78°F

68°F

Tempera-

tureStart time

18:00

69°F

Tempera-

ture

Under real-time temperature interface, tap OK to enter the first level menu, and Mode is flashing.

Tap ▲ or ▼ to select Event.

Tap OK to enter the week selection.

Tap ▲ or ▼ to select the day you want to modify the parameters.

Tap OK to enter the stage selection for the day.

Tap ▲ or ▼ to select the stage that you want to modify the parameters.

Tap OK to enter the temperature setting of the current phase.

Tap ▲ or ▼ to select the temperature value you want to set.

Tap OK to enter the hour setting for the start time of the current phase.

Tap ▲ or ▼ to select the hour of the start time.

Tap OK to enter the minute setting for the start time of the current phase.

Event parameter setting method:

Settings

In addition tothe above common functions, the thermostat also provides a number of settings for

more occasions. It should be noted that such settings need to be set by professional technicians

to avoid damage caused by abnormal settings.

Settings access method:

Under real-time temperature interface, tap OK to enter the first level menu, and Mode is flashing.

Tap ▲ or ▼ to select Settings.

Tap OK to enter Settings.

Settings contains the following items:

1.Time

Set the current real time and day of the week.

Note: The WiFi version of the thermostat will automatically update to local time after networking.

Time setting method:

After entering Settings, tap ▲ or ▼ to select Time.

Tap OK to enter the hour setting for the time.

Tap ▲ or ▼ toselect the hour value for the current time.

Tap OK to enter the minute setting for the time.

Tap ▲ or ▼ toselect the minute value for the current time.

Tap OK to enter the day of the week setting.

Tap ▲ or ▼ toselect the day of the week.

Tap OK to enter the hour setting for the time.

Tap multi times to return tothe real-time temperature interface.

2. Temp unit

°F or °C can be selected as the temperature unit.

Temp Unit setting method:

After entering Settings, tap ▲ or ▼ to select °F/°C.

Tap OK to enter the selection.

Tap ▲ or ▼ to select the desired temperature unit.

Tap OK toconfirm.

Tap OK to return tothe real-time temperature interface.

No. Sensor Type Parameters

3950(default)

3600

3700

R(25°C)=12kΩ R(10°C)=22.2kΩ

R(25°C)=10kΩ R(10°C)=19.1kΩ

4.Sensor selection

In addition tothe floor sensor, this thermostat has built-in sensors to detect room temperature.

Therefore, three sensor applications are available:

Room:Controls room temperature based solely on built-in sensors.

Floor:Controls the floor temperature based solely on the floor sensor.

Room.Limit: Controls the room temperature based on the built-in sensor while monitoring the floor

temperature not to exceed the upper limit. This application, like Floor, can be used in places such as

wood floorswhere floor temperature is critical.

Sensor Selection setting method:

After entering Settings, tap ▲ or ▼ to select Sensor Selection.

Tap OK to enter the selection.

Tap ▲ or ▼ to select the sensor application type.

Tap OK to confirm.

Tap OK to return tothe real-time temperature interface.

Note: If Room.Limit is selected, you need to set the maximum temperature that the floor can accept.

5. Calibration

This thermostat has built-in probe and floor sensor calibration function. Inthe case of demand for

higher precision

Calibration setting method:

After entering Settings, tap ▲ or ▼ toselect Calibration.

commonly used floor sensors. When replacing the old thermostat, there is no need to replace the

floor sensor for easy installation.

Sensor Type setting method:

After entering Settings, tap ▲ or ▼ to select Sensor Type.

Tap OK to enter the selection.

Tap ▲ or ▼ toselect the type of floor sensor you are currently using.

Tap OK toconfirm.

Tap OK to return tothe real-time temperature interface.

3.Sensor type

This thermostat can be connected not only tothe floor sensor but also totwo other

Tap OK to go toselect Roomor Floor.

Tap ▲ or ▼ to select Compensate Built-in Probe or Floor Sensor.

Tap OK to enter the compensation setting.

Tap ▲ or ▼ to adjust the real-time temperature to match the displayed temperature value of the

calibration instrument.

Tap OKto return tothe setting item selection.

6. Location

This thermostat is suitable for use in both homes and offices. For the office, aset of weekly

program parameters is built in. See the Weekly Program Parameters section for details.

Location setting method:

After entering Settings, tap ▲ or ▼ toselect Location.

Tap OK to go toselect Office or Home.

Tap ▲ or ▼ to select one.

Tap OK toconfirm.

Tap OK to return tothe real-time temperature interface.

7.Adaptive

This thermostat has an adaptive function. When this function is enabled, the thermostat heats up or

stops heating in advance sothat the next stage comes and the temperature just reaches the set

temperature.

E1: Built-in probe failure, please contact your dealer or professional technician.

E2: External probe failure, please contact your dealer or professional technicia

Troubleshooting

Tap OK to confirm.

Tap OK to return tothe real-time temperature interface.

8.Readout

This thermostat has the function of calculating the percentage of heating time over a period of time.

The relevant parameters can be queried through the Readout item.

Readout query method:

After entering Settings, tap ▲ or ▼ toselect Readout.

Tap OK to enter the selection.

Tap ▲ or ▼ to select 1Day, 30Days or 365Days to query.

Tap OK to return tothe setting item selection.

9.Factory reset

This thermostat has the function of restoring factory parameters.

Factory Reset setting method:

After entering Settings, tap ▲ or ▼ toselect Factory Reset.

Tap OK to enter the selection.

Tap ▲ or ▼ toselect Yes or No.

Tap OK to confirm.

Tap OK to return tothe real-time temperature interface.

Dimension(Inch)

1On/Off/GFCI reset button

2GFCI test button

3 Mode

4 Temperature

5Sensor selection

6WiFi indicator

7Setpoint

8Event

9 Day and time

10 Touch key

1.Loosen the bottom screw by a Phillips screwdriver. Then

open the thermostat from the upper right side as shown.

Note: Screw the nut out of the groove and do not need to

Step 2: Register and log in with mobile number

or email address in the APP.

Attention: Please read and agree “Privacy Policy

and Service agreement” before registration.

Tap ▲ or ▼ to select the minute of the start time.

Tap OK to return tothe stage selection for the day.

Note: Return tothe interface of the real-time temperature and tap multiple times.

Adaptive setting method:

After entering Settings, tap ▲ or ▼ to select Adaptive.

Tap OK to enter the selection.

Press ▲ or ▼ to get Yes or No.

Settings default parameter list

NO. Name Default Parameter Setting Range

1Time / /

2°F/°C °F °F

°C

3Sensor Type 00 3950

00 3950

01 3600

02 3700

4Sensor Selection Floor

Room

FLoor

Room.Limit

Calibration 0°F -9°F -- 9°F

6Location Home Home

Office

8Readout / /

7Adaptive No Yes

9Factory Reset No Yes

Quick Guide of Using Google Home to

Control Smart Devices

1. What you need to get started

Before using Google Home to control your devices, make sure you meet the following conditions.

✓A Google Home device, or Android phone with Google Assistant.

✓Latest Google Home app.

✓Latest Google app (Android only)

✓A Google account.

✓The device display language must be set to English US.

✓Smart Life app and a related account.

✓Smart devices.

2. Add devices in Smart Life app (Refer to App Instruction)

You can skip this part if you've already add some devices to your Smart Life account, and in the

meantime the devices' name are easily recognized.

2.1 Download Smart Life app (Refer to App Instruction)

You can scan the QR code below to download the Smart Life app：

You can also search "Smart Life" in either App Store or Google Play to install the app.

2.2 Register a Smart life account and sign in the app (Refer to App Instruction)

Open the Smart Life app, tap "Register" to register an account, then sign in the app.

2.3 Add device and change device's name (Refer to App Instruction)

word or phrase, like "bedroom light".

3. Set up Google Home and configure in Home Control

Configuration needs Google Home app. Search "Google Home" in App Store or Google Play to install

the app.

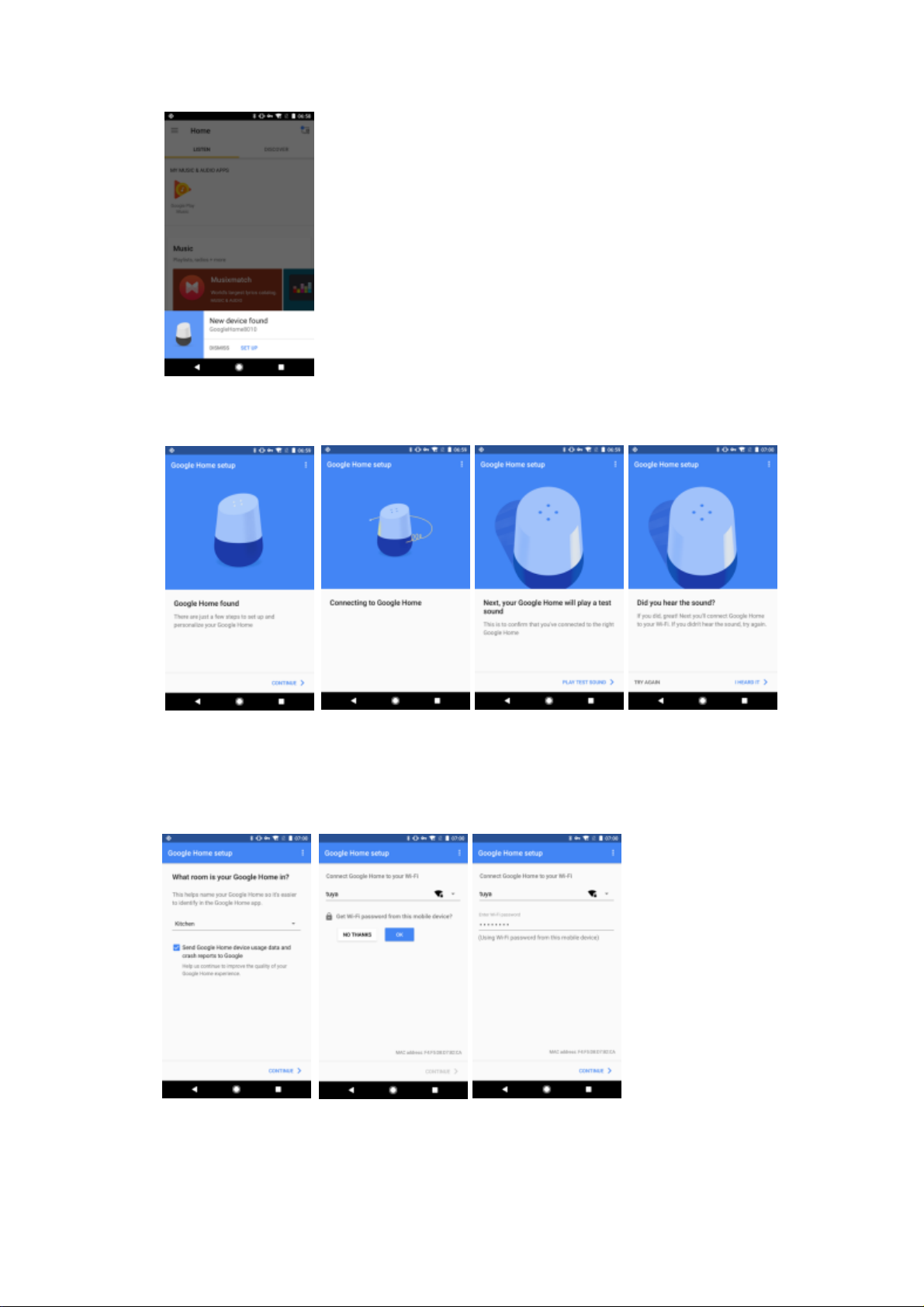

3.1 Set up Google Home with Google Home app

You can skip this part if your Google Home is already set up.

1. Make sure your Google Home is energized.

2. Open the Google Home app by tapping the app icon on your mobile device.

3. Tap "ACCEPT" to agree to the Terms of Service and Privacy Policy. Allow Google Home app to

access the device location to discover and set up nearby devices.

4. Tap "SIGN IN", choose one Google account that you already logged in on your mobile device. Or

follow the instructions to sign in with a new Google account.

5. The Google Home app scans nearby devices that are energized and are ready to set up. Tap "SET UP"

to set up your Google Home.

6. When Google Home app is successfully connected to the Google Home device, tap "PLAY TEST

SOUND", it will play a test sound to confirm you are connected to the right device.If you heard the

test sound, tap "I HEARD IT".

7. Select the Room (ex Living Room) where your Google Home is located. This helps you identify the

device when you want to cast to it. Choose the Wi-Fi network you want to connect to your Google

Home. To automatically fetch the password for this network on this device, tap "OK", then the

password will populate in the password field. You can also manually enter your password. Then tap

"CONTINUE".

8. Google Home will now attempt to connect to the provided Wi-Fi network. When Google Home is

successfully connected to your Wi-Fi network, tap "CONTINUE".

9. In order for the Google assistant to answer your questions and to enjoy a personalized experience,

you must sign into your Google account, then tap "SIGN UP". Choose the Google account you want

to link to your Google Home device, then tap "CONTINUE AS XXX". Enter the address where this

Google Home is installed, and select your default music service.

10.Tap "SKIP TUTORIAL" to finish the setup. You can also tap `CONTINUE` to watch the Google

Home tutorial.

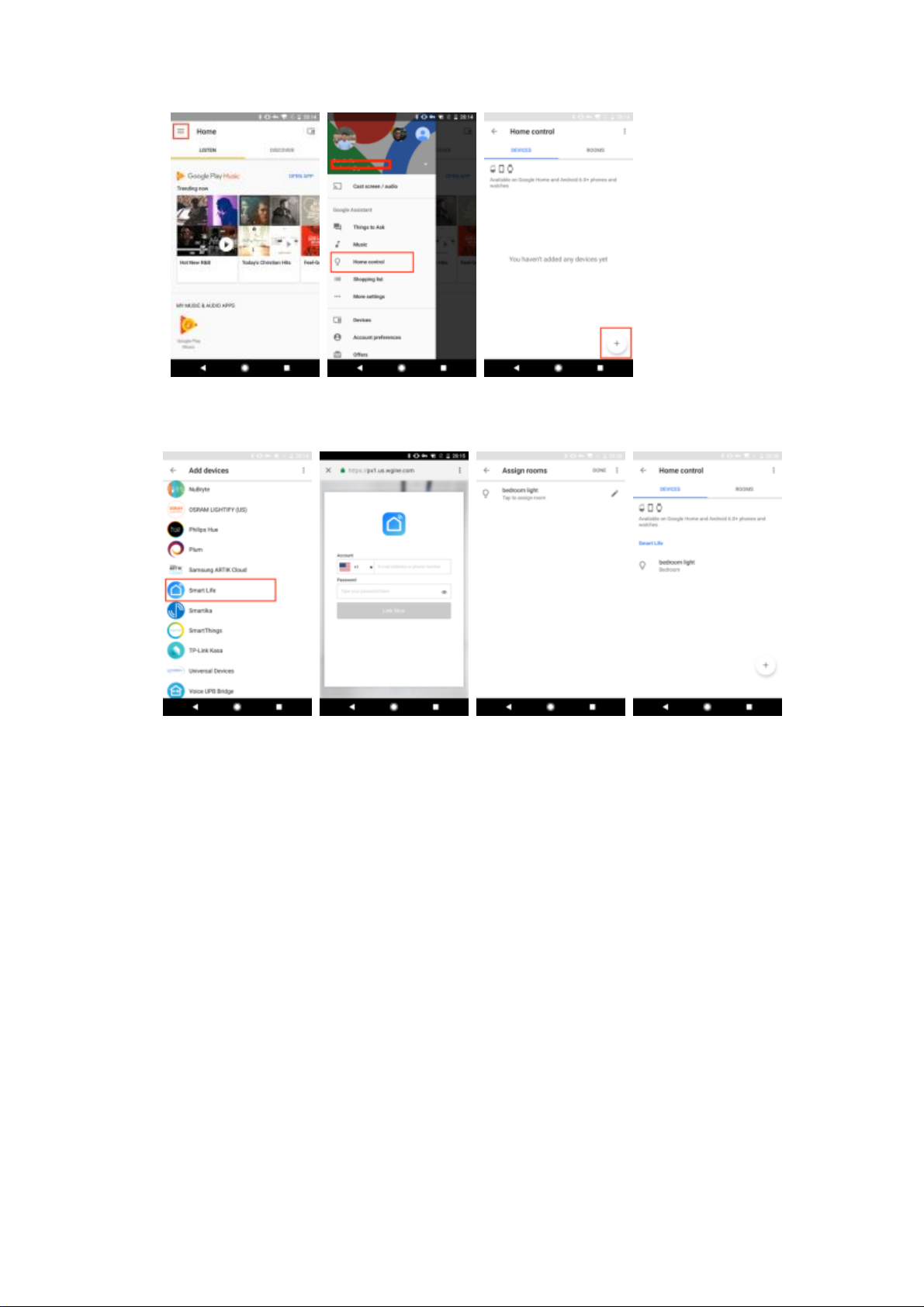

3.2 Link Smart Life account in Home Control

1. Tap "Home Control" in the hamburger menu on the Google Home app’s home page, then tap "+".

2. Find "Smart Life" in the list. In the new window, select your Smart Life account’s region, type your

Smart Life account and password, then tap "Link Now". After you assign rooms for devices, your

devices will be listed in the Home Control page.

4. Control your smart devices through Google Home

Now you can control your smart devices through Google Home. Take bedroom light as the example, the

supported voice commands are as below:

➢Ok Google, turn on/off bedroom light.

➢Ok Google, set bedroom light to 50 percent.

➢Ok Google, brighten bedroom light.

➢Ok Google, dim bedroom light.

➢Ok Google, set bedroom light to red.

MP Global warrants this product to be free from defects in the workmanship or materials, under normal use and service, for a period of three (3) years

from the date of purchase by the consumer. If at any time during the warranty period the product is determined to be defective or malfunctions, MP Global

shall repair or replace it (at MP Global’s option).

If the product is defective:

(i) return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it, or

(ii) call MP Global Customer Care at 1-888-379-9695. Customer Care will make the determination whether the product should be returned to the following

address: MP Global Return Goods, 2500 Old Hadar Rd., Norfolk, NE 68701, or whether a replacement product can be sent to you.

This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by MP Global that the defect or malfunction was

caused by damage which occurred while the product was in the possession of a consumer. MP Global’s sole responsibility shall be to repair or replace

the product within the terms stated above. MP GLOBAL SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL

OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER

FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply

to you.
