MT Logic LE-207836MT User manual

EN Instruction manual
NL Gebruiksaanwijzing
FR Mode d’emploi
DE Bedienungsanleitung
ES Manual de usuario
LE-207836MT

2
CONTENTS
• Important safety instructions
• Setting up and using your TV
• What' s included with your TV
• Sockets on the back of your TV
• Basic installation
• Remote Control lnstruction
• Select lnput Source
• Basic menu operation
• USB Multimedia playback format
• If you're having problems
• Your Tv's specification
• Wall mounting assembly instruction
Instruction Manual
3
4
5
6
7
8
9
9
21
22
23
23

3
Warning
• Do not let your TV become wet(for example, by keeping it in a dan room, leaving it outside or dripping water on it).
• You must not put objects filled with water on your TV (including vases of water).
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions carefully.
• Keep these instructions in a safe place
• Follow all the instructions.
• Only clean your TV with a dry cloth.
• Do not block the ventilation openings.
• Do not put your TV near any heat source (such as radiators or stoves), or near equipment (including amplifiers) that produce heat.
• Your TV is either fitted with a polarized plug or grounding- type plug. A polarized plug has two blades with one wider than the other. A
grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, ask an electrician to replace your plug socket so that it fits your TV plug.
• Do not walk on, trap, pinch or damage the power cord. Take care that the cord is not pulled, especially at plug sockets and where it comes
out of the TV.
• Do not walk on, trap, pinch or damage the power cord. Take care that the cord is not pulled, especially at plug sockets and where it comes
out of the TV.
• Unplug your TV both power and antenna during lightning storms or when you won't be using it for a week or more.
• lf your TV needs repairing, use a qualified service technician. If you damage your TV, it will need to be serviced.
• Be careful when you plug the power cord into a socket. Do not overload wall sockets. They could damage your TV and could give you an
electric shock or cause a fire. Check your TV's power cord from time to time, and unplug your TV if the power cord looks worn. Stop using it
until you have had the power cord replaced by a qualified technician. Do not twist, kink or pinch the power cord.
Note
• If your TV is cold, there may be some small 'flickers' when you turn it on. This is normal and there is nothing wrong with your TV.
• Avoid touching the LED screen with any object or holding your finger against it as this may cause damage.
YOU WILL SEE THESE STICKERS ON YOUR TV
Caution
• You should not service your TV unless you are qualified to do so. If your TV breaks down, contact a qualified TV engineer.
• Make sure you plug in your TV securely.
• If you use your TV to play video games or connect to your computer to use as a screen, keep brightness and contrast at a low level. Images with
a high level of brightness or contrast may burn on to the screen permanently.
How to clean your TV
• Wipe the TV screen with a soft, dry cloth
• Do not use solvent methyl benzene. Strong chemicals may damage your TV screen.
• Make sure you switch the TV off before you clean it.
HAZARD WARNING
RISK OF ELECTRIC SHOCK DO NOT OPEN
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
This symbol means there are wires in your TV which are
not insulated. If you touch these wires, you may get an
electric shock.
This symbol means you should read the servicing guide
before you take further action.
ENInstruction Manual

4
Instruction Manual
SETTING UP AND USING YOUR TV
• Check the voltage shown on the serial number or rating label on your TV, and make sure your TV is compatible with the voltage in your home.
If you are not sure about the voltage you have in your home, please contact your distributor or an electrician.
• Make sure you plug the power cable into the socket securely. If you have problems plugging in your TV, please contact the shop you bought
your TV from to replace the power cable.
• The plug is designed, so that it will only fit one way.
• If you have problems plugging in the socket properly, please contact the shop you bought your TV from.
• Do not overload power sockets or extension cords when you are setting up your TV. If you overload the power sockets or extension cords, you
could receive an electric shock or cause a fire.
• Do not place any objects on the power cord when you are setting up your TV. Keep your TV screen away from any sharp objects such as screw
drivers or knives so that you don't scratch or damage the TV screen. Only use the correct power cord when you set up your TV.
• Make sure you turn off your TV when you are not using it. lf you won't be using your TV for a week or more, unplug both power and aerial connections.
• The vents at the back of your TV are to let air cool the inside of your TV. so it doesn't overheat. Please make sure the vents are not blocked.
• Do not put your TV on a bed, sofa or carpet. This may block the vents.
• Do not put your TV in an enclosed space, such as on a bookshelf or in a TV cabinet. Doing this may block the vents.
• Keep your TV away from direct sunlight.
• Do not place your TV on an unsteady shelf or desk. The TV could fall and injure you.
• Do not put objects inside the TV (such as children's toys).Doing this could give you an electric shock or damage the parts inside your TV.
When to call a technician
If any of the following happens. unplug your TV and contact the shop you bought your TV from or a qualified technician to repair your TV.
• If the power cord or plug is damaged
• If liquid gets into the screen
• If your TV is damp or wet
• If your TV is damaged
• If the TV doesn't work properly.
Do not try to repair your TV yourself. There is high voltage
inside it and you could receive an electric shock.
The temperatures your TV will work in
• Your TV will only work when the temperature is in the range of 0°C-40°C.
Safety notice
• Your TV has a CE marking. This means your TV meets both the EMC directive (89/336/EEC), (93/68/EEC) and the Low Voltage Directive (73/23/
EEC) that the European Community have issued.
• This unit complies with European Council Directive 2006/ 95 CE (Electromagnetic Compatibility & Low Voltage Directives)
When you need to throw your TV away
Please contact the shop that sold you your TV when you need to throw it away.
• Do not throw your old TV away with your household waste.
• You can also contact your local council to see if they can collect your old TV. If you throw your TV away at a landfill site, dangerous chemicals
from your TV can leak into the ground and get into the food chain.
• When you replace your TV with a new one, the shop who sold you your TV are legally responsible for taking your old TV and throwing it away.
END OF LIFE DISPOSAL
This logo set on the product means that the recycling of this apparatus comes within the framework of the Directive 2002/96/CE of
January 27, 2003 concerning the Waste of Electrical and Electronic Equipment (WEEE). This symbol means that used electrical and
electronic products should not be mixed with general household waste. There is a separate collection system for these products.
If you want to dispose of this equipment, please do not use the ordinary dust bin !
• The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and
human health in the cycle of reprocessing this product.
• Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste. Used electrical and electronic equipment must be
treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.
• Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product (please contact your local
authority for further details). You have the obligation to use the selective waste collection systems put in place by your local authority.
• If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local
requirements.
• By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus
prevent potential negative effects.

5
WHAT IS INCLUDED WITH YOUR TV
What your TV should look like
How to use your remote control
• Take the back cover off your TV remote and put two AAA batteries into the remote control. Make sure the + and - symbols on your batteries
match the diagram.
• Replace the batteries. So they are facing the right way. If you won't be using the remote control for a long time, take the batteries out. Use your
remote control carefully . Do not drop. Keep the remote control away from water, direct sunlight and hot surfaces.
ENInstruction Manual

1 9 10 11 12 132 3 4 5 6 7 8
6 7
1 2 3 4 5
6
SOCKETS ON THE SIDE OF YOUR TV
1. Press "VOL+" or "VOL-" to increase or decrease the volume.
2. Press "CH+" or "CH-" to scan through channels.
3. Press "MENU" to bring up the main menu on the screen.
4. Press "SOURCE" to select the input source.
5. Press "STANDBY" button to turn standby mode on or off.
6. POWERINDICATOR: Show red in standby mode, show green or blue when your TV is switched on.
7. REMOTE SENSOR: Infrared sensor for the remote control
SOCKETS ON THE TOP OF YOUR TV
1. DC12V power input for the LED TV, connects power supply adaptor here.
2. Headphone output.
3. Audio input for VGA mode, connects to your PC audio output.
4. DB15 VGA interface.
5. YPBPR/ Component input, connects your AV system.
6. Scart input interface; connects your AV system with Scart output.
7. CVBS / Composite video inputs, connects your AV system.
8. Right/Left Audio Channel input for Composite video & component mode.
9. Coaxial Output, connecting to Coaxial input of your Amplifier.
10.75 Ω aerial input, connects antenna connector or aerial interface here to receive cable / aerial signal.
11.High Quality Audio/Video input socket for connecting an external device fitted with an HDMI output.
12.Connects to portable USB device.
13.PCMCIA input, the card reader input CI (Common interface) this requires CAM (conditional access module) used for pay TV.
Instruction Manual

7
BASIC INSTALLATION
HDMI Connection
• Turn off the power to the LED TV and DVD player.
• Connect a HDMI cable to the HDMI output of your DVD player and the other end to the HDMI input in the rear of your LED TV.
• Turn on the power to the LED TV and your DVD player.
• Select Digital HD using the SOURCE button on the front of the LED TV or directly by pressing the SOURCE button on the remote Control.
PC and audio Connection
• Turn off the power to the your LED TV and Computer.
• Connect a15-pin D-sub RGB (VGA) cable to the RGB output of your computer and the other end to the VGA input (purple area) in the rear of
your LED TV.
• Turn on the power to the your LED TV and Computer.
• Select PC using the SOURCE button on the front of the LED TV or directly by pressing the SOURCE button on the remote Control.
VIDEO and audio Connection
• Turn off the power to the LED TV and DVD player.
• Connect the VIDEO jack on the rear of your DVD player to the VIDEO out on the rear side of your LED TV.
• Connect the R (red color) and L (white color) audio connectors on the rear of your DVD player to the R (red color) and L (white color) audio
input connectors in the side of your LED TV.
• Turn on the power to the LED TV and DVD player.
• Select AV using the SOURCE button on the front of the LED TV or directly by pressing the SOURCE button on the remote Control.
YPBPR and audio Connection
• Turn off the power to the LED TV and DVD player.
• Using the connectors in the green color area, connect the y(green color) connector on the rear of your DVD player to the corresponding y
(green color) connector in the component Analog HD group (green color band) in the rear of your LED TV.
• Connect the Pb (blue color) connector on the rear of your DVD player to the corresponding Pb (blue color) connector in the Component
Analog HD group (green color band) in the rear of your LED TV.
• Connect the Pr (red color) connector on the rear of your DVD player to the corresponding Pr (red color) connector in the Component Analog
HD group (green color band) in the rear of your LED TV.
• Connect the R (red color)and L (white color) audio connectors on the rear of your DVD player to the R (red color) and L(white color) aduio
connectors in the Component Analog HD group (green color band) in the rear of your LED TV.
• Turn on the power to the LED TV and DVD player.
• Select Component Analog HD using the SOURCE button on the remote or front of the LED TV Control.
NOTE: Refer to your DVD player user manual for more information about the video output requirements of the product.
ENInstruction Manual

8
SCART Connection
• Turn off the power to the LED TV and DVD player.
• Connect a SCART cable from your DVD player to the SCART socket of the TV.
• Turn on the power to the LED TV and your DVD player.
• Select SCART using the SOURCE button on the front of the LED TV or directly by pressing the SOURCE button on the remote Control.
ANTENNA Connection
• Turn off the power to your LED TV.
• Connect a coaxial (RF) connector from your antenna, cable or cable box to the TV connector on the rear of your LED TV.
• Turn on the power to your LED TV.
• Select TV using the SOURCE button on the front of the LED TV or directly by pressing the SOURCE button on the remote Control.
HEADPHONE Connection
• You can connect a headphone to your TV if you wish to watch program without disturbing people around you.
• Insert some standard headphone with a 3.5mm jack plug into the 3.5mm jack on the back of the TV (see diagram).
NOTE: HEADPHONE VOLUME WARNING.
• Connect headphones with the volume set low and increase it if required.
• Prolonged listening through some headphones at high volume settings can result in hearing damage.
You will not receive the sound from the TV when you connect headphones to the system.
REMOTE CONTROL INSTRUCTIONS
1. STANDBY: Turns the TV on or off.
2. MUTE:Turns the sound off from the TV.
3. AUTO: Automatic adjustment aspect ratio.
4. NUMBER BUTTONS(0-9):Press 0-9 to select a TV channel directly when you are watching TV.
The channel will change after 2 seconds.
5. -/--:single and double numbers.
6. : Returns to the previous channel.
7. ASPECT:Press this button to change the aspect of your TV.
8. AUDIO:Press this button you can choose different audio system.
9. VOL(+)/VOL(-):Increase or decrease the sound level.
10.CH(+)/CH(-):Go through the channel list.
11.THUMBSTICK( / / / /OK):Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
12.DISPLAY:Press to display the source and channel’s information.
13.MENU:Brings up the main TV menu on the screen.
14.EXIT: press for leaving the current screen.
15.SOURCE:Press to cycle through the input source.
16.SLEEP:Select amount of time. Let your TV turn off automatically.
17.PMODE:Selects various preset picture settings.
18.SMODE:Select various preset sound settings.
19.FAV : Press this button to show the favorite channel menu on your TV screen when you watch
digital TV programs.
20.EPG: Press this button to select the electronic program guide.
21.FAV-: Press this button to quickly delete the current favorite channel.
22.FAV+: Press this button to quickly add the current favorite channel.
23.TEXT: Press this button to switch teletext on or off.
24.SUBTITLE: Press this button to show subtitles for the program you are watching. Press again to
hide the subtitles.
25.HOLD: Press this button to freeze or unfreeze the teletext screen you are viewing.
26.TV/RADIO: Press to select TV or RADIO modes.
27.INDEX: Press this button to select the teletext index page.
28.SUBPAGE: Go to sub coded pages.
29.SIZE: Press this button to expand the text size while you are in teletext
30.REVEAL: Press this button to show or hide text, for example a text quiz.
31.MEDIA: Press this button to return to the media main menu.
Instruction Manual
SOU RCE
1 2
4
5 6
9 10
11
13 14
15 16
29 30
25 26
21 22
17 18
12
7
3
19 20
23 24
27 28
31
8

9
: Play/pause button in MEDIAmode.
: Stop button in MEDIA mode.
: Select the DVD's previous chapter.
: Reverse the DVD movie to a previous scene.
:Fast forward the DVD to the next scene.
:Select the DVD movie next chapter.
RED GREEN YELLOW BLUE KEY
Press the buttons according to the colour displaying on the screen to enter.
SELECT INPUT SOURCE
BASIC OPERATION
• Press SOURCE button on the remote control to display the input source list.
• Press / button to select the input source you want to watch.
• Press OK button to enter the input source.
• Press EXIT button to quit.
Connect an antenna from the TV's input called "RF-ln" and to your TV Aerial socket.
OSD Language
Press / button to select the language to be used for menus and message.
Country
Press / button to select the country you want to.
Auto Scan
Press / button to select Mode: DTV+ATV, DTV, ATV.
ENInstruction Manual

10
Auto Tuning Status
First tuning digital, press Menu button to skip digital tuning, Second tuning analogue, press Menu button to skip analogue tuning.
PICTURE MENU
• Press MENU button to display the main menu.
• Press / button to select PICTURE in the main menu.it will highlight the first option.
• Press / button to select the option that you want to adjust in the PICTURE menu.
• Press / button to adjust.
• After finishing your adjustment, Press MENU button to return back to the previous menu.
Picture Mode
• Press / button to select Picture Mode, then press OK button to enter sub- menu. Press / button to select. (Available Picture mode:
Dynamic, Standard, Mild, Personal).
• You can change the value of contrast, brightness, color and sharpness when the picture is in Personal mode. TIPS: You can press PMODE
button on the remote control to change the Picture Mode directly.
Instruction Manual

11
Brightness
Press / button to select Brightness then press OK button to enter sub-menu. Press / button to adjust.
Contrast
Press / button to select Contrast. then press OK button to enter sub-menu. Press / button to adjust.
Sharpness
Press / button to select Sharpness then press / button to adjust.
Saturation
Adjust the saturation of the color based on your own like.
Hue
Use in compensating color changed with the transmission in the NTSC code.
Colour Temp
Press / button to select Color Temperature. then press / button to select. (Available Color Temperature: Standard, Cool, Warm).
Aspect Ratio
Press / button to select Aspect Ratio ,then press / button to select. (Available Aspect Ratio:Full,Zoom1,Zoom2,4:3).
PC SETTING(PC MODE ONLY)
• Press SOURCE to select PC source.
• Press MENU to enter the main menu, then press / button to select PICTURE menu.
• Press OK/ to enter and press to select PC Setting.
Press / button to select PC Settings, then press / button to adjust.
Auto Adjust Press MENU / button to adjust to the screen automatically to the optimal position of the picture.
H Position Adjust the horizontal position of the picture.
V Position Adjust the vertical position of the picture.
Phase Minimize horizontal distortion.
Clock Minimize vertical stripes in the screen image.
Screen Mode
• Press / button to select HDMI Mode, then press / button to select Auto, Video or PC.
• It is aviliable in HDMI Input only.
Advanced Settings(Not available for PC mode)
• Adjust advanced video features to fine tune the picture.
• Press / button to select Advanced Settings, then press OK/ button to enter sub -menu.
ENInstruction Manual

12
NR
• Set options to reduce video noise.
• Press / button to select NR, then press / button to select.
Off Select to turn off video noise detection.
Weak Detect and reduce low video noise.
Medium Detect and reduce moderate video noise.
Strong Detect and reduce enhanced video noise.
Mpeg NR
Set options to reduce MPEG noise.
Press / button to select Mpeg NR, then press / button to select.
Off Select to turn off MPEG noise detection.
Weak Detect and reduce low MPEG noise.
Medium Detect and reduce moderate MPEG noise.
Strong Detect and reduce enhanced MPEG noise.
Dynamic Contrast
• Automatically adjust picture detail and brightness.
• Press / button to select Dynamic Contrast, then press / button to select.
(Available Dynamic Contrast: Off, Weak .Medium, Strong ).
SOUND MENU
• Press MENU button to display the main menu.
• Press / button to select Sound in the main menu.it will highlight the first option.
• Press / button to select the option that you want to adjust in the SOUND menu.
• Press / button to adjust.
• After finishing your adjustment, Press MENU button to return back to the previous menu.
Sound Mode
• Press / button to select Sound Mode, then press OK button to enter sub-menu. Press / button to select.
• (Available Sound mode: Standard, Music, Movie, Sports, Personal).
• You can change the value of Treble and Bass when the sound is in Personal mode.
• TIPS: You can press SMODE button on the remote control to change the Sound Mode directly.
Treble
Press / button to select Treble. then press OK button to enter sub-menu. Press / button to adjust.
Bass
Press / button to select Bass. then press OK button to enter sub-menu. Press / button to adjust.
Balance
Press / button to select Balance then press OK button to enter sub-menu. Press / button to adjust.
Surround Sound
Press / button to select Surround Sound ,then press Press / button to select On or Off.
Instruction Manual

13
EQ Setting
• Press / button to select EQ Setting, then press OK/ button to enter submenu.
AVL
• Press / button to select AVL ,then press Press / button to select On or Off.
SPDIF
• Press / button to select SPDIF ,then press Press / button to select Off, Auto, PCM.
Audio Description
• Press / button to select Audio Description, then press OK/ button to enter submenu.
Sound Type
• Press / button to select Sound Type ,then press Press / button to select.
CHANNEL MENU
• Press MENU button to display the main menu.
• Press / button to select CHANNEL in the main menu.it will highlight the first option.
ENInstruction Manual

14
• Press / button to select the option that you want to adjust in the CHANNEL menu.
• Press / button to adjust.
• After finishing your adjustment. Press MENU button to return back to the previous menu.
Auto Scan
• Press / button to select Auto Scan, then press OK/ button to enter submenu. (The default password is 0000)
Manual Scan
• Press / button to select Manual Scan, then press OK/ button to enter submenu.
Digital Manual Scan
• Press / button to select Digital Manual Scan, then press OK/ button to enter submenu.
Instruction Manual

15
Analog Manual Scan
• Press / button to select Analog Manual Scan, then press OK/ button to enter submenu.
Channel Edit
• Press / button to select Channel Edit, then press OK/ button to enter submenu.
The three colored key is the shortcut key for programming the channel.
• First press / to highlight the channel you want to delete or move or skip, then:
• Press the Red button to delete the channel.
• Press the Green button to skip the select channel.
• (Your TV set will skip the channel automatically when using CH+/- to view the channels.)
• Press the Blue button to to set the channel to moving state, then press / to move it to the position you want to put.
Common interface
• Press / button to select Common interface, then press OK button to enter sub-menu. Only available when there is CI card under DTV.
Signal Information
• Press / button to select Signal Information, then press the OK button to see the detail information about the signal. Only available when
there is signal under DTV.
ENInstruction Manual

16
LOCK MENU
• Press MENU button to display the main menu.
• Press / button to select LOCK in the main menu.it will highlight the first option.
• Press / button to select the option that you want to adjust in the LOCK menu.
• Press / button to adjust.
• After finishing your adjustment, Press MENU button to return back to the previous menu.
Enter Password
• Press / button to select Enter Password, then press OK button to make the following 4 options valid.
• (Default password is ‘0000’.)
Enable
• Press / button to select Enable. then press Press / button to select On or Off.
• Channel Locks. Parental Rating and Lock Keypad are available when Enable is On
Channel Locks
• Press / button to select Channel Locks, then press OK/ button to enter submenu
Instruction Manual

17
Parental Rating
• Press / button to select Parental Rating , then press / button to select.
Lock Keypad
• Set to prevent it from being used by young child ren. or other unexpected usage.
• Press / button to select Lock Keypad , then press- / button to select On or Offt.
New Password
• Press / button to select new Password, then enter a 4 digit number you want to set as your new password, confirm your new password by
enter it again.
Clear Lock
• Press / button to select Clear Lock , then press / button to select.
SETUP MENU
• Press MENU button to display the main menu.
• Press / button to select SETUP in the main menu, it will highlight the first option.
OSD Language
• Press / button to select OSD Language, then press OK button to enter sub-menu.
• Press / / / button to select OSD Language.
Audio Language
• Press / button to select Audio Language, then press OK button to enter submenu.
• Press / / / button to select the Audio Primary Language and Audio Secondary Language
ENInstruction Manual

18
Subtitle
• Press / button to select Subtitle, then press OK button to enter submenu.
Teletext
• Adjust Teletext settings. Only available under DTV and ATV source.
• Press / button to select Teletext, then press OK/ button to enter submenu.
• Under DTV source, press / button to select Digital Teletext Language.
• Under ATV source, press / button to select Decoding Page Language.
Time Settings
• Press / button to select Time Settings, then press OK button to enter submenu.
Instruction Manual

19
PVR Setting
• Press / button to select PVR Setting .then press OK button to enter submenu.
• It will check the USB.
First Time Setup
• Press / button to select First time Setup, then press OK button to enter.
Reset
• Press / button to select Reset, then press OK button to enter.
• If you are sure to reset. press Yes to reset.
MEDIA MENU
• Note: Before operating USB menu, Plug in USB device, then press SOURCE button to set the Input Source to USB .
• Press / button to select USB in the Source menu, then press OK button to enter.
• Press / button to select the option you want to adjust in the main USB menu, then press OK button to enter.
ENInstruction Manual

20

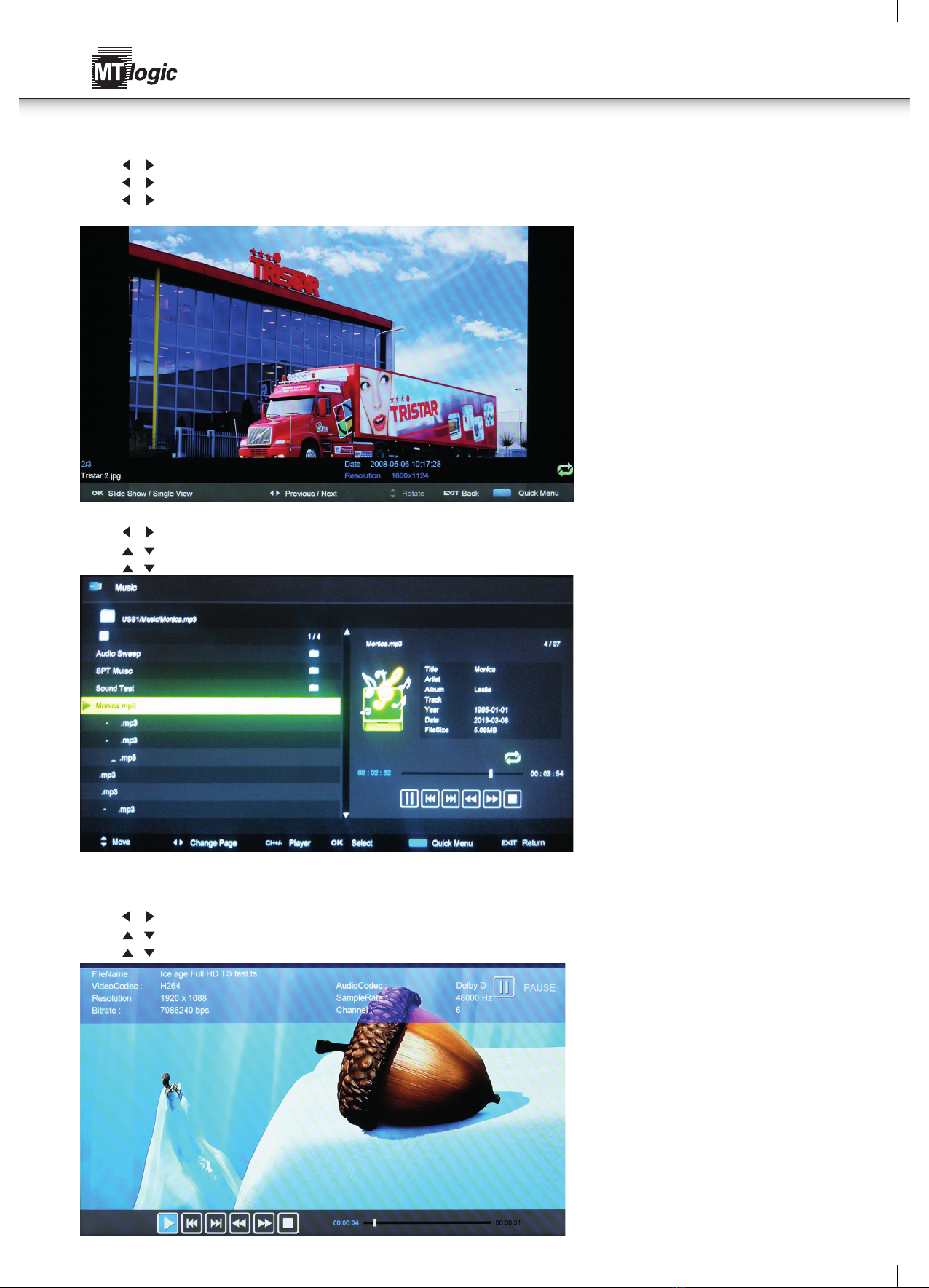

• Press / button to select PHOTO in the main menu, then press OK button to enter.
• Press / button to select drive disk you want to watch, then press OK button to enter.
• Press / button to select return option to back to the previous menu.
Music
• Press / button to select MUSIC in the main menu, then press OK button to enter.
• Press / button to select drive disk you want to watch, then press OK button to enter.
• Press / button to select return option to back to the previous menu.
• When highlighting the option you select, the file information will appear on the right.
Movie
• Press / button to select MOVIE in the main menu, then press OK button to enter.
• Press / button to select drive disk you want to watch, then press OK button to enter.
• Press / button to select return option to back to the previous menu.
Instruction Manual
