Muave MU070CES User manual

Instruction Manual
Model: MU070CES
0.7 Cu. Ft. Microwave Oven
For your safety and the ongoing enjoyment of this product
always read these instructions carefully before using your
microwave oven.
SAVE THESE INSTRUCTIONS
www.MuaveAppliances.com

(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
Specificati ns
Model: MU070CES
Rated Voltage: 230v~50hz
Rated Input Power (microwave): 1270 watts
Rated Output Power (microwave): 800 watts
Oven Capacity: 20 Liters ( 0.7 cubic feet)
Turntable Diameter: 255 mm (10.0 inches)
External Dimensions: 440mm x 335mm x 259 mm (17.3”w x 13.2”d x 10.2” h)
Net Weight Approx. 11.6 kg (26 lbs.)
2

To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
1. Warning: Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than
8 and supervised.
4. Keep the appliance and its cord out of reach of
children less than 8 years.
5. Only use utensils that are suitable for use in microwave
6. The oven should be cleaned regularly and any food
deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
8. When heating food in plastic or paper containers,
IMPORTANT SAFETY INSTRUCTIONS
WARNING
.ovens
3

9. If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes.
Do not store items, such as bread, cookies, etc. inside
the oven.
12. Remove wire twist-ties and metal handles from
paper or plastic containers/bags before placing them in
the oven.
13. Install or locate this oven only in accordance with the
installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
15.This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement
or near a swimming pool.
19. The temperature of accessible surfaces may be high
when the appliance is operating. The surfaces are liable
to get hot during use. Keep cord away from heated
keep an eye on the oven due to the possibility of ignition.
ir
4

20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
22.The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be taken
when handling the container.
24.The appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
25.Children should be supervised to ensure that they do
not play with the appliance.
26.The appliances are not intended to be operated by
means of an external timer or separate remote-control
system.
27.Accessible parts may become hot during use. Young
children should be kept away.
28.Steam cleaner is not to be used.
29.During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
30.Only use the temperature probe recommended for
this oven.(for ovens provided with a facility to use a
surface, and do not cover any vents on the oven.
5

31. WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years
of age shall be kept away unless continuously
supervised.
32.The rear surface of appliance shall be placed against
a wall.
33.The microwave oven must not be placed in a cabinet.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
34.The microwave oven is intended for heating food and
beverages.Drying of food or clothing and heating of
warming pads,slippers,sponges,damp cloth and similar
may lead to risk of injury,ignition or fire.
temperature-sensing probe.)
6

To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this
appliance.
WARNING
Electric Shock Hazard
Improper
use of the grounding
can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only
a 3-wire
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
2. If a long cord set or extension
cord is used:
1)The marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
extension cord.
7

CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a
compentent person to
carry out any service
or repair operation that
involves the removal of
a cover which gives
protection against
exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
8

Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
9

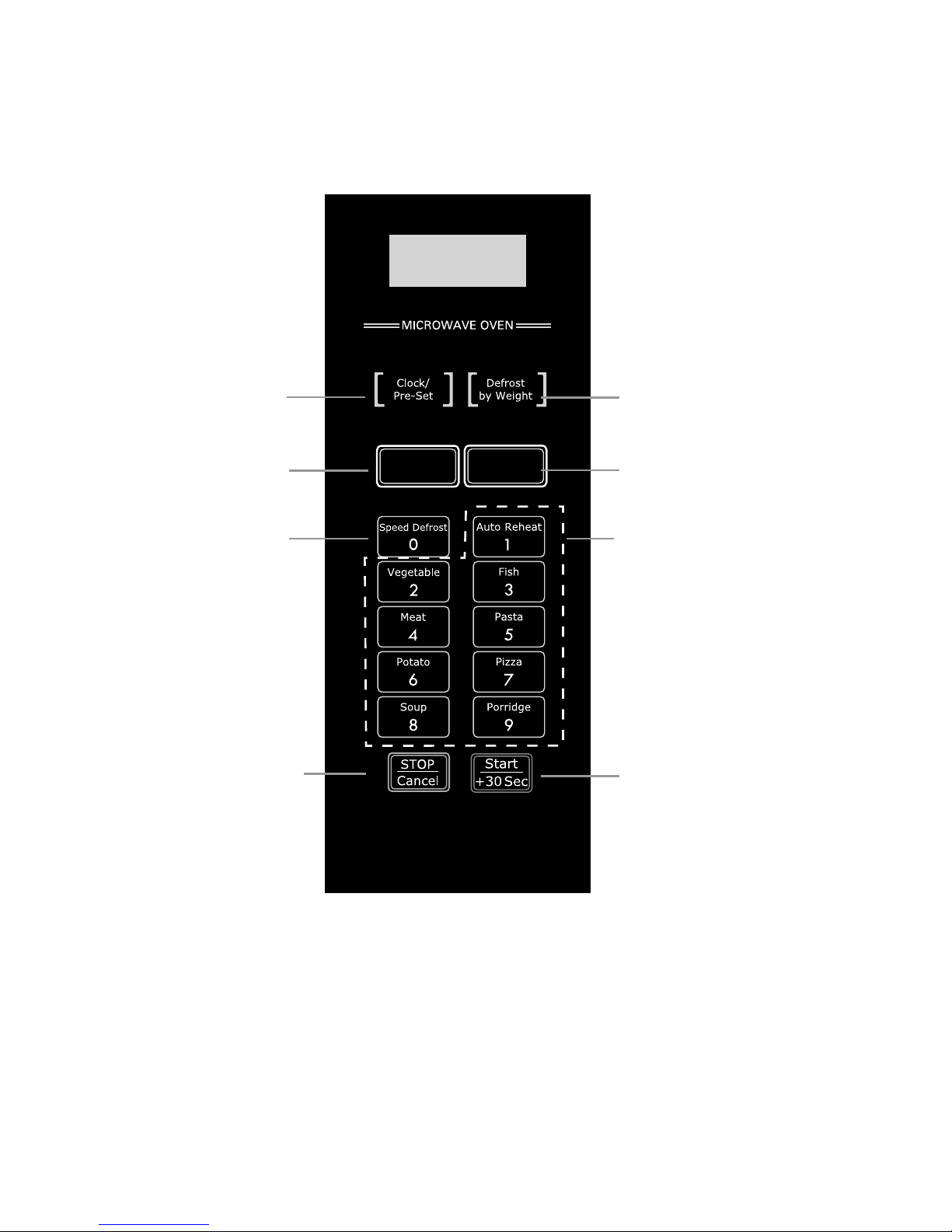

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Grill Rack( Only be used in grill function
and be placed on the glass tray )
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
10

Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Installation
1.Select a level surface that
provide enough open space
for the intake and/or outlet
vents.
(1) The minimum installation
height is 85cm.
(2) The rear surface of
appliance shall be placed
against a wall.
Leave a minimum clearance
of 30cm above the oven, a
minimum clearance of 20cm
is required between the oven
and any adjacent walls.
(3) Do not remove the legs
from the bottom of the oven.
(4) Blocking the intake and/
or outlet openings can
damage the oven.
(5) Place the oven as far
away from radios and TV
as possible. Operation of
microwave oven may
cause interference to your
radio or TV reception.
2. Plug your oven into a
standard household outlet.
Be sure the voltage and
the frequency is the same
as the voltage and the
frequency on the rating
label.
WARNING: Do not install
oven over a range cooktop
or other heat-producing
appliance. If installed near
or over a heat source, the
oven could be damaged
and the warranty would be
void.
20cm
30cm
20cm
min85cm
0cm
The accessible
surface may be
hot during operation.
11

Control Panel and Features
OPERATION
Microwave Grill
(2)
(1)
(3)
(7)
(4)
(6)
(5)
(8)
(1) CLOCK/ Pre-Set
(2) Defrost by Weight
(3) Microwave
(4) Grill
(5) Speed Defrost & 0 Button
(6) Number Buttons & Auto menu :1-9 (Auto Reheat, Vegetable, Fish, Meat, Pasta
cooking: press once to stop oven; twice to stop and clear all entries.
(8) Start/+30Sec.
(7) Stop/Cancel: clears all previous setting pressed before cooking starts. During
Potato, Pizza, Soup, Porridge)
12

Example: Set 3 minutes speedy cooking:
(1) Press "START/+30SEC." once to start cooking, LED will display "0:30".
(2) Press "START/+30SEC." again for 4 times, the cooking time will be 3 minutes.
Operation Instructions
1. Clock Setting
When the microwave oven is electrified, the LED will display "0:00".
The input time should be within 0:00--23:59;
Example: To set 12:12 .
(1) Press the "CLOCK/PRE-SET" button, the hour figures will flash.
(2) Press the number buttons of "1","2","1","2" in order.
(3) Press "CLOCK/PRE-SET" to finish clock setting.":" will flash, and the time will light.
(4) It will effective, If the input time not be within 0:00--23:59.
(5)Press "CLOCK/PRE-SET" if you want to reset the clock.The first setting time will display
and press the steps (2)--(3) to reset the clock.
Note: In the process of clock setting, if "STOP/CANCEL" is pressed or if there is no
operation within 1 minute, the oven will go back to the previous status automatically.
2. Delay Start
Example: to start a cooking at 12:12.
(1) Set the clock first. (Consult the instruction of clock setting.)
(2) Set the cooking program wanted; defrost program cannot be set here.
Example: to cook the food with full power for 10 minutes.
a. Press "MICROWAVE" once to choose full power;
b. Press "1","0","0","0" to input cooking time;
c. Be careful! Do not press "START/+30SEC." to start cooking.
(3) Press "CLOCK/PRE-SET" to display the current clock. The hour figures flash:
(4) Press the number buttons of "1","2","1","2" in order.
(5) Press "START/+30SEC." to confirm the setting. The unit will turn back
to the clock state.
(6) Cooks begin when the time arrives and sounds twice to remind you.
Note: (1) If the setting is not within the range 0:00–23:59, the setting will be invalid;
(2) In the process of setting, if "STOP/CANCEL" is pressed or there is no operation
within 1 minute, the unit will go back to the previous state automatically;
(3) The clock must be set before the delay start cooking. If the pre-set cooking has
not been programmed and only time to start cooking is set, the whole set will be
regarded as an alarm clock setting and 5 beeps will be sound when the pre-set
time is reached.
3. Express Cooking
In waiting state,press "START/+30SEC." to start cooking with 100% microwave
power for 30 seconds.If the remaining cooking time is no more than one minute and 30
seconds,30 seconds will be added by each pressing "START/+30SEC." button.
If the remaning cooking time is more than one minute and 30 seconds, one minute will be
added by each pressing "START/+30SEC.". The maximum cooking time is 12 minutes.
not be
13

7. Auto Menu Cooking
The numeral pads 1—9 are matching with nine different subjects respectively;
6. Speedy Defrost
Example: Defrost beef of 500g
(1) Press "SPEED DEFROST", LED will display "dEF2".
(2) Press "5" "0" "0" in order, "g" will light, the range of defrosting weight is 100g-1200g.
(3) Press "START/+30SEC." to start defrosting.
5. Defrost By Weight
Example: Defrost beef of 500g:
(1) Press "DEFROST BY W
(2) Press "5", "0", "0" in order, "g" will light, the range of defrosting weight is 100g-2000g.
(3) Press "START/+30SEC." to start defrosting.
Example: Choose 50% power for cooking 10 minutes.
(1) Press "MICROWAVE" thrice the P 50 will display.
(2) Press the numeral buttons of "1", "0", "0", "0" in order;
(3) Press "START/+30SEC." to start cooking, the time will count down.
4. Microwave Cooking
Select different microwave power level and set cooking time as you wish. There are five
power levels available for choosing. Refer to Chart 1. The maximum microwave cooking
time is 99 minutes and 99 seconds. Keep on pressing "MICROWAVE" to choose the
power wished.
Press "Microwave" Microwave Power Display
Once
Twice
Thrice
4 times
5 times
80%
50%
30%
10%
100% P100
P80
P50
P30
P10
Pad CookDisplay Pad CookDisplay Pad CookDisplay
1
2
3
4
5
6
7
8
9
Auto
Reheat
Vegetable
Fish
Meat
Pasta
Potato
Pizza
Soup
Porridge
A-1
A-2
A-3
A-4
A-5
A-6
A-7
A-8
A-9
EIGHT", LED will display "dEF1".
14

Refer to chart 2 for the automatic menu procedure:
Chart 2:
Menu Weight(g) Press Times Display
A-1
Auto Reheat
A-2
Vegetable
A-3
Fish
A-4
Meat
A-5
Pasta
A-6
Potato
A-7
Pizza
A-8
Soup
A-9
Porridge
150
250
350
400
150
350
500
150
250
350
400
450
150
300
450
600
50(with cold water 450g)
100(with cold water 800g)
150(with cold water 1200g)
1(approximately230g)
2(approximately460g)
3(approximately690g)
1(approximately80g)
2(approximately160g)
3(approximately250g)
500
750
1000
550
1100
Once
Twice
Thrice
4 times
Once
Twice
Thrice
Once
Twice
Thrice
4 times
5 times
Once
Twice
Thrice
4 times
Once
Twice
Thrice
Once
Twice
Thrice
Once
Twice
Thrice
Once
Twice
Thrice
Once
Twice
Example: Cook vegetable of 350g:
(1) Press "VEGETABLE" button, "A-2" will display.
(2) Press "VEGETABLE" button twice to choose weight, LED will display "350".
(3) Press "START/+30SEC." to start cooking, time will counts down.
150
250
350
400
150
350
500
150
250
350
400
450
150
300
450
600
50
100
150
2
3
1
2
3
500
750
1000
550
1100
1
15

10. Inquiring Function
(1) In one stage cooking state, press "MICROWAVE", the current microwave power will be
displayed for 3 seconds. After three seconds, the oven will turn back to the former state;
(2) In pre-set state, press "CLOCK/PRE-SET" to inquire the time for delay start cooking. The
pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display.
8 . Grilling Cooking
(1) Press the " GRILL/COMBI. " button once to choose the grill function, the LED will
display "G-1" .
(2) Set the cooking time, the maximum cooking time is 99 minutes and 99 seconds.
Example: Set 12 minutes 50 seconds, press "1", "2", "5", "0" in order.
(3) Press " START/+30SEC. " to start cooking. The cooking time counts down.
9. Combination cooking (microwave + grilling)
(1) Press the " GRILL/COMBI. " button twice or thrice to choose "Combination 1"
(55%microwave+45%grill) or "Combination 2" (36%microwave+64%grill), LED will
display "C-1" or "C-2".
(2) Set the cooking time, the maximum cooking time is 99 minutes and 99 seconds.
Example: Set 12 minutes 50 seconds, press "1", "2", "5", "0" in order.
(3) Press " START/+30SEC. " to start cooking. The cooking time counts down.
Example: If you want to cook the food with 100% microwave power for 10 minutes+ 80%
microwave power for 15 minutes. Do it as following:
1) Press "MICROWAVE" once to choose 100% microwave power;
2) Press number keys "1","0","0","0" in order to adjust the cooking time;
3) Press "MICROWAVE" twice to choose 80% microwave power;
4) Press number keys "1","5","0","0" in order to adjust the cooking time;
5) Press "START/+30SEC. " to start cooking.
(3) In cooking state, press "CLOCK/PRE-SET" to inquire the current time. The current
time will flash for 2-3 seconds, then the oven will turn back to former states.
11. Multi-section cooking
At most 2 sections can be input for cooking. In multi-section cooking, if one section is
defrosting, then defrosting shall be placed in the first section.
Note:If half the grill time passes, the oven pauses and sounds twice, and this
is normal. You can just press " START/+30SEC." to continue cooking. But in
order to have a better effect of grilling food, you should turn the food over,
close the door, and then press "START/+30SEC." to continue cooking. If
there is no operation in 1 minute, the oven will continue working and beep once.
16

12. Lock-out Function for Children
Lock: In waiting state, press "STOP/CANCEL" for 3 seconds, there will be a long beep
denoting entering into the children-lock state and LED will display " ".
Lock quitting: In locked state, press "STOP/CANCEL" for 3 seconds, there will be a long
"beep" denoting that the lock is released.
13. Cooking End Reminding Function
When cooking ends, there will be 5 beeps which is reminding the completion of cooking.
14. Display Specification
(1) In waiting state, LED will display clock and " :" will flash.
(2) In function setting state, LED will display the related setting.
(3) In the operation and suspending state, LED will display the residual cooking time.
17

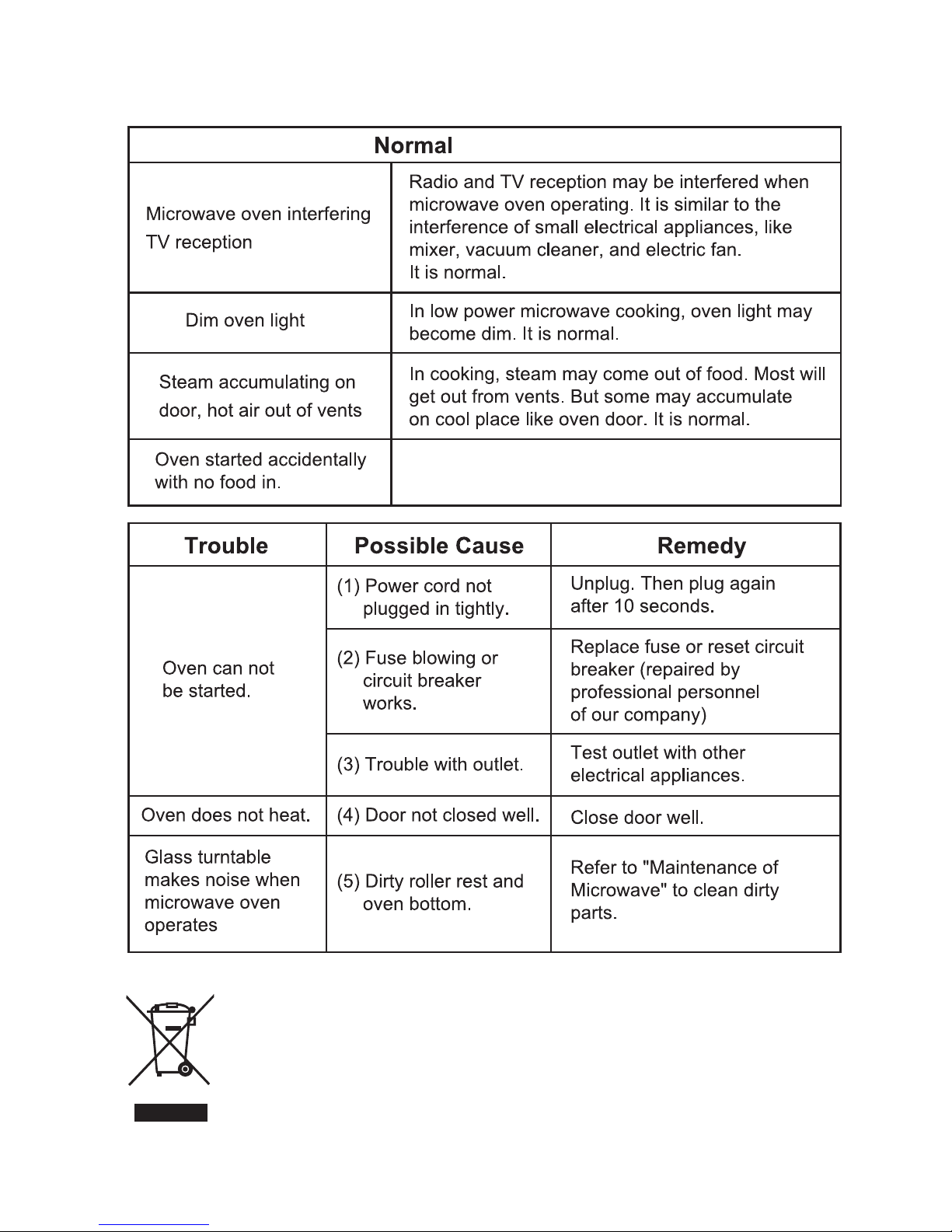

Trouble shooting
According to Waste of Electrical and Electronic Equipment
(WEEE) directive, WEEE should be separately collected and
treated. If at any time in future you need to dispose of this
product please do NOT dispose of this product with household
waste. Please send this product to WEEE collecting points
where available.
It is forbidden to run the unit without any food inside.
It is very dangerous.
18
