Music & Lights PROLIGHTS ECLIPSEFRESNELJTU-DY User manual

EN - IT
USER MANUAL
MANUALE UTENTE
LED FRESNEL PROIECTOR
ECLIPSEFRESNELJTU - DY

All rights reserved by Music & Lights S.r.l. No part of this instruction manual may be
reproduced in any form or by any means for any commercial use.
In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the
characteristics stated in this instruction manual at any time and without prior notice.
All revisions and updates are available in the ‘manuals’section on site www.musiclights.it
REV.002-09/18

1
ECLIPSEFRESNELJTU - DY
Packing content • ECLIPSEFRESNELJTU-DY
• Mounting bracket
• Power cable
• User manual
TABLE OF CONTENTS Safety
General instructions
Warnings and installation precautions
1 Introduction
1. 1 Description
1. 2 Technical specications
1. 3 Operating elements and connections
1. 4 ECLFRSJBP4
2 Installation
2. 1 Mounting
3 Functions and settings
3. 1 Operation
3. 2 Basic
3. 3 Menu structure
3. 4 DMX mode
3. 5 DMX conguration
3. 6 Screen
3. 7 Dimmer mode
3. 8 Led frequency
3. 9 Fans mode
3. 10 Factory Reload
3. 11 Fixture Information
3. 12 Maste/Slave
3. 13 Eects
3. 14 Static
3. 15 Connection of the DMX line
3. 16 Construction of the DMX termination
3. 17 Channels DMX
4 Maintenance
4. 1 Maintenance and cleaning the unit
4. 2 Fuse replacement
4. 3 Trouble shooting
2
2
3
5
5
6
8
9
9
10
11
11
11
12
12
12
12
12
13
13
13
14
14
15
16
16
17

ECLIPSEFRESNELJTU - DY
2
SAFETY
General instruction
• The products referred to in this manual conform to the European Community Directives and are there-
fore marked with .
• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make any modications on the unit not described in this instruction manual, otherwise you will
risk an electric shock.
• Connection must be made to a power supply system tted with ecient earthing (Class I appliance ac-
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.
• The connection to the main network of electric distribution must be carried out by a qualied electrical
installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.
• This unit is not for home use, only professional applications.
• Never use the xture under the following conditions:
- in places subject to vibrations or bumps;
- in places with a temperature of over 45 °C.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Do not dismantle or modify the xture.
• All work must always be carried out by qualied technical personnel. Contact the nearest sales point for
an inspection or contact the manufacturer directly.
• If the unit is to be put out of operation denitively, take it to a local recycling
plant for a disposal which is not harmful to the environment.
Warnings and installation precautions
• If this device will be operated in any way dierent to the one described in this manual, it may suer
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Before starting any maintenance work or cleaning the projector, cut o power from the main supply.
• Always additionally secure the projector with the safety rope. When carrying out any work, always com-
ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country
in which the xture’s being used.
• Install the xture in a well ventilated place.
• Keep any inammable material at a safe distance from the xture.
• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
that their eectiveness is impaired.
• The lamp (LED) shall be changed if it has become damaged or thermally deformed.
• Never look directly at the light beam. Please note that fast changes in lighting, e. g. ashing light, may
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
• Do not touch the product’s housing when operating because it may be very hot.
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.

3
ECLIPSEFRESNELJTU - DY
- 1 - INTRODUCTION
1.1 DESCRIPTION
ECLIPSEFRESNELJ is a proper LED replacement for a standard tungsten 650W fresnel. Featuring the out-
put characteristics of a traditional Fresnel, with beam control from functional barndoors, and a powerful
source that focusses on outstanding color rendering the ECLIPSEFRESNELJ adds all the advantages of LED
to the Fresnel.
1.2 TECHNICAL SPECIFICATIONS
LIGHT SOURCE
• Source:(TU) 69 W (DY) 74 W High Power White LED
• CT:(TU) 3100 K - (DY) 5600 K
• CRI:(TU) 97 Ra - (DY) 90 Ra
• R9:(TU) 97 - (DY) 54
• Luminous Flux:(TU) (15°) 3018 lm (51°) 4549 lm - (DY) (15°) 3847 lm (51°) 5903 lm
• Lux:TU (15°) 3630 lux - (51°) 775 lux @3m
• Lux:DY (15°) 4770 lux - (51°) 772 lux @3m
• Source Life Expectancy: >50.000 h
OPTICS
• Zoom:15 ° - 51 ° Manual
• Field Angle:26,7 ° - 75,6 °
• Lens Diameter:6’’-150 mm
• Lens Type:Fresnel Lens
DYNAMIC EFFECTS
• Static Color Mode: Selection of static color
• Manual Color Mode: Manual adjust of dimmer throught menu and knob
• Auto Mode: Built-in programs with execution speed adjustment
BODY
• Hardware On-board: Filter frame + 8 doors barndoor included + omega bracket spigot
• Body: Sturdy die-cast aluminium body conceived for long-time durability
• Body Color: Black
CONTROL
• Protocols: DMX512, RDM, Local Knob
• DMX Channels:1/2 ch1/2 ch2/3/5ch
• RDM: RDM ready for xture remote monitor and settings
• Display: Black OLED high resolution display
• Firmware Upgrade: Yes, via USB-DMX interface (UPBOX1) not included
• Other: 16bit Control of Dimmer and Color
ELECTRONICS
• Dimmer: Linear 0~100% electronic dimmer
• Dimmer Curves:4 Dierent dimming curves available
• Strobe/Shutter:0~30 Hz, electronic
• Operating Temperature: -10° ~ +45°

ECLIPSEFRESNELJTU - DY
4
• Flicker: Flicker free frequency with adjustable PWM
• Selectable PWM: 600~25K Hz
ELECTRICAL
• Power Supply: 100-240V – 50/60Hz
• Power Consumption (at 230V):82,7 W
• Power Consumption (at 120V):83,3 W
• Output (at 230V):30 units on a single power line
• Output (at 120V):16 units on a single power line
PHYSICAL
• Cooling: Forced air with low noise fan
• Suspension And Fixing: Hanging bracket suitable for safe hanging and positioning
• Signal Connection: 5p in/out
• Power Connection: PowerCON NEUTRIK IP65in/out
• IP:20
• Dimensions (WxHxD):260.4x238.2x459 mm
• Weight:6,09 kg
BATTERY
• Battery:29.6 V 4400 mAh (Optional) external battery

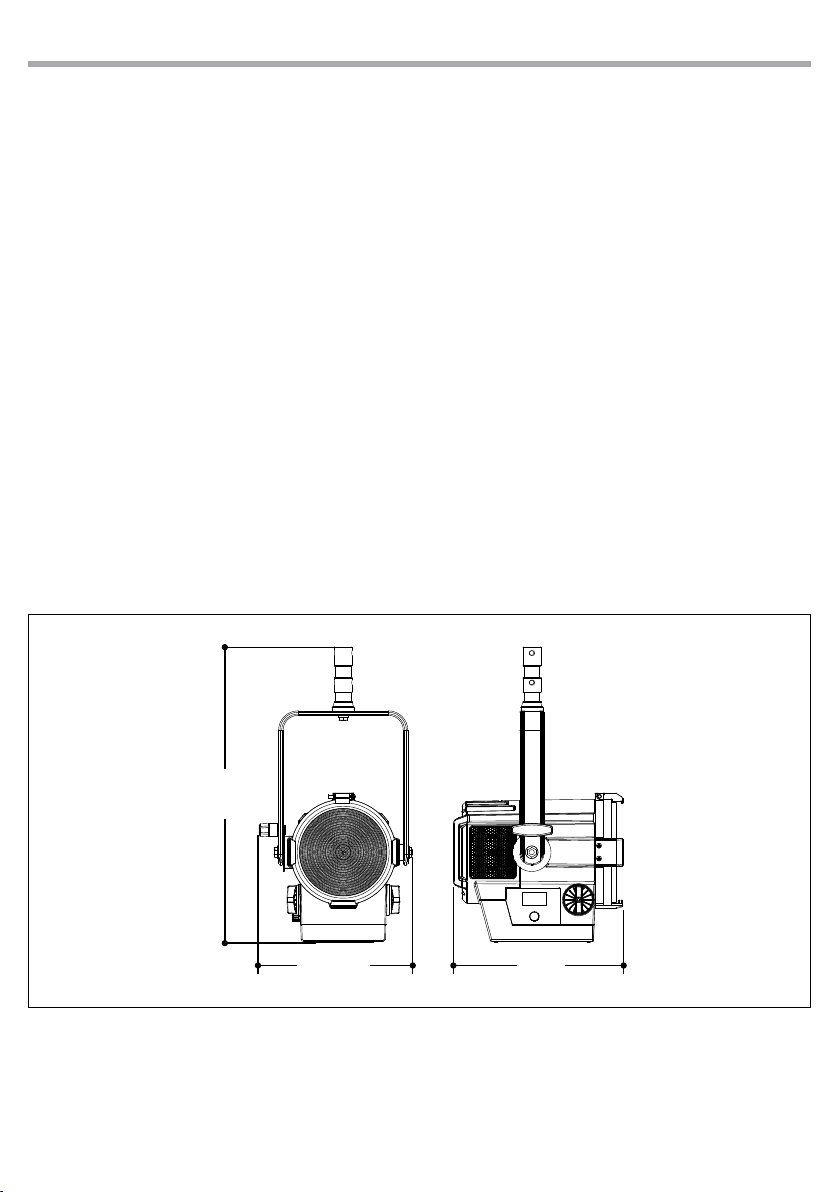

Fig.1 - Technical drawing
459
238.2 260.4

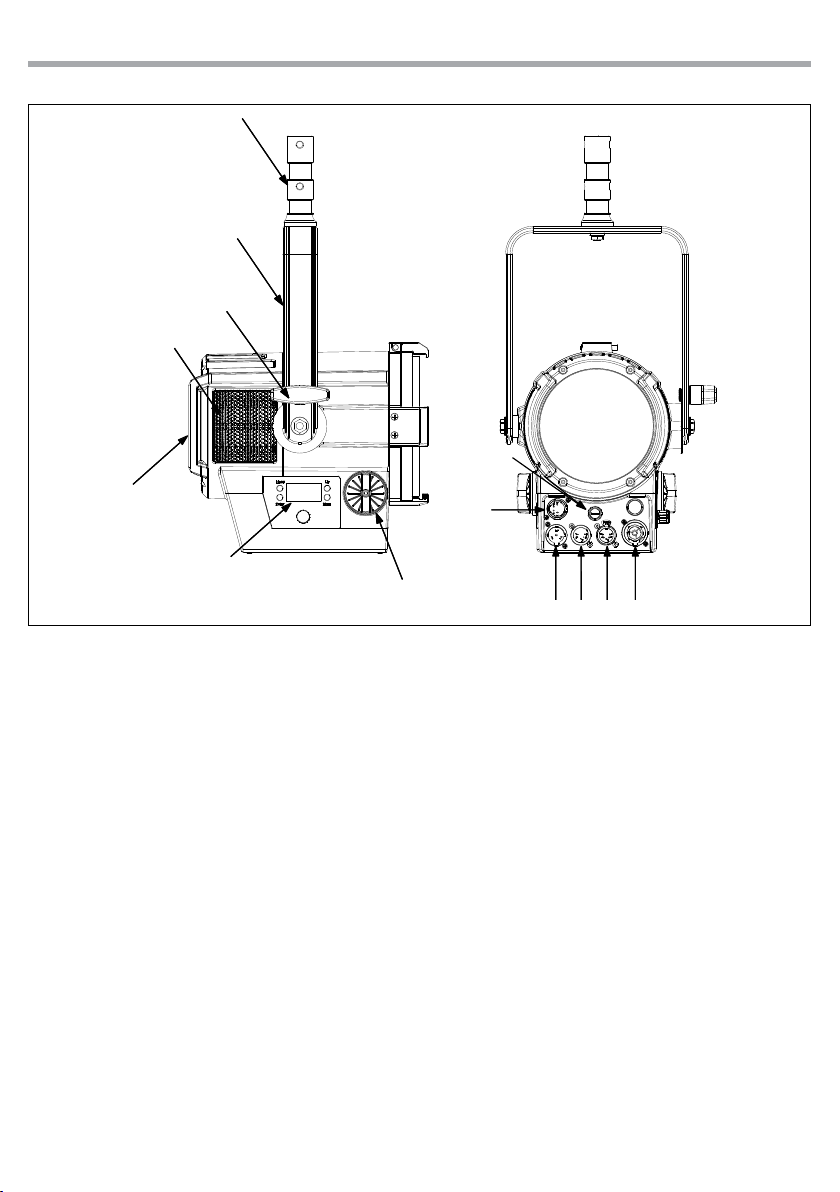

Fig.2
6
55
11
3
4
2
710
8
11
9
12 13
5
ECLIPSEFRESNELJTU - DY
1.3 OPERATING ELEMENTS AND CONNECTIONS
1. AIR OPENING
2. LOCKING KNOB for mounting bracket
3. MOUNTING BRACKET
4. TRACK-ADAPTER(optional)
5. HANDLE
6. CONTROL PANEL with display and 4 button
used to access the control panel functions
and manage them
7. FOCUS AND ZOOM ADJUSTING SCREW to
zoom the projected image clearly
8. MAIN FUSE HOLDER: replace a burnt-out fuse
by one of the same type only
9. BATTERY 4pin-in
10. POWER IN (PowerCON IN): for connection to a
socket (100-240V~/50-60Hz) via the supplied
mains cable.
11. DMX IN (5-pole XLR): 1 = ground, 2 = DMX-, 3
= DMX+, 4 N/C, 5 N/C
12. DMX OUT (5-pole XLR): 1 = ground, 2 = DMX-,
3 = DMX+, 4 N/C, 5 N/C
13. POWER OUT (PowerCON OUT): power output
for connection of multiple units in series.

ECLIPSEFRESNELJTU - DY
6
Fig.4
1
38
5
47
4
3
2
10
9
6
442
355
175

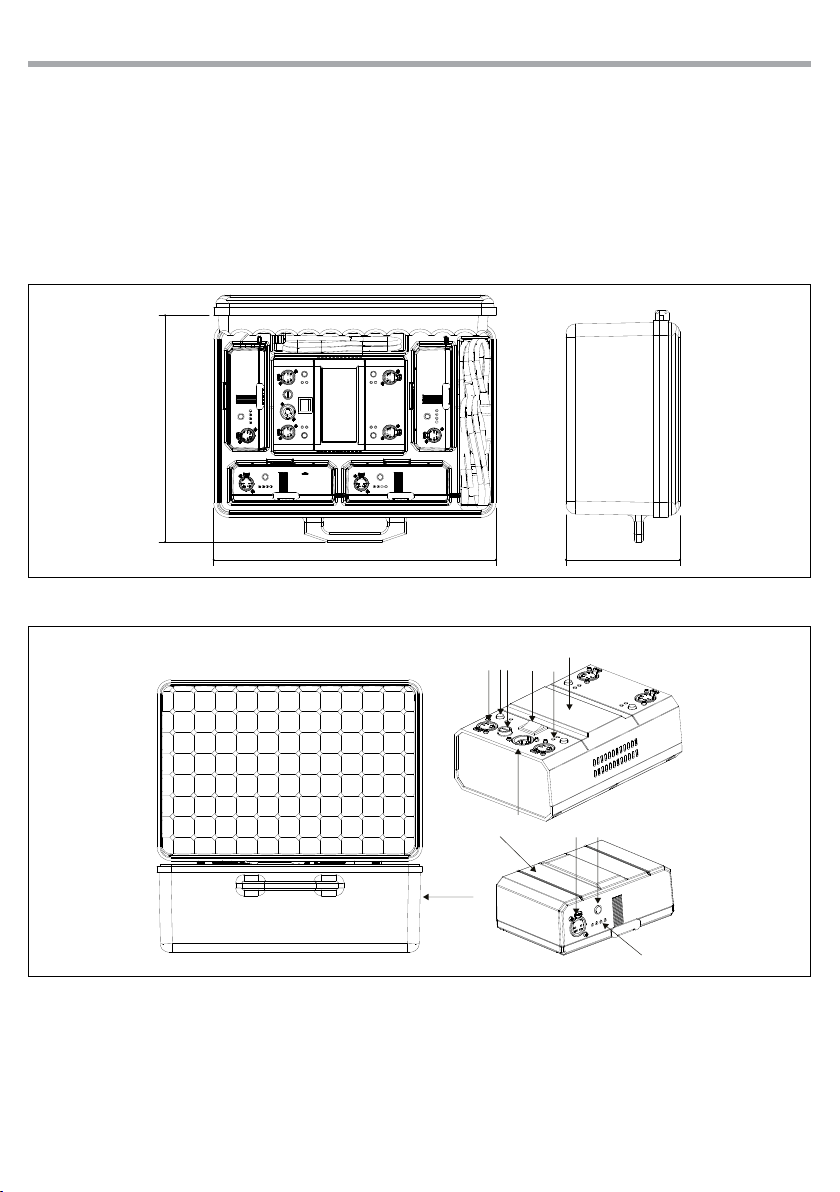

Fig.3
1.4 ECLFRSJBP4
ECLFRSJBP4 is a sturdy ABS case with four battery, a charger for them, four DMX cable male to male, four
DMX cable male to female inside
BATTERY TECHNICAL SPECIFICATIONS
• Estimated battery life in single colour mode up to:(R) 8 h - (G) 8 h - (B) 7 h - (L) 3 h - (O) 4 h - (RB) 7 h
• Estimated battery life in full-mode up to:(TW) 1,25 h - (TU, DY) 1,5 h
• Re-charge time:5 h/max
1.5 OPERATING ELEMENTS AND CONNECTIONS
1. ABS case
2. CHARGER
3. CHARGER OUT
4. Button to start charging
5. MAIN FUSE HOLDER: replace a burnt-out
fuse by one of the same type only
6. POWER IN (PowerCON IN): for connection to
a socket (100-240V~/50-60Hz) via the supplied
mains cable.
7. SWITCH
8. Charger status LED: if it is red, the battery is
charging, if it is green, the battery is charged.
9. BATTERY
10. Battery status LED

7
ECLIPSEFRESNELJTU - DY

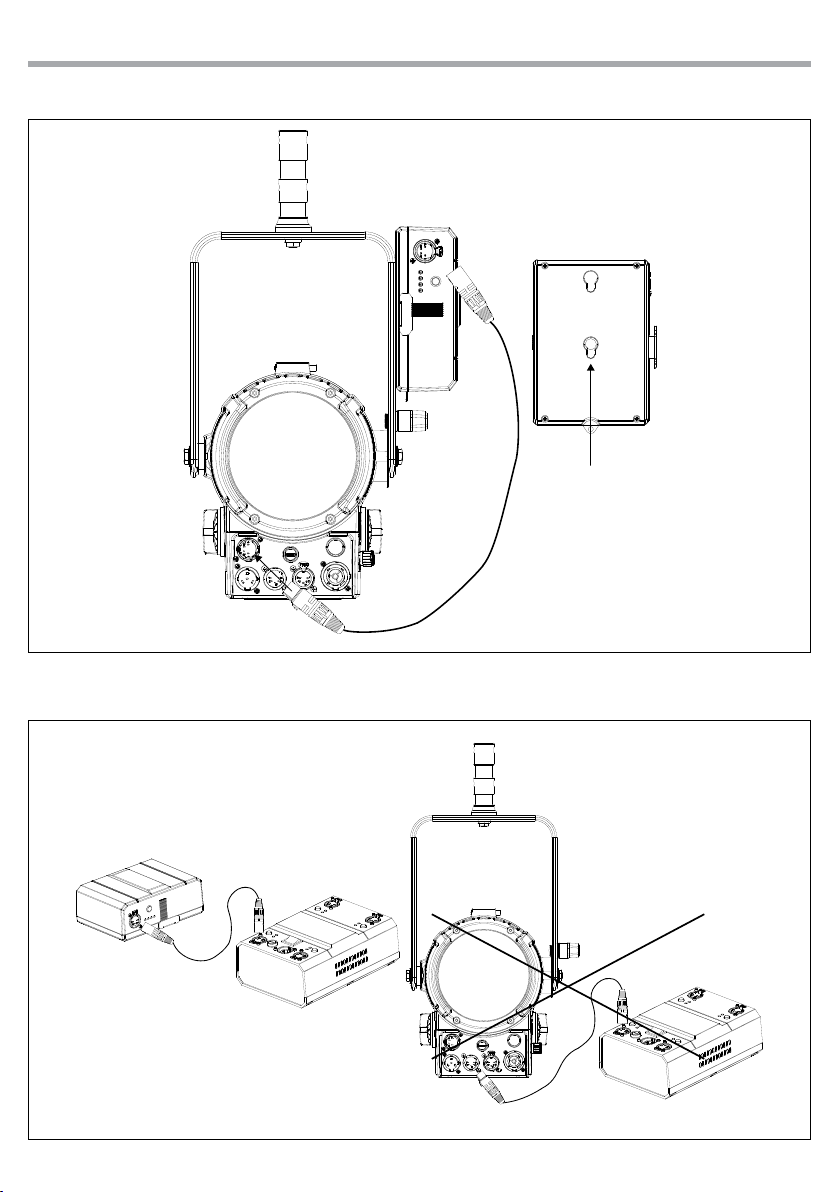

Fig.5
Fig.6
MOUNTING
Holes
DMX cable male-female
DMX cable male-male
CORRECT WRONG
IMPORTANT: do not connect this charger directly to the ECLIPSEFESNELJ, please connect this charger only
with the battery as power charger.

Fig.7
A B
ECLIPSEFRESNELJTU - DY
8
- 2 - INSTALLATION
2.1 MOUNTING
ECLIPSEFRESNELJTU-DY is designed for applications in exhibition areas, commercial spaces, museums,
restaurant, churches, and any other installation where size is an important factor. For xing, stable mount-
ing clips are required. The mounting place must be of sucient stability and be able to support a weight
of 10 times of the unit’s weight.
When carrying out any installation, always comply scrupulously with all the regulations (particularly re-
garding safety) currently in force in the country in which the xture’s being used.
• Install the projector at a suitable location.
• Always additionally secure the projector with the safety rope from falling down. For this purpose, fas-
ten the safety rope at a suitable position so that the maximum fall of the projector will be 20 cm. The
adjust the projector and use the knobs.
NOTE - For the installation of the ECLIPSEFRESNELJTU-DY make sure that the ridge of the adaptor is in
with the groove of the track. Turn knobs 90° to connect the adaptor to the circuit. Please see the gure 4.

9
ECLIPSEFRESNELJTU - DY
- 3 - FUNCTIONS AND SETTINGS
3.1 OPERATION
To turn on the ECLIPSEFRESNELJTU-DY connect the supplied main cable to a socket (100-240 VAC-50/60
Hz). Then the unit is ready for operation. You can also adjust the dimmer and zoom using the knobs.
To switch o, disconnect the mains plug from the socket. For a more convenient operation it is recom-
mended to connect the unit to a socket which can be switched on and o via a light switch.
NOTE - To operate the projector ECLIPSEFRESNELJTU-DY you need a system track. The track system must
be installed and maintained by a suitably qualied person in compliance with latest construction and
relevant legislation. It is the responsibility of the installer to ensure the electrical, mechanical and thermal
compatibility of the track system and the ttings. The connection to the main network of electric distribu-
tion must be carried out by a qualied electrical installer.
ATTENTION - Mains voltage must be switched o before mounting; maintenance; insert and replace
Adaptors; spots and luminaires.

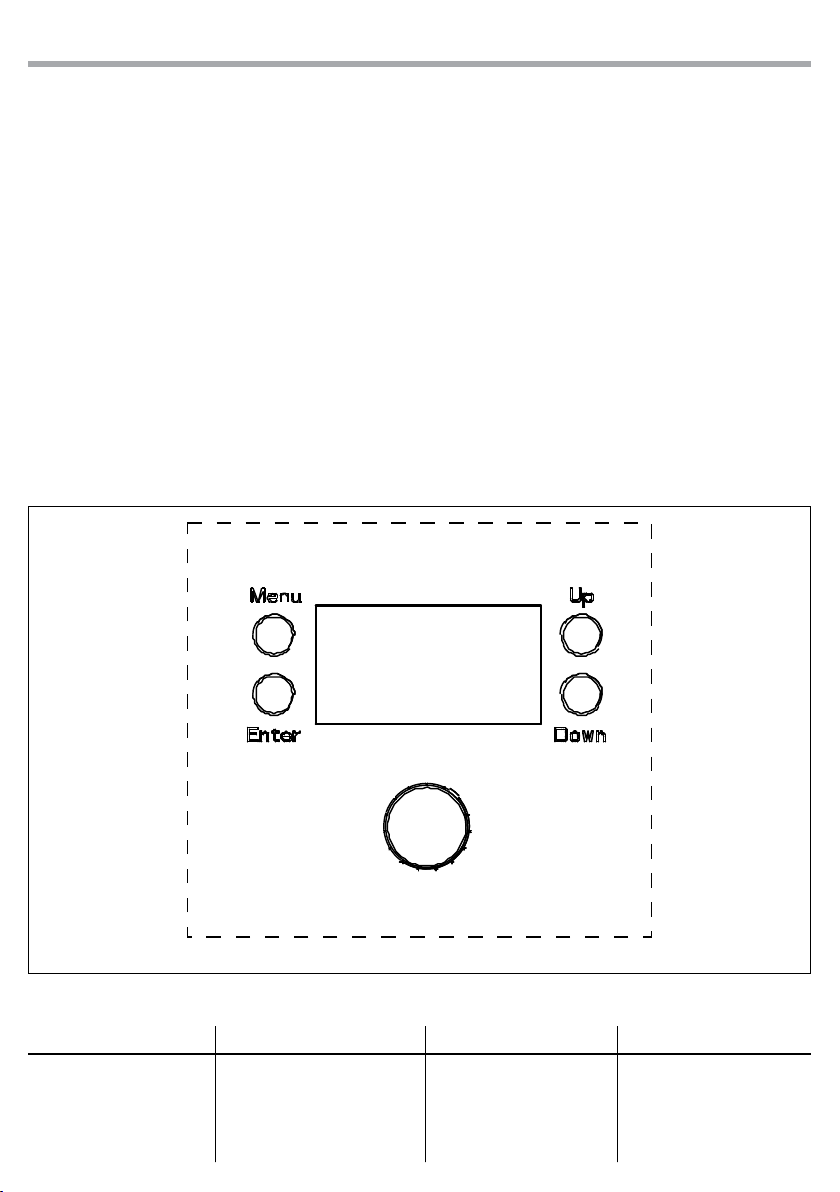

3.2 BASIC
Access control panel functions using the four panel buttons located directly underneath the LED Display
(g.5).
MENU UP DOWN ENTER
Used to access the menu or
to return a previous menu
option
Navigates downwards through
the menu list and increases
the numeric value when in a
function
Navigates upwards through
the menu list and decreases
the numeric value when in
a function
Used to select and store the
current menu or conrm the
current function value or
option within a menu
Fig.8- Functions of the buttons

MENU
1CONNECT ðDMX Address ðValue (001-512)
DMX Mode ðEASY-1Ch
BASIC-2Ch 1
BASIC-2Ch 2
BASIC-3Ch
STANDARD–5CH
2SETUP ðScreen ðBack Light ðOn
10S
20S
30S
ðFlip Display ðNO-Yes
3ADVANCED ðDimmer Mode ðO
Dimmer 1
Dimmer 2
Dimmer 3
Led Frequency ð 600Hz
1200 Hz
2000 Hz
4000 Hz
6000Hz
25kHZ
Fan Mode ðAuto
On
Factory Reload ðNO-Yes
4INFORMATION ðFixture TIme ð0-9999
Version ðV1.0
UID ð15D00219****
5STAND ALONE ðMaster/Slave ðMaster
Slave
Eect ðEect 1
Eect 2
Eect 3
Eect 4
ð<1-100>
Static ðDimmer
Strobe ð<0-255>
ECLIPSEFRESNELJTU - DY
10
3.3 MENU STRUCTURE

11
ECLIPSEFRESNELJTU - DY
3.4 DMX MODE
• Press the ENTER button to access the main menu.
• Press the UP / DOWN keys to scroll the menu, select the Connect icon, then press the ENTER button to
enter the next menu.
• Press the UP / DOWN keys to select DMX ADDRESS, and press the button ENTER to conrm.
• Press UP/DOWN button to select the desired value (001-512). Press and hold to scroll quickly.
• Press ENTER button to store.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
To able to operate the ECLIPSEFRESNELJTU-DY with a light controller, adjust the DMX start address for the
rst a DMX channel. If e. g. address 33 on the controller is provided for controlling the function of the rst
DMX channel, adjust the start address 33 on the ECLIPSEFRESNELJTU-DY. The other functions of the light
eect panel are then automatically assigned to the following addresses.
An example with the start address 33 is shown below:
3.5 DMX CONFIGURATION
ECLIPSEFRESNELJTU-DY is equipped with dierent DMX conguration.
• Press the ENTER button to access the main menu.
• Press the UP / DOWN keys to scroll the menu, select the Connect icon, then press the ENTER button to
enter the next menu.
• Press the UP / DOWN keys to select DMX MODE, and press the button ENTER to conrm.
• Select the desired DMX conguration (EASY-1Ch, BASIC-2Ch 1, BASIC-2Ch 2, BASIC-3Ch, STANDARD–5CH) through
the buttons UP/DOWN.
The tables on page 12 indicate the operating mode and DMX value.
3.6 SCREEN
You can change the following parameters related to the display, following the same procedure:
• Press the ENTER button to access the main menu.
• Press the UP / DOWN keys to scroll the menu, select the Set Up icon, then press the ENTER button to
enter the next menu.
• Press UP / DOWN to scroll through the menu, then select Screen, and press the ENTER button to enter
the next menu.
• Press UP / DOWN to scroll through the menu, and then select one of the following settings for the dis-
play and press the ENTER key to display it.
- Back Light - Backlight display Auto O. This feature allows you to automatically turn o the backlight
after a specied time that you can set using the arrow buttons. To have the display always on select
On or choose another value to turn o the display after the amount of time you choose.
- Flip Display - Orientation of the display. This function allows you to rotate the display 180° to get a
better view of the display when the unit is hanging upside down. Select YES to activate or NO to dis-
able this function.
• Press the ENTER button to conrm your choice.
• Press the MENU button repeatedly to exit the menu and to save the changes made.
Numero
canali DMX
Indirizzo di
start (esempio)
Indirizzo DMX
occupati
Prossimo indirizzo di start
possibile per unità n°1
Prossimo indirizzo di start
possibile per unità n°2
Prossimo indirizzo di start
possibile per unità n°3
5 33 33 - 37 38 43 48

ECLIPSEFRESNELJTU - DY
12
3.7 DIMMER MODE
• Enter in Dimmer mode to select specic dimming curve, press the ENTER button to access the main
menu.
• Press the UP/DOWN keys to scroll the menu, select the Advanced icon, then press the ENTER button to
enter the next menu.
• Press UP/DOWN to scroll through the menu, then select DIM MODE, and press the button ENTER to con-
rm.
• Press the button UP/DOWN to select OFF - DIM1 - DIM2 - DIM3.
• Press ENTER button to store.
• Press the MENU button repeatedly to exit the menu and to save the changes made.
3.8 LED FREQUENCY
• To adjust the frequency of the LEDs, press the ENTER button to access the main menu.
• Press the UP/DOWN keys to scroll the menu, select the Advanced icon, then press the ENTER button to
enter the next menu.
• Press UP/DOWN to scroll through the menu, then select LED Frequency,and press the button ENTER to
conrm.
• Select the frequency (600Hz - 1200Hz - 2000Hz - 4000Hz - 6000Hz - 25kHz) using the UP/DOWN buttons.
• To conrm, press the ENTER key.
• Press the MENU button repeatedly to exit the menu and to save the changes made..
3.9 FANS MODE
Select this function to set the fans operation mode:
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Advanced, then press the ENTER button to
enter the next menu.
• Press the UP/DOWN button to scroll through the menu, select Fans Mode, and press the ENTER button
to enter the next menu.
• Press the UP/DOWN button to select Auto/On, press the ENTER button to conrm your choice.
• Press the MENU button repeatedly to exit the menu and to save the changes made..
3.10 FACTORY RELOAD
Selezionare questa funzione per ripristinare l’unità alle impostazioni di fabbrica:
• To activate Reset Factory display press the ENTER button to access the main menu.
• Press the UP/DOWN keys to scroll the menu, select the Advanced icon, then press the ENTER button to
enter the next menu.
• Press UP/DOWN to scroll through the menu, then select Factory Reload,and press the button ENTER to
conrm.
• Press the MENU button repeatedly to exit the menu and to save the changes made.u.
3.11 FIXTURE INFORMATION
To view all the information on the device, proceed as follows:
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the icon Information, then press the ENTER button
to enter the next menu.
• Press the UP/DOWN button to scroll through the menu, then select one of the following information

13
ECLIPSEFRESNELJTU - DY
and press the ENTER button to display it.
- Fixture Time - Through the Fixture Time function you can display the operating time of the projector.
- Software Version - Through Version function you can display the currently installed software version.
-UID - This option shows the RDM identication number.
• Press the MENU button repeatedly to exit the menu and to save the changes made.
3.12 MASTER SLAVE
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Stand Alone icon, then press the ENTER button
to enter the next menu.
• Press the UP/DOWN button to scroll through the menu, select Master/Slave and press ENTER to conrm
your choice.
• Press the UP/DOWN button to select the mode of operation:
- Master, if the unit is connected in series with other units and it acts as the Master;
- Slave, if the unit is not connected to other units.
• Press the ENTER button to conrm your choice.
• Press the MENU button repeatedly to exit the menu and to save the changes made.
3.13 EFFECTS
The unit has pre-programmed eects that can be set through the following procedure:
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Eects icon, then press the ENTER button to
enter the next menu.
• Press the UP/DOWN button to select the mode of operation: Eects 1, Eects 2, Eects 3, Eects 4.
• Press the ENTER button to conrm your choice.
• Press the MENU button repeatedly to exit the menu and to save the changes made.
3.14 STATIC
• The unit allows you to create congurations that can be set through the following procedure:
• To enter to static static mode, Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Stand Alone icon, then press the ENTER button
to enter the next menu.
• Press the UP/DOWN button to scroll through the menu, select Static and press ENTER to conrm your
choice.
• Throught the UP/DOWN buttons select DIMMER o STROBE and press the ENTER button to conrm the
desired function.
• Set the value (000 - 255), Throught the UP/DOWN buttons, then press the ENTER button to conrm
• Press the MENU button repeatedly to exit the menu and to save the changes made.

ECLIPSEFRESNELJTU - DY
14
Fig.9
Fig.10
3.15 CONNECTION OF THE DMX LINE
DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω imped-
ance and low capacity.
The following diagram shows the connection mode:
ATTENTION
The screened parts of the cable (sleeve) must never be connected to the system’s earth, as this would
cause faulty xture and controller operation.
Over long runs can be necessary to insert a DMX level matching amplier.
For those connections the use of balanced microphone cable is not recommended because it cannot
transmit control DMX data reliably.
• Connect the controller DMX input to the DMX output of the rst unit.
• Connect the DMX output to the DMX input of the following unit. Connect again the output to the input
of the following unit until all the units are connected in chain.
• When the signal cable has to run longer distance is recommended to insert a DMX termination on the
last unit.
3.16 CONSTRUCTION OF THE DMX TERMINATION
The termination avoids the risk of DMX 512 signals being reected back along the cable when they reach-
es the end of the line: under certain conditions and with certain cable lengths, this could cause them to
cancel the original signals.
The termination is prepared by soldering a 120Ω 1/4 W resistor between pins 2 and 3 of the 5-pin male XLR
connector, as shown in gure.
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug
Pin1 : GND - Shield
Pin2 : - Negative
Pin3 : + Positive
Pin4 : N/C
Pin5 : N/C
Example:
5 pin XLR connector

1 CHANNEL
MODE FUNCTION DMX
Value
1 Ch
1DIMMER
0~100% 000 - 255
5 CHANNELS
MODE FUNCTION DMX
Value
5 Ch
1DIMMER
0~100% 000 - 255
2
STROBE
No Function
Strobe slow to fast
000 - 010
011 - 255
3
AUTO PROGRAMS
No Function
Auto Program 1
Auto Program 2
Auto Program 3
Auto Program 4
000 - 010
011 - 070
071 - 130
131 - 190
191 - 255
4AUTO SPEED
Speed slow to fast 000 - 255
5
DIMMER SPEED MODE
Preset dimmer speed from display menu
Dimmer speed mode o
Dimmer speed mode1 (fast speed)
Dimmer speed mode2 (middle speed)
Dimmer speed mode3 (slow speed)
000 - 051
052 - 101
102 - 152
153 - 203
204 - 255
3 CHANNELS
MODE FUNCTION DMX
Value
3 Ch
1DIMMER
0~100% 000 - 255
2DIMMER FINE
0~100% 000 - 255
3
STROBE
No Function
Strobe slow to fast
000 - 010
011 - 255
2 CHANNELS 1
MODE FUNCTION DMX
Value
2 Ch1
1DIMMER
0~100% 000 - 255
2DIMMER FINE
0~100% 000 - 255
2 CHANNELS 2
MODE FUNCTION DMX
Value
2 Ch2
1DIMMER
0~100% 000 - 255
2
STROBE
No Function
Strobe Slow to Fast
000 - 010
011 - 255
15
ECLIPSEFRESNELJTU - DY
3.17 CHANNELS DMX

ECLIPSEFRESNELJTU - DY
16
- 4 - MAINTENANCE
4.1 MAINTENANCE AND CLEANING THE UNIT
• Make sure the area below the installation place is free from unwanted persons during setup.
• Switch o the unit, unplug the main cable and wait until the unit has cooled down.
• All screws used for installing the device and any of its parts should be tightly fastened and should not
be corroded.
• Housings, xations and installation spots (ceiling, trusses, suspensions) should be totally free from any
deformation.
• The main cables must be in impeccable condition and should be replaced immediately even when a
small problem is detected.
• It is recommended to clean the front at regular intervals, from impurities caused by dust, smoke, or
other particles to ensure that the light is radiated at maximum brightness. For cleaning, disconnect the
main plug from the socket. Use a soft, clean cloth moistened with a mild detergent. Then carefully wipe
the part dry. For cleaning other housing parts use only a soft, clean cloth. Never use a liquid, it might
penetrate the unit and cause damage to it.
•
4.2 FUSE REPLACEMENT
1. Disconnect this product from the power outlet.
2. Using a screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power
Fig.11

17
ECLIPSEFRESNELJTU - DY
Problems Possible causes Checks and remedies
Fixture does not light up
• No mains supply
• Dimmer fader set to 0
• Faulty LED
• Check the power supply voltage
• Increase the value of the dimmer channels
• Replace the LED board
General low light intensity • Dirty lens assembly
• Misaligned lens assembly
• Clean the xture regularly
• Install lens assembly properly
Fixture does not power up • No power
• Loose or damaged power cord
• Check for power on power outlet
• Check power cord
Contact an authorized service center in case of technical problems or not reported in the table can not be
resolved by the procedure given in the table.
4.3 TROUBLESHOOTING

REV.002-09/18
Music & Lights S.r.l. si riserva ogni diritto di elaborazione in qualsiasi forma delle presenti istruzioni per l’uso.
La riproduzione - anche parziale - per propri scopi commerciali è vietata.
Al ne di migliorare la qualità dei prodotti, la Music&Lights S.r.l. si riserva la facoltà di modicare, in
qualunque momento e senza preavviso, le speciche menzionate nel presente manuale di istruzioni.
Tutte le revisioni e gli aggiornamenti sono disponibili nella sezione 'Manuali' sul sito www.musiclights.it
