National cycle Quantum n30214 Quick start guide

Thank you for purchasing a National Cycle product. Read these instructions carefully and thoroughly before beginning work. Dealers, if installing this

windshield for a customer, please give them this manual upon completion. It contains information needed to properly maintain and use this product.

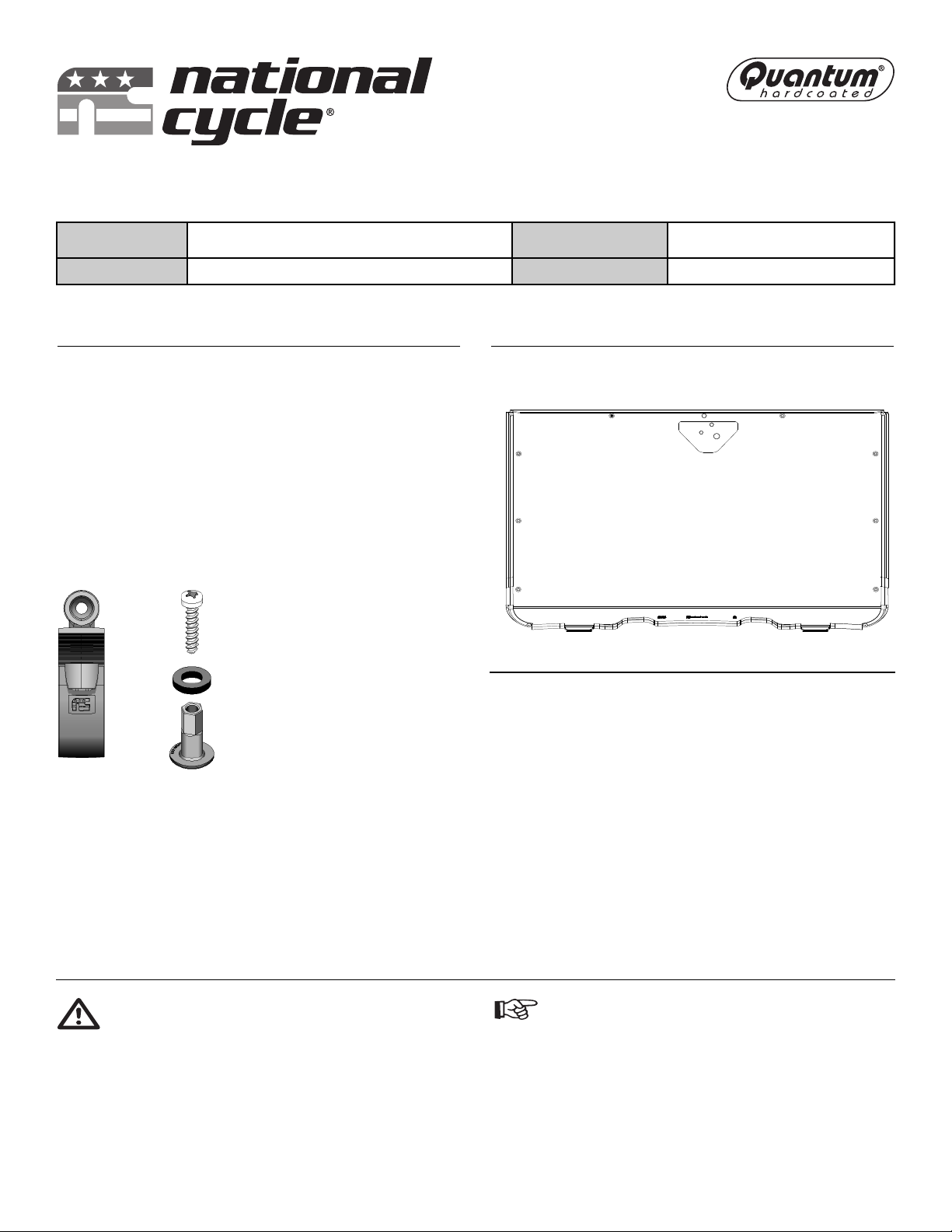

N30214 PARTS LIST

ITEM PART NO. DESCRIPTION QUANTITY

A20-290892-000 Windshield, Front 1

Windshield has all Grommets, Plugs, Trim, Velcro®, and

Foam Tape pre-installed

BAG#1153

B44-449370-000 Clamp, Wraparound 8

C55-563131-000 Machine Screw, Phillips, #12 x 1.25 8

D49-490355-000 Washer, Flat, Black 8

E44-449380-000 Retaining Pin 8

TOOLS REQUIRED FOR ASSEMBLY

#2 or #3 Phillips Screwdriver

National Cycle, Inc. PO Box 158 Maywood, IL 60153-0158 USA P: 708-343-0400 / F: 708-343-0625 / E: [email protected] www.nationalcycle.com

Description: Quantum® Hardcoated Polycarbonate; 4mm

UTV Windshield; Full Size

Model: Polaris Ranger 500/800/900

Full Size

Part Number: N30214 Installation Time: 30 min.

Quantum® is a registered trade-

mark of National Cycle Inc.

Assembly Instructions

and Owner’s Manual

B(x8)

E(x8)

D (x8)

C(x8)

BAG#1153

ATTENTION: Special notes and cautionary measures which

can prevent damage to the accessory or vehicle.

NOTE: Tips for facilitation of operation, control and

adjustment, as well as maintenance work.

Windshield has Grommets, Plugs, Trim,

Seals,Velcro® and Foam Tape pre-installed

PREPARATION

Carefully unpack your new windshield, sort the parts, and

make sure you have everything required to complete the

assembly.

National Cycle, Inc. PO Box 158 Maywood, IL 60153-0158 USA P: 708-343-0400 / F: 708-343-0625 / E: [email protected] www.nationalcycle.com

WINDSHIELD INSTALLATION

INSTALLING WRAPAROUND CLAMPS

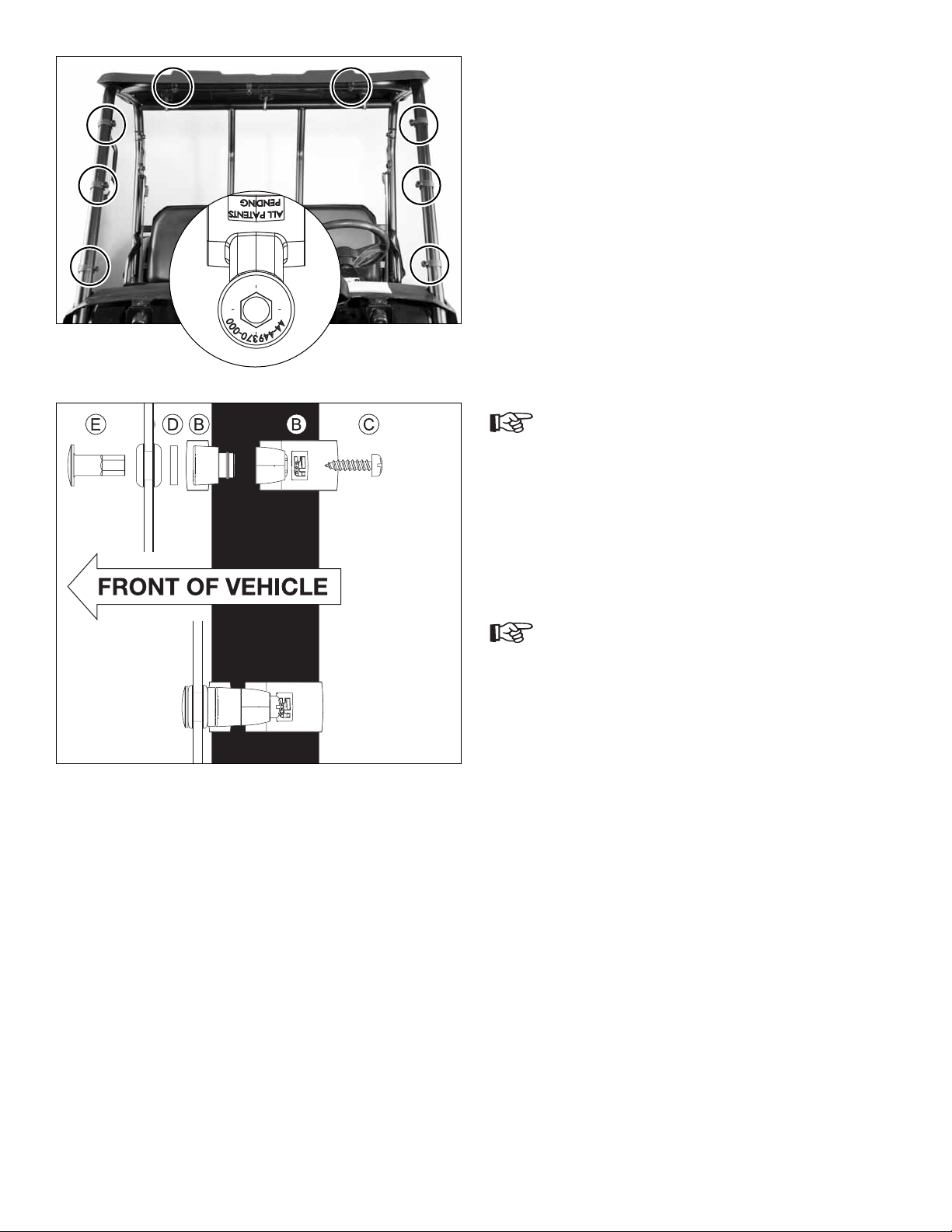

Figure 1

Place Windshield on the vehicle hood and against the

front frame rails of the vehicle.

Then install and align the eight Wraparound Clamps (B)

onto the frame rails of the vehicle.

Illustration A

Orient the clamps so that the male half (with embossed

part number) is toward the windshield and the front of the

vehicle.

ASSEMBLING WINDSHIELD TO THE WRAPAROUND

CLAMPS

Place all fasteners within reach of windshield

installation procedure.

Illustration B

Loosely install the following parts through the Windshield

Grommets and into the eight Wraparound Clamps (B) as

shown in illustration B. (Phillips Screwdriver)

• Machine Screws (C)

• Flat Black Washers (D)

• Retainer Pins (E)

Note the hex shape of the Retainer Pins and male

Clamp halves.

Figure 1 Illustration A

Illustration B

National Cycle, Inc. PO Box 158 Maywood, IL 60153-0158 USA P: 708-343-0400 / F: 708-343-0625 / E: [email protected] www.nationalcycle.com

Figure 3

WINDSHIELD INSTALLATION; CONT’D

SECURE VELCRO® STRIPS TO VEHICLE HOOD

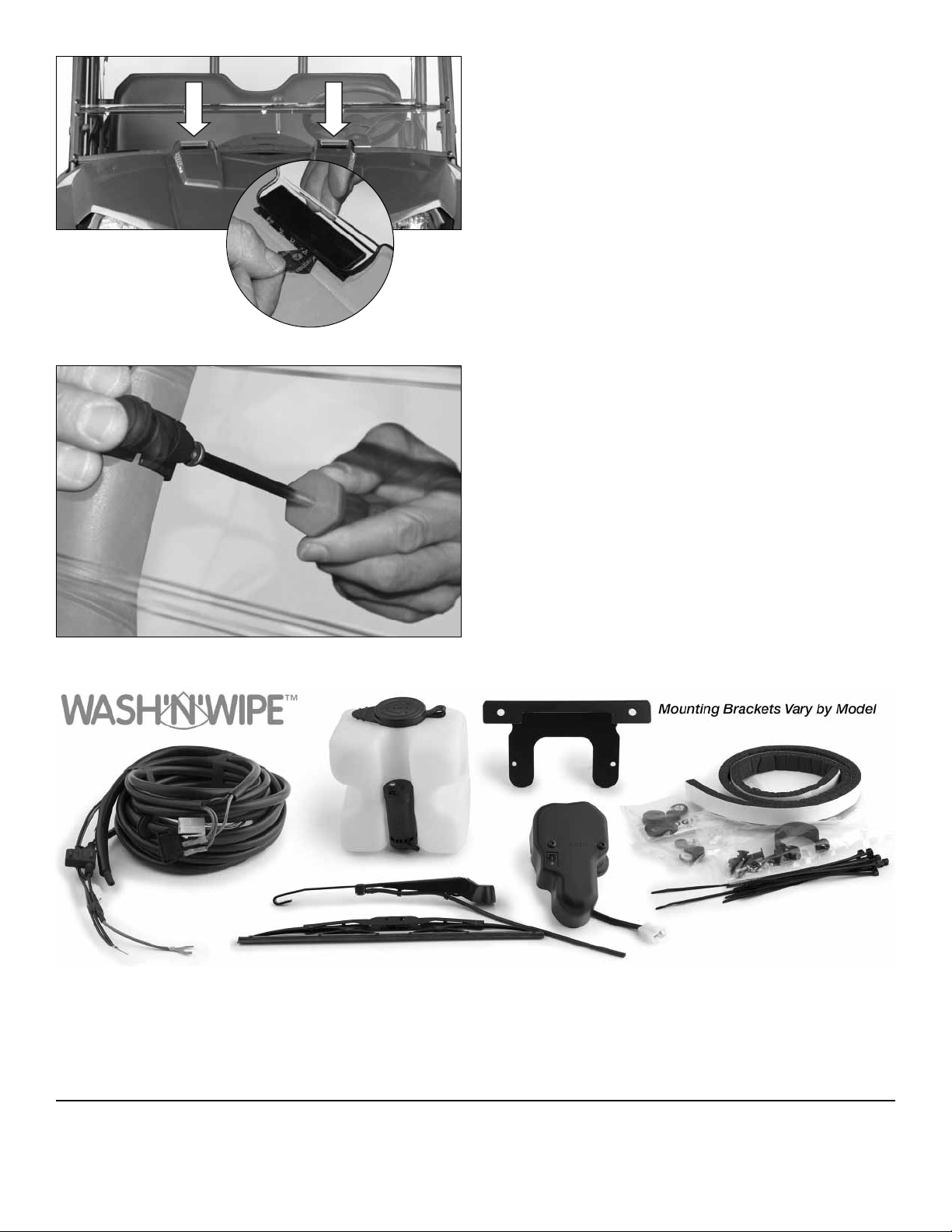

Figure 2

Check the alignment and position of the Windshield and

make sure it is even and symmetrical. Snug up the wind-

shield bottom against the hood.

Remove the adhesive backing from the Velcro® loop

material on the lower edge of the windshield (see detail

inset) and then press the windshield tabs firmly onto the

hood of the vehicle.

FINAL TIGHTENING

Figure 3

Now that the Windshield is in its final position, securely

tighten the Machine Screws (C) in the eight Wraparound

Clamps. (Phillips Screwdriver)

Your new Quantum® Hardcoated Polycarbonate

Windshield is now fully assembled.

Test ride for function and performance, and enjoy

your new National Cycle UTV Windshield!

Figure 2

WASH'N'WIPE™ WIPER KITS

This windshield is pre-drilled and prepped for the installa-

tion of National Cycle’s optional Wash'n'Wipe Wiper Kit.

Part No. N30214-WK

CLEANING AND MAINTENANCE

To clean your windshield, wash with a clean soft cloth and

plenty of warm water and, if necessary, a non-abrasive

soap such as dishwashing liquid. Flannel or soft chamois

make good cleaning cloths.

Paint, glue residue or grease removal: Moisten cotton

wad with naphtha or turpentine followed by a wash as

above.

National Cycle Shield Wash™ (N1401-01) makes a good

daily cleaner and comes with a handy travel-size bottle.

Shield Wash is safe for all windshields and helmet visors.

Do not clean polycarbonate in hot sun or high tempera-

tures. Do not clean the screen with household glass

cleaners.

Do not allow brake fluid, alcohol, or strong solvents to

contact the windshield.

RAIN REPELLENT

Do not use rain protective products made for glass. We

recommend National Cycle’s RainZip® (N1410-01) to

keep your windshield clear in rainy weather.

National Cycle 3-Year Limited Warranty

National Cycle hereby warrants to the original registered owner of a National Cycle polycarbonate windshield for a period of three years

from the date of purchase against breakage. This limited warranty is expressly limited to the replacement of the polycarbonate windscreen.

This limited warranty does not include scratches, coating failure, cosmetic wear and tear, replacement of hardware, or any consequential

damages or expenses including labor cost of installation, removal and/or replacement, inconvenience, inbound freight expenses or damage

to any other component of the vehicle or any other accessories. Certain chemicals, generally known as acidic hydrocarbons, are known to

cause polycarbonate damage and will not be covered under this limited warranty. Please refer to the cleaning instructions supplied with all

National Cycle windshields. Visit www.nationalcycle.com for further details or call or write National Cycle Inc.

Ask for Shield Wash™ and RainZip® at your local dealer or visit

www.nationalcycle.com.

National Cycle, Inc. PO Box 158 Maywood, IL 60153-0158 USA P: 708-343-0400 / F: 708-343-0625 / E: [email protected] www.nationalcycle.com

Never operate your vehicle with loose accessory mounting hardware. Check the hardware for tightness regularly.

UTVs are built with enough frame rigidity to withstand the moderate loads imposed on them by the foreseeable addition of an accessory(ies). If an accessory(ies)

adversely affects your vehicle’s stability, immediately remove the accessory(ies). Do not operate a vehicle that exhibits unsafe handling traits.

Have experienced service personnel correct any problem before driving with the accessory(ies) installed. For further questions concerning handling problems associat-

ed with an accessory(ies), contact your dealer, UTV manufacturer, or accessory manufacturer.

Caution: Do not clean polycarbonate in hot sun or high temperatures. Do not clean the screen with glass cleaners. Certain chemicals, generally known as acidic hydro-
