National Vendors 682 User manual

CRANE NATIONAL VENDORS
Cafè Line
One (1) Year Warranty
Subject to the following conditions and exceptions, the entire Cafè line of OCSmachines is warranted
for one (1) year against defective parts and workmanship.
This warranty does not apply to the following:
1. Electrical components, wiring or circuits and/or all mechanical parts or assemblies damaged as
a result of operating machines at other than the designated voltage and frequency specified on
the Electrical Rating Tag;
2. Defects resulting from vandalism, fire or negligence;
3. Incandescent lamps, neon lamps, fluorescent lamps, ballasts, starters, filter paper cutter blades
or other expendable items;
4. CraneNational Vendors ("Crane") machines in which components, accessories or other devices
not originally part of the Crane product are installed;
5. Mechanical difficulties resulting from the use of improper filter paper;
6. Machine(s) that have been operated without an installed water filter or with an installed water
filter that was not fully functioning.
Craneis not responsible for any cost of service rendered or repairs made by oron behalf of customers
on machines or parts unless authorization to incur such expenses has been given in writing by Crane
prior to incurring such expense.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES. CRANE MAKES NO REPRE-
SENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WHETHER
AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER
MATTER.
CRANE'S LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES TO CUSTOMERS
RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING CRANE'S NEGLIGENCE,
ALLEGED DAMAGE OR DEFECTIVE GOODS, IRRESPECTIVE OF WHETHER SUCH
DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE REPAIR
OR REPLACEMENT OF DEFECTIVE OR DAMAGED GOODS OR, AT THE ELECTION OF
CRANE, THE PURCHASE PRICE OF THE PARTICULAR GOODS WITH RESPECT TO WHICH
LOSSES OR DAMAGES ARE CLAIMED. CRANE RESERVES THE RIGHT TO REPLACE OR
REPAIR DEFECTIVE OR DAMAGED GOODS WITH REMANUFACTURED PARTS OR
MACHINES. ANY PART OR PARTS THAT ARE PROVEN TO BE DEFECTIVE WITHIN ONE
(1) YEAR OF THE DATE OF SHIPMENT WILL BE REPAIRED OR REPLACED, OR THE PUR-
CHASE PRICE REFUNDED, WHEN THE DEFECTIVE PART IS RETURNED, WITH TRANS-
PORTATION CHARGES PREPAID, TO THE DESTINATION DESIGNATED BY THE CRANE
WARRANTY DEPARTMENT. CRANE SHALL PROVIDE, AT NO CHARGE TO CUSTOMER,
PARTS AND MACHINES FOR WARRANTY REPAIRS AND REPLACEMENTS. CUSTOMER
SHALL PAY ALL LABOR COSTS WITH RESPECT TO WARRANTY REPAIRS.
IN NO EVENT SHALL CRANE BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAM-
AGES. CRANE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO ASSUME FOR IT
ANY OBLIGATION OR LIABILITY IN CONNECTION WITH THE SALE OF MACHINES OR
ANY PART THEREOF.
CRANE National Vendors
12955 Enterprise Way
Bridgeton, Missouri 63044
www.nationalvendors.com

Set-Up Guide
May, 2000 Page i 6800063
Table of Contents
SPECIFICATIONS ........................................................................................... 1
CAPACITIES ................................................................................................ 1
SELECTIONS ............................................................................................... 1
DIMENSIONS............................................................................................... 1
Machine...................................................................................................... 1
Optional Base Cabinet................................................................................ 1
Optional Monetary Unit ............................................................................. 1
SPECIFICATIONS (CONTINUED) ................................................................ 2
WEIGHT........................................................................................................ 2
WATER TANK ............................................................................................. 2
POWER REQUIREMENTS.......................................................................... 2
SITE REQUIREMENTS................................................................................... 3
Power Supply ............................................................................................. 3
Water Supply.............................................................................................. 3
Water Pressure............................................................................................ 3
Clearances .................................................................................................. 4
MACHINE INSTALLATION .......................................................................... 5
Counter Top Installation............................................................................. 5
Water Line Connection .............................................................................. 5
Sealing The Unit To The Counter Top....................................................... 6
INSTALL FILTER PAPER .............................................................................. 7
SET UP THE MENU INSERTS ....................................................................... 8
FILL THE MACHINE ...................................................................................... 9
Fill the Tank................................................................................................... 9
Fill the Canisters.......................................................................................... 10
CONTROLS AND DISPLAYS ...................................................................... 11
NORMAL OPERATION................................................................................ 12
PROGRAMMING........................................................................................... 13
Configure the Machine ................................................................................ 13
Adjust Products/Drink Profiles/Select Blend Configuration....................... 17
Configuration List and Memory Initialization List...................................... 21
Enable/Disable Programming Keys............................................................. 21
Enable/disable paper cutter.......................................................................... 21
Clear Data Counters..................................................................................... 22
Memory Initialization .................................................................................. 22
Enable Coin Mechanism.............................................................................. 23
Data.............................................................................................................. 24
View Machine Errors................................................................................... 26
One Button Push Service Functions ............................................................ 28
Monetary Unit Option.................................................................................. 29

Set-Up Guide
6800063 Page ii May, 2000
CUTTER CLEARING PROCEDURE............................................................ 30
To Clear The Jam:.................................................................................... 30
CLEANING AND SANITATION.................................................................. 31
How Do I Sanitize? .................................................................................. 31
A Good Place To Start -- Your Sanitation Kit............................................. 32
Sanitation Procedures .................................................................................. 32
Food-Contact Parts................................................................................... 32
Non Food-Contact Parts........................................................................... 34
Overall Cleaning .......................................................................................... 34
Sanitation Intervals ...................................................................................... 35

Set-Up Guide
May, 2000 Page 1 6800063
CAPACITIES
• Preground coffee, regular or decaf ............................2 lbs. (large canister);
• Hot chocolate....................................................... 3 1/2lbs. (large canister);
• Soluble product..........................................................3 lbs. (large canister);
SELECTIONS
DIMENSIONS
MACHINE
• Height ............................................................................................... 17 1/2”
• Width (Café III) .................................................................................16 1/4"
• Width (Café IV).................................................................................19 1/4"
• Depth....................................................................... 20.00” (largest overall)
OPTIONAL BASE CABINET
• Height ....................................................36" including 6" skirt and levelers
• Width .................................................................................................19 1/4"
• Depth....................................................................... 20.00” (largest overall)
OPTIONAL MONETARY UNIT
• Height ............................................................................................... 17 1/2”
• Width .................................................................................................. 4 3/4”
• Depth..................................................................................................18.00”
CAFÉ III CAFÉ IV
DUAL
FB
Fresh brew coffee without whipper
Fresh brew decaf without whipper
Blended drink
Hot water
Fresh brew coffee without whipper
Fresh brew decaf without whipper
Hot chocolate with whipper
Blended drink
Hot water
SINGLE
FB
Fresh brew coffee without whipper
Hot chocolate with whipper
Blended drink
Hot water
Fresh brew coffee without whipper
Soluble product with whipper
Hot chocolate with whipper
Blended drink
Hot water
ALL
SOLUBLE
Soluble product with whipper
Hot chocolate with whipper
Blended drink
Hot water
Two soluble products with whipper
Hot chocolate with whipper
Blended drink
Hot water
SPECIFICATIONS

Set-Up Guide
6800063 Page 2 May, 2000
WEIGHT
• Café III......................................................................................75 lbs. (est.)
• Café IV......................................................................................85 lbs. (est.)
• Optional Base Cabinet............................................................105 lbs. (est.)
• Optional Monetary Unit............................................................20 lbs. (est.)
WATER TANK
• Capacity.......................................................................................3/4 Gallon
• Water Valves (Café III) (Option dependent)...............................................3
• Water Valves (Café IV) (Option dependent)...............................................4
• Domestic Heating Element.....................................1250 watts @ 115 VAC
• International Heating Element................................2000 watts @ 230 VAC
POWER REQUIREMENTS
• Domestic...............................................115 VAC / 60 Hz - 15 Amp Circuit
• International......................................... 230 VAC / 50 Hz - 10 Amp Circuit
• INDOOR USE ONLY
Your machine comes from the factory preset and ready to produce drinks. Just
connect it to utilities, fill the water tank, and load filter paper, menu inserts, and
products. To change any settings, perform maintenance, or clean and sanitize
your machine, refer to the appropriate sections later in this manual.
SPECIFICATIONS (CONTINUED)

Set-Up Guide
May, 2000 Page 3 6800063
POWER SUPPLY
Ensure the machine has its own electrical circuit. NOTE - DOMESTIC UNITS -
The internal 4-amp fuse ONLY protects the electronics inside the machine. The
unit is provided with a 10 foot power cord and a polarized grounded plug. Use
only a polarized grounded receptacle. Always follow national and local codes.
• Domestic and Canada ...........................115 VAC / 60 Hz - 15 Amp Circuit
• International......................................... 230 VAC / 50 Hz - 10 Amp Circuit
WATER SUPPLY
The best type of water for coffee brewing is normal tap water, filtered to remove
sediment, dirt, and chlorine. National Vendors recommends the Hydrolife Brand
or the Everpure Brand - Model “OCS” filter products to provide the proper level
of filtration. If your location has chemically softened water, do one of the fol-
lowing:
• Install a non-softened water supply line to the machine location.
• Contact your local water filter supplier for information and suggestions.
• Use a bottled water source with the optional electric water pump.
An easily accessible shut off valve up stream of the machine is highly recom-
mended. This will simplify installation of the unit. Always follow national and
local codes.
WATER PRESSURE
• Maximum water pressure ..................................................................80 PSI
• Minimum water pressure ...................................................................20 PSI
SITE REQUIREMENTS

Set-Up Guide
6800063 Page 4 May, 2000

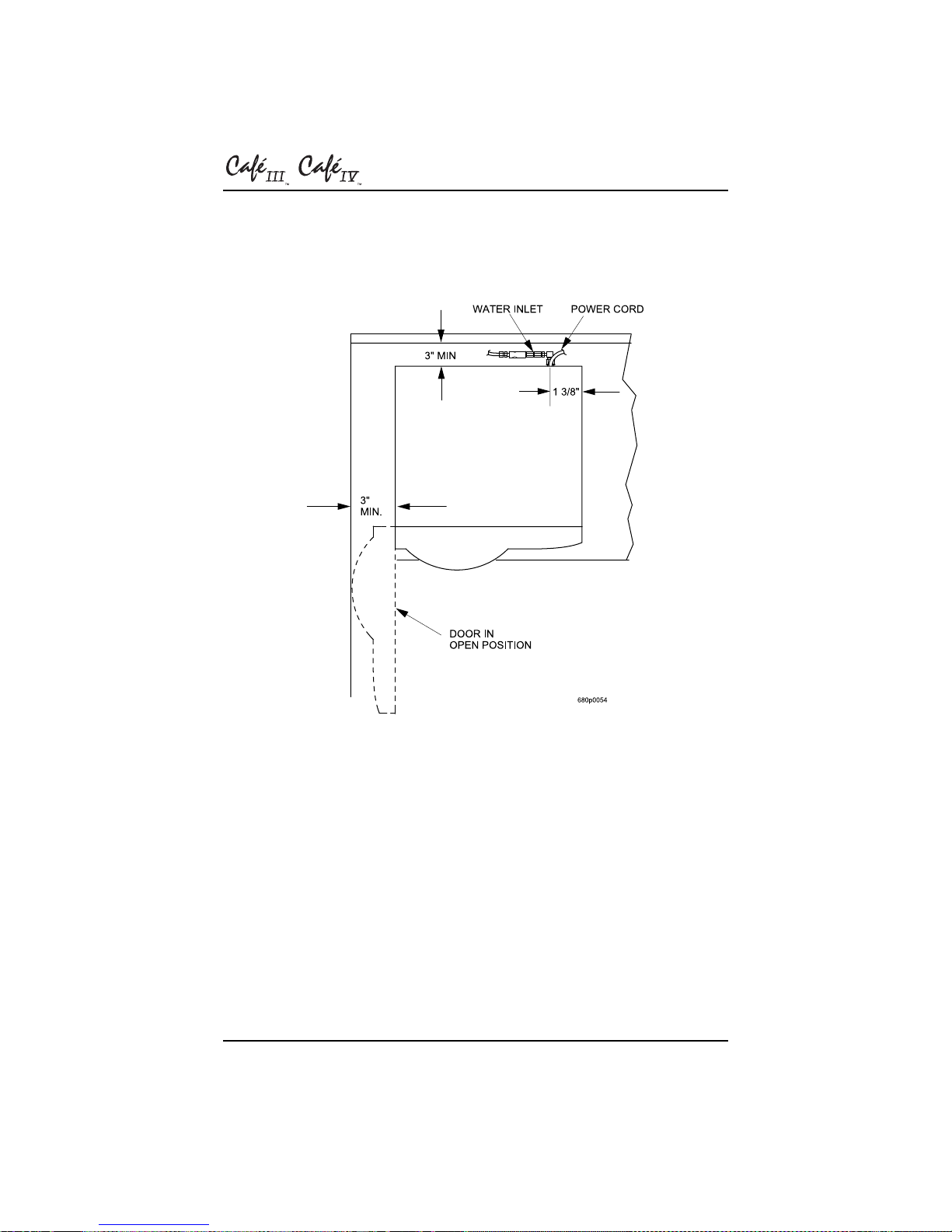

CLEARANCES
The power cord and water connections are on the back of the unit. Three (3)
inches of clearance is recommended at the back of the machine. Each side of the
unit should have at least three (3) inches of clearance. This will allow for key
access on one side and door swing on the other..

Set-Up Guide
May, 2000 Page 5 6800063
To protect property and provide safety, installation should be
completed by properly trained personnel, and in accordance
with local and national codes.
This single cup brewer may be installed on a counter top or on the optional
factory supplied base. If the base option is used follow the instructions included
with it.
COUNTER TOP INSTALLATION
SET AND SEAL
Locate the unit, make the water connection, plug in the unit, and seal the coffee
maker to the counter top with the gasket provided.
WATER LINE CONNECTION
STANDARD, OPTIONAL, AND FIELD SUPPLIED PARTS
The factory provides a check valve assembly and washer (shipped in the plastic
bag) which must be installed. A water filter and shutoff valve (optional) should
be upstream of this assembly. Any other components are field supplied. When
codes permit the use of plastic tubing, use appropriate inserts at the connections
to prevent collapse.
FLUSHING LINES
Water lines should be flushed before connecting to the machine. This will pre-
vent sediment from entering the unit.
MACHINE INSTALLATION

Set-Up Guide
6800063 Page 6 May, 2000
SEALING THE UNIT TO THE COUNTER TOP
FACTORY AND FIELD SUPPLIED PARTS
A sealing strip is supplied by the factory. Remove the paper back from a section
of the strip and apply to the base. Work a length at a time going completely
around the base of the unit. Seal must contact both the unit and the counter top.
No other parts are needed for this operation.

Set-Up Guide
May, 2000 Page 7 6800063

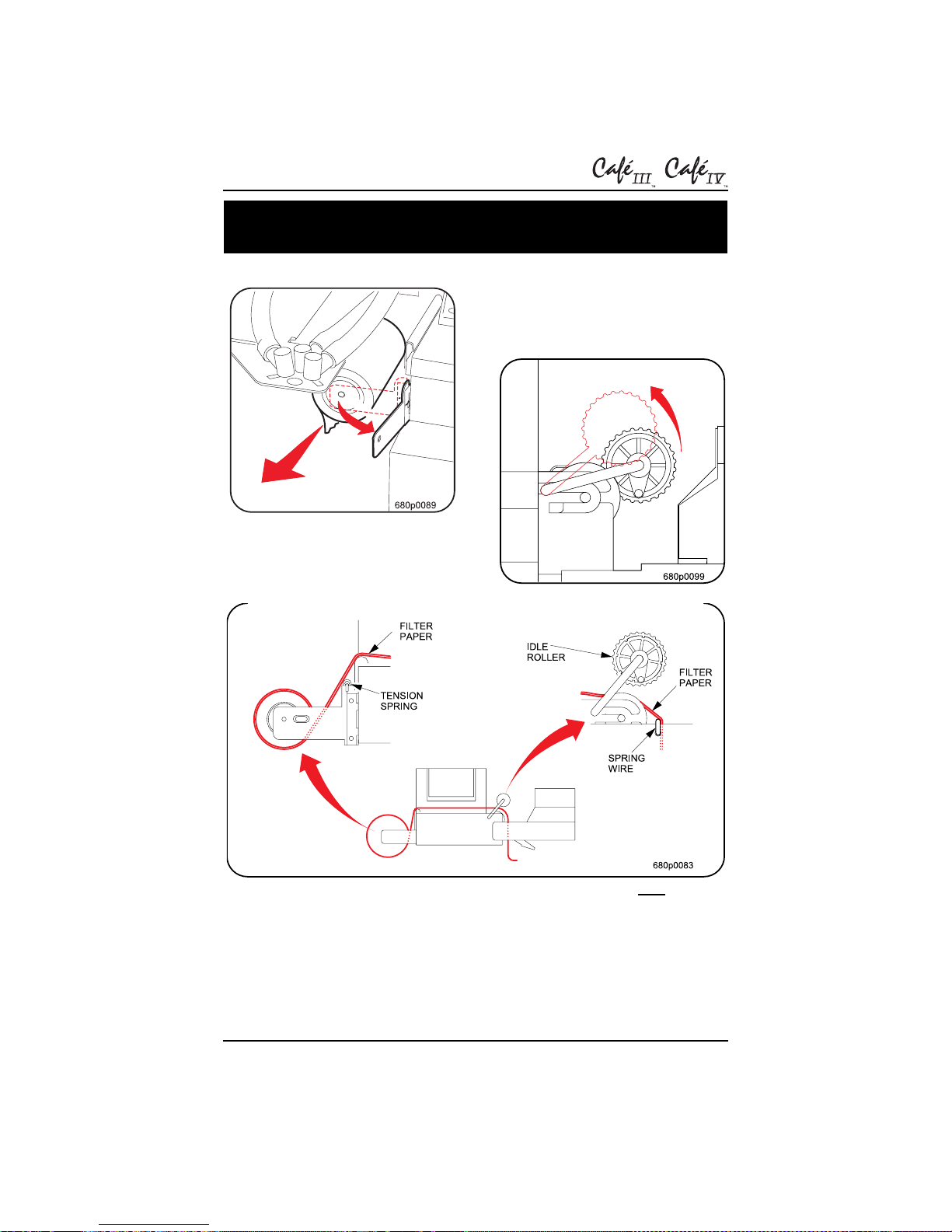

INSTALL FILTER PAPER
1. (Wash your hands first). Remove the spent filter paper roll:
a. Swing the filter paper holder out
and pull the spent roll from the
shaft.
b. Lift the idler roller as shown,
freeing the paper.
c. Discard the spent filter paper.
2. Install a new roll so it feeds from the bottom. Be sure it goes over the ten-
sion spring as shown.
3. Route the filter paper as shown. Lift the idler rollers, feeding the paper
under them, but over the spring wire.
4. Close the unit’s door and make one test drink.
5. Open the door and check to see if the filter paper advanced properly. Close
the door for normal operation.

Set-Up Guide
6800063 Page 8 May, 2000

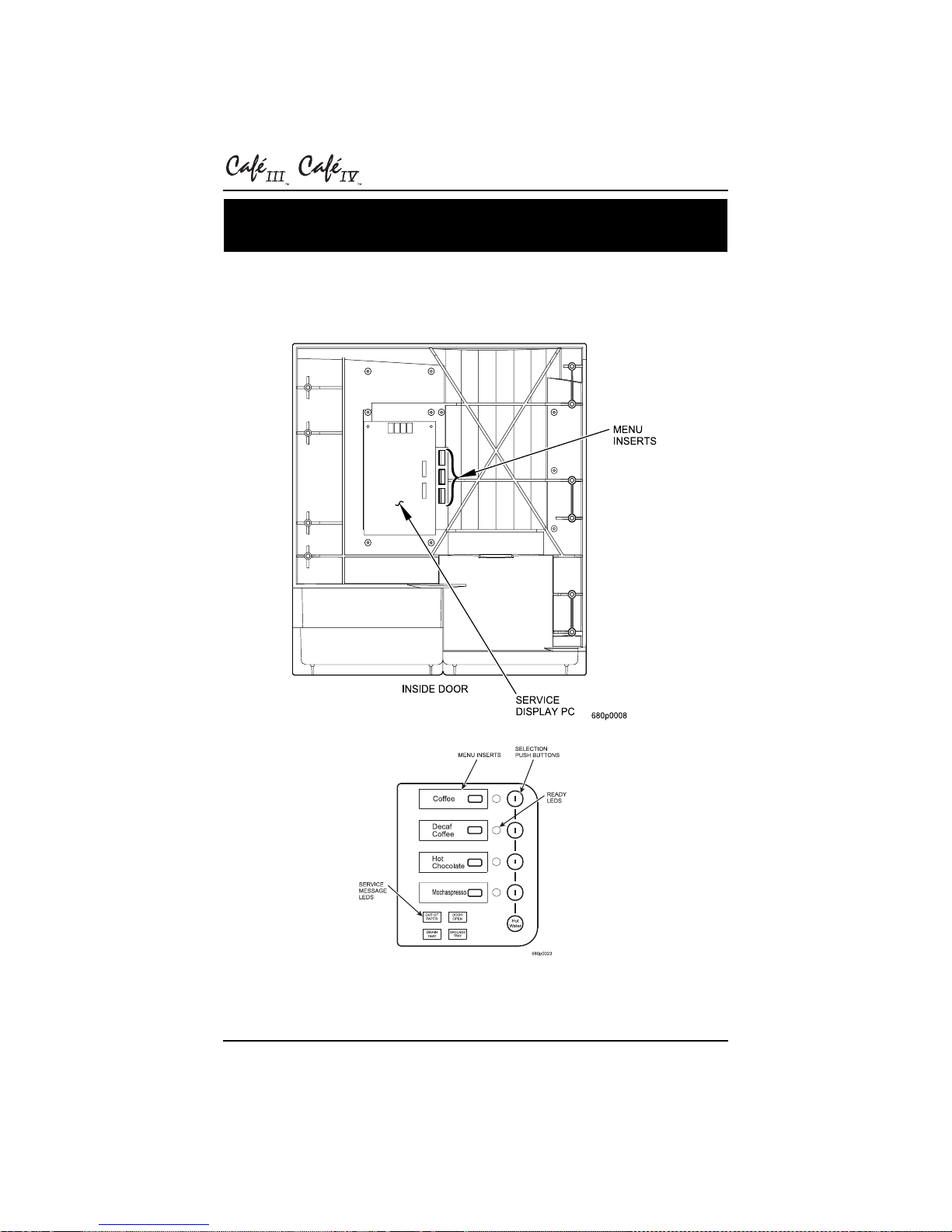

One sheet of menu inserts is included with your machine. Separate inserts from
the sheet as appropriate for your machine’s drinks. Attach the stickers for cup
size and (if you have a monetary unit) price. Place the inserts into the door slots
from the rear as shown.
SET UP THE MENU INSERTS
Typical menu inserts viewed from the front of the machine (Café IV shown).
Café IV Shown

Set-Up Guide
May, 2000 Page 9 6800063
FILL THE TANK
1. Press on the service keypad. Provided the upper (or upper AND
lower) tank probe is dry, the tank inlet valve will open until liquid is detected
by the upper probe.
NOTE
The machine will not dispense drinks until the tank tempera-
ture reaches its desired operating range. (To override this, see
step 2d , page 14.)
FILL THE MACHINE

Set-Up Guide
6800063 Page 10 May, 2000
FILL THE CANISTERS
1. (Wash your hands first.) Turn the
product chutes up to prevent spilling.
2. Pull the canister shelf forward.
3. Fill each canister. Maximum fill
level is one inch below the top of the
canister. Do not overfill.
4. Push the canister shelf back into the
cabinet until it “clicks” in place.
5. Turn the canister chutes back
down. The chutes must be resting on
the chute stops or pointed straight
down. Close the door for normal
operation.

Set-Up Guide
May, 2000 Page 11 6800063
Café IV Shown
NOTE
The following messages are only visible when the LEDs
behind them are lit.
•OUT OF PAPER - Lights when the paper roll is empty, preventing any
brewed selections from dispensing. The paper roll must be replaced to
clear this indicator. NOTE: The brewed selection READY LEDs are off.
•GROUNDS TRAY - Lights when the drink counter has reached its limit
or the grounds tray is not fully seated, preventing any brewed selections
from dispensing. Completely remove and empty the spent grounds before
reseating the grounds tray to clear this indicator. NOTE: The brewed
selection READY LEDs are off.
•DRAIN TRAY - Lights when the drain tray is either full of liquid, or is
not fully seated, preventing any selections from dispensing. Completely
remove, empty any liquid, and reseat the drain tray to clear this indicator.
NOTE: All selection READY LEDs are off.
•DOOR OPEN - Lights when the front door is not fully closed, preventing
any selections from dispensing. NOTE: All selection READY LEDs are
off.

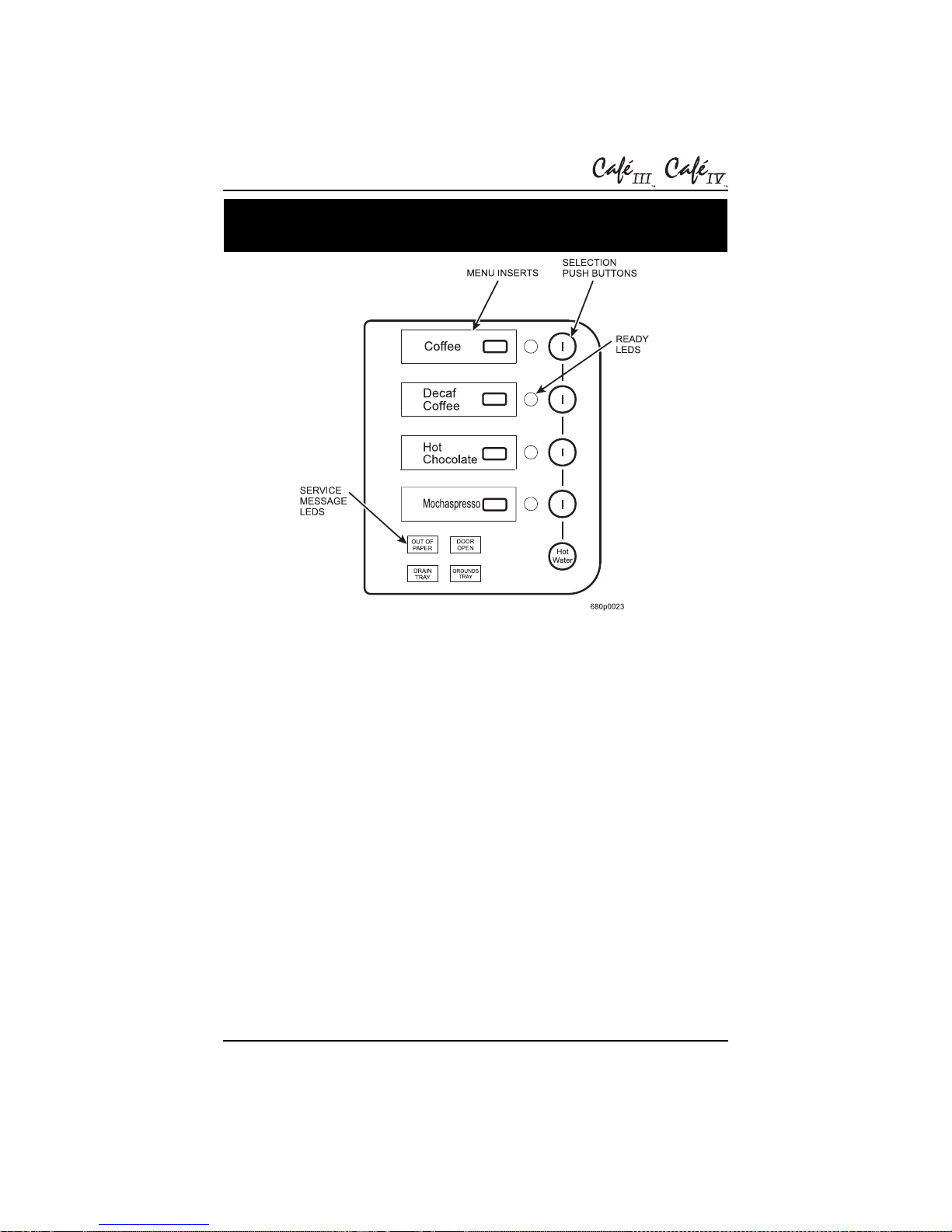

CONTROLS AND DISPLAYS

Set-Up Guide
6800063 Page 12 May, 2000
When the machine is ready to dispense (all product canisters full and no errors
present), each selection’s READY indicator is lit.
1. Making a single cup:
a. Press the selection key. (Press twice for an extra strong drink.)
While dispensing is in progress, the READY light flashes. (The
ready light will flash at a different rate for an extra strong selec-
tion.) All other selection indicators are no longer lit.
b. Upon completion of dispensing, all READY indicators light again.
2. Dispensing hot water:
a. Press and hold the hot water button. Upon release the water will
stop. Maximum dispense is 12 oz.
NORMAL OPERATION

Set-Up Guide
May, 2000 Page 13 6800063
A. Configure the Machine
There are two sets of DIP switches (SW1 and SW2) on the service display board
(mounted on the back side of the door) (Figure 1). Please note that the switch
settings shown are not necessarily correct for your particular machine.
WARNING
Remove power from the machine before removing the cover
from this service display board. Leave power OFF until the
machine has been configured and the cover is replaced over the
board.
PROGRAMMING
Figure 1. DIP Switches

Set-Up Guide
6800063 Page 14 May, 2000
Place these switches in the YES or NO position, depending on the answers to the
following questions:
1. Selections 1 - 3:
a. Is it freeze dried?
b. Is it chocolate?
c. Is it a soluble product (for example, gourmet coffee)?
d. Will it be whipped? (Applies only to non-brewed drinks.)
e. Answer those same four questions for the remaining selections in
your machine.
NOTE
For a Café III, selection 3 DIP switches should all be set to
the NO position because the Café III has two selections. For
a Café IV, at least ONE of these MUST be set to the YES
position to enable the third selection.
If selections 1 and 2 are fresh brewed, all switches for those
selections should be in the NO position.
2. The following four switches are for miscellaneous configuration:
a. Small cup size? A “yes” answer configures for the 8.25 oz cup
size; a “no” answer configures for the 12 oz. cup size.
b. BREW/HI - LO TEMP switch. In a fresh brew machine, the
BREW/HI position selects a 202º F water tank setpoint. The LO
TEMP position selects a 195º F setpoint.
NOTE
In a freeze dried machine, the BREW/HI position selects a
195º F water tank setpoint. The LO TEMP position selects a
185º F setpoint.
c. Large grounds? A “yes” answer is large grounds; a “no” answer is
small grounds. (The large grounds pail is only available with the
optional base.)
d. Are you going to serve cool drinks? (This allows the machine to
dispense when the tank temperature is below the setpoint.) Note
that this setting is NOT recommended for brewed drinks, because
coffee quality deteriorates at temperatures below 185º F.

Set-Up Guide
May, 2000 Page 15 6800063
This figure shows the selection keypad “mapping”. Refer to this map for the
blend configuration on page 17, and the data section beginning on page 24.
Figure 2. Selection Keypad “Mapping”

Set-Up Guide
6800063 Page 16 May, 2000
All other adjustment and maintenance functions are performed using the internal
service keypad (Figure 3).
Figure 3. Service Keypad
