OWNER’S MANUAL: NavePoint 42U Server Cabinet
Keep this information for further reference.
Thank you for purchasing a NavePoint product. If you have any questions regarding the installation or use of your product, please
call us at 888.505.1363.
Please examine the product for any damaged parts. If any part is damaged or missing, contact NavePoint for assistance. Do not
attempt to install or use product if it has been damaged.
Improper installation or use of this product could result in damage to the product, other equipment, or personal injury. NavePoint
cannot be held responsible for damage to equipment or personal injury resulting from improper use or installation of product. If
product is intended to store/mount equipment, please ensure the equipment stored/mounted does not exceed the specified weight
capacity.
Limitations of Liability: In no event will NavePoint, LLC. be liable for any damages, whether direct or indirect, special, punitive,
incidental or consequential damages (including, but not limited to, lost profits or revenue, loss of use, lost business opportunities or
loss of goodwill) or for the costs of procuring substitute products, arising out of or in connection with the use of the product,
whether such liability arises from any claim based upon contract, warranty, tort (including negligence), product liability or otherwise,
whether or not seller has been advised of the possibility of such loss or damage. In no event will seller’s total cumulative liability,
from all causes of action and all theories of liability, exceed the total amounts actually paid to seller by customer under the order
that gives rise to any liability hereunder.

www.NavePoint.com 2 [email protected]
1. Feature Identification
1- Front Door (Perforated or Glass)
2- Back Door
3- Removable Side Panel (4x)
4- Top Panel (Fan Compatible or Cable Management)
5- Bottom Panel
6- Vertical Mounting rails (4x)
7- Cable Management Rails (2x)
8- Casters (4x)
9- Levelers (4x)

www.NavePoint.com 3 [email protected]

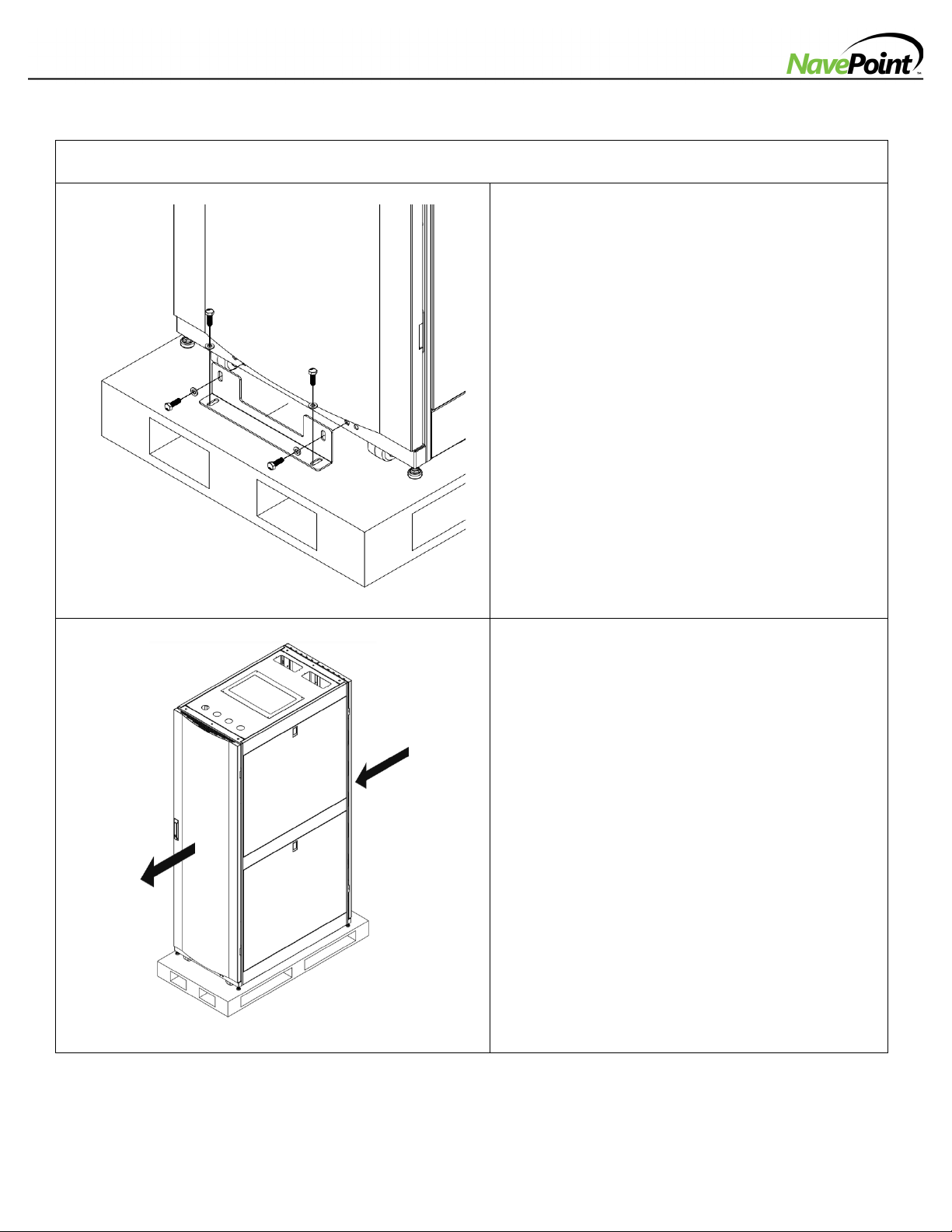

2. Unpacking
Warning: Do not use a sharp blade to remove clear plastic wrap from cabinet. This could result in scratches/damage
to cabinet. The cabinet is very heavy, and you should use caution when unpacking the cabinet.
1: Use a wrench to remove L brackets (connected to
enclosure and wood pallet) on both sides. Be extremely
careful, as the enclosure could shift unexpectedly after
removing the brackets. Save the brackets/hardware for
later use.
WARNING: Two people should remove the cabinet
from the pallet. Be extremely careful when moving the
cabinet.
2: Position at least one person at the front of the
cabinet and one person at the rear of the cabinet.
Slowly push (or lift) the enclosure off the side of the
shipping pallet.
Use the casters to move the cabinet for a short distance
over a level, smooth, stable surface by pushing it from
the front or rear of the cabinet. Do not attempt to roll
the cabinet over long distances. The cabinet should be
moved close to its installation location before it is
unpacked. (Use a forklift or pallet jack to move the
shipping container.) WARNING: Do not pull the
cabinet toward you as it may result in injury.

www.NavePoint.com 4 [email protected]
-Leveling
Level the cabinet before attempting to install any equipment into the cabinet. The casters are not designed to provide
long-term support for the cabinet. Use the levelers to provide long-term support. Install the cabinet in a structurally
sound area with a level floor that can bear the weight of the cabinet, all equipment that will be installed in the cabinet
and any other cabinets and/or equipment that will be installed nearby.
1: After the cabinet has been moved to the
installation location, use a carpenter's level
to check the slope of the floor. If the slope is
excessive, choose an alternative location.
2: Use an open-end wrench to lower each
leveler until it contacts the floor.
3. Enclosure Configuration
-Door Locks
The front/back door and 4 side panels contain locks that are
lockable with the included keys.

www.NavePoint.com 5 [email protected]
-Reversing Front Door
1: Open the Front Door until it’s perpendicular to the Front Frame of the cabinet.
2: Disconnect the door’s ground wire.
3: Lift the door from the hinges and remove it from the Front Frame of the cabinet.
4: Remove the door hinges from the Front Frame.
5: Rotate both hinges 180 degrees and attach them on the opposite side of the Front Frame.

www.NavePoint.com 6 [email protected]
6: Rotate the Front Door 180 degrees.
7: Unscrew the Front Door Lock and rotate it 180 degrees. Reattach the Front Door Lock into the Front Door.
8: Unscrew two hinges inside of the Front Door, then reattach each of them using the holes above the original
position.

www.NavePoint.com 7 [email protected]
-Adding or Removing Side Panels
1: Unlock the Side Panel latches using Front Door/Back
Door keys.
2: Remove Side Panels by sliding the plastic latch
downward.
-Adding or Removing Top Panel
WARNING: Do not attempt to use the roof panel for weight-bearing purposes. Do not attempt to add or remove
the roof panel without assistance.
From inside of the enclosure, Pull the 2 pins near the rear of the roof panel and push the roof panel upward.

www.NavePoint.com 8 [email protected]
-Optional Cooling Fan for Fan Top Panel (Sold Separately)
1: Unscrew the perforated panel.
2: Attach Cooling Fan Panel into the opening on the Top Panel and fasten with screws provided.
-Adjusting Vertical Mounting Rails and Cable Management Rails
1: Each Vertical Mounting Rail is connected to the enclosure with 6 screws (1 pair at the top beam, 1 pair at the
middle beam and 1 pair at the bottom beam.
2: Adjust the rails by sliding them to the desired depth and secure them with the 6 screws described above.
3: Slide the mounting rails to the desired depth and reattach them.
The depth of the 2 Cable Management Rails can be adjusted using the same method. The rail attachment points are
numbered to help you align each pair of rails at the same depth.

www.NavePoint.com 9 [email protected]
-Combining (Baying) Cabinets
WARNING: Combining cabinets is not a substitute for stabilizing the cabinets. Each cabinet in a bay of combined
cabinets requires the same stabilizing measures as a standalone cabinet.
Each cabinet includes 4 baying brackets (2 on the Front Frame/2 on the Back Frame). Points A correspond to baying
connection points B on the adjoining cabinet. The baying connection points already contain screws.
1: As shown in above picture, remove the Front Door/Back Door and Side Panels of cabinets.
2: Remove the screw from each baying point B.
3: Loosen the screw in each baying bracket and turn each bracket 90 degrees toward the adjoining cabinet, aligning
each bracket with the corresponding baying connection point on the adjoining cabinet. If you want to leave a 10mm
gap between two cabinets, use the outside hole(C) of the bracket. If you want two cabinets to be connected without
any gap, use the middle hole(D) of the bracket.
4: After connecting all brackets and confirming that the cabinets do not need further adjustment, tighten all screws.

www.NavePoint.com 10 [email protected]
Limited Warranty
This NavePoint product is warranted to the original purchaser to be free from defects in material or workmanship for a
period of five (5) years from the original purchase date. This warranty does not cover defects or damage due to
improper installation, use, alteration, accident or any other event beyond the control of NavePoint. Defects or damage
resulting from misuse, abuse or negligence will void this warranty. This warranty does not cover scratches, dents or
other damage that may result from normal usage.
This warranty is nontransferable and is expressly limited to the replacement of the defective parts. During the warranty
period, NavePoint at its sole discretion, shall either replace the defective parts or product. Shipping charges and
insurance are not covered and are the responsibility of the purchaser. Any labor charges and related expenses for the
removal, installation or replacement of the product or its parts are not covered under this warranty. NavePoint reserves
the right to make substitutions to warranty claims if parts are unavailable or obsolete.
NavePoint shall not be liable for loss of use of the product or any other consequential or incidental costs, expenses or
damages incurred by the purchaser by using this product. This warranty is expressly in lieu of all other warranties,
expressed or implied, including warranties of merchantability or fitness for use to extent permitted by Federal and/or
state law. NavePoint does not assume any other liability in connection with this product.
All warranty claims must be made by contacting NavePoint customer service at [email protected]. A purchase
receipt or other proof of date of purchase will be required to process all warranty claims.
