Naviecare E308 User manual

LoRa Smart ID card
E308 User Manual
Version: V1.0.0
Date: 2019-3-28

E308 Smart ID card_User manual_V1.0.0
Naviecare www.naviecare.com
- 1 -
Document Revision Record
Copyright Notice
All contents in the files are protected by copyright law, and all copyrights are reserved by Naviecare Ltd. Without
written permission, all commercial use of the files from Naviecare are forbidden, such as copy,
distribute,reproduce the files, etc., but non-commercial purpose, downloaded or printed by individual are
welcome.
Disclaimer
Naviecare Ltd reserves the right to change, modify or improve the document and product described herein . Its
contents are subject to change without notice. These instructions are intended for you use at your own risk .
Version
Time
Description
Remark
V1.0.0
2019-03-28
Preliminary version
Ming

E308 Smart ID card_User manual_V1.0.0
Naviecare www.naviecare.com
- 2 -
Table of contents
1. Description.............................................................................................................................................................................4
Application......................................................................................................................................................................... 4
2. Features.................................................................................................................................................................................. 4
3. Interface..................................................................................................................................................................................2
Table2.1 LED indicator.................................................................................................................................................... 3
3.2 Buttons......................................................................................................................................................................... 3
Table 2.2 Buttons and interface................................................................................................................................... 4
4. Specification.......................................................................................................................................................................... 4
Table 4.1 specification.................................................................................................................................................... 4
5. Operation guide（Platform）...........................................................................................................................................5
5.1 User platform..............................................................................................................................................................5
5.2 Staff management.................................................................................................................................................... 5
5.3 Device management.................................................................................................................................................6
5.4 Automatic attendance setting............................................................................................................................... 6
5.5 Alarm management.................................................................................................................................................. 7
5.6 Positioning.................................................................................................................................................................. 7
5.7 Positioning Map........................................................................................................................................................ 8
5.8 Safety inspection....................................................................................................................................................... 8
6. Device Operation guide..................................................................................................................................................... 9
6.1 Power on......................................................................................................................................................................9
6.2 Broadcast battery percentage.............................................................................................................................9

E308 Smart ID card_User manual_V1.0.0
Naviecare www.naviecare.com
- 3 -
6.3 Power off..................................................................................................................................................................... 9
6.4 SOS in emergency..................................................................................................................................................... 9
6.5 Broadcast Platform Instructions......................................................................................................................... 9
6.6 Broadcast signal strength of device.....................................................................................................................9
6.7 Inspection/Intelligent attendance........................................................................................................................ 9
6.8 Broadcast time......................................................................................................................................................... 10
6.9 Reset........................................................................................................................................................................... 10
7. Package.................................................................................................................................................................................10

E308 Smart ID card_User manual_V1.0.0
Naviecare www.naviecare.com
- 4 -
1. Description
E308 is an intelligent GPS tracker based on LORAWAN network transmission. It supports GPS and
Beidou dual-mode outdoor positioning and Bluetooth 4.0 indoor positioning. The positioning
accuracy is 10 meters outdoor and 3~5 meters indoor. Through the intelligent tracker , beacons ,
LoRaWAN gateway and platform , it can realize the real-time positioning of staff and visitors.Help
enterprises and institutions achieve personnel management and safe production.
Application
Construction
Factory
Hotel
Police system
Property
Petrochemical
2. Features
Staff real-time positioning
Smart attendance
Voice broadcast
SOS in emergency
Intelligent warning of dangerous areas
Geofence: Automatic alarm when the setting range is exceeded
External personnel management

E308 Smart ID card_User manual_V1.0.0
Naviecare www.naviecare.com
- 2 -
3. Interface
3.1 LED indicator
Table2.1 LED indicator
No
Status
Description
Remark
1
RGB Red
LED
indicator
Lights up for 5 seconds after turn on, accompanied by a startup ringtone
Lights up for 5 seconds when turned off, accompanied by a shutdown ringtone
Slowly flash when charging, 5S once
When fully charged, Red LED stop flash
Low battery (less than 30% power), continuous flash, 3S once
2
RGB
Green LED
indicator
When searching for a satellite, it lights up for 500ms, and turns off for 3S and then
lights up again
After the satellite is positioned, it will be extinguished after 5S
After the ibeacon is positioned,flashes every 5s
3
RGB Blue
LED
indicator
Submit a network request, flash when sending a request, 2S once
After joining the network successfully, it will go out after 5S
Data transmission, fast flashing 3 times, 500ms each time
If failed to join the network, it flashes 4 times in succession, 500ms each time.
4
Blue
indicator(
close to
buttons)
After pressing the POWER button, the light is on, 1S once
After pressing the SOS button, the light is on, 1S once
Received downlink message from platform , the SOS light flashes 3S once when is
not read
After pressing M key, the light is on, 1S once
After inspection successful, the M button light flashes 3 times, 1S once (the motor
vibration 500ms once)

E308 Smart ID card_User manual_V1.0.0
Naviecare www.naviecare.com
- 3 -
3.2 Buttons
No
Button/interface
Description
Remark
1
SOS button
Long press 3S, immediately report location and alarm information
When the platform sends a message, press 500ms to read
Short press 3 times (400ms once), broadcast signal strength of device
2
POWER button
Press and hold 3S to turn on the machine; press and hold 8S to turn off
the machine and the motor vibrates once.
Short press 3 times (400ms once) to broadcast the battery percentage
of device
3
Function button
Short press (500ms) for inspection
Short press 3 times (400ms once) to broadcast the current time
4
Reset button
Short press 1s to reset the device
5
SIM card slot
Insert SIM card(2G and NB-IoT version optional)
6
USB port
Charge the device
Use for upgrade
7
Charging port
charging
Table 2.2 Buttons and interface

E308 Smart ID card_User manual_V1.0.0
Naviecare www.naviecare.com
- 4 -
4. Specification
Parameter
Spec
Communication
Build in LoRa module，Frequency： CN470MHz
Bluetooth
Building in Bluetooth
Positioning
Outdoor GPS positioning and indoor Bluetooth positioning
Positioning accuracy
10 meters (outdoor) 3-5 meters (indoor)
Gyro
Build in gyro , Supports power saving mode in non-motion state
Battery
Rechargeable 1000mah lithium battery
Charging port
Micro usb
Speaker
1511 waterproof speaker, support voice broadcast and order delivery
Buttons
1-SOS button 2-Power button 3-Function button 4-Reset button
Battery life
More than 10hours（GNSS positioning interval 30s）
Dimensions
106.8*71*10.8mm
Waterproof
IP66
NFC
Support
Time sync
Time synchronization with GPS
LED indicator
Three color LED indicator
Location storage
support
Operation temperature
-20℃~40℃
Uplink frequency
customized
Positioning time
Cold start 38S hot start 1S Recapture <1S
Charging voltage
5V
Table 4.1 specification

E308 Smart ID card_User manual_V1.0.0
Naviecare www.naviecare.com
- 5 -
5. Operation guide（Platform）
5.1 User platform
Each company has a dedicated administrator account, and employee accounts are limited to their
own use.
5.2 Staff management
The company administrator account can add, delete, and modify staff info according to the needs of
the company.Unbind or bind the mobile number.

E308 Smart ID card_User manual_V1.0.0
Naviecare www.naviecare.com
- 6 -
5.3 Device management
After log in the administrator account , the device information of the smart card can be modified, can
remark or adjust the position of the Bluetooth beacon on the floor .
5.4 Automatic attendance setting
You can check the data of the staff's induction/departure time, working time, and whether the work
content is up to standard, achieve intelligent attendance and work assessment.

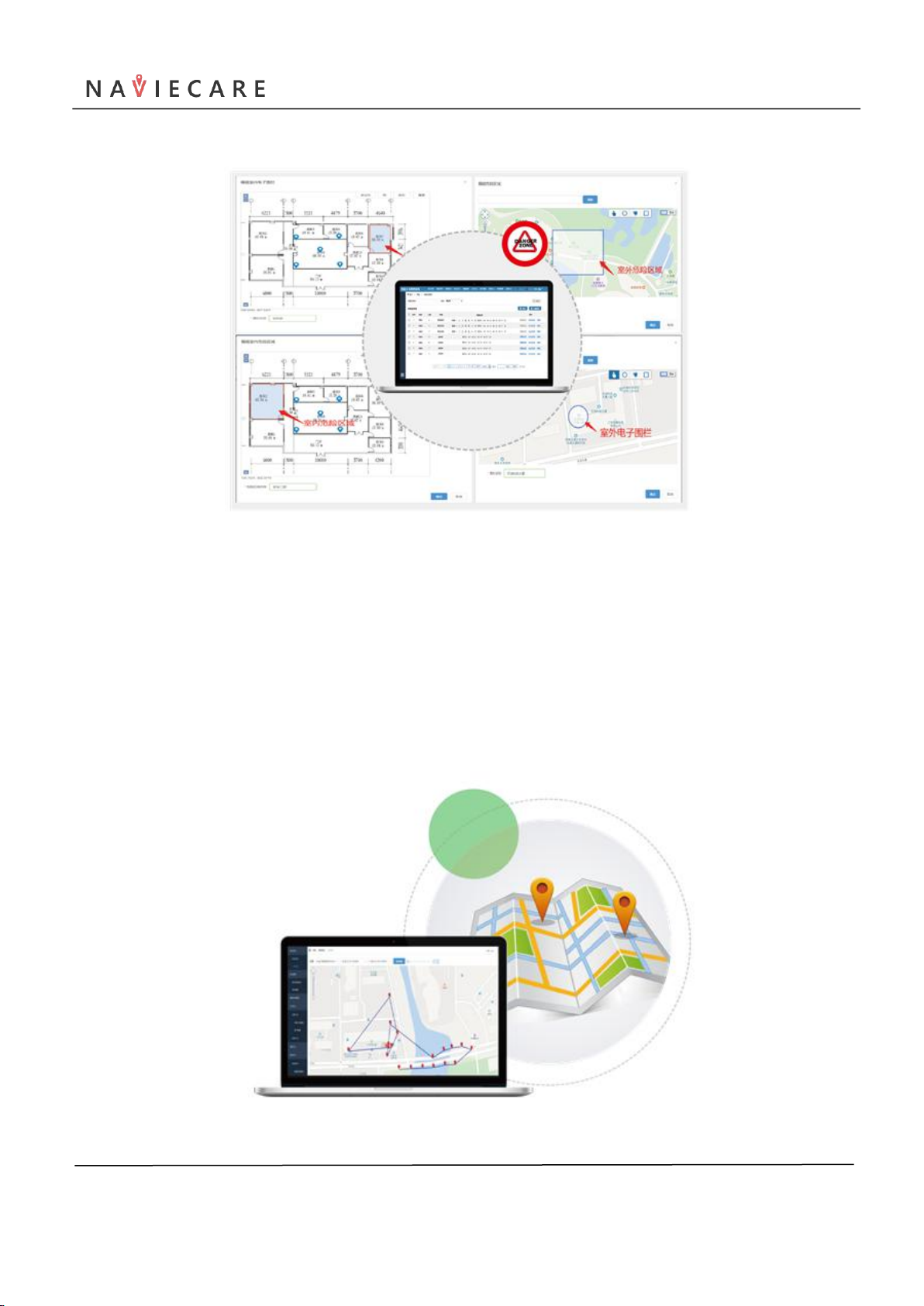

5.5 Alarm management

E308 Smart ID card_User manual_V1.0.0
Naviecare www.naviecare.com
- 7 -
Add, modify electronic fences and hazardous areas, and set up personnel who are allowed to enter
the area.
5.6 Positioning
The system records the historical activity track of the personnel, and inputs the personnel
information to view data such as the walking route and the length of stay in a certain area, which is
convenient for supervision management and optimization of operations.

E308 Smart ID card_User manual_V1.0.0
Naviecare www.naviecare.com
- 8 -

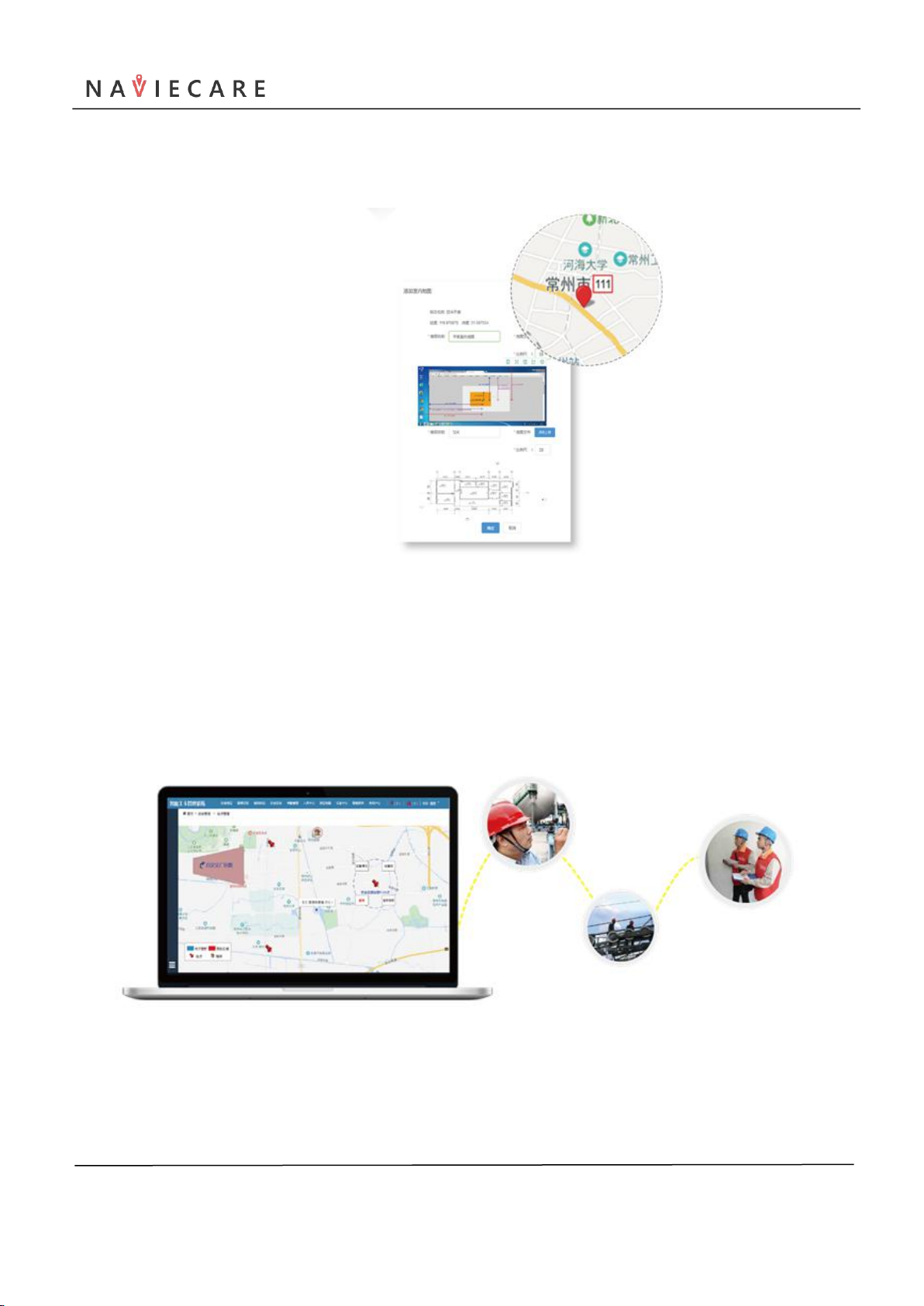

5.7 Positioning Map
The administrator can set the company’s geographic location on the map and upload an indoor map
at that location.
5.8 Safety inspection
The administrator sets the inspection point and the inspection task. The employee wears the staff
card for inspection. The administrator can view the employee 's inspection track on the platform.

E308 Smart ID card_User manual_V1.0.0
Naviecare www.naviecare.com
- 9 -
6. Device Operation guide
6.1 Power on
Press and hold 3S to turn on the device; RGB RED LED lights up for 5 seconds after turn on,
accompanied by a startup ringtone
6.2 Broadcast battery percentage
After powering on, press the POWER button for 3 times (400ms once) to broadcast the current
battery percentage of the device.
6.3 Power off
Press and hold the POWER button for 8S, the motor vibrates once for 500ms, and the device is turned
off with the shutdown ringtone.
6.4 SOS in emergency
Press and hold the SOS button for 3s to send a SOS message , the motor vibrates for 500ms after the
SOS alarm is successfully sent.
6.5 Broadcast Platform Instructions
After the platform sends a message, the SOS button blue light flashes 3S once (when the voice
command is sent, the motor continuously vibrates 3 times), press the SOS button for 500ms to
broadcast the platform message.
6.6 Broadcast signal strength of device
Press the SOS button three times (400ms once) to broadcast the signal strength of device.
6.7 Inspection/Intelligent attendance
Inspection: According to the inspection task, short press the M key once, the device will broadcast
“Enter the inspection mode” and report the inspection data. After successful inspection, the M

E308 Smart ID card_User manual_V1.0.0
Naviecare www.naviecare.com
- 10 -
button blue light flashes 3 times (1S once), the device voice broadcast "patrol successful", the motor
vibration is 500ms. If the inspection failed, and the device voice broadcast“GUGUGU”.
Intelligent attendance: Short press the M key once to enter the inspection mode and report the
attendance data. If attendance success, the M-key blue light flashes 3 times (1S once), the device
voice broadcasts "Attendance success", and the motor vibrates 500ms. if attendance failed, and the
device voice broadcast “Attendance Failure”
6.8 Broadcast time
Press the M button 3 times (400ms once) to broadcast the current time.
6.9 Reset
Short press reset button 1s to reset the device.
7. Package
Item
Method
QTY
Dimensions
G.W
Accessories
Remark
Smart
card
Gift box
1pcs/bo
x
USB charging cable , user
manual , gift card
40pcs/cartoon
